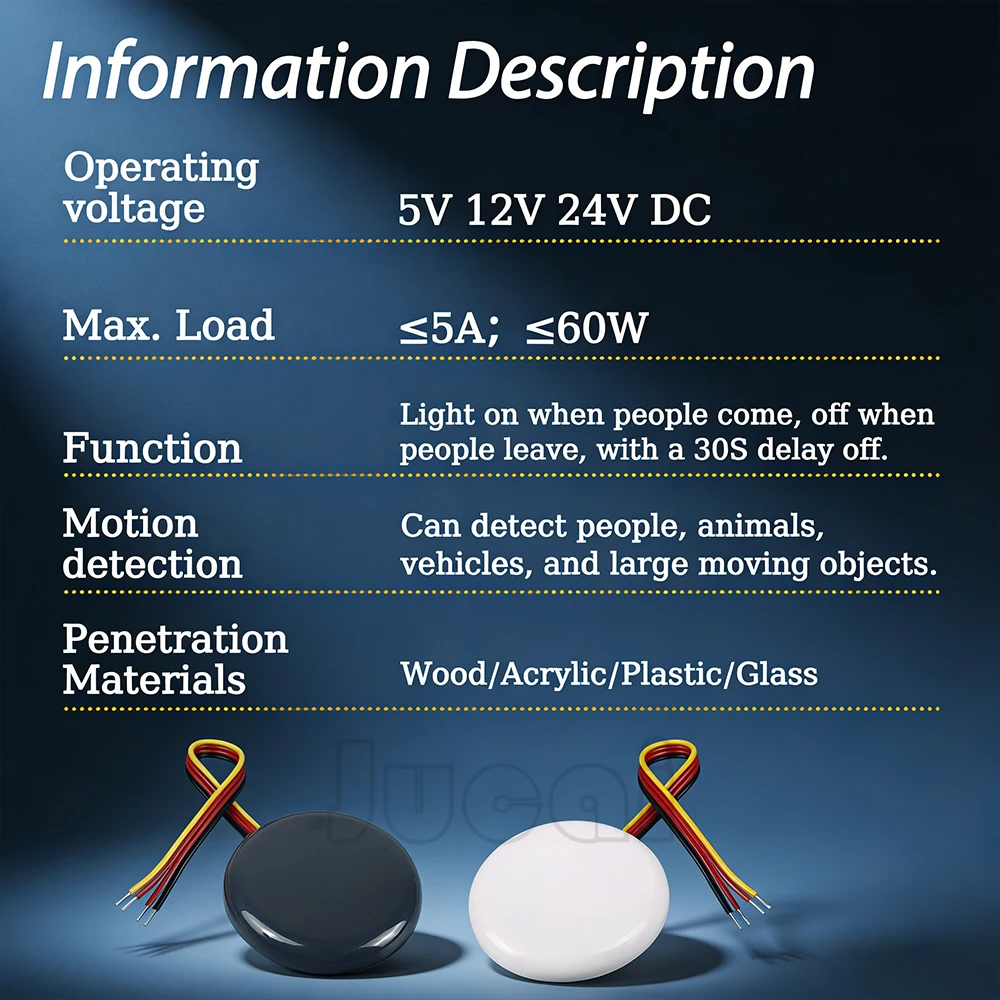

SPECIFICATIONS

Brand Name: IKSLED

Certification: RoHS,LVD,EMC,CE,CCC

Choice: yes

Customized: WhatsApp8615289643001

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Penetrable PIR sensor

Function: Light on when people come, off when people leave, with a 30S delay off.

High-concerned chemical: none

Is Smart Device: no

Material: Plastic

Max. Load: no more than5A;no more than60W

Model Number: F47 Radar Sensor Switch

Motion detection: Can detect people, animals, vehicles, and large moving objects.

Off time delay: 30 seconds

Origin: Mainland China

Penetration Materials: Wood/Acrylic/Plastic/Glass

Sensting distance: No over 25mm

Switch Type: Sensor Switch

Voltage: 5V/12V/24V DC

Warranty: 1 Year

📝 Product Description

1. Power Supply: Constant voltage DC 5V/12V/24V

2. Max. Load : ≤5A；≤60W

3. Sensing Distance: ≤ 25 mm (for reference)

4. Auto On/Off:

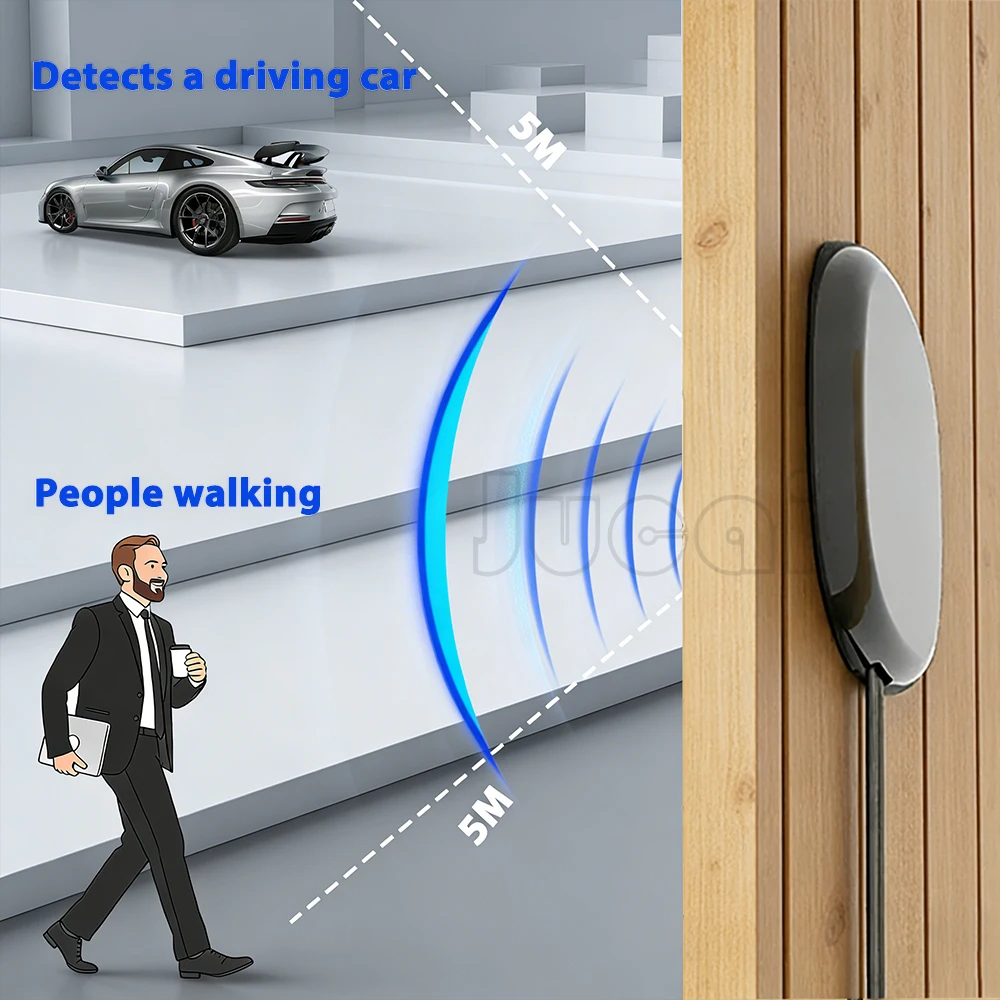

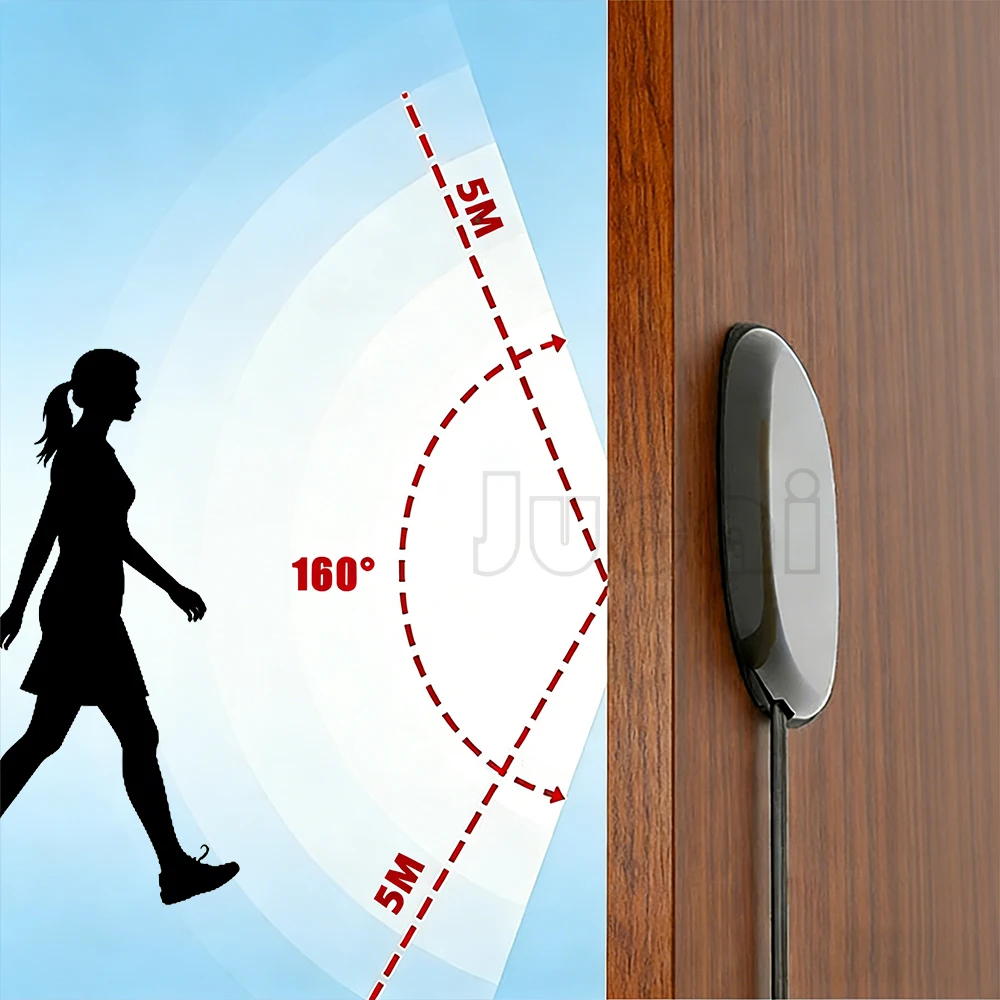

   • ON: When people approach within 0–5 m.

   • OFF: Turns off automatically about 30 s after people leave.

5. Operating Condition: 24-hour operation, day or night.

6. Sensing Materials: Can sense non-metallic materials such as wood, rock, stone, paper, acrylic, plastic, and glass.

7. Notes:

   • Induction sensitivity varies with material thickness; the thinner the material, the better the sensitivity.

   • Do not install too close to metal materials to avoid interference.
