SPECIFICATIONS
Brand Name: iXSolarleap
Certification: CE,FCC,RoHS
Choice: yes
Flexible Solar Panel: No
Foldable Solar Panel: No
High-concerned chemical: none
Max. Power: 25W
Model Number: UPS-25W
Module Efficien: 24%
Number of Cells: 6PCS
Number of Panels: >20
Origin: Mainland China
Rigid Solar Panel: Yes

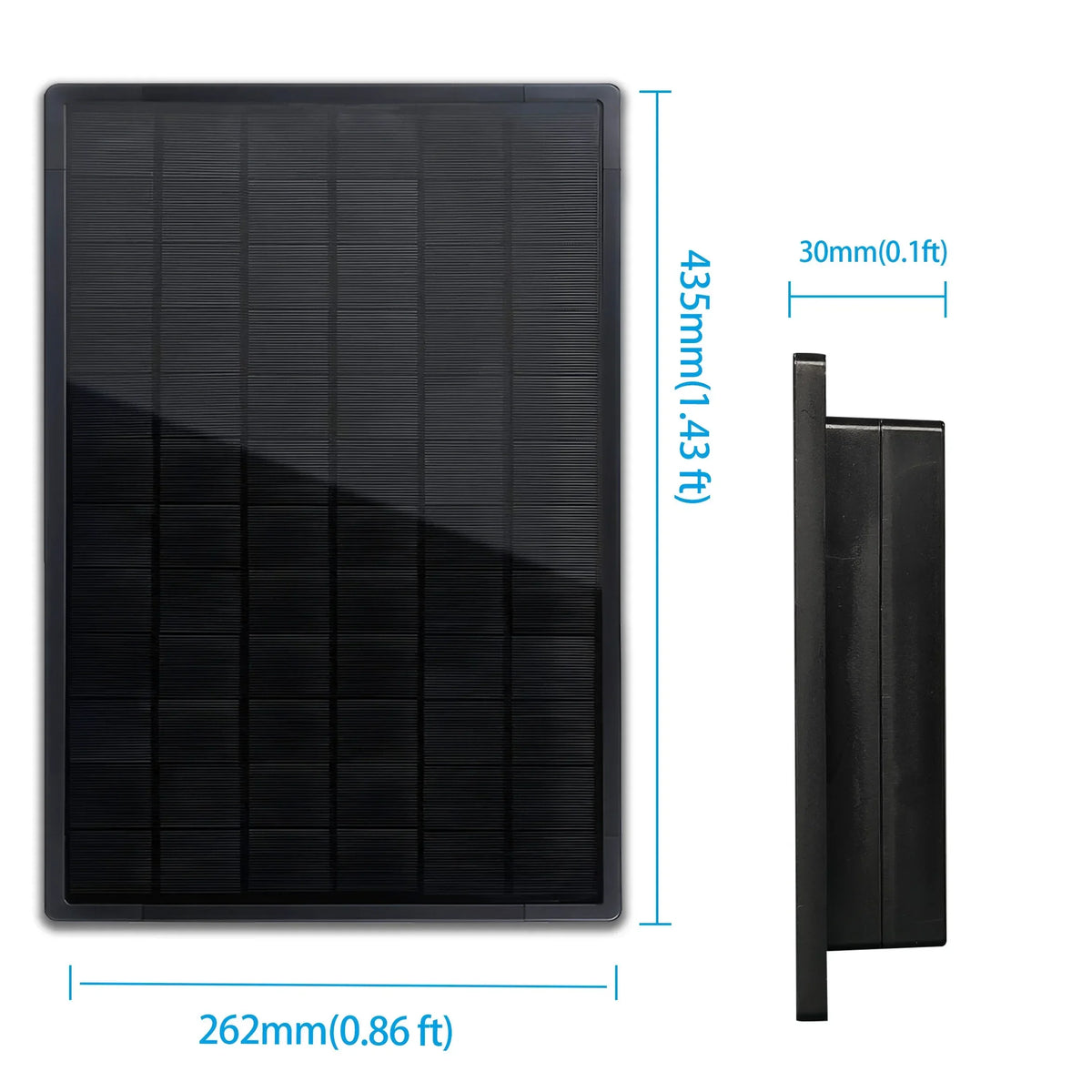

Size: 435X262mm
Type: Solar Panel
is_customized: Yes
semi_Choice: yes
All options do not include batteries!
Options
Option1:OUTPUT 5V,1.2A，USB/TPYEC/3513mm Plugs.
Option2:OUTPUT 6V,0.9A，USB/TPYEC/3513mm Plugs.
Option3:OUTPUT 9V,0.6A，USB/TPYEC/3513mm Plugs.
Option2:OUTPUT 12V,0.8A ，USB/TPYEC/3513mm Plugs.
1、【25W Solar Panel】
The solar panel generates 25W of power, with an output voltage of 15-18V and a current of 1.5A, ensuring that the power generated per day is sufficient for the router's consumption.
2、【Removable Battery】
Maximum 6PCS18650 batteries can be installed, capacitor capacity is not limited. Need to be purchased by the user.
3、【Built-in controllers】
The solar panel has a built-in MPPT controller, the charging efficiency is increased by 30%, and the battery will be full in 4-5 hours. And provide stable 12V1A power supply to ensure the router work stably.
4、【Smart switching】
When there is sufficient sunlight and the battery is charged to over 90%, the photovoltaic panel is automatically used as the power source to supply power to the device, ensuring that the energy converted from sunlight is not wasted. Only when there is insufficient sunlight is the power from the battery used to supply power to the device.
5、【IP66 waterproof】
IP66 waterproof design for use in harsh environments. Effective working temperature is from -15° to 65°.
6、【Power of connected devices】
After testing, installing a 3000mah capacity battery can provide 7X24 hours uninterrupted power supply for a 3W device.
Main Features:

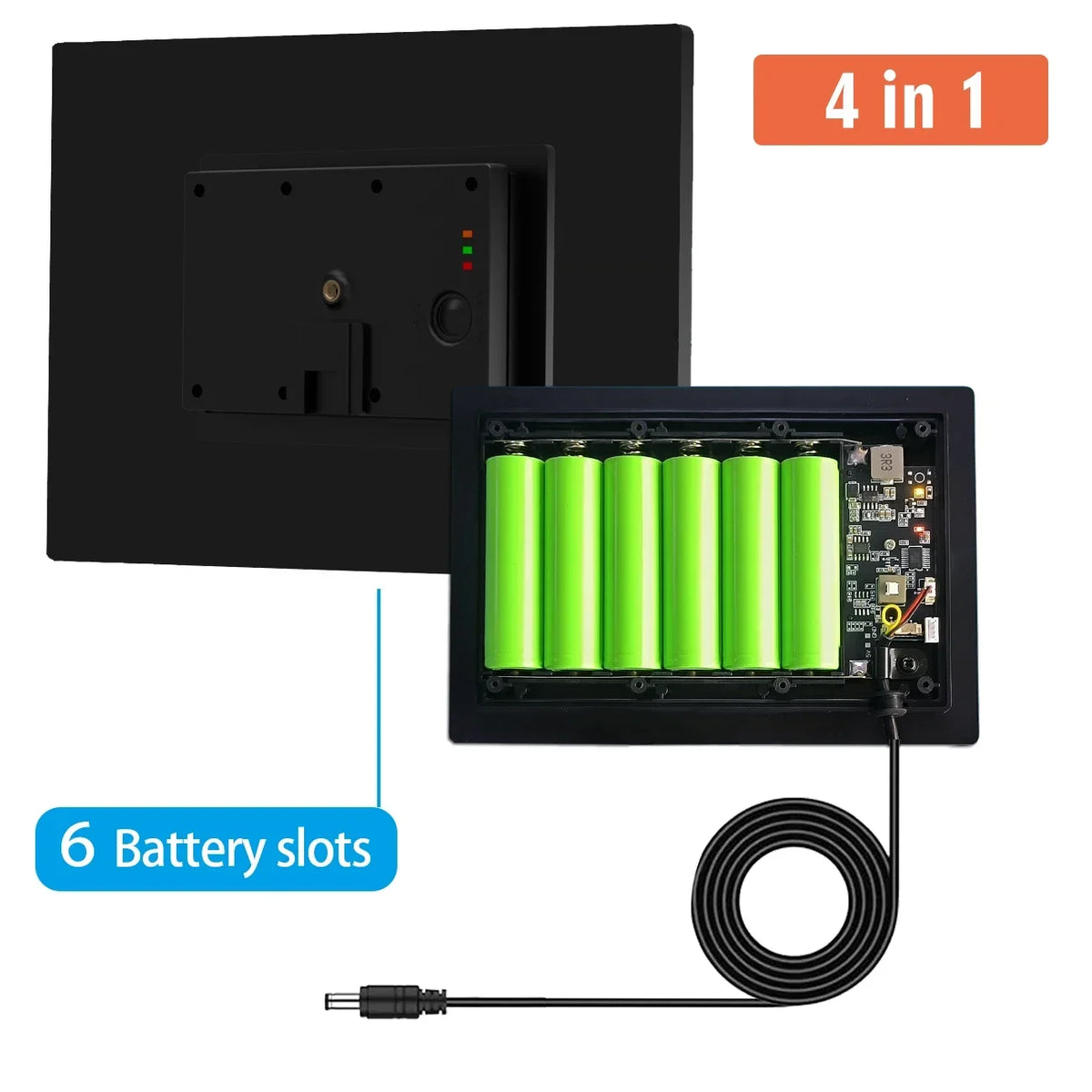

*【Batteries can be installed】There are 6 slots for 18650 batteries inside the solar panel, the slots are standard 18650 battery size, you can easily install the batteries.
*【Mcu Charge Management】Low power consumption MCU core processor, the whole panel charging and discharging for fine management, to ensure that the panel runs well.
*【Monocrystalline silicon solar panel cells】Solar cells use monocrystalline silicon, which has the highest conversion efficiency of 23%, to improve the efficiency of converting sunlight into electricity.
*【Constant Current Voltage Regulator Circuit PCB】Built-in PCBA to output stable 5V/6V/9V/12V voltage from the battery through constant current circuit to supply your device and keep him running well.
*【Solar & DC power input】The panel can be charged in two ways, you can charge him via sunlight or you can also charge the battery in the panel via a 5V2A power adapter.
*【Iindicator lamps】The back of the panel is designed with 3 status indicators, making it easy to understand the working status of the panel as well as troubleshooting.
*【Outdoor waterproof IP66】The panel is designed for outdoor use and is waterproof to IP66.
*【Overcharge and Overdischarge】The overcharge voltage is 4.25V and the overdischarge voltage is 2.8V, which protects your battery more safely and prolongs the life of the battery.
【MPPT】The panel has a built-in MPPT charging circuit to obtain the maximum power point of solar energy and effectively improve the charging efficiency.
25W SOLAT PANEL(Replaceable batteries)
This is a 25W solar panel that can be built-in 18650 battery. The battery type that users can easily change freely. The output power supply is 12V1A, which provides 7X24 hours power to the router.

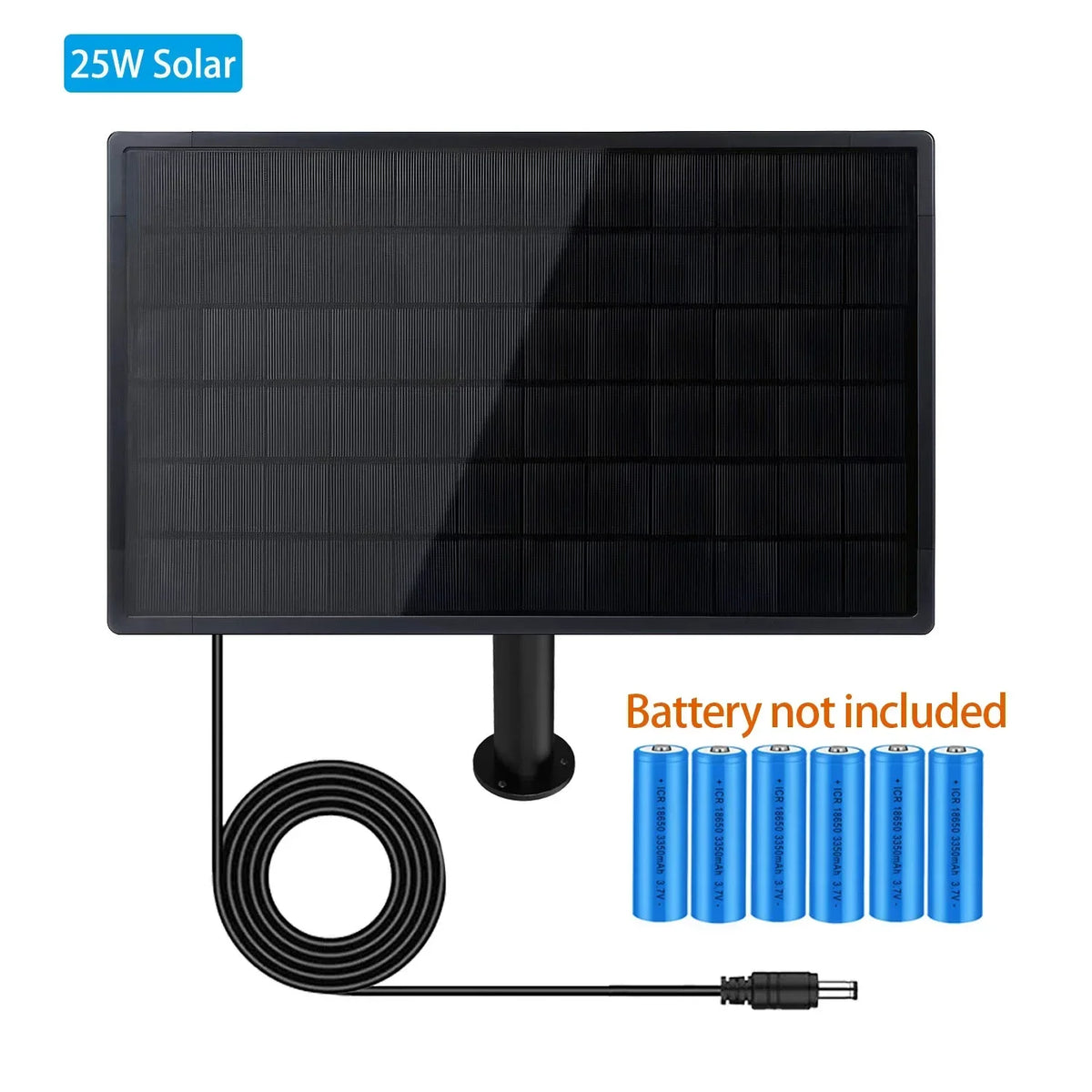

Batteries not included!!!If you can't buy 18650 batteries, do not purchase this product! Do not purchase it!!!

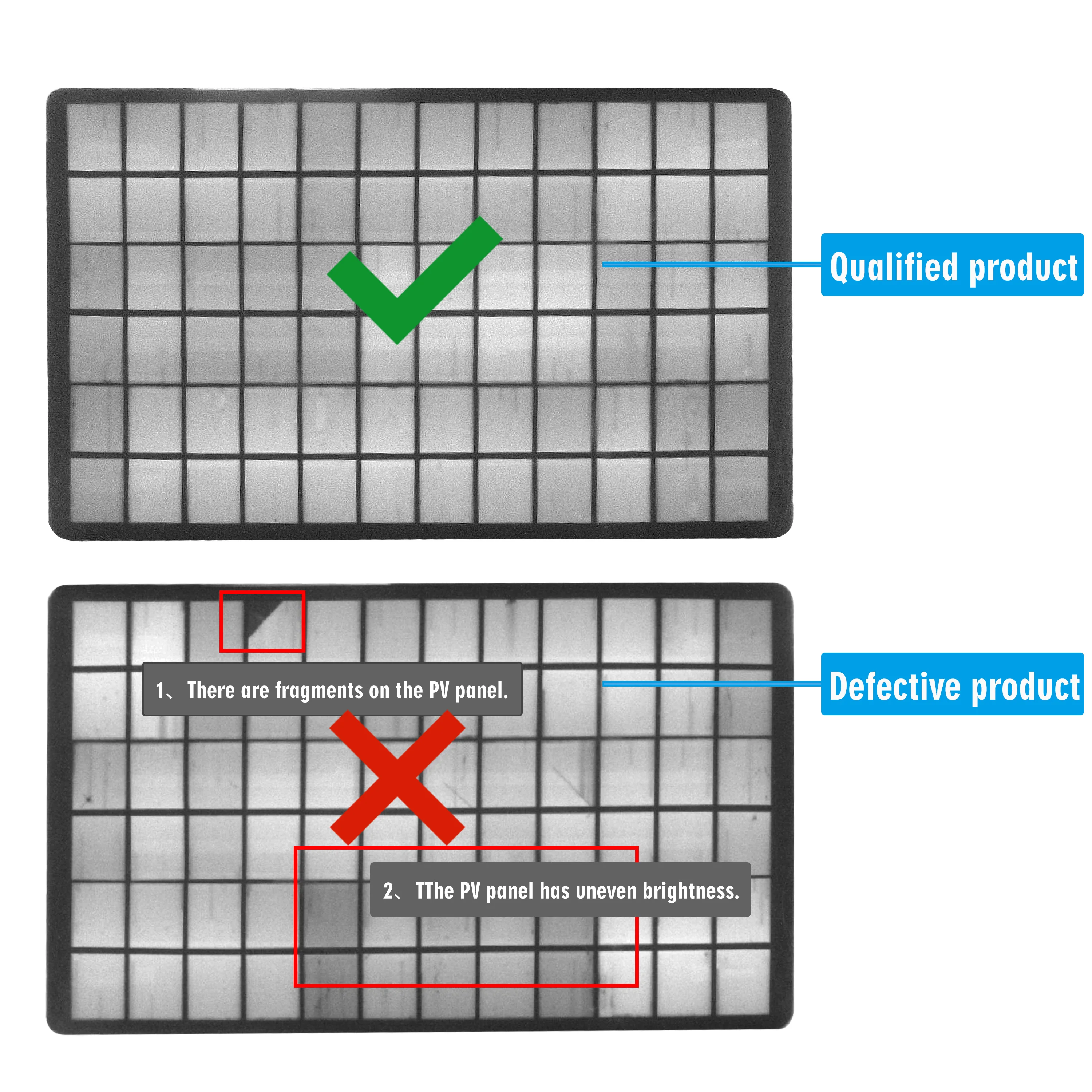

PV Panel Quality Inspection
Before production, each of our solar photovoltaic (PV) panels undergoes EL (Electroluminescence) camera inspection, which ensures the consistency of power generation performance for every panel. Defective products are strictly scrapped.

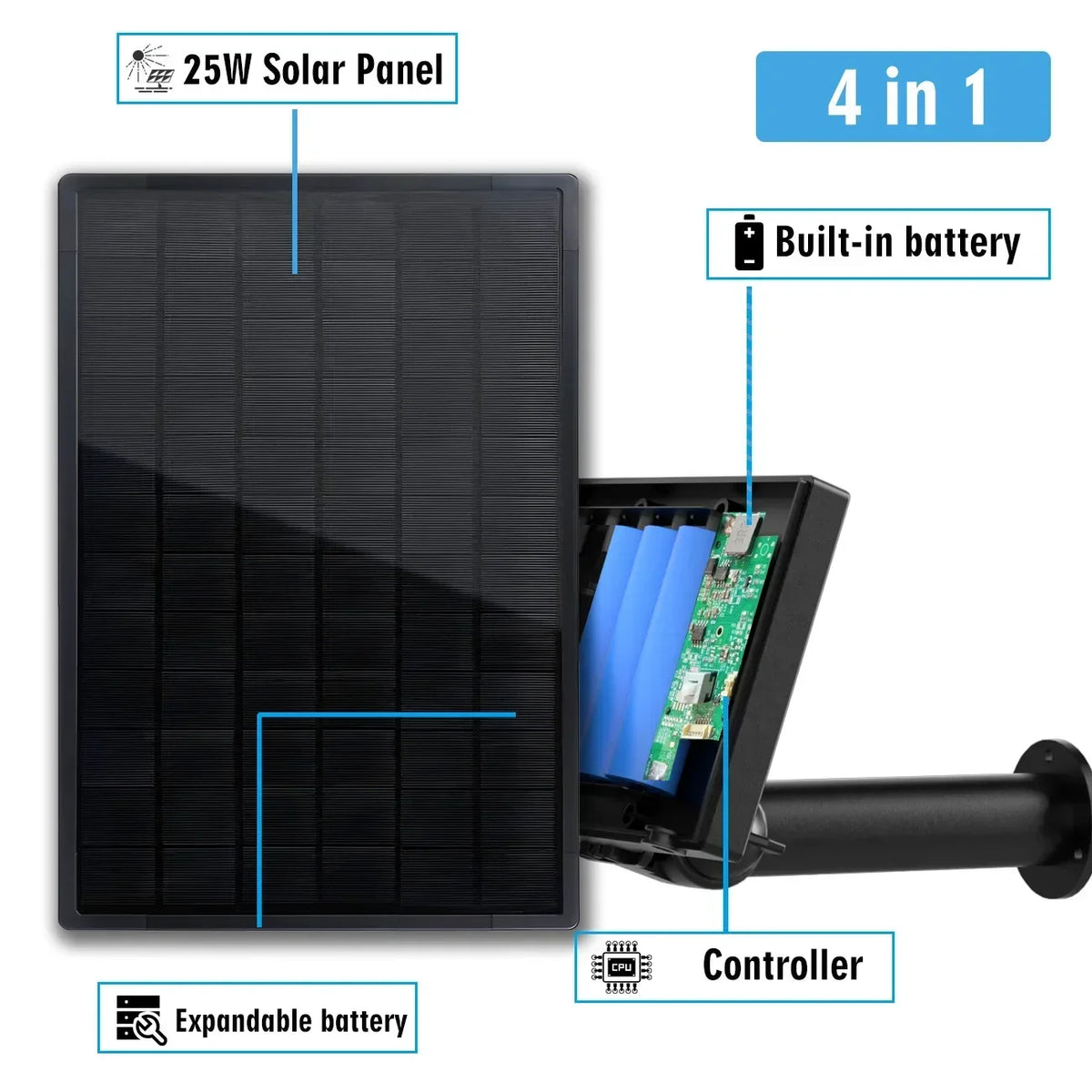

3in1,Solar Panel&Battery&Charge Controller
Unscrew the rear cover screws to install the battery. The battery type is the 18650 type and is available at a timeout near you.
Output power supply: 12V 1A
DC socket type: 5.5X2.1mm
4 sizes of plugs for 5V and 9V outputs.

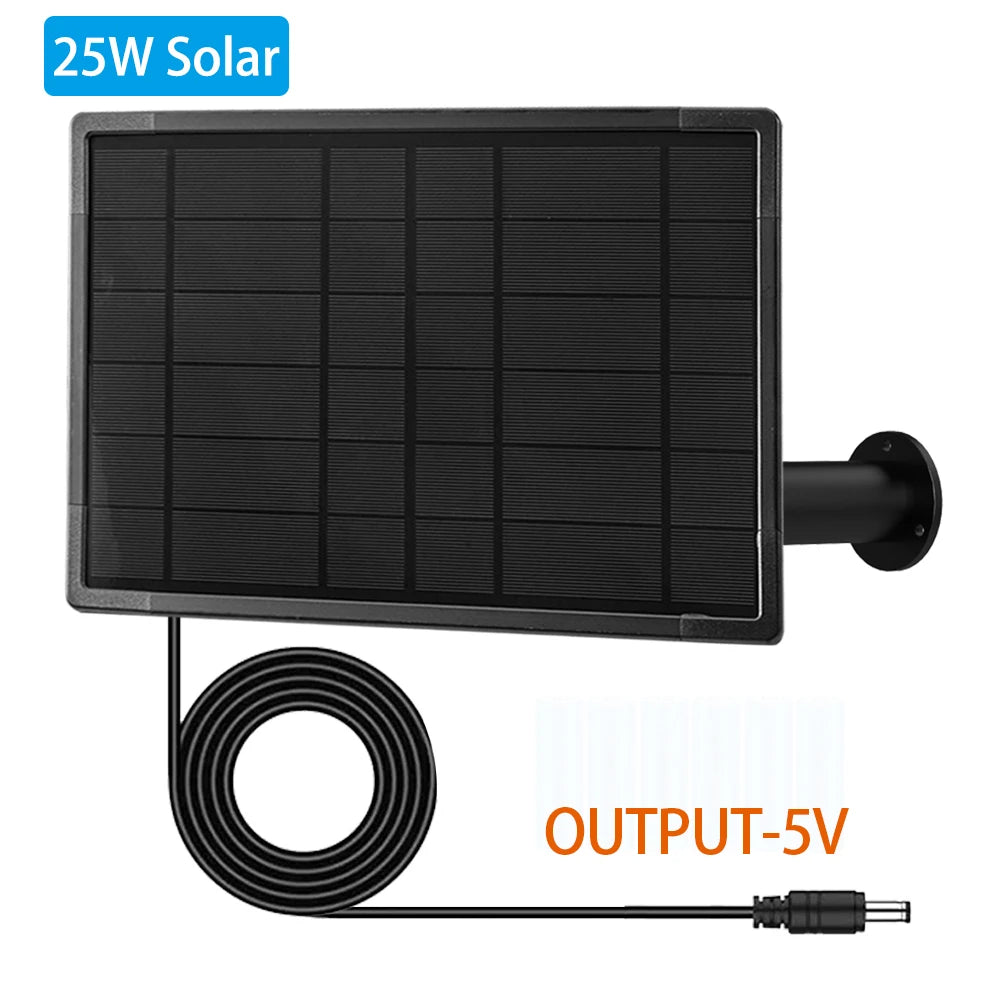

Output 5V Versions, we included USB/TPYEC/3513mm plugs, you can use the plugs to switch.
LED
Charging LED: Indicates charging status.
Battery level percentage: Displays remaining power at 25/50/75/100%.
Output LED: Indicates power output status.
When the battery level drops below 5%, the protection program is activated to cut off the power output and wait for charging. The power output will be automatically resumed without manual intervention when the battery is charged to 55%. It features 24/7 cyclic operation.
SIZE：
Completely automatic, no need to operate.
1. When the power is lower than 10%, the solar panel stops outputting power.
2、When the battery power is more than 90%, the solar panel will automatically turn on the output power.
Completely automatic, no need to operate.
Installation Precautions

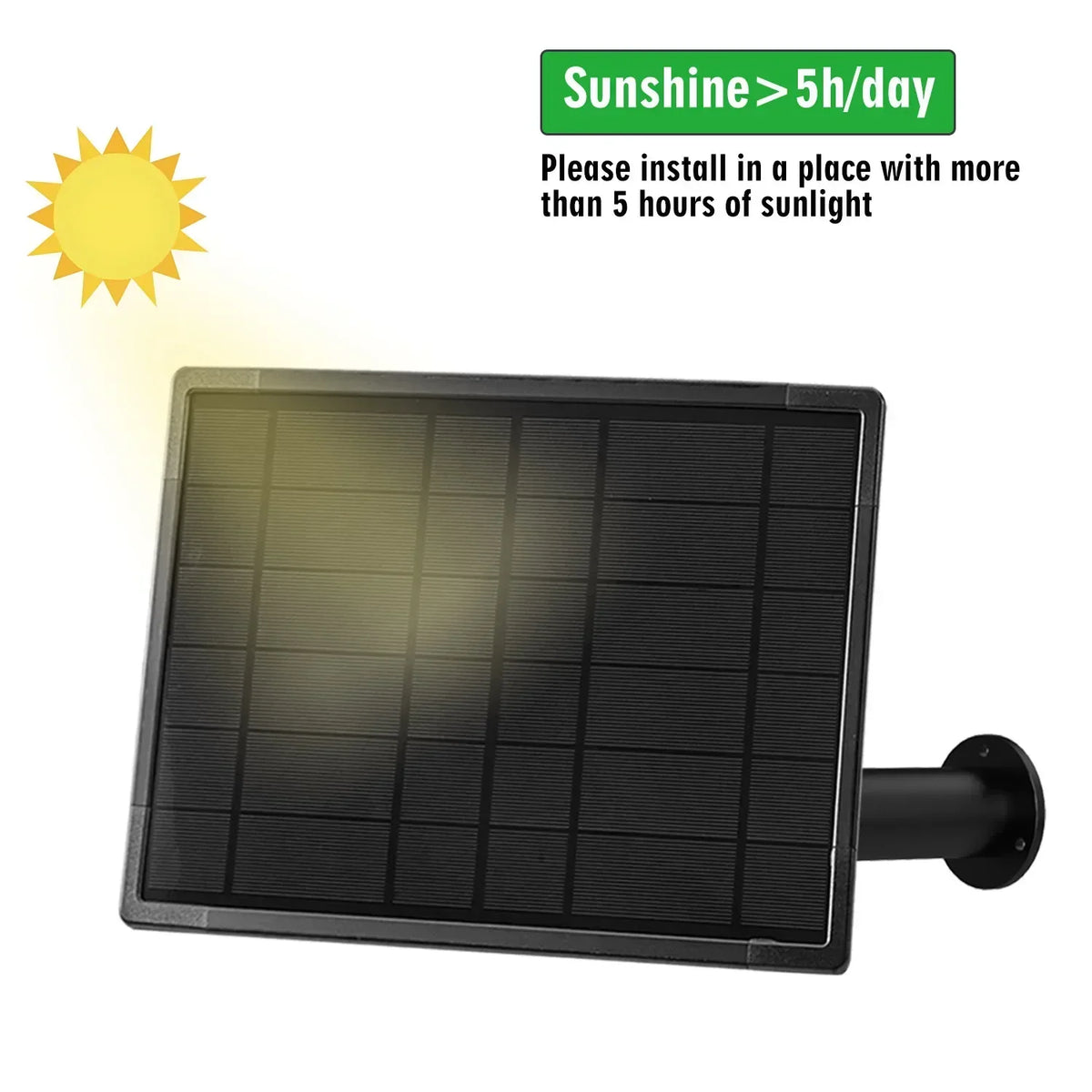

1、Choose a mounting location with greater than 5 hours of sunshine to ensure that he charges faster than the router's consumption rate to ensure that it works all the time.
2, Clean the solar panel every month to make him charge faster.
Automatic switching for greater efficiency
1. The system realizes intelligent sunlight detection. When sunlight is sufficient, the solar panel directly supplies power to your device and charges the battery simultaneously.
2. In cloudy or rainy weather, the solar panel charges the battery with low current, while the battery provides power to your device.
3、When no power is available from the panel during nighttime, the system automatically switches to battery power to supply the device.
Ensure adequate sunlight hours.
The solar panel cable length is 2M, you can install the panel outdoors and the router indoors.The solar panels are kept working 7X24 hours and must ensure sufficient sunlight hours, not less than 6 hours of sunlight per day. Please clean the dust on the solar panel regularly.
MPPT：Maximum Power Point Tracking (MPPT) ensures that the charging power remains unchanged when sunlight varies, effectively improving charging efficiency.
intelligently switch output sources：When sunlight intensity is high, the power supplied to the device comes from the solar panel; when sunlight intensity is low, the power supplied to the device comes from the battery, which fully ensures the device can work for a long time.

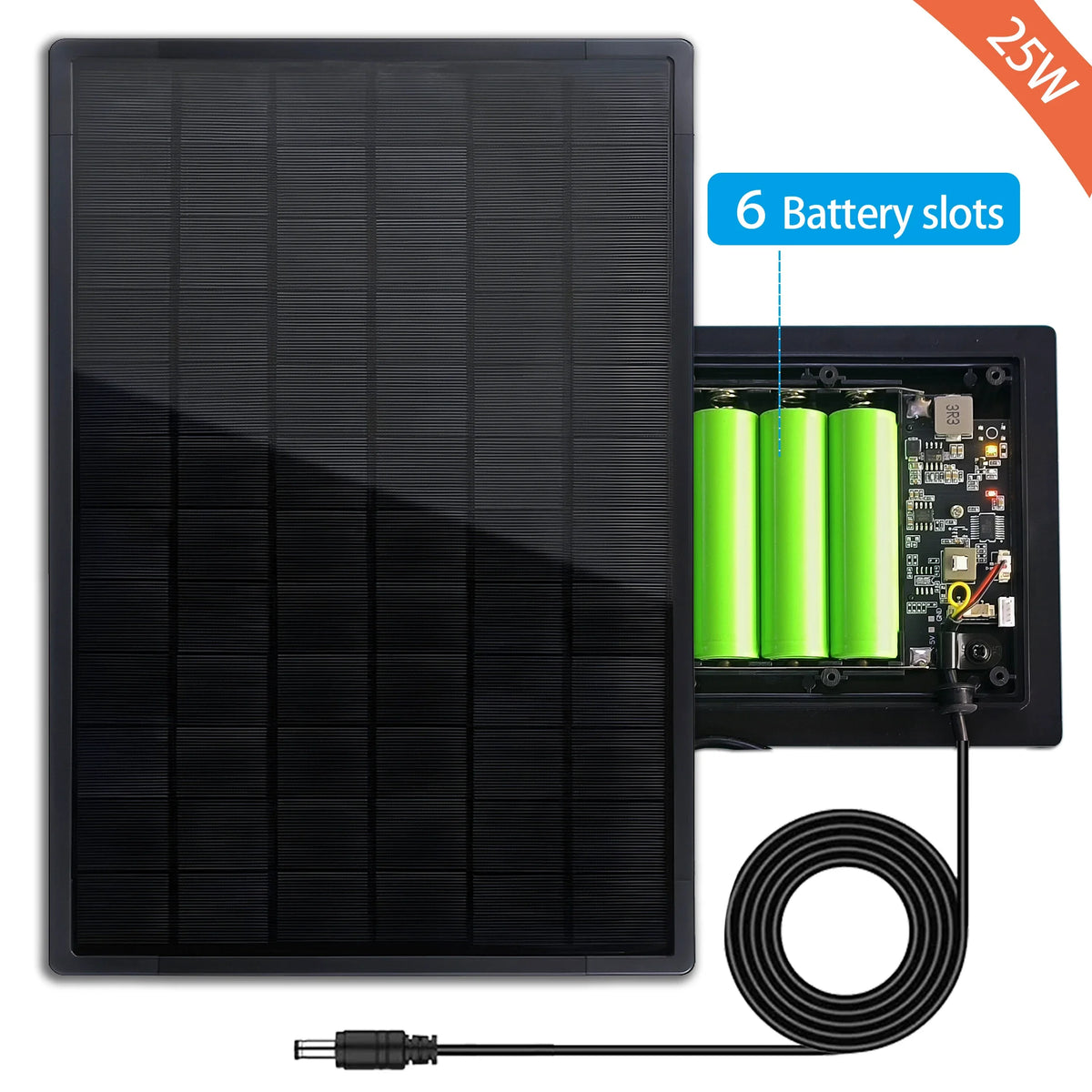

Replaceable battery：It is equipped with 6 PCS of 18650 battery slots, and the batteries can be replaced by the user themselves.
Cost：Our solar panel has a total weight of approximately 1.2 kg. It is lightweight and has sufficient power, which effectively reduces various costs such as shipping fees.
Ease of installation：It is lightweight and easy to install; if you need to install it at a relatively high location, only one person is required.
Step 1: Obtain the Actual Power of the Device
Actual Power = Rated Power on the Label × 0.3 - 0.5
For example, a router labeled "12V 1A" has a rated power of 12W. Its actual power is 12W × 0.3 = 3.6W, meaning it can operate with a 3.6W power supply.
Step 2: Determine the Total Daily Power Generation of the Solar Panel
Total Daily Power Generation = Power of the Solar Panel × 4 Hours
For example, a 25W solar panel has a total daily power generation of 25W × 4 Hours = 100Wh. This calculation is based on the global average sunshine duration of 4 hours per day.
Step 3: Configuration Instructions
The total daily power generated by the solar panel must be greater than the total daily power consumed by your device.
For example, a 25W solar panel generates 100Wh of power per day. A router consumes 3.6W of power, so its total daily power consumption is 3.6W × 24 Hours = 86.4Wh. Since 100Wh > 86.4Wh, the solar panel can support the router to operate 24 hours a day, 7 days a week.
Step 4: Instructions on the Battery
The total capacity of the battery is only related to the operating duration of your device on cloudy/rainy days or at night.
For example, installing 6 pieces of batteries instead of 4 pieces will allow your device to operate for a longer period.
