SPECIFICATIONS
Applicable Industries: HOME USE
Boom deflection: 45°
Brand Name: LANDWARD
Bucket Capacity: 0.075m³
Bucket Max.digging force: 19.5kN
Certification: CE,EPA,ISO
Condition: New
Core Components: ENGINE
Engine Brand: KUBOTA
High-concerned chemical: none
Hydraulic system pressure: 18MPa
Key Selling Points: Multifunctional
Machinery Test Report: Provided
Operating Weight: 2500kg
Origin: Mainland China
Overall length: 4185mm
Overall width: 1500mm
Place Of Origin: China
Power(W): 20KW
Rated Power: 20HP
Showroom Location: China Mainland
Track width: 250mm
Transportation: Sea Freight LCL, FCL
Type: Crawler Tractor
Video outgoing-inspection: Provided
Warranty: 1.5 Years
Warranty of Core Components: 1.5 Years
Way Of Trade: FOB CIF DDP
Welcome to the Landward Factory Store
Follow our store and become a follower to enjoy exclusive discounts during the Carnival Discount Month
The grand LANDWARD promotion has officially launched—enjoy the lowest prices of the year on all items storewide! Please contact our online customer service team to secure the best deals
your inquiries are always welcome
We can accommodate all your design needs and provide OEM/ODM services
Please note that the marked prices reflect deposit amounts
Why choose us?
1. Powerful power and low fuel consumption
2. More features on the excavator: swing arm, pilot joystick

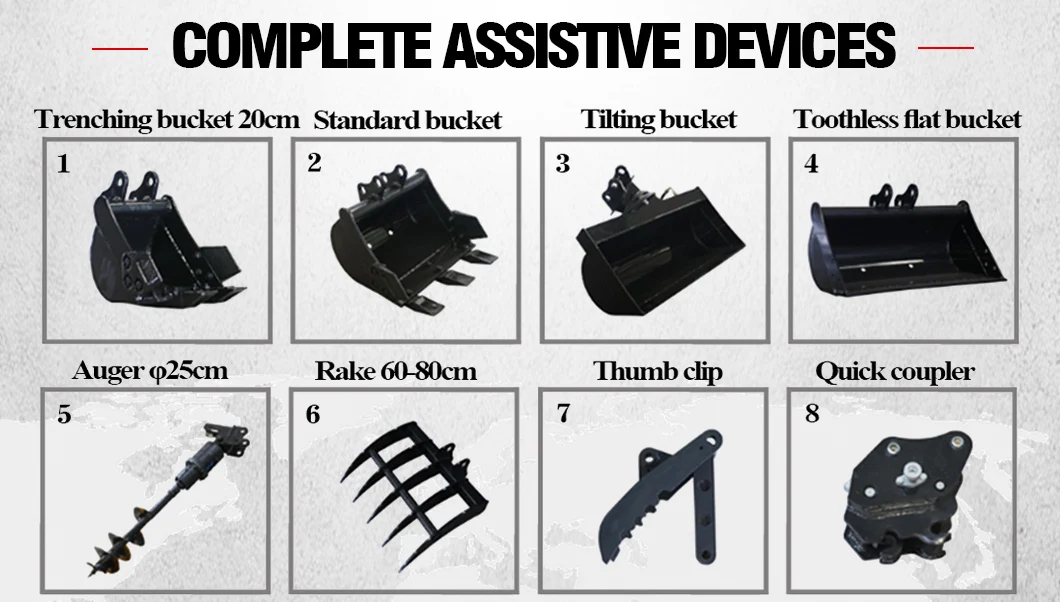

3. Attachments: Excavator with auger, grapple, hydraulic breaker, ripper, rake, tilt bucket, leveling bucket, rails, quick coupler, etc.
4. Fast delivery, all parts are always in stock
5. Excellent service, 1.5-year warranty, free parts during the warranty period

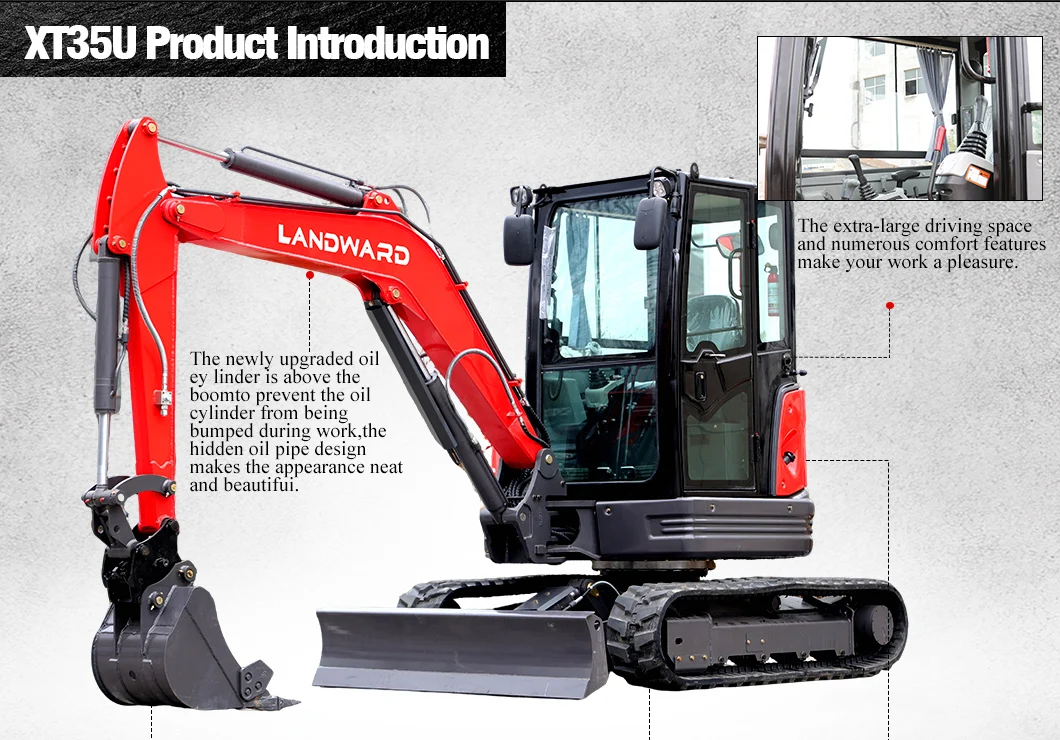

XT35U Mini Excavator | |
Overall Machine Weight |
3764KG |
Bucket Capacity |
0.11m³ |
Engine Model |
Kubota 1703 |
Engine Power |
18.5KW/2200rpm |
Total Length(Transportation State) |
4945mm |
Full Width(Transportation State) |
1700mm |
Full Height(Transportation State) |
2585mm |
Number Of Supporting Wheels |
Eight Pieces |
Track Width |
300mm |
Counterweight Ground Clearance |
595mm |
Minimum Ground Clearance |
270mm |
Wheel Spacing |
1750mm |
Rotation Speed |
12/rpm |
Fuel Tank Capacity |
40L |
Hydraulic Tank Volume |
41L |
Overall Machine Pressure |
22Mpa |

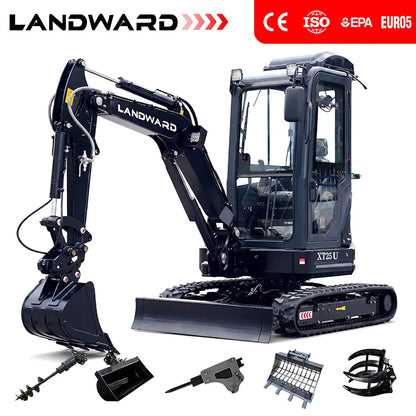

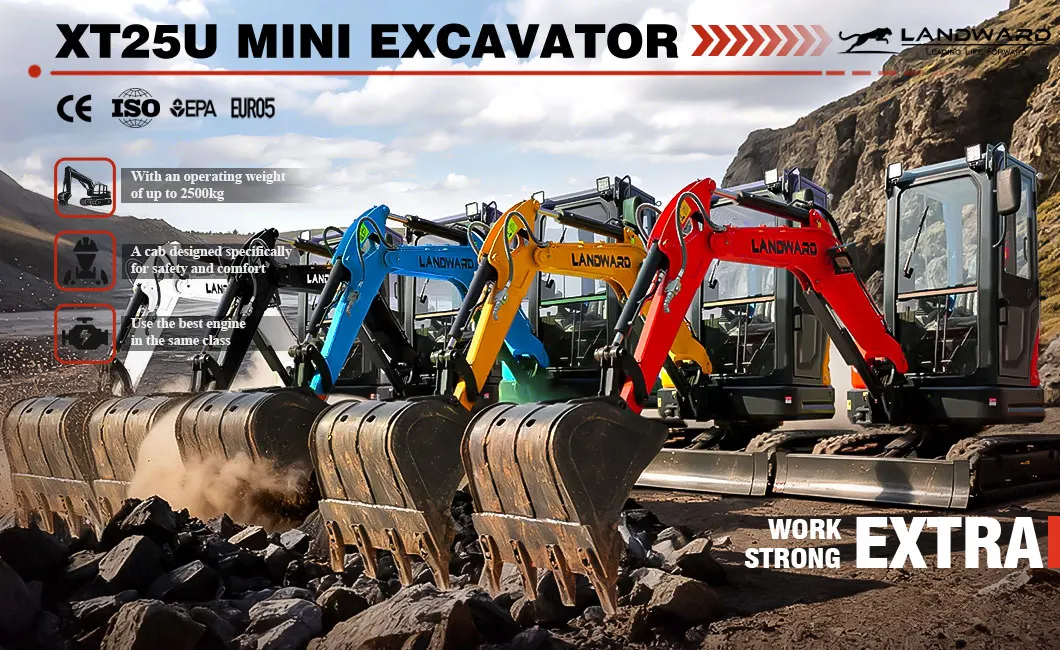

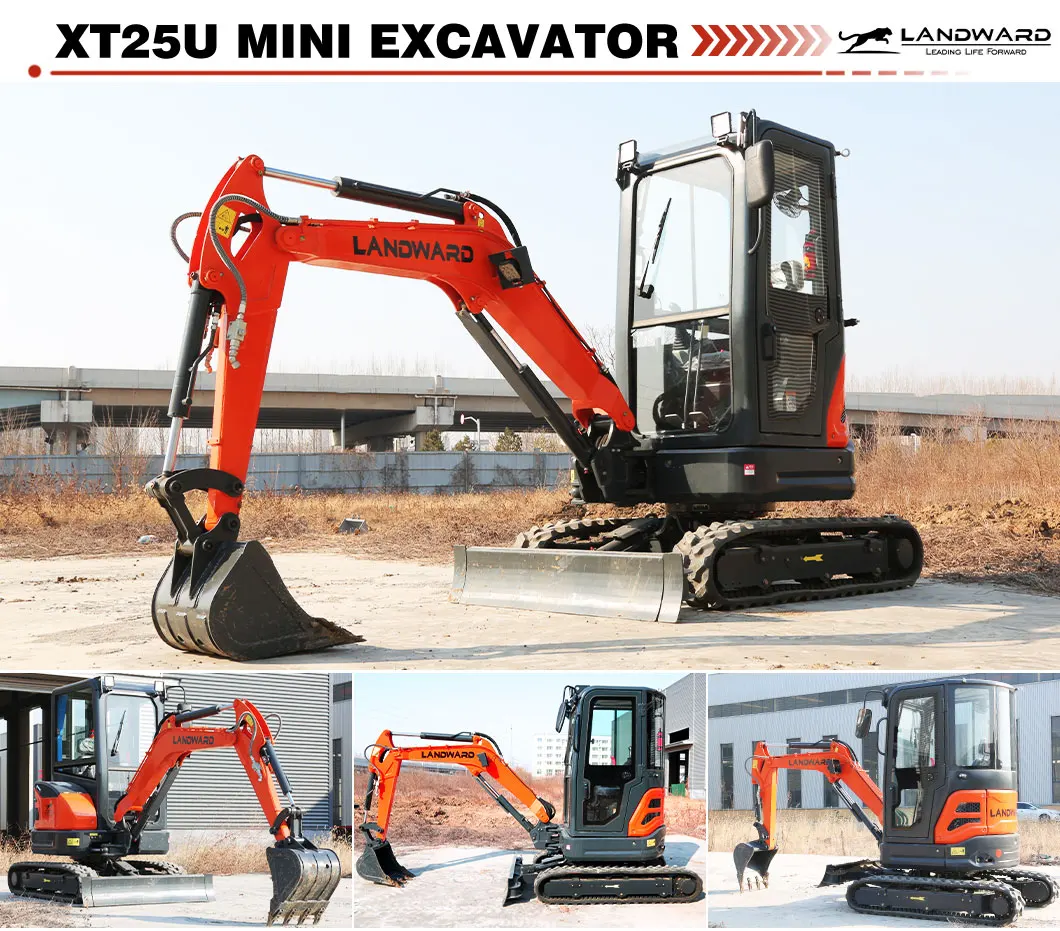

XT25U Mini Excavator | |
Machine weight (Kg) |
2500 |
Rated bucket capacity (m³) |
0.068 |
Engine brand |
Yanmar |
Engine model |
3TNV80F |
Rated power (kw) |
15.2 |
Rated displacement (ml) |
1267 |
Rated speed (r/min) |
2500 |
Climbing angle ° |
57 |
Slewing speed (r/min) |
9.5 |
Travel speed (km/h) |
2-3.8 |
Steering control |
Foot pedal control |
Drive mode |
Hydraulic drive |
Travel motor type |
Piston hydraulic motor |
Service brake |
Hydraulic brake |
Parking brake |
Hydraulic brake |
Fuel tank capacity (L) |
20 |
Hydraulic oil tank capacity (L) |
18 |
Bucket digging force (KN) |
20 |
Transport length (mm) |
4100 |
Transport width (mm) |
1500 |
Transport height (mm) |
2440 |
Slewing radius (mm) |
700 |
Track gauge (mm) |
1070/1270 |
Maximum digging radius (mm) |
4520 |
Maximum digging depth (mm) |
2410 |
Maximum digging height (mm) |
4190 |

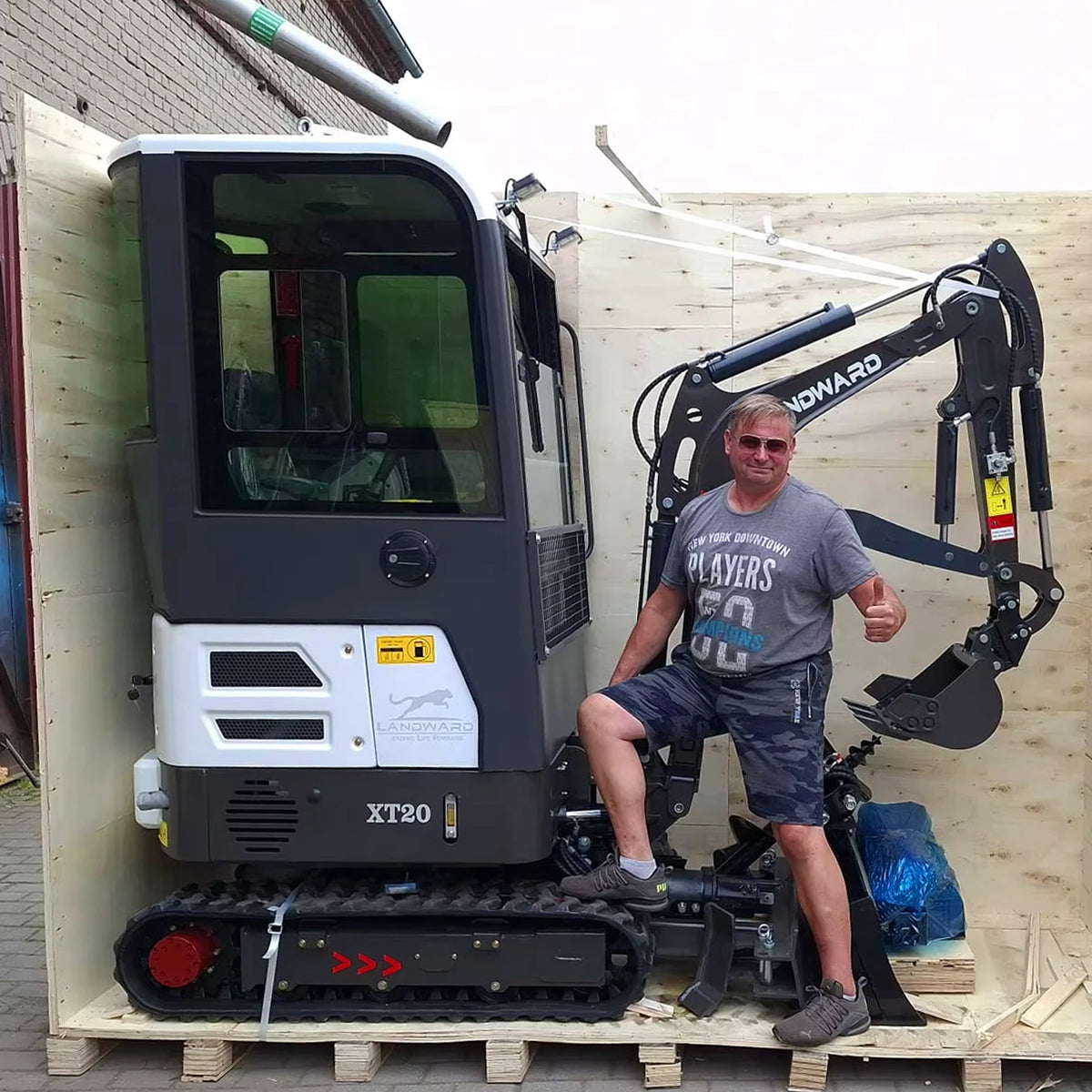

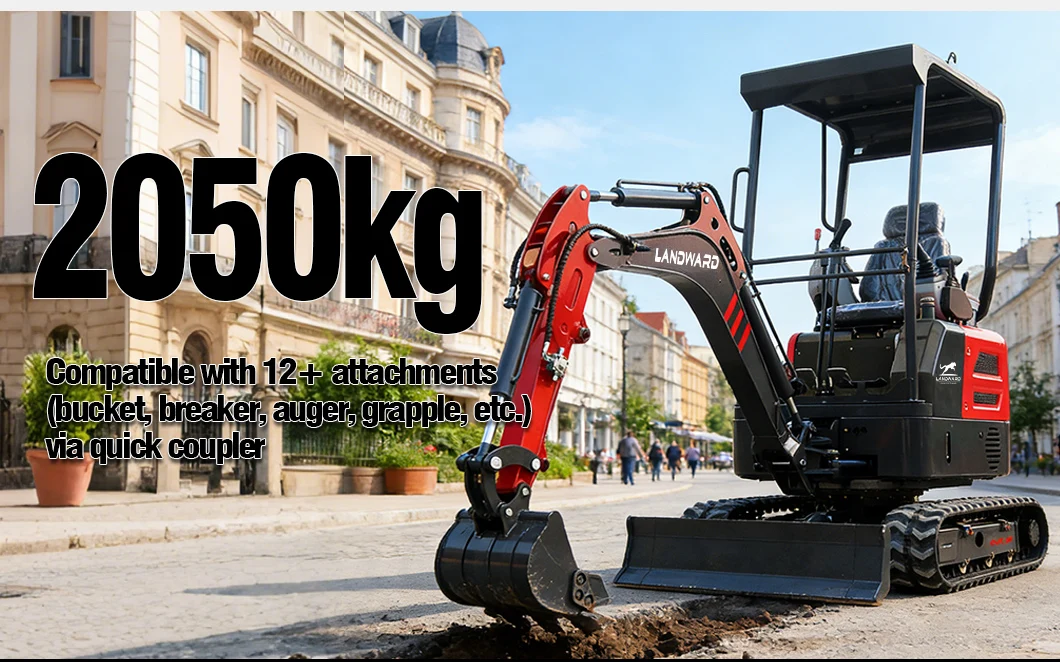

XT20 Mini Excavator | ||
Engine | ||
Model |
KUBOTA D902 |
LL385BT |
Type |
Three-cylinder direct injection |
|
Displacement (L) |
0.898 |
1.617 |
Rated Power (kw/rpm) |
11.8/2300 |
18.8/2400 |
Hydraulic system | ||
Type |
Gear Pump/Variable Piston Pump |
Gear Pump |
Rated working flow (L/min) |
27.6/41.4 |
28.8 |
Digging force | ||
Arm digging force(kN) |
9.5 |
|
Bucket digging force(kN) |
16 |
|
Travel system | ||
Travel speed (km/h) |
2.2-4.3 |
|
Traction force (kN) |
18 |
|
Gradability° |
30 |
|
Rotary system | ||
Max. rotation speed (r/min) |
9.5 |
|
Brake type |
Mechanical brake |
|
Machine weight | ||
Machine weight (kg) |
2050 |
|
Bucket | ||
Bucket capacity (m³) |
0.025 |
|
Oil capacity | ||
Fuel tank capacity (L) |
20 |
|
Cooling system (L) |
5 |
|
Engine oil volume (L) |
3.7 |
5 |
Hydraulic oil tank capacity (L) |
15 |
|
Dimensions (mm) | ||
Overall length |
3450 |
|
Ground length (transportation) |
1420 |
|
Overall height (to top of boom) |
1250 |
|
Overall width |
1150 |
|
Overall height (to top of cab) |
2230 |
|
Counterweight ground clearance |
450 |
|
Minimum ground clearance |
190 |
|
Working range (mm) | ||
Max. digging height |
2550 |
|
Max.dumping height |
1800 |
|
Max.digging depth |
2100 |
|
Max. digging radius on ground |
3530 |
|
Min. swing radius of working device |
1750 |
|
Max. lifting height of bulldozer |
170 |
|
Max. cutting depth of bulldozer |
220 |
|

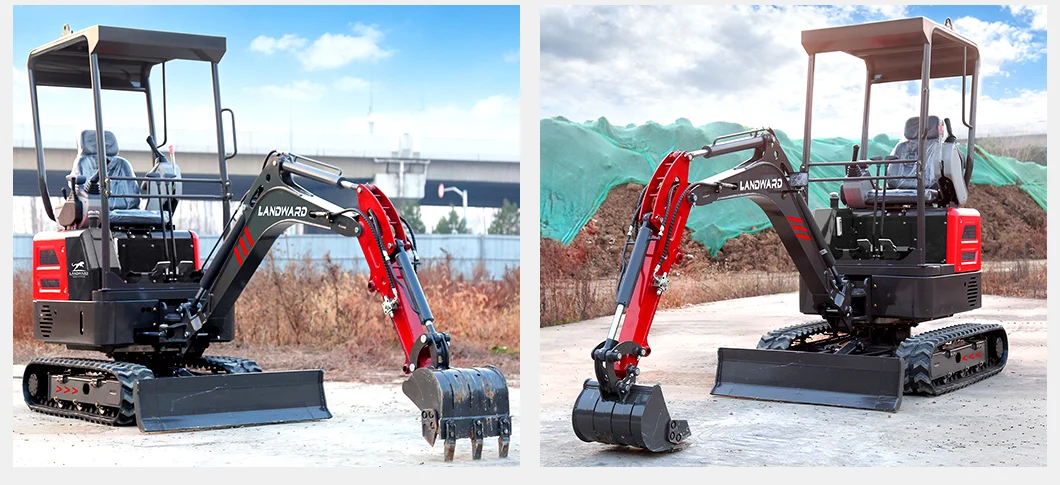

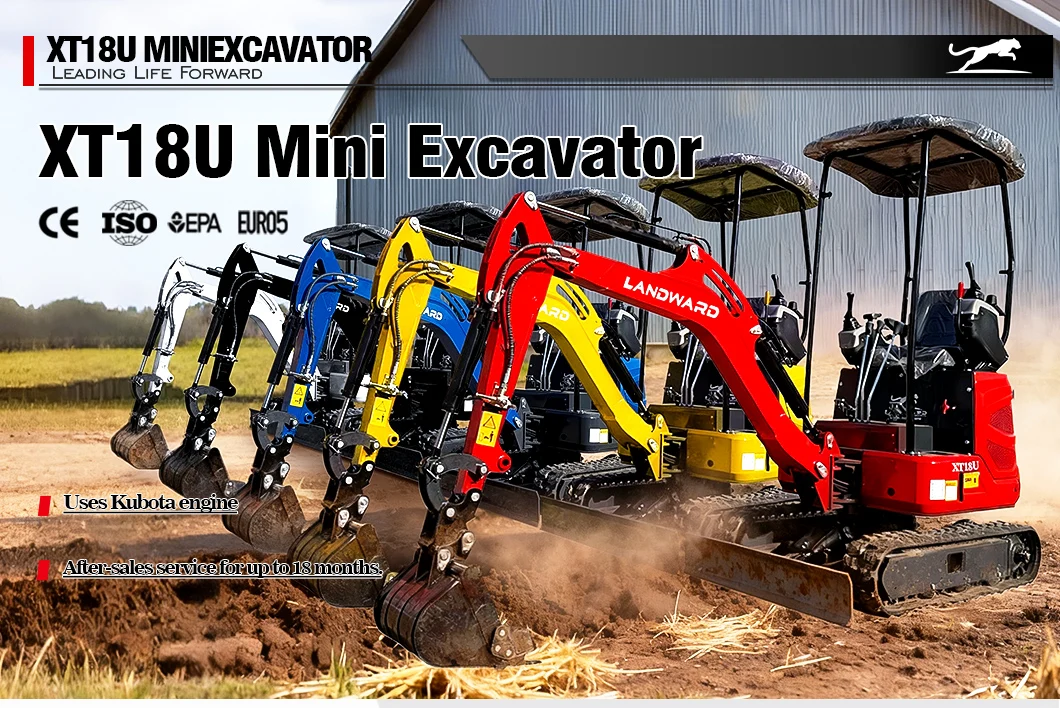

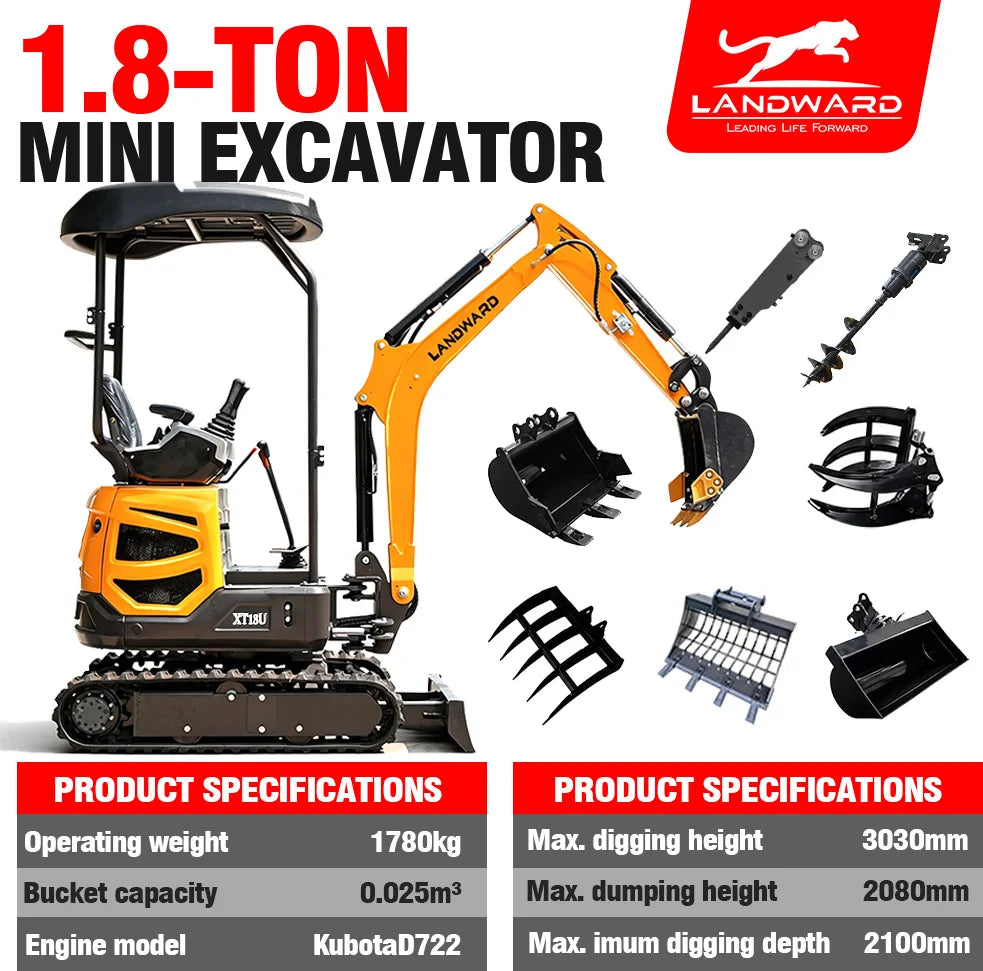

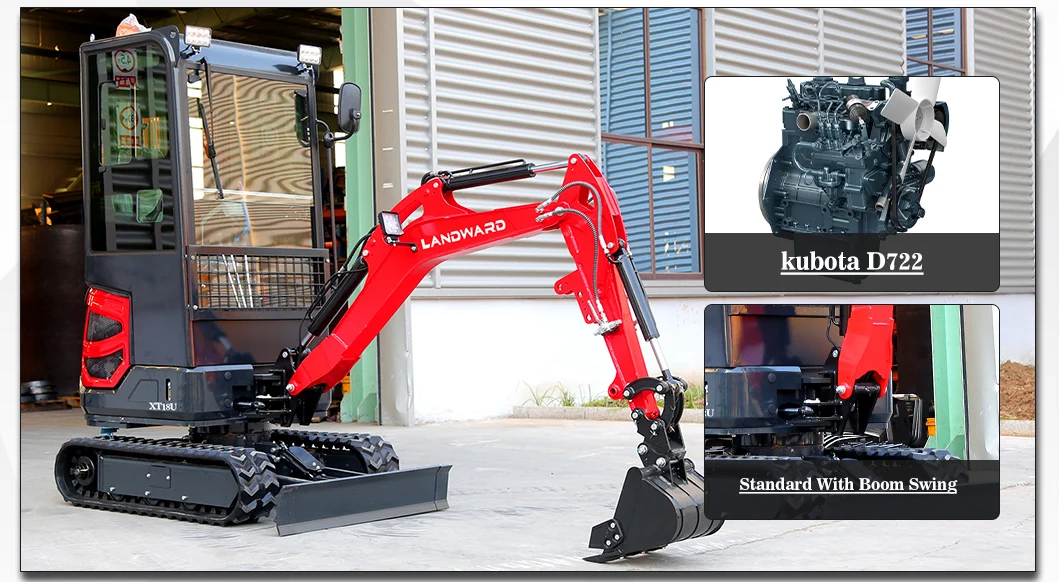

XT18U Mini Excavator | |
Operating weight (kg) |
1800 |
Bucket capacity (m3) |
0.045 |
Engine model |
Laidong 385 / Kubota D902 |
Rated power |
20kW/11.2kW |
Volume of fuel tank (L) |
12 |
Travel speed (km/h) |
2 |
Swing speed(r/min) |
12.3 |
Setting pressure (KPa) |
20 |
Bucket digging force(kN) |
7.5 |
Volume of hydraulic tank (L) |
10 |
Overall length (mm) |
2550 |
Overall width (mm) |
1100 |
Overall height（to top of cab）(mm) |
2200 |
Track length (mm) |
1800 |
Track width (mm) |
250 |
Max. digging height (mm) |
2900 |
Max. dumping height (mm) |
1950 |
Max. digging depth (mm) |
1900 |
Max. digging reach (mm) |
3227 |
Min. swing radius (mm) |
840 |
Hydraulic oil radiator |
Standard |
Boom swing |
optional |
Tracks extandable |
990-1160mm,optional |

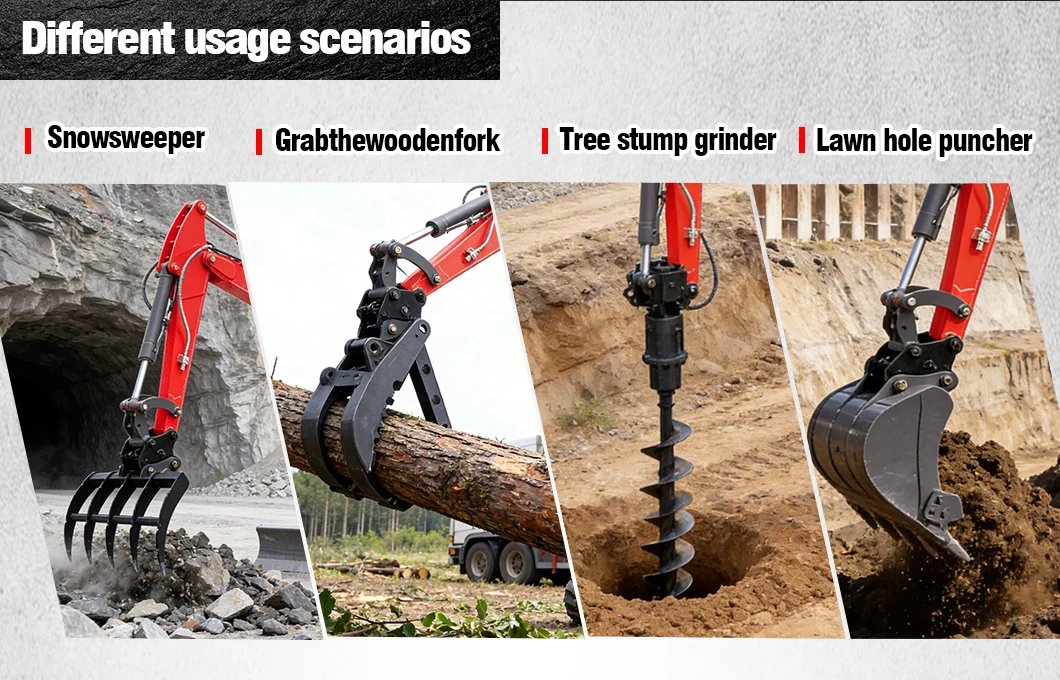

There are many ways to use a mini excavator, such as small works, small projects, gardens, farmlands, municipal projects, vegetable greenhouses, trenching, garden maintenance, and more.
Dear Buyer:
This is a customized product, and the price shown is not the final price. Additional costs will apply depending on whether it meets Euro 5 or EPA engine requirements (for European and American countries) and whether other configurations are needed, such as cab/boom swing, etc. We offer multiple delivery methods, including DDP, EXW, FOB, CFR, and CIF. Shipping costs will be calculated separately based on the delivery method.
We can customize colors, configurations, models, appearance, logos, engine types, and powertrains. Most importantly, you need to communicate with our customer service to confirm product parameters. Specific prices vary depending on country/region and customs requirements; please contact customer service for consultation. Orders without customer service confirmation will not be shipped.
