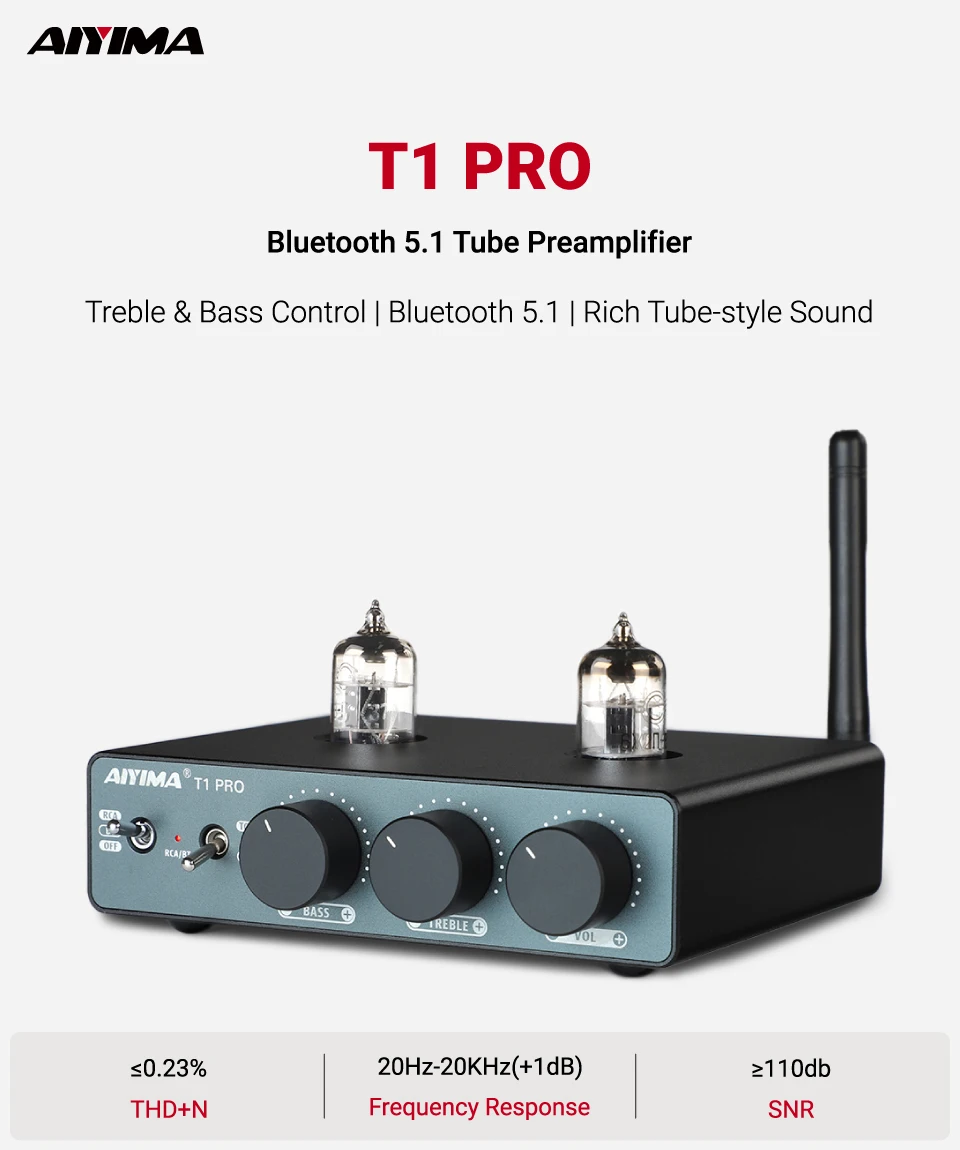

AIYIMA Audio T1 Pro Bluetooth Tube Preamplifier Hifi Stereo Amp Valve Vacuum With Treble&Bass Tone control for Home Speakers

Highlights

1、Vacuum Tube Preamplifier: Utilizes vacuum tubes design to provide a warm, natural sound that's perfect for audio purists；

2、Bluetooth Connectivity: Suppport Bluetooth AAC,SBC,APTX,APTX-LL (Low Latency) and aptX HD for high-quality wireless audio streaming with minimal latency；

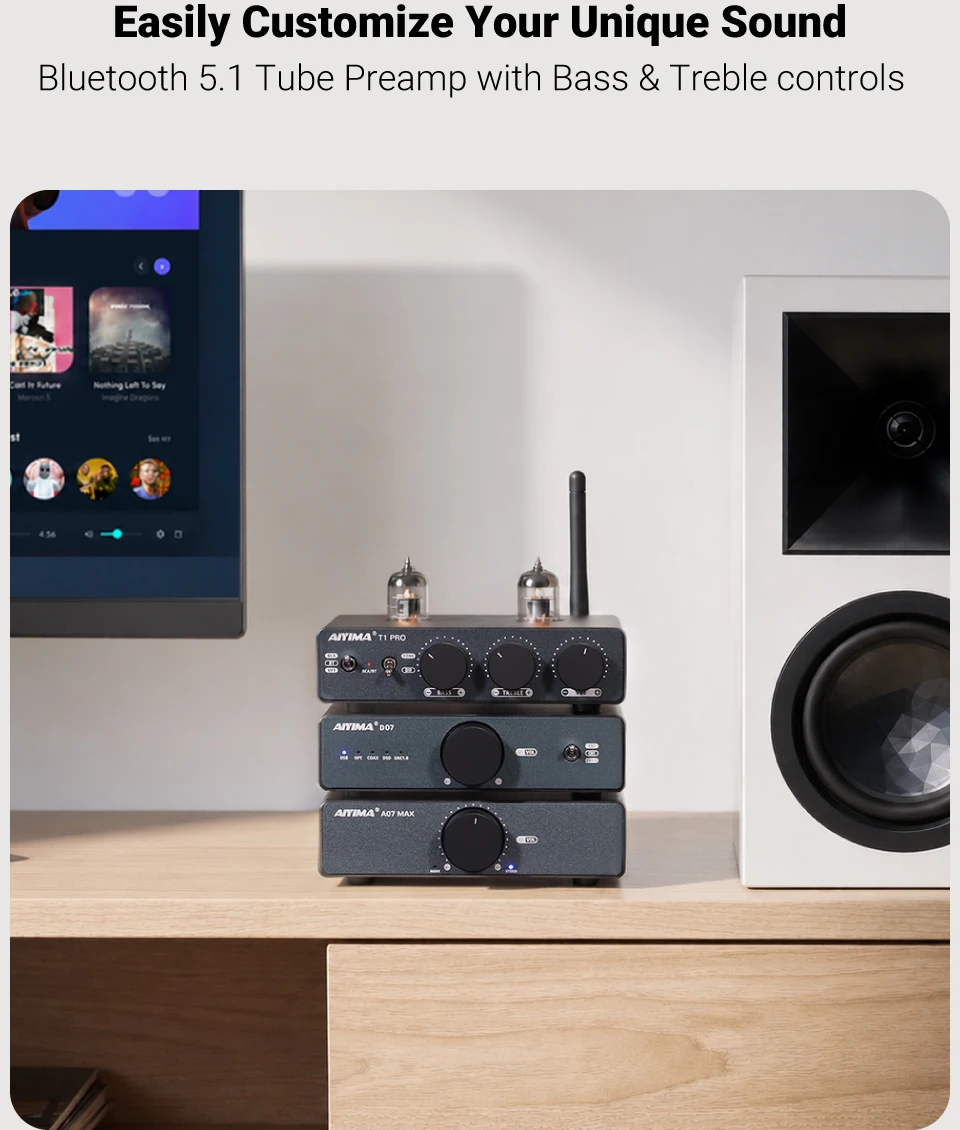

3、Tone Controls: Features bass and treble controls, allowing users to customize their sound to their preferences

Versatile inputs and outputs: Equipped with RCA and Bluetooth inputs, RCA and AUX outputs for compatibility with a wide range of audio devices；

4、12V trigger output function: When AIYIMA T1 PRO is turned on, the 12V trigger output can automatically turn on other devices, such as power amplifiers, to simplify the operation process, but also energy-saving, reliable and stable characteristics, will not be interfered by other signals；

5、Bluetooth reset switch：to clear all Bluetooth connections and reconnect after power on;

6、Op-amp chip 5532 can be replaced：customers can replace the op-amp chip according to their own needs

Description

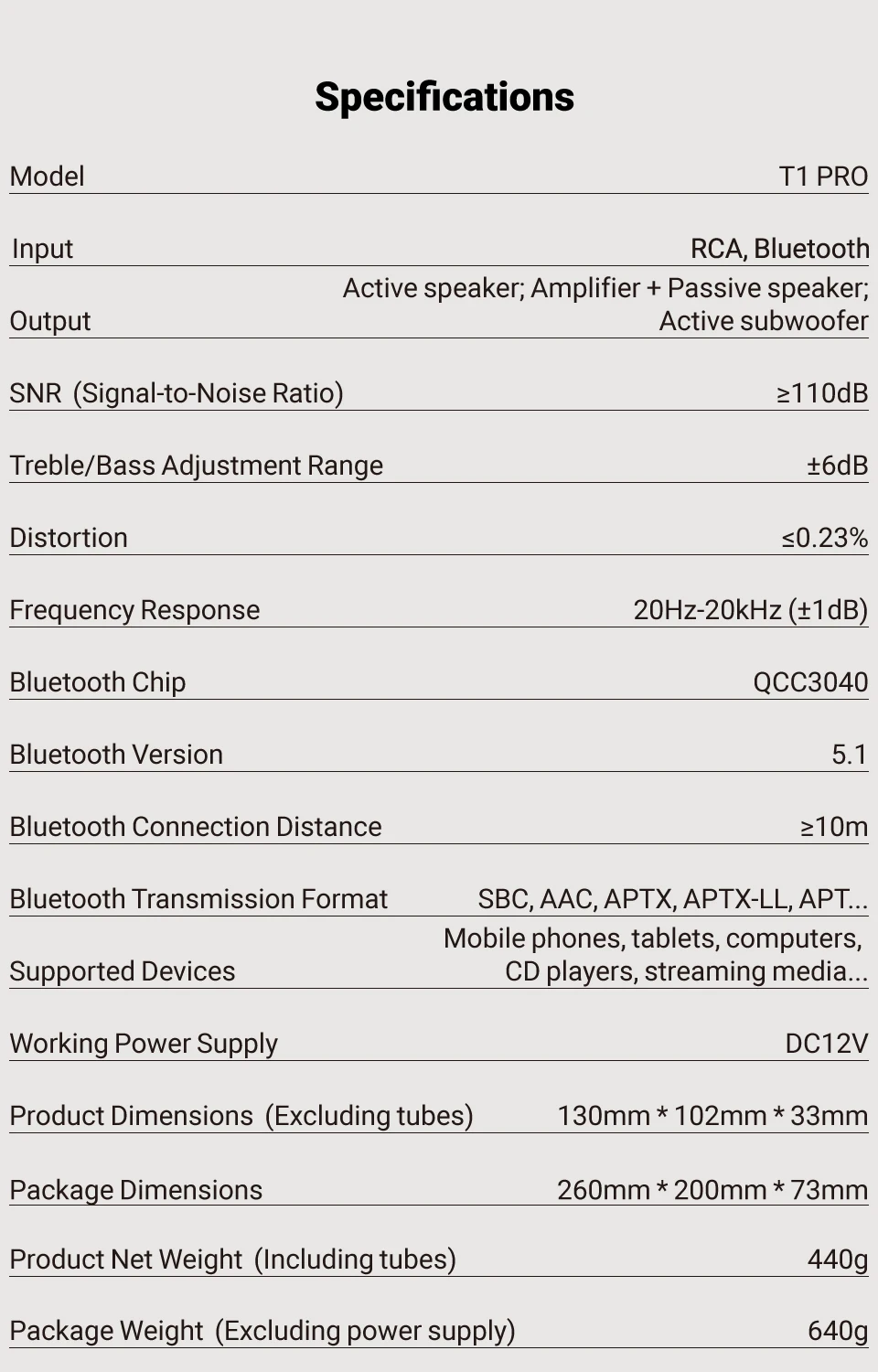

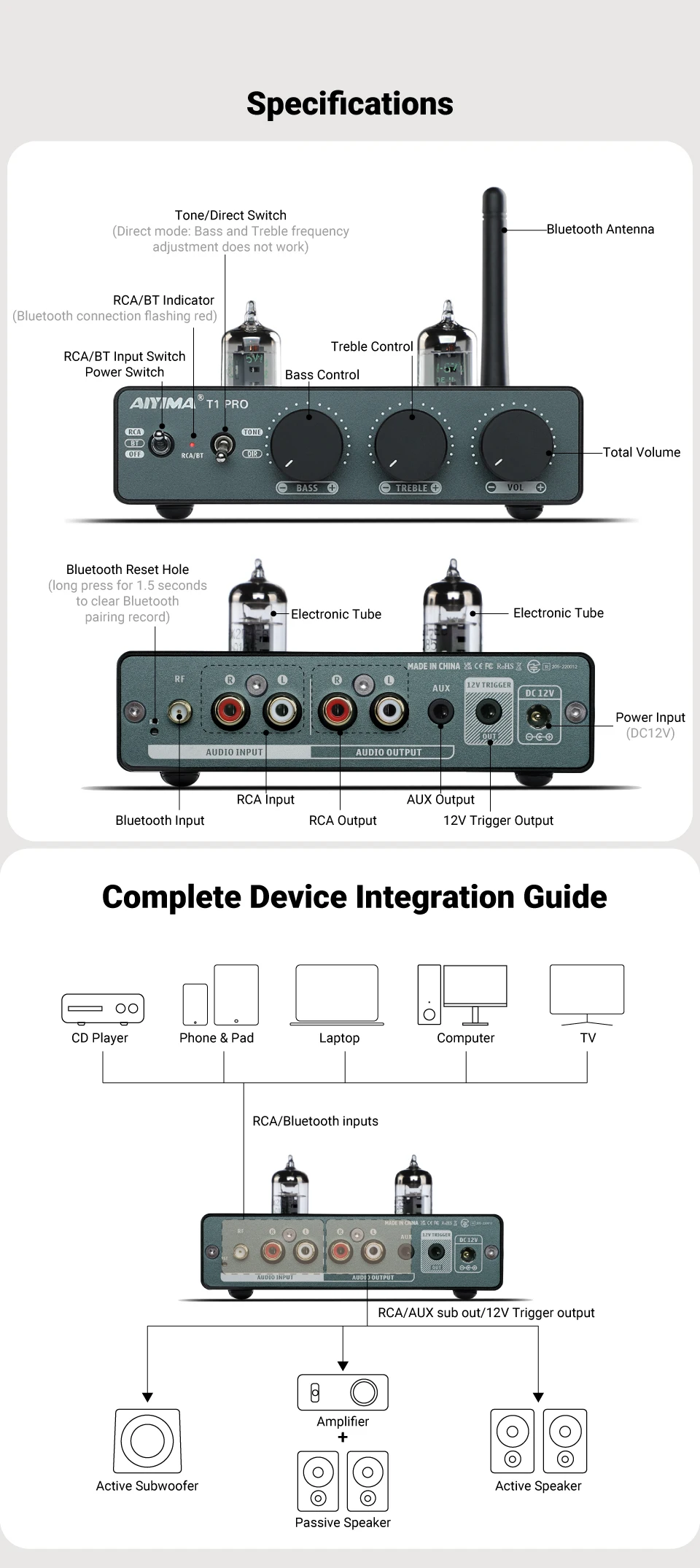

Model: T1 PRO

Chipset: QCC3040+NE5532P

QCC3040 Bluetooth: version 5.1, support AAC, SBC, APTX, APTX-LL, APTX-HD

Replaceable tubes are: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6*1N, 6AK5, etc.

OP AMP chip: NE5532P*2

Replaceable OP amp chips: OPA2604, OPA2134, LM4562, JRC5532, etc.

Capacitor: Use Japanese ruby CBB coupling capacitor

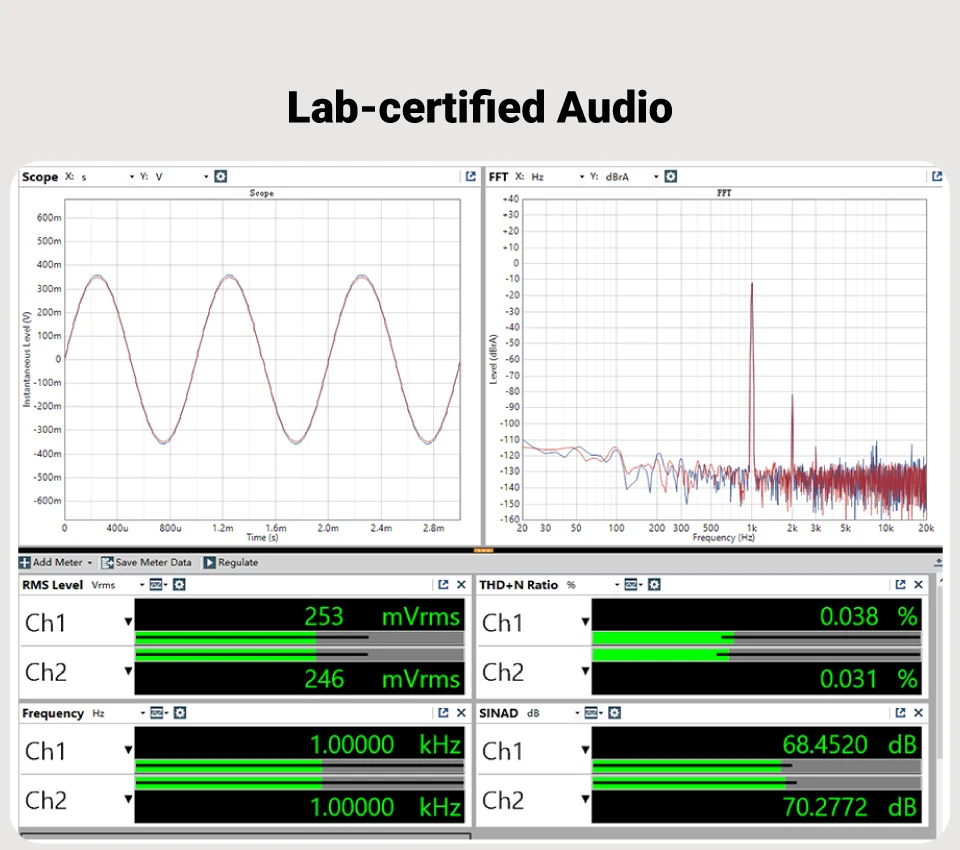

Distortion: ≤0.23%

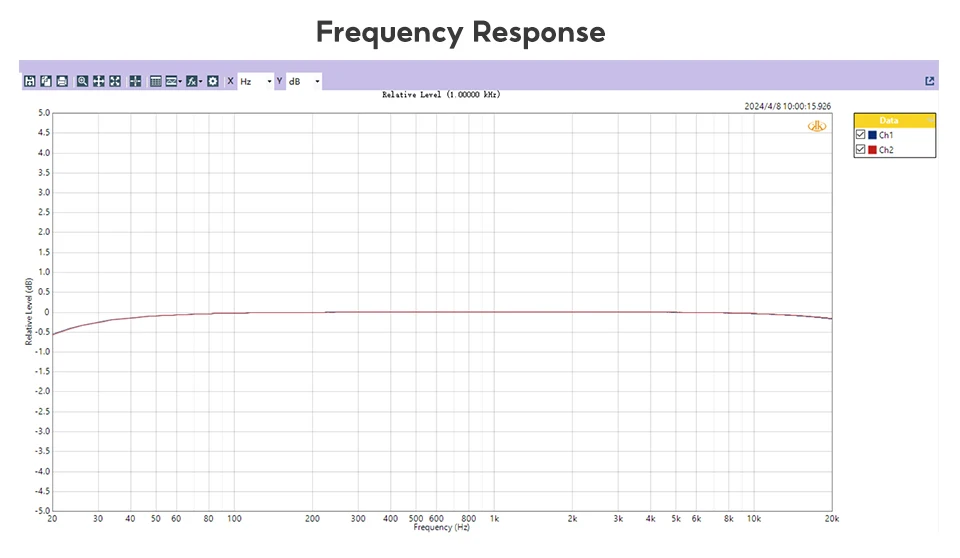

Frequency response range: 20hz-20khz (±1db)

Signal-to-noise ratio: ≥110db

Tweeter/bass adjustment range: ±6db

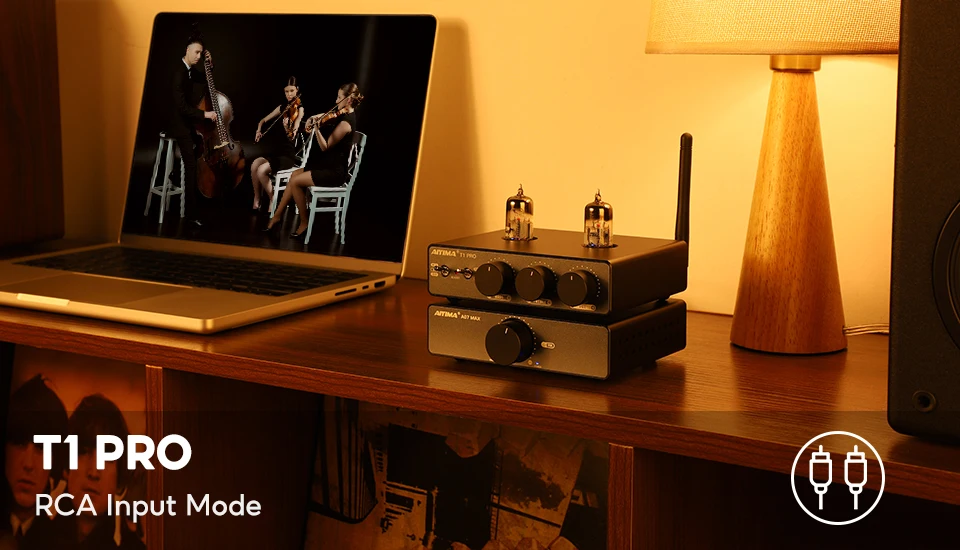

Input mode: RCA, Bluetooth

With 12v trigger

Supported devices: mobile phones, tablets, computers, MP3, TVs, etc., The pre-stage of this game does not support singing and playback.

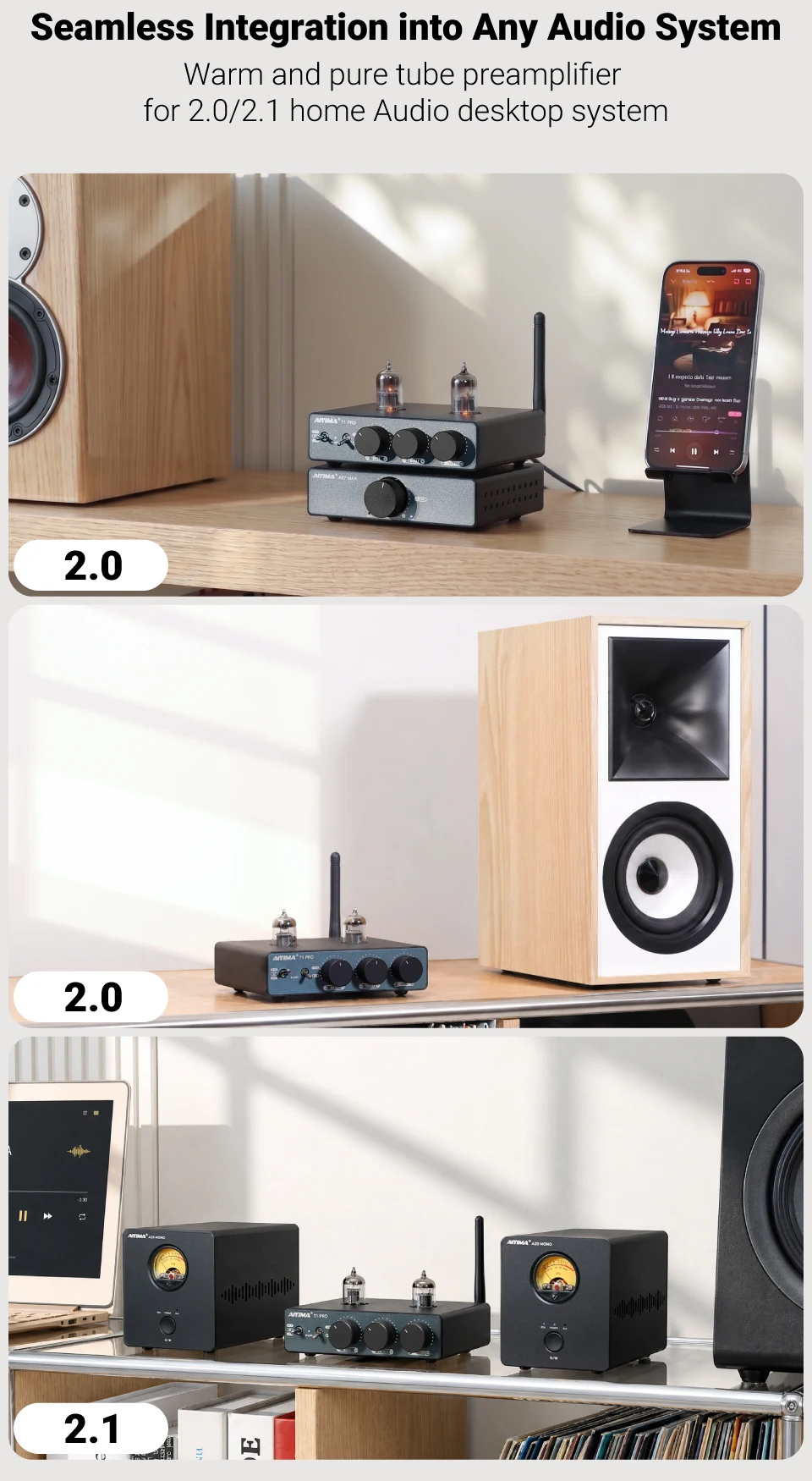

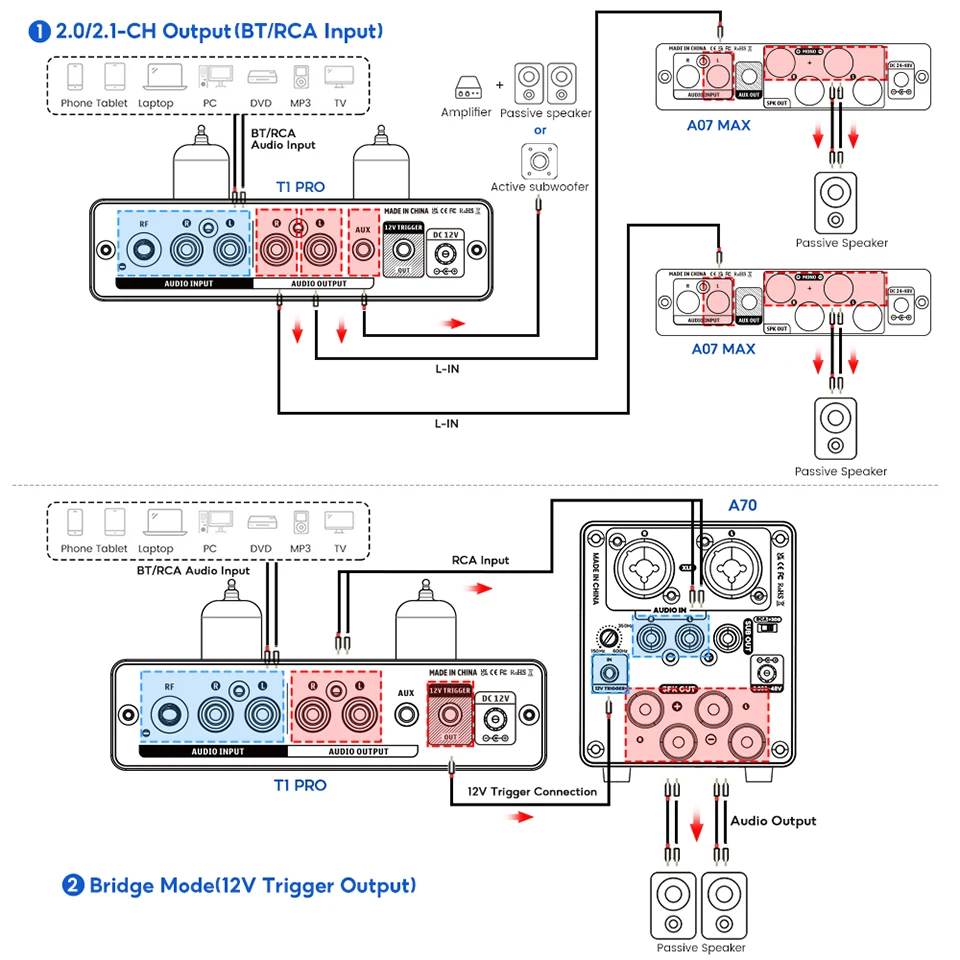

Output mode: 1. Active speaker 2. Power amplifier + passive speaker, 3.Active subwoofer

Working power supply: DC12V

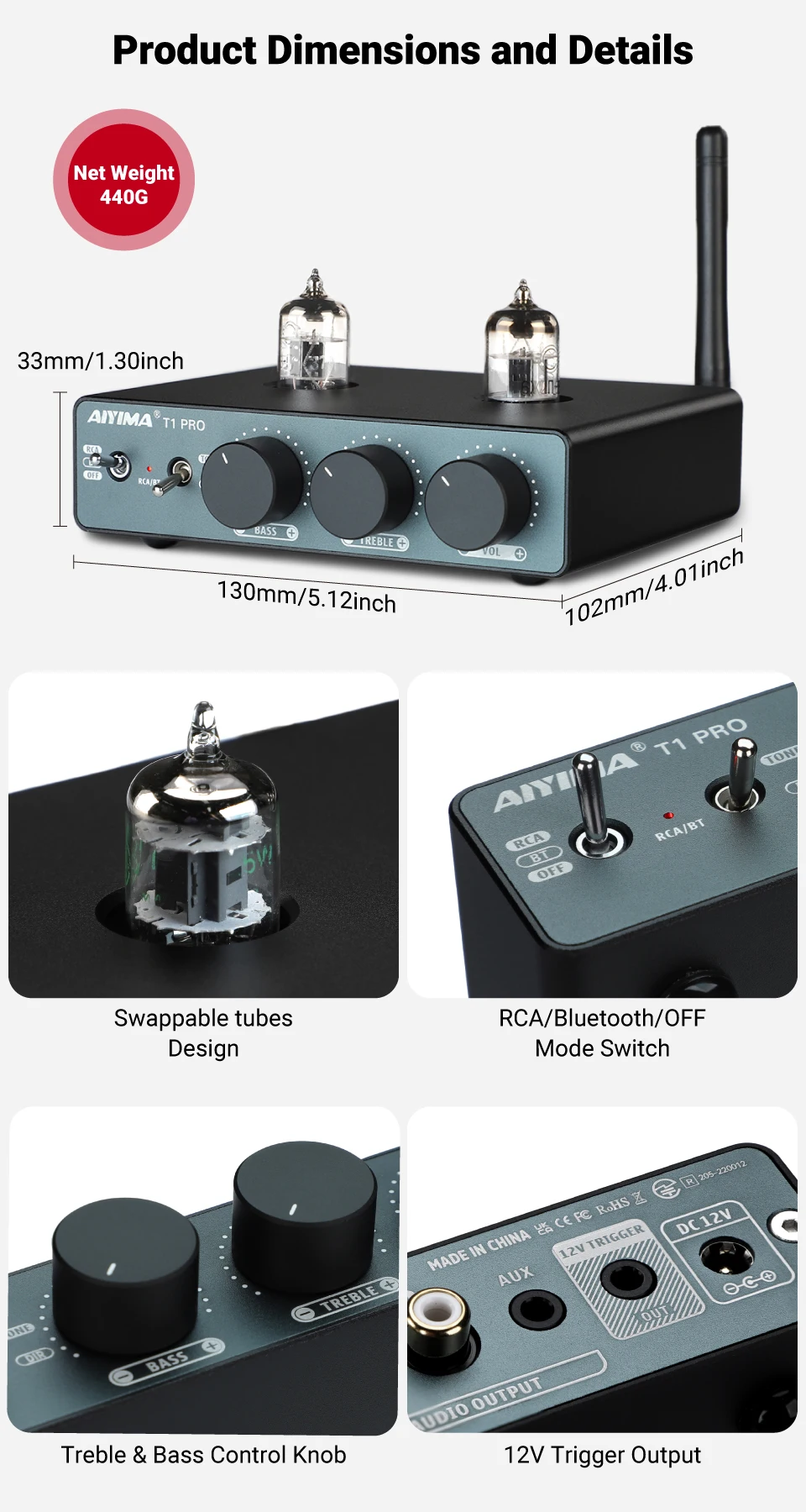

Size: 102*130*33mm (excluding pipe height)

Product net weight: 462g

Package weight: 640g

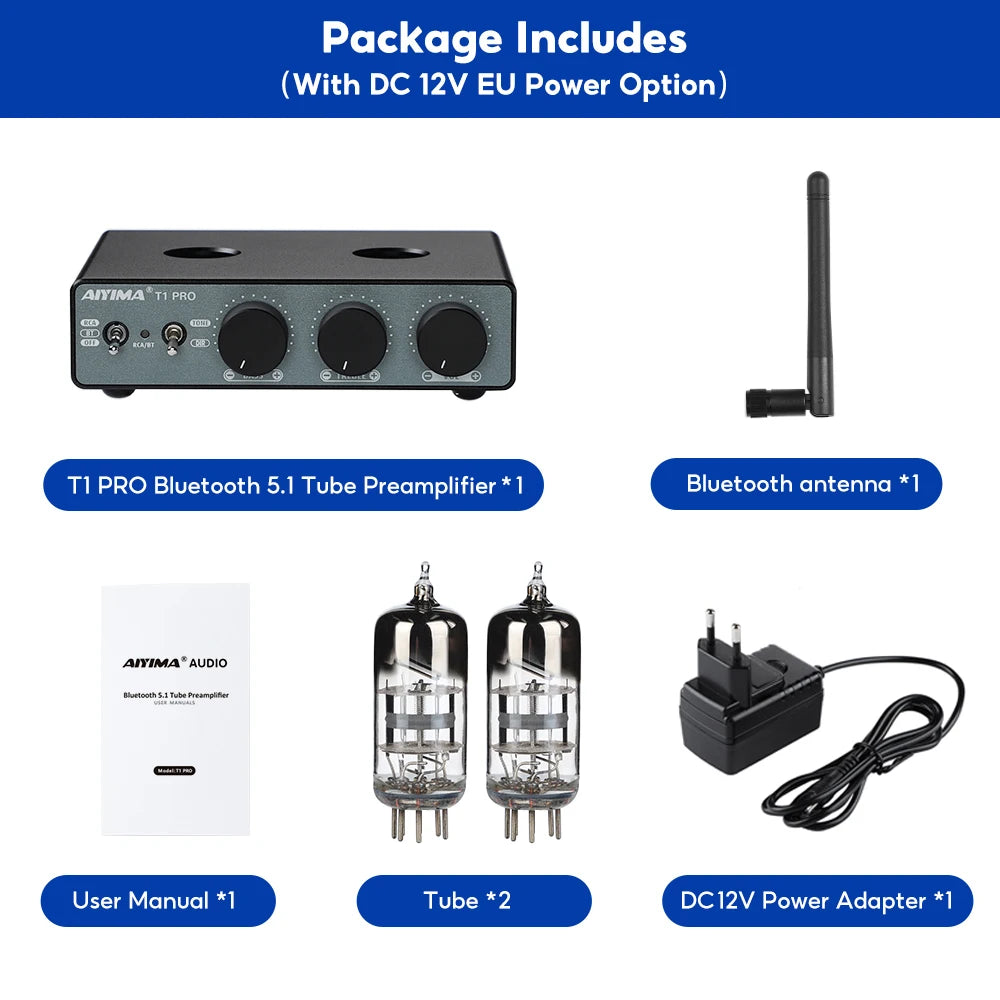

Package included:

1*T1 Pro Tube Amplifier

1*Manual

1*Power adapter(it's option)
