SPECIFICATIONS
Brand Name: AlgoLaser
Certification: EMC,CE,EMC,ce
Engraving Accuracy: 0.01mm
Engraving Area: 100x100mm
Engraving speed: 6000mm/min
High-concerned chemical: none
Is Smart Device: Yes
Laser Head Power: 3W 5W 10W
Laser Module Life: >10000 Hours
Laser Power: 10w
Laser Safety Level: Class 1
Laser Wavelength: 450±5nm

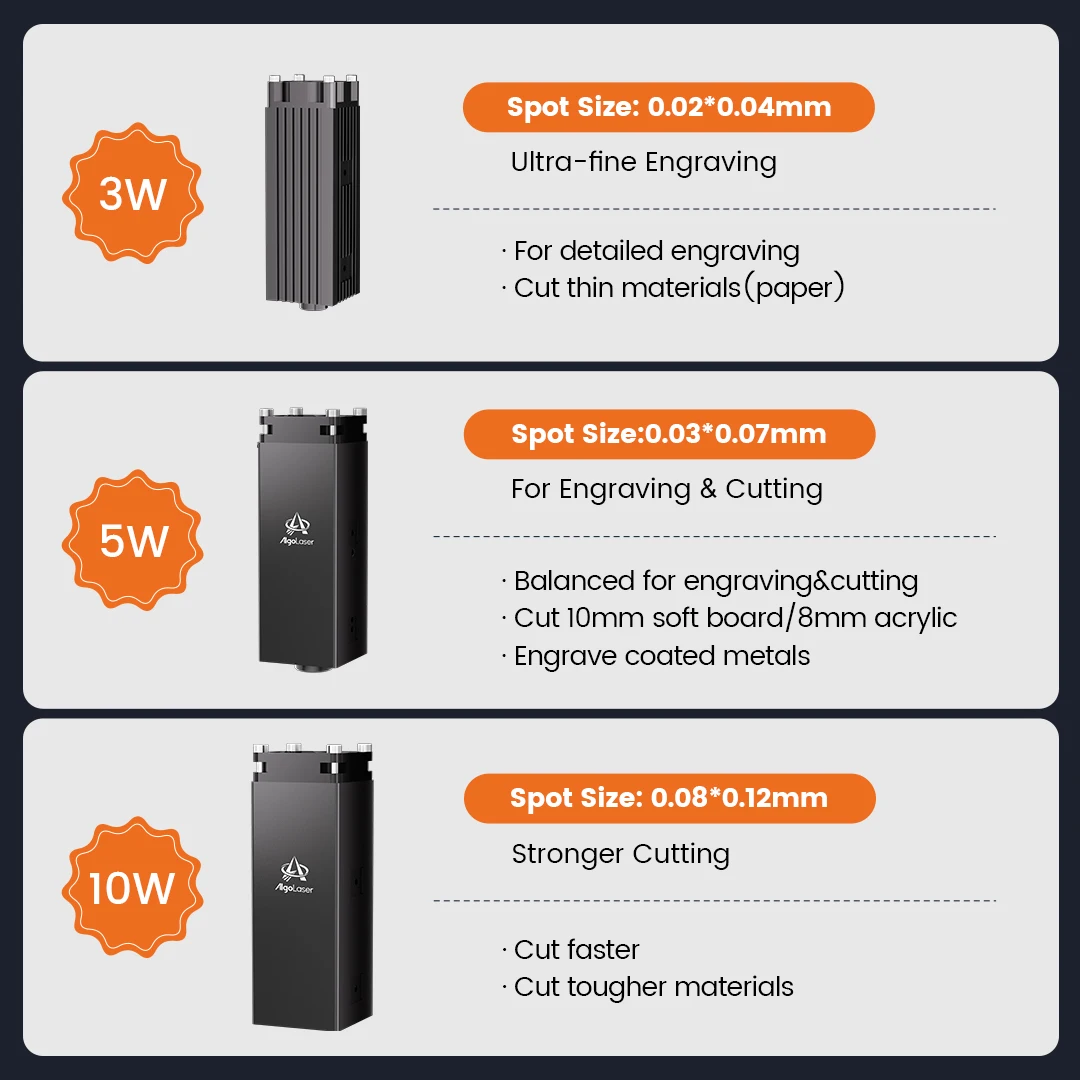

Light Spot: 0.02x0.04mm(3W) 0.03x0.07mm(5W) 0.08x0.12mm(10W)
Material: others
Model Number: Pixi
Net Weight: 3.75kg
Origin: Mainland China
Product Size: 264.75x214x195.5mm
Software: AlgoLaser APP / Lightburn / LaserGRBL/Web UI/Touch Screen
Support Systems: Android / iOS / iPad / Windows /MacOS
Supported Formats: jpg, svg, png, bmp, G-code, CAD, Al, CDR, dwg, etc.
TF card: Support (built-in 4GB)
Touch Screen: 3.5 inch
U disk: Support, requires Type-C adapter
USB port: Support (USB Type-C)

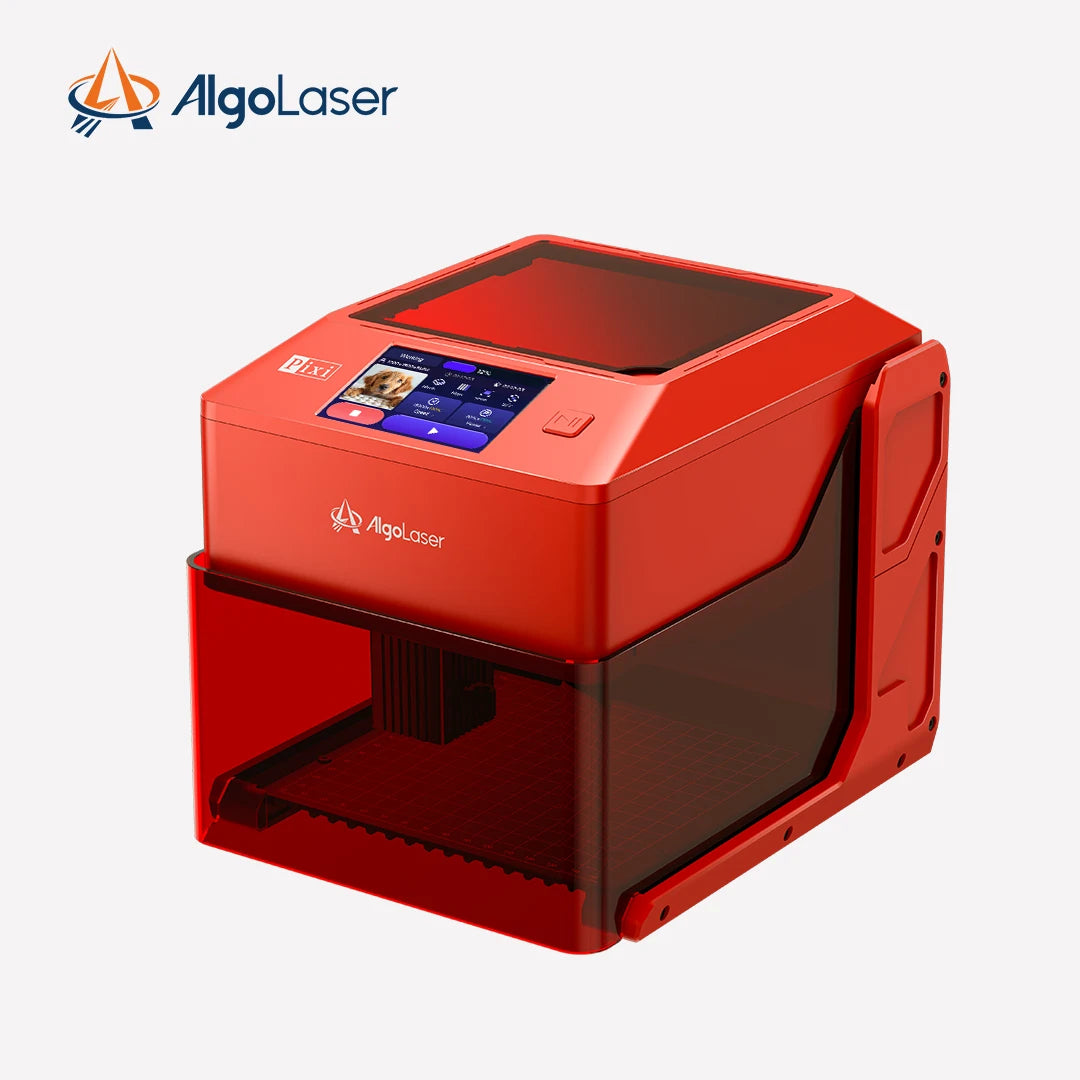

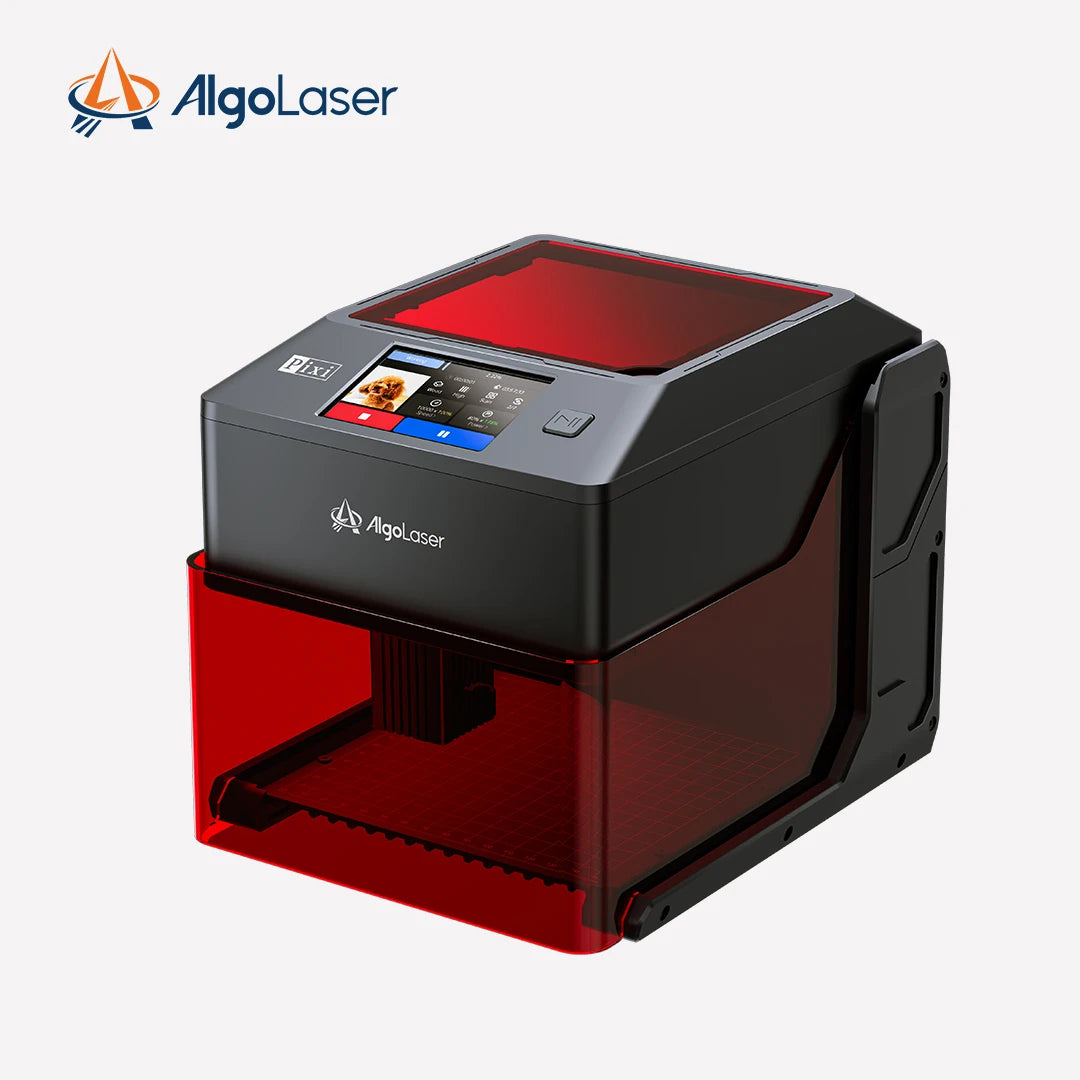

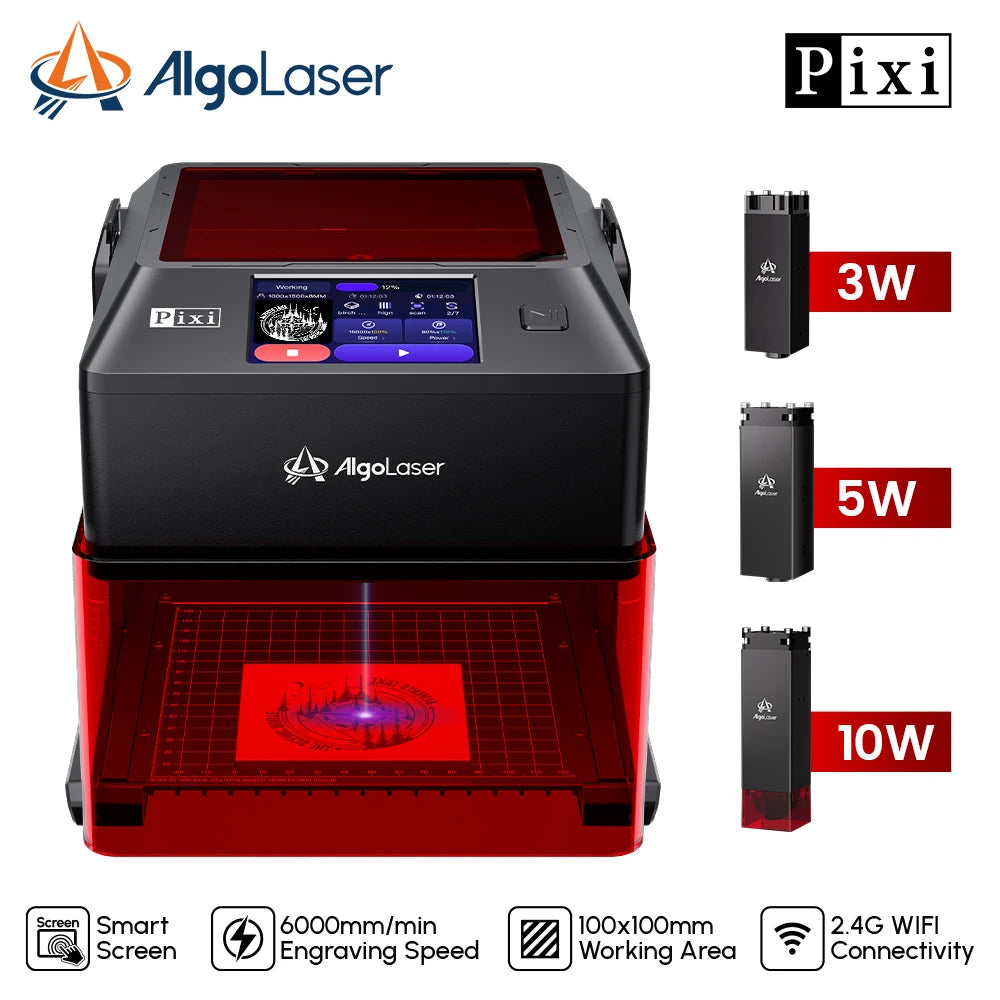

AlgoLaser PIXI Portable Laser Engraver with 3.5'' Touch Screen Smart Class 1 Laser Engraver Machine

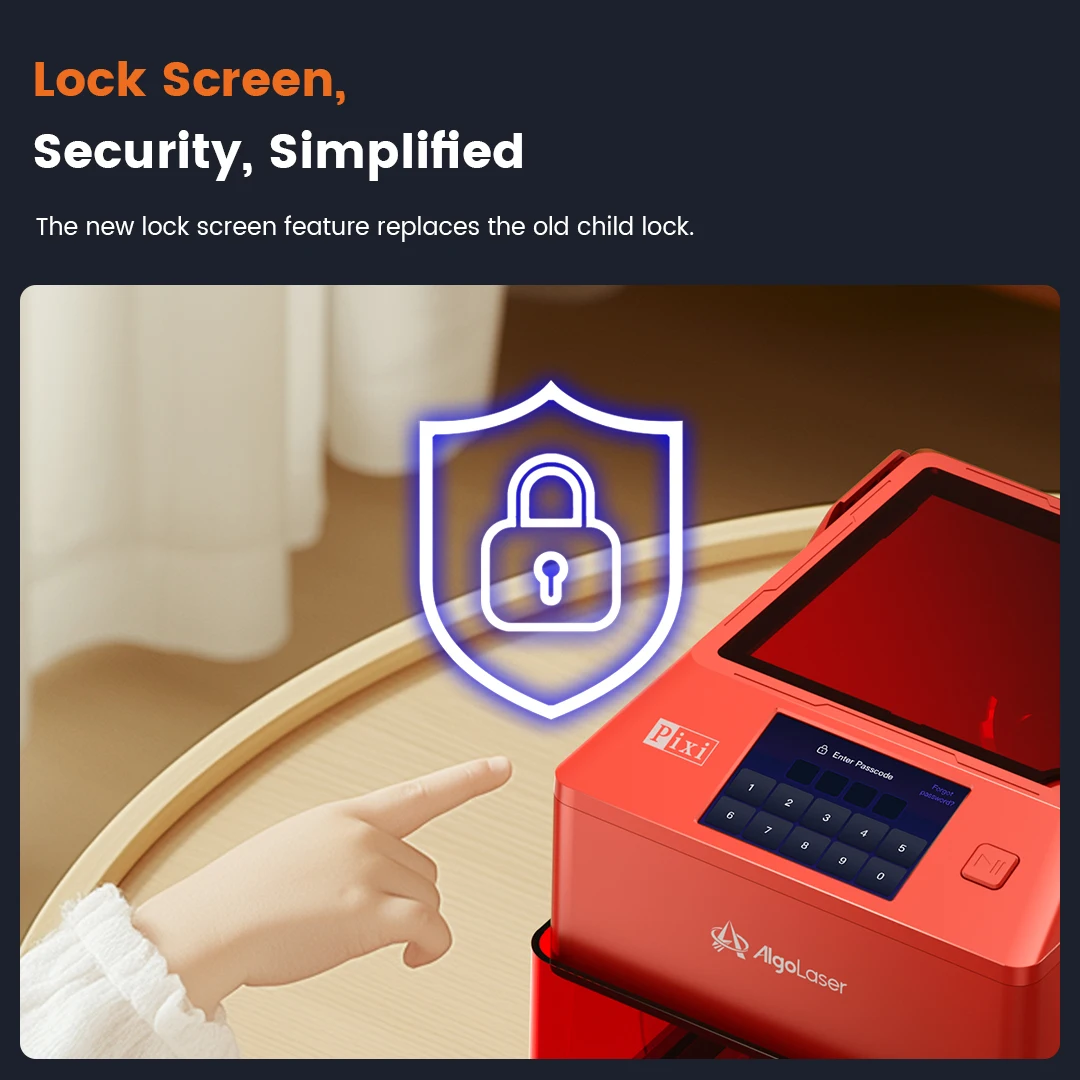

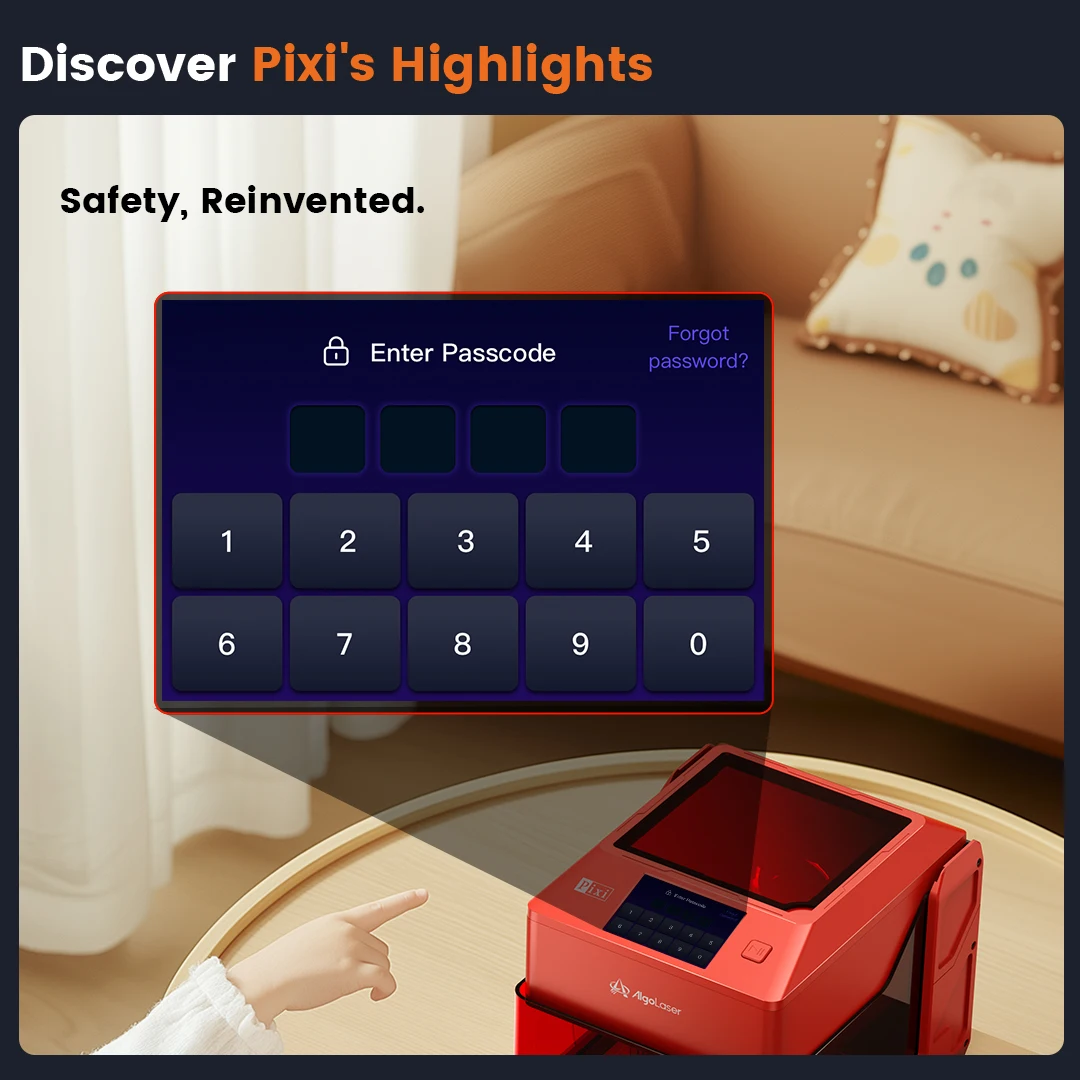

Safe and Reliable: The fully enclosed laser engraving system meets FDA IEC 60825-1 Class I laser standards and features a screen lock to prevent accidental touches. It also features automatic stop when the lid is opened, tilt protection, and fault notifications.

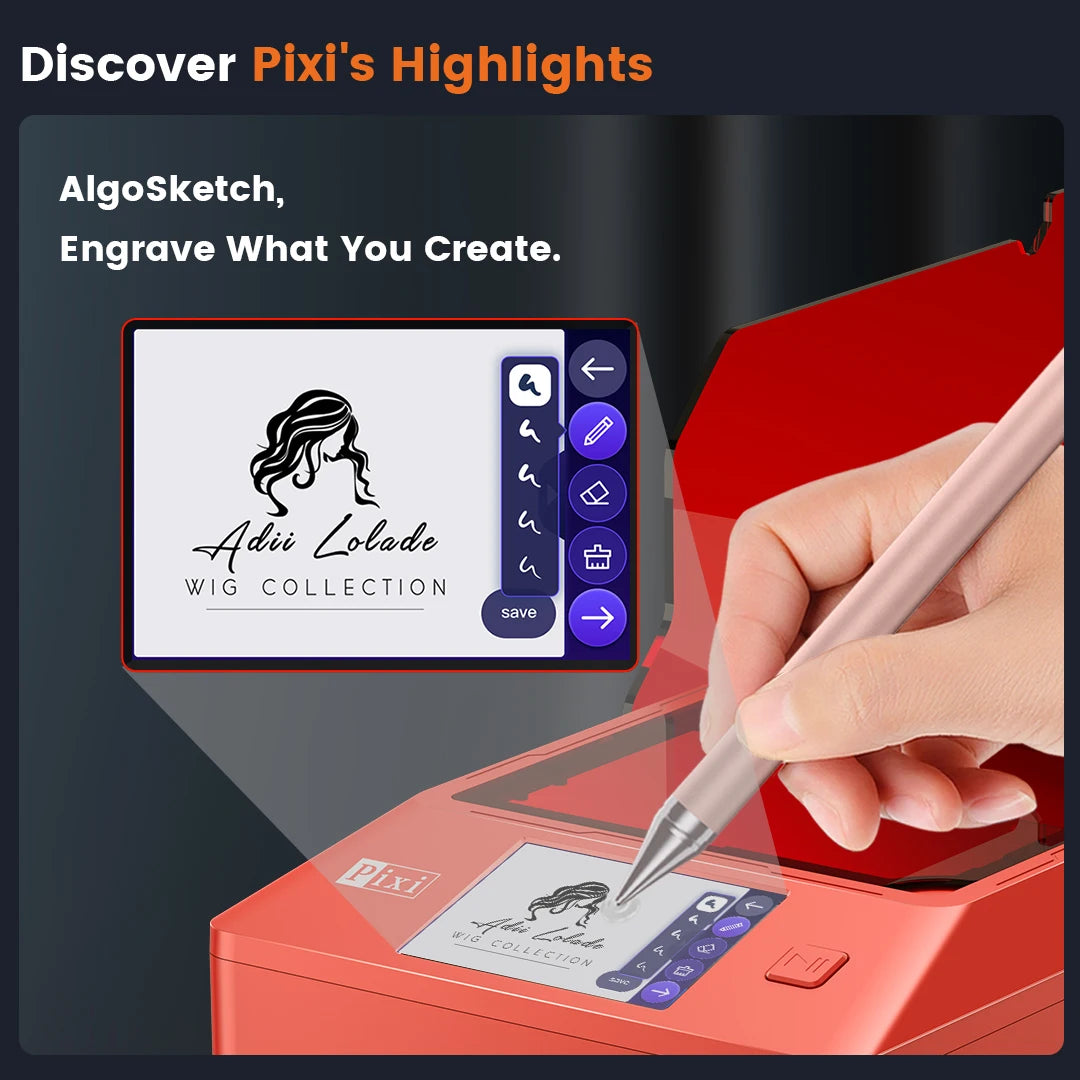

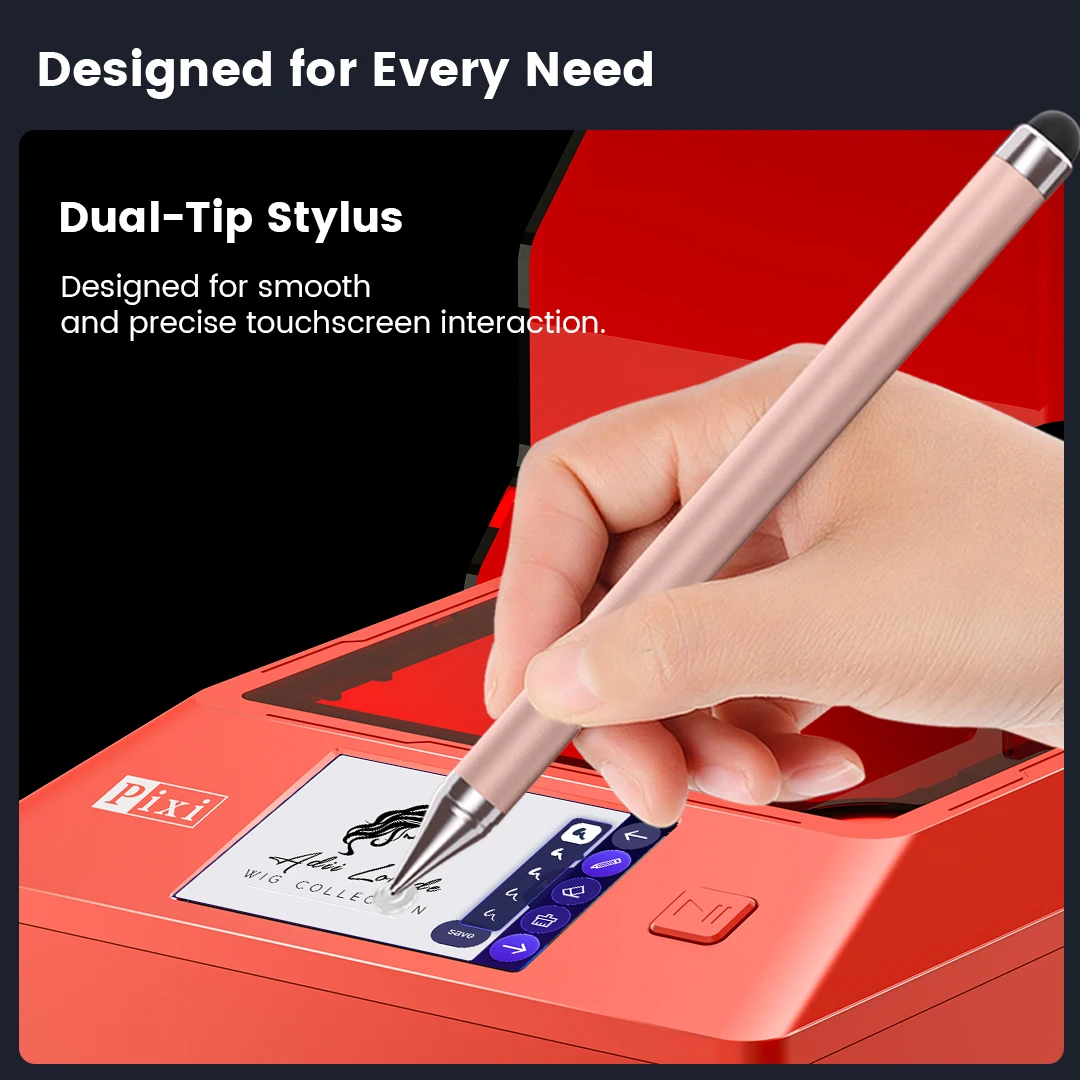

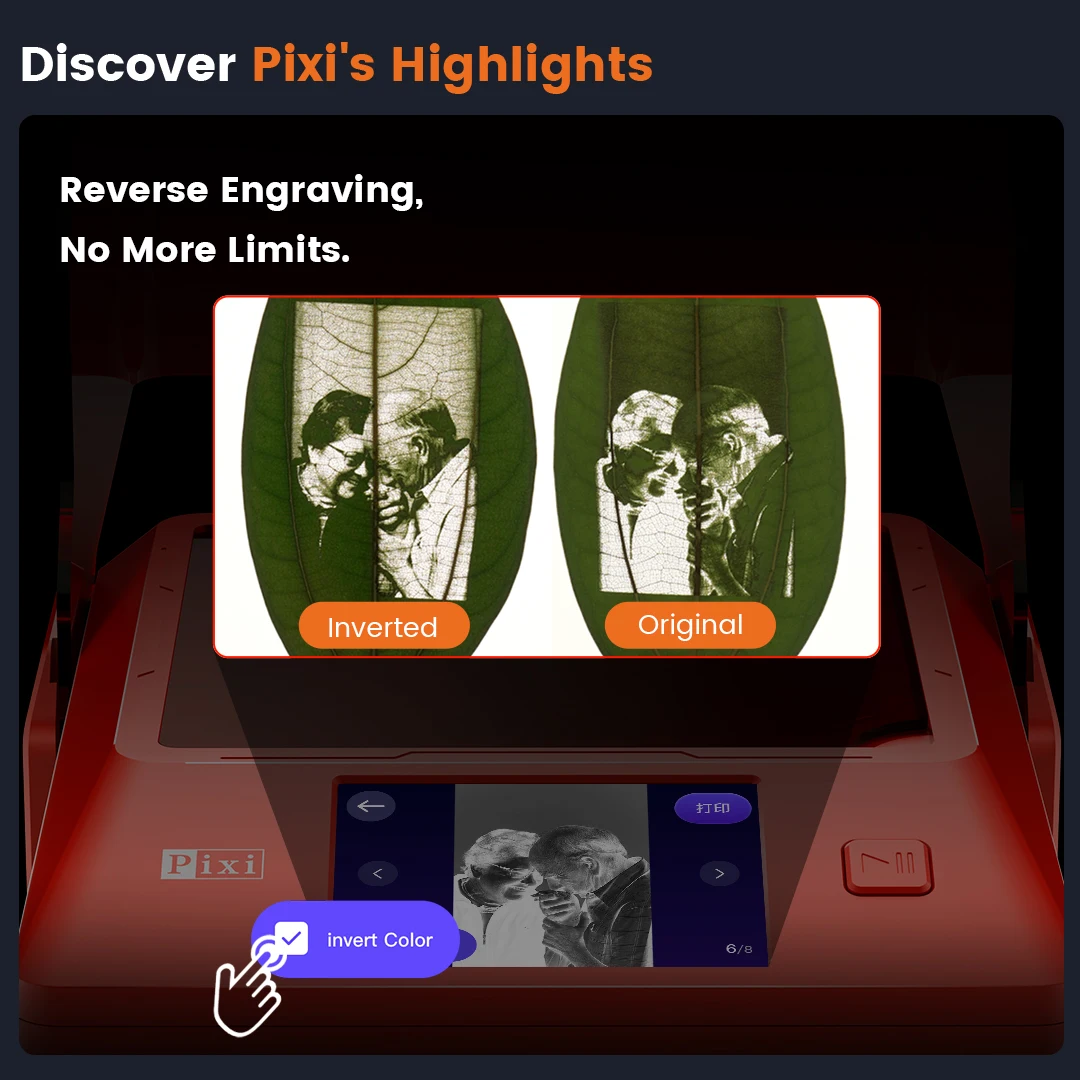

Innovative Technology: Powered by the AlgoOS operating system, the smart laser engraver machine features a 3.5-inch touchscreen and dual-tipped stylus, allowing you to convert handwriting, drawing, and text input into engravings. It supports reverse color engraving, breaking the limitations of material color and delivering high-contrast, clear results on any surface.

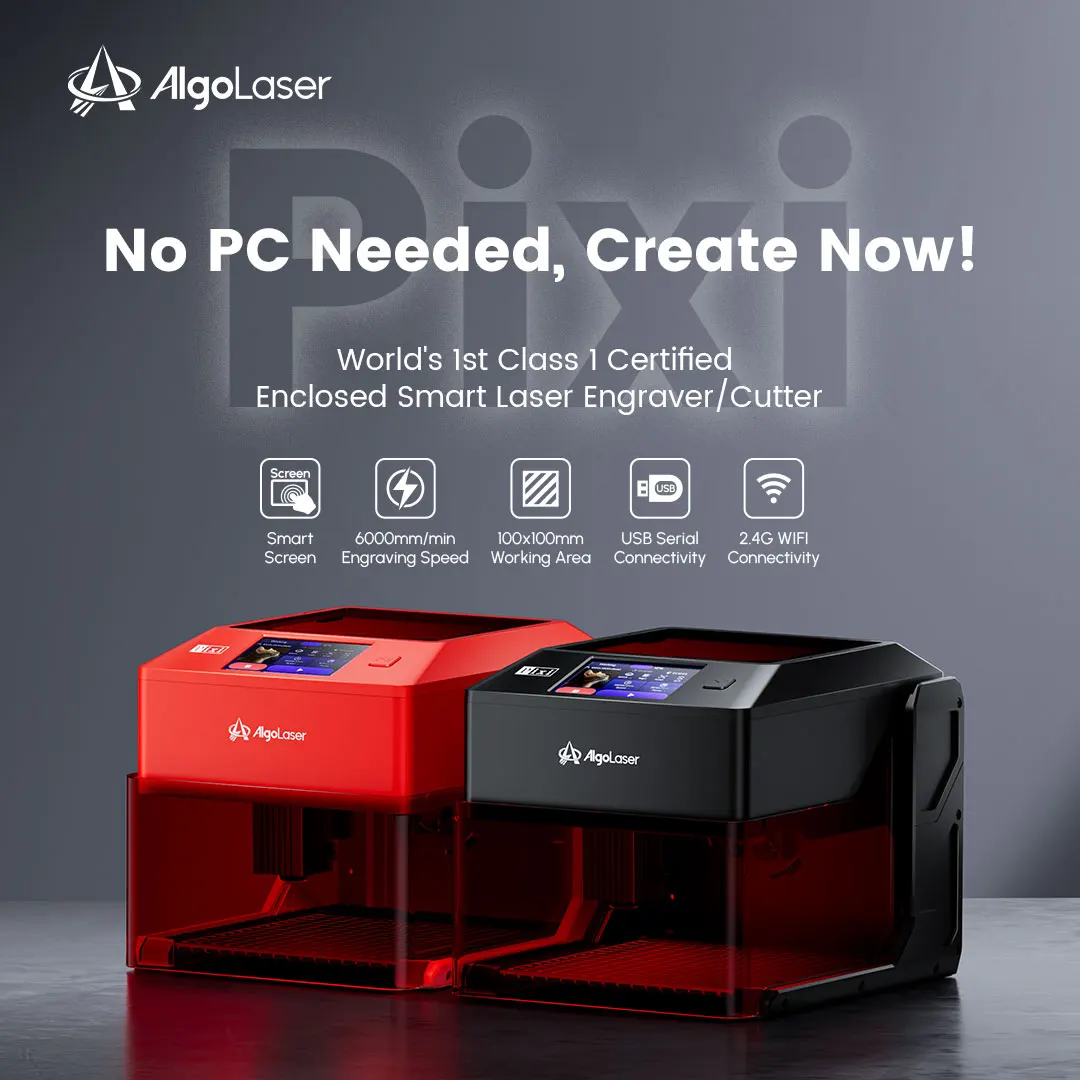

Portable and Easy to Use: Ready to use right out of the box, no assembly required. Dimensions: 264.75*214*195.5 mm, net weight: approximately 3.75 kg. Pixi portable laser engraver don't need to connect to a phone or computer, AlgoOS supports touchscreen operation. Its extensive built-in library of materials and examples provides recommended parameters for commonly used materials (such as material, power, speed, and engraving previews), making engraving quick and easy, making it user-friendly for beginners.

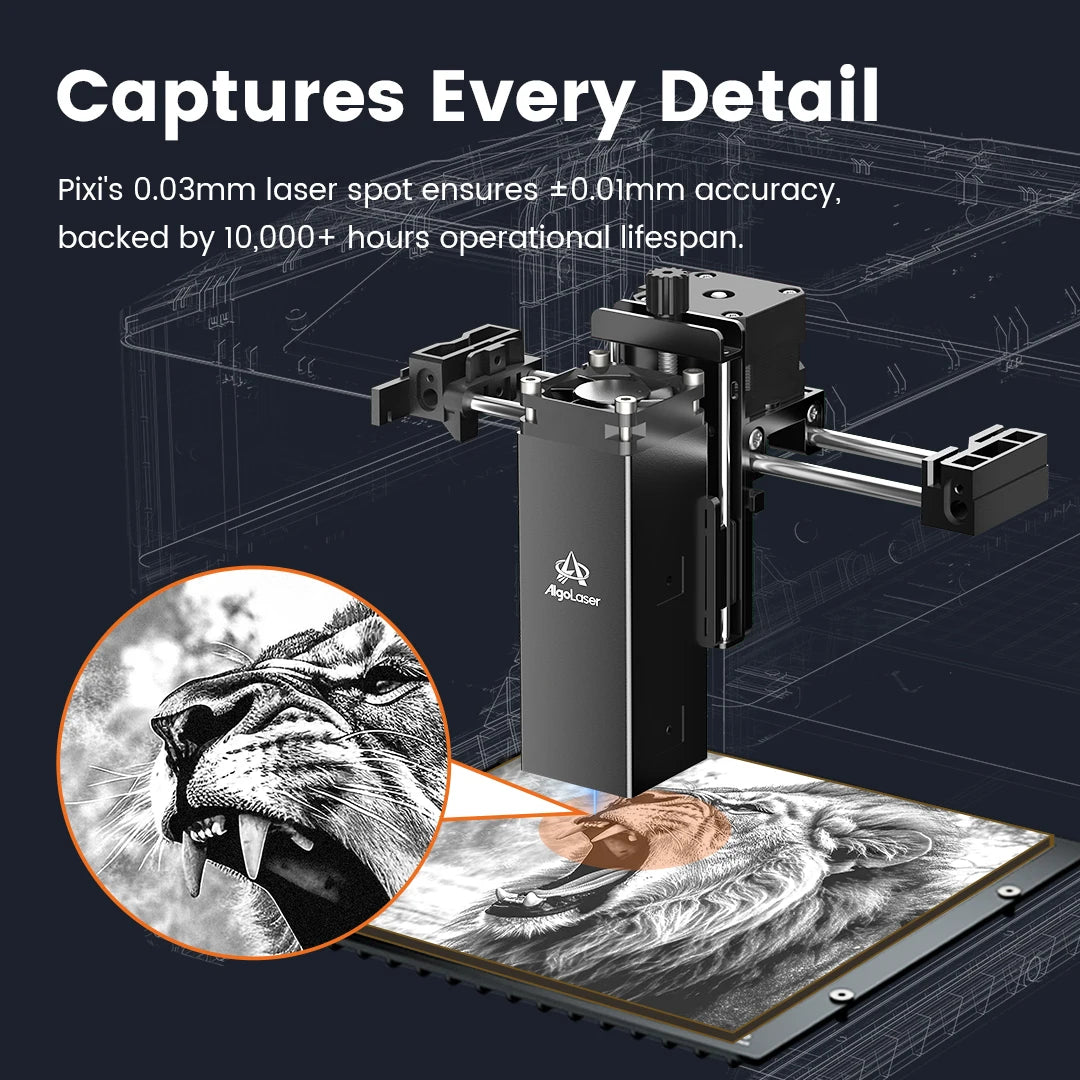

High-Quality Engraving: The laser engraving machine supports three power options: 3W/5W/10W, with a laser module lifespan exceeding 10,000 hours. Utilizing advanced light source technology, it boasts a small spot size of 0.03mm, 0.01mm accuracy, and an engraving speed of 6000mm/min. It supports over 300 materials, including paper, wood, plastic, leather, cloth, cardboard, stone, ceramics, and coated metals.

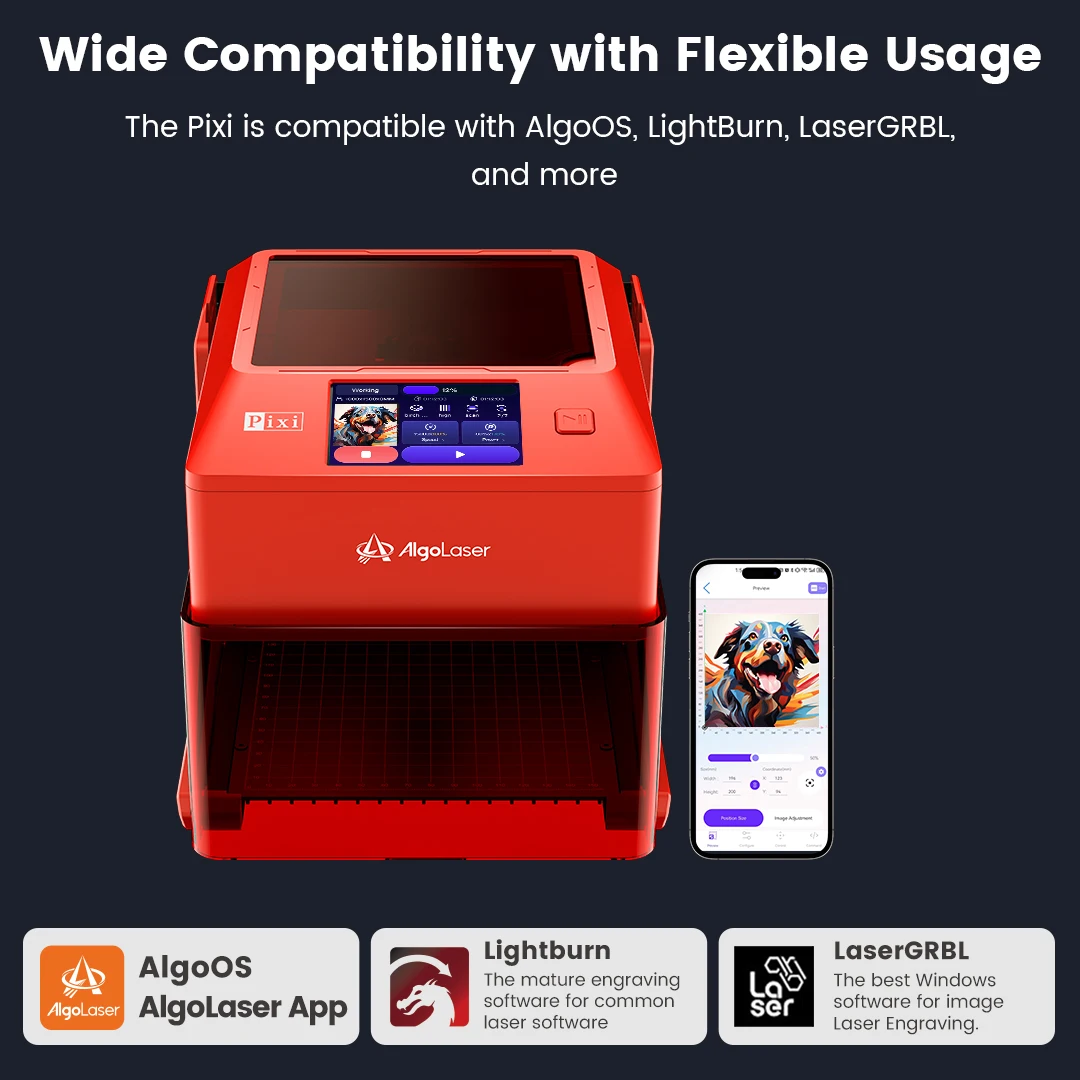

Wide Compatibility: The laser machine can be controlled with the AlgoOS system, as well as computer software, Lightburn, LaserGRBL, and mobile apps. It supports TF cards, USB flash drives, and Wi-Fi (2.4 GHz). It supports file formats including jpg, svg, png, bmp, G-code, CAD, Al, CDR, and dwg.

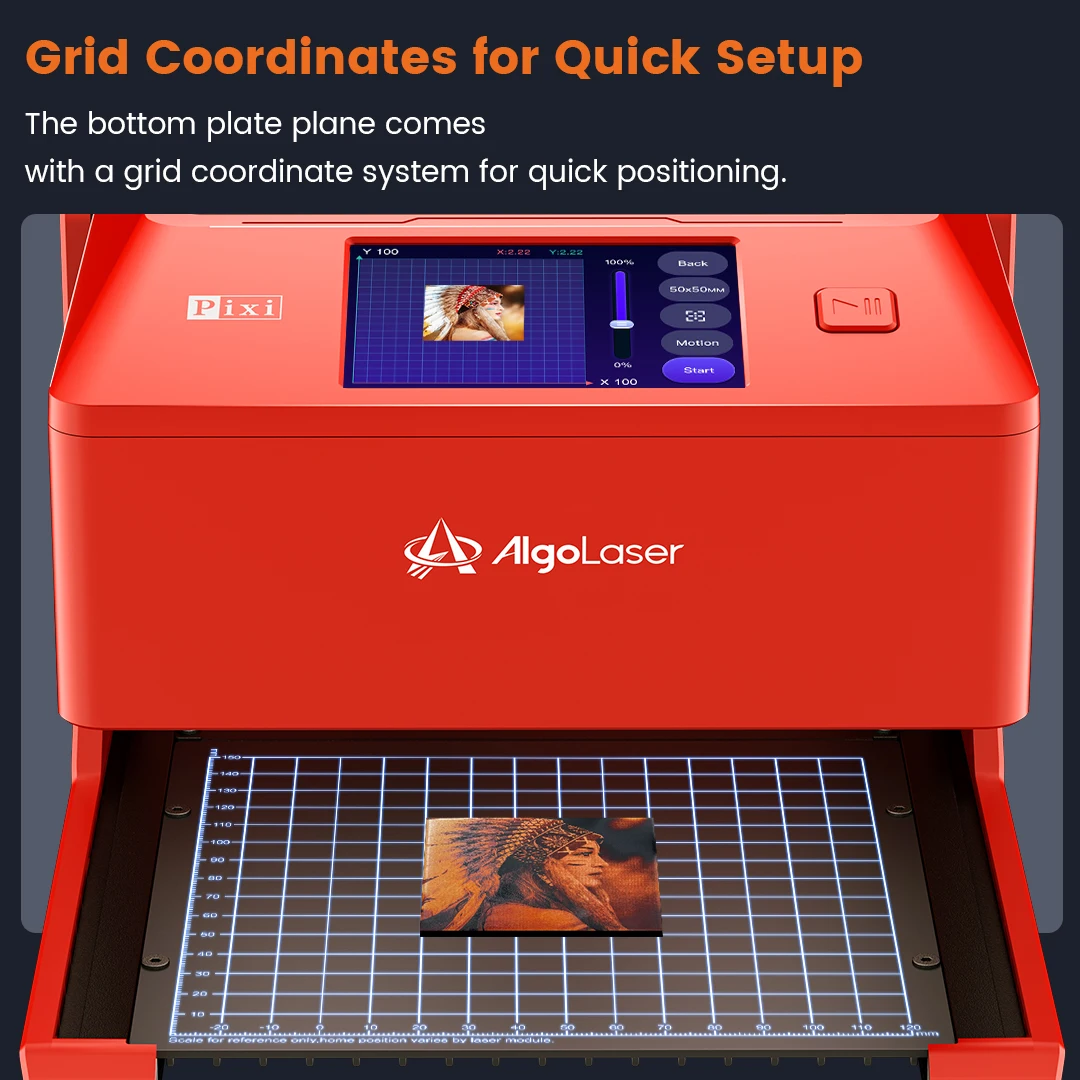

Precise and Fast Positioning: The AlgoOS system supports drag-to-position, coarse adjustment with dragging, and fine adjustment with the click of a button, for precise positioning. The baseplate features a grid-based coordinate system for quick and easy positioning.

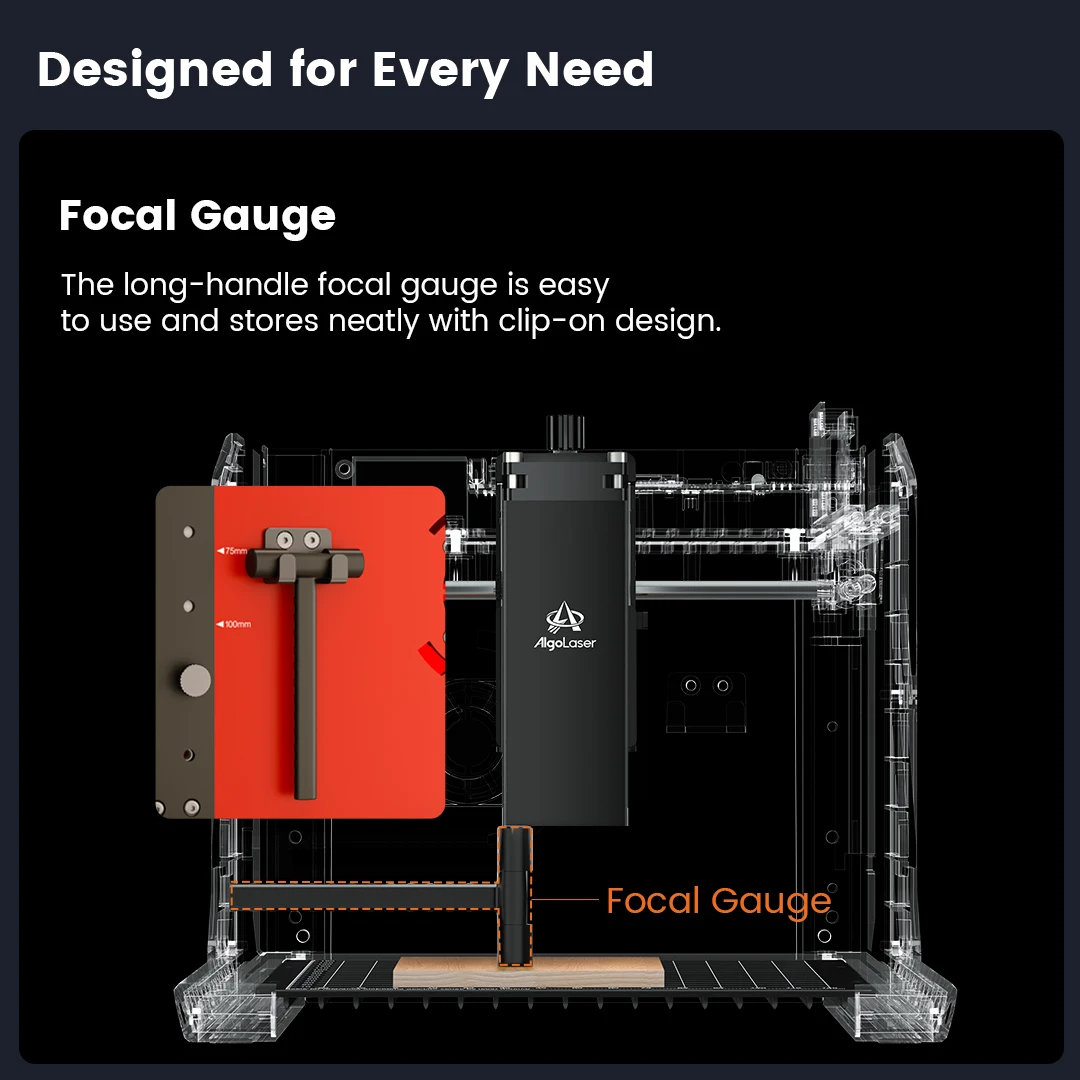

Convenient Focusing: The Z-axis is manually adjusted for focus. The laser is equipped with an adjustment knob on top and a protective cover. Opening the top cover allows for easy Z-axis height adjustment. A long-handled focusing column is also included to assist with focusing.

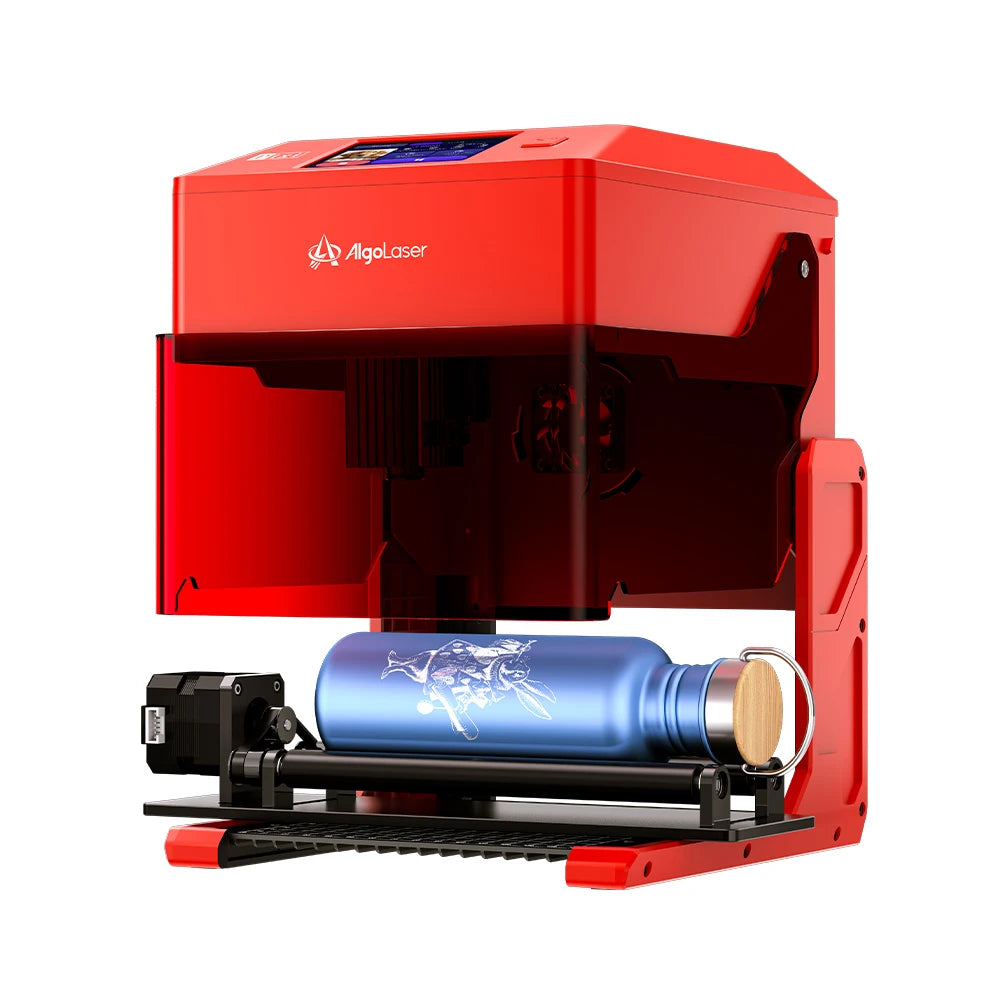

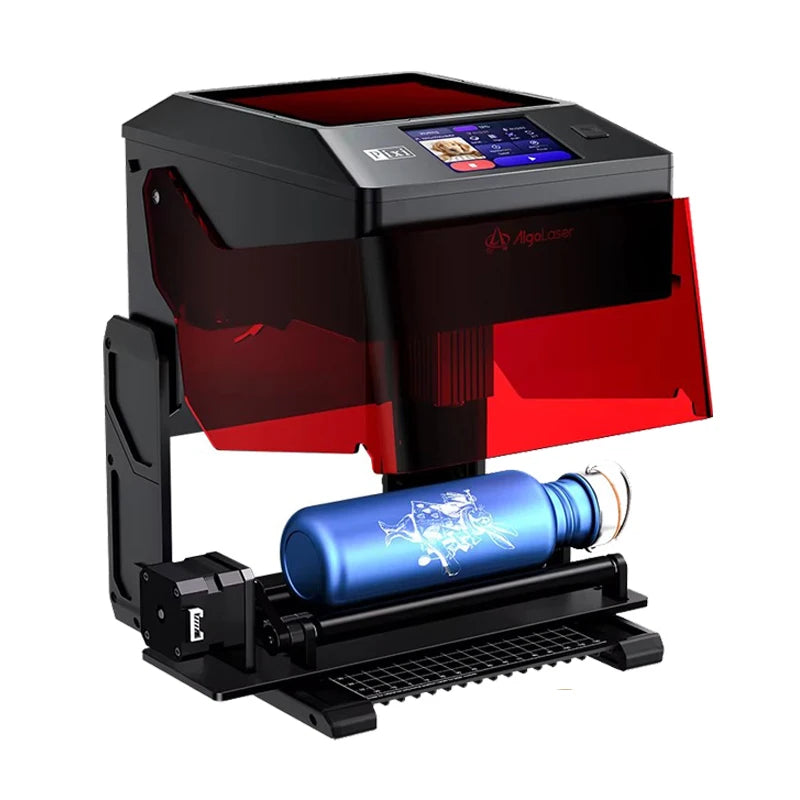

134mm Z-axis Lift: The housing has five adjustable height levels, providing a total of 100mm of lift. The Z-axis has 34mm of lift, allowing for a maximum height of 134mm. Rollers can be used to engrave taller objects.
Multi-Language Compatibility: Supports English, German, French, Spanish, Portuguese, Italian, Russian, Malay, Thai, Vietnamese, Arabic, Korean, Japanese, Simplified Chinese, Traditional Chinese, Turkish, Czech, Polish, Filipino, Indonesian, and other languages, with updates coming continuously.

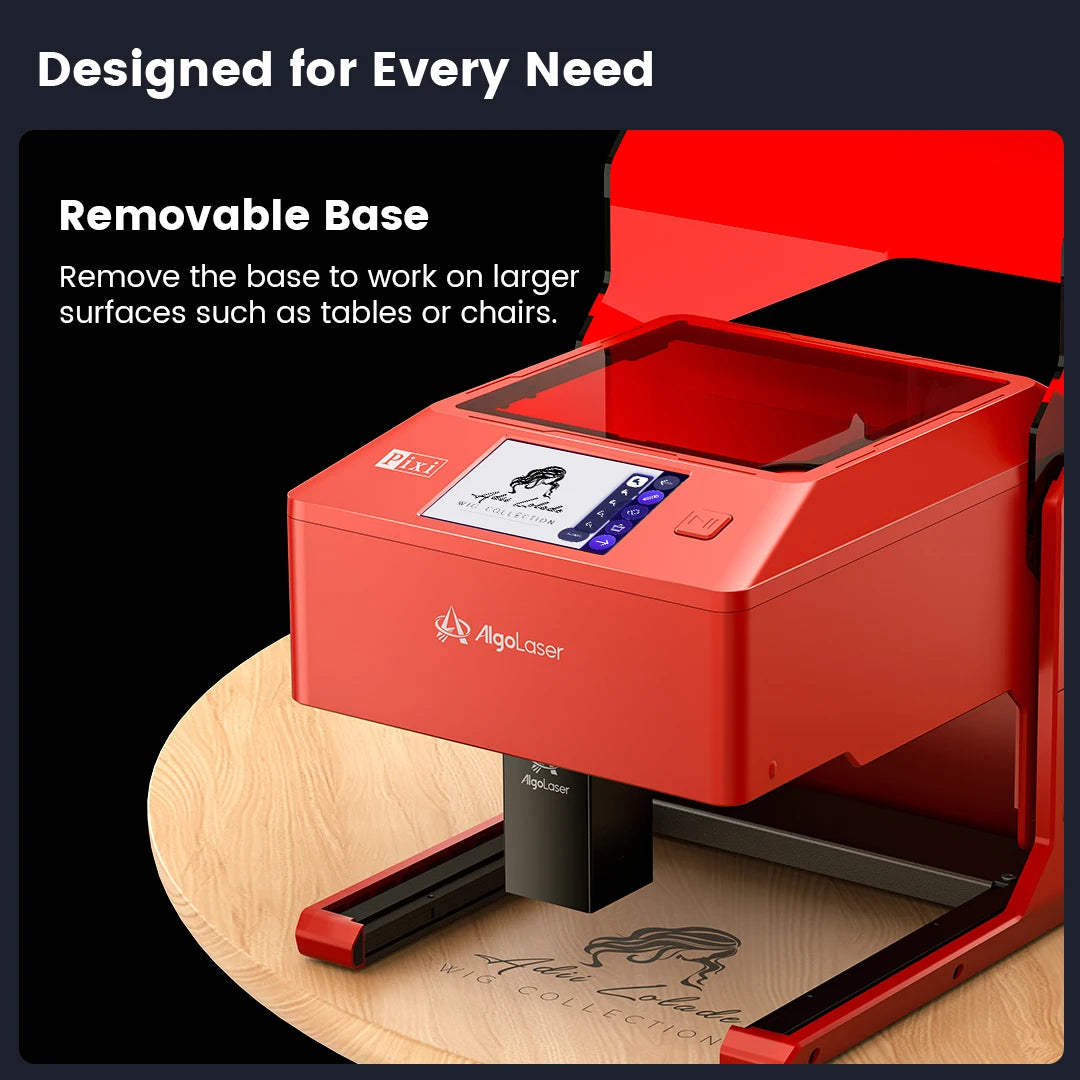

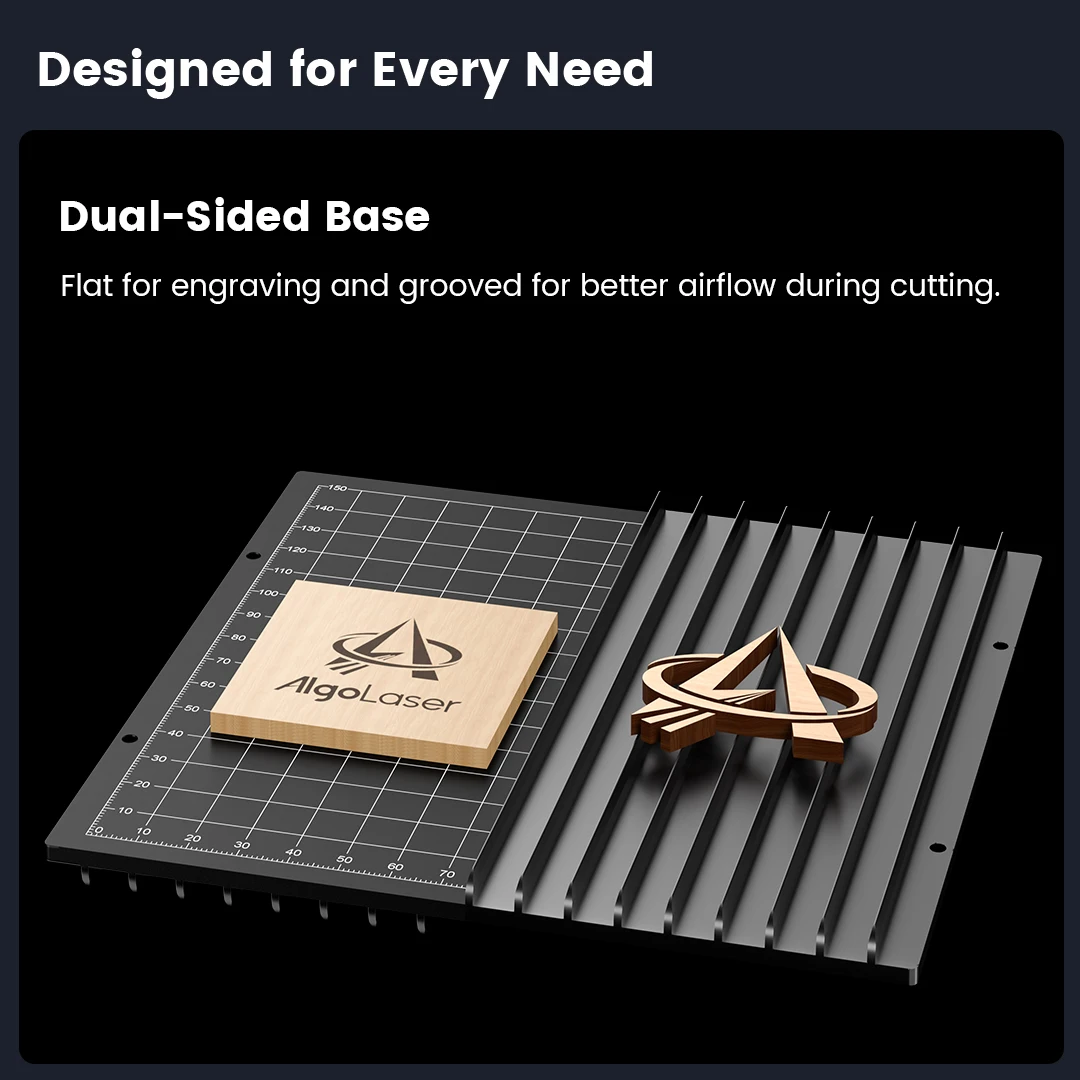

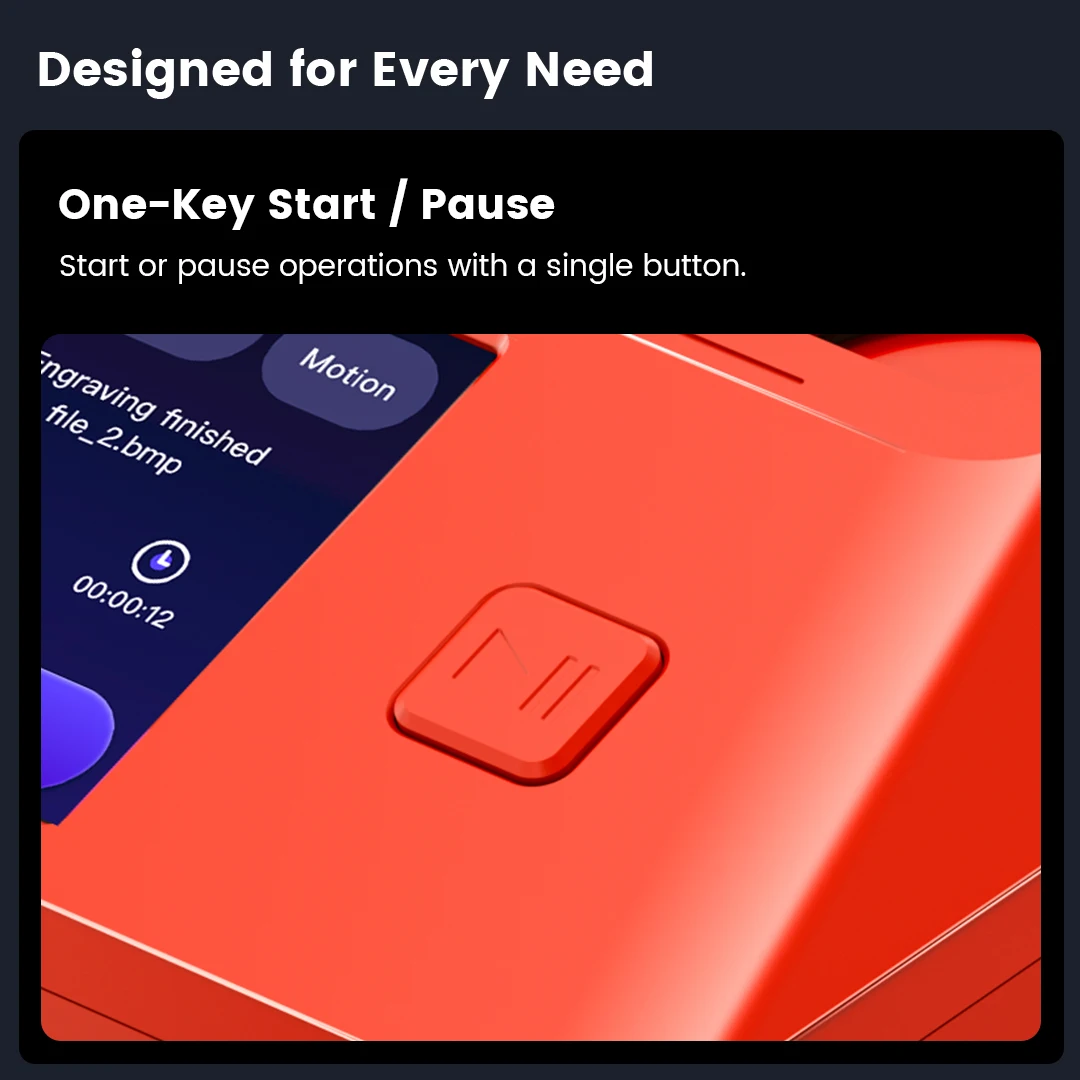

More features: It adopts a double-sided base design, with the flat surface for engraving and the grooved surface with good air permeability, which is more suitable for cutting; the base plate is removable, and after removing the base plate, it can be used on larger surfaces (such as tables and chairs); it is equipped with an exhaust fan, which automatically runs when work starts and stops when work stops; the standard 80cm long smoke pipe can quickly exhaust smoke from the room; it is equipped with a multi-function button that supports one-click pause/start of work; it supports OTA upgrades, automatically detects updates, and updates with a click, without downloading the installation package.
