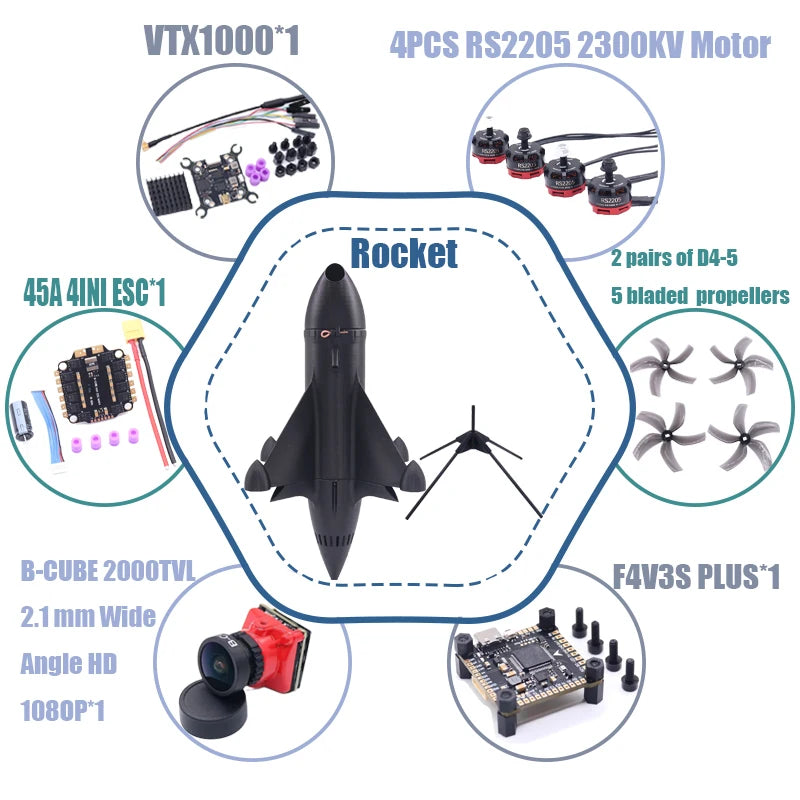

F4V3S PLUS Flight Controller

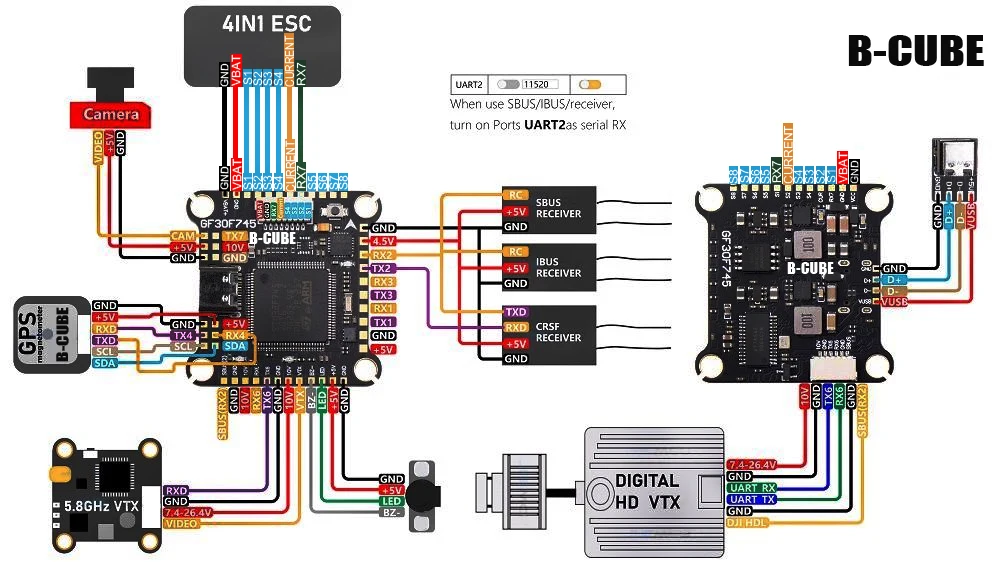

Use UART6 for remote control receiver (PPMor SBUS)

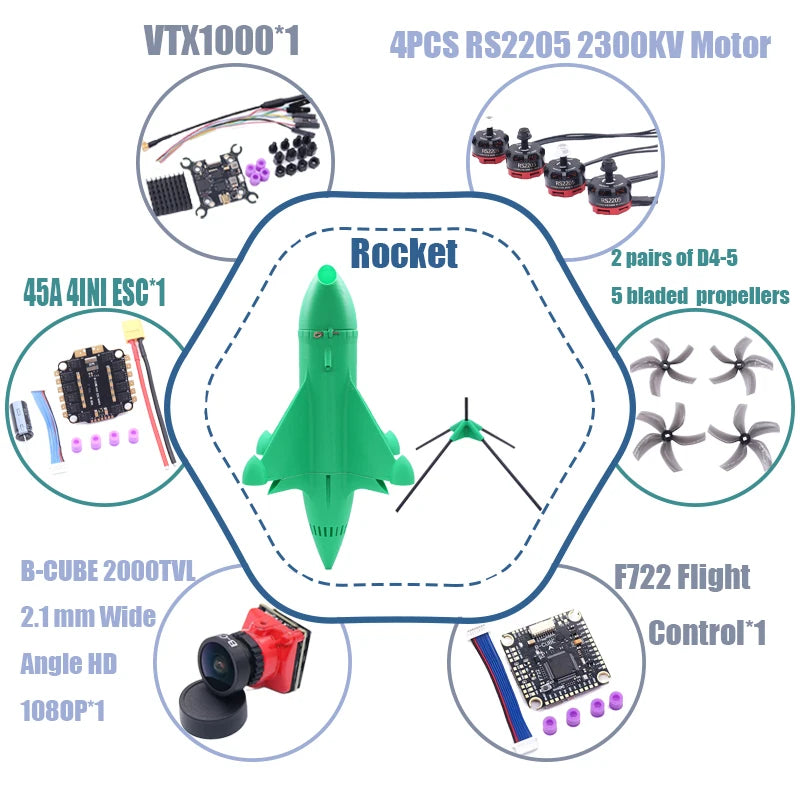

B-CUBE F722 Flight Controller

Features:
1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

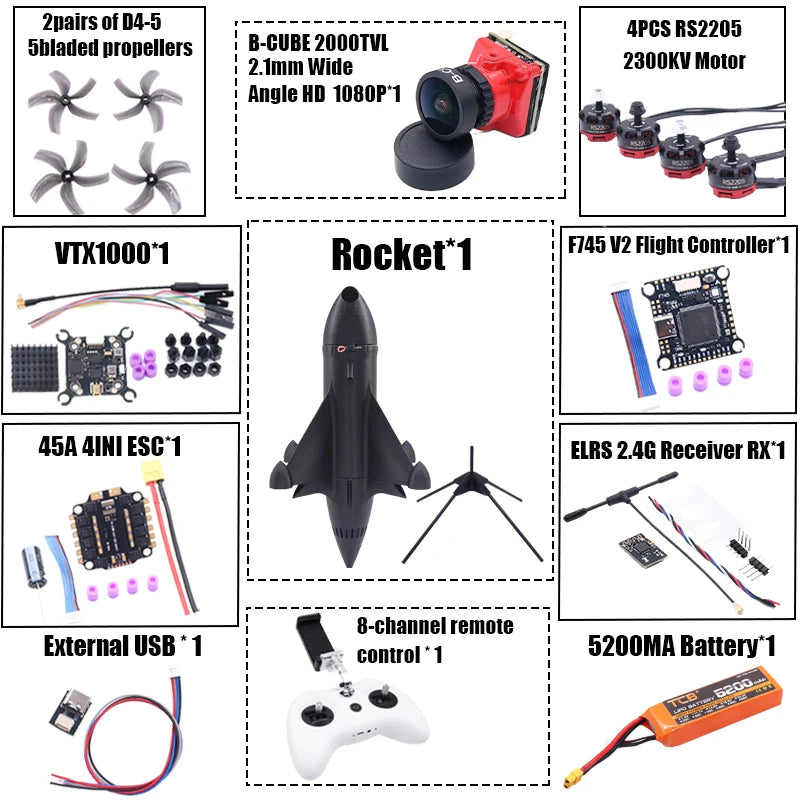

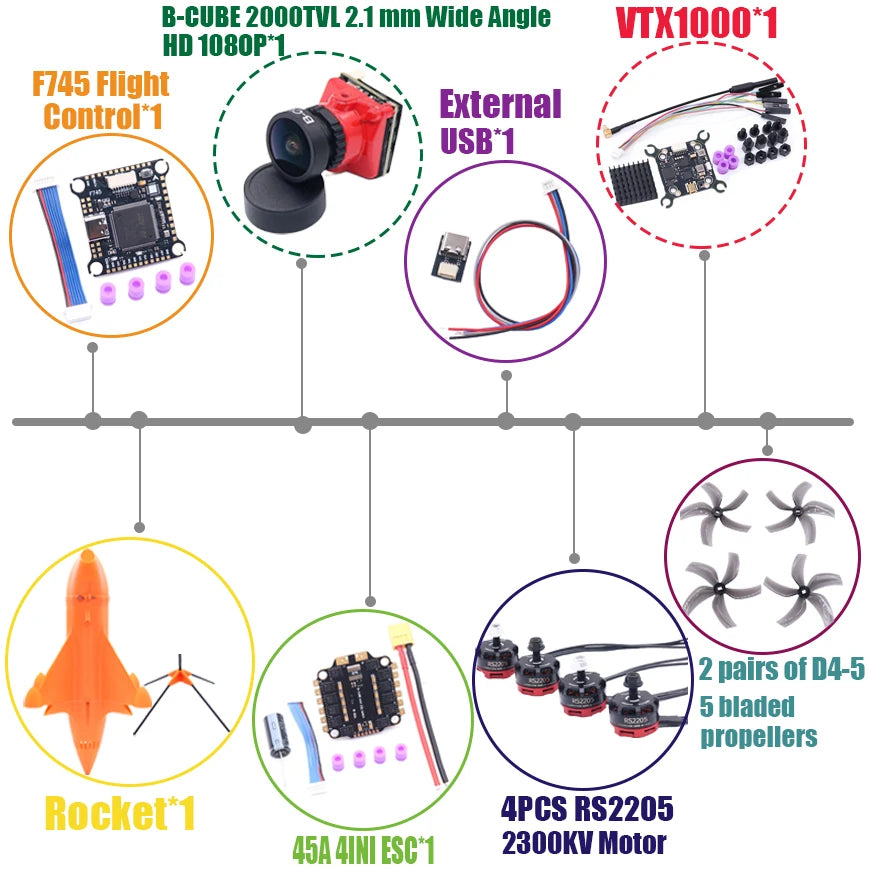

B-CUBE F745 V2 Flight Controller

Features:
 1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
 2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
 4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
 5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

• Chip:STM32F746VG(216MHZ)

• Gyro:ICM-42688-P

• Barometer:SPL06-001

• OSD Chip:AT7456E

• Black box:16MM

• LED Program:Support

• BB buzzer:Support

• Input voltage:3-6S

• I2C Connector:Support

• BEC:5V/2.5A

• BEC:10V/2.0A

• Cam Input:Support

• USART:UART1,UART2.UART3.UART4.UART6.UART7

• Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

• GPS:YES

• COMPASS:YES

• HD O3:YES

• ESC Signal:Dshoot150.Dshot300,Dshot600

• USB:TYPE-C

• Current Port:Yes.

• Voltage Sensor:Yes

• DFU Button:YES

• FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX

• Install hole:30.5*30.5*4MM

• Board size:36*36MM

• Weight:7.5g

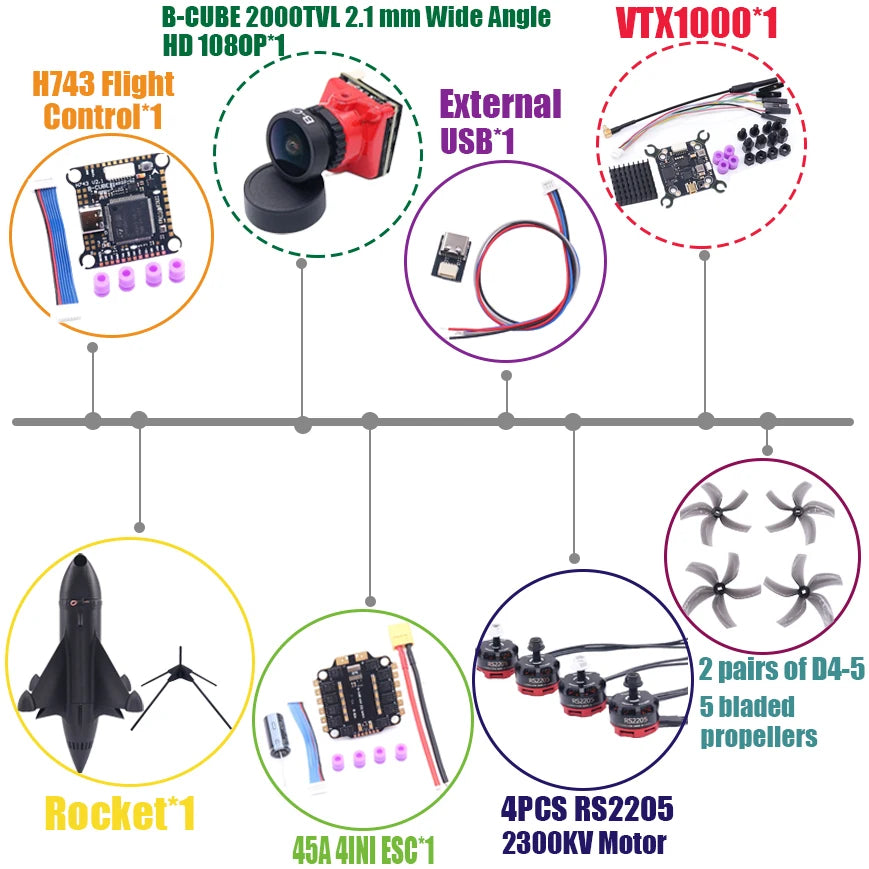

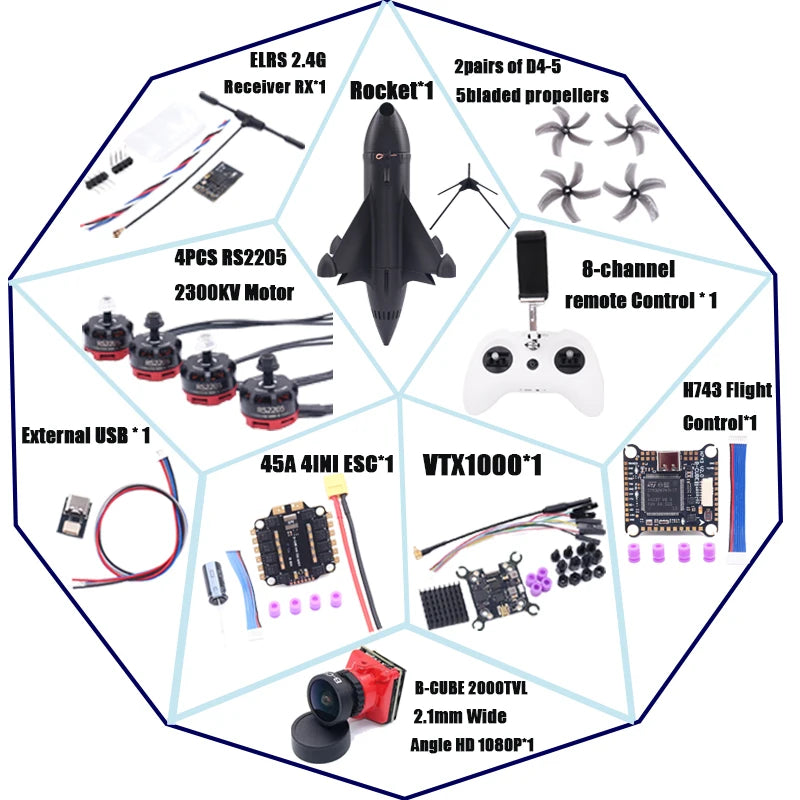

B-CUBE H743 Flight Controller

Features:

1. The H743 is a 3-6S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.

2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.

5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.



Specifications:

Chip:STM32H743VIT6(480MHZ)

Gyro:BMI270 *2

Barometer:SPL06-01

OSD Chip:AT7456E

Black box:16MM

LED Program:Support

BB buzzer:Support

Input voltage:3-6S

I2C Connector:Support

BEC:5V/2.5A

BEC:10V/2.0A

Cam Input:Support

USART:UART1,UART2.UART3.UART4.UART6.UART7

Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

GPS:YES

COMPASS:YES

HD O3:YES

ESC Signal:Dshoot150.Dshot300,Dshot600

USB:TYPE-C

Current Port:Yes.

Voltage Sensor:Yes

Firmware: cleanflight/betaflight/inav/ardupilot

FC firmware:betaflight_4.5.5_STM32H743_JHEH743_HD.hex/ inav_9.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex

Install hole:30.5*30.5*4MM

Board size:36*36MM

Weight:7.9g

VTX1000 1W Video Transmitter

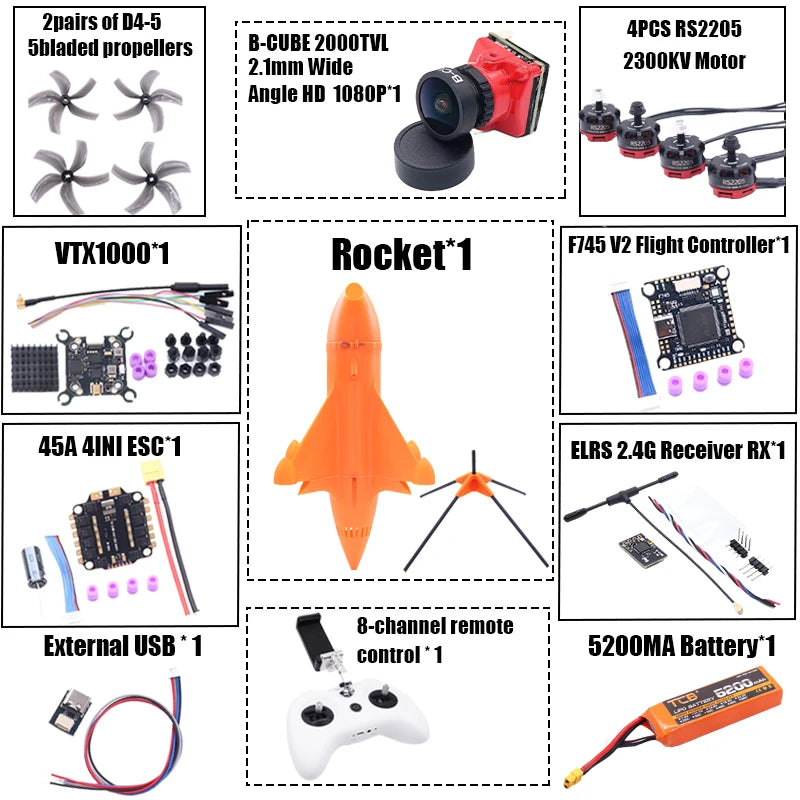

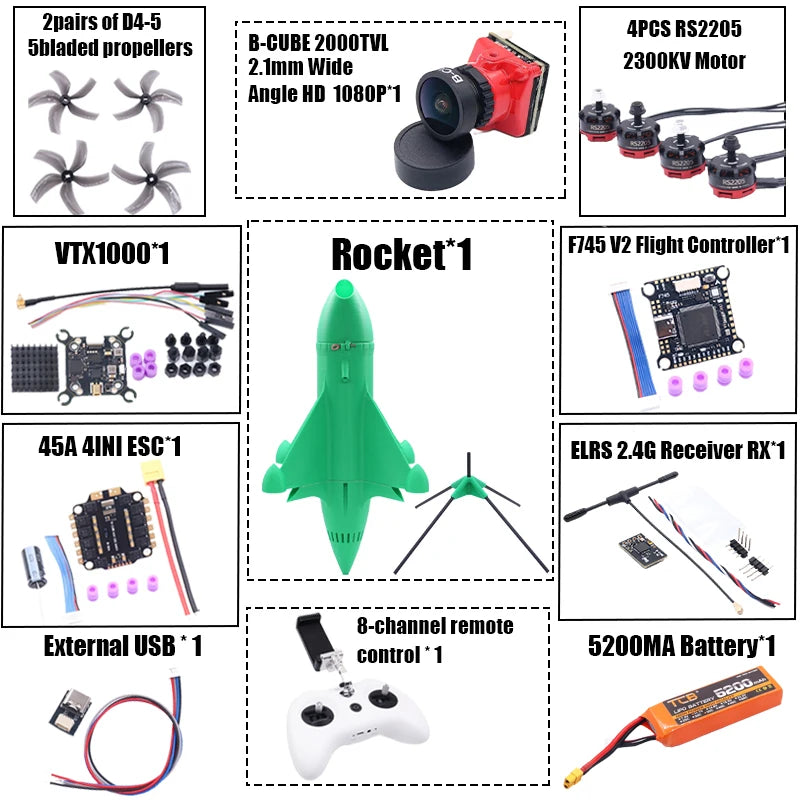

Lithium Polymer Battery Specification Sheet

Basic Information

• Brand: TCB

• Type: LiPo Battery (Lithium Polymer)

• Capacity: 5200 mAh

• Voltage: 11.1V (3S)

• Discharge Rate: 35C (Continuous)

• Connector: XT60

• Dimensions: 130mm x 40mm x 25mm

Electrical Characteristics

• Nominal Voltage: 11.1V

• Charging Voltage: 12.6V (4.2V per cell)

• Discharge Rate: 35C (Continuous), potentially higher peak rate

• Internal Resistance: Low resistance design

• Compatible Voltage Range: 9.0V - 12.6V

Physical Characteristics

• Weight: Approximately 310g (depending on design)

• Casing Material: High-strength polymer casing

• Color: Orange

• Dimensions: 130mm (Length) x 40mm (Width) x 25mm (Height)

Usage and Maintenance

• Charging: Use a balance charger with a charging current not exceeding 1C (5.2A), charging temperature 0-45°C.

• Discharging: Maximum discharge current 182A (35C x 5.2Ah), avoid over-discharging (below 9V).

• Storage: Store at 3.8V per cell (11.4V), temperature 0-40°C, humidity < 70%.

• Safety Precautions: Avoid short circuits, overcharging, over-discharging, and high-temperature environments. Follow battery safety guidelines.

ELRS 2.4G Receiver RX

Product Description:
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1
●Brand:B-CUBE
●Model:ELRS 2.4G NANO
●RF Freq:2.4Ghz
●IC:SX1281+ESP8285
●TX Power:100mW
●Color:Black
●Connector:IPEX 1
●Input Power:3.6-5.5V
●Weight:0.4g(receiver only)
●Size:11mm*18mm
●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included:
Nano Receiver x 1
T type receiver antenna x 1
Heat shrink tube x 1
30AWG Silicone Wire x 4

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

• 8 channels in total.

• USB Joystick support for most practice simulators.

• Nano module bay for external TX module.

• Newly designed joystick gimbal for longer usage life.

• Support BETAFPV Configurator for updating, configuring, and tuning.

• Provide ExpressLRS 2.4G protocol version .

• Built-in 2000mAh battery and USB charge supported.

•
