SPECIFICATIONS
Antenna Average Gain: 2.8dBi
Antenna Bandwidth: 5.725-5.829 GHz
Antenna Name: Red Bird Pro
Antenna Polarization: LHCP
Bandwidth: 5MHz/10MHz/20MHz/Auto
Brand Name: CADDXFPV
Communication Frequency: 5.725-5.829 GHz
Connector: RP - SMAx2
Dimension: 114.5*64*24mm (Without Antenna),56.3mm*D16.5mm
For Vehicle Type: Cars
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: EVA
Menu OSD recording: Support
Model Number: Walksnail Ascent VRX PRO
Origin: Mainland China
Power Input: 7.4~25.2V
Quantity: 1 pcs
RC Parts & Accs: RECEIVERS
Recommend Age: 14+y
Recording File System: exFAT
Recording Format: MP4 (H.264)
Remote Control Peripherals/Devices: RECEIVERS
SD Card: Support Micro SD 256G
Size: 17.02*10.16*5.08 cm
System: Ascent HD system
Use: Vehicles & Remote Control Toys
Weight: 140g,7g

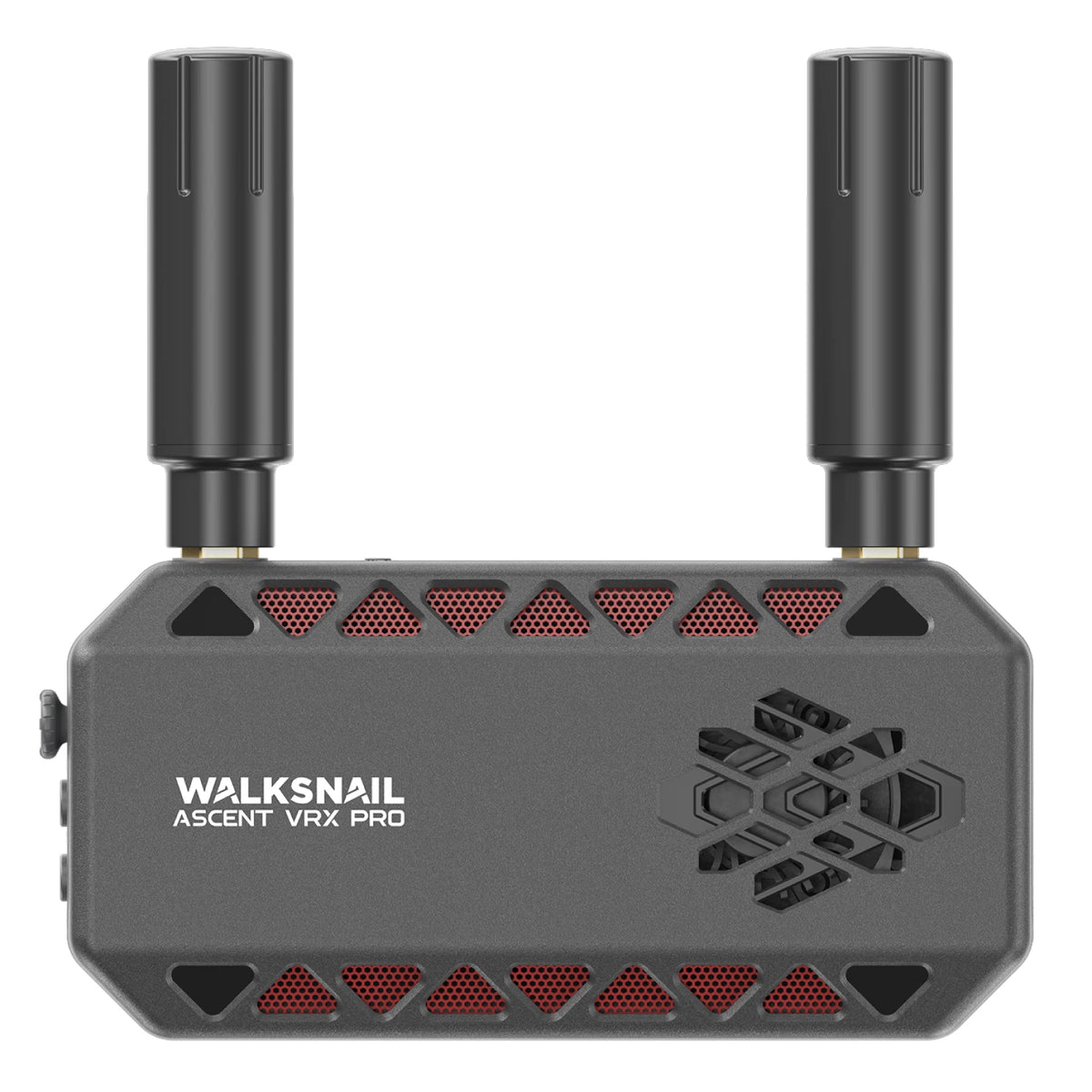

Compact HD digital video receiver delivering 1080P/120fps, dual 2.8dBi antennas, automatic adjustment, 256GB SD recording, HDMI/UVC output, and active cooling in a lightweight 0.3lb design.

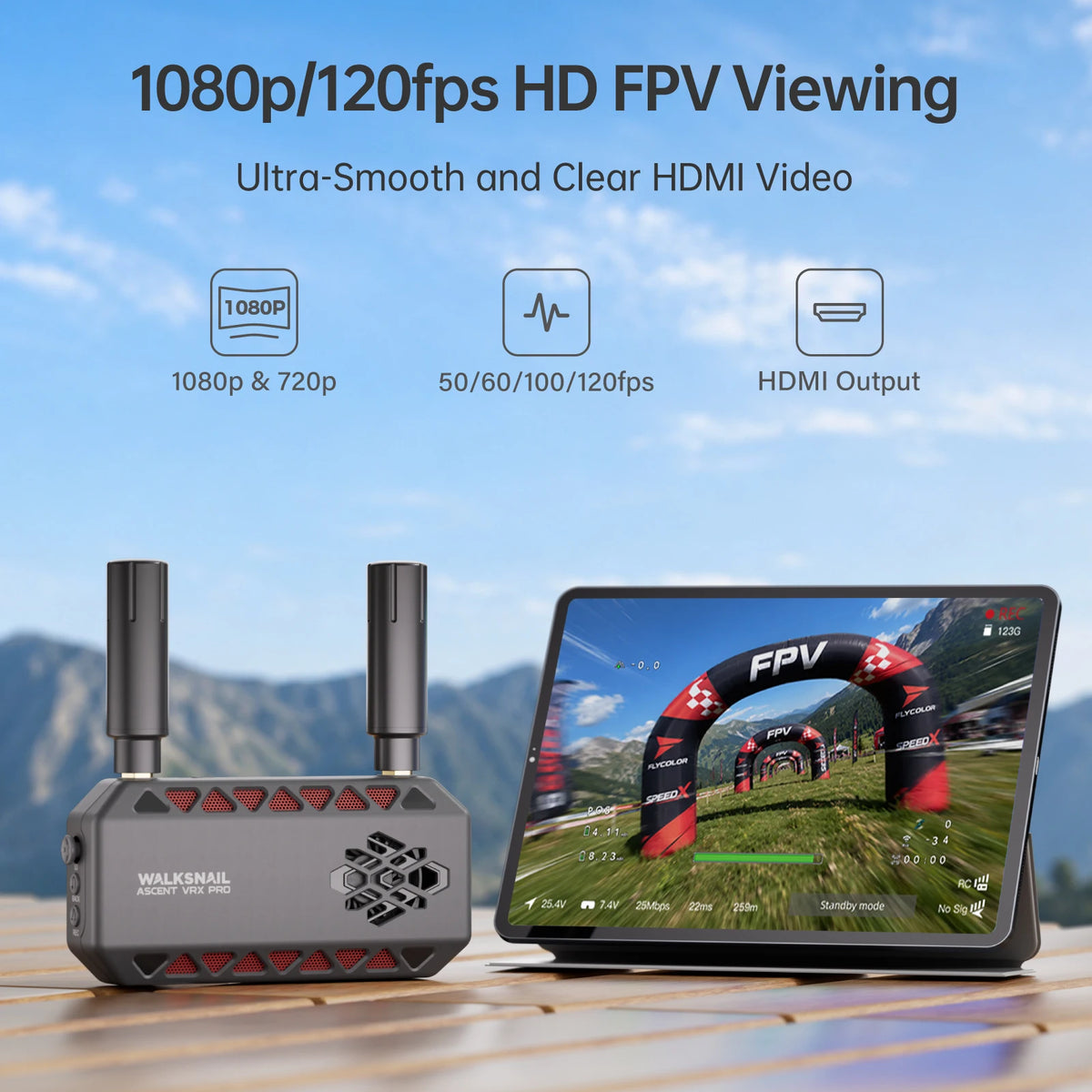

Crystal-clear 1080P/120fps video with selectable resolution and frame-rate modes (1080P/720P at 50/60/100/120fps) tailored for cinematic freestyle, aerial cruising, and low-latency racing.
Built-in SD card slot supports up to 256GB for direct onboard HD video recording — store every flight directly on the receiver with no extra devices.
OSD menu recording captures every setting adjustment directly in your footage, perfect for tutorials, setup sharing, and troubleshooting.

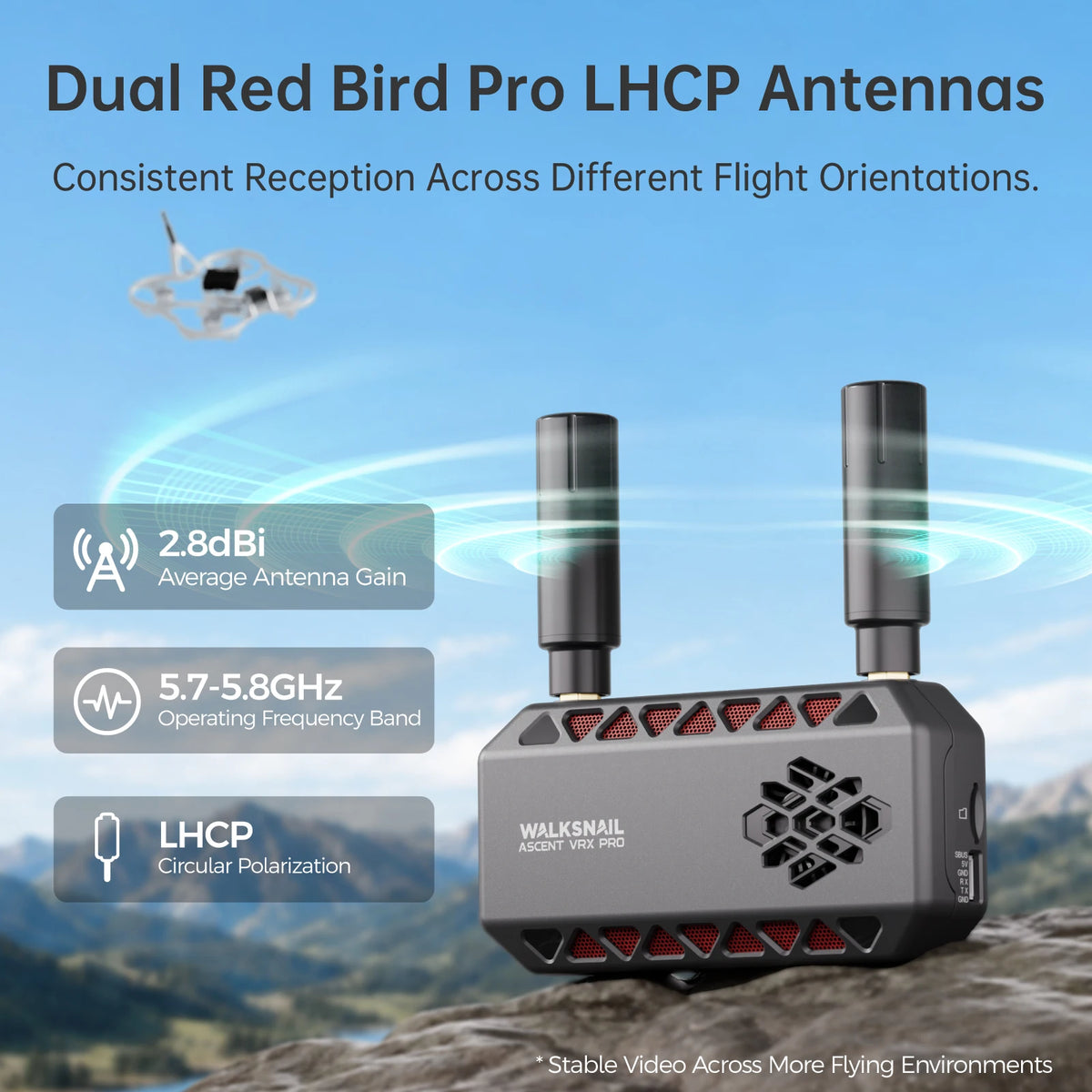

Dual 2.8dBi antennas deliver wider coverage, extended range, and a reliably stable digital video link for consistent reception in every environment.

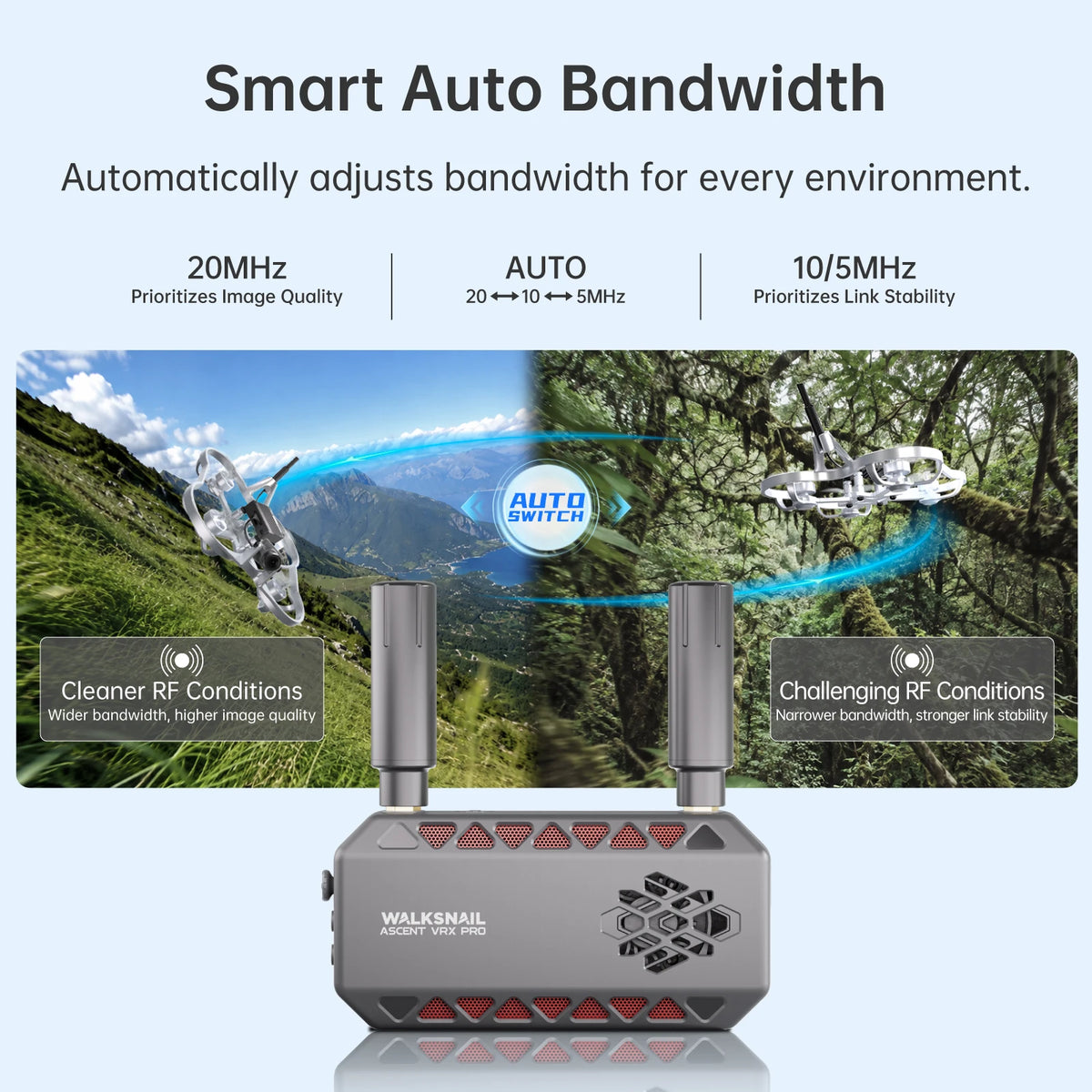

Smart bandwidth adaptation automatically switches between 20/10/5MHz via RF detection and AI algorithm, balancing video quality and link stability across open, mixed, and high-interference areas.
HDMI output connects to any compatible display for real-time shared FPV viewing — let friends enjoy every flight together, fully ready for outdoor events.
Ultra-compact 4.5×2.5×0.95" body at just 0.3lb slips easily into any backpack or gear bag, making it effortless to take your FPV setup anywhere.
Complete out-of-the-box package includes the VRX Pro receiver, two Red Bird Pro antennas, 3M double-sided tape, 1/2 DC power cable, HDMI cable, and quick start guide.

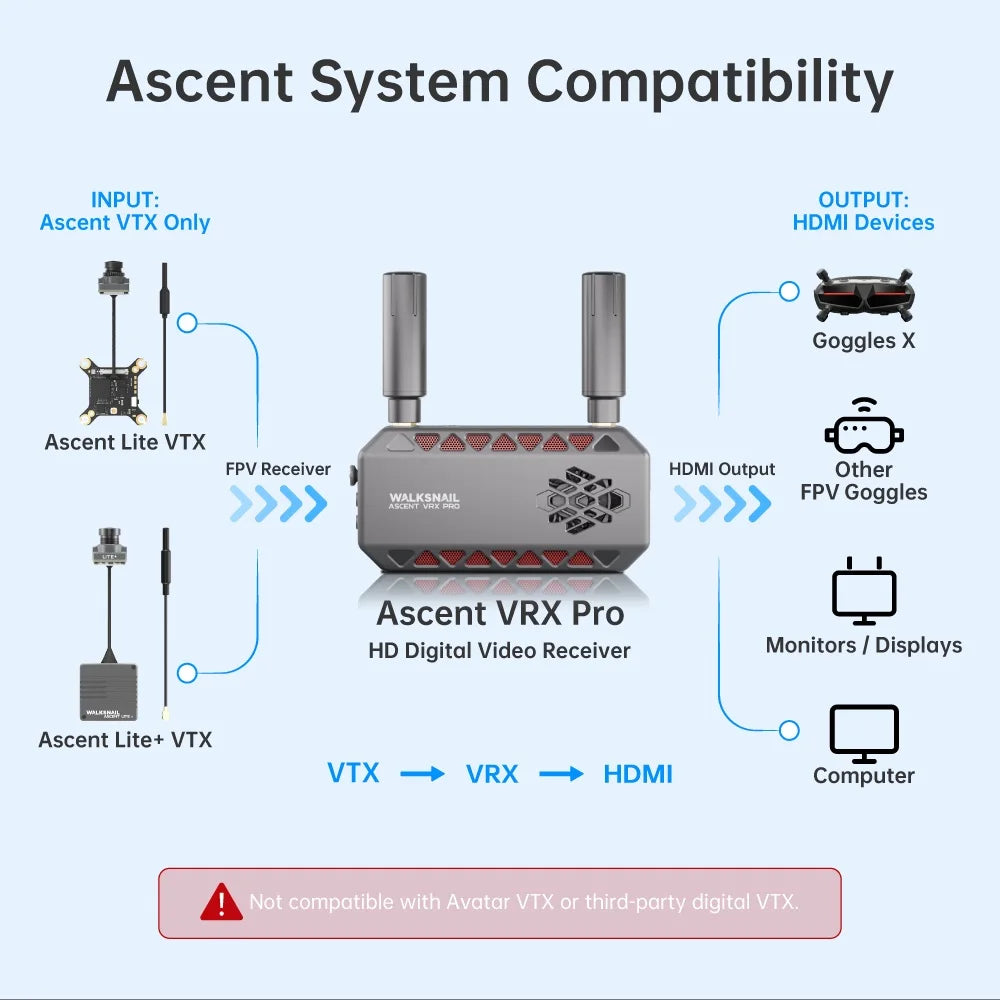

Versatile receiver works seamlessly across FPV drones, RC cars, and fixed-wing aircraft, expanding your digital HD FPV experience to every platform.
Backed by CADDXFPV's customer-first commitment with a 100% satisfaction solution, reachable via Amazon message, site support mail, and official CADDXFPV channels.
