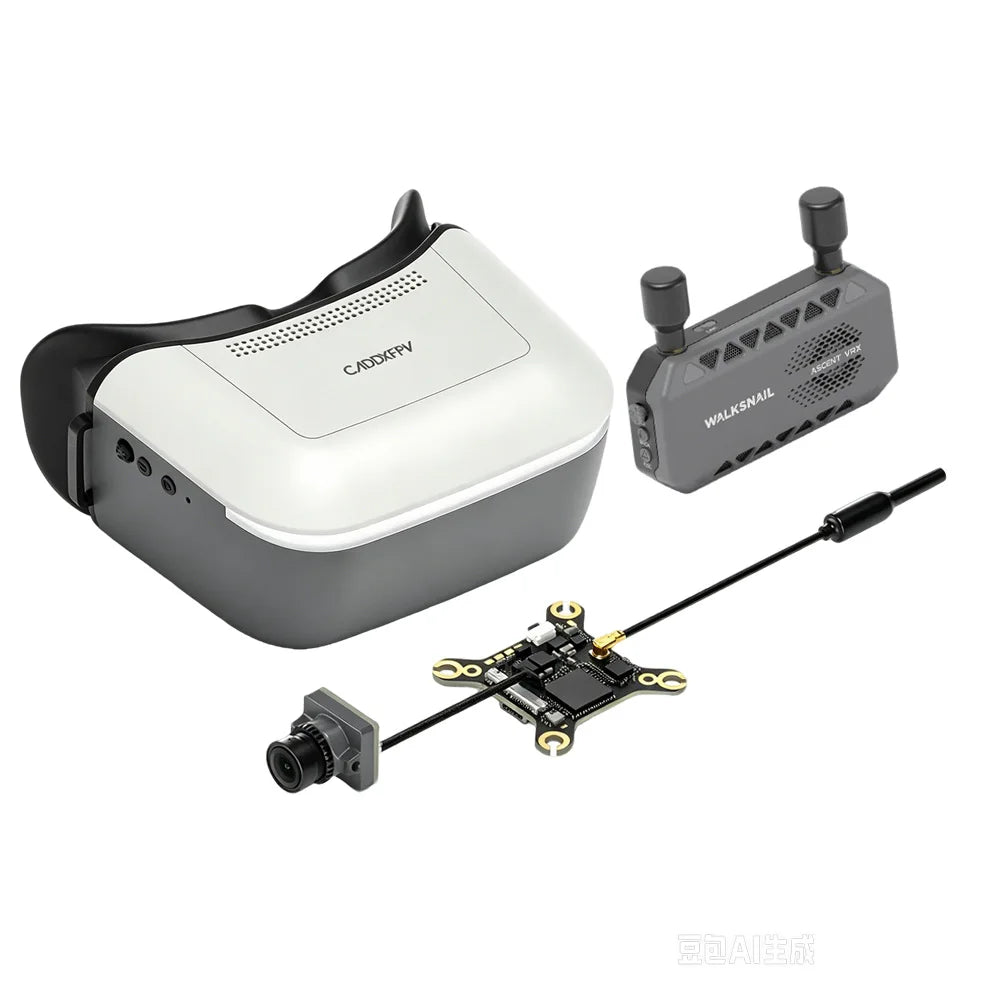

Caddxfpv CADDX Ascent Goggles/Ascent FPV VRX With Lite Vtx Kit 5.8Ghz

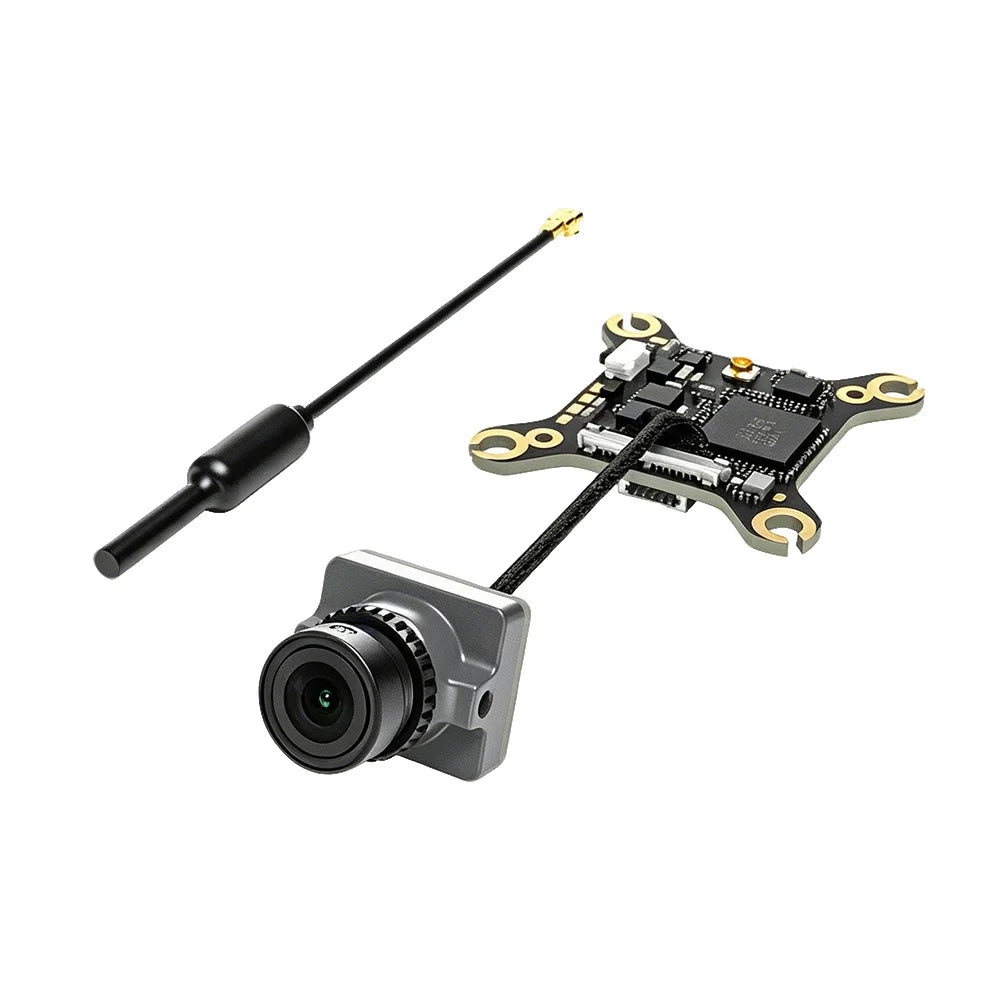

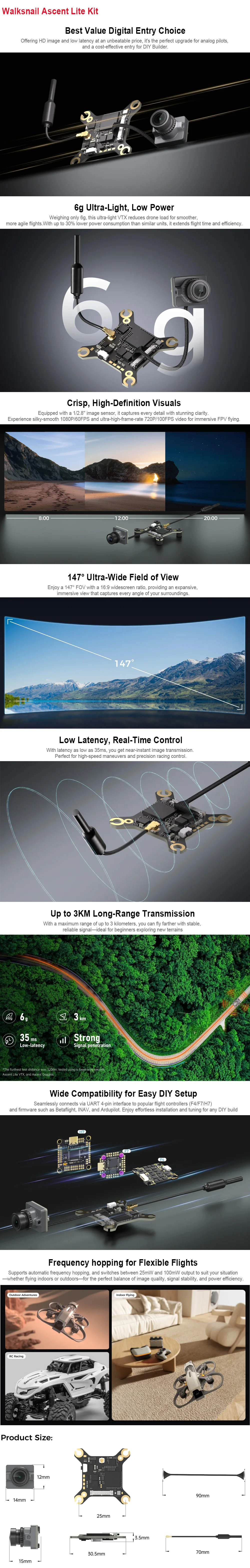

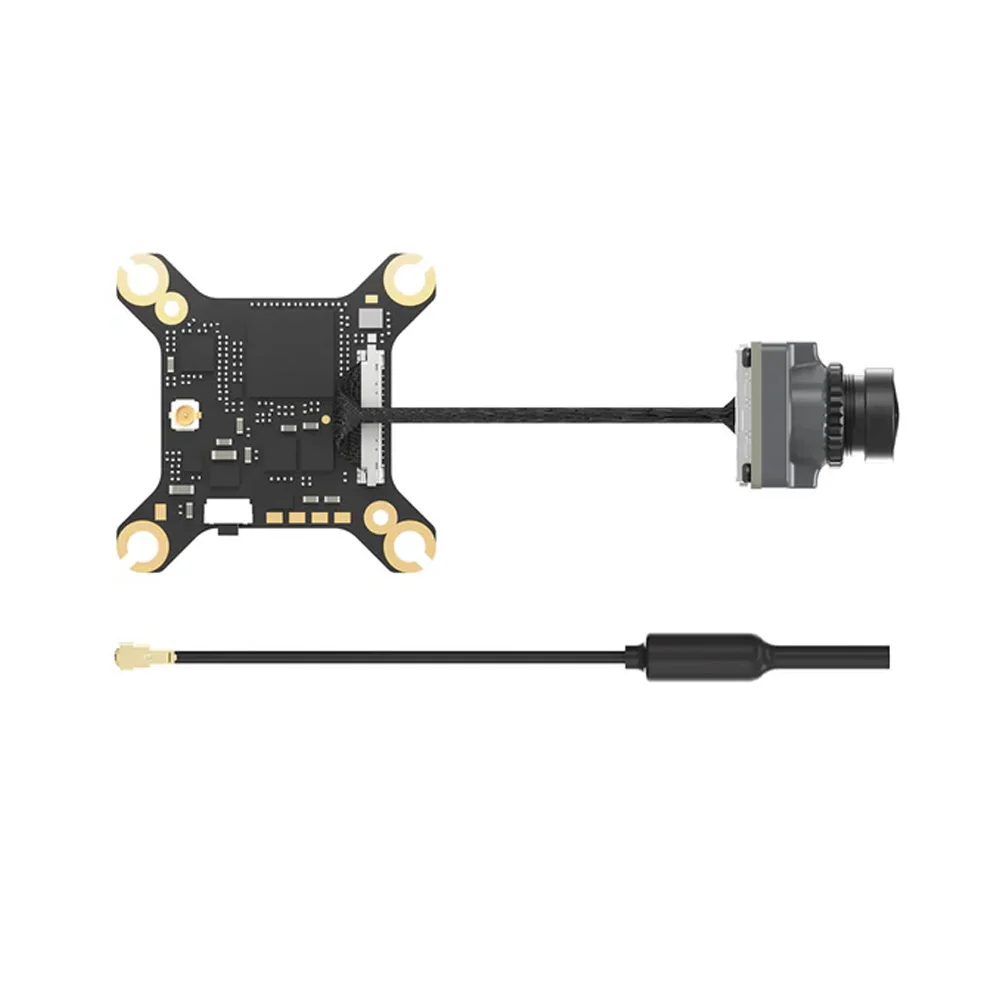

Name: Ascent Lite VTX
Model: WN13-4S09B;
Communication Frequency: 5.730-5.815 GHz;
Transmit Power (EIRP): FCC/SRRC:<20dBm; CE:<14dBm;
Channels: 3;
Weight: 6g (Antenna not included);
Mounting Hole: 25mm;
Ratio: 16/9;
Resolution: 1080P/60fps, 720P/100fps;

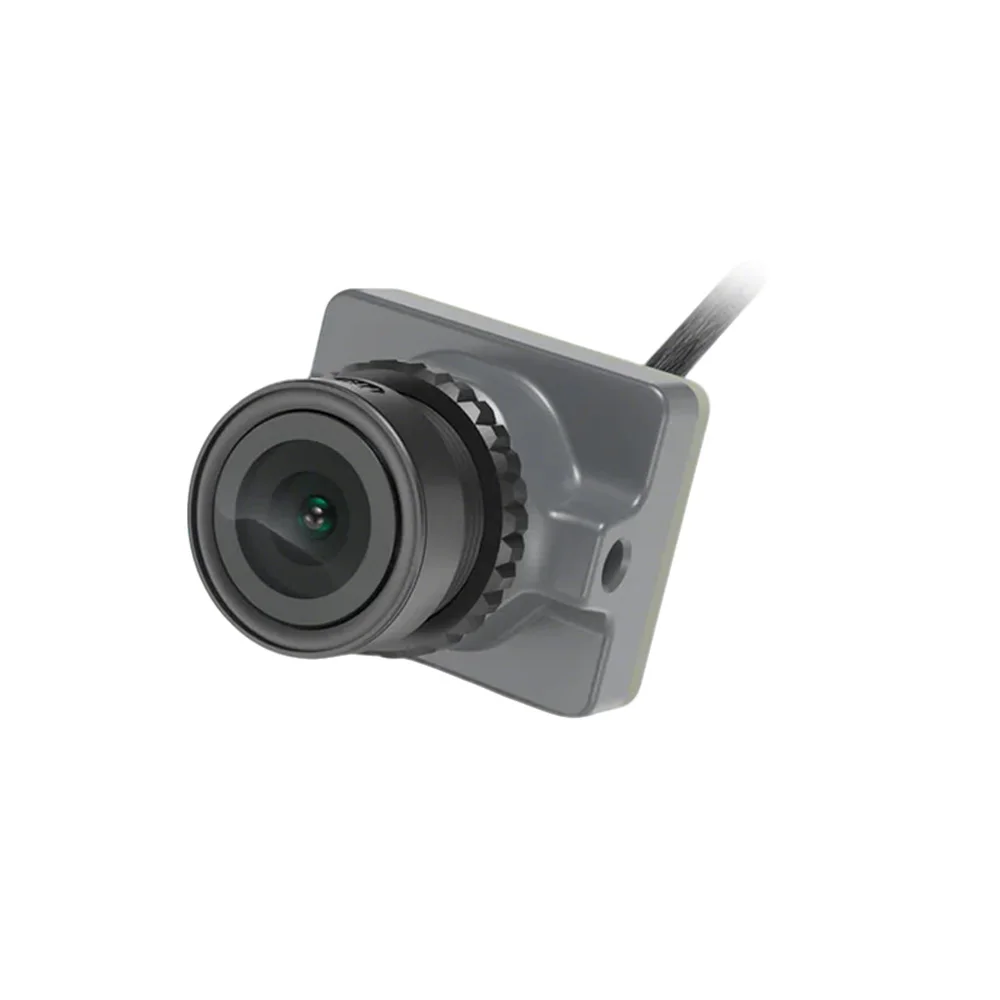

Image Sensor: 1/2.8 inch;
Operating Bandwidth: 5M/10M/20M/Auto;
Antenna: 1(Ipex-1);
End-to-End Latency: Average latency 35ms;
OSD: Canvas mode;
Bitrate: 25mbps;
Supported FC Systems: Betaflight; Inav; Fettec, Kiss; ArduPilot;
Wide Voltage Input: 3V~12.6V;
I/O Interface: JST1.0*4 (Power cord); HSG0.8*5(USB);
Camera:12*14*15mm & VTX: 30.5*30.5*3.5mm

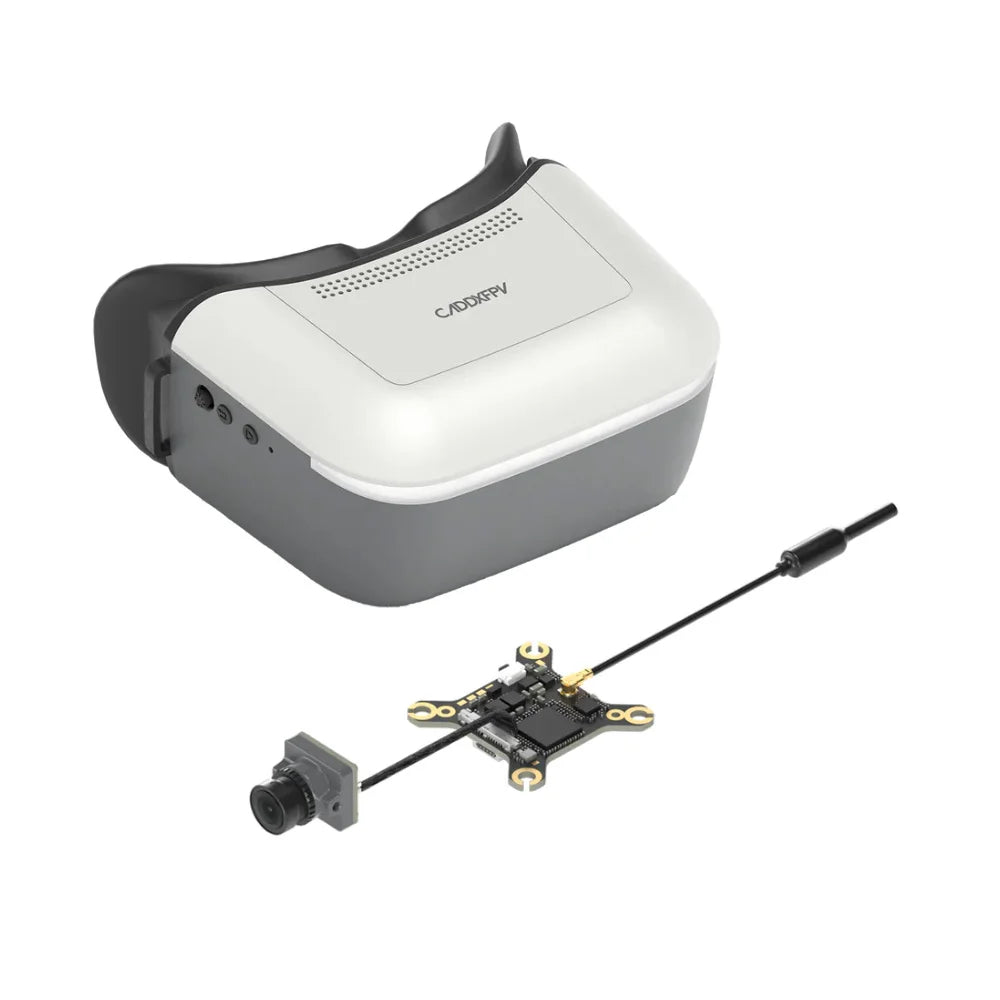

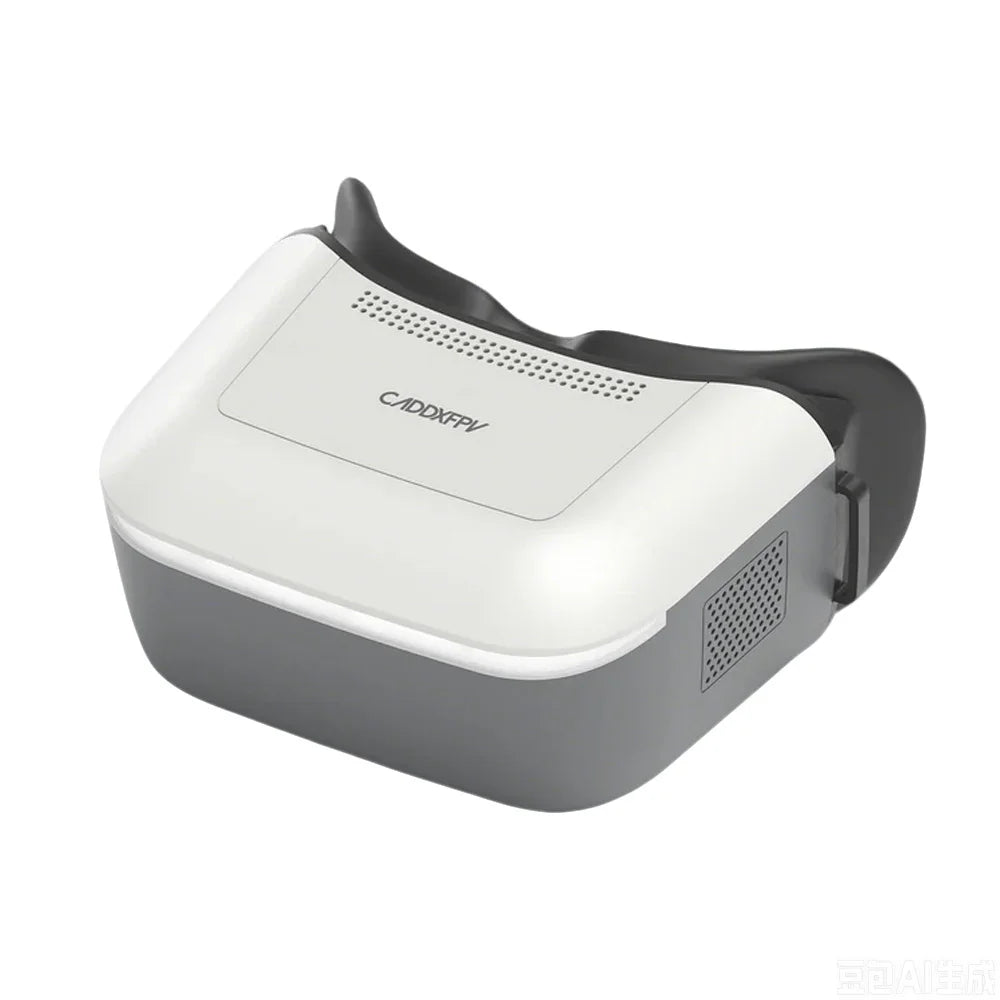

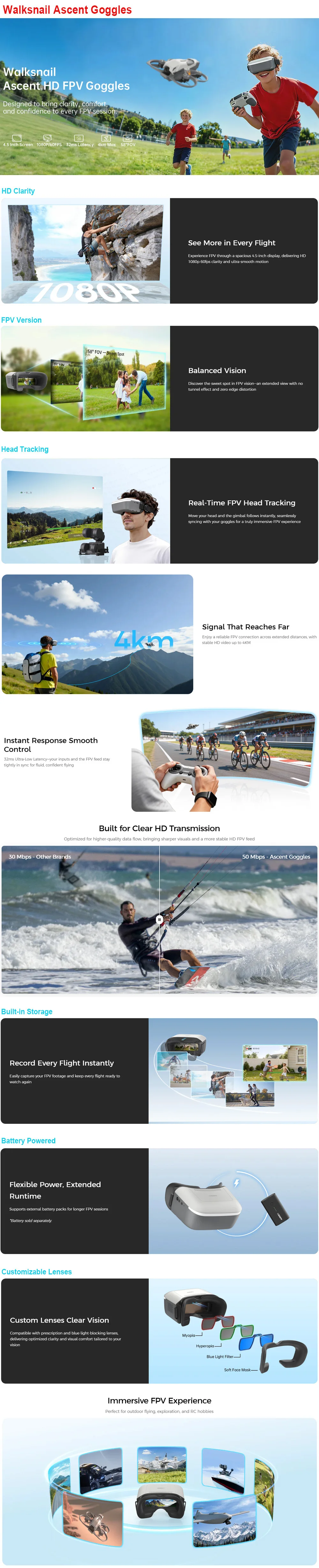

Name: Ascent Goggles
System: Ascent HD System
Communication Frequency: 5.738.5-5.806.5GHz
Transmission Power (EIRP): FCC:<20dBm,CE:<14dBm,SRRC:<20dBm;
I/O Interface: DC5.5*2.1mm, Micro SD Card Slot;
Transmission Resolution: 1080p60fps, 720p60fps;
Code Rate: Max 25 Mbps;
Min. Latency: Average 32ms;
Average Gain: 4.9dBi;
Polarization: LHCP;
Transmission Distance:＞4km;
Channels: 4;
Screen Resolution: 1920*1080/60Hz;
Screen Material: LCD;
Screen Size: 4.5 Inch;
Power Input: 6V-25.2V(2S-6S);
SD card: Support 256G;

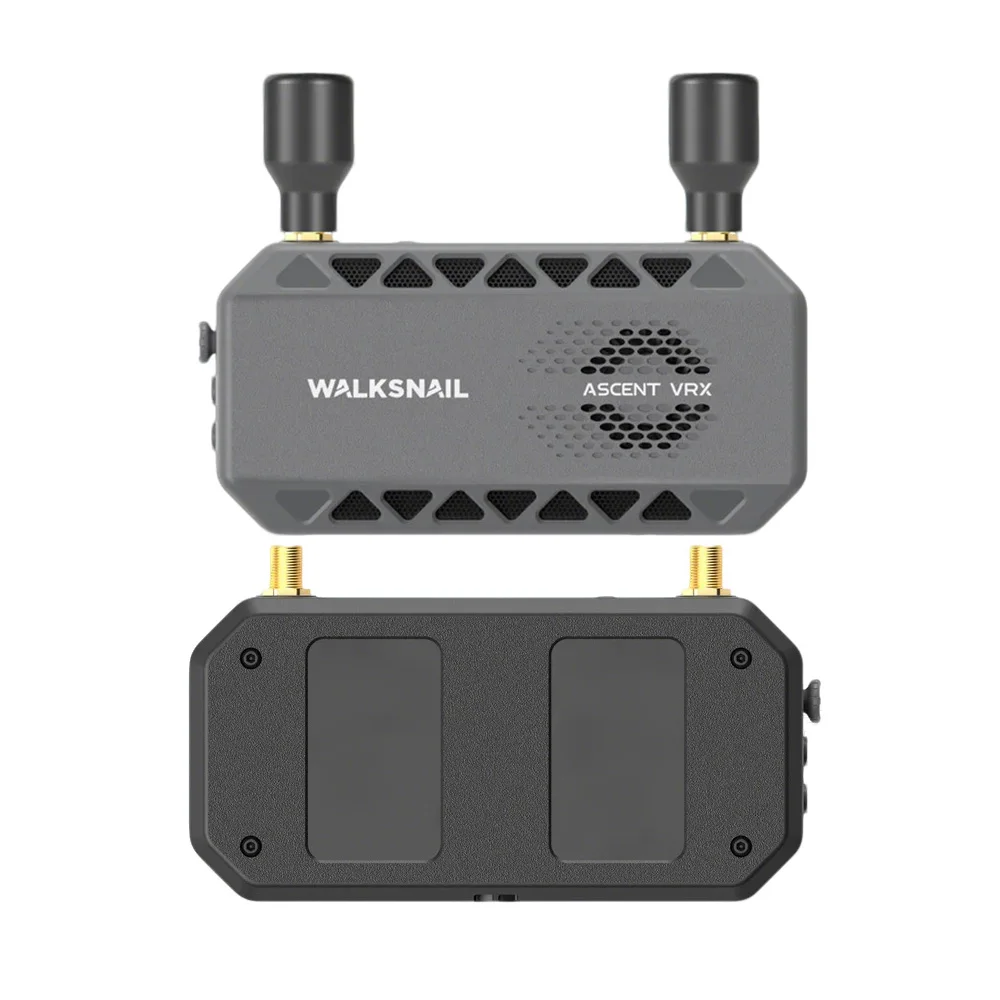

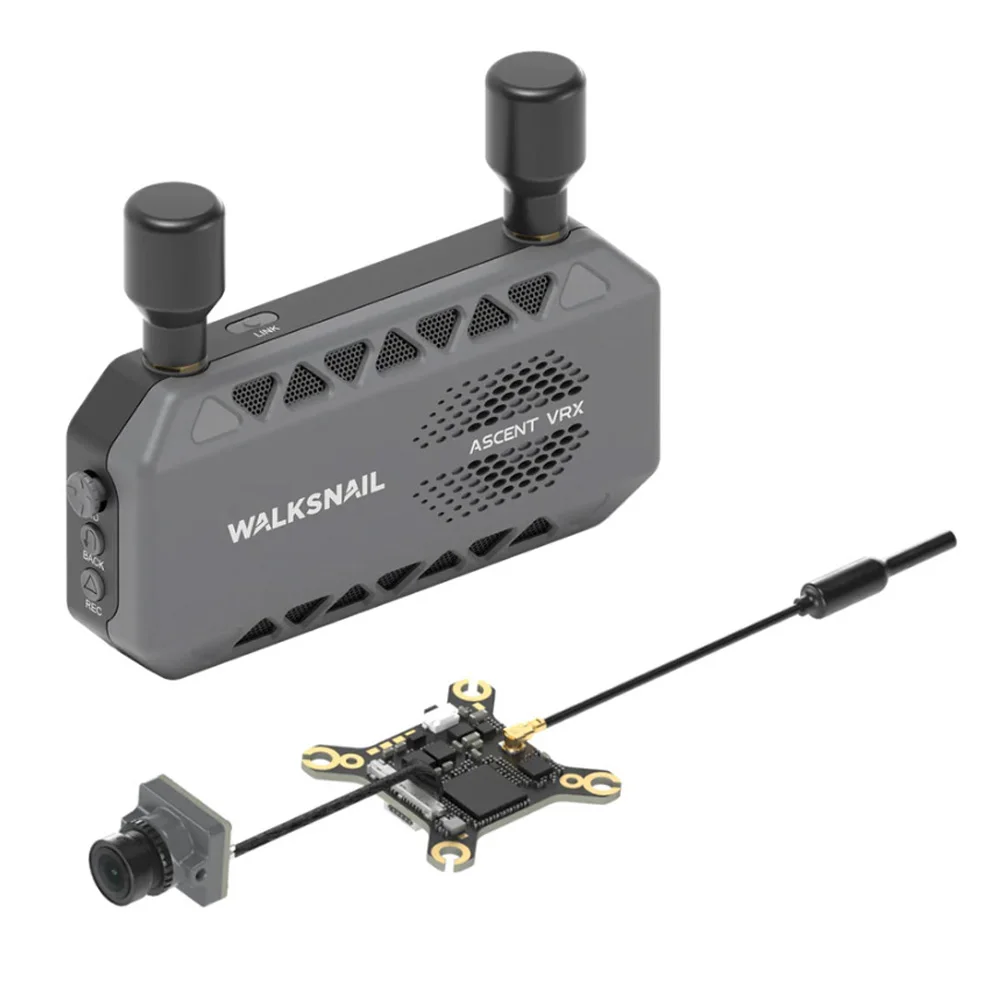

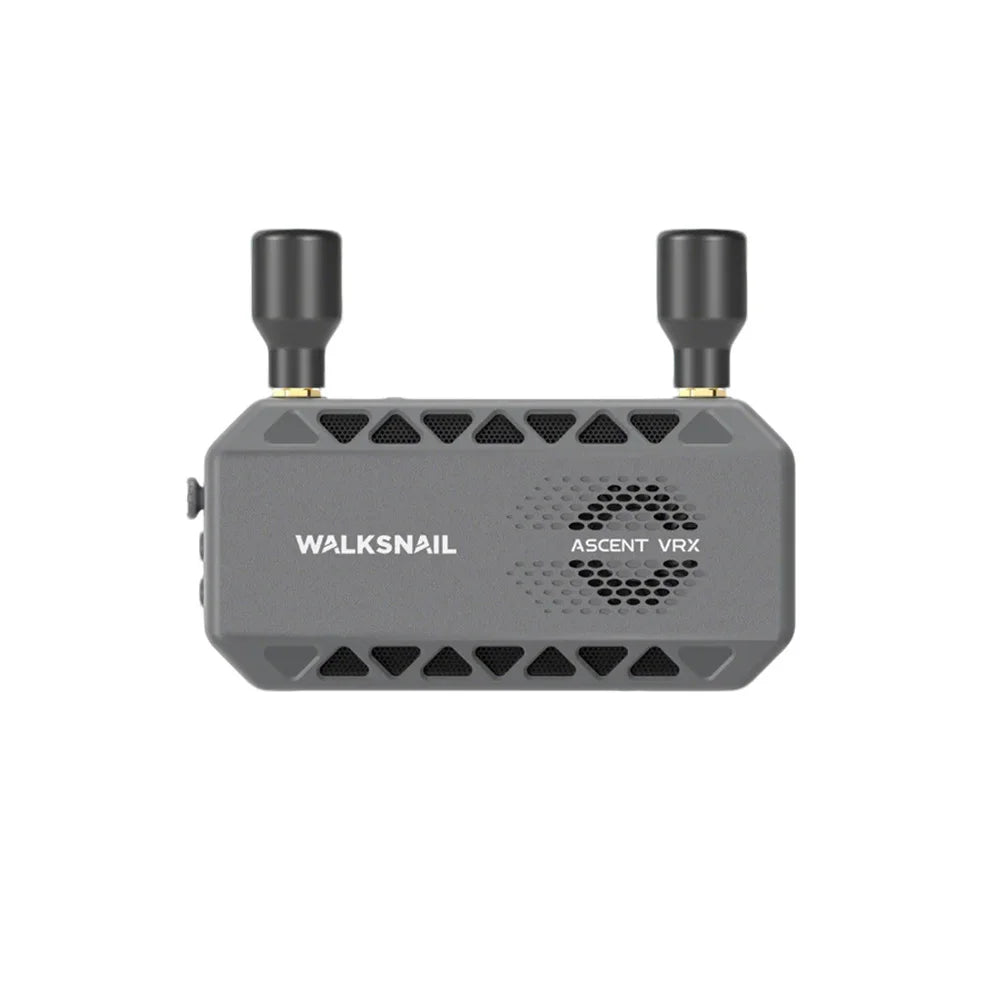

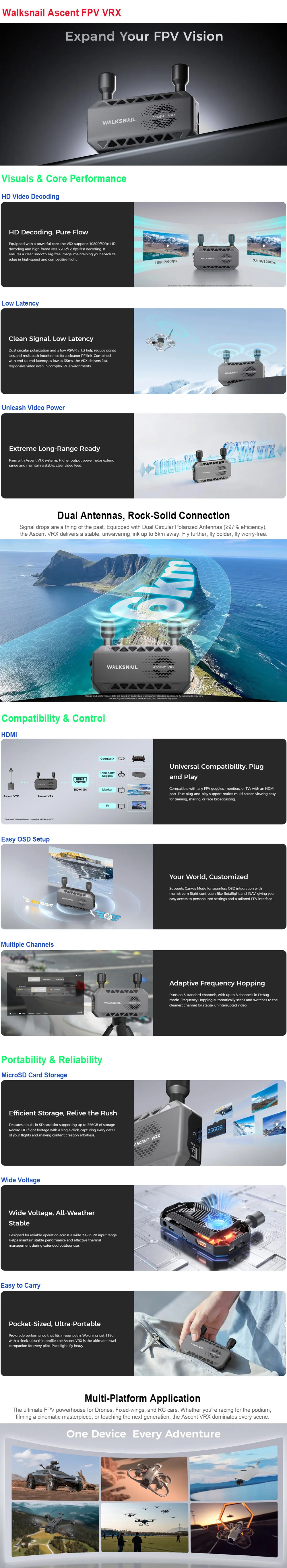

Name: Ascent VRX
Communication Frequency: 5.725-5.829GHz;
Transmitter Power(EIRP): FCC/SRRC:<30dBm, CE:<14dBm;

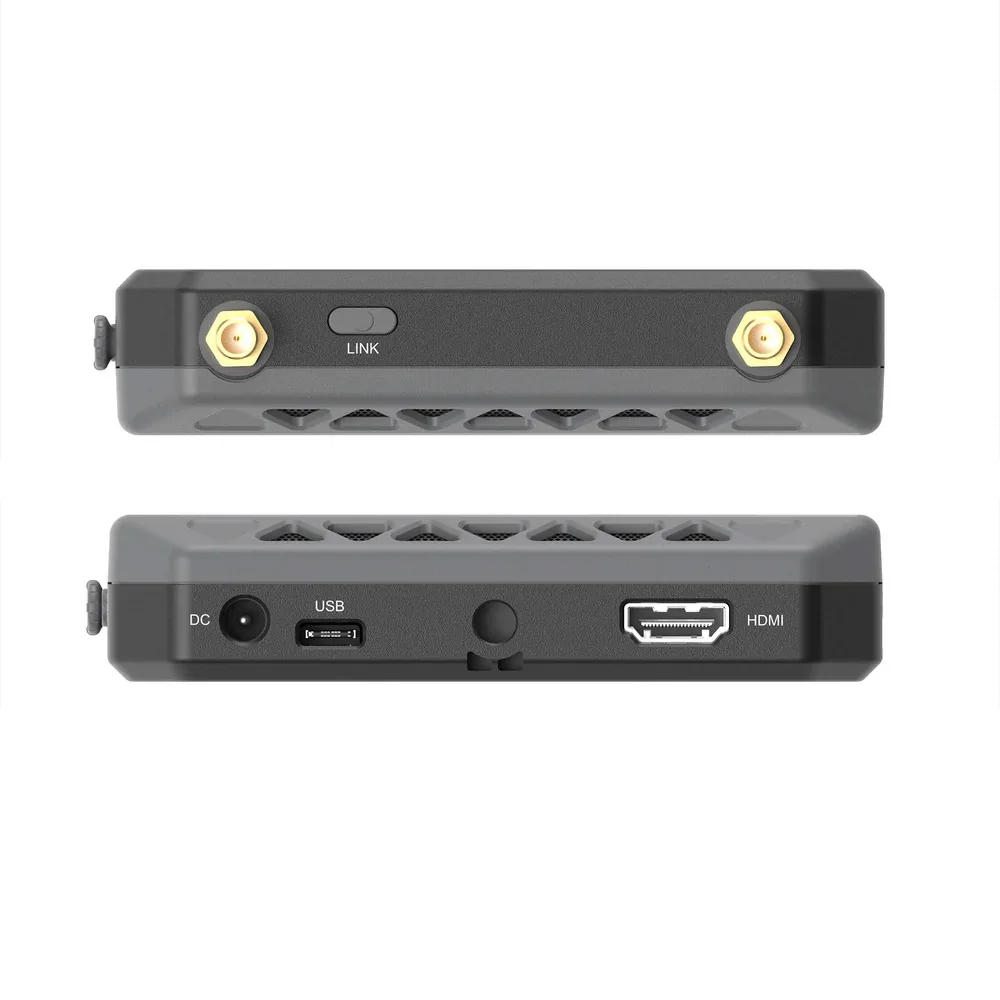

l/O Interface: HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C;
HDMI Out: 1080p50fps,1080p60fps,720p50fps,720p60fps,720p100fps,720p120fps;
Power Input: 7.4~25.2V;
SD Card: Support Micro SD 256G;
System: Ascent HD system;
Bandwidth: 5m/10m/20m/Auto;
Recording Format: MP4 (H.264);
Weight: 118g;
Dimension: 114.5*64*24mm;
Name: Red bird;
Polarization: LHCP;
Bandwidth: 5.725-5.829GHz;
Average Gain: 2dBi;
Radiation Efficiency: ≥97%;
VSWR: ≤1.3;
Cross-Polar Rejection: -15to-30dB;
Connector: RP-SMAx2;
Dimension: 25*15.5mm;
