SPECIFICATIONS
AC Current: 1A-400A
AC Voltage: 600V
Battery Included: no
Battery Type: AAA 1.5V*2
Brand Name: ANENG
Buzzer: Yes
Certification: NONE
Choice: yes
DC Current: /
DC Voltage: 600V
DIY Supplies: Electrical
Data Hold: Yes
Data Record: Yes
Dimensions: /
Diode: Yes
Display: LCD 1999 Counts
Display Type: Digital Display
HD Screen: Yes
High-concerned chemical: none
Is Smart Device: no
Measuring Capacitance Range: 200
Measuring Inductance Range: /
Measuring Resistance Range: 200
Model Number: ANENG MT87 Digital Clamp Multimeter
On-off Beef: Yes
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Resistance: Yes
Semi-finishedproduct: No
Shut Down: Yes

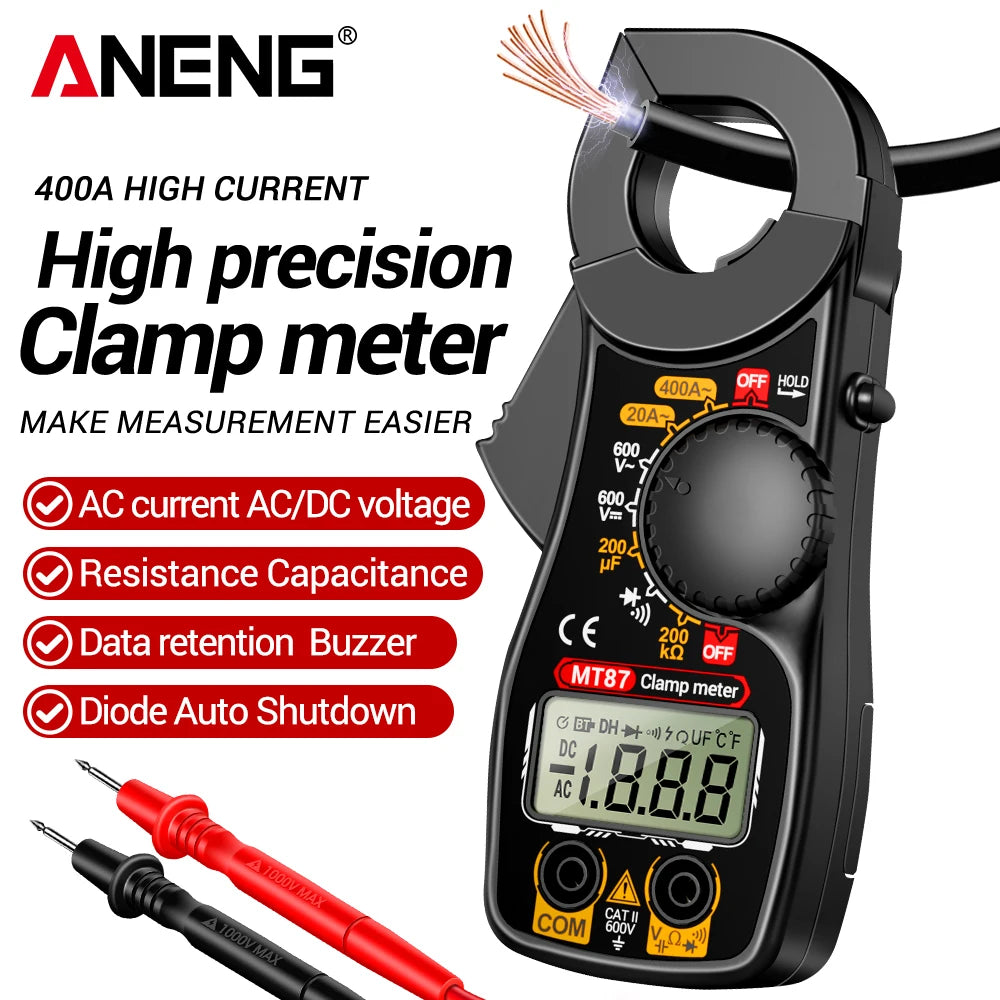

🔥Feature:
Core Features & Benefits:

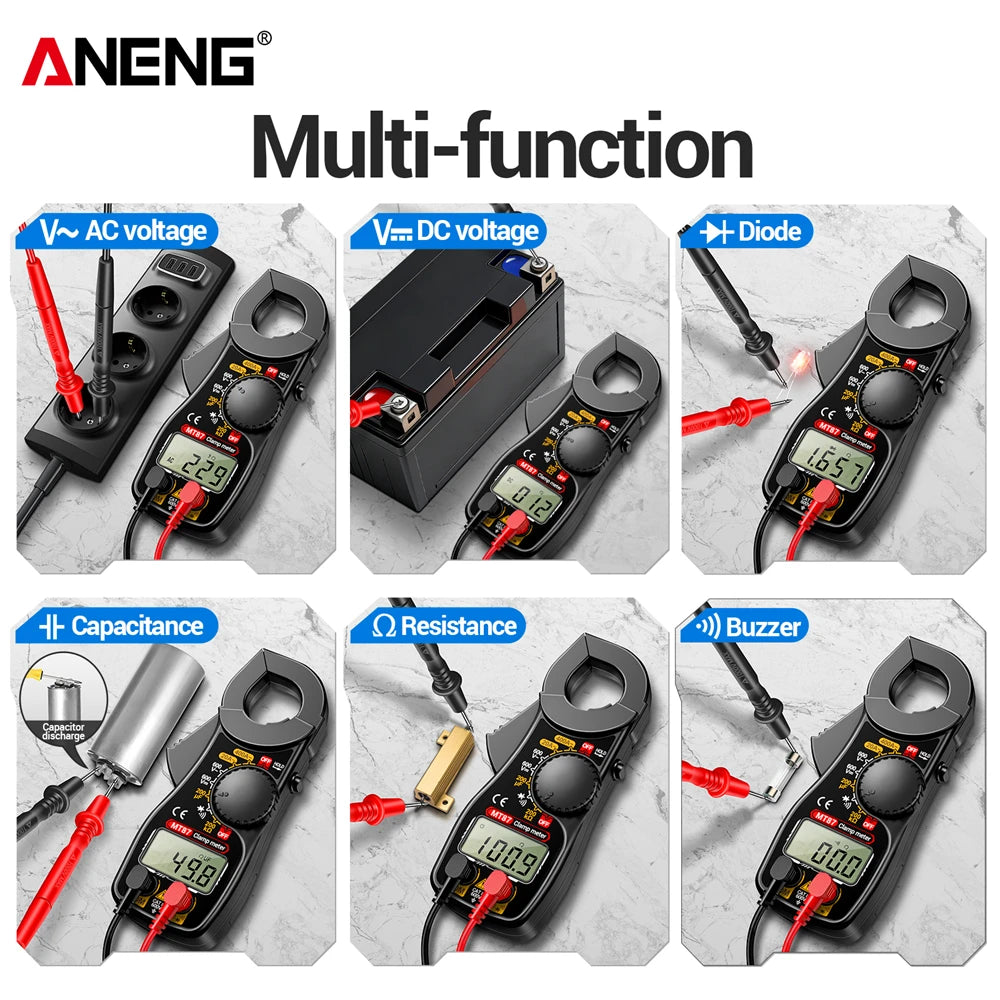

✅High Precision Measurement: 1999 counts, with accurate readings for current, voltage, resistance, and capacitance across wide ranges.
✅Practical Functions: Data hold to freeze readings, diode test, continuity buzzer, and low battery alert for convenient operatio.
✅User-Friendly Design: LCD screen, 15-minute auto power off to save battery, and lightweight ABS body for easy portability.
✅Durable & Reliable: Sturdy ABS material and 2 x 1.5V AAA battery power supply for long-term use.

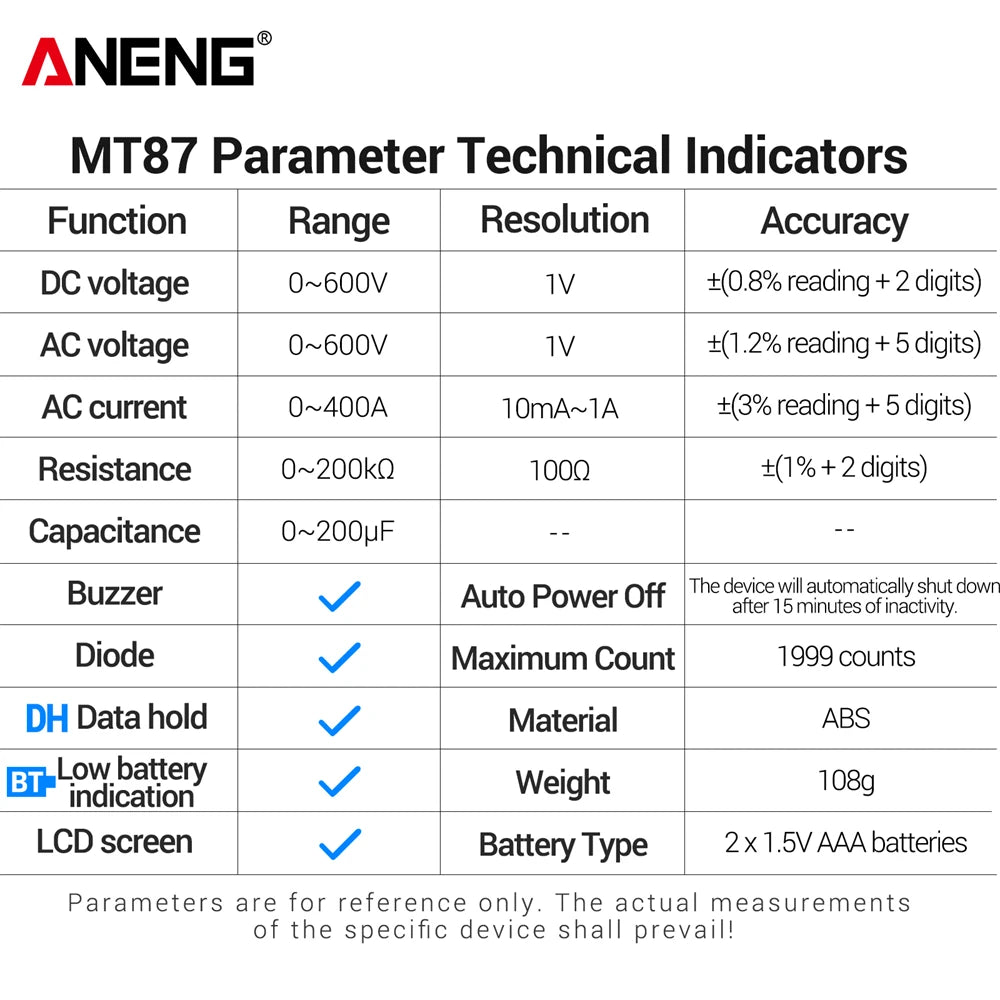

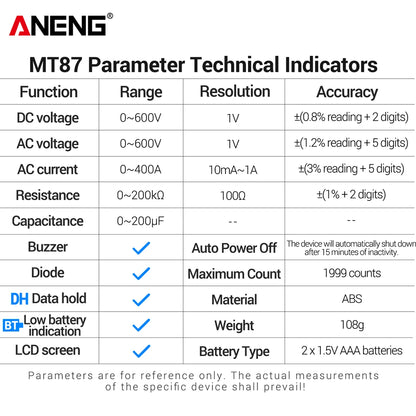

Function |
Range |
Resolution |
Accuracy |
AC Current |
0-400A |
10mA -1A |
+-(3%of reading +5 digits) |
AC Voltage |
0-600V |
1V |
+-(1.2%reading +5 digits) |

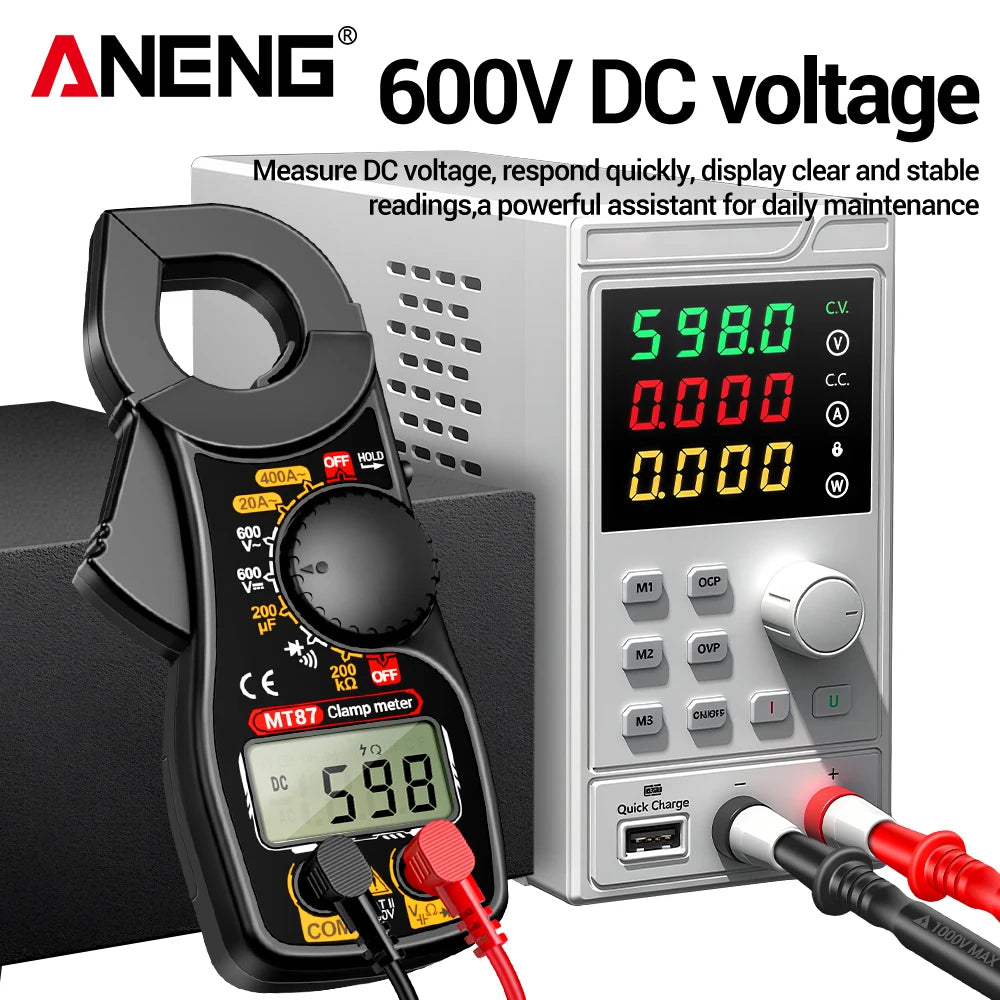

DC Voltage |
0-600V |
1V |
+-(0.8%of reading +2digits) |
Resistance |
0-200KΩ |
100Ω |
+-(1% of reading +2 digits) |
Capacitance |
0-200μF |
LCD screen |
√ |
Buzzer |
√ |
Maximum Count |
1999 counts |
Diode |
√ |
Material |
ABS |
DH Data hold |
√ |
Battery Type |
2x 1.5V AAA batteries （without Battery） |
Low batteryindication |
√ |
Auto Power Off |
The device will automatically shut downafter 15 minutes of inactivity. |

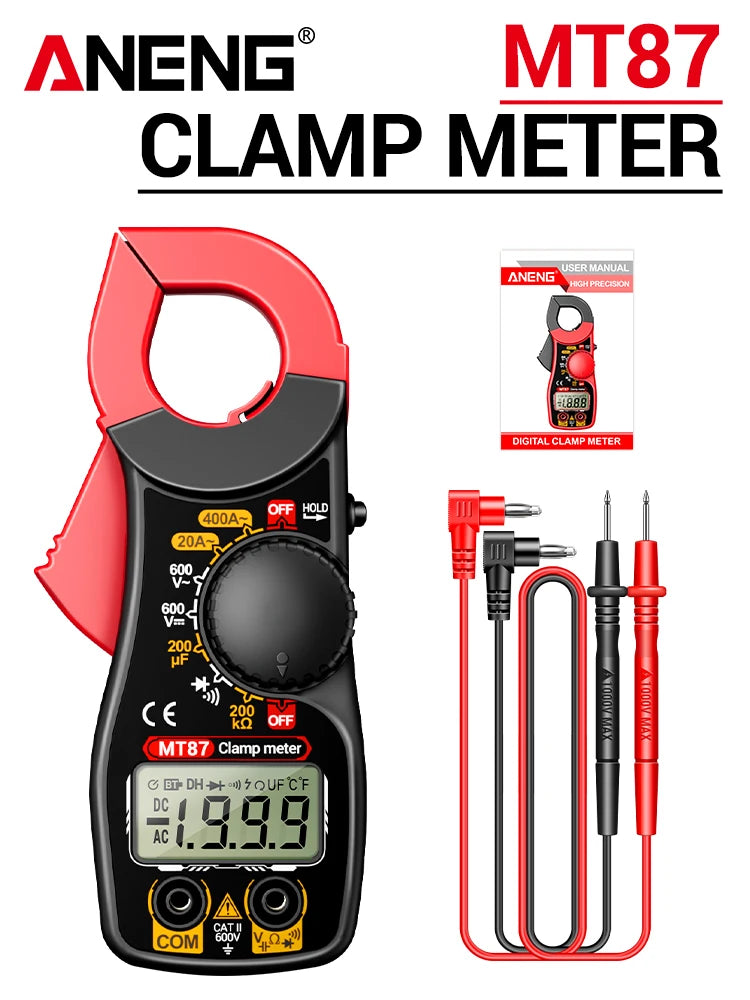

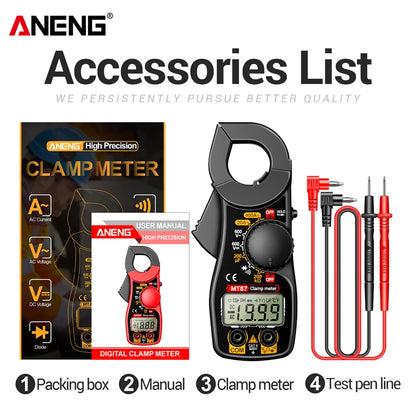

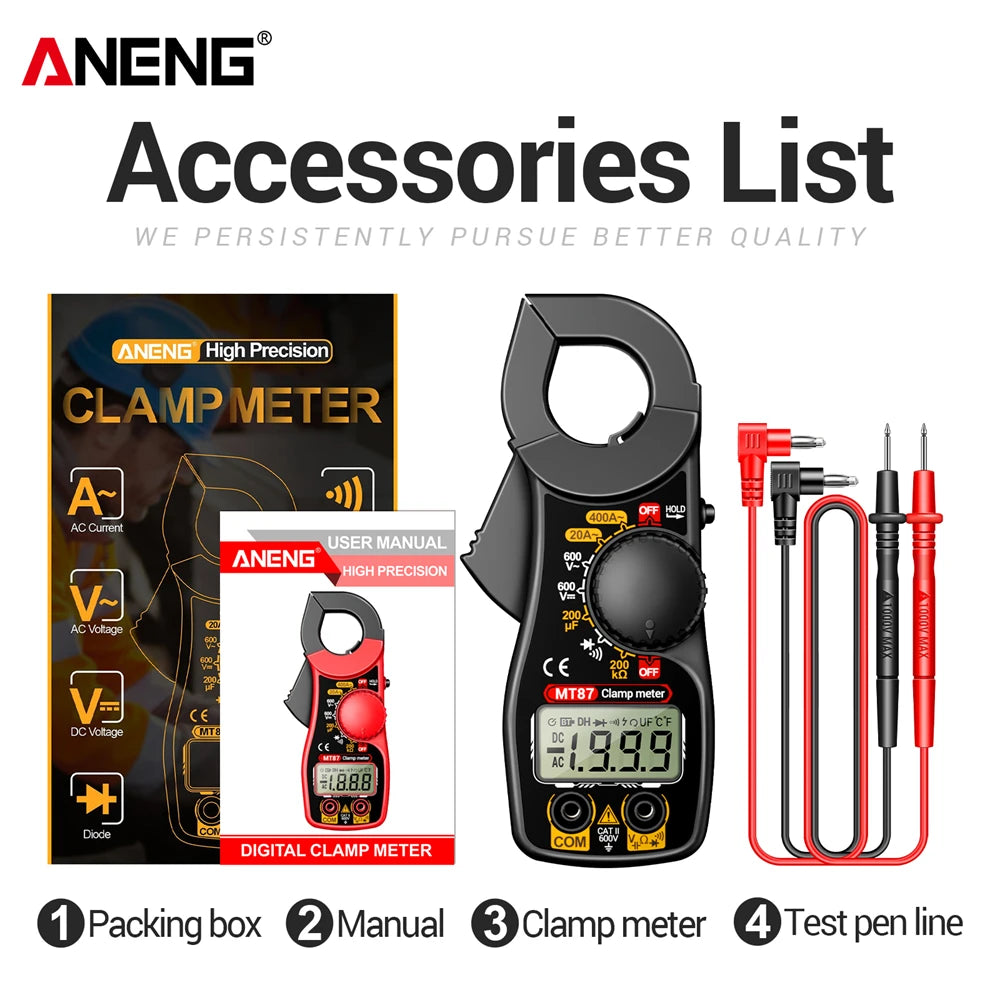

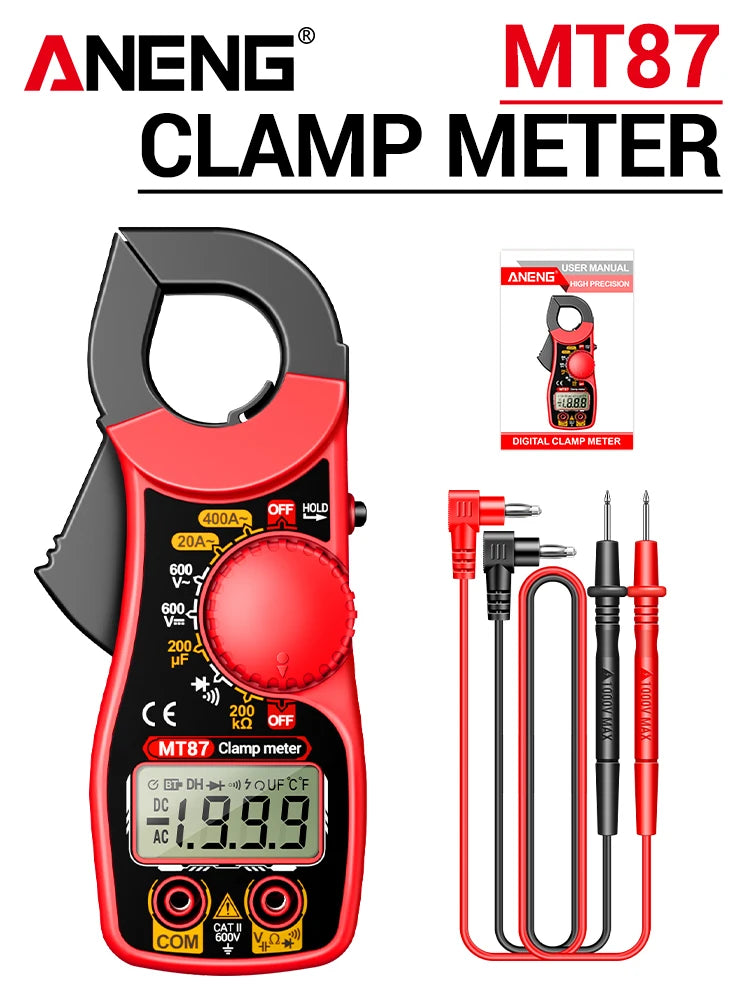

Package Include:
1*clamp meter(Without battery)
1*test lead
1*manual
Q:Why is the reading inaccurate?
A: Confirm you have selected the correct range for your test.
Loose probe contact, unstable power supply, or electromagnetic interference may cause minor deviations.
All readings are within the stated accuracy tolerance
(DC voltage: ±0.8%+2 digits),
(AC voltage: ±1.2%+5 digits),
(AC current: ±3%+5 digits).

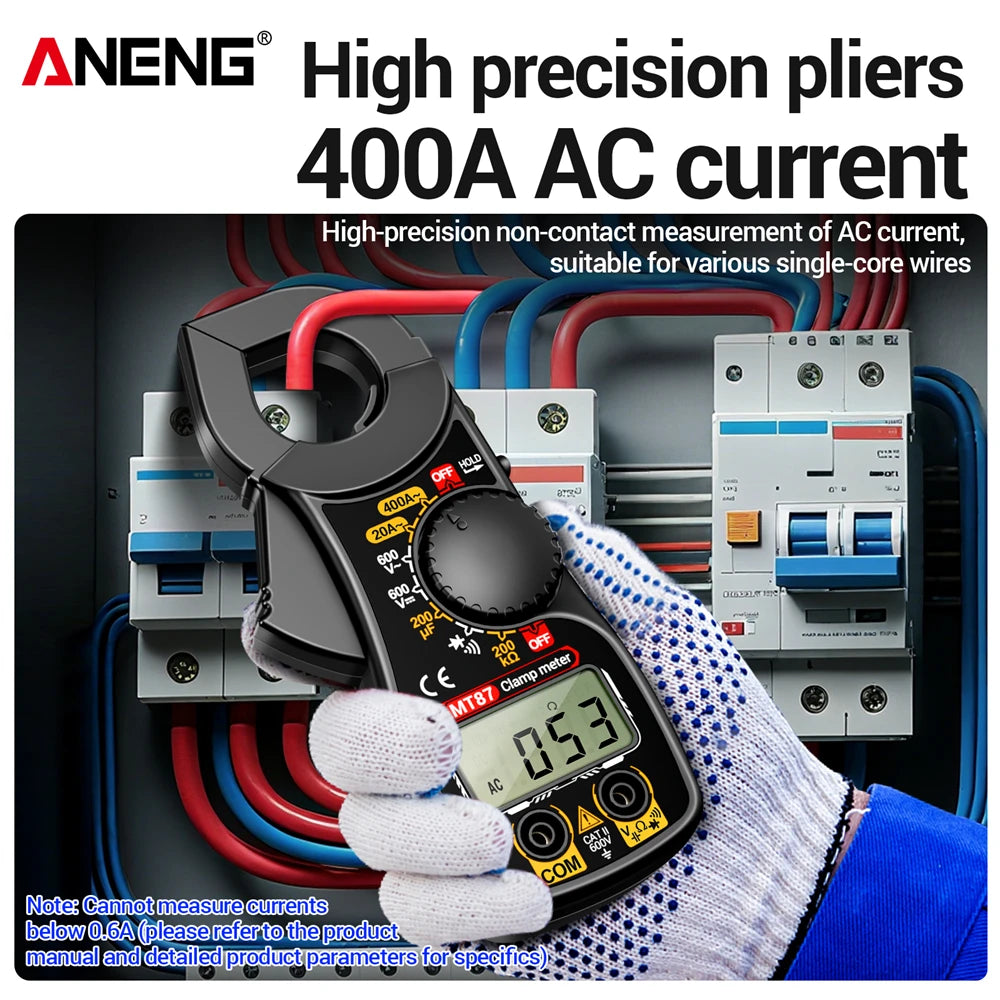

Q:Why does the clamp meter not show current?
A: The clamp meter only measures single live wire. Do not clamp two-core cables with live and neutral wires together, as their magnetic fields cancel out.

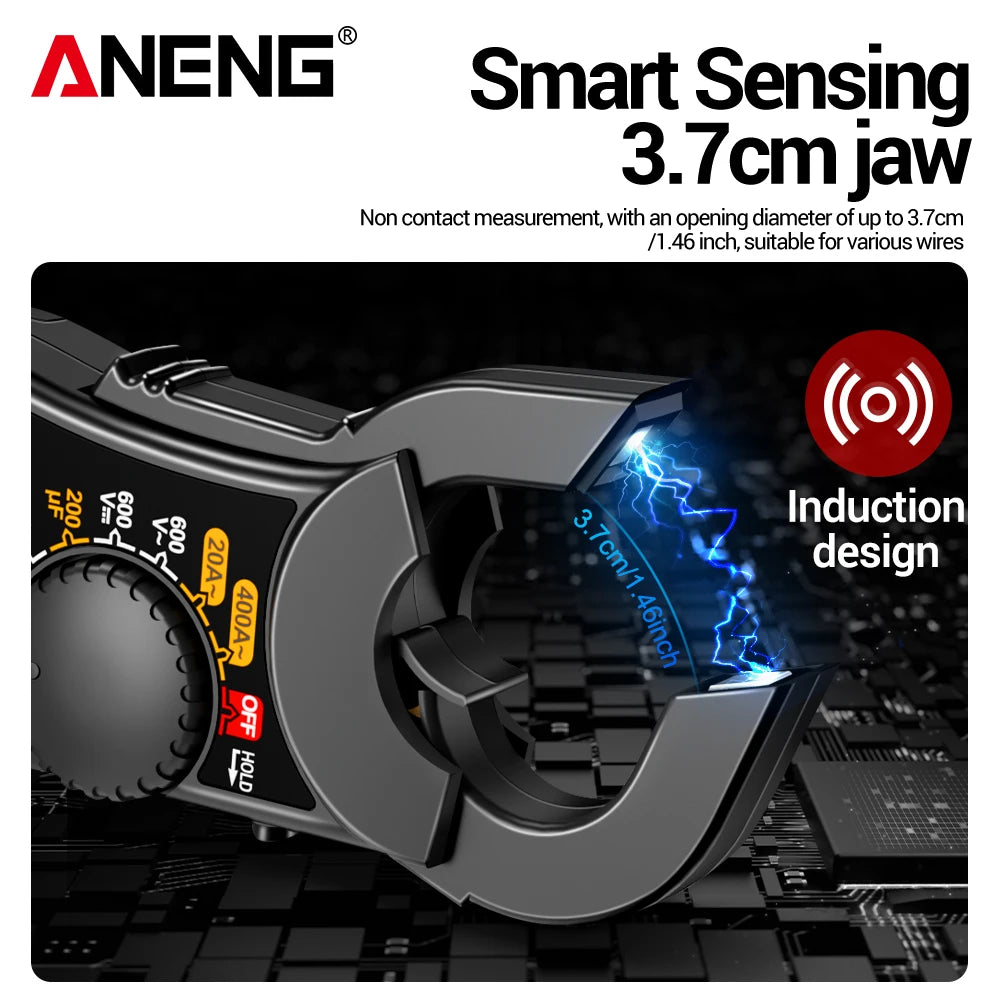

Ensure the clamp jaws are fully closed with no debris stuck inside.
Check that you have selected the correct AC current range.
