SPECIFICATIONS
120mm Fan Options: 5
140mm Fan Options: 2
Application: Desktop
Brand Name: Cooler Master
Case Size: 46X38X27
Case Weight: 6
Chassis Type: Desktops
Dust Filters: TOP
Form Factor: Mini-ITX
Front Ports: 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 x 2 Type-C
High-concerned chemical: none
Internal 2.5" Drive Bays: 1
Internal 3.5" Drive Bays: 2
Material: Aluminum alloy
Max CPU Cooler Height: 70
Max GPU Length: 361
Max PSU Length: 125
Model Number: NR200P V3
Origin: Mainland China
Power Model: SFX
Power Supply Mounted: TOP
RGB Support: NO RGB
Radiator Size: 280 MM
Series: NR200P V3
Type: Horizontal
With Fan: no
With Power Supply: no
With Side Panel Window: Yes
Product parameters
Product model: NR200PV3-KWNN-SOO
Appearance color: Black
Size (LxWxH)
Including protruding parts: 378.2 x 185 x 292 mm
Excluding protruding parts: 367.2 x 185 x 274 mm
Motherboard support: Mini ITX
Hard drive rack: 3.5 "HDD: 1 (supports up to 2)
2.5 "SSD: 1 (supports up to 2)
I/O interface
Power light color: white

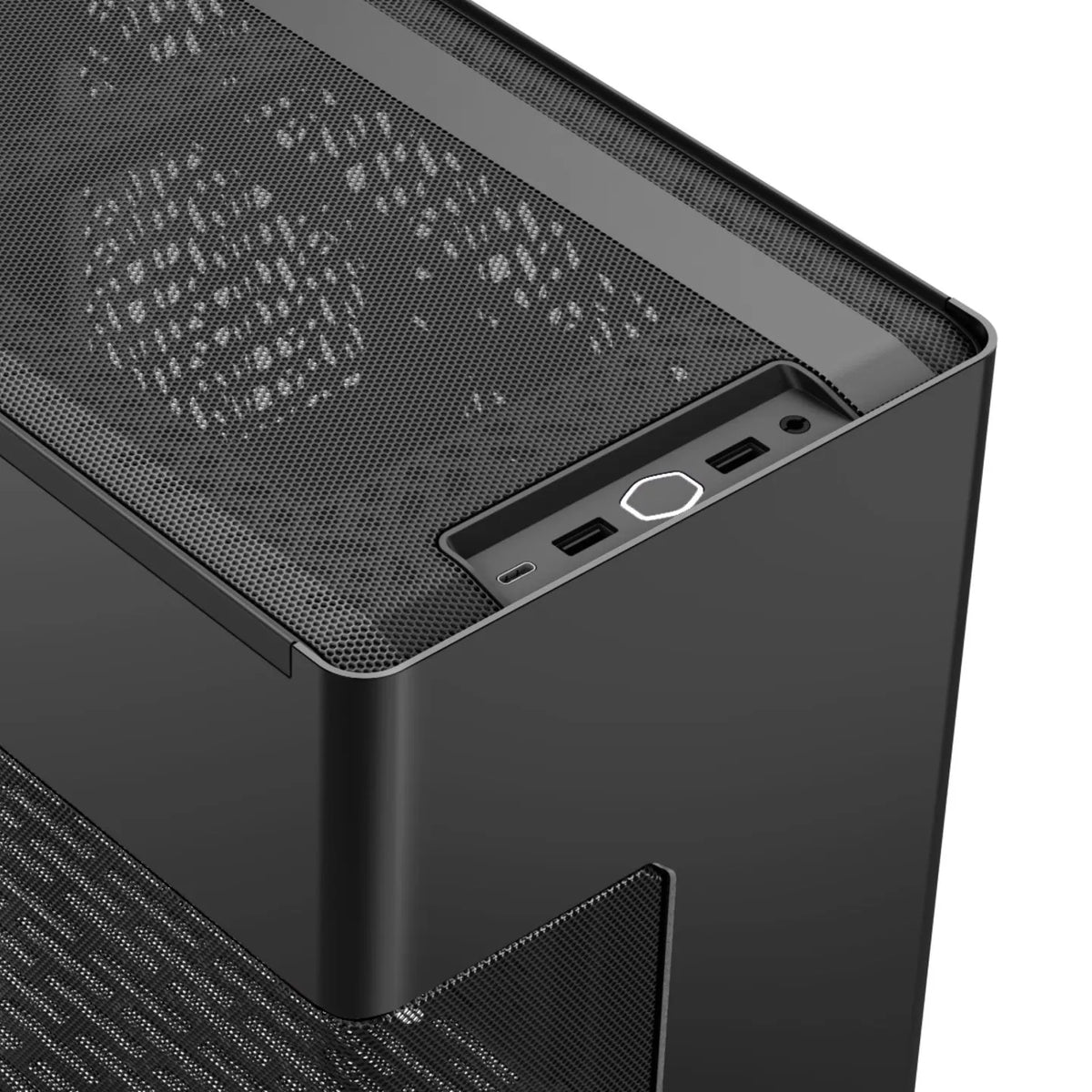

USB interface: 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 x 2 Type-C
Audio interface: 1 x 3.5 mm interface (audio output+microphone 2-in-1)
Fan support
Top: 2x120 mm/2x140 mm
Bottom: 1 x 120 mm (15 mm ultra-thin fan, if installing a 3.5-inch hard drive)
2x 120mm (15mm ultra-thin fan, no 3.5-inch hard drive installed)
Cold row support
Top: 120/140/240/280 mm
Hardware support specifications
CPU heat dissipation height limit: 70 mm
Power support: SFX, SFX-L

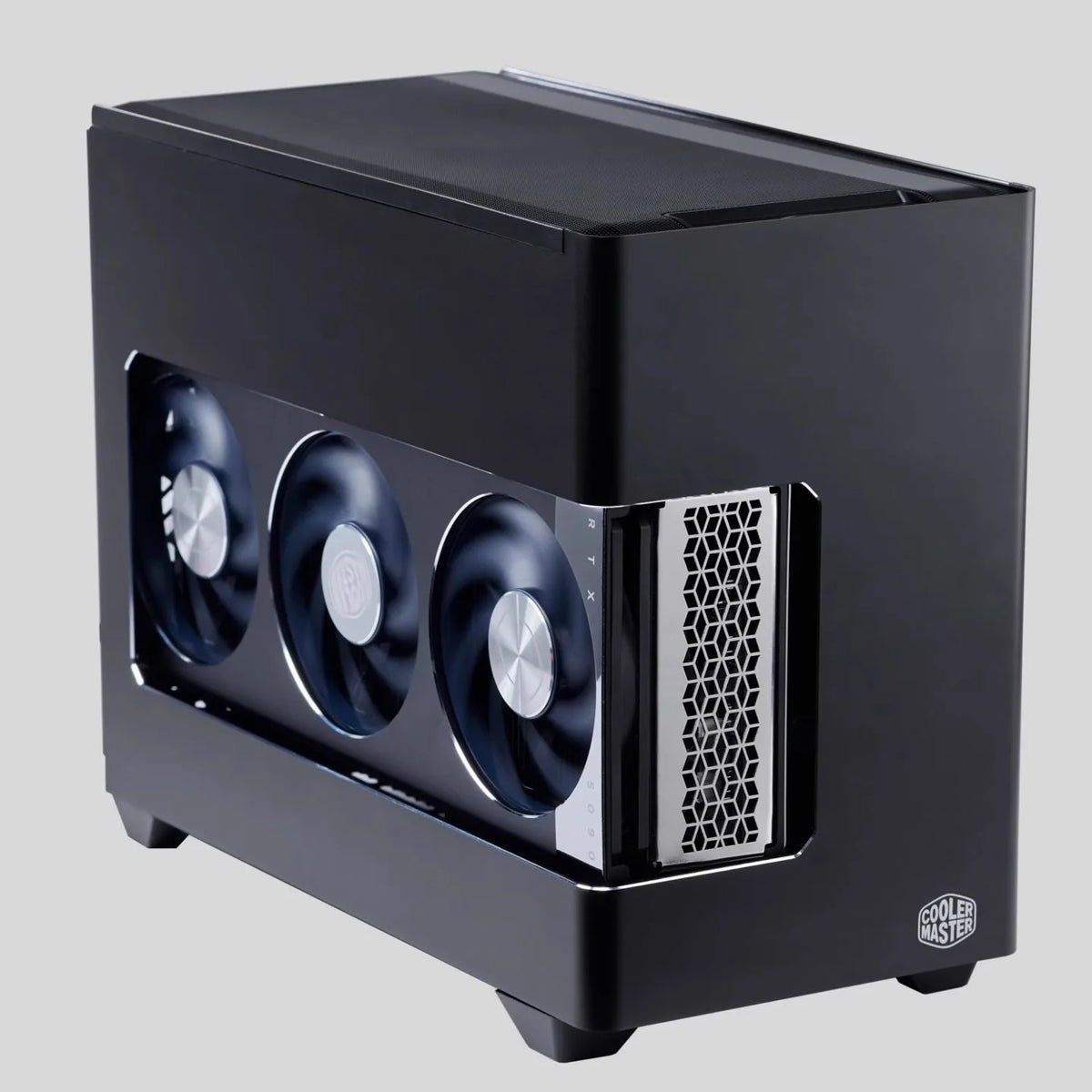

Independent graphics card size:
Length limit: 361.5 mm (including power interface)
Height limit: 160 mm (including power interface)
Width limit: 78.5 mm (3.8 slots)
Accessories: PCle 5.0 x16 adapter cable x1
GPU bracket
Volume/including foot pad: 18.62L
