SPECIFICATIONS
Battery Included: no
Brand Name: Creality
Certification: CE,FCC
Data interface: TypeC/USB3.0
High-concerned chemical: none
Input Power: 12V 2A
IsWi-Fi/BluetoothSupport: No
Model Number: CR-Scan Raptor
Non-Contact Active: Handhold Laser
Non-Contact Passive: Photometric Stereo
Operating humidity: 0-90%RH"
Operating temperature: -10℃ to 40℃
Origin: Mainland China
Output format: OBJ/STL/PLY
System Support: Windows macOS
Wireless Scanning: Supported
Scanning Mode 7 parallel blue laser lines 22 cross blue laser lines NIR(infrared binocular structured light)
Accuracy, up To ： 0.02mm Up to 0.075mm
Color Mapping ：Yes
3D imaging camera resolution ：1920 × 1200
Color Supplemental Light ： 12 white LEDs
IMU：Yes
Output format ： OBJ/STL/PLY/ASC
Input Power ：12V 2A
Data interface ： TypeC/USB3.0
Device Dimensions ：215mmx50mmx74mm
Device Weight ： 405g
Wireless Scanning ：Supported in conjunction with wireless scanning accessories
System support ：Windows/macos

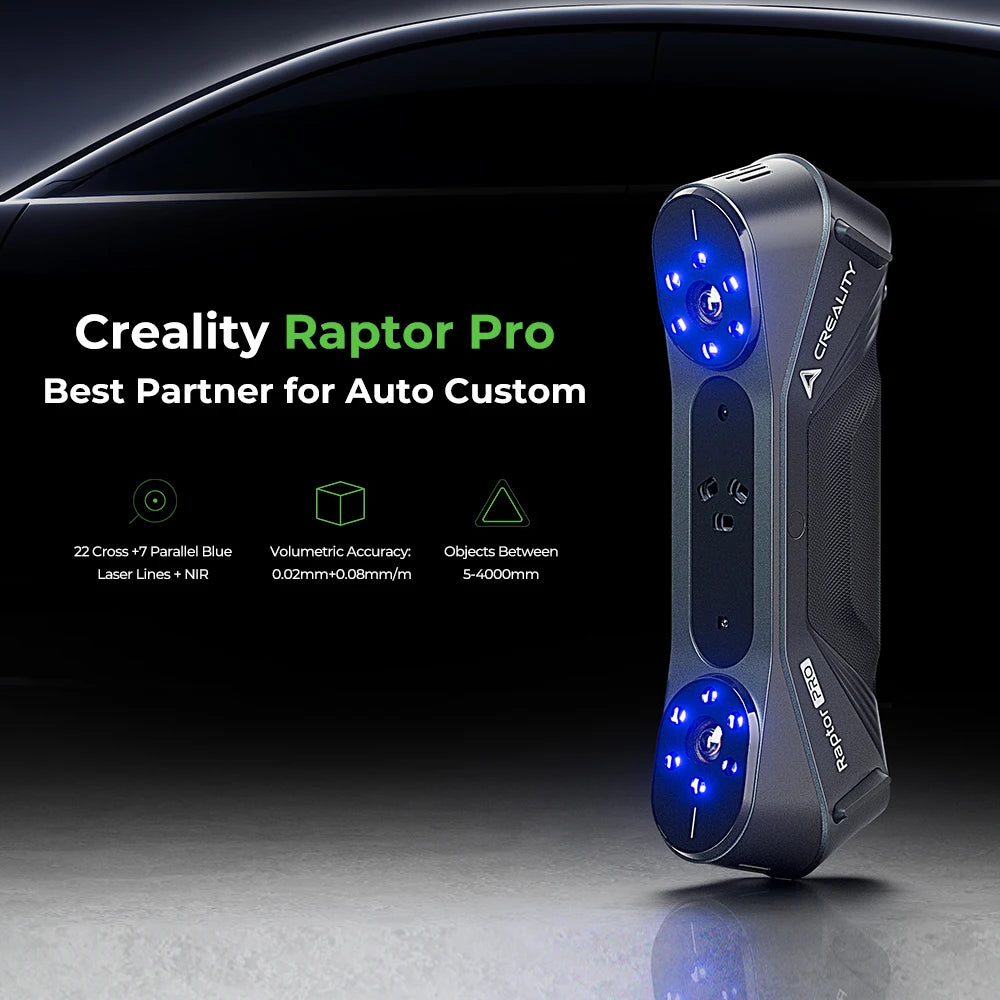

Creality Raptor Pro 3D Scanner Best Partner for Auto Custom
Scanning Mode : Blue Light(7 blue parallel laser lines&22 cross blue laser lines) / NIR(infrared binocular structured light)
Blue Light Mode: 7 blue parallel laser lines | 22 cross blue laser lines)
Accuracy: Up to 0.02mm

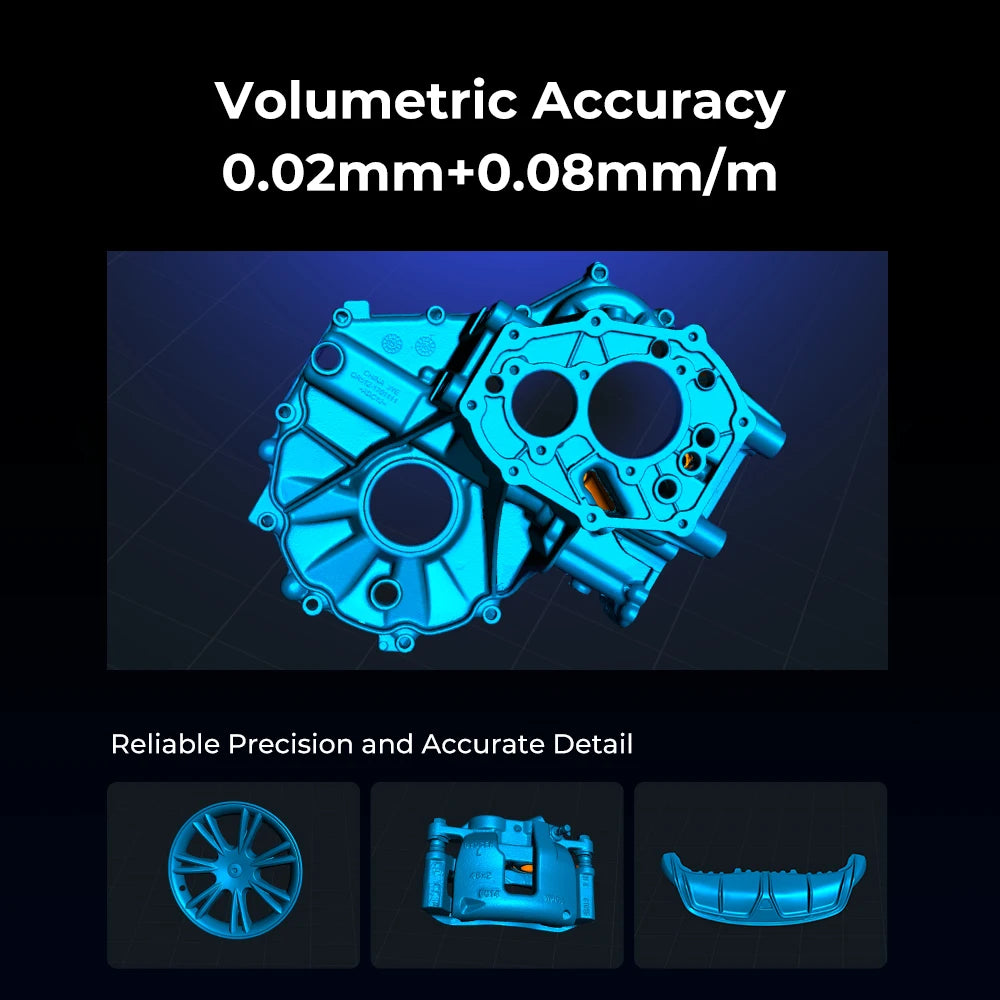

Volumetric Accuracy: 0.02+0.08mm/m
Scanning Speed: 420,000 measurements/s | 660,000 measurements/s
Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm( 22 cross blue laser lines)
Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm
Working distance: 160mm-400mm | 200-550mm
Outdoor Scanning: Below 50,000 lux | Below 10,000 lux
NIR(infrared binocular structured light) Mode:
Accuracy:Up to 0.075mm
Volumetric Accuracy: 0.075mm+0.1mm/m
Scanning rate: 3,580,000 measurements/s
Single Capture Range:630mm×550mm@1000mm
Working distance: 170mm-1000mm
Outdoor Scanning: Below 30,000
General Parameters:
System Support: Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above Minimum:i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above
Wireless Scanning: Support
