SPECIFICATIONS
Advantage: Fast Install
After-sale Service: Online Technical Support
Application: Hospitals, schools, hotels, construction sites
Brand Name: NONE,YG
Certification: CE
Charge Status: No
Color: Customized Color
Design Style: Modern
Electricity: CE Standard
Feature: other
High-concerned chemical: none
Keyword: Mobile Living Container House
MOQ: 1 Set
Material: Sandwich Panel, Steel, Wooden,Log, Other
Model Number: Expandable Container House
Origin: Mainland China
Place of Origin: Henan, China
Product Type: Expandable Container House
Product name: Expandable Container House
Shape: other, Rectangle, Square
Shippment: 40'HQ
Size: 20ft 30ft 40ft
Structure: Galvanized Steel Frame + Sandwich Panel
Thickness: Standard
Type: Expandable Container House
Use: House
Wall: EPS
Warranty: 5 year
1.This is a customized machine. The price on the page is only a deposit, and does not include shipping, accessories and packaging fees.
2.Please contact Luna for a free quote❤
Whatsapp/WeChat/Phone number : +86 13837176973
Email : lunameng0213@outlook.com
|
Characteristic
|
Outer size(mm)
|
6200*5900*2480
|
|
|
|
Inner size(mm)
|
6040*5740*2200
|
|
|
|
Foldable state(mm)
|
2200*5900*2480
|
|
|
|
Total weight（t）
|
2.8t
|
|
|
Structure |
Middle roof beam
|
80*100*T3.0mmQ235B
|
|
|
|
Middle bottom beam
|
80*100*T3.0mmQ235B
|
|
|
|
Side beam
|
T2.0mmQ235BZ
|
|
|
|
Middle colum
|
150*210*T2.5mmQ235B
|
|
|
|
Side wall frame
|
40*80*T1.5mmQ235B
|
|
|
|
side bottom purlin
|
40*60*T1.5mmQ235B
|
|
|
|
middle bottom top purlin
|
40*80*T1.5mmQ235B
|
|
|
|
Side top frame
|
40*80*T1.5mmQ235B
|
|
|
|
Foldable hinge
|
13mm galvanized hinge
|
|
|
|
overall frame protective coating
|
electrostatic spraying/straight white plastic powder
|
|
|
|
Hanging head
|
T4mm Q235B
|
|
|
Top
|
Outer top plate
|
T50mm flame retardant purification foam plate
|
|
|
|
Inner ceiling
|
T193
|
|
|
Wall plate |
Top insulation
|
t50mm flame retardant purification foam plate
|
|
|
|
Side ,rear and front
|
t65mm flame retardant purification foam plate
|
|
|
|
Inner partition
|
T50mm flame retardant purification foam plate
|
|
|
|

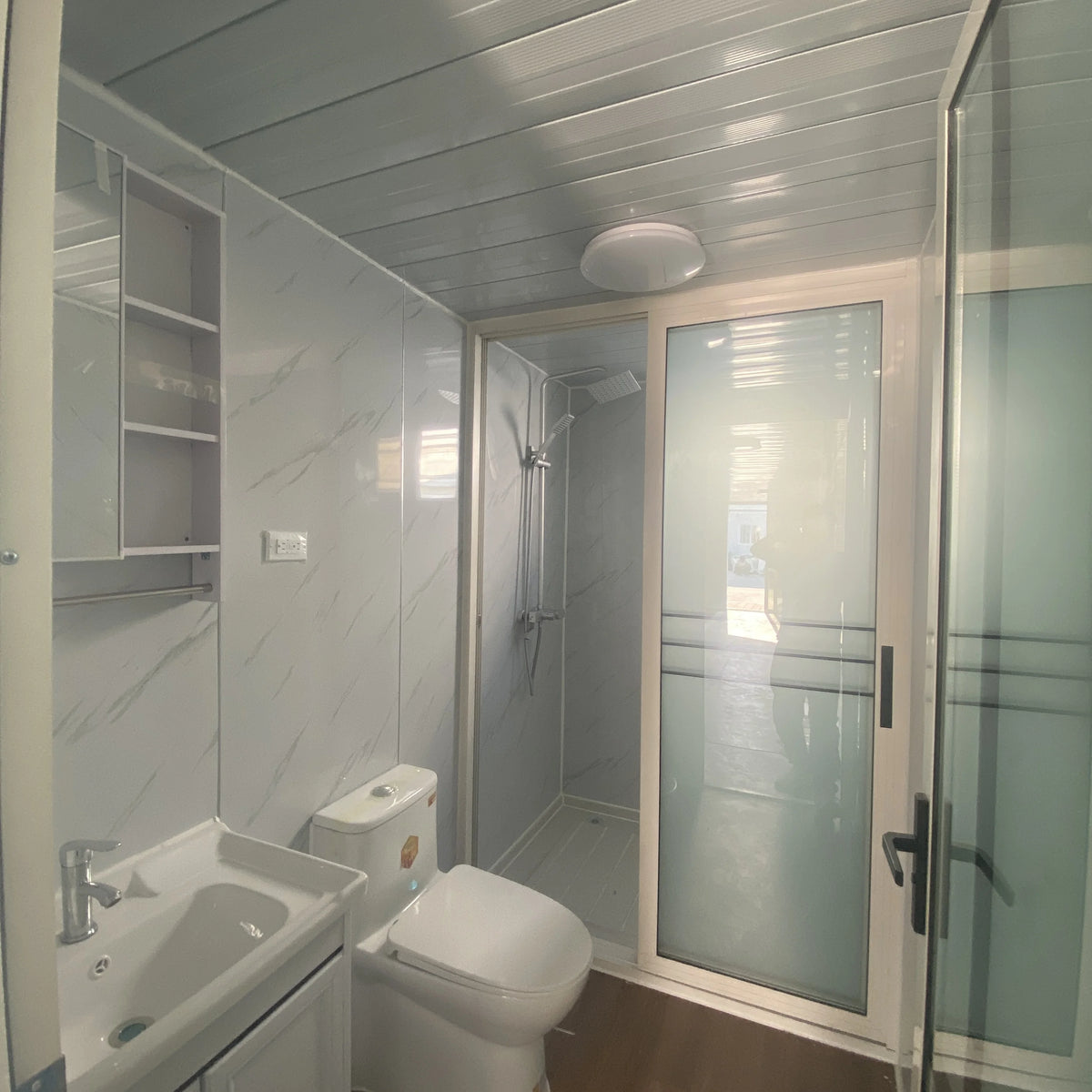

Inner toilet
|
1800 length*134 width for
|
|
|
Floor
|
Middle
|
Fire-proof cement 18mm
|
|
|
|
Each sides
|
18mm polywood
|
|
|
Electricity |

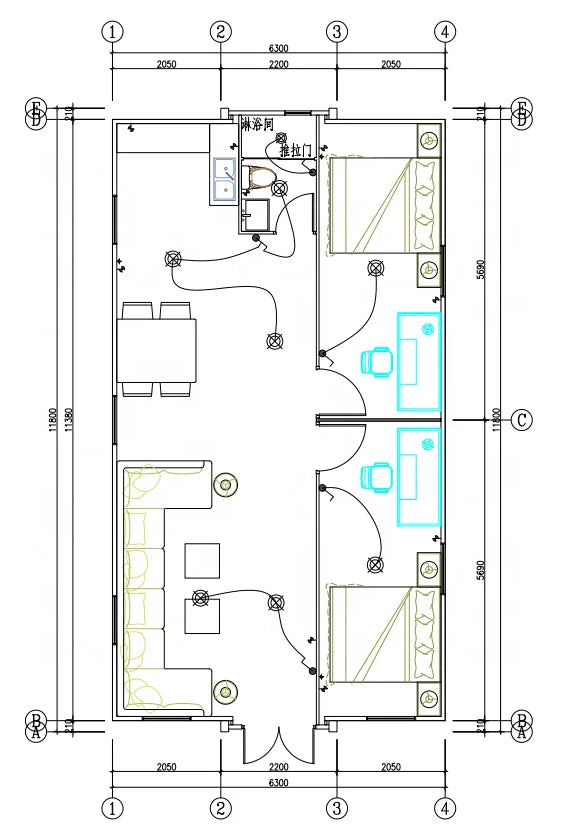

Electrical layout must be installed strictly in accordance with moisture-proof regulations, and all electrical products must
comply with CE or UL certification. According to the electrical engineering specifications, 6 indoor LED lights, 14 single opening sockets with 6 holes, 4 single opening sockets with 3 holes, and 5 single opening sockets; 1 piece of 63A leakage protector for all , 1 piece of 32A circuit breaker in kitchen and bathroom, 1 piece of 32A air conditioner, 1 piece of 25A socket in bedroom and living room, and 1 piece of 16A lighting bulb. Voltage 220V or 110BV |
|
|
|
Entry door
|
1 piece of Burglar door
|
|
|
|
Window
|
4 piece of Fiberglass sliding window（970*970）
|
|
|
|
Quality
|
One year warranty（China）
|
|
|
