SPECIFICATIONS
Brand Name: NONE
Certification: ce,ROHS,CE,CE,ROSH
Color: GRAY,Gray
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 3A
Does it include a Battery?: No

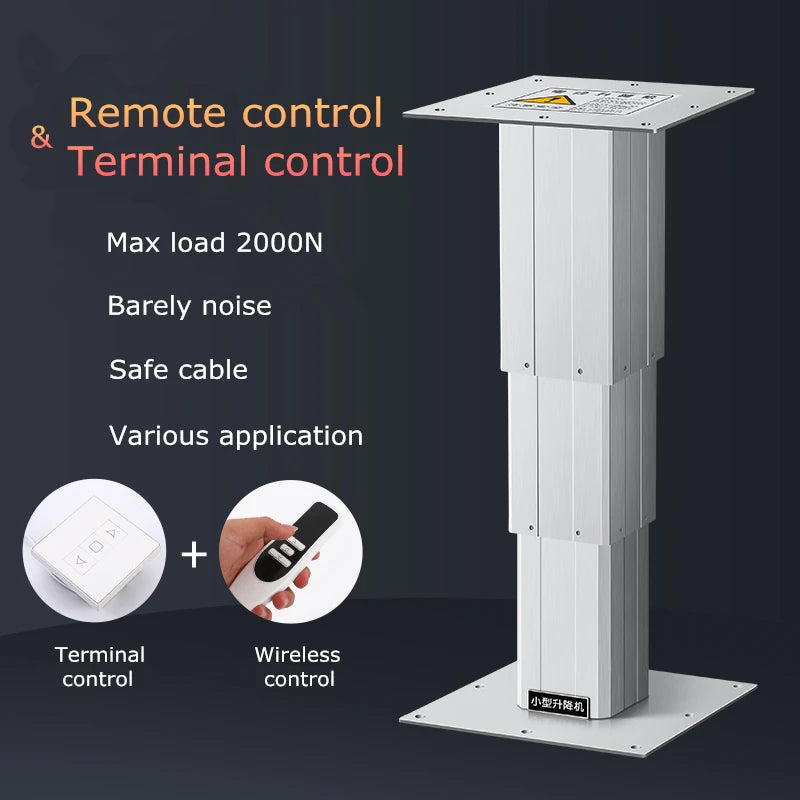

Does it include wireless functionality?: Yes
Efficiency: IE 2
Final Height(mm): 670
High-concerned chemical: none
IP level: IP43
Initial Height(mm): 310
Input voltage: DC 12V/24V
Max thrust: 1500N 150KG
Model Number: IPTT-DD310-ZL
Noise: ≤48dB
Origin: Mainland China
Output Power: 37.5-74.6（include74.6）,60W
Protect Feature: Drip-proof
Rated current of DC 24V: 3A
Stroke Length: 360
Torque: MAX 1500N
Type: Gear Motor
Usage: BOAT,Car,Electric Bicycle,Fan,Home Appliance
no-load speed: 4-12mm/s
Product Description:

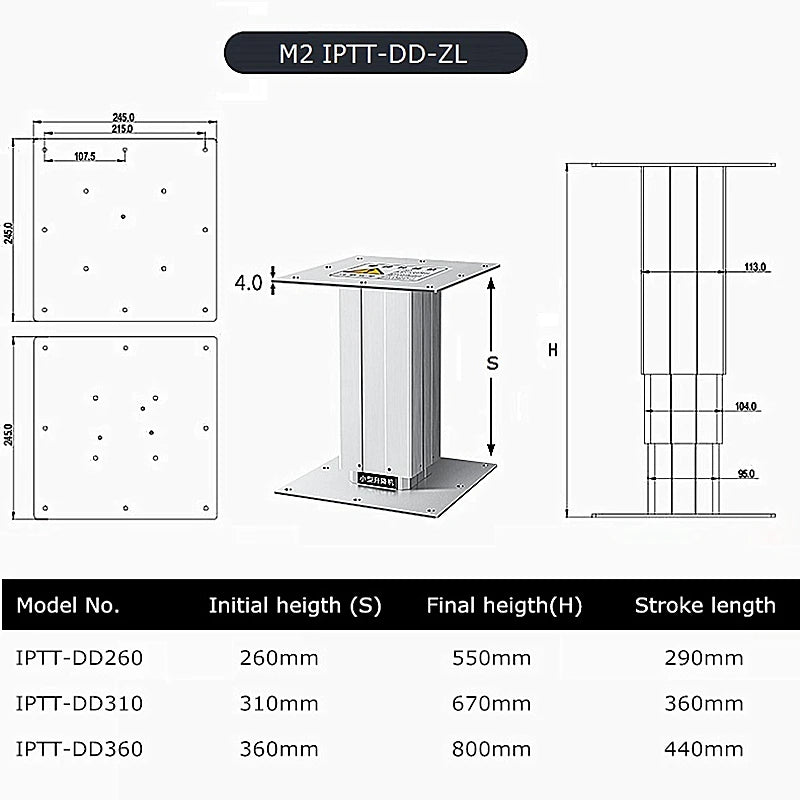

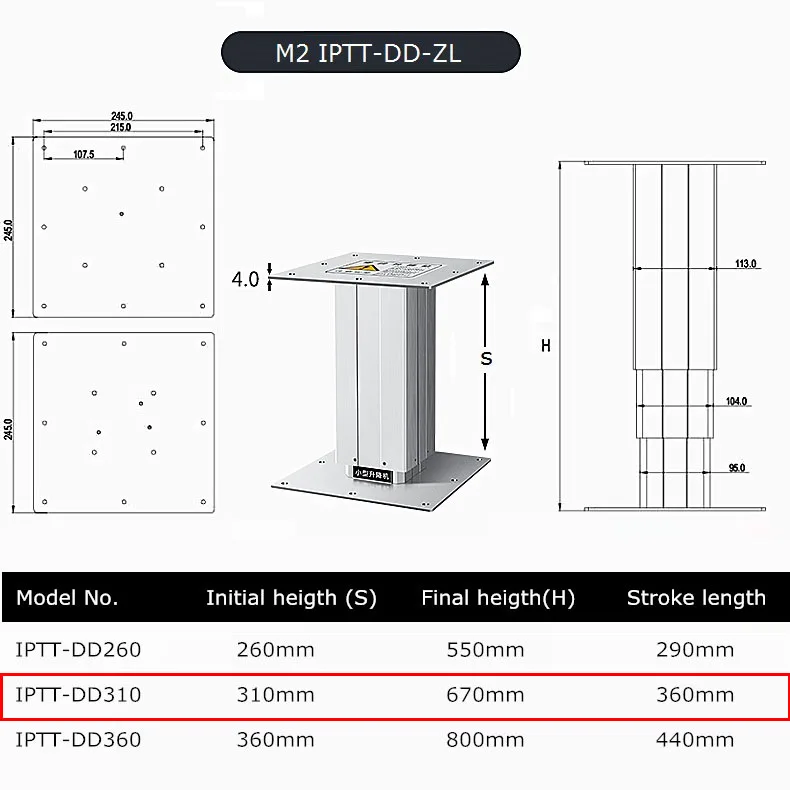

Model:IPTT-DD310-ZL
Initial Height(mm):310
Final Height(mm):670
Stroke Length(mm):360
Panel Size(mm):245*245*4(Customizable)
Columns:3
Voltage |
24V |
||
No-load speed (mm/s) |
4 |
8 |
12 |
Load capacity (N) |
1500 |
800 |
600 |
Static damping (N) |
1500 |
800 |
600 |
Voltage |
12V |
||
No-load speed (mm/s) |
4 |
8 |
|
Load capacity (N) |
1000 |
200 |
|
Static damping (N) |
1000 |
200 |
|
Operating temperature |
o~40℃ |
||
Limit switch |
Built-in |
||
Operating frequency |
10% max 2min continuous use |
||

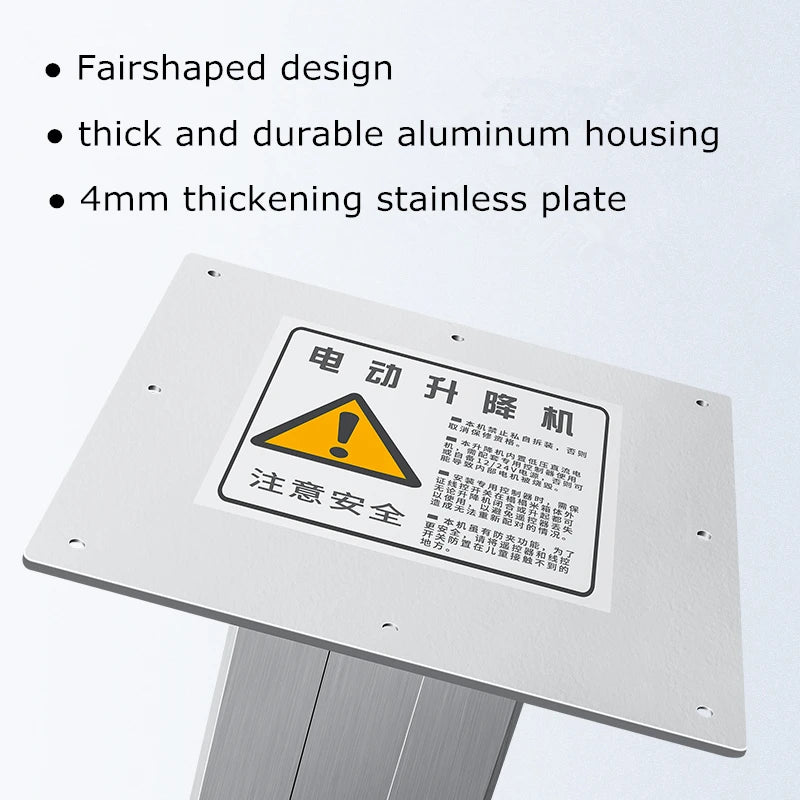

Panels |
Powder coating |
||
Optional Features |
Rebound or pause when encountering obstacles |
||
Hall sensor | |||
Switch signal feedback | |||
Color |
Silver gray |
||
Please Note:
● One thrust corresponds to one no-load speed, once the actuator is finished production, thrust/speed can not be changed any more.
● Our price is not including tariff, please prompt arrangement your goods clear pass when the package arrives at your country.
Warranty
● If you do not receive goods, please contact us, we will refund or send you a new one.
● If any damage by express company, please contact us at the first time you receive, we will refund or send you a new one.
● If any question about installation or using, just contact us freely, our sales and engineer are always available.
● When you place an order, please double check the delivery address, contact infomation and your name to make sure you can receive the goods.
If any question or need, you can directly leave message or send emails to zjhoodland@outlook.com.
Thanks for your insterest!
