SPECIFICATIONS
Brand Name: Hoodland
Certification: ce
Color: Silver
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 2.5A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 2
High-concerned chemical: none
Model Number: IPTT
Origin: Mainland China
Output Power: 18.65-37.5（include18.65and37.5）,60W
Torque: Max 1500N
Type: Gear Motor
Usage: BOAT,Car,Electric Bicycle,Fan,Home Appliance
Technical Parameters
Voltage |
24V |
||
No-load speed (mm/s) |
4 |
8 |
12 |
Load capacity (N) |
1500 |
800 |
600 |
Static damping (N) |
1500 |
800 |
600 |
Voltage |
12V |
||
No-load speed (mm/s) |
4 |
8 |
|
Load capacity (N) |
1000 |
200 |
|
Static damping (N) |
1000 |
200 |
|
Operating temperature |
o~40℃ |
||

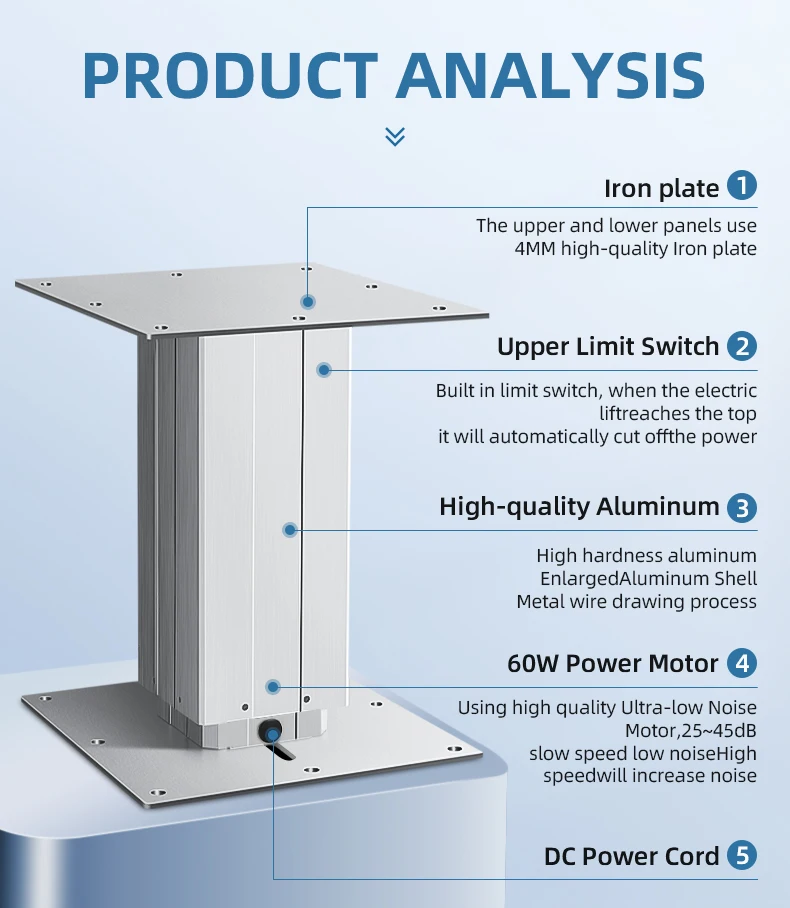

Limit switch |
Built-in |
||
Operating frequency |
10% max 2min continuous use |
||
Panels |
Powder coating |
||
Optional Features |
Rebound or pause when encountering obstacles |
||
Hall sensor | |||
Switch signal feedback | |||
Color |
Silver gray |
||
Specific introduction

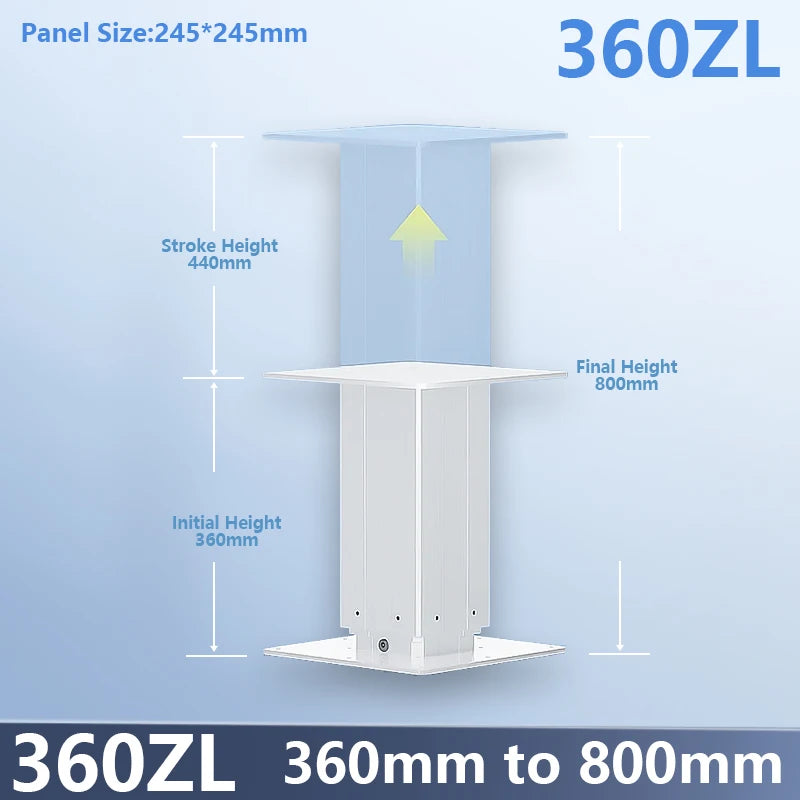

Model:IPTT-DD360-ZL
Initial Height(mm):360
Final Height(mm):800
Stroke Length(mm):440

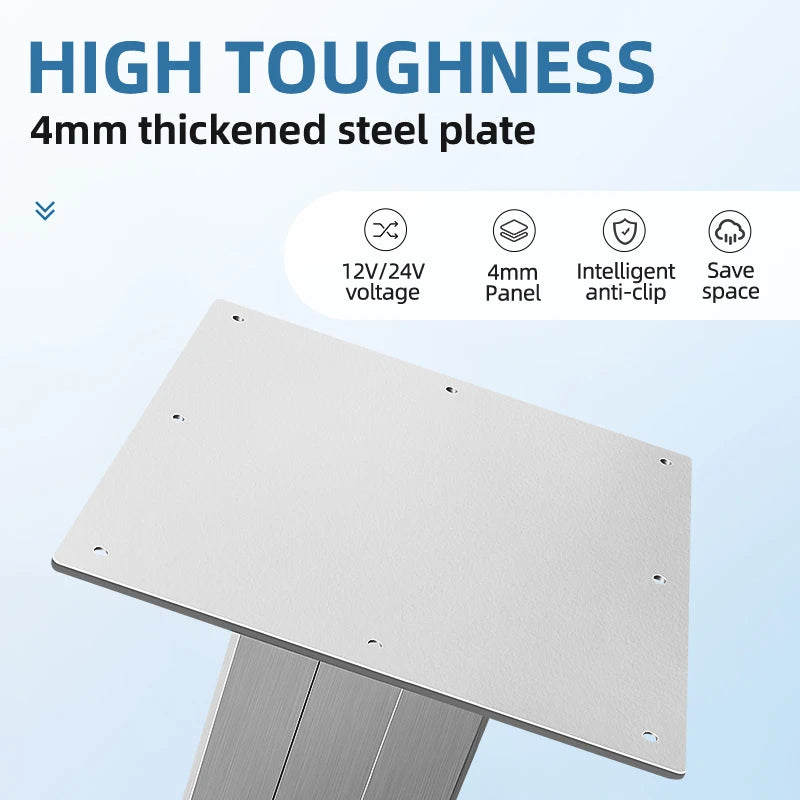

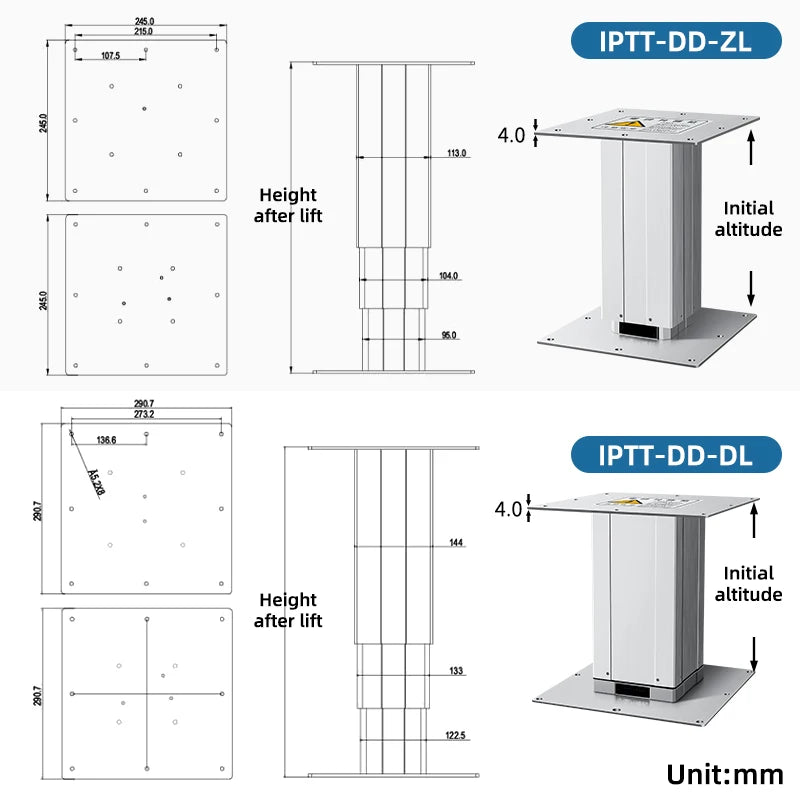

Panel Size(mm):245*245*4(Customizable)
Columns:3
Outlet mode:
When the option with controller is selected, the DC port is output. When "No Control" is selected, the 0.5m wire is output.
What's in the box

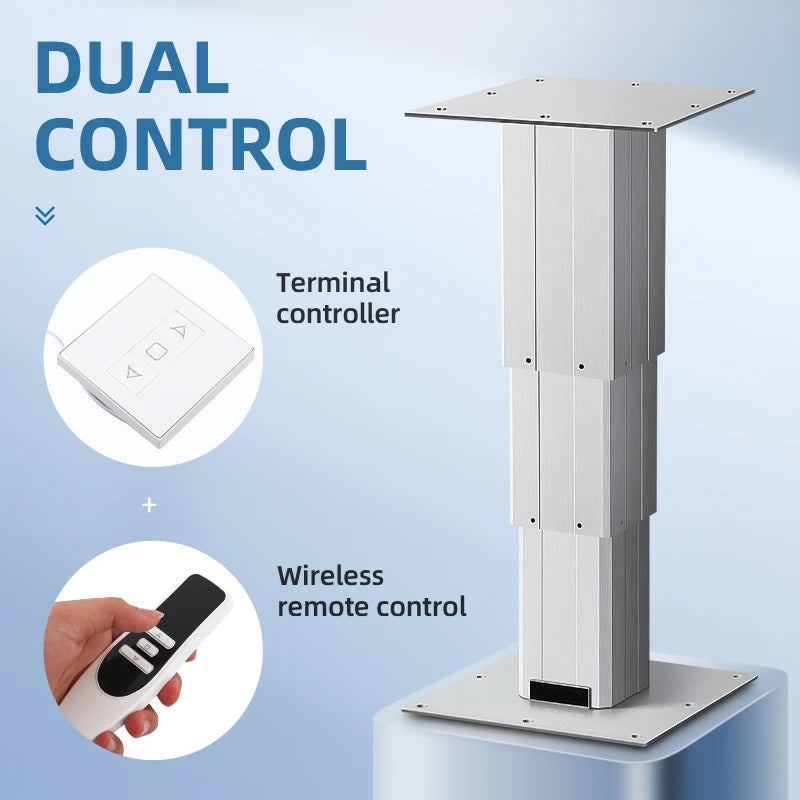

1 x Electric Lift Column x Controller with remote control function/No Controller(According to your choice)
Custom Features
The installation method, stroke, wiring method and special functions can be customized according to customer needs.
