SPECIFICATIONS
Brand Name: DIHOOL
Certification: CCC,ce,ROHS,CE
Color: black
Commutation: Brush
Construction: Series Wound
Continuous Current(A): 2.5A

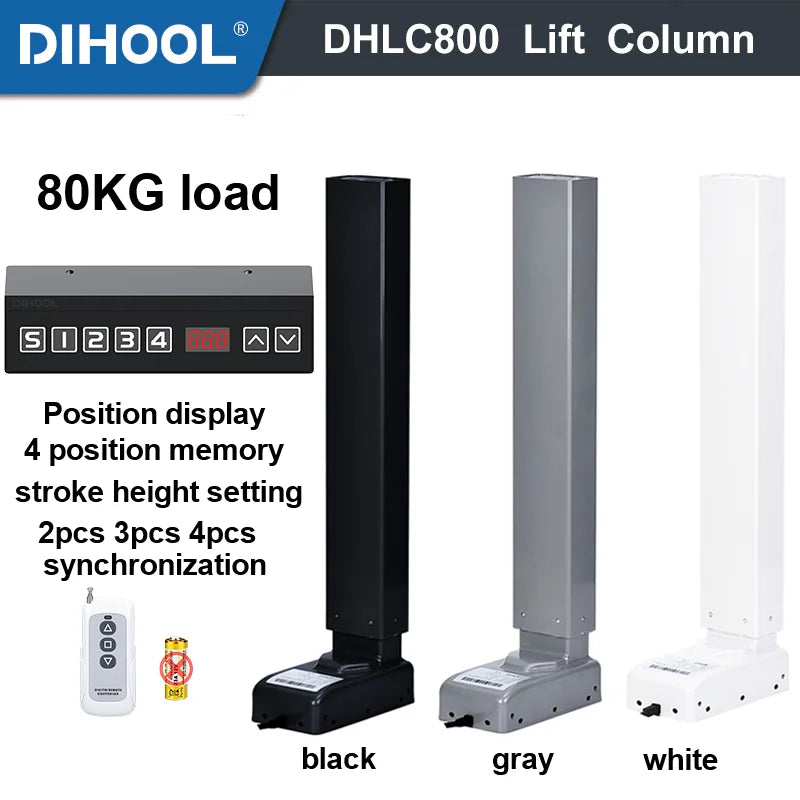

DIHOOL Model: DHLC800
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 3
High-concerned chemical: none
LOAD: 1PC 80KG
Model Number: DHLC800
Origin: Mainland China
Output Power: 37.5-74.6（include74.6）
Output Voltage: 60W
Protect Feature: Totally Enclosed
Torque: 2500N
Type: Gear Motor
Usage: BOAT,Car,Home Appliance

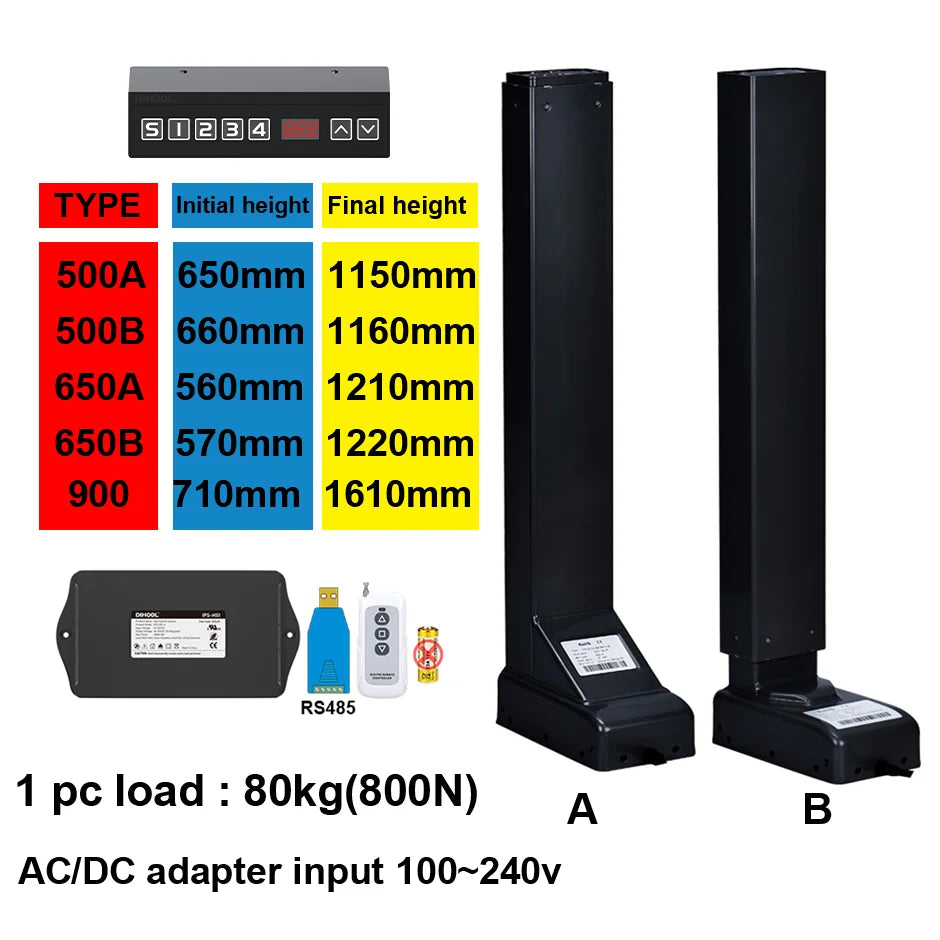

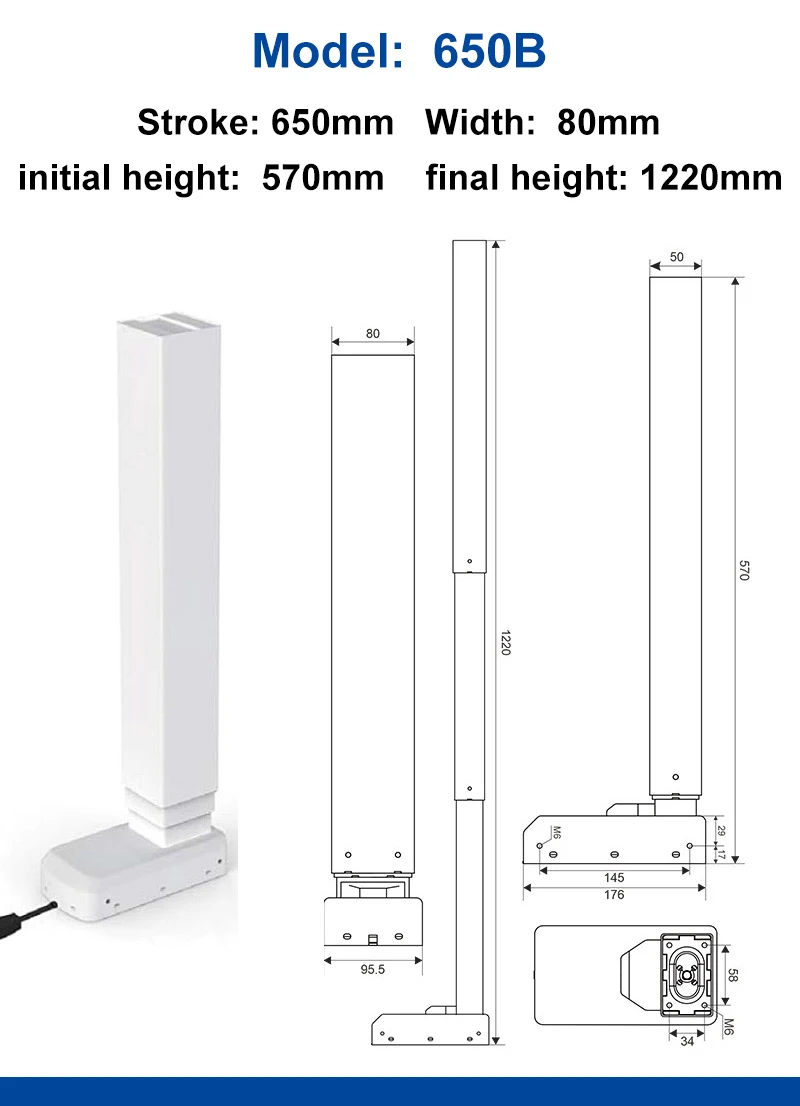

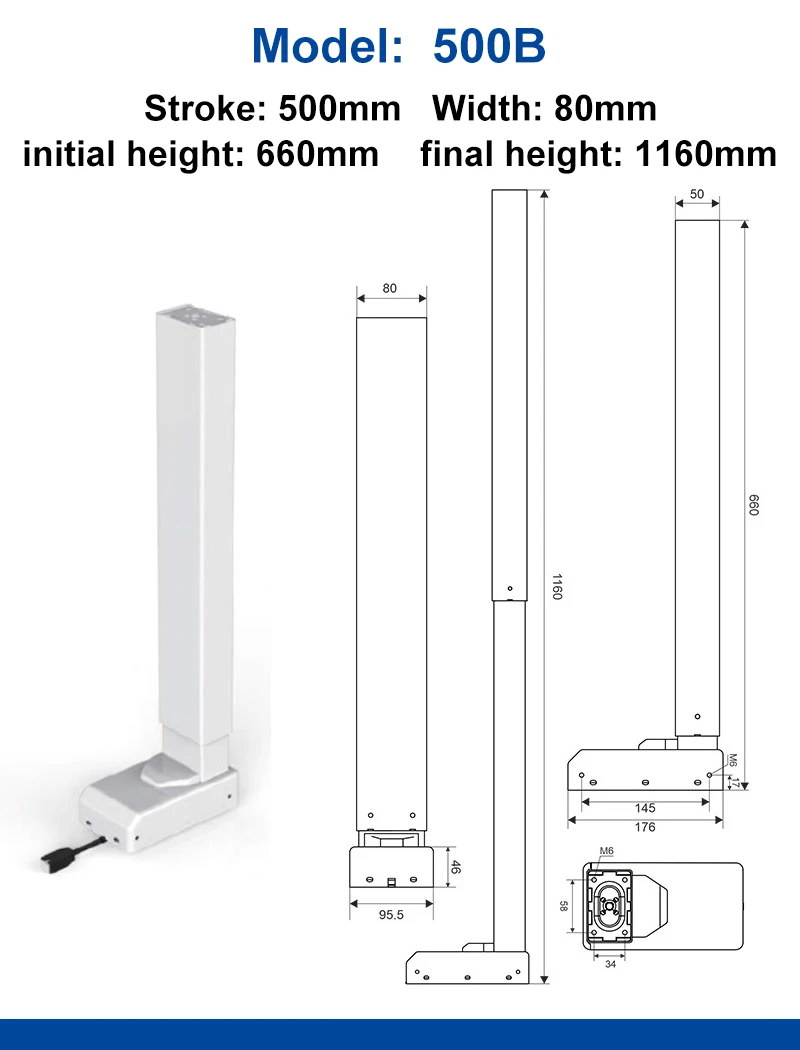

Model |

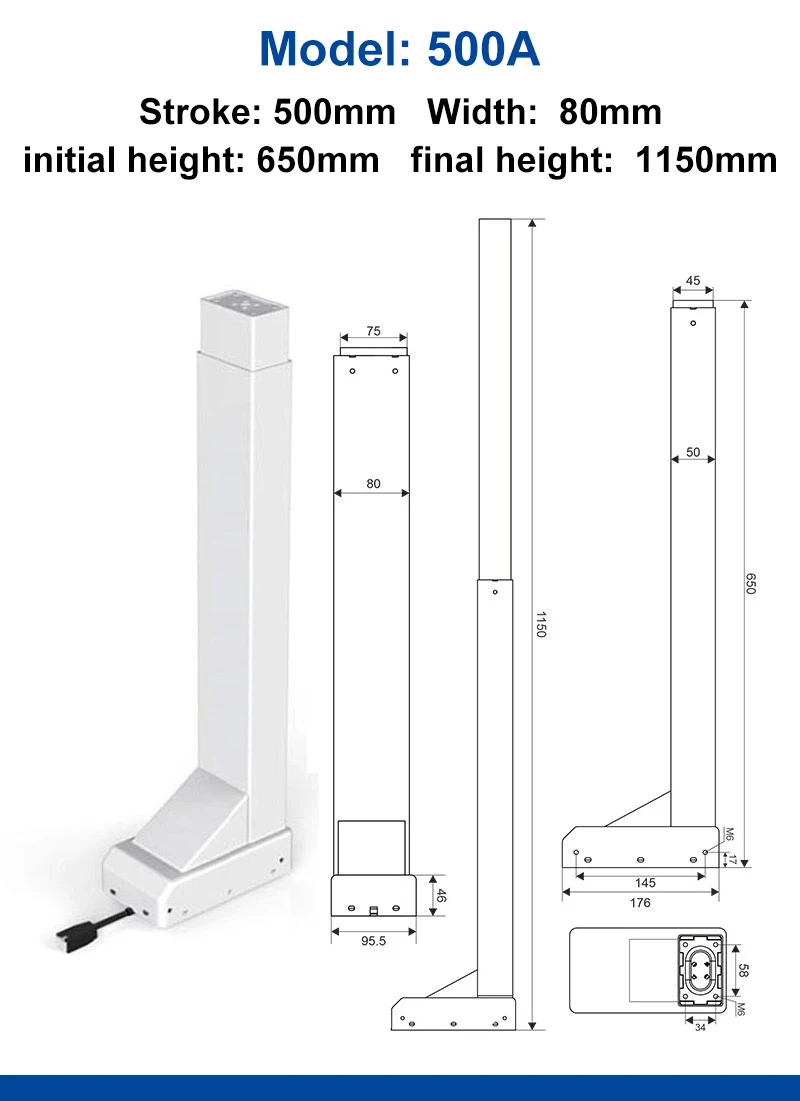

500A |
500B |

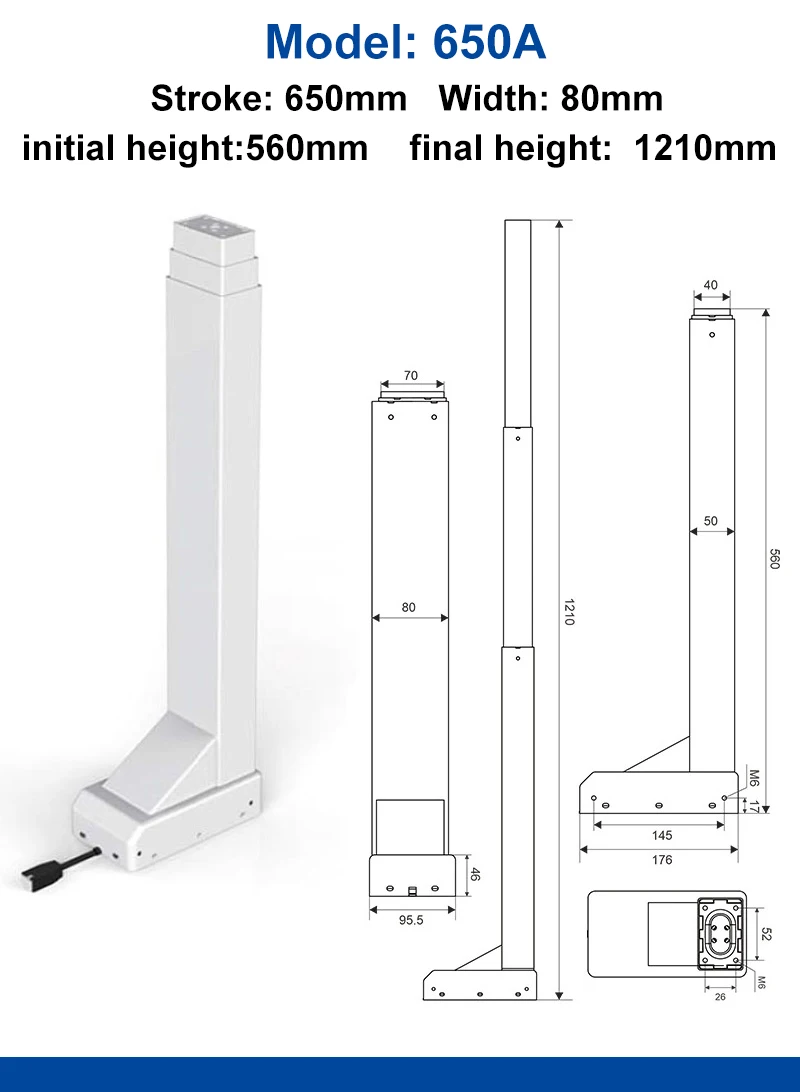

650A |
650B |

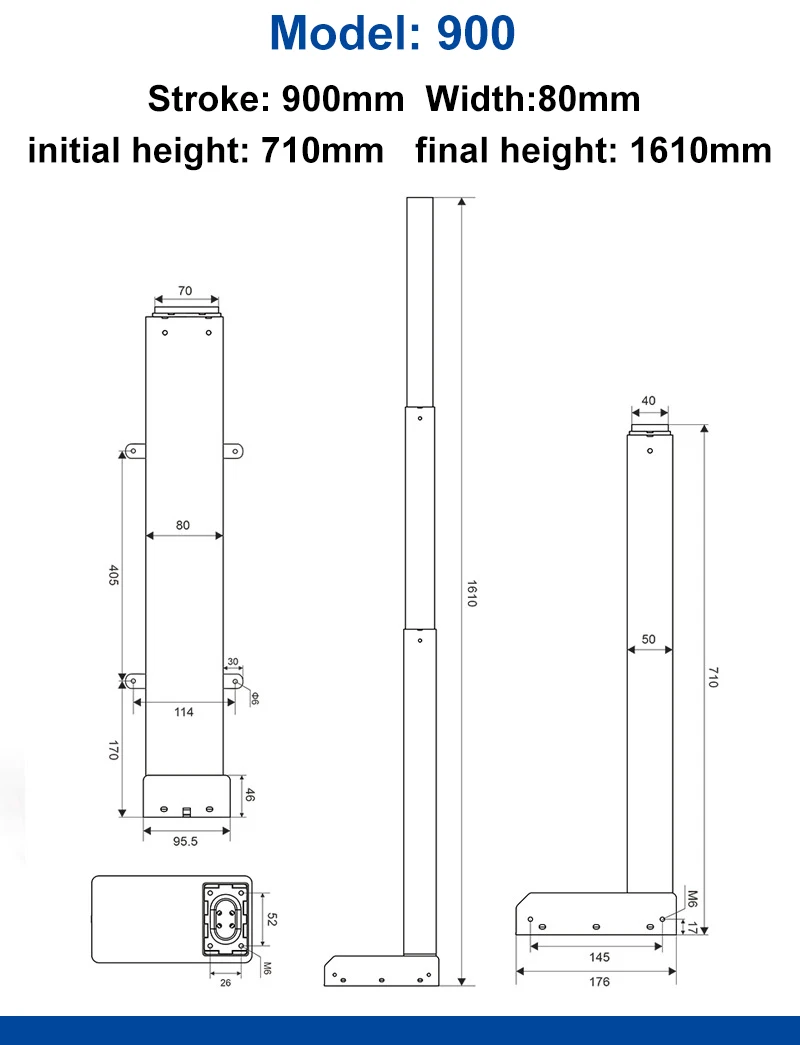

900 |
Stroke |
500mm |
500mm |
650mm |
650mm |
900mm |
Initial Height |
650mm |
660mm |
560mm |
570mm |
710mm |
Final Height |
1150mm |
1160mm |
1210mm |
1220mm |
1610mm |

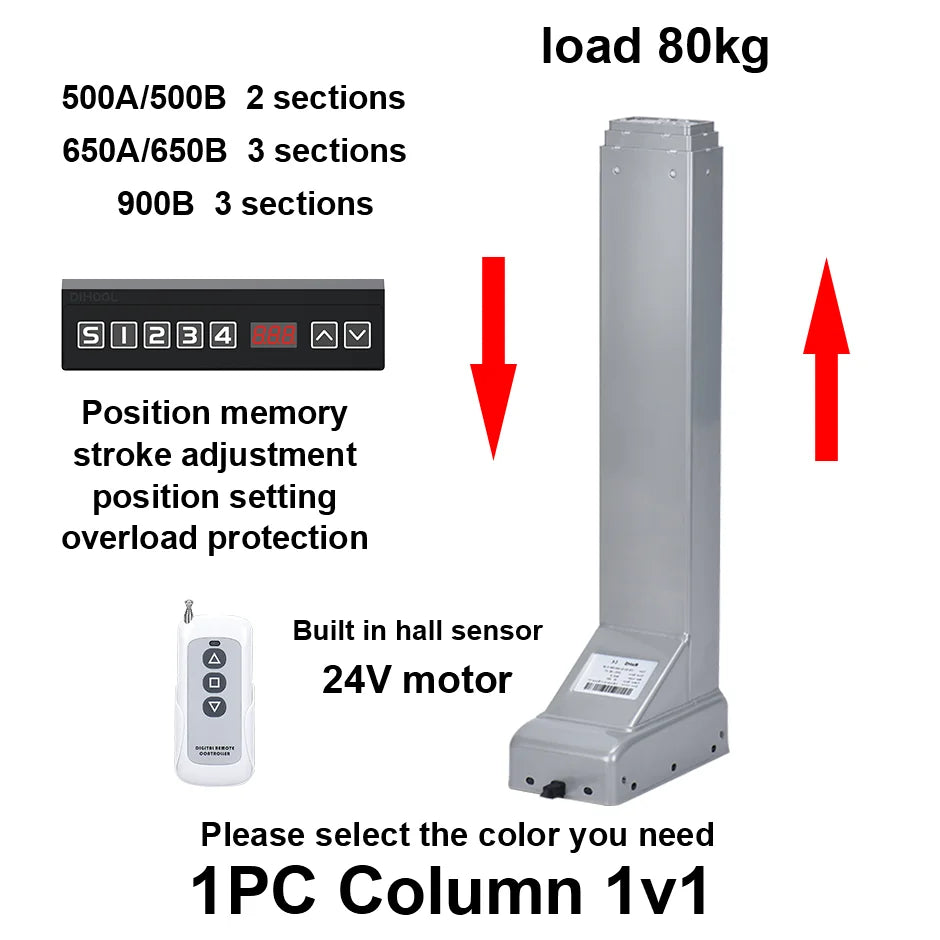

Section |
2 |
2 |
3 |
3 |
3 |
Input Voltage |
DC24V |
||||
Load Pull Capacity |
800N |
||||
Load Push Capacity |
800N |
||||
Self-Lock Capacity |
800N |
||||
Max Speed |
32mm/s |
||||
Color |
white, gray, black |
||||
Usage Frequency |
10% max 2min. continuous use |
||||
Operating Temperature |
-10℃ ~ +60℃ |
||||
Limit Switch |
None |
||||

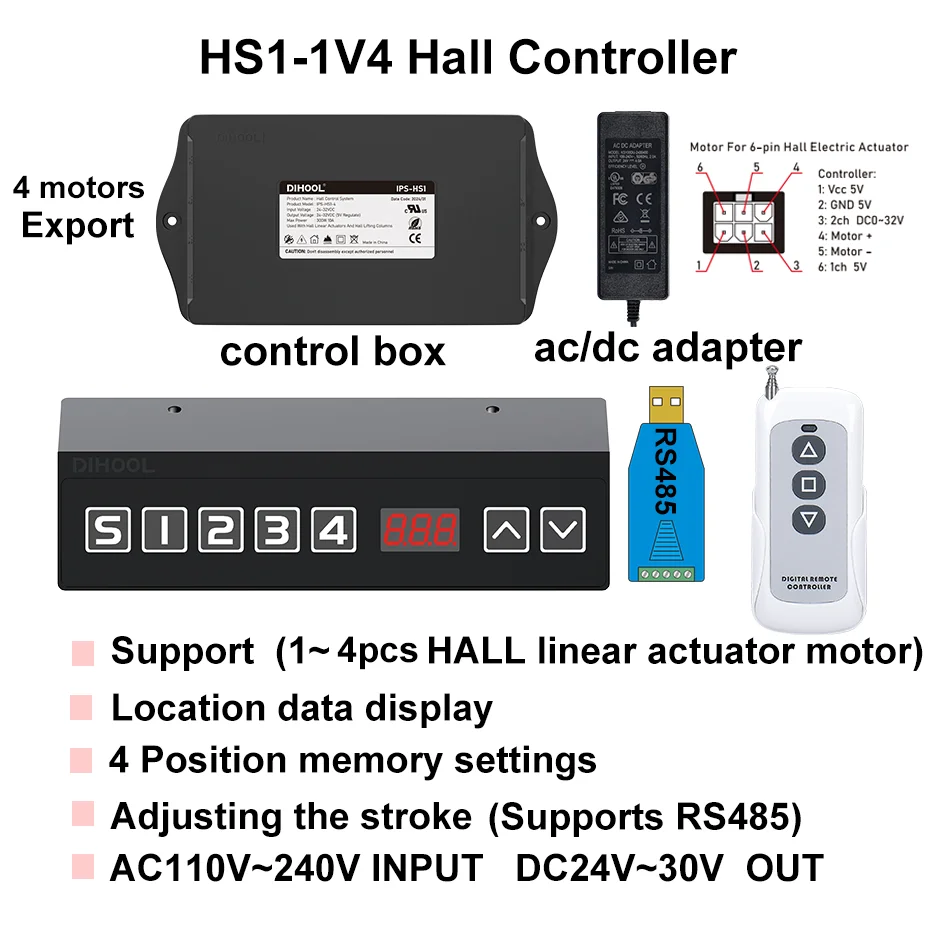

Controller |
HALL Controller |
||||
