SPECIFICATIONS
Brand Name: TMISHION
Choice: yes
Folded: No
High-concerned chemical: none
Model Number: Electric wheelchair controller
Origin: Mainland China
Type 1: Universal Electric Wheelchair Joystick Controller
Type 2: Electric Wheelchair Joystick Controller
Type 3: Universal Wheelchair Joystick Controller
Type 4: Mobility Wheelchairs Joystick Controller
Type 5: Wheelchair Joystick Controller
Type 6: Universal Wheel Chair Joystick

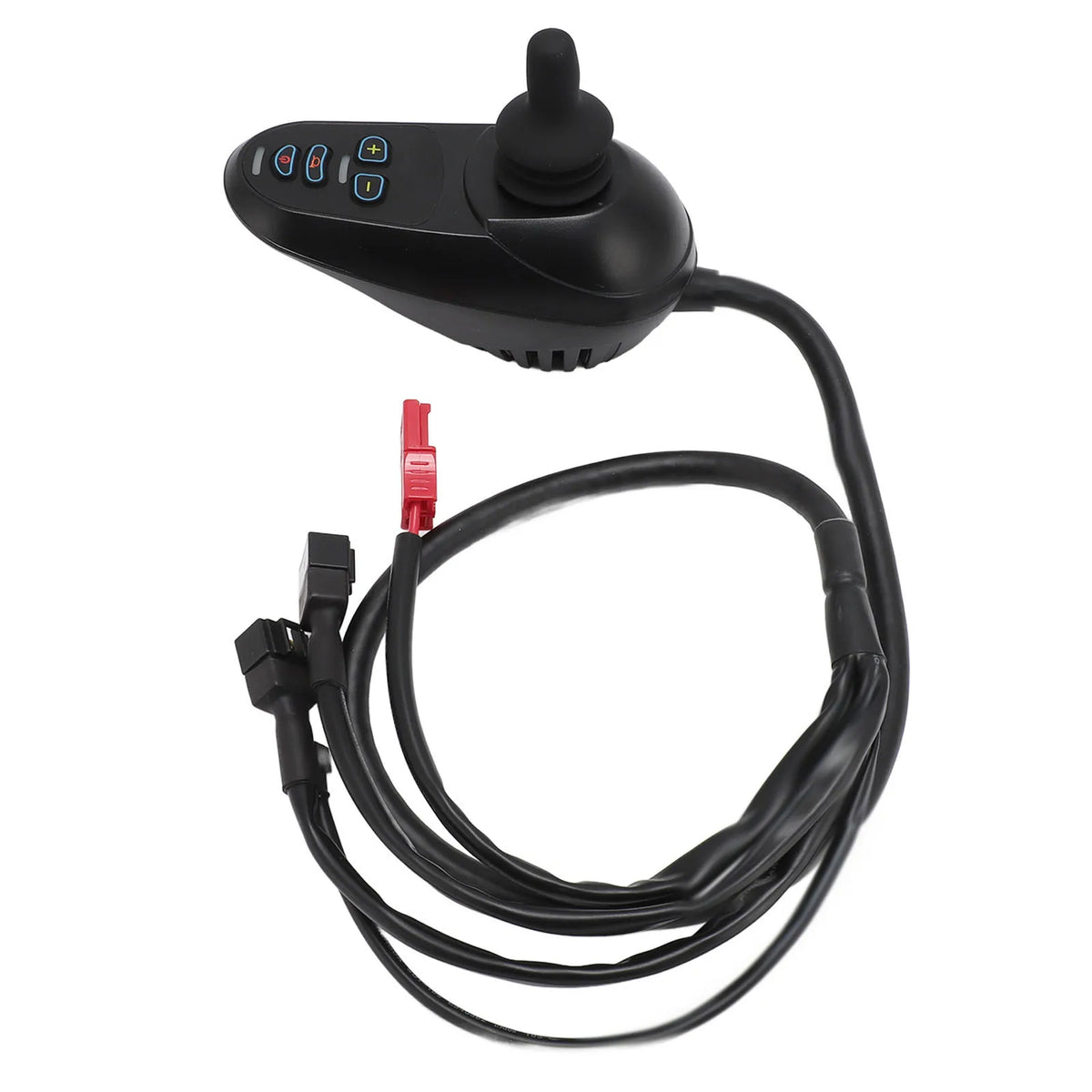

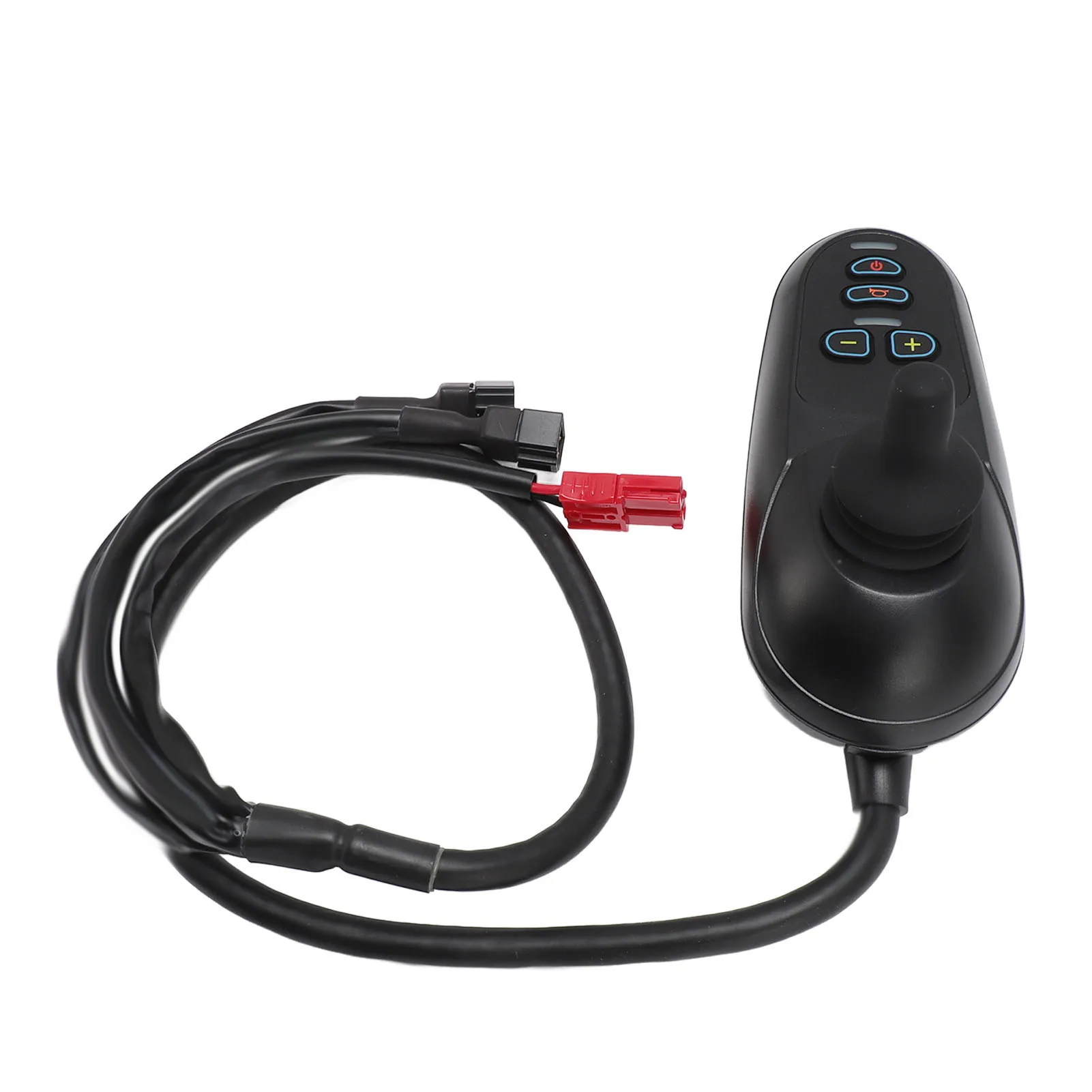

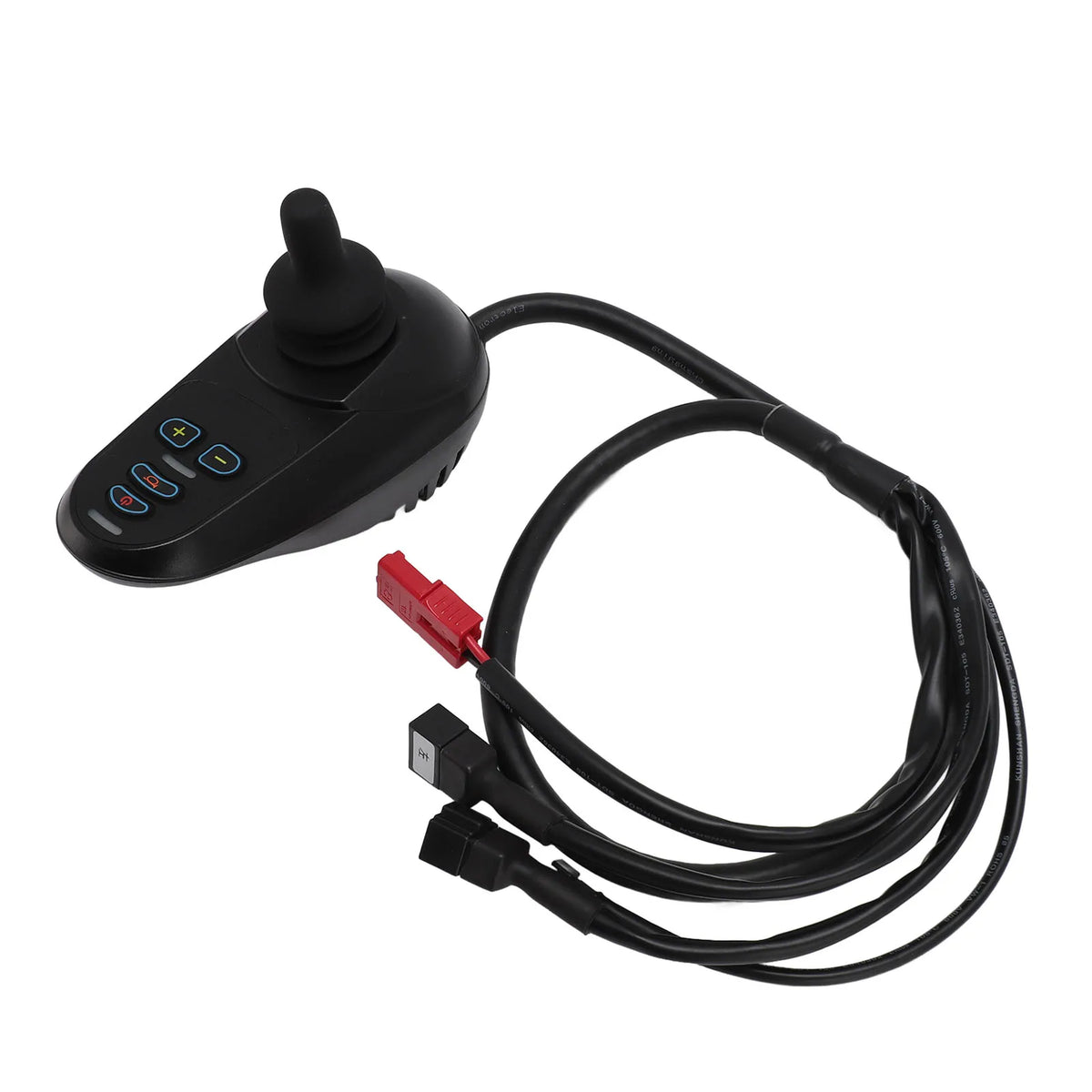

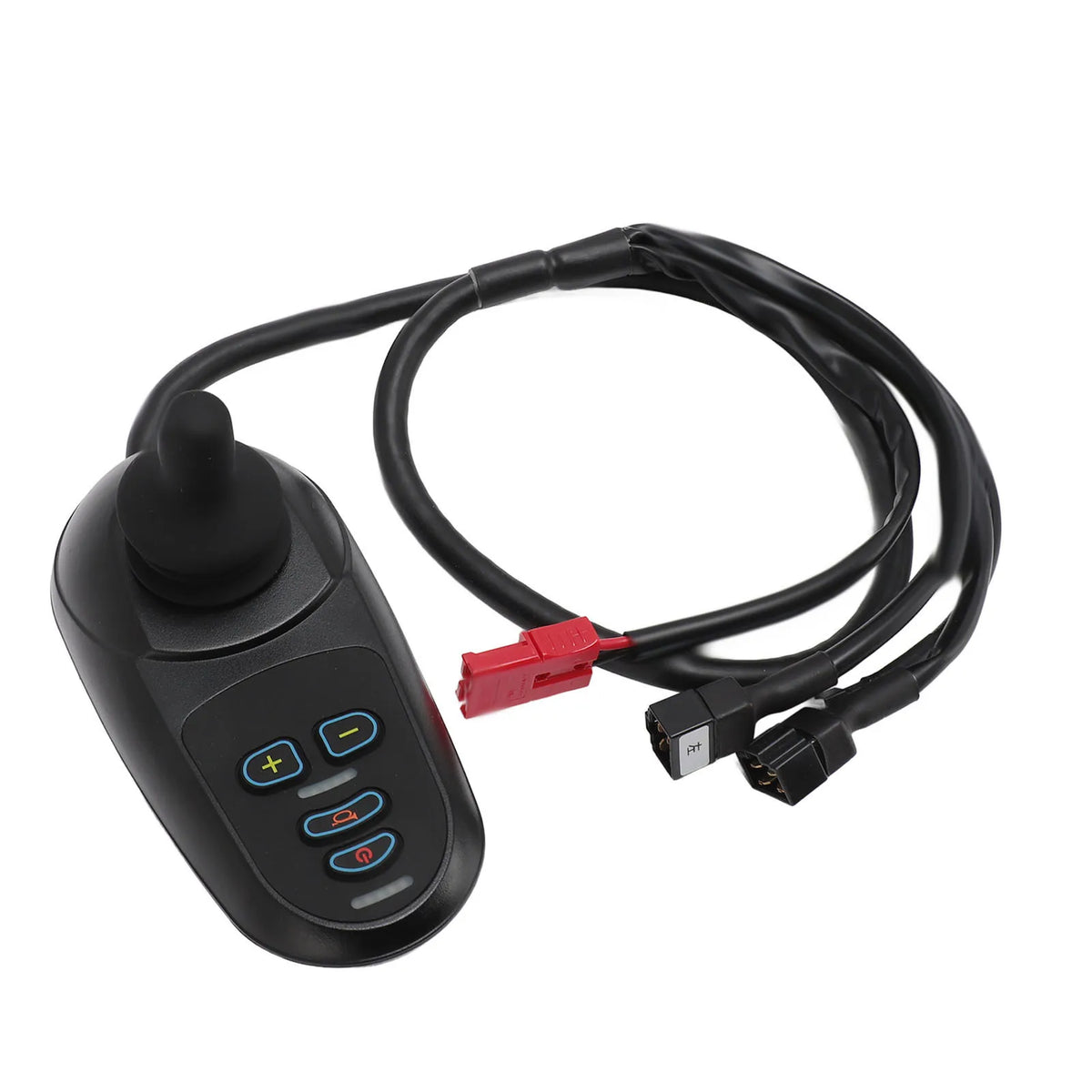

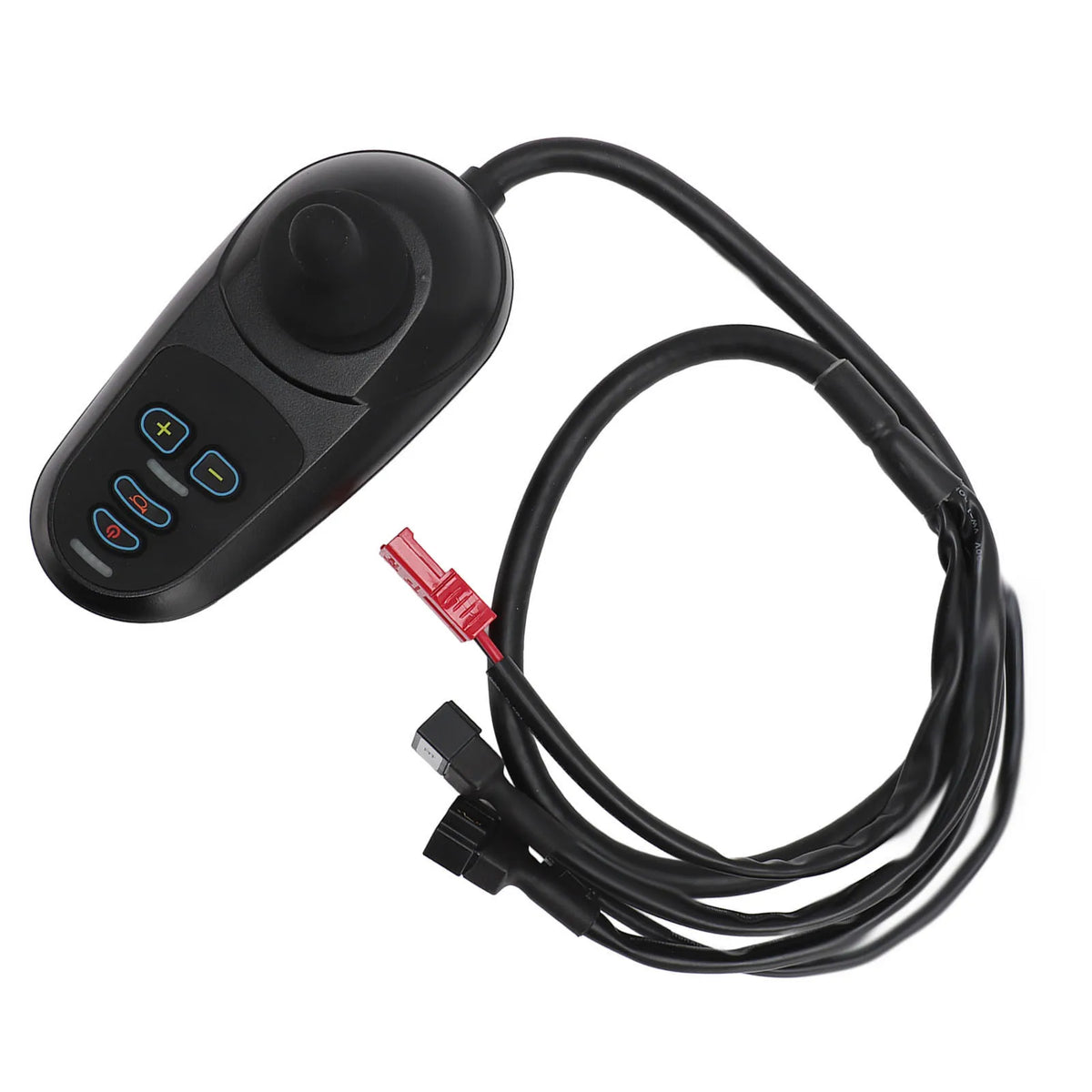

Electric Wheelchair Joystick Controller 24V DC Accessory Electronic Wheelchair Controller
Feature:
1. EABS Hill Hold Function: Ensures high safety with instant stop when the joystick is released, making it easy to navigate slopes and inclines. The controller allows for adjustable speed settings according to user preference.2. 0‑45A Output Current: Compatible with various 24V brushed DC motors, including turbochargers. The controller provides a smoothing and flexible acceleration/deceleration with no abrupt stops, ensuring a comfortable and seamless ride.

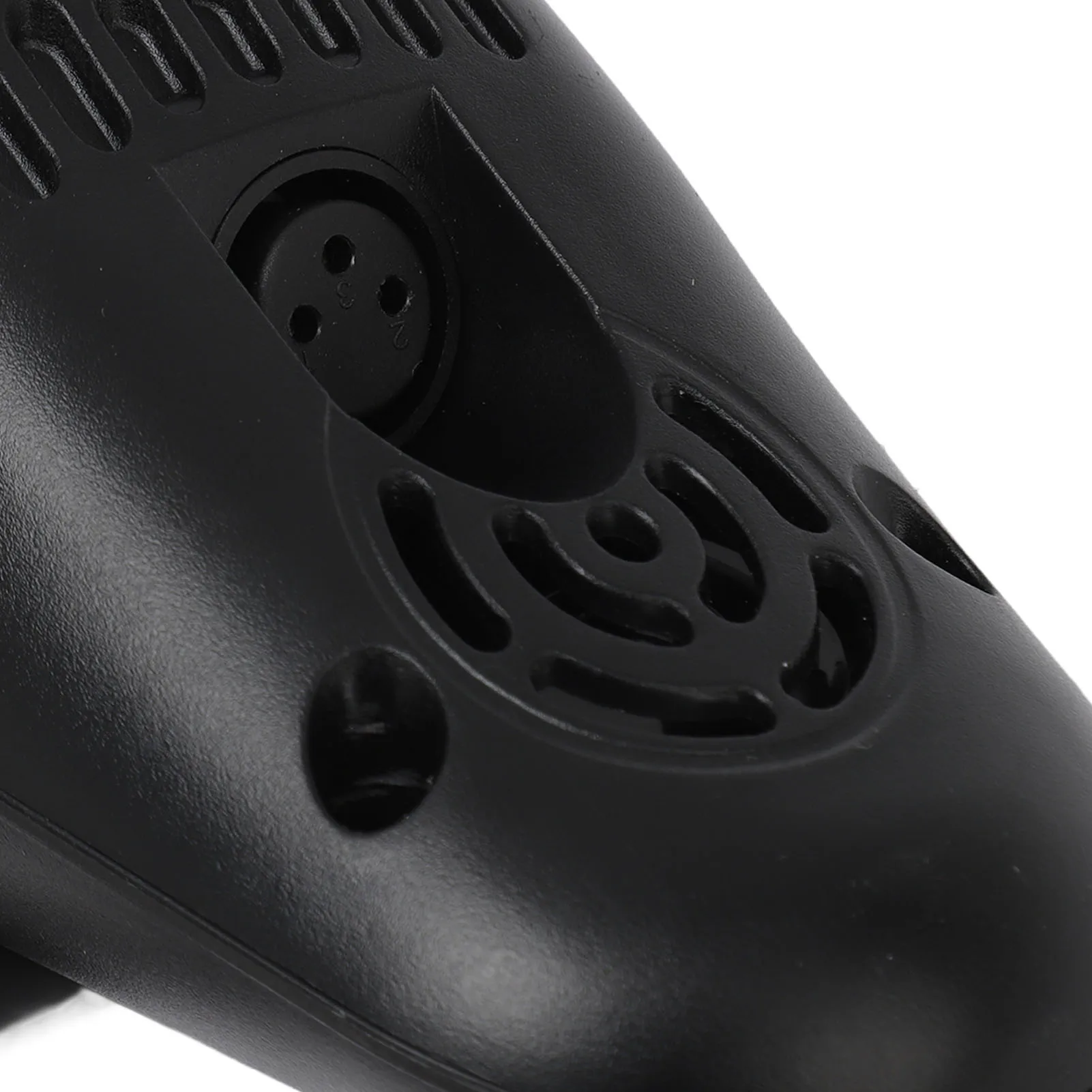

3. Efficient Design: The controller features a full aluminum bottom shell with a built in heat dissipation chamber, providing fast heat dissipation and protecting against impact. This design ensures a long lifespan for the controller.
4. Suitable For Wheelchair: Intelligent controller allows for easy and convenient control. It is compatible with various wheelchair brands, making it a versatile choice for users.
5. Enhance Mobility And Independence: This control joystick offers enhanced mobility and independence for individuals using electric wheelchairs. It provides effortless control and reliable performance, enhancing the overall user experience.
Specification:
Item Type: Electric wheelchair controllerMaterial: ABS
Output Current: 45A
Battery Charging Current: Maximum 6A, via the controller
Standby Current Required: (standby): ≤50 mAmps
Standby Current Required (Power Off): 0.1±0.05 mAmps
Operating Temperature: -25°C to +60°C
Storage Temperature: -45°C to +80°C
Applicable Drive Motor Form: 24V DC brush motor
How to Use:
1. Power On/Off: Press this button to power on the controller. The battery indicator lights will turn on and the controller system will start up. Press the button again to power off. To prevent accidental shutdown, press and hold the button for more than 0.5 seconds.2. Speed Decrease Button: Reduces the maximum speed of travel. Each press decreases the speed by one level. The current speed level is displayed.
3. Speed Increase Button: Increases the maximum speed of travel. Each press increases the speed by one level. The current speed level is displayed.
4. Joystick: Controls the speed, direction, and parking of the wheelchair. Push the joystick in the desired direction to start moving. The joystick will return to the neutral position to stop the wheelchair.
5. Horn Button: Activates the horn or buzzer.

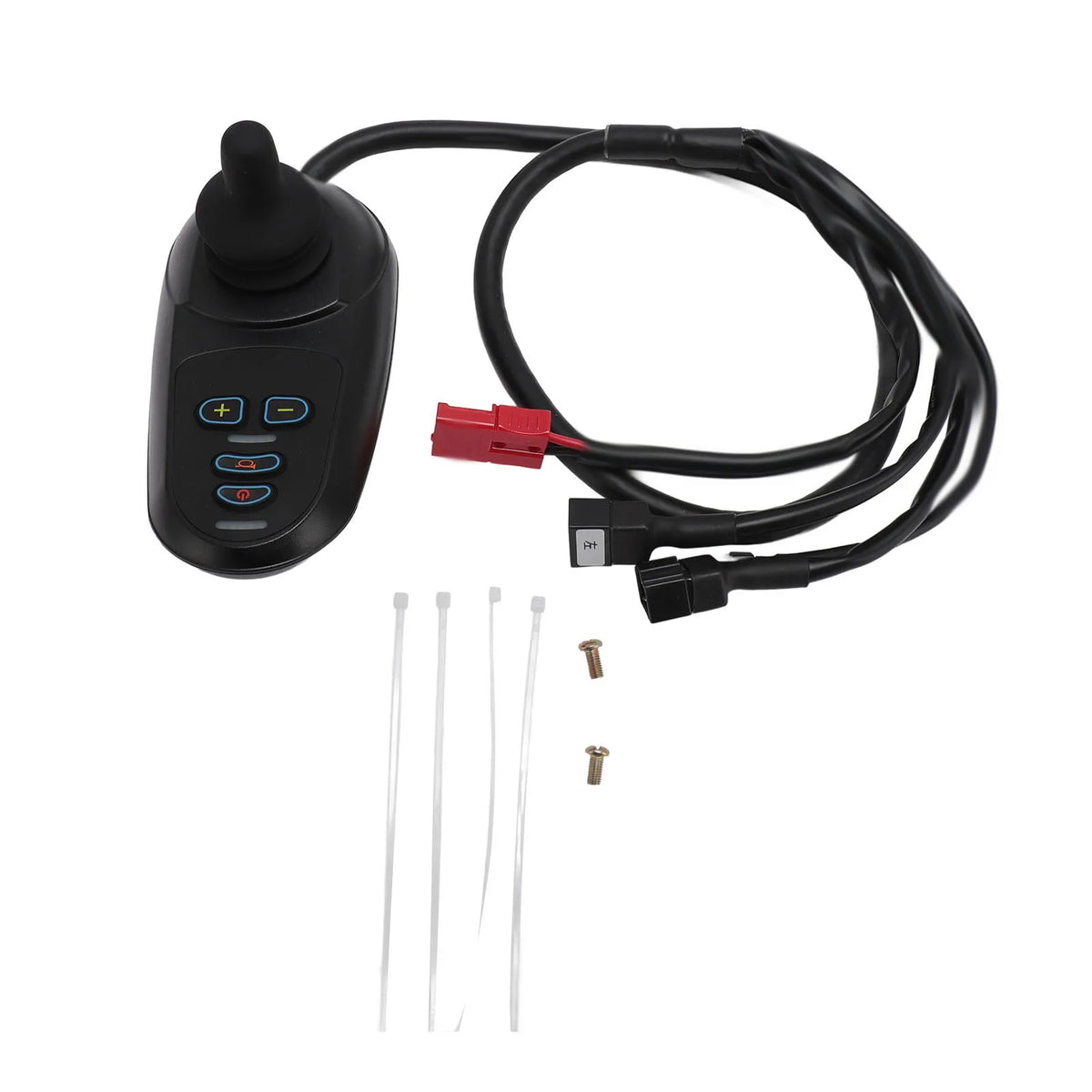

Package List:
1 x Electric Wheelchair Controller
4 x Cable Ties
2 x Screws
1 x User Manual
