SPECIFICATIONS
Brand Name: NONE
Design: Mordern
Design Style: Modern
Feature: Self-Adhesive,Self-adhesive
Function: Decorative, Explosion-Proof, Heat Insulation
High-concerned chemical: none
Item name: PDLC Film
Length: 30m, custom produced
MOQ: 1 Square Meter
Material: PET,pdlc
OFF/ON: Opaque/Transparent
Origin: Mainland China
Place of Origin: China
Power consumption: 3.6Watt/sqm
Project Solution Capability: graphic design, 3D model design, total solution for projects
Surface Treatment: Opaque
Thickness: 0.38 mm, 0.38mm
Type: Glass Films, Non adhesive & Self adhesive
Warranty: 2 Years
Width: 1000mm/1200mm/1500mm/1800mm
Working Voltage: 48VAC±5VAC
Hello, dear friend!
Welcome to Hello Art Home Storage Products Store.
Our PDLC dimming film is priced per square meter.
A complete set includes:
Smart film + Transformer + Remote controller + Installation tools + Packaging.
Please note that the transformer price varies depending on the total film area.
We also support customization — feel free to contact our customer service for a detailed quotation.
✨ Hello Art Home Store wishes you a happy life and joyful days!
📞 WhatsApp: +86 188 6741 4439
Product Description |
65V High Transparent |
|||||

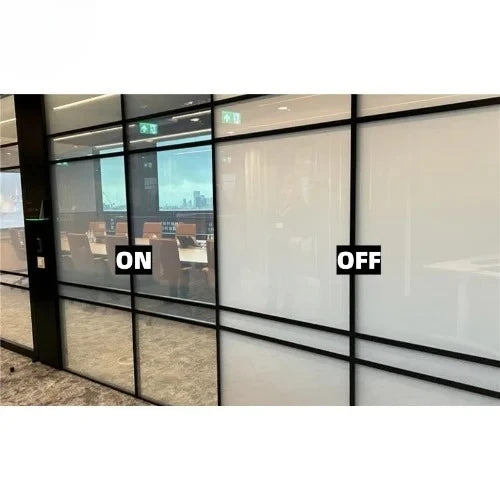

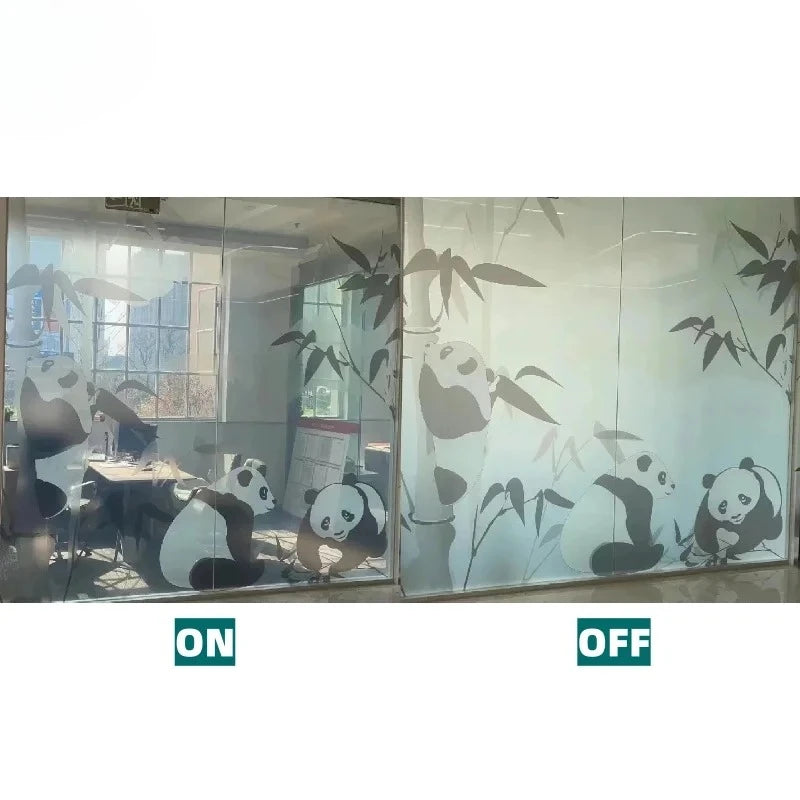

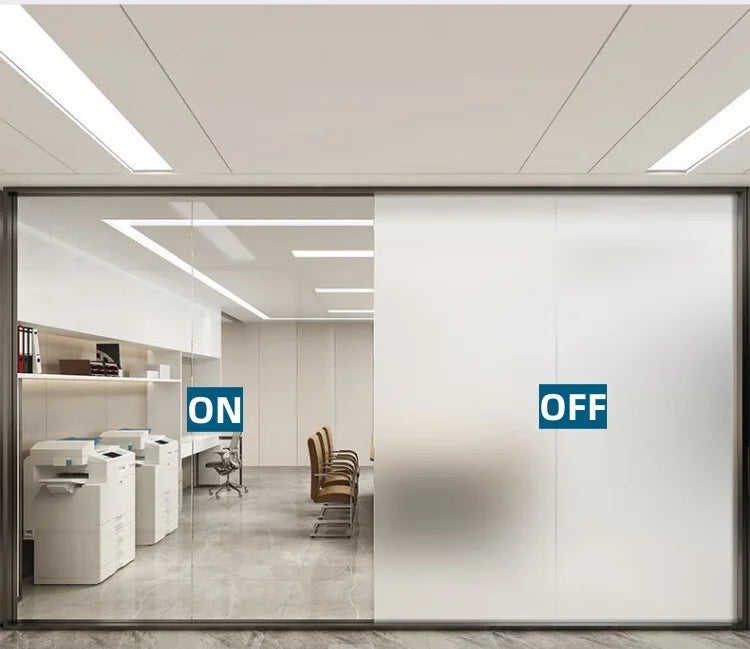

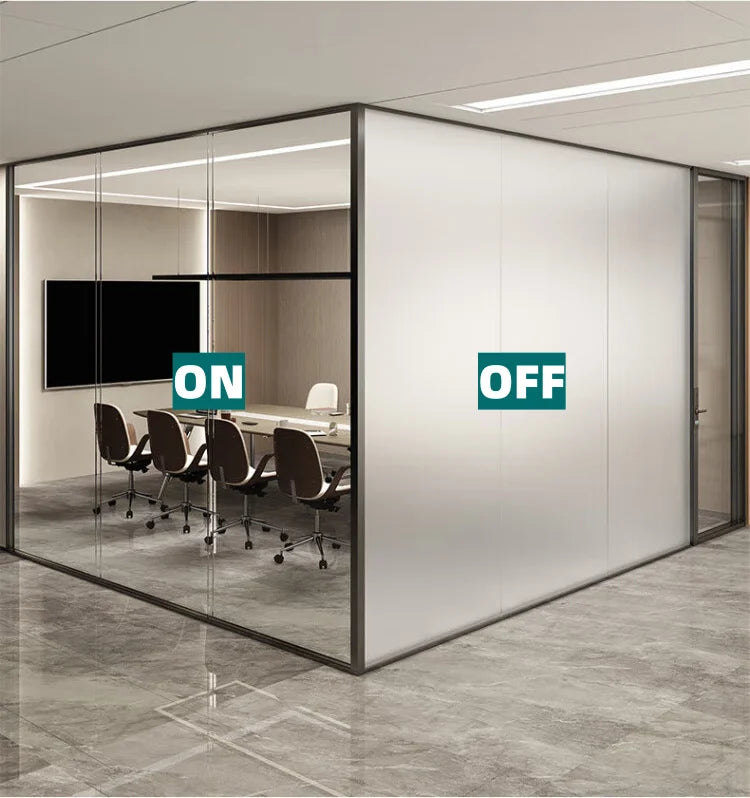

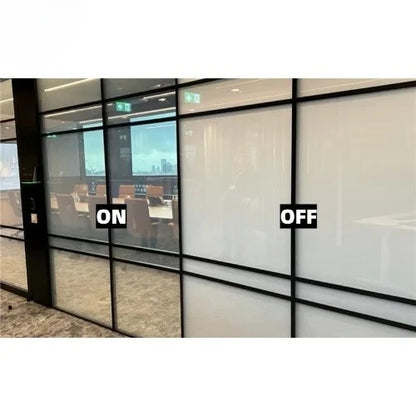

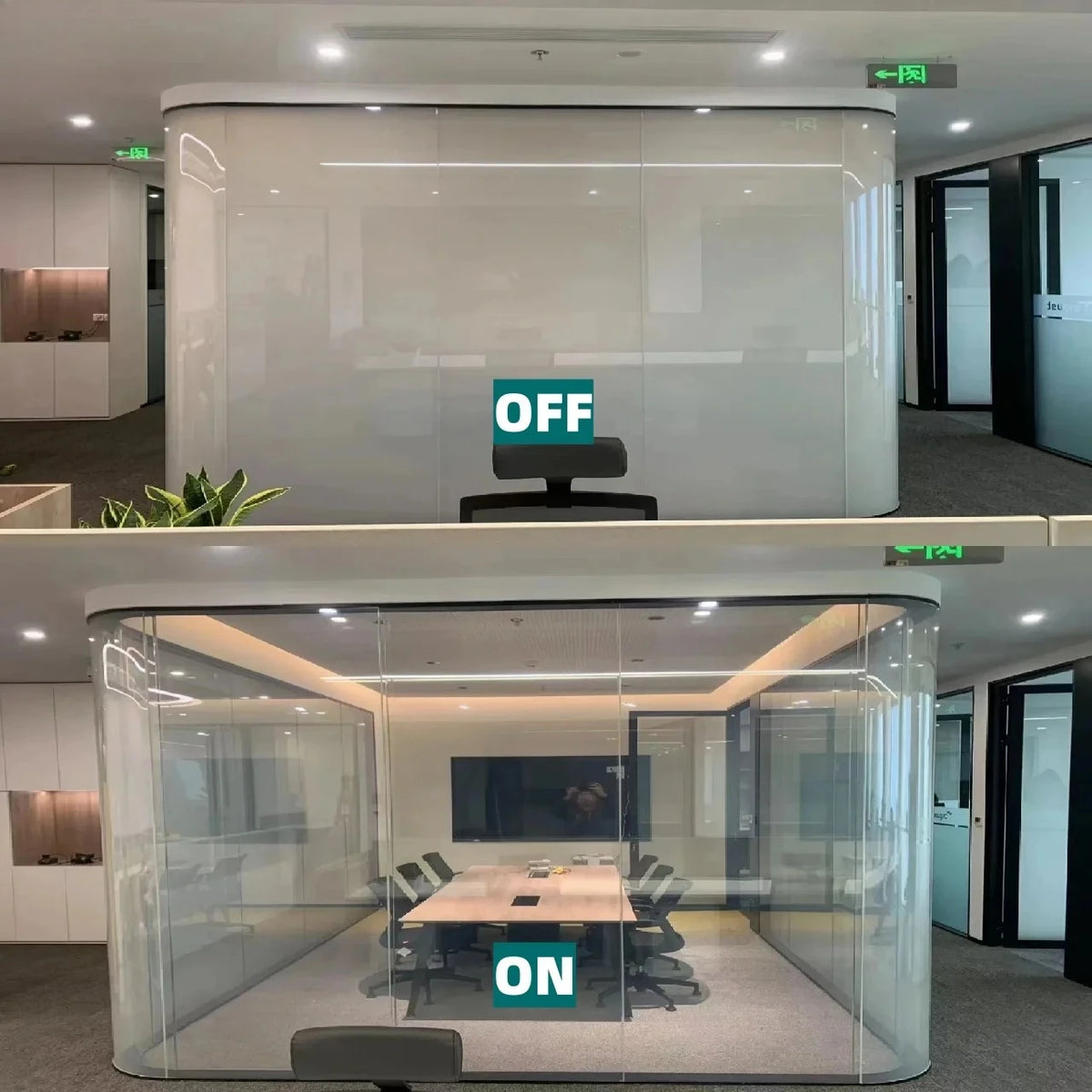

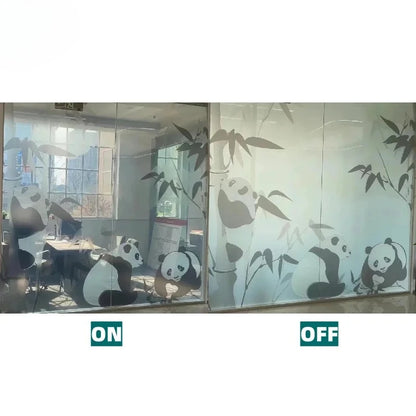

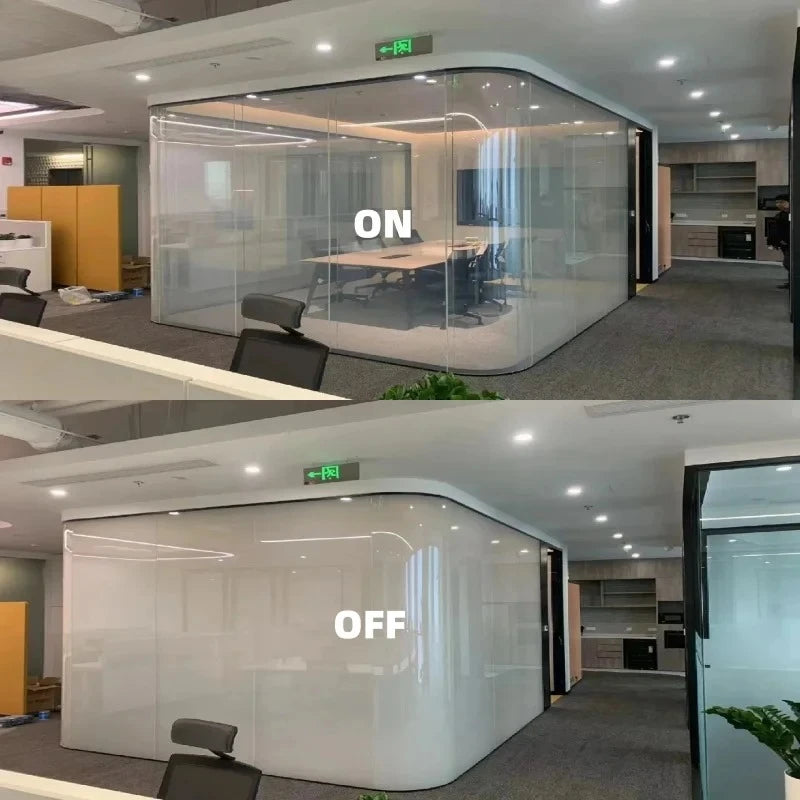

Operation Model |
Power On |
Transparent |
||||
Power Off |
Opaque |
|||||
Optical Performance |
Avaliable Colour |
Milky White |
Dark Grey |
|||
Haze(on) |
4-5% |
4-5% |
||||
Haze(off) |
>90% |
>90% |
||||
View Angle |
About 145 Degree |
|||||
Light Transmittance( On) |
90% |
32% |
||||
Light Transmittance( off) |
4% |
4% |
||||
UV Block |
>99% |
|||||
Infrared Block |
On Model>17% Off Model >80% |
|||||
Size |
Maxmium |
Self-adhesive Film Roll Size:1*50M,1.2*50M,1.5*50M ,1.8*50M(standard type) |
||||
Thickness |
0.4mm |
|||||
Electrical Performance |
Operating Voltage |
AC65±5V |
||||
Power Consumption |
About 3.7W/SQM |
|||||
Frenquency Rate |
50-60HZ |
|||||
Operating Temperature |
- 20℃-- 70 ℃ |
|||||
Switch Time |
Less than 1 second (Off→On :about 200 milliseconds On→Off :about 600 milliseconds) |
|||||
Life Time |
More than 100000h(20years) |
|||||
Other Functions |
Dimmer Function |
YES |
||||
Projection Screen |
YES |
|||||
Warranty Time |
Two years |
|||||
Q1. How does Smart Film work?
A: In the "off state", when no power is applied to the smart film, light is absorbed or scattered, and the film looks dark gray or white. In the "open state", light is transmitted and the film looks transparent.
Q2: Can we install this product ourselves?
A: Yes, we have English teaching videos and manual.
Q3: Does the PDLC film save energy?
A: Yes, it is considered a green product, consuming about 3.7 watts per square meter.
Q4: Can it block harmful ultraviolet rays?
A: Yes. It can block more than 99% of harmful ultraviolet rays in energized and non-energized states
Q5. How is the common size ?
A: By sheet, we can do any customized size. By roll, the adhesive film: 1*50M, 1.2*50M, 1.5*50M, 1.8*50M non-adhesive film: 1*50M, 1.2*50M, 1.5*50M, 1.8*50M, 1.9*50M, 2*50M
Q6. What is the life expectancy of your product?
A: Life expectancy is about 20 years or switching> 200000000 times.
Q7. How do I get samples?
A: We are honored to provide you samples, but you need to pay the freight.
Q8. Will you test all products before shipping? and warranty
A: Yes, we have passed 100% test before shipment. Warranty is 2 years
