SPECIFICATIONS
Application: Solar System Controller,Solar Working Station,Lighting Controller
Brand Name: NONE
Certification: CE,RoHS
High-concerned chemical: none
Is Smart Device: Yes
Maximum Current: 40A
Model Number: Tracer4210AN G3
Origin: Mainland China
is_customized: Yes
Features

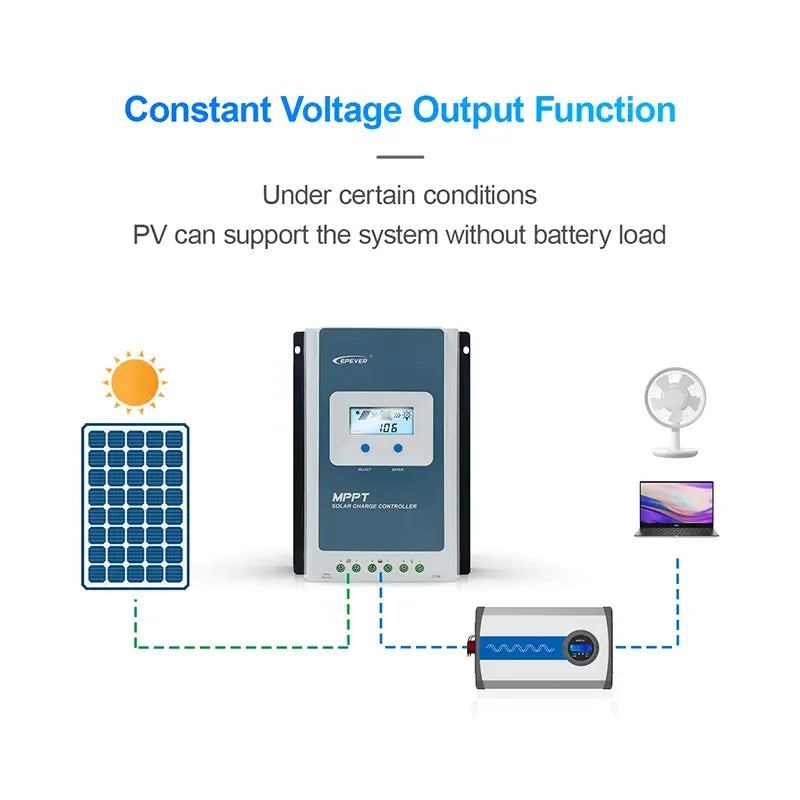

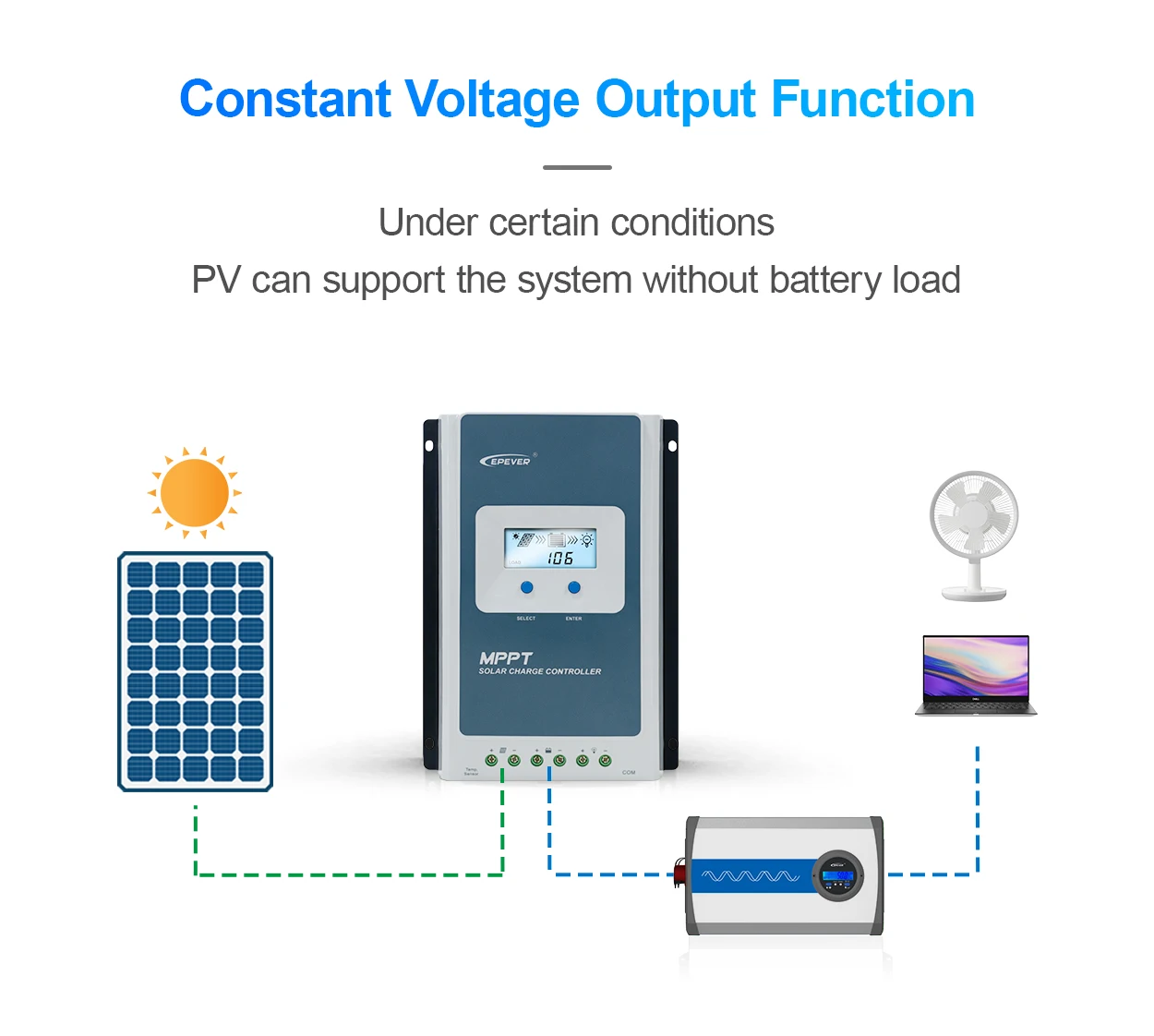

*Constant voltage output,
*function Maximum DC/DC conversion efficiency of 98%,

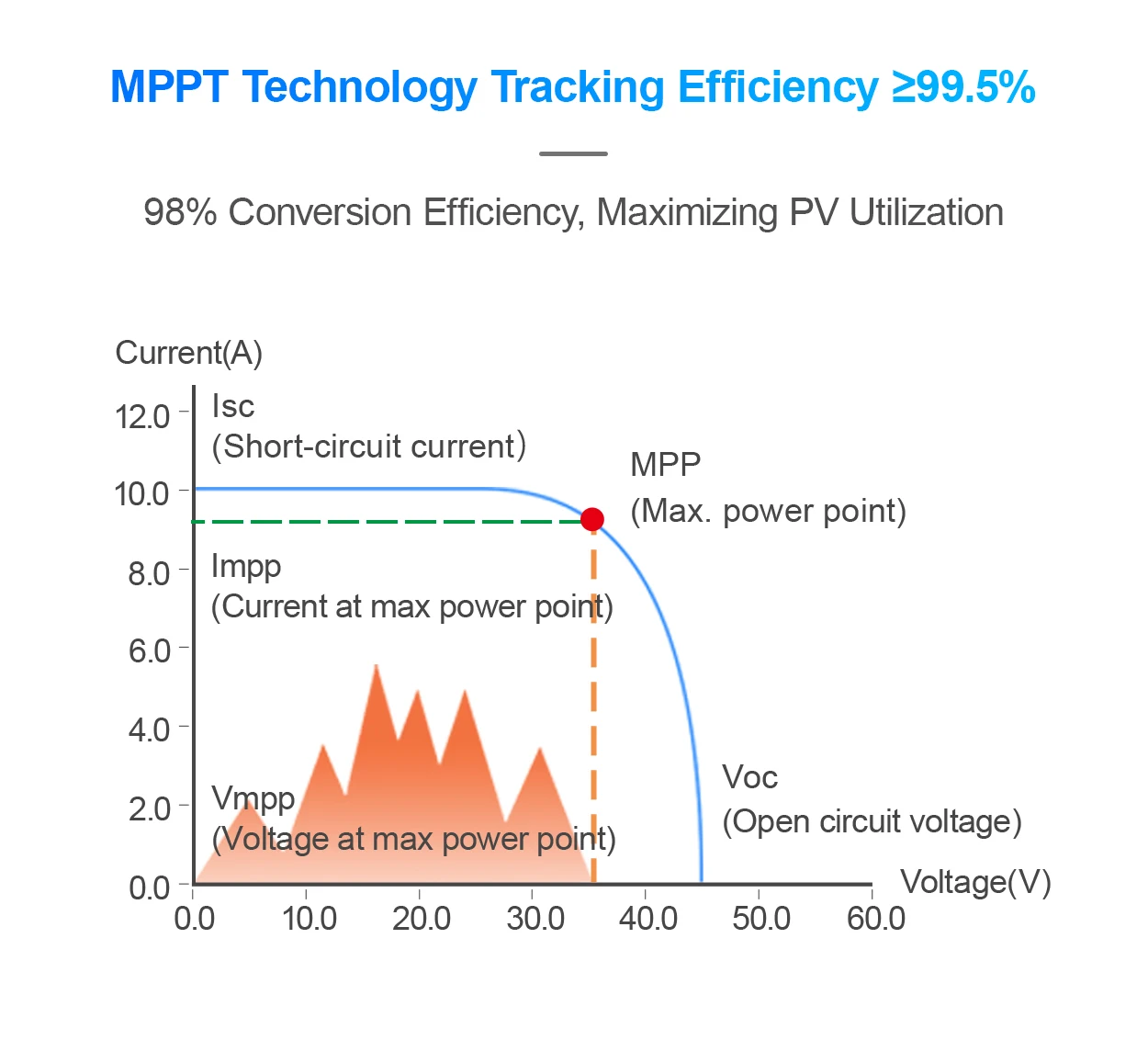

*Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%,

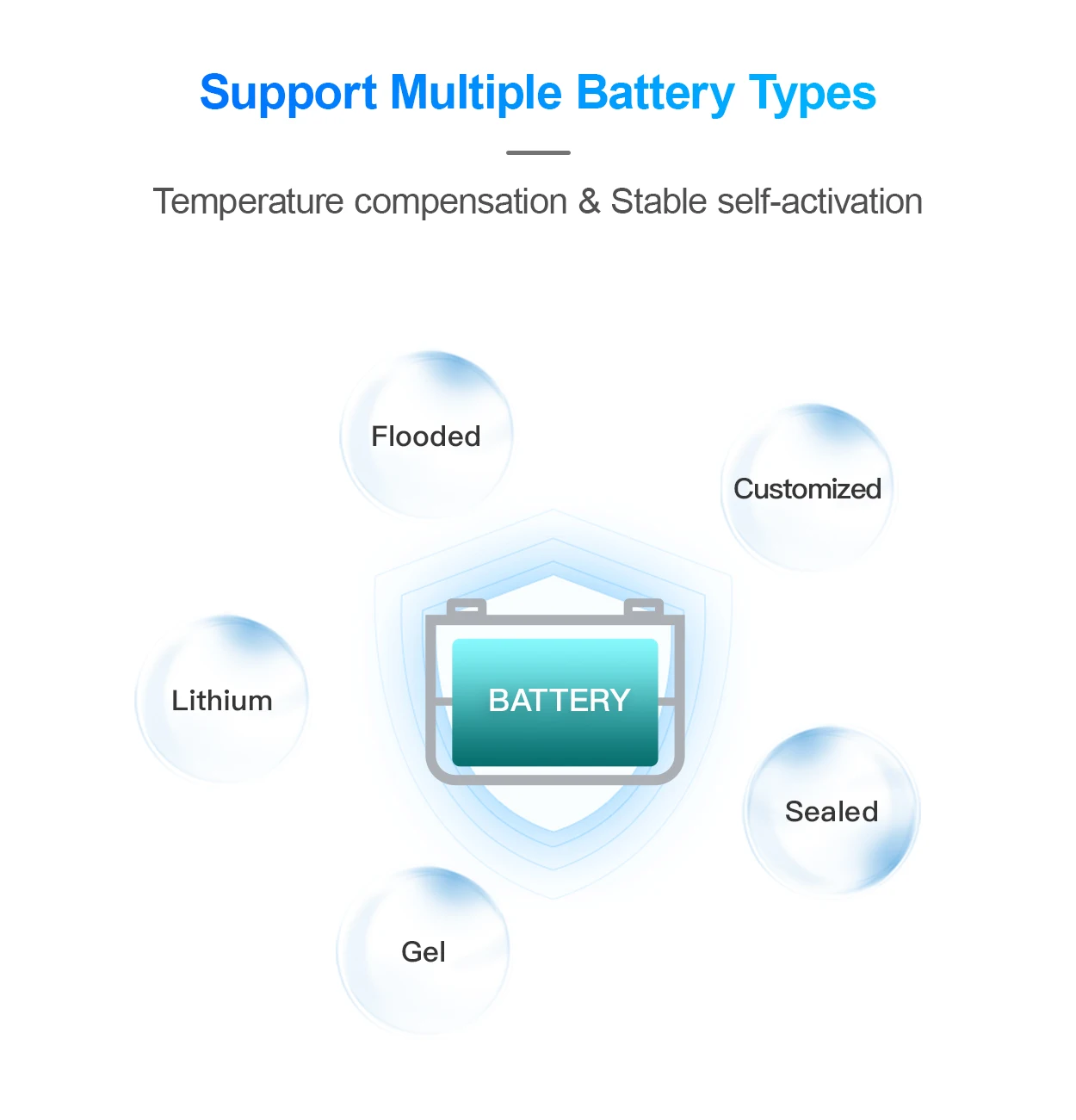

*Supports multi battery types including lithium batteries,
*Battery temperature compensation; Stable self-activation function,
*LCD screen for battery parameter setting,
*Comprehensive electronic protection,
*Self-consumption lower than 10mA,
*Multiple load work modes,
*Parameter setting via the PC software, APP, or remote meter,

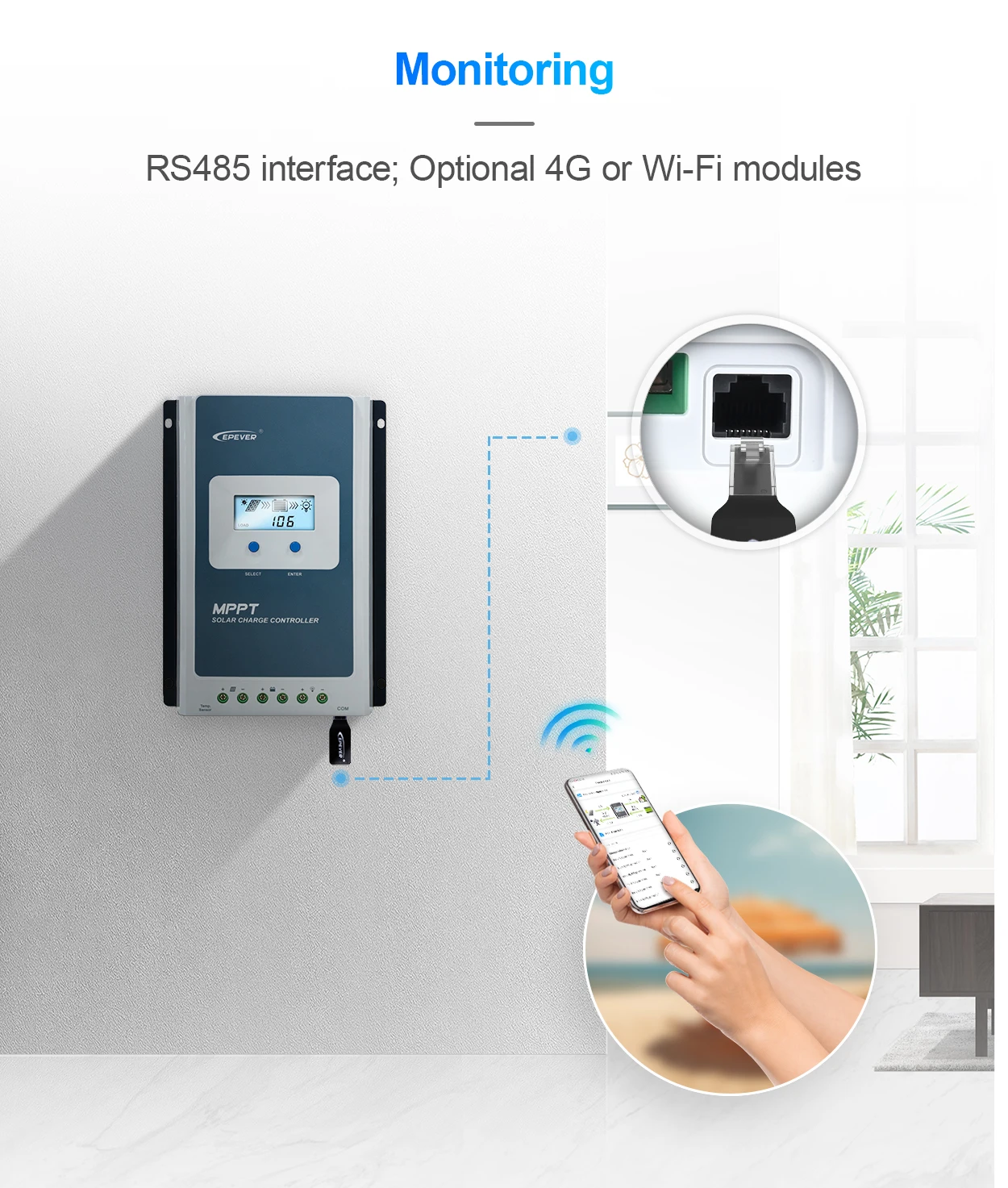

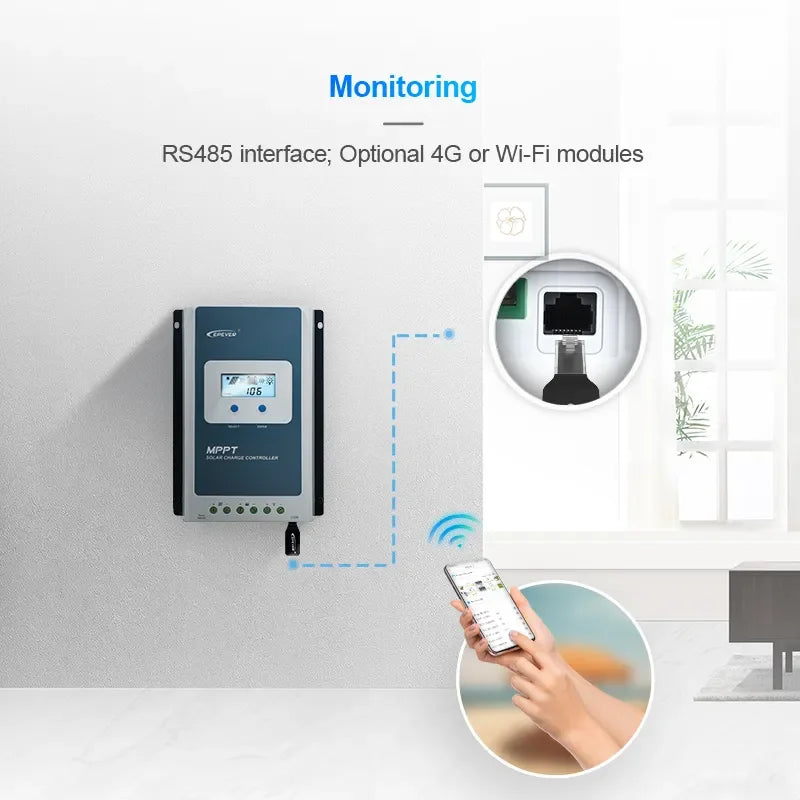

*RS485 communication interface with optional 4G or Wi-Fi modules.
Product Description
Technical Specifications

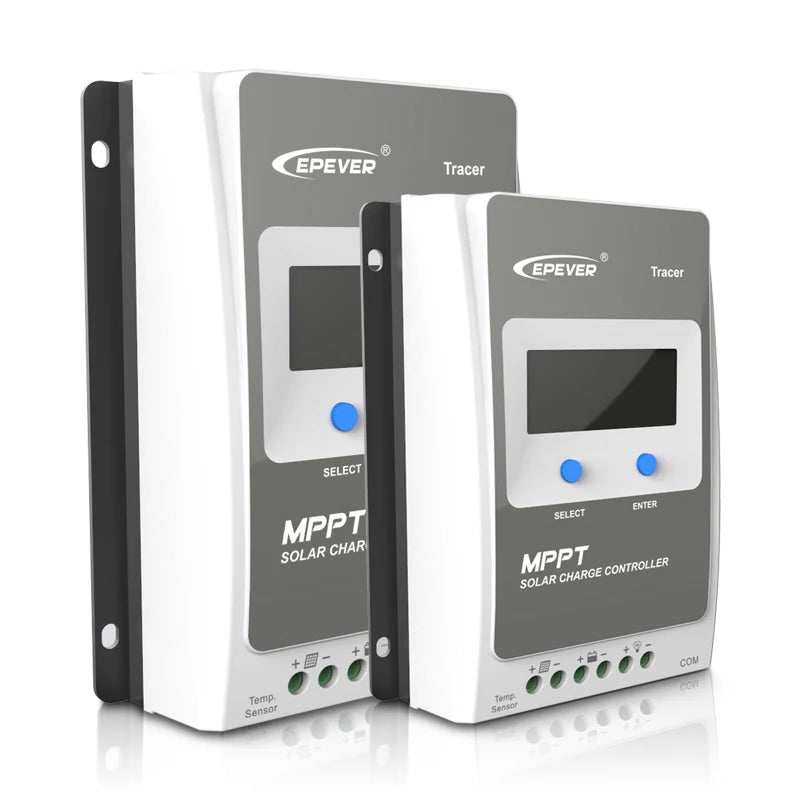

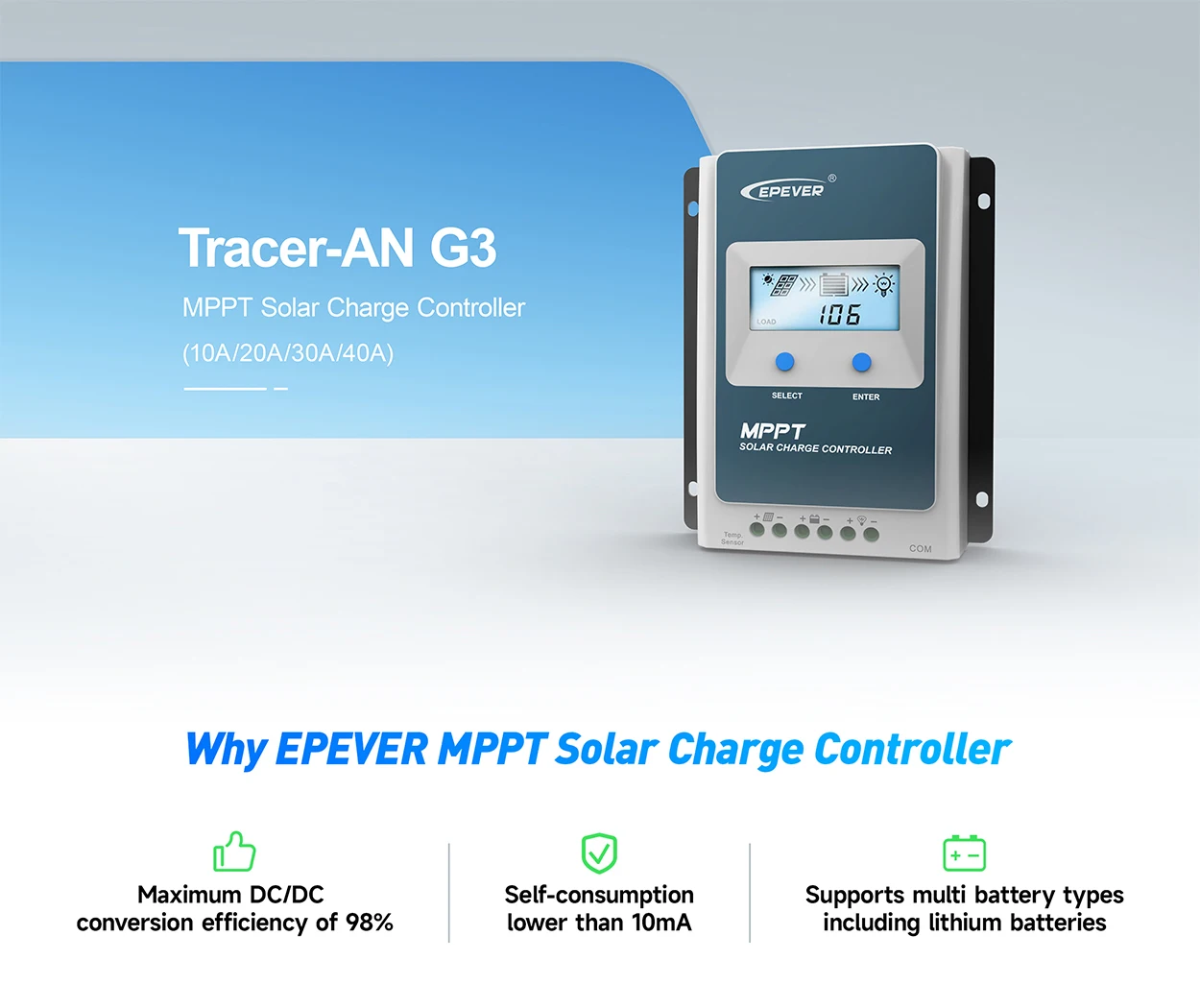

EPEVER Tracer AN G3 Series 10A 20A 30A 40A MPPT Solar Charge Controller
Parameter |
Tracer 1206AN G3 |
Tracer 2206AN G3 |
Tracer 1210AN G3 |
Tracer 2210AN G3 |
Tracer 3210AN G3 |
Tracer 4210AN G3 |
Electrical Parameters | ||||||
Battery Rated Voltage |
12/24VDC Auto-recognition |
|||||
Rated Charging Current |
10A |
20A |
10A |
20A |
30A |
40A |
Rated Discharge Current |
10A |
20A |
10A |
20A |
30A |
40A |
Controller Work Voltage Range |
8~31V |
|||||
PV Max.Open-circuit Voltage |
60V |
100V |
||||
46V |
92V |
|||||
MPPT Voltage Range |
(Battery voltage +2V)~36V |
(Battery voltage +2V)~72V |
||||
Rated Charging Power |
130W/12V |
260W/12V |
130W/12V |
260W/12V |
390W/12V |
520W/12V |
260W/24V |
520W/24V |
260W/24V |
520W/24V |
780W/24V |
1040W/24V |
|
Static Losses |
≤8mA(12V) |
|||||
≤5mA(24V) | ||||||
Discharge-circuit Voltage Drop |
≤0.23V |
|||||
Temperature Compensation |
-3mV/℃/2V (Default) |
|||||
Grounding Type |
Common negative |
|||||
RS485 Port |
5VDC/200mA(RJ45) |
|||||
LCD Backlight Time |
Default:60S, Range:0~999S (0 seconds: the backlight is ON all the time) |
|||||
Environmental parameters | ||||||
Work Temperature Range |
-25℃~+45℃(100% loads working) |
|||||
Storage Temperature Range |
-20℃~+70℃ |
|||||
Relative Humidity |
< 95% (N.C.) |
|||||
Enclosure |
IP30 |
|||||
Dimension
(L x W x H)
|
172x139x44mm |
220x154x52mm |
172x139x44mm |
220x154x52mm |
228x164x55mm |
252x180x63mm |
Mounting Size
(L x W)
|
124x130mm |
170x145mm |
124x130mm |
170x145mm |
170x155mm |
204x171mm |
Mounting Hole Size |
Φ5mm |
|||||
Terminal |
12AWG |
6AWG (16mm2) |
12AWG |
6AWG (16mm2) |
6AWG (16mm2) |
6AWG (16mm2) |
(4mm2) |
(4mm2) |
|||||
Recommended Wire Size |
12AWG |
10AWG |
12AWG |
10AWG |
8AWG (10mm2) |
6AWG (16mm2) |
(4mm2) |
(6mm2) |
(4mm2) |
(6mm2) |
|||
Net Weight |
0.57kg |
0.94kg |
0.57kg |
0.94kg |
1.26kg |
1.65kg |
