SPECIFICATIONS
Brand Name: GEYA
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
GPS6-VA5: Voltage / Current Protector
GPS6-VAK: Voltage / Current / KWH
High-concerned chemical: none
Is Smart Device: no
Model Number: GPS6 Voltage / Current Protector
Origin: Mainland China
Rated Frequency: 50/60Hz
Rated Voltage: 220V
Rated operational current: 40A 63A 80A
Rated supply voltage: AC220V(L-N)
Reset Time: 30s)
Type: Mini
is_customized: Yes

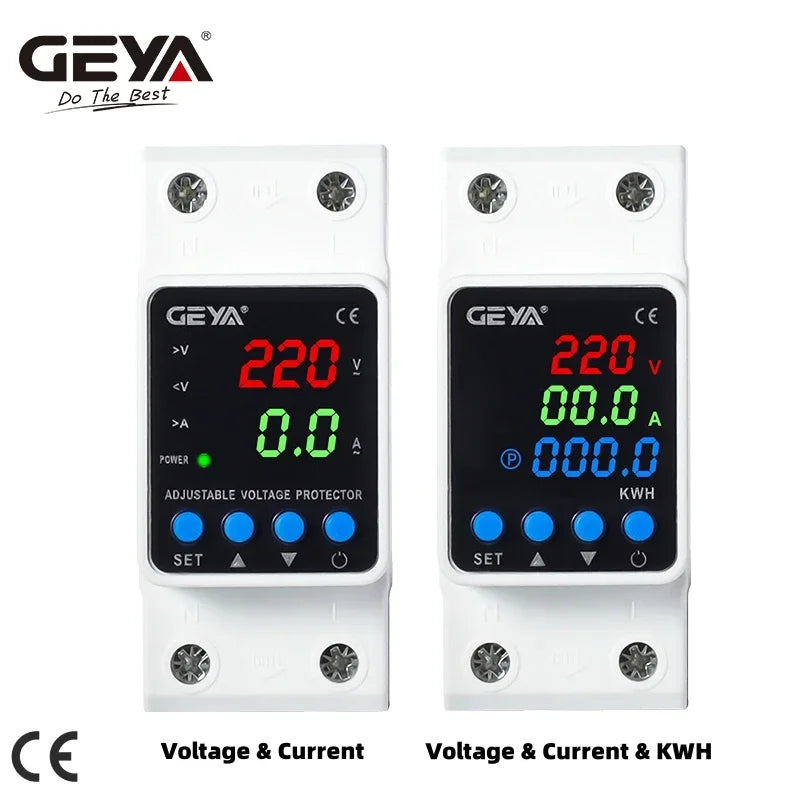

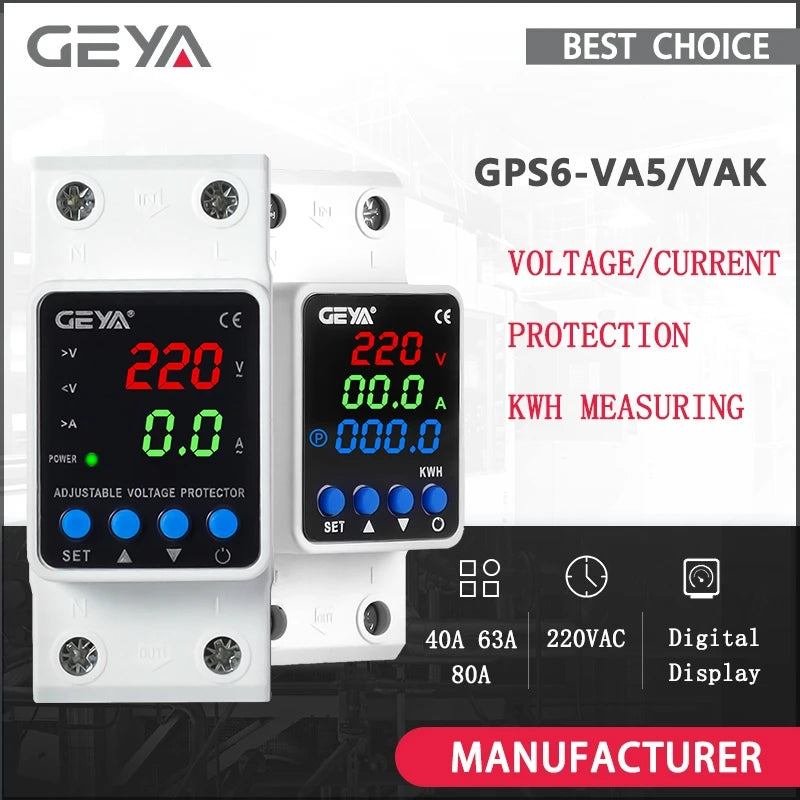

GEYA GPS6 Din Rail Adjustable Over Voltage Under Voltage Protection Device 40A 63A 80A 220VAC Digital Display Voltage Protector
GPS6-VAK Single Phase Overvoltage, Undervoltage, Overcurrent Protection, KWH Measuring
Technical Data

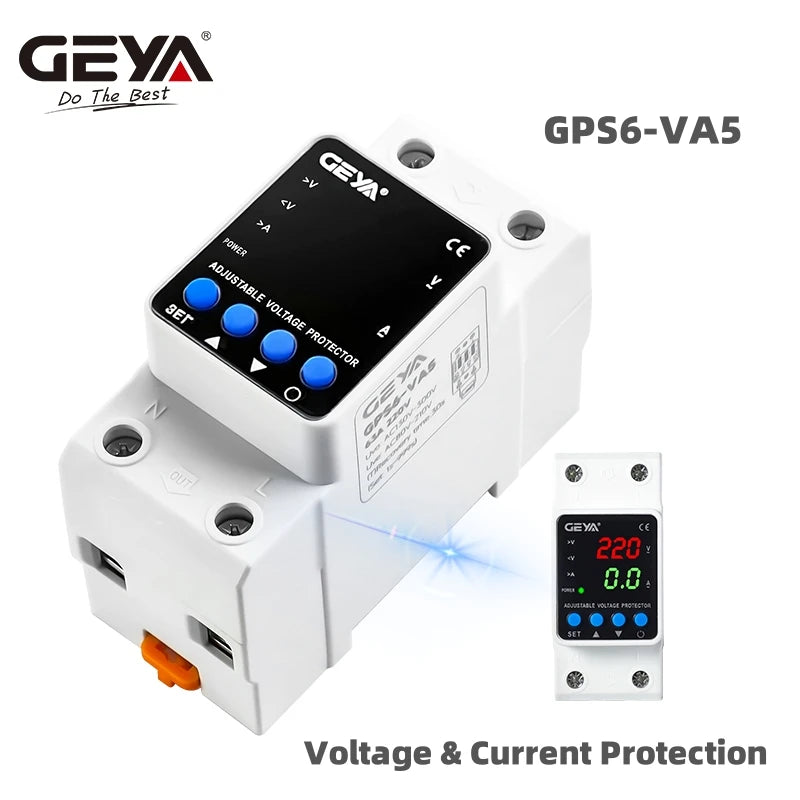

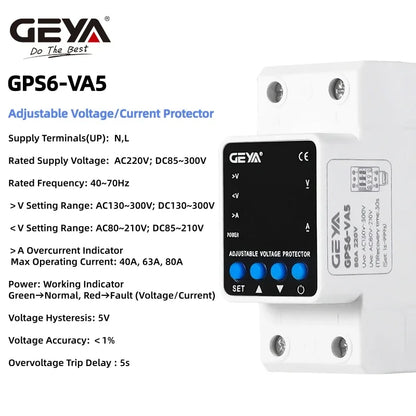

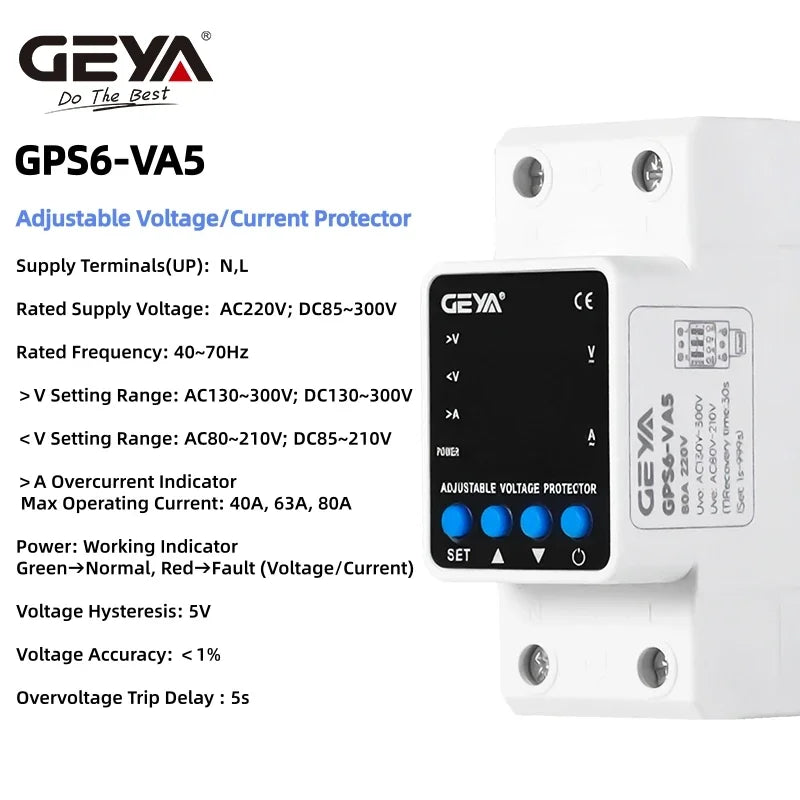

GPS6-VA5: Adjustable Voltage/Current Protector
Supply Terminals(UP): N,L
Rated Supply Voltage: AC220V; DC85~300V
Rated Frequency: 40~70Hz
＞V Setting Range: AC130~300V; DC130~300V
＜V Setting Range: AC80~210V; DC85~210V
＞A Overcurrent Indicator: Max Operating Current: 40A, 63A, 80A
Power: Working Indicator: Green→Normal, Red→Fault (Voltage/Current)
=========================================================================

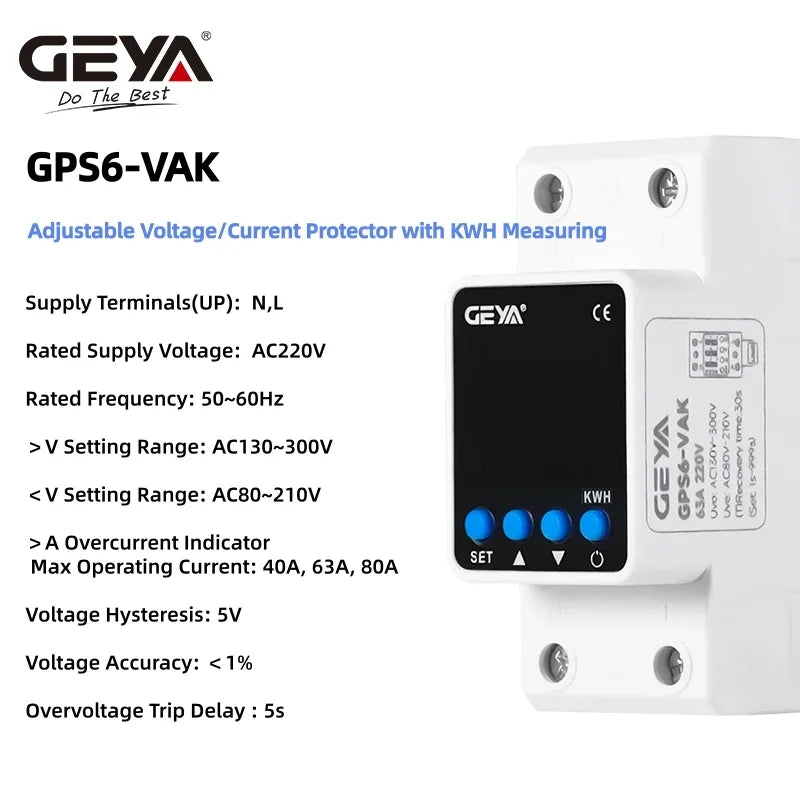

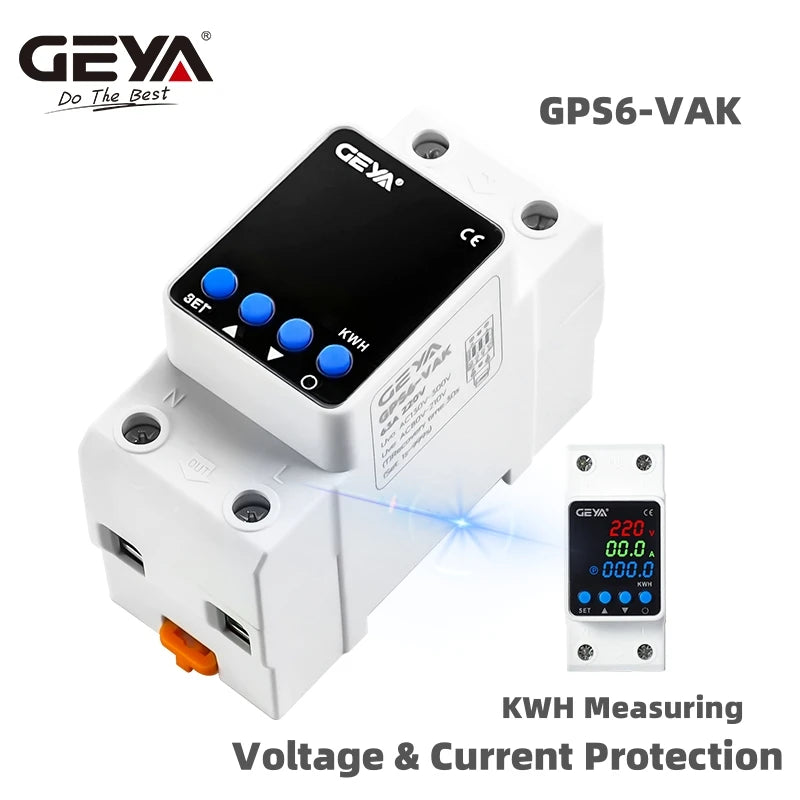

GPS6-VAK: Adjustable Voltage/Current Protector with KWH Measuring
Supply Terminals(UP): N,L
Rated Supply Voltage: AC220V
Rated Frequency: 50~60Hz
＞V Setting Range: AC130~300V
＜V Setting Range: AC80~210V
＞A Overcurrent Indicator: Max Operating Current: 40A, 63A, 80A
