SPECIFICATIONS
Accessories Type: Leverless Controller
Arcade Controller: Leverless controller
Battery Charge Time: No need to charge
Bluetooth range: Without Bluetooth
Brand Name: haute42
Cable features: Retractable
Compatible Brand/Model: PC
Control Method: Push button
Controls Type: Push button
Electric: No
Electronic: no
Enclosure material: Acrylic
Fastening type: Others

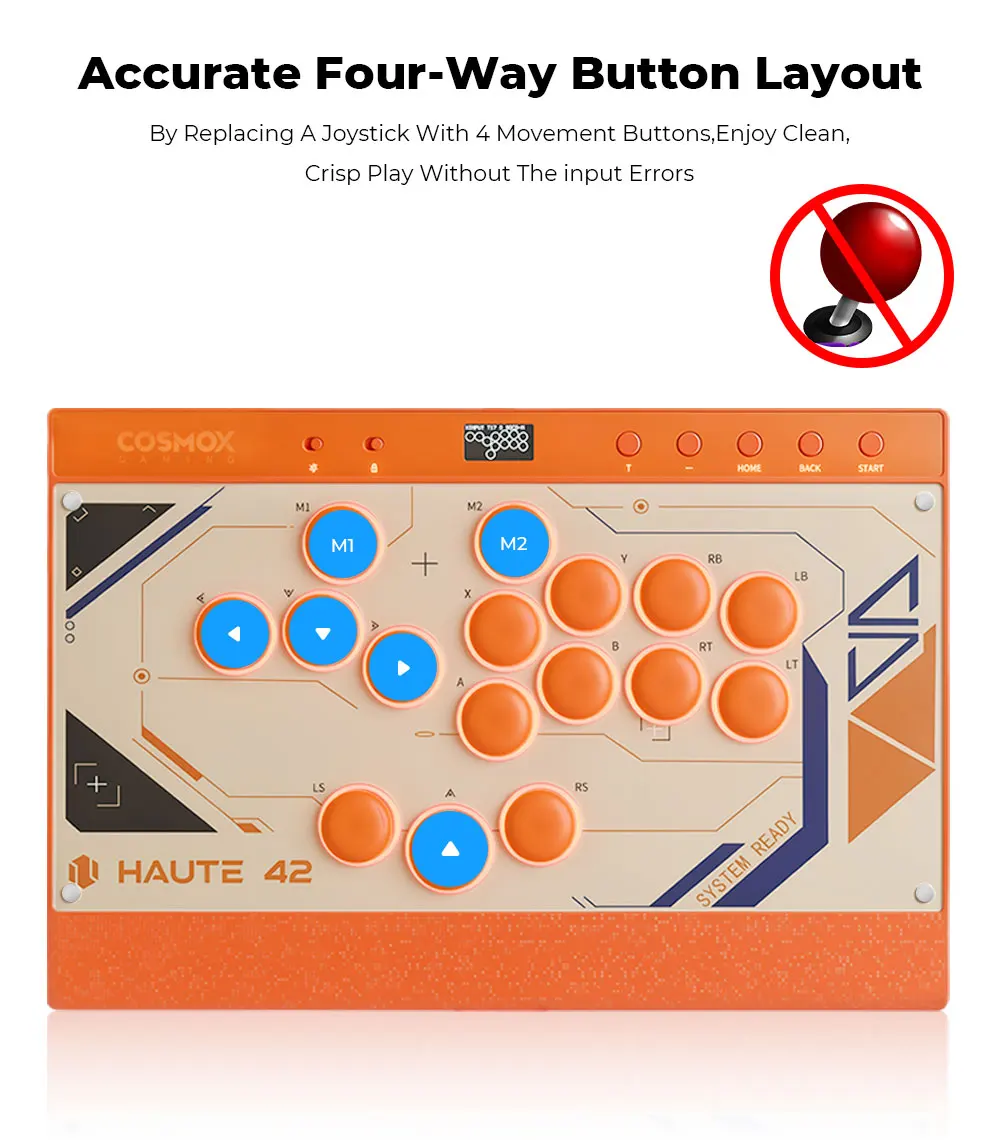

Feature: 16 button with RGB mode,with Button Rim/Ambient Light,Magnetic Panel
Harness Feature: Others
High-concerned chemical: none
Item: C16
Model Number: C16
Occasion: Others
Origin: Mainland China
PC System: Windows 10
Platform: Nintendo Switch 2
Portable: Yes
Product Name: Hitbox Leverless Controller
Reusability: Reusable
Sensor Technology: Others
Supported platforms: For PC/PS4/PS5/Switch/Steam
With USB: YES
fighting stick: arcade joystick
is_customized: NO
leverless arcade stick: hitbox controller

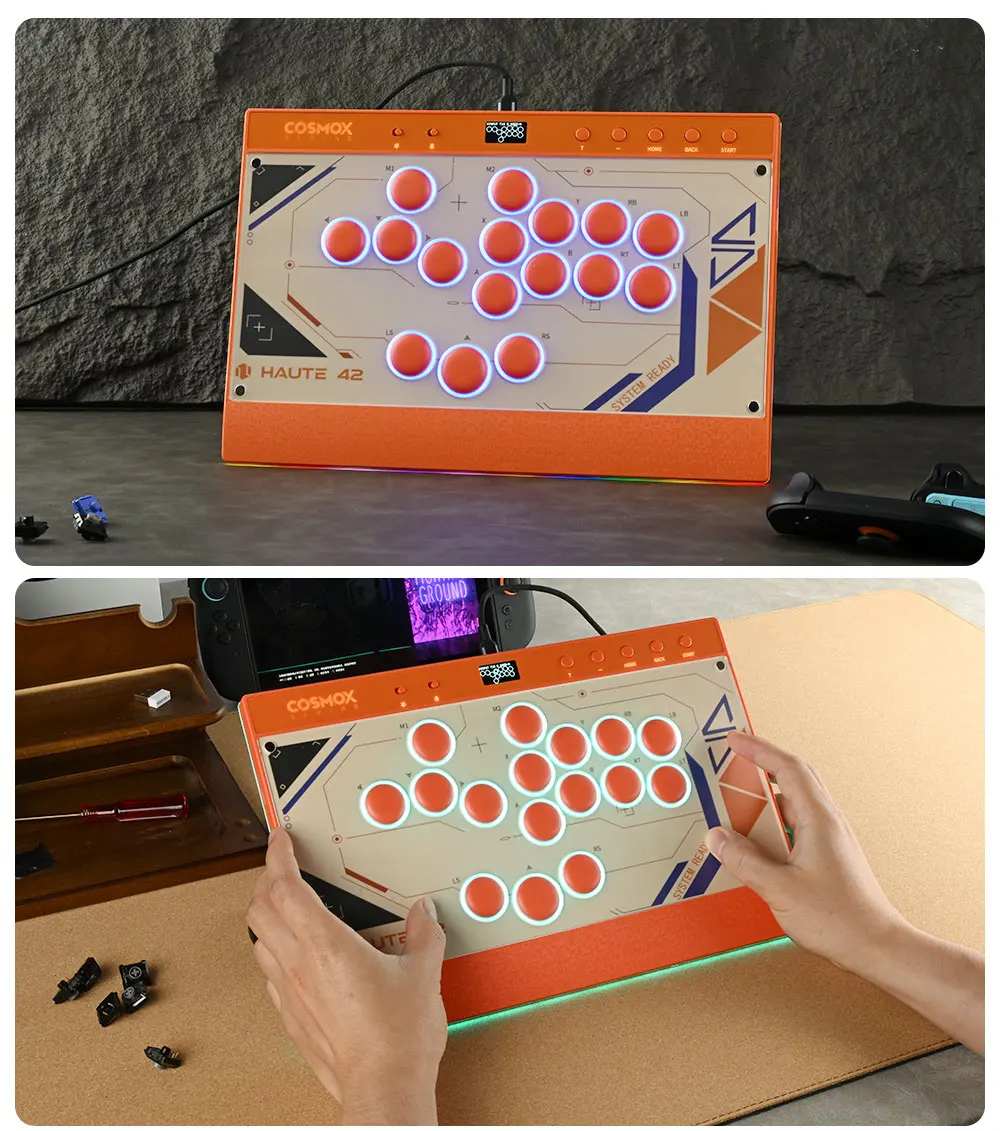

C16 Orange Video
Please Note 1:
The C16 panel has now been upgraded to a frosted panel and is no longer a transparent panel
The frosted panel is more stable and has a better touch, effectively preventing slipping and carrying fingerprints
Our store sells C16 aluminum alloy panels. You can check our store or click on this link to purchase: Haute42 HautePad C16 Replaceable Panel Magnetic Aluminum Alloy Material Panel For C16 Hitbox Leverless Controller Magnetic Cover - AliExpress 44

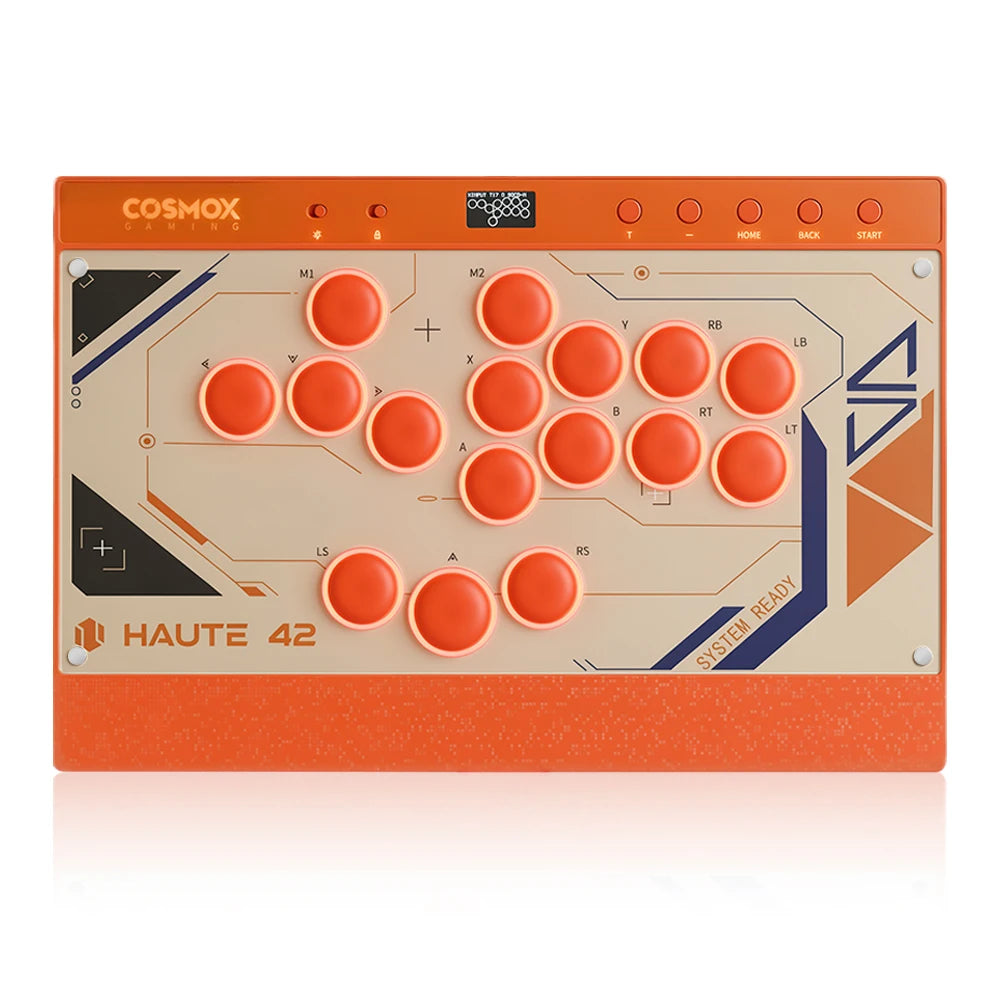

Haute42 Magnetic Hitbox Leverless Controller Button Rim Arcade Controller For PC/PS4/PS5/Switch Stickless Arcade Stick Hitbox
Product Description
Working voltage: 5V

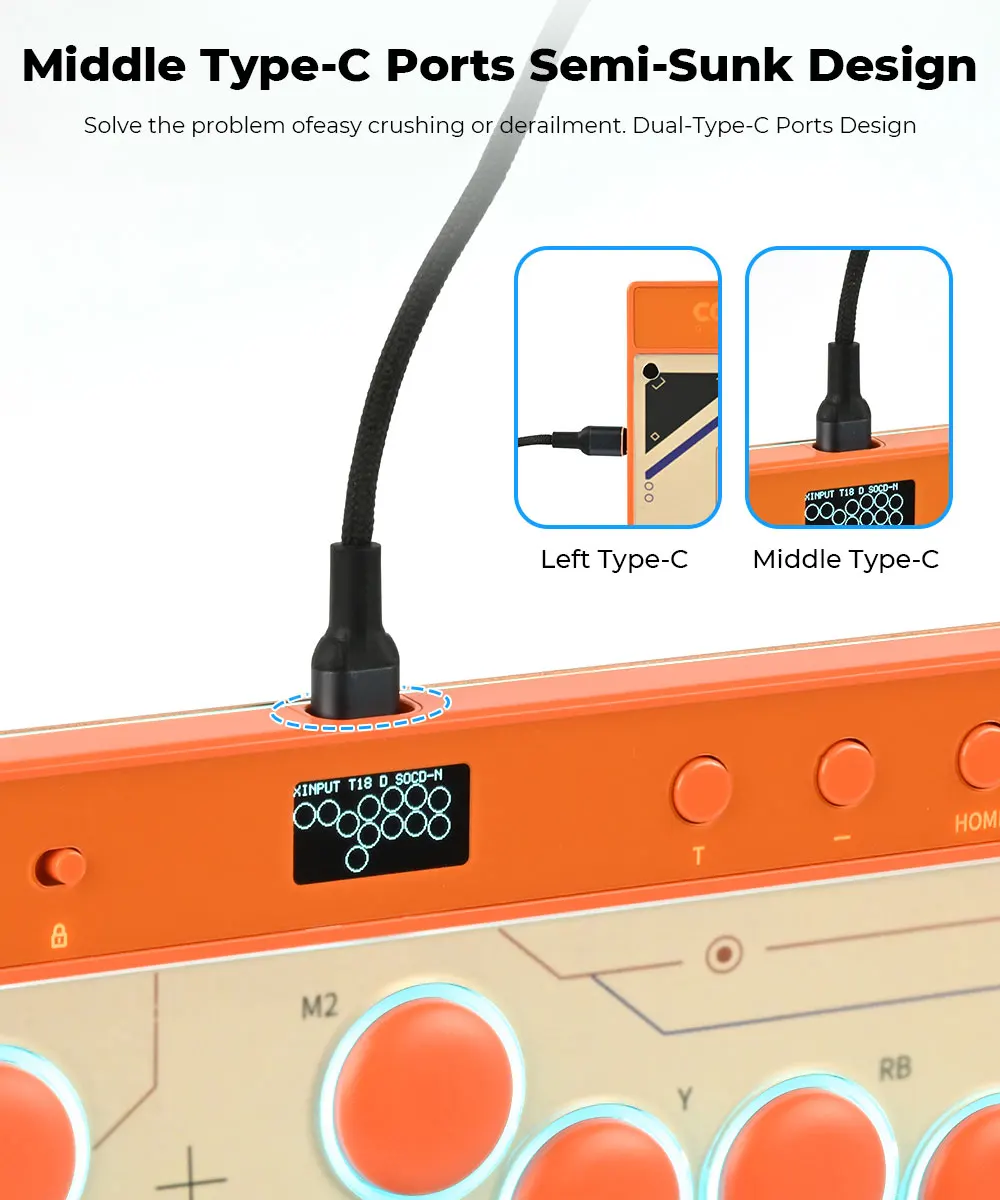

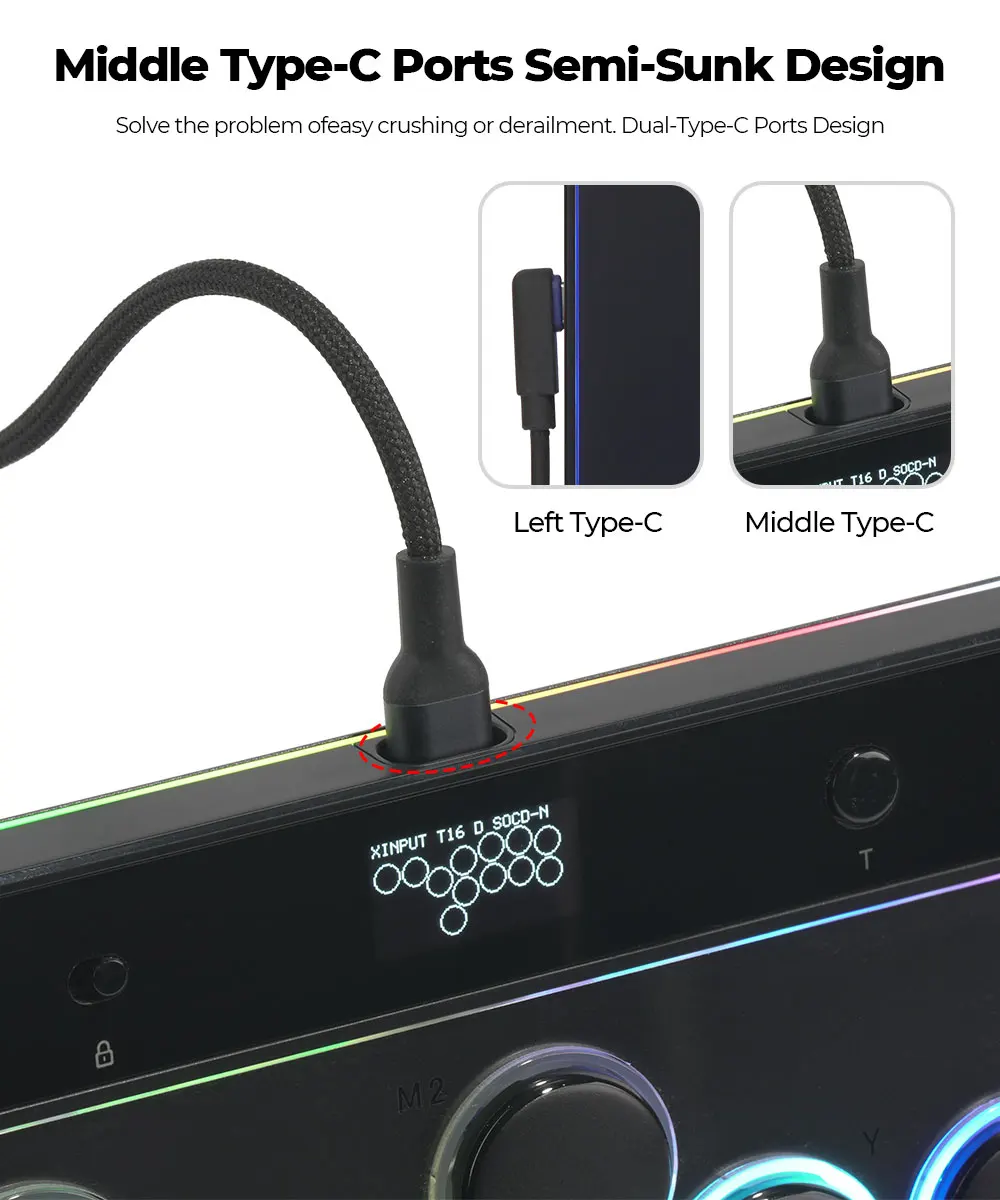

Link method: USB Type-C

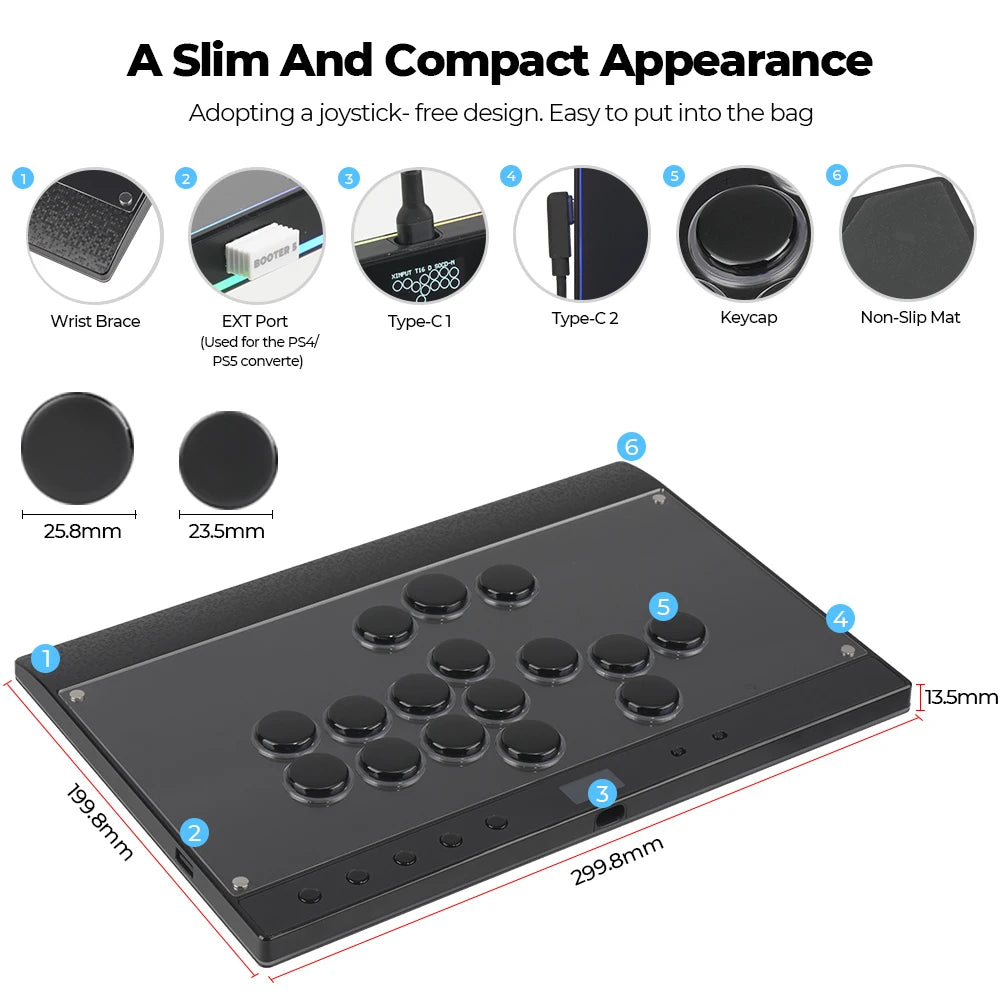

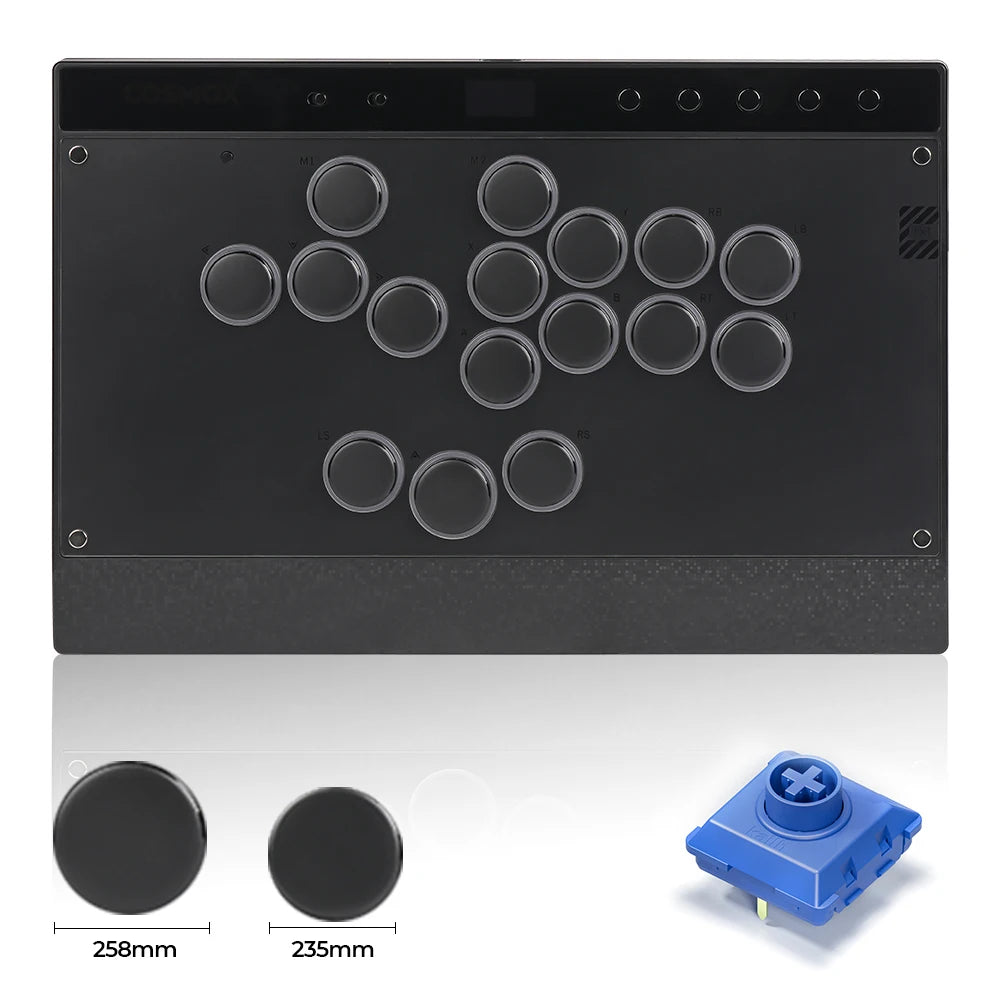

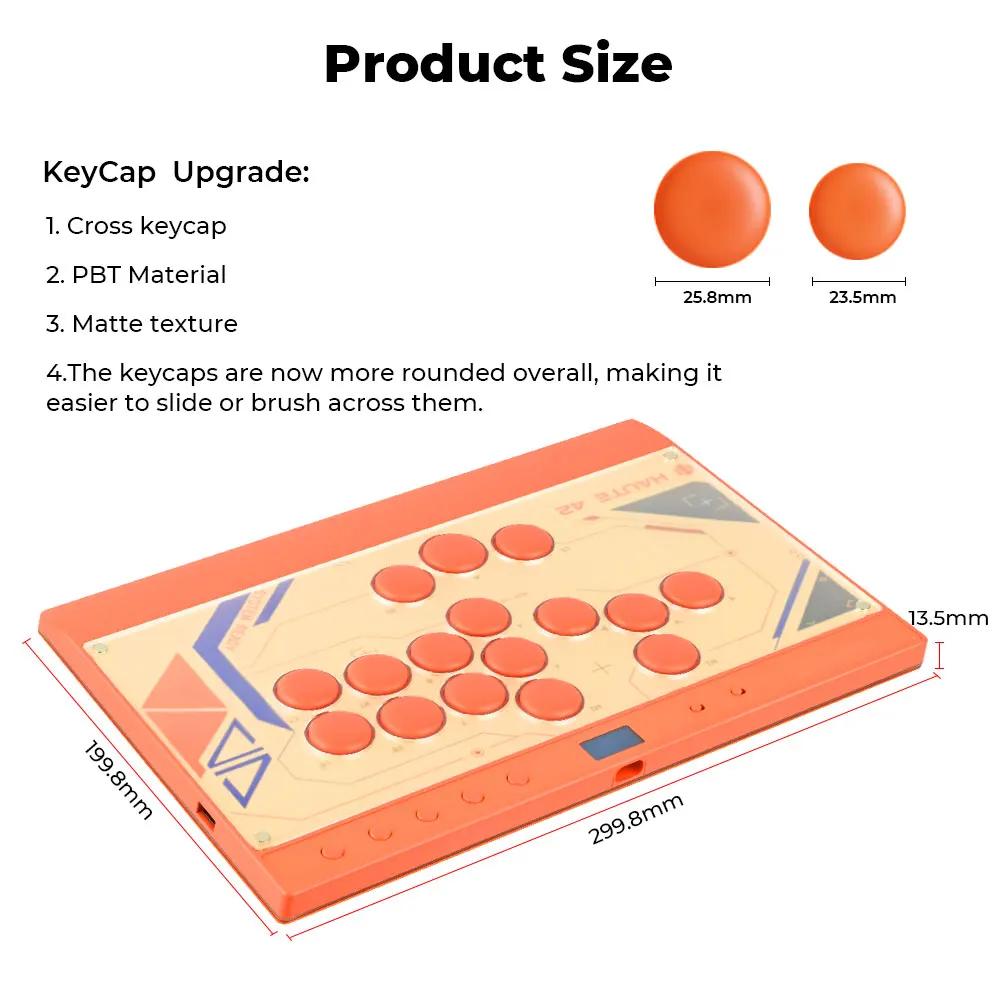

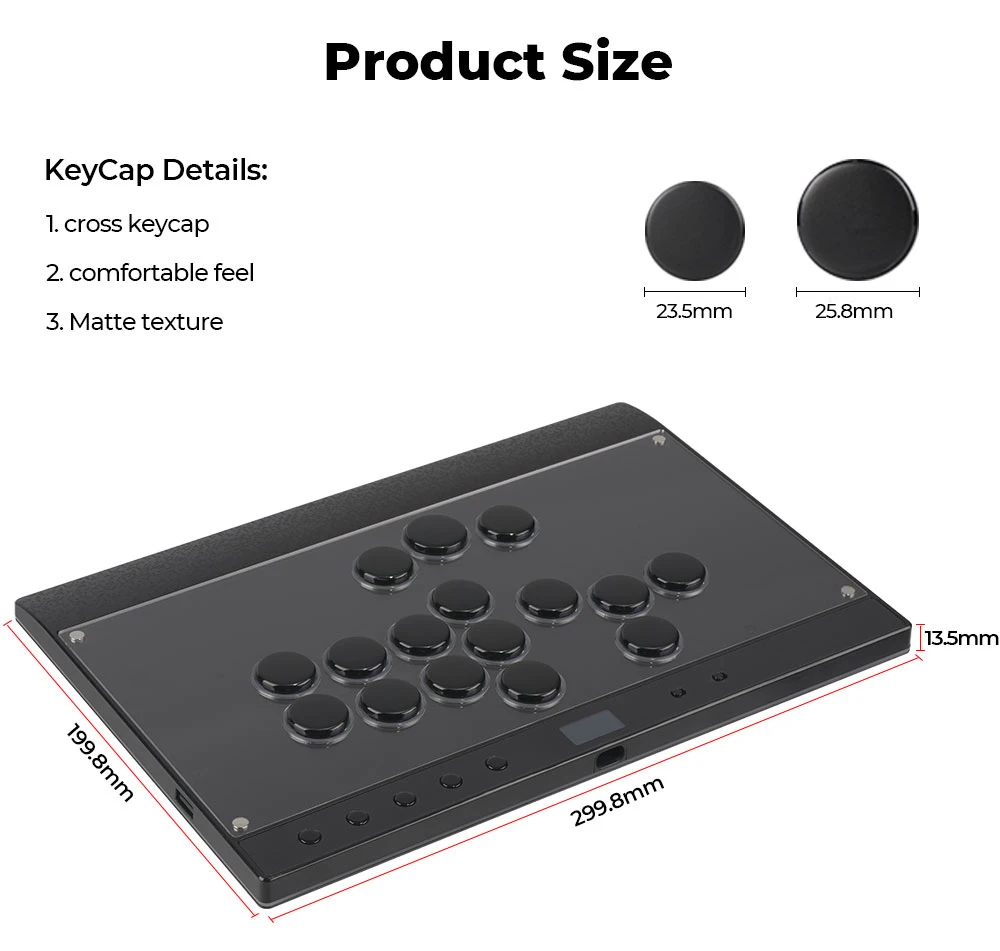

Product size: 299.8mm * 199.8mm * 13.5mm
Supported Platforms : pc /ps3/ps4/switch/ Android/Steam

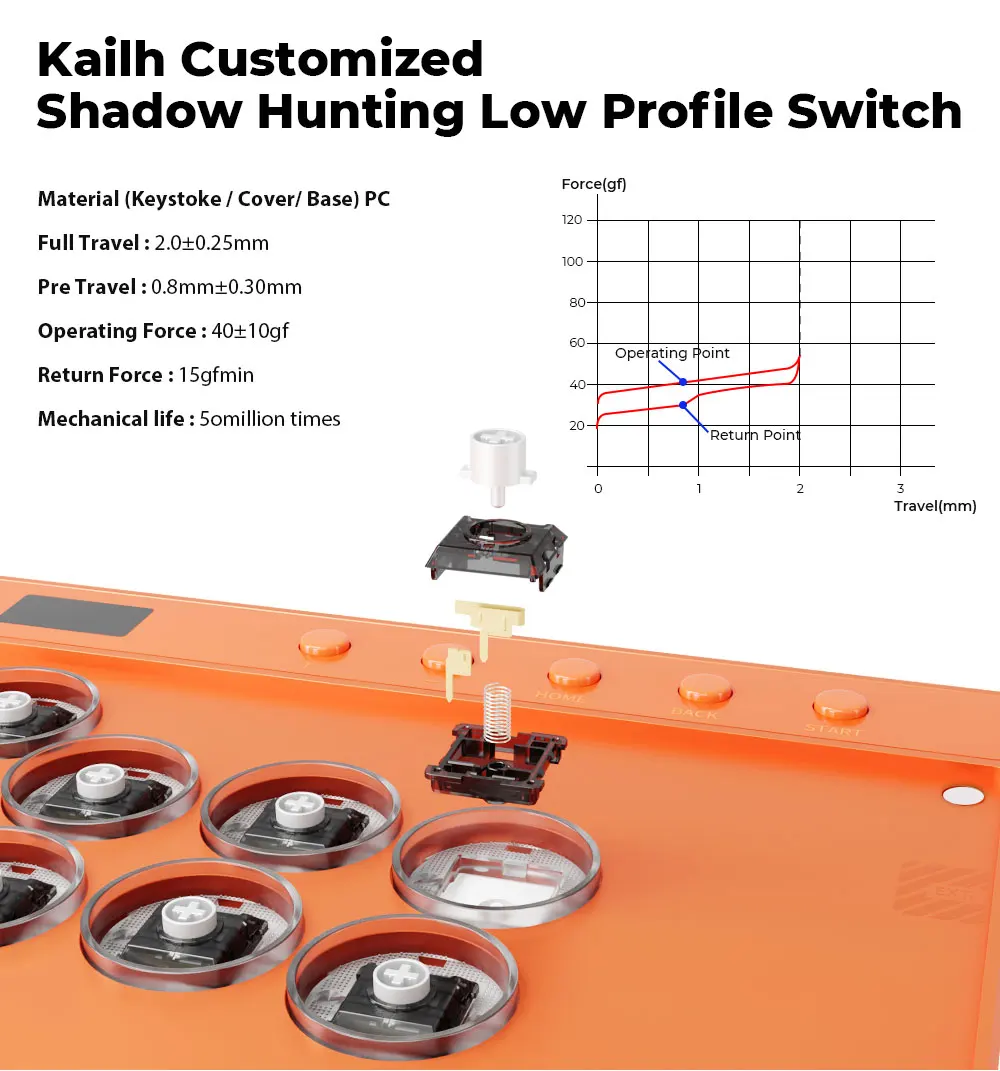

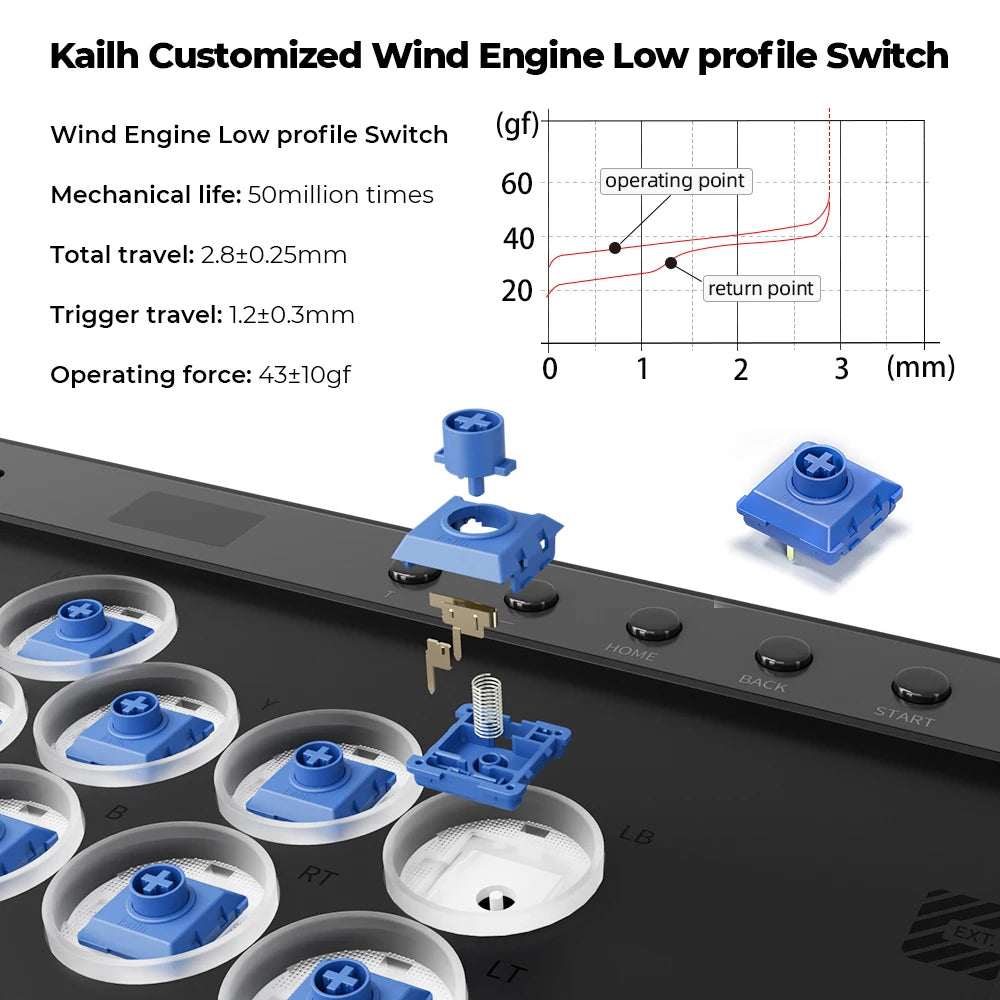

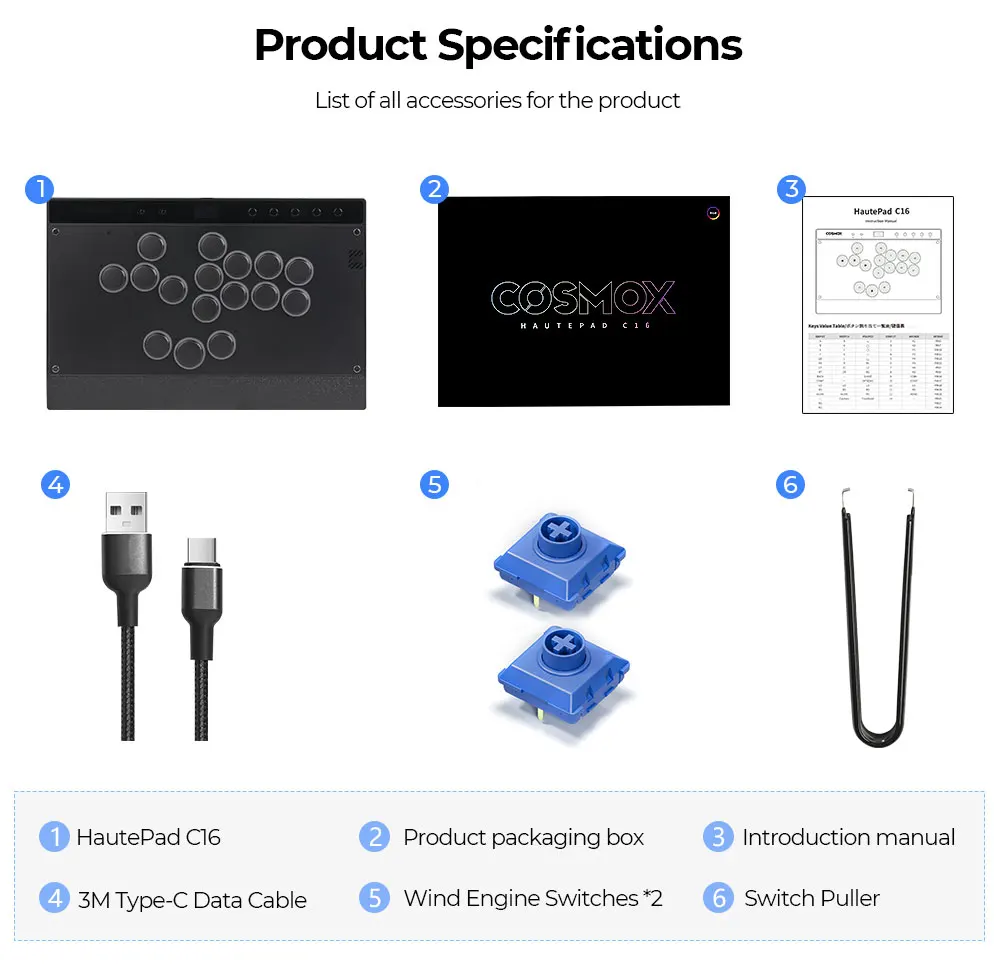

Product Specifications: Keyboard*1 ,Data Cable (3M) *1 Keycap Puller*1, Art Templates*6,Wind Engine Switch*2

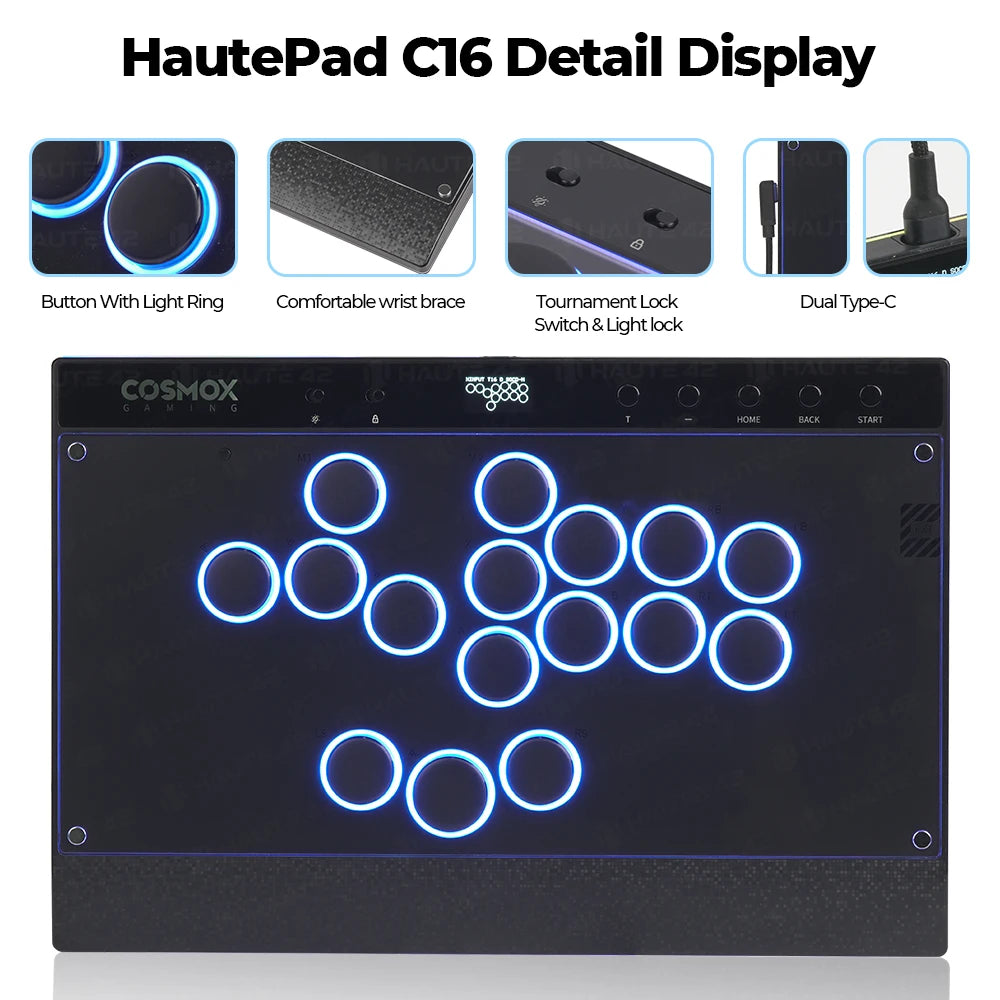

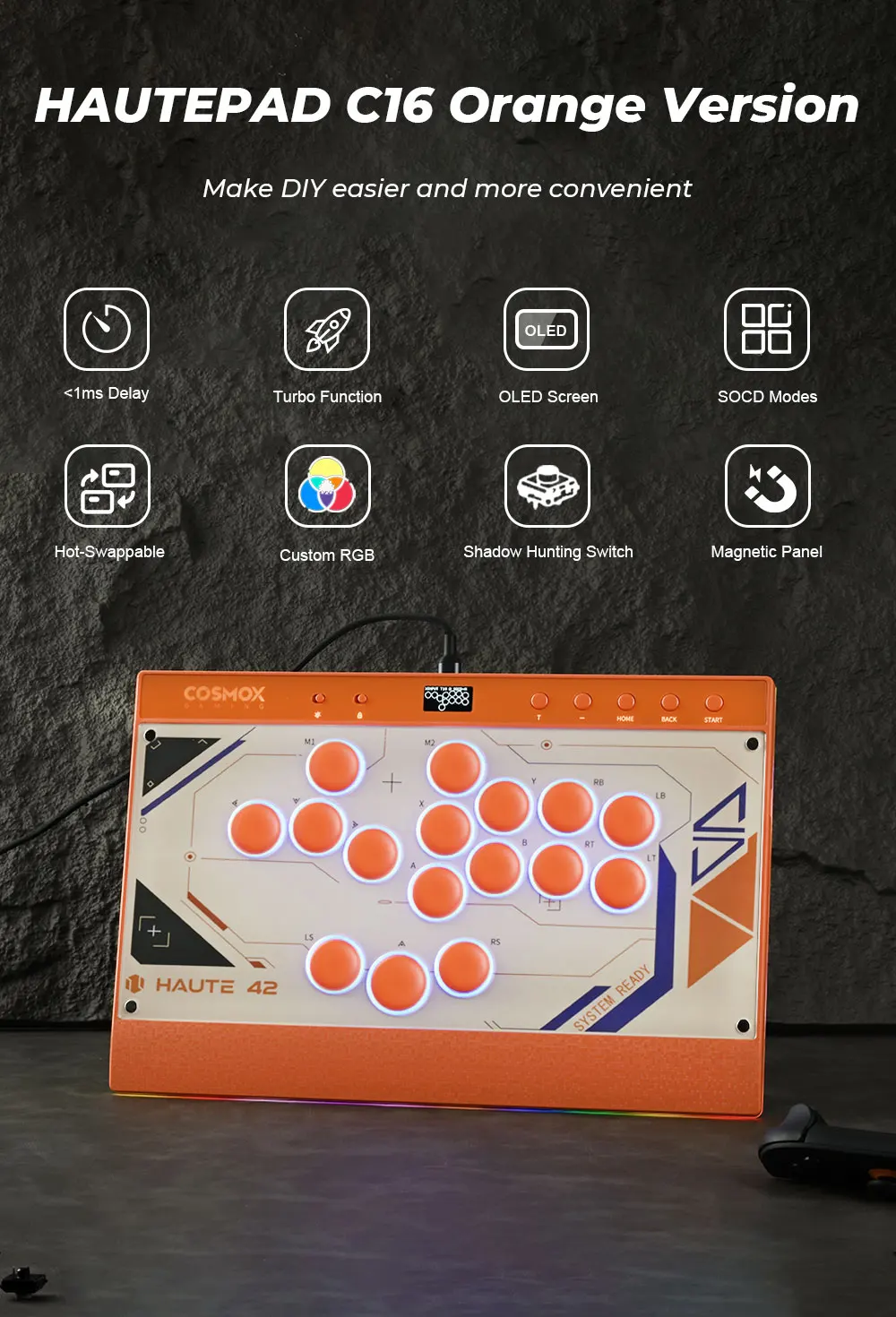

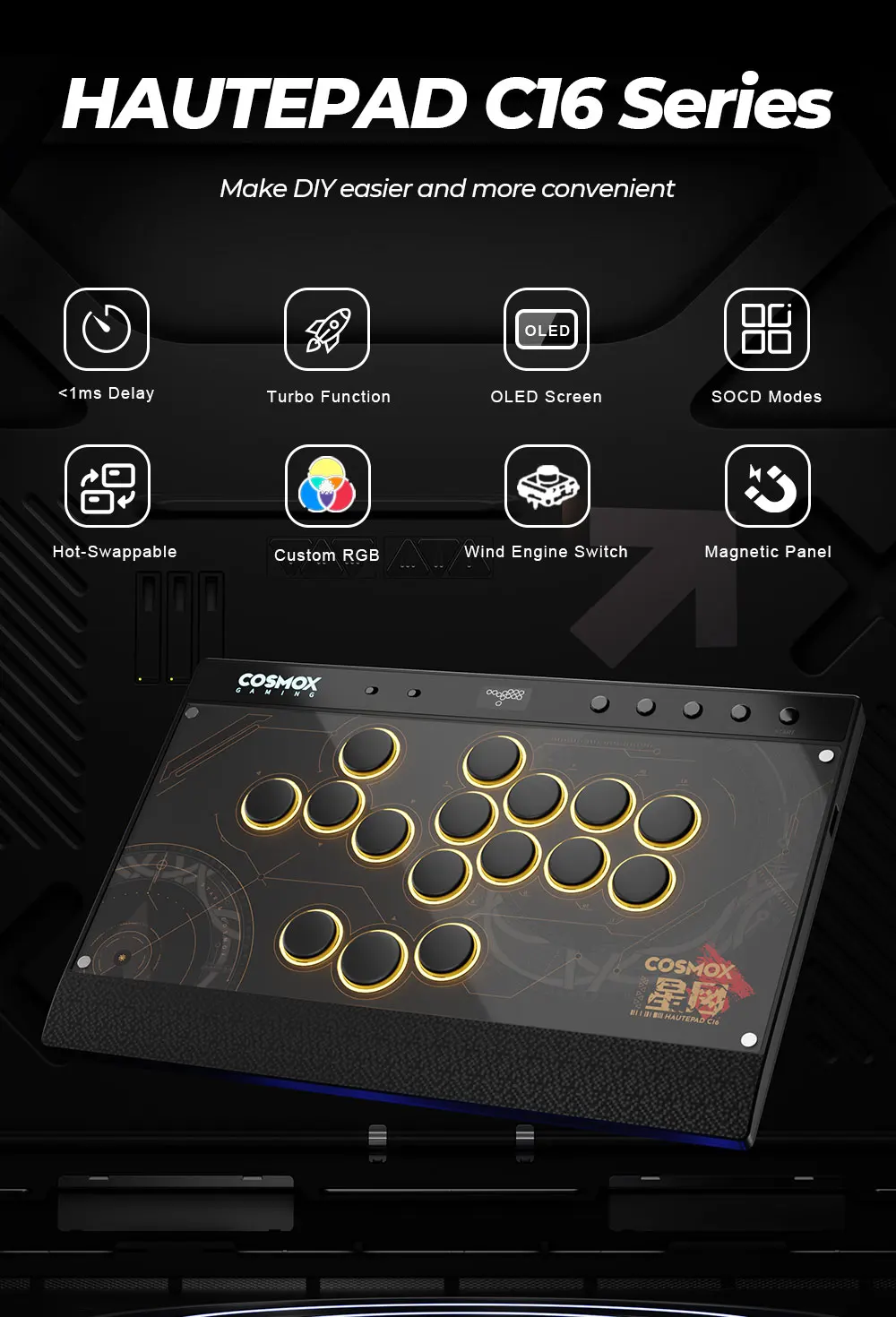

HautePad C16 Series

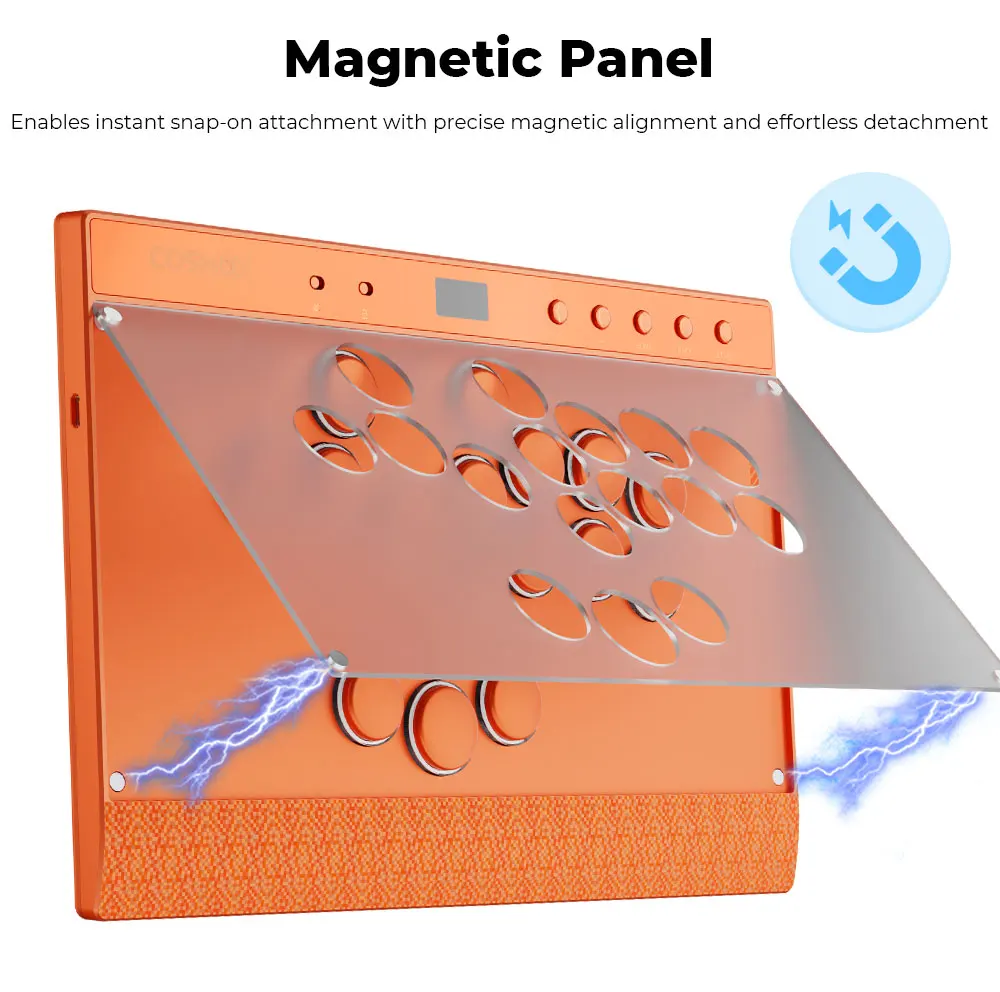

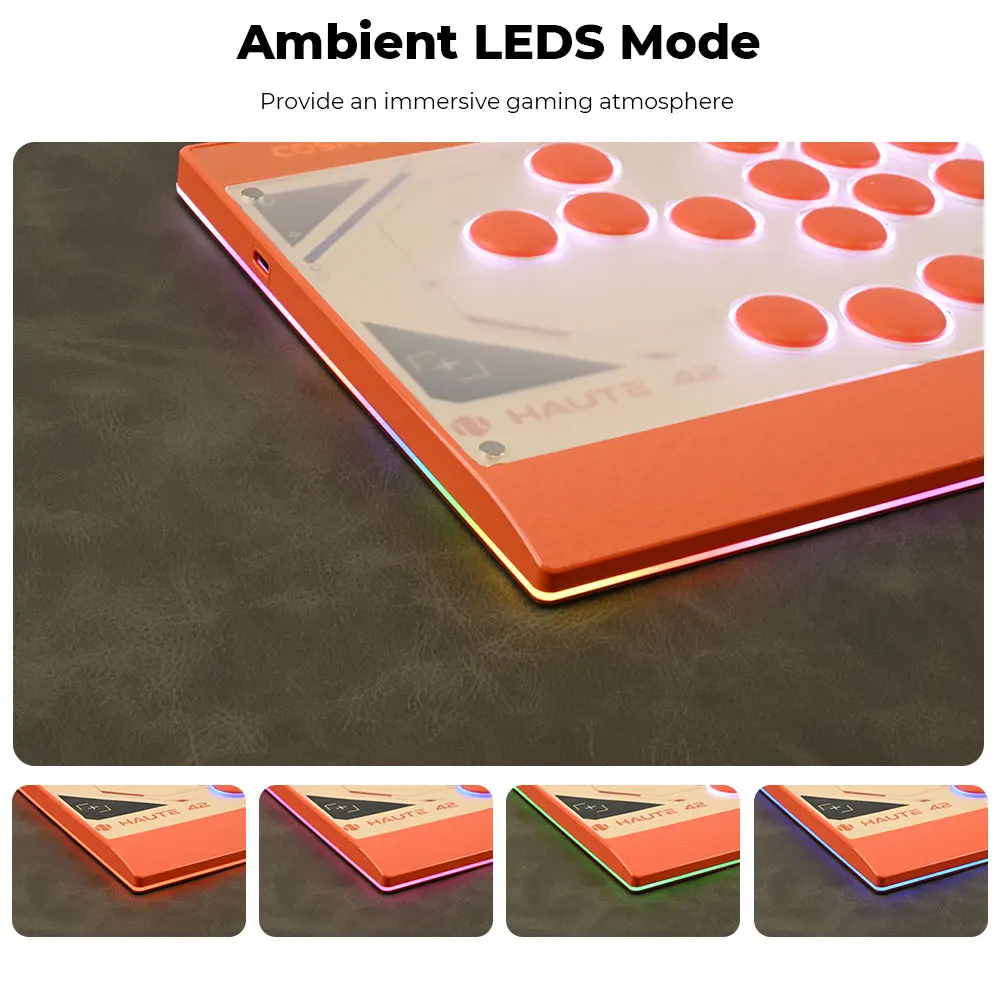

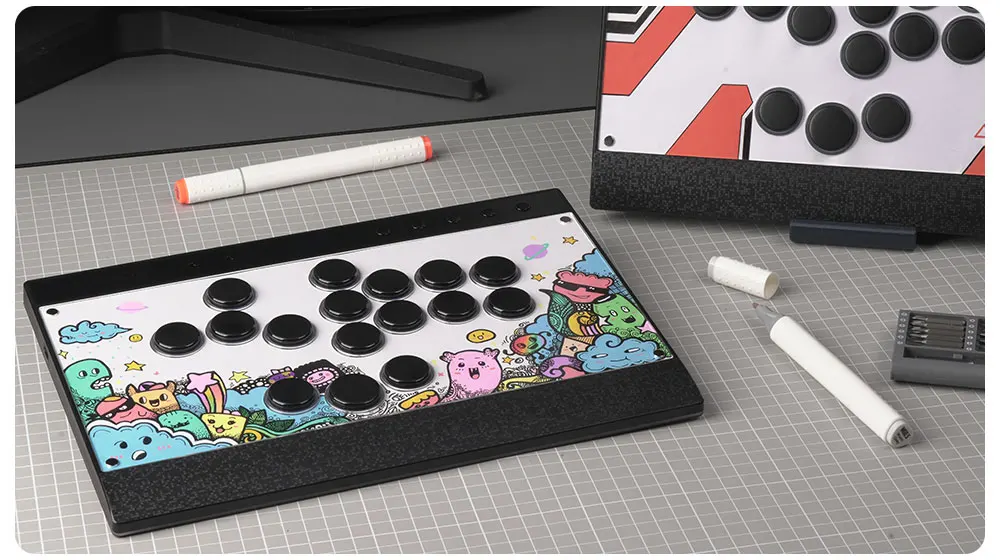

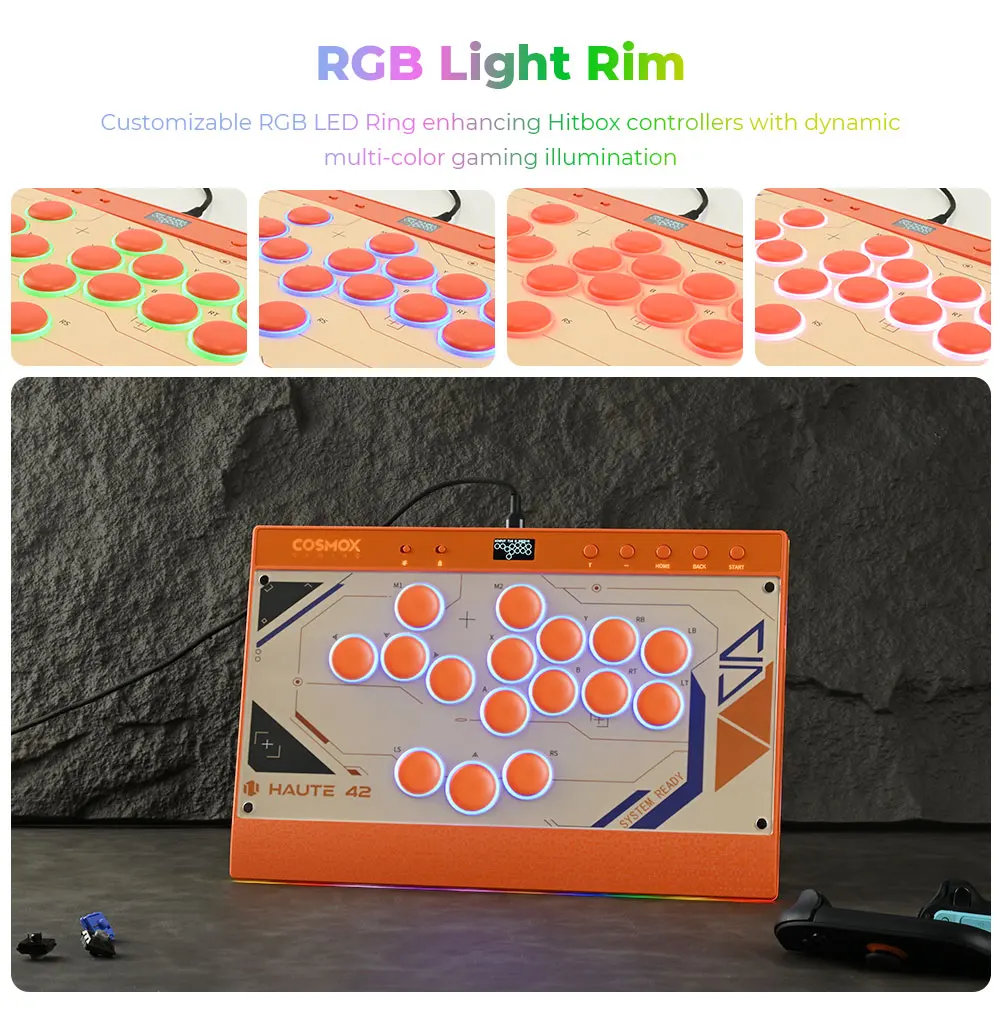

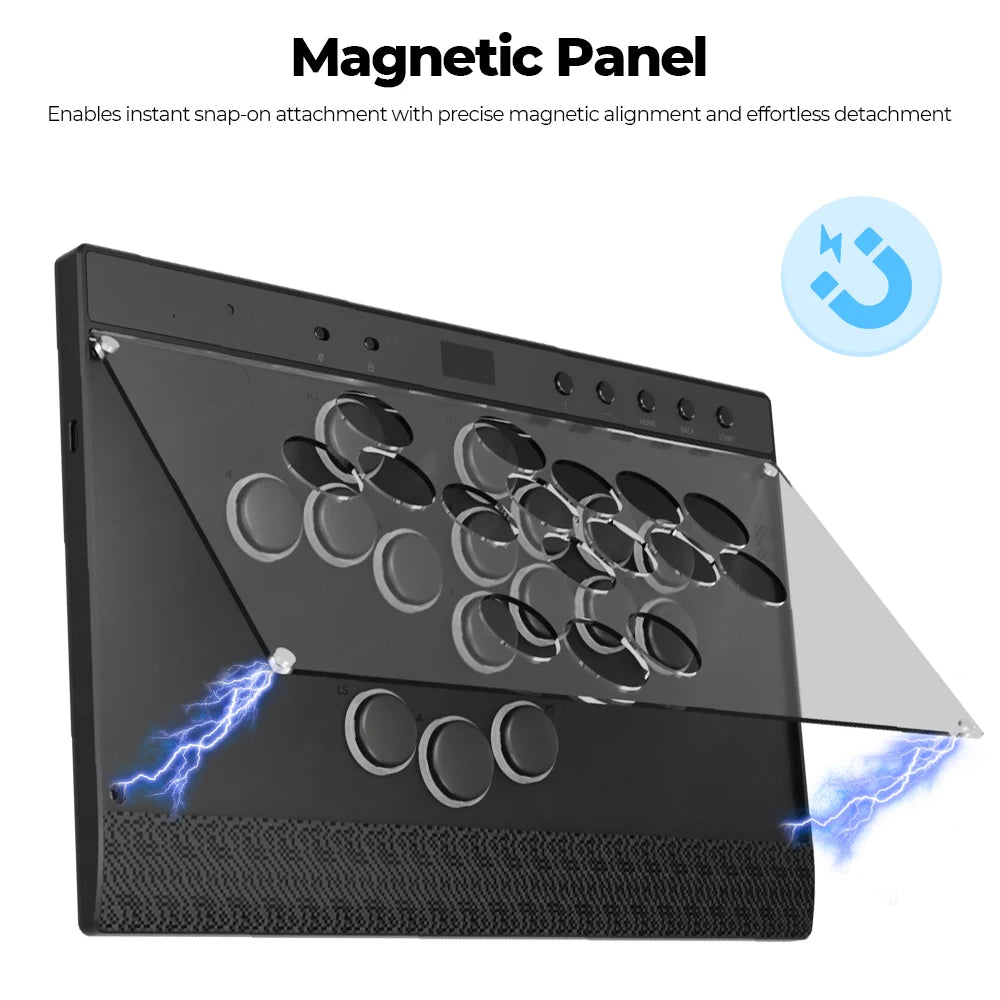

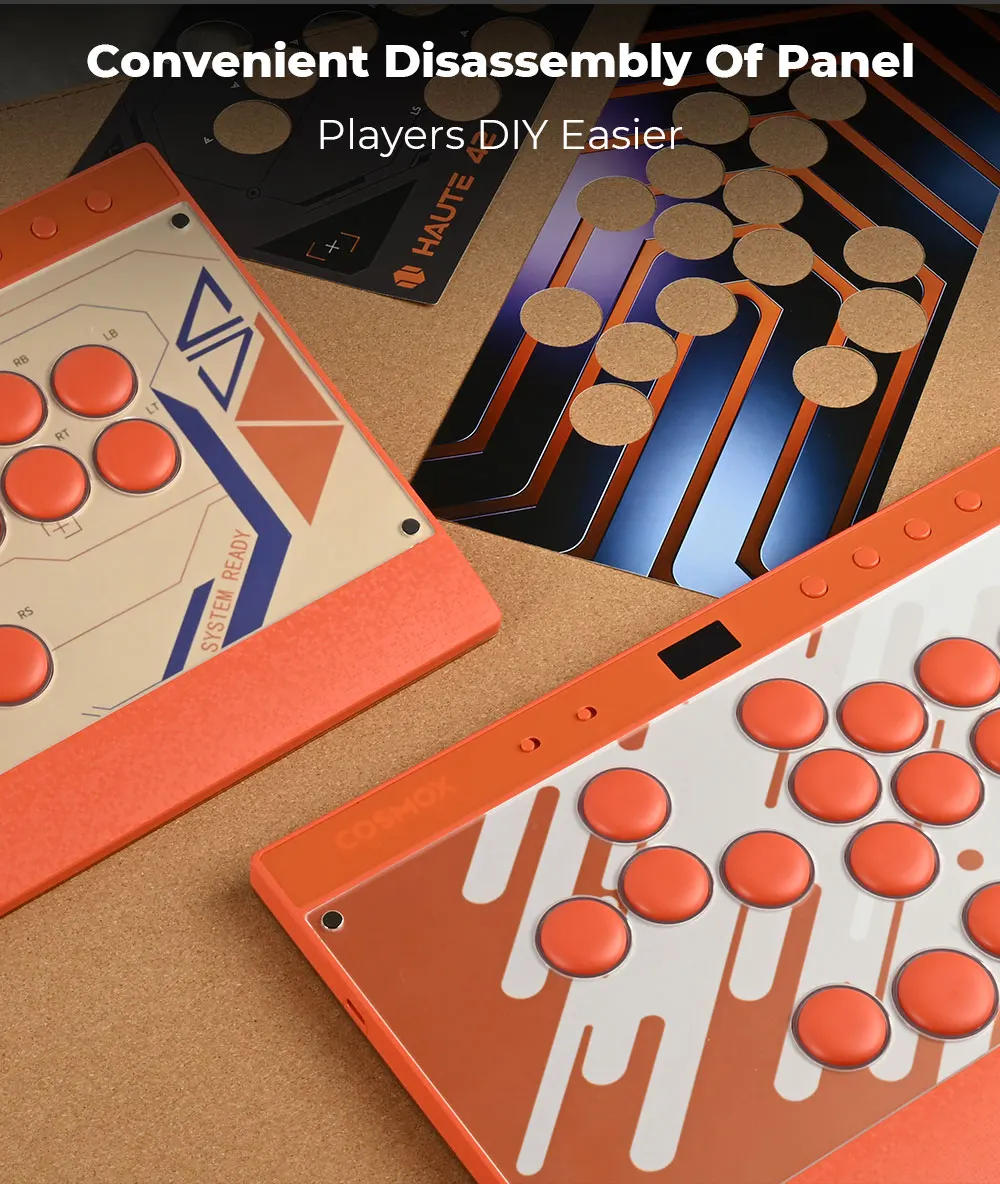

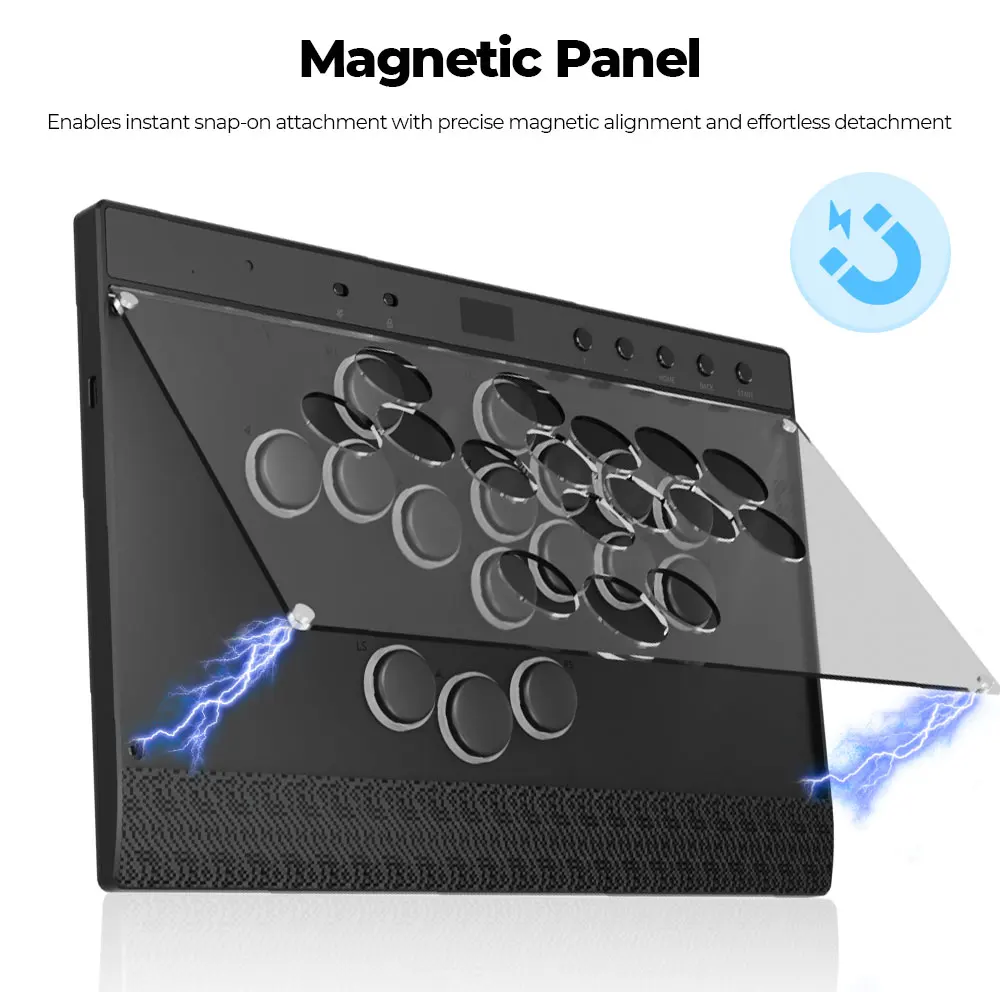

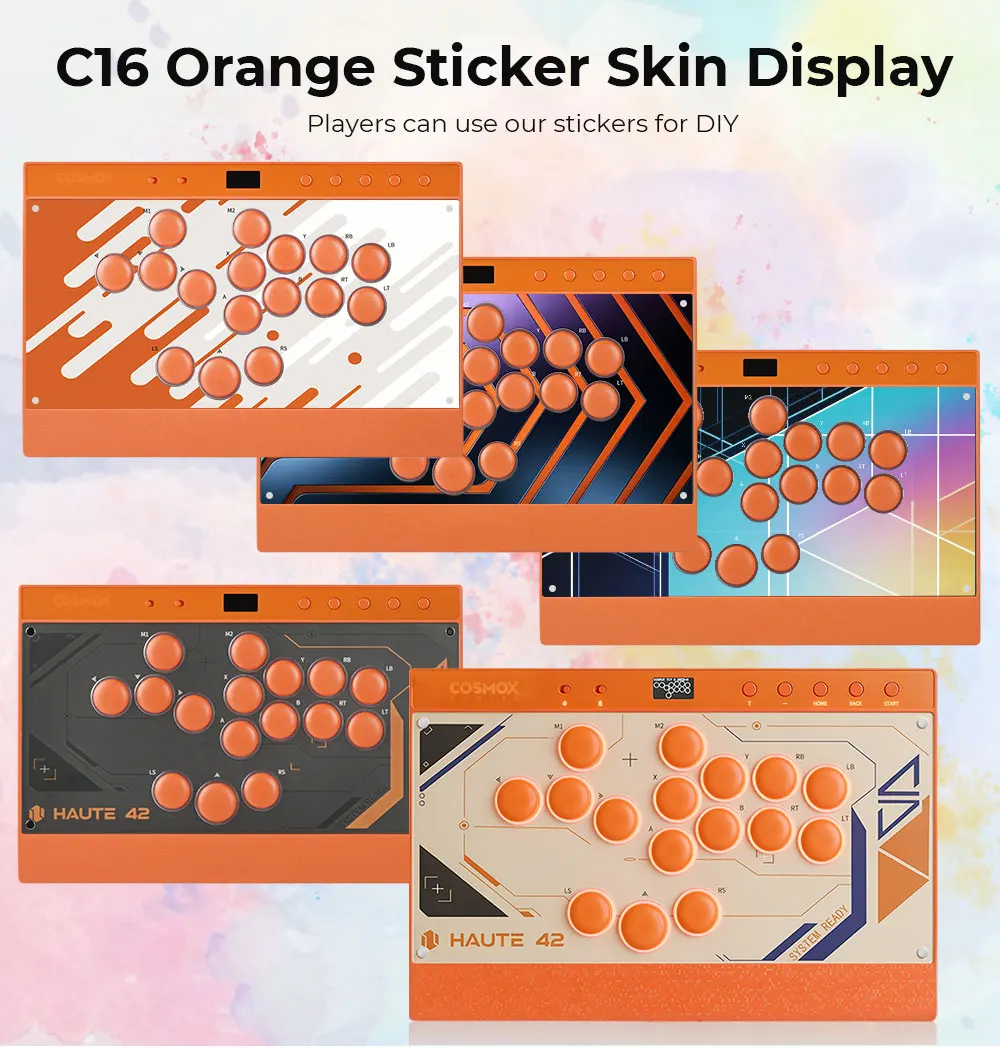

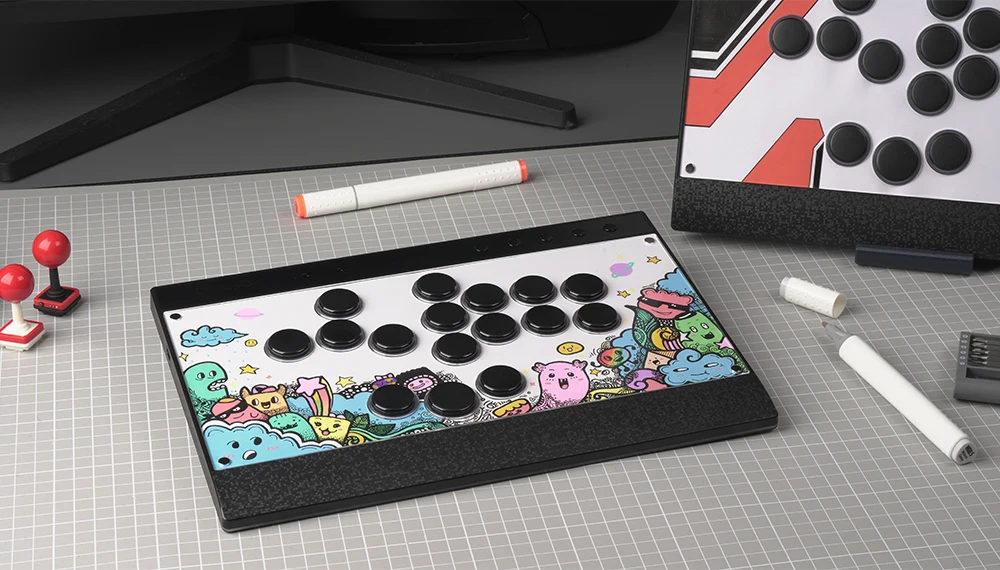

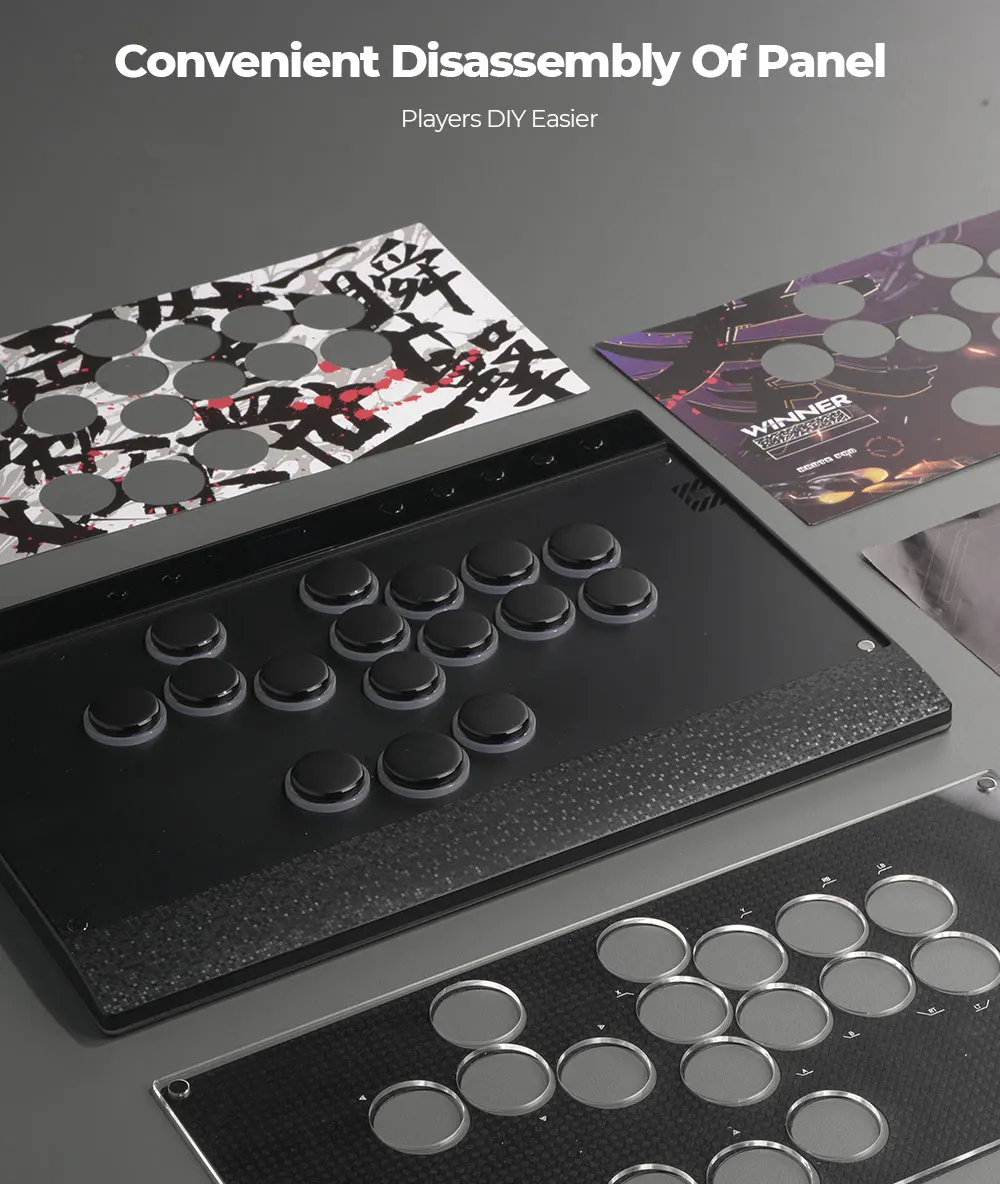

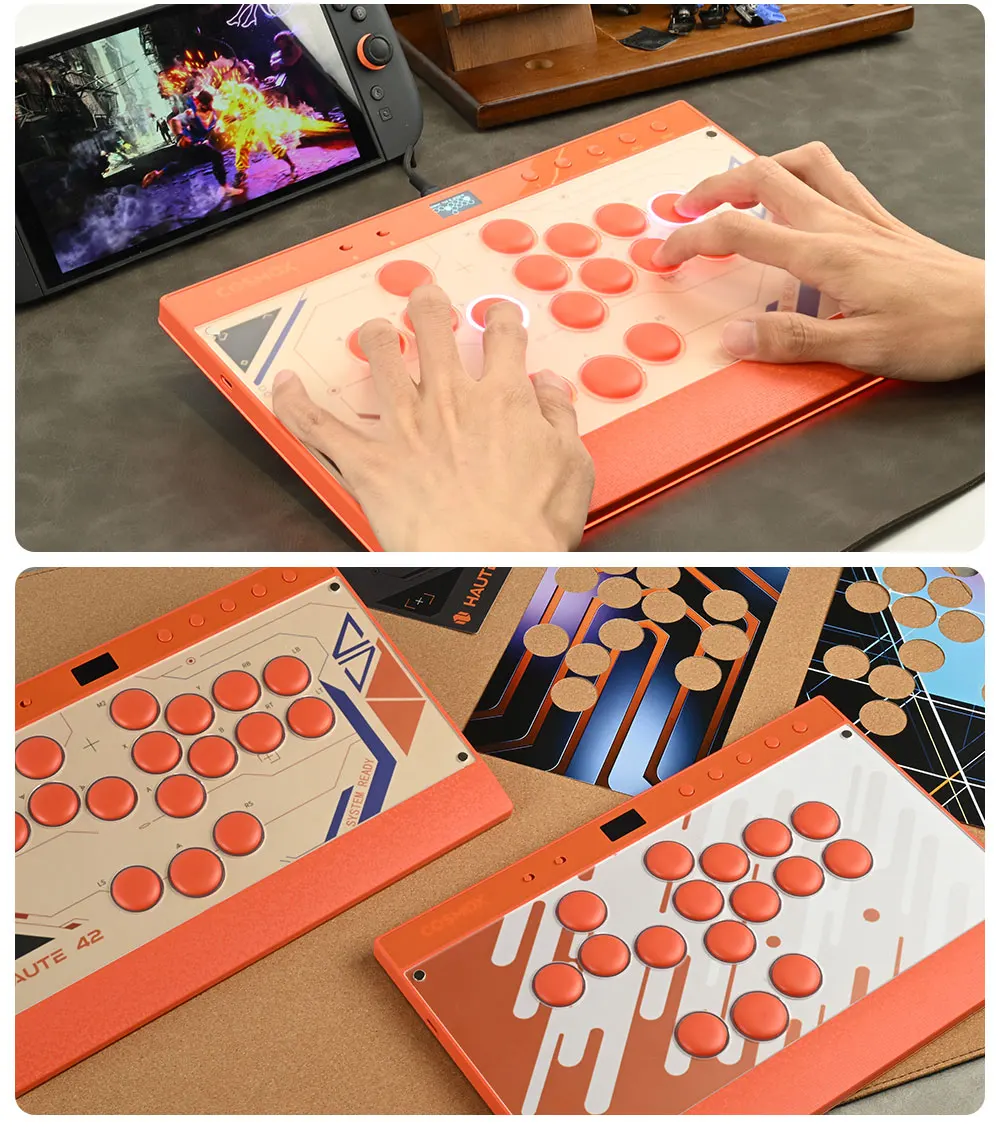

Magnetic Panel Design, Make DlY Easier And More Convenient，Newly Upgraded RGB Rim And Ambient LEDS Includes 6 sheets of DIY panel paper,
Realize DIY freedom and graffiti,
Show off your creative talent

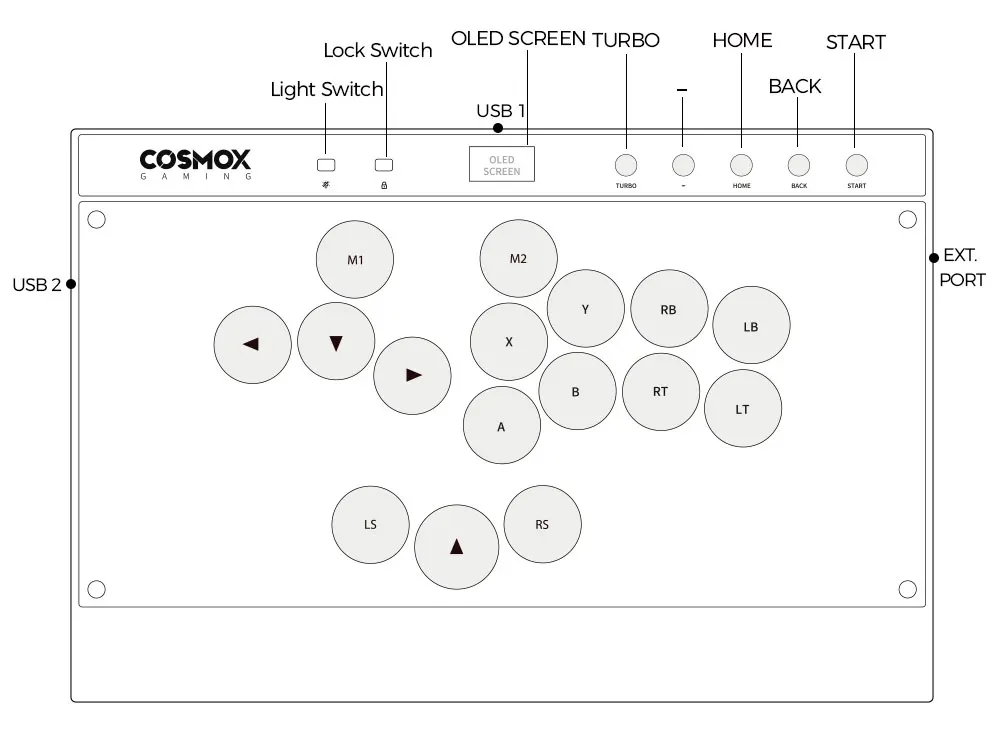

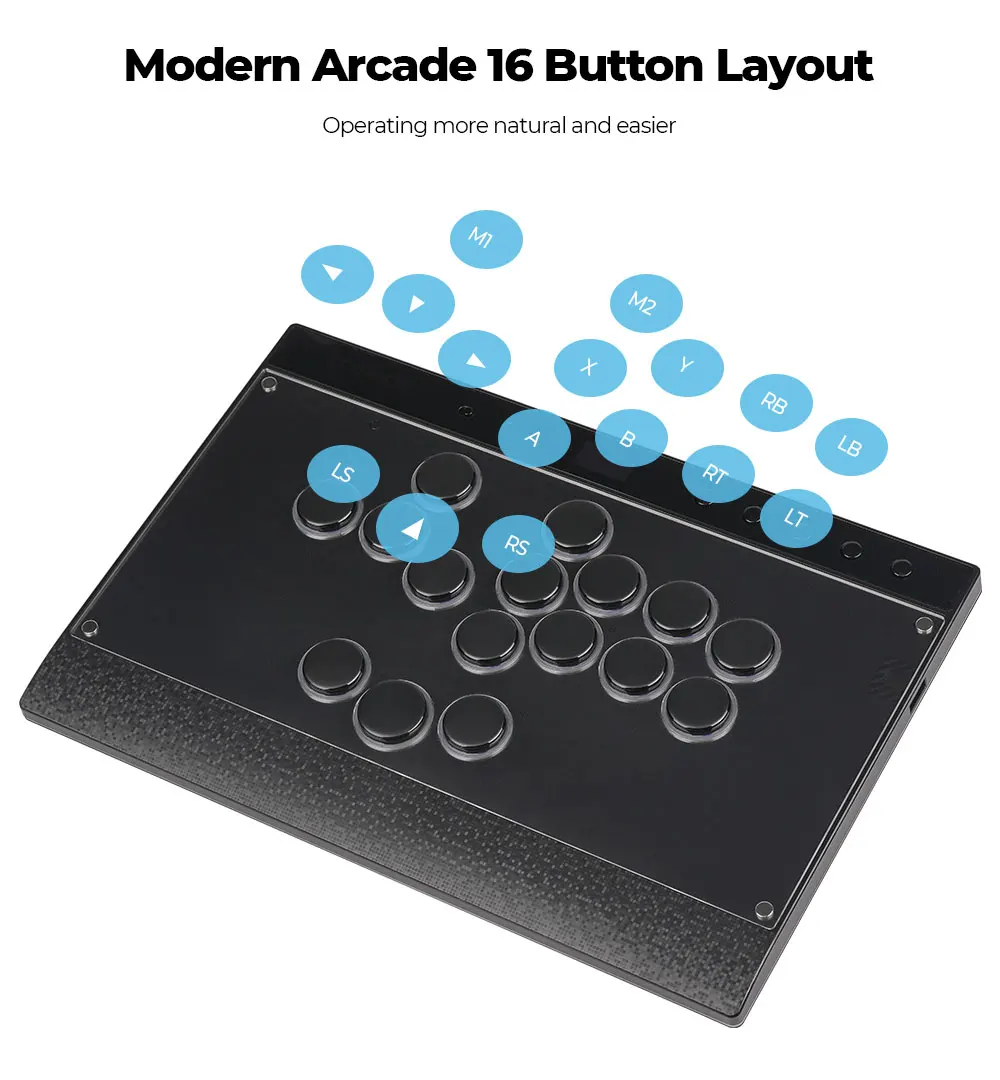

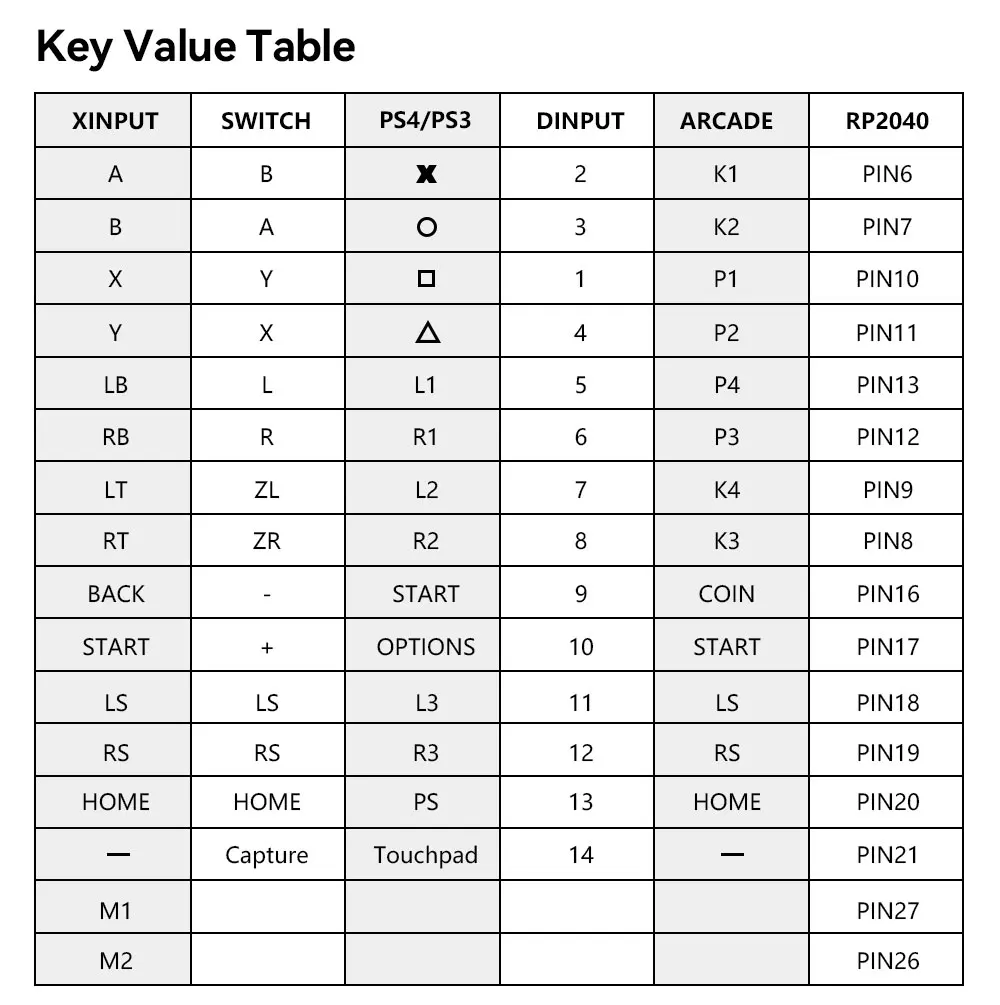

01 Compatibility
B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode
Input Mode
To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.
Tips：
This product defaults to Xinput mode，Input mode is saved across power cycles.
If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.
PS4 /PS5 Mode
About PS4 /PS5 8 minute disconnection，there are two ways， one is insert a dongle or a officially authorized PS4 wired controller to the EXT.port，We don't have a recommend one，there are too many choices，maybe you can add our discord with other nice players in haute42 group，oficial Website: haute42-cosmox.com
Web Configurator
This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.
TURBO
Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.
The turbo key that set will be cleard when power off.
These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

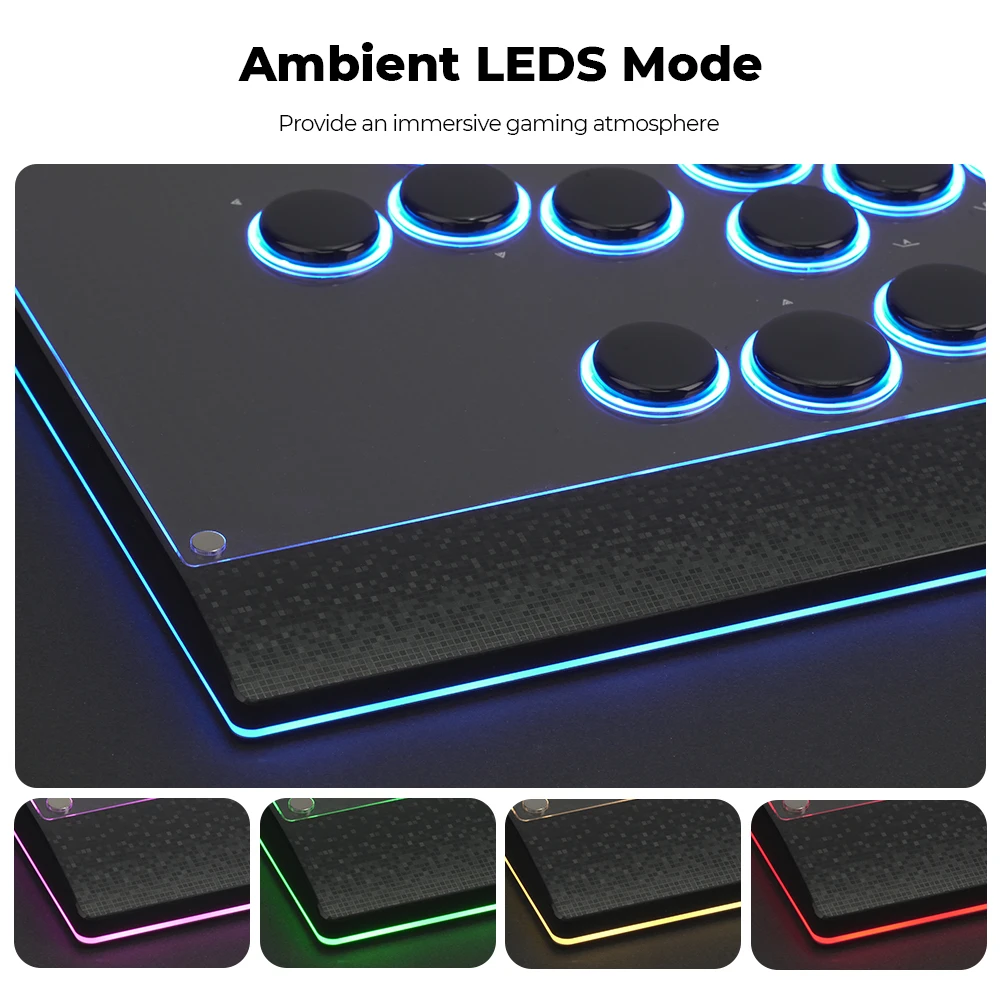

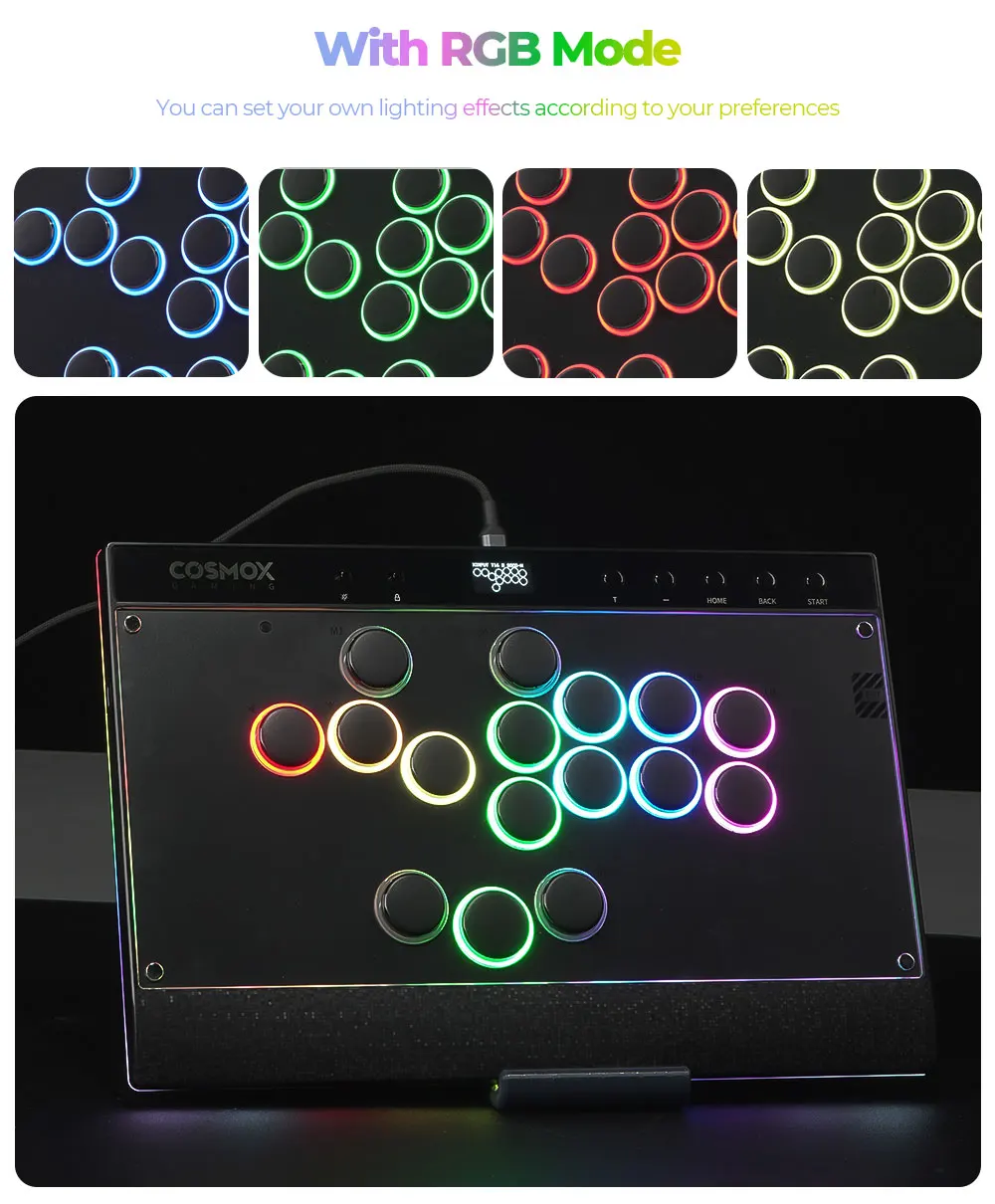

04 RGB LED Setting
●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
