SPECIFICATIONS

Brand Name: G-HOBBY

For Vehicle Type: Cars

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Origin: Mainland China

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Specifications:

Brand Name: HEE WING

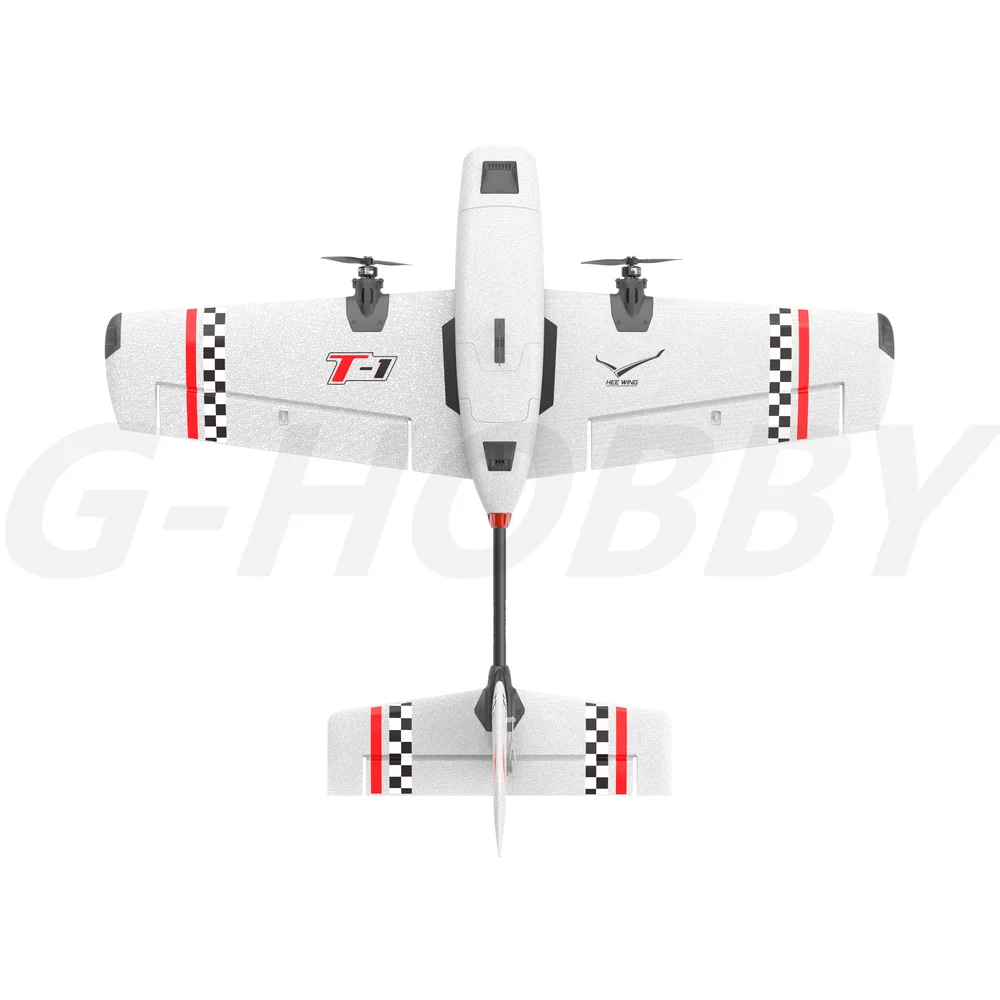

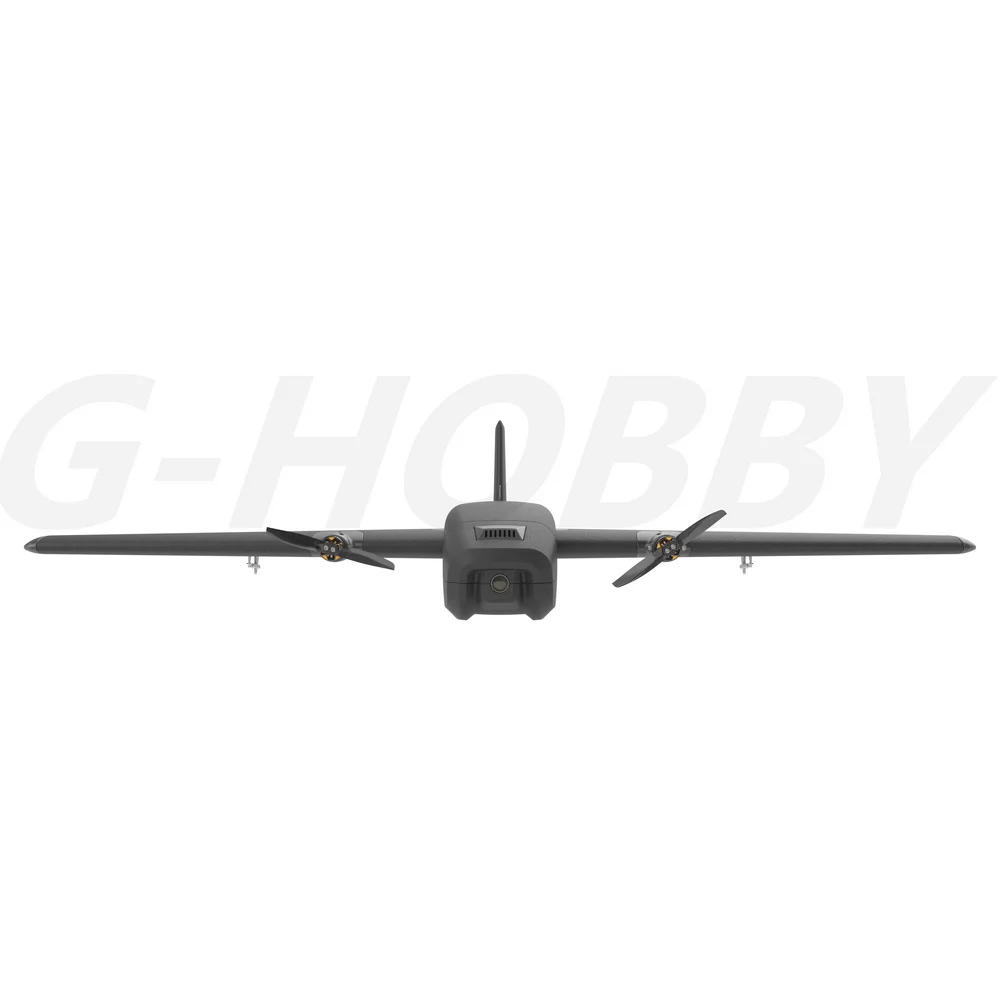

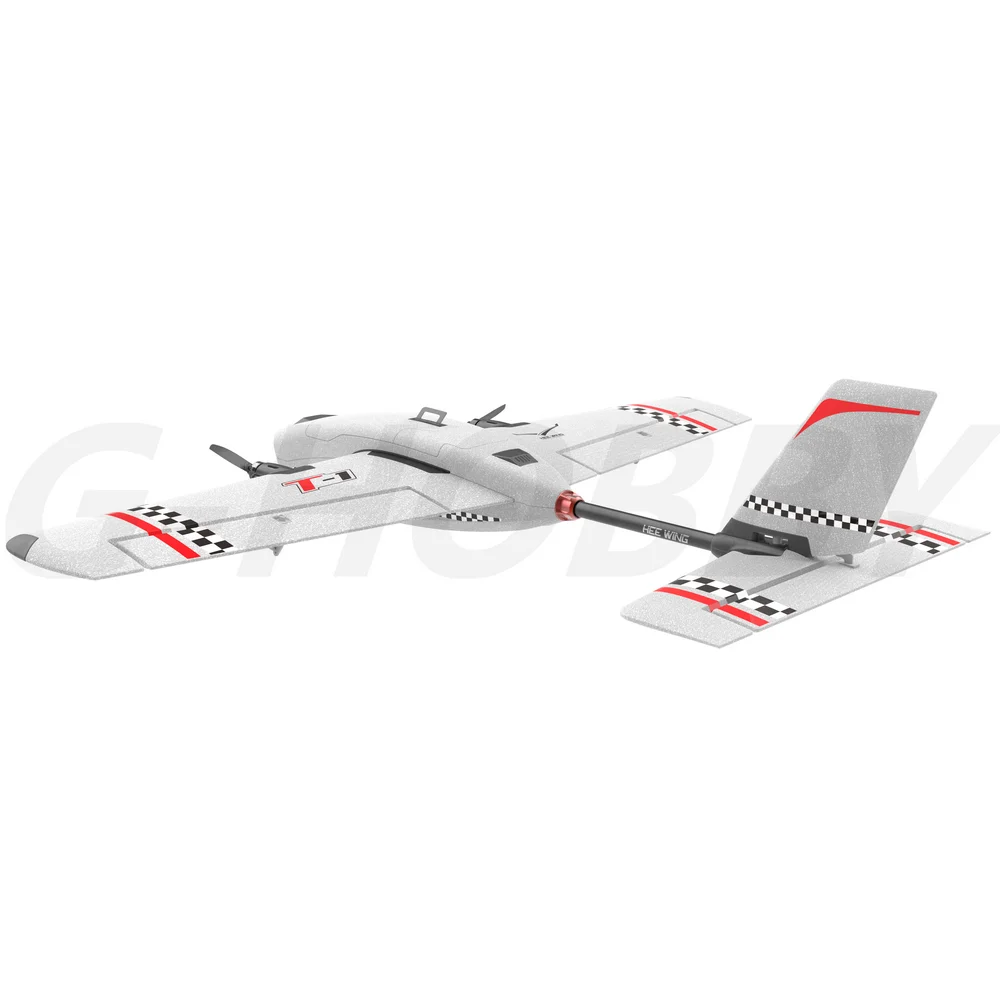

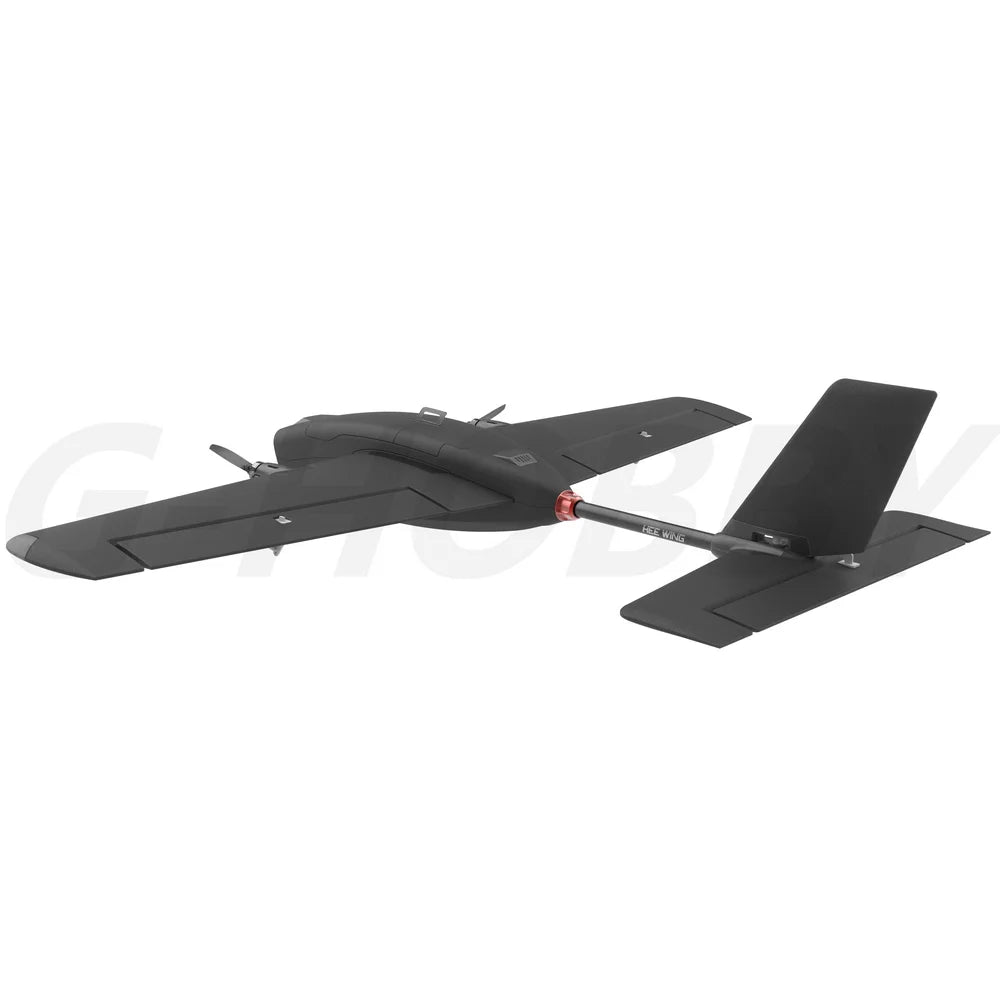

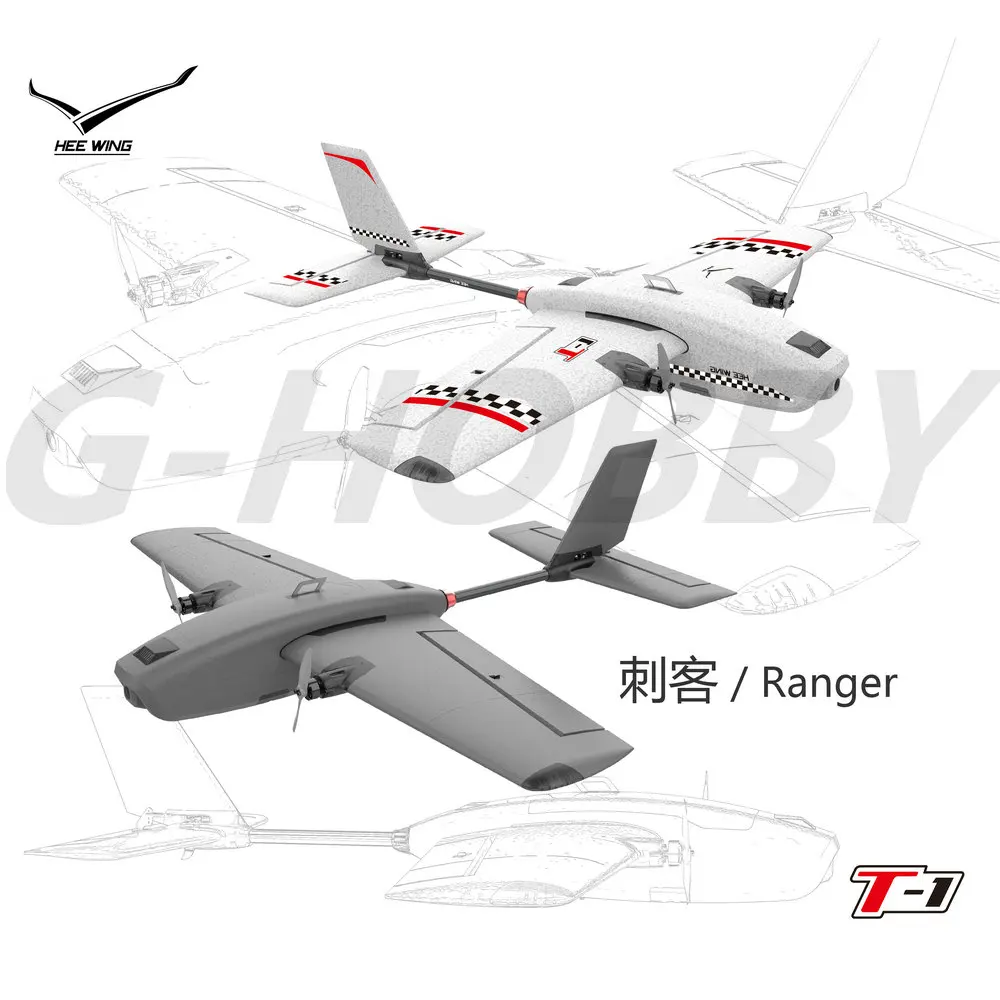

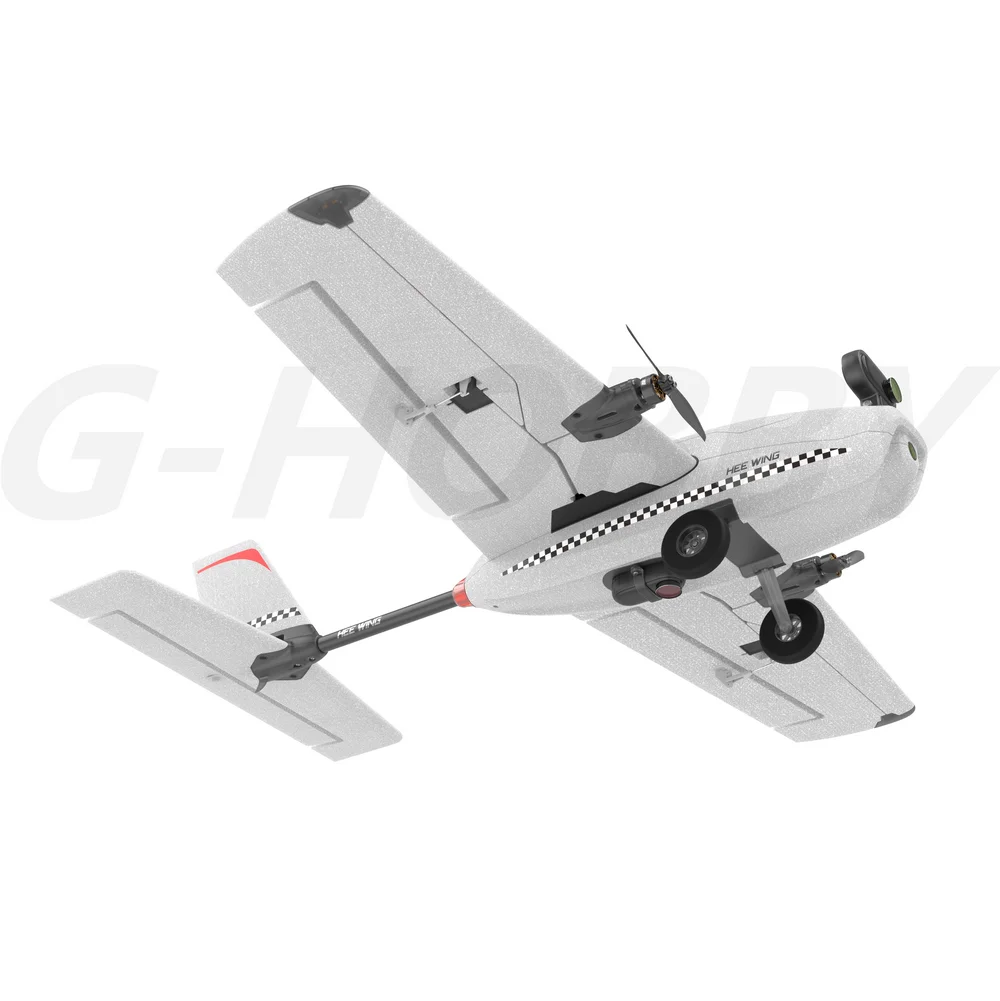

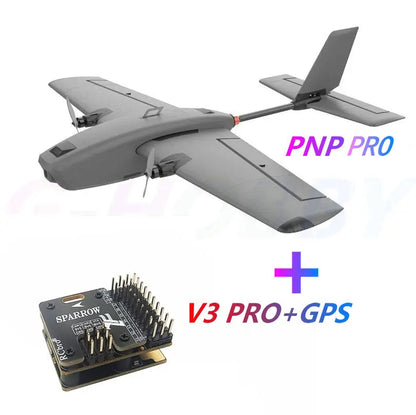

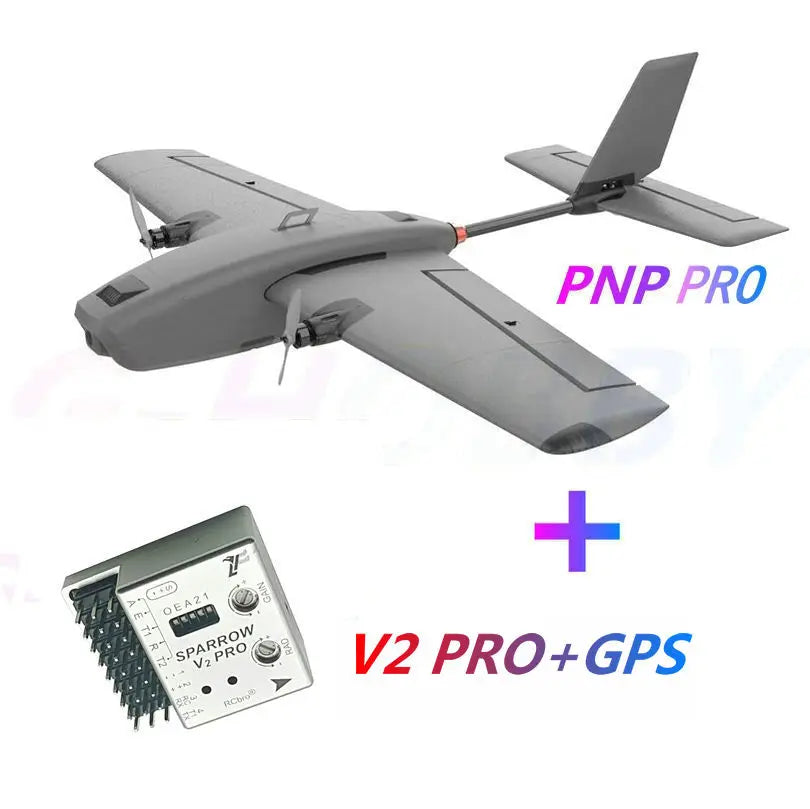

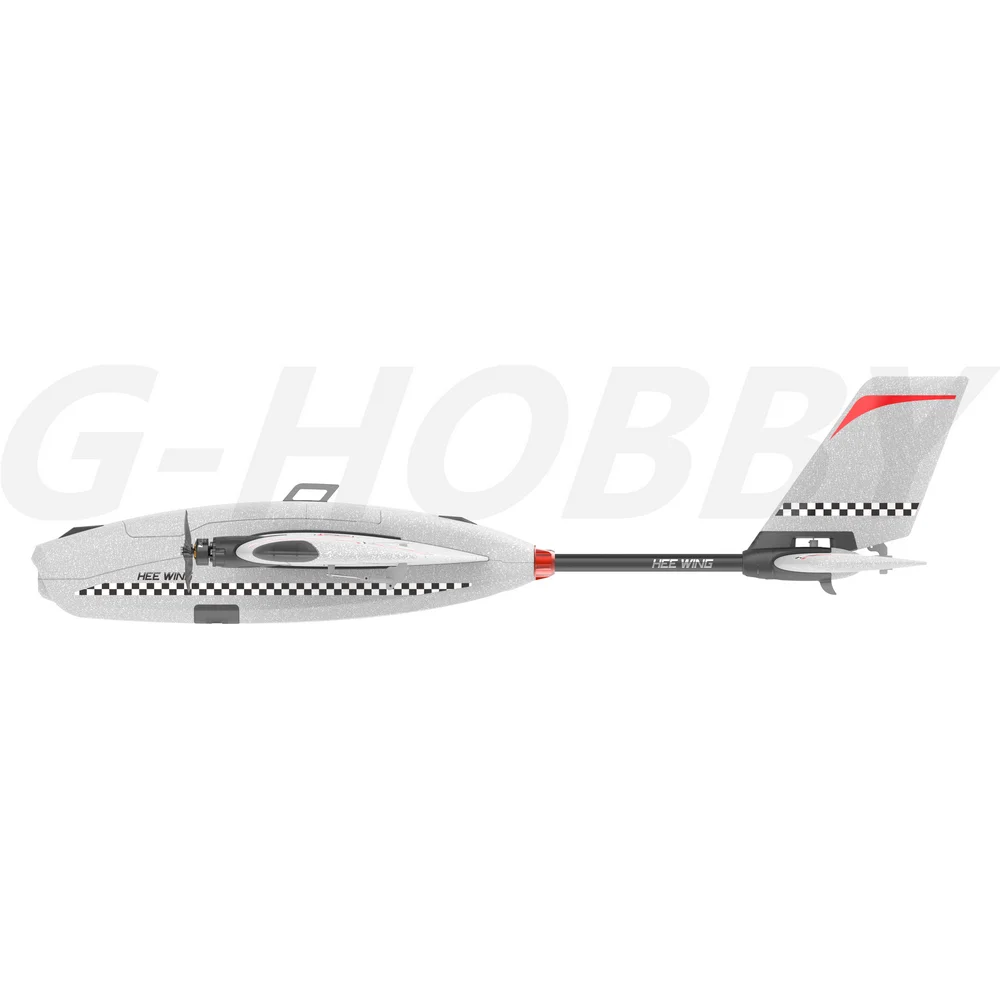

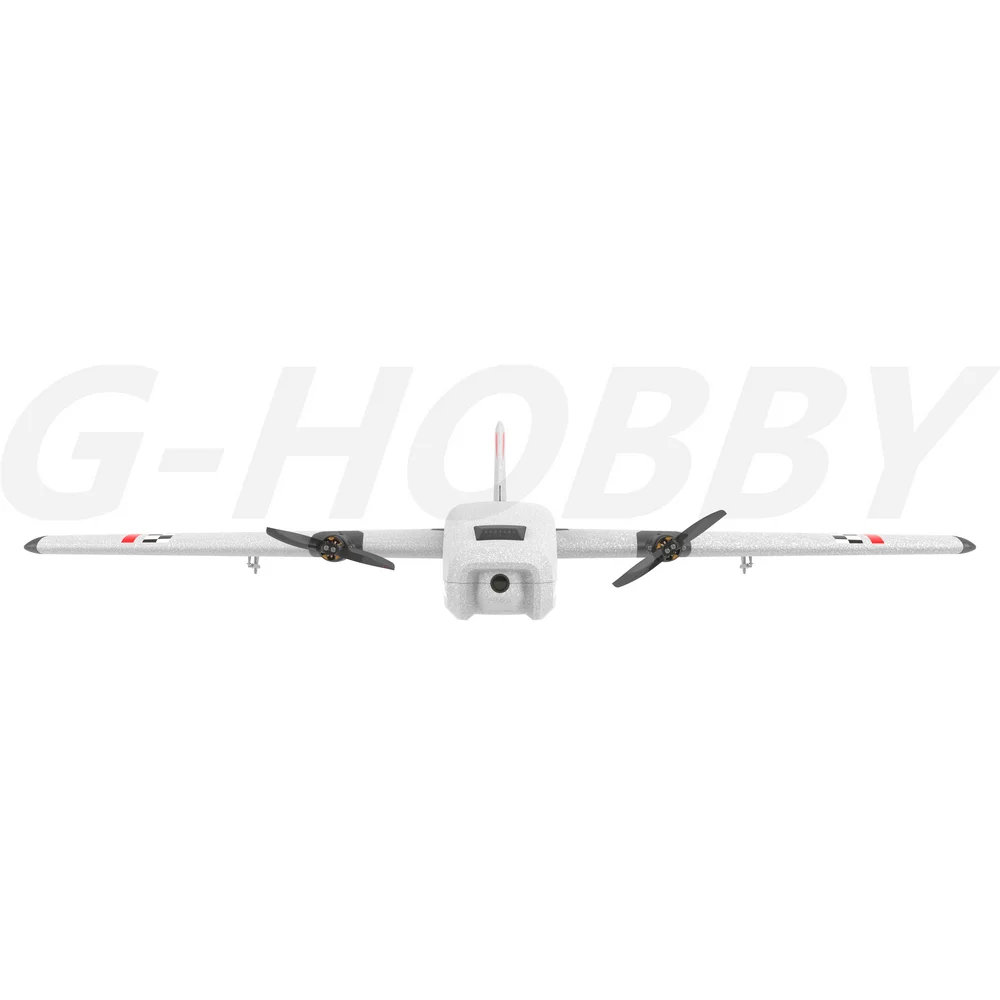

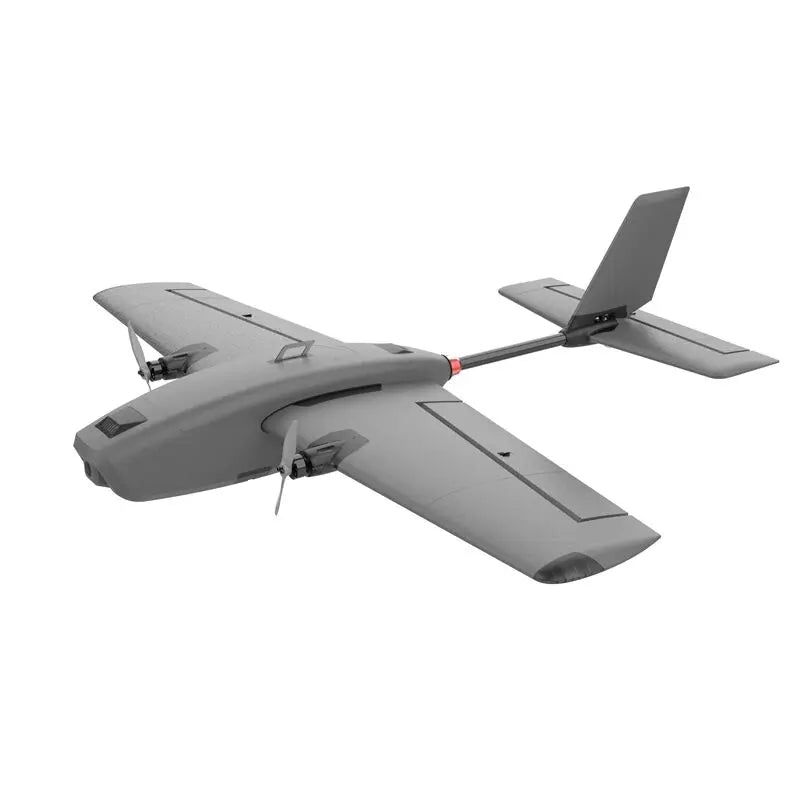

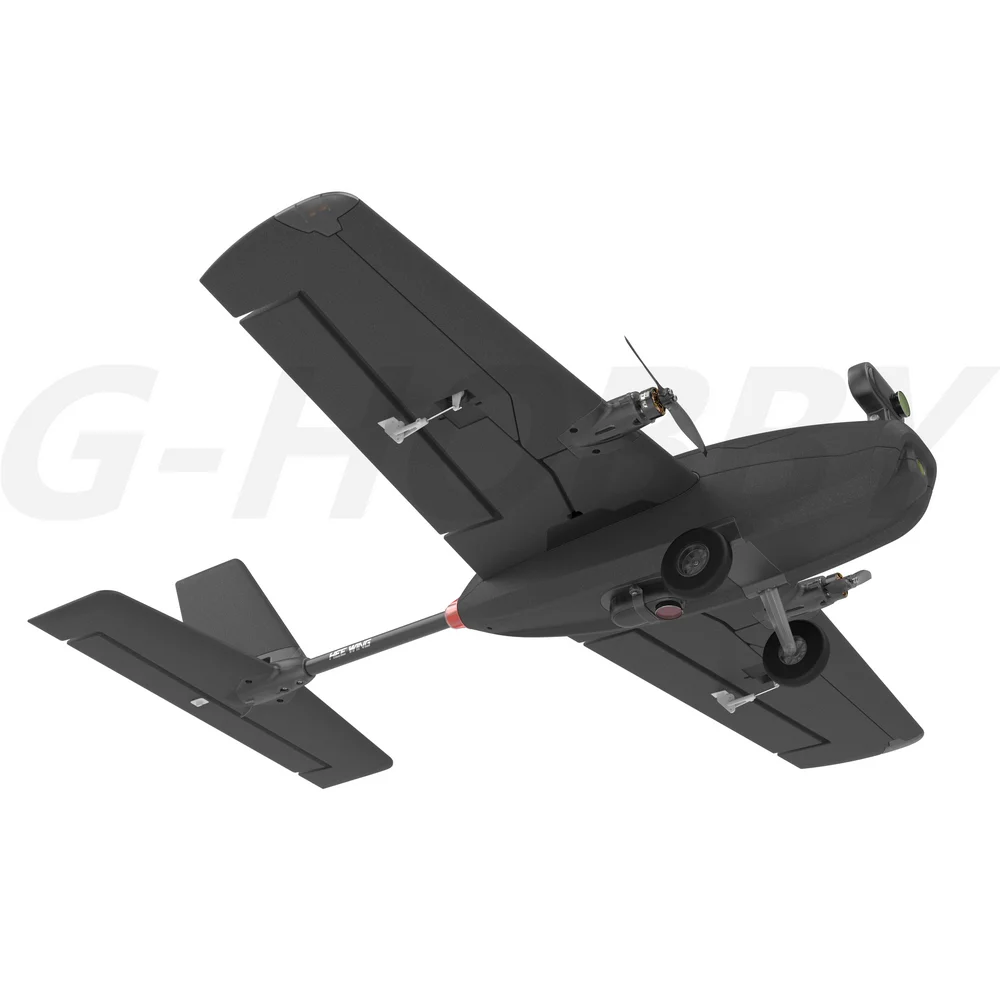

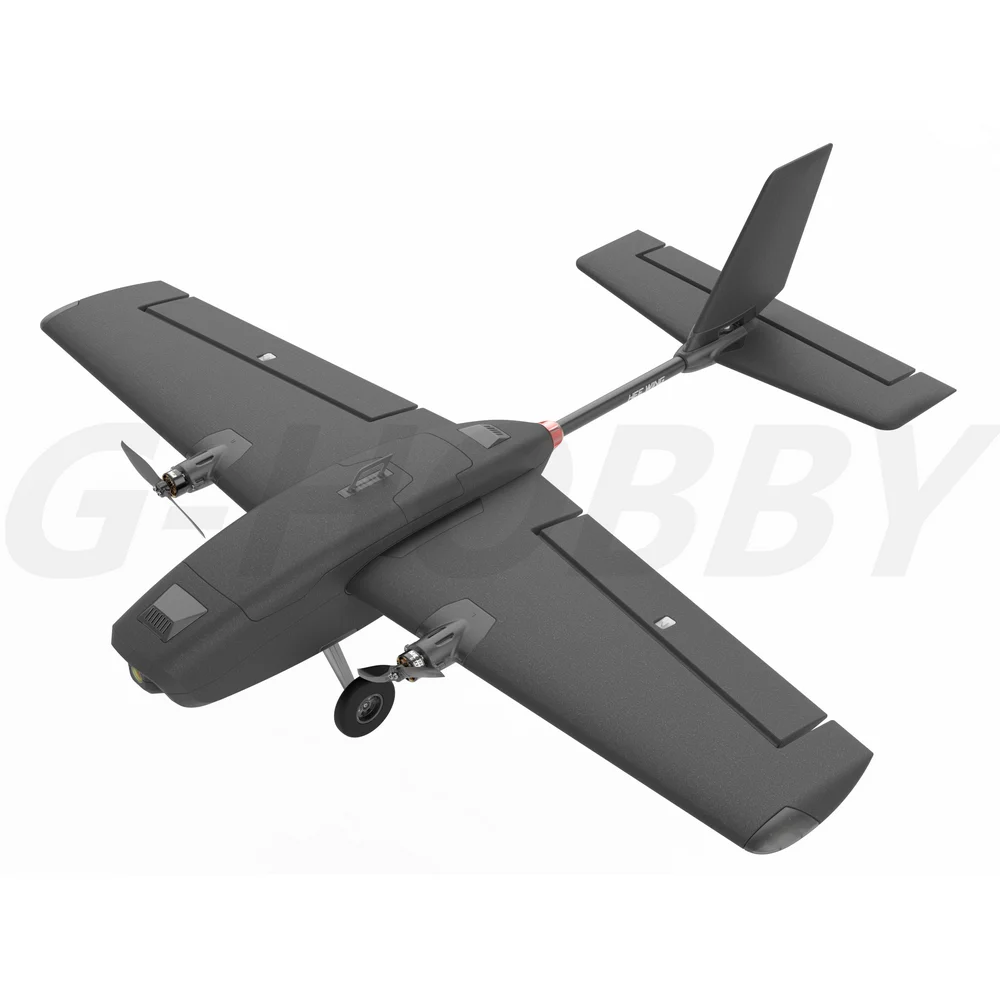

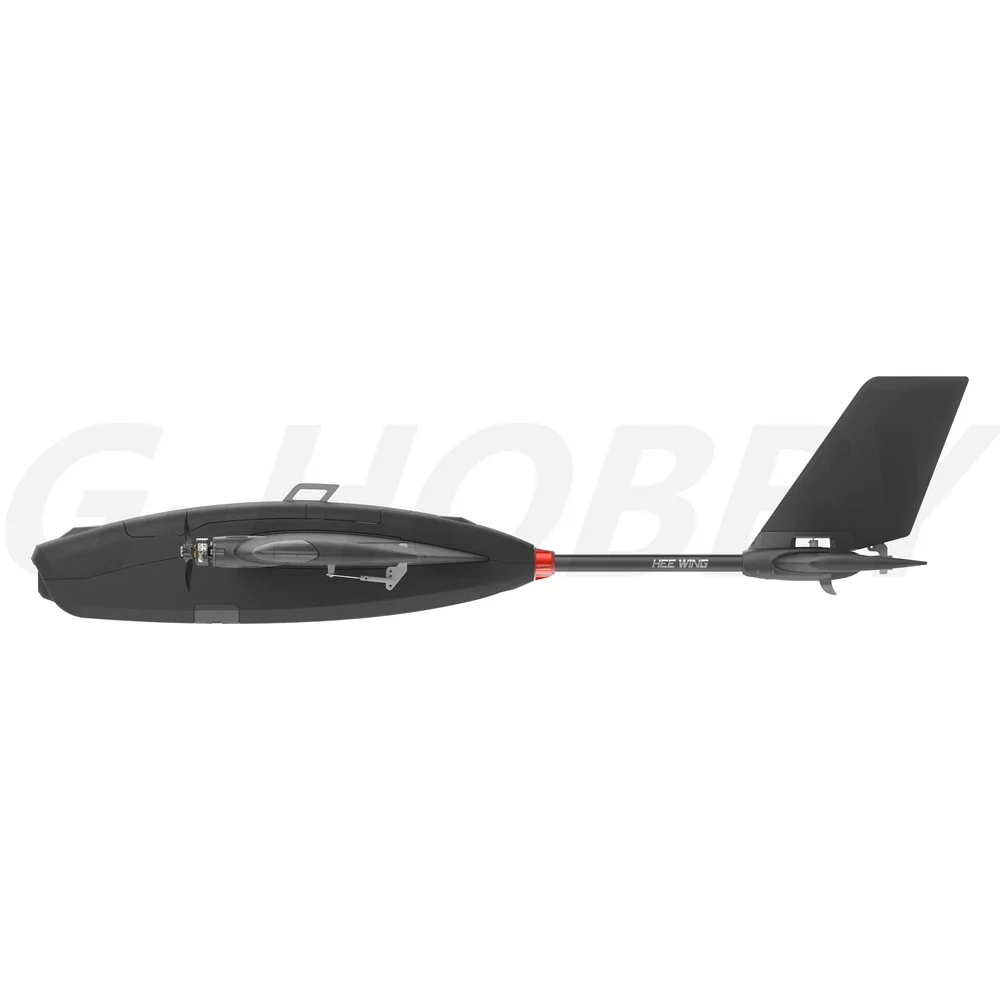

Item Name: T-1 Ranger

Color: Grey, White (optional)

Version: KIT, PNP (optional)

Material: EPP / ABS+PC / carbon fiber
/ aluminum

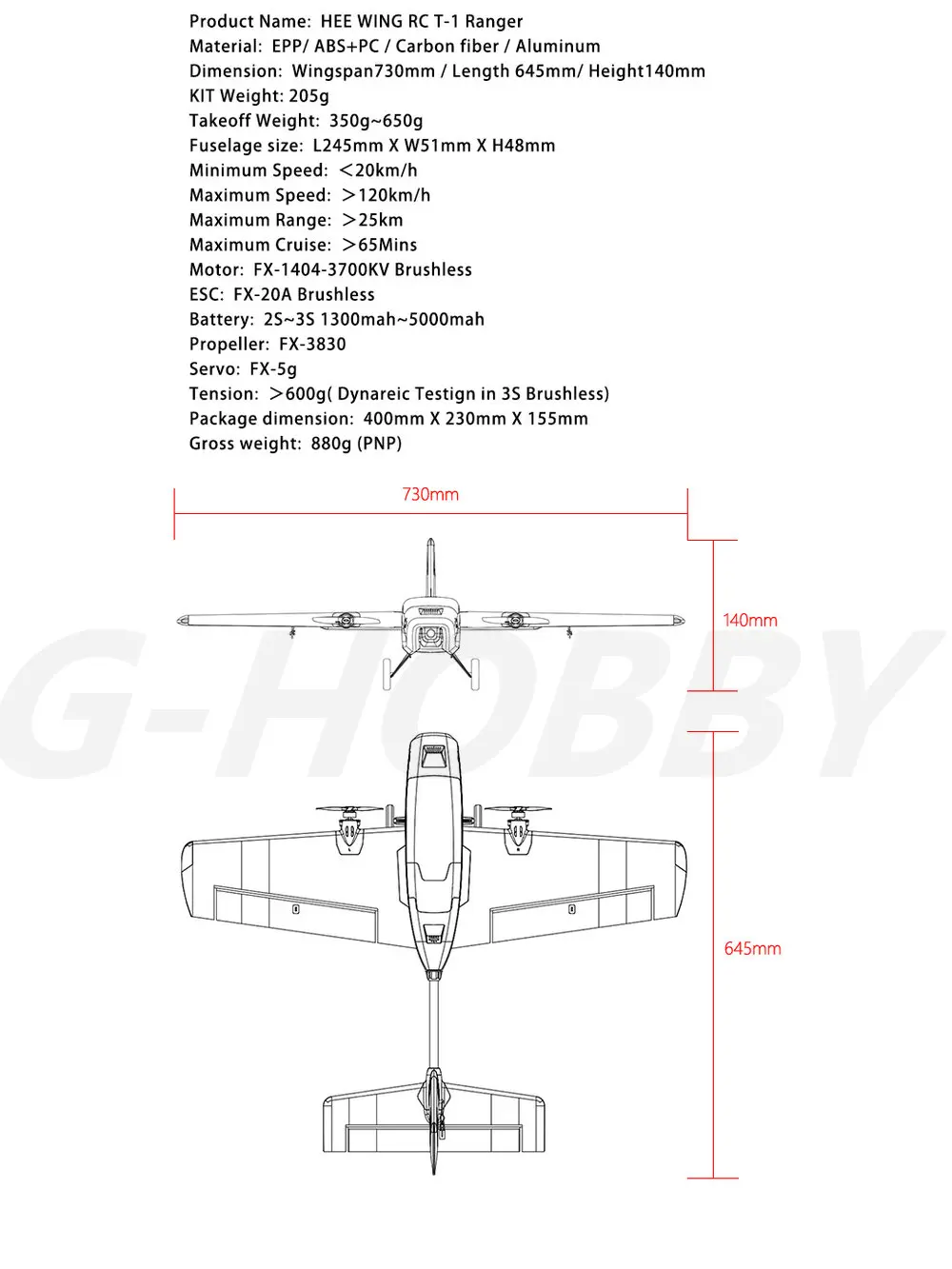

Wingspan 730mm

Length: 645mm

Height: 140mm

Empty Weight: 155g (white) / 205g
(grey)

Takeoff Weight: 350g ~ 500g

Cabin Space: Length 245mm x Width
51mm x Height 48mm

Minimum Flying Speed: <20km/h

Maximum Flight Speed: >120km/h

Maximum Cruising Range: >25km

Tensile Force: >600g (measured
statically with the brushless version of 3S)

Packing Size: 400mm * 230mm * 155mm

Package Weight: 880g (PNP)

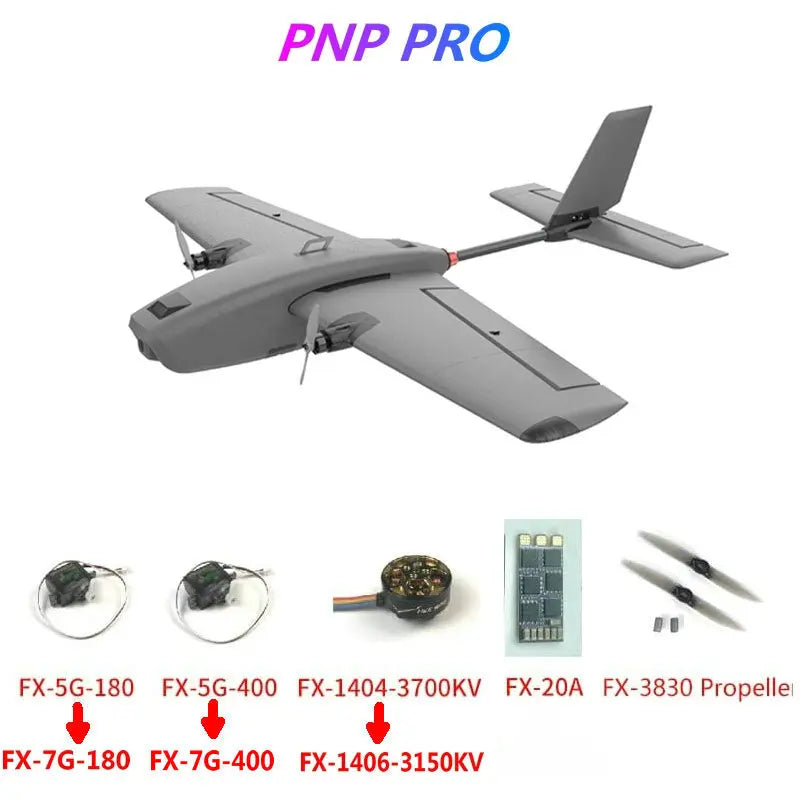

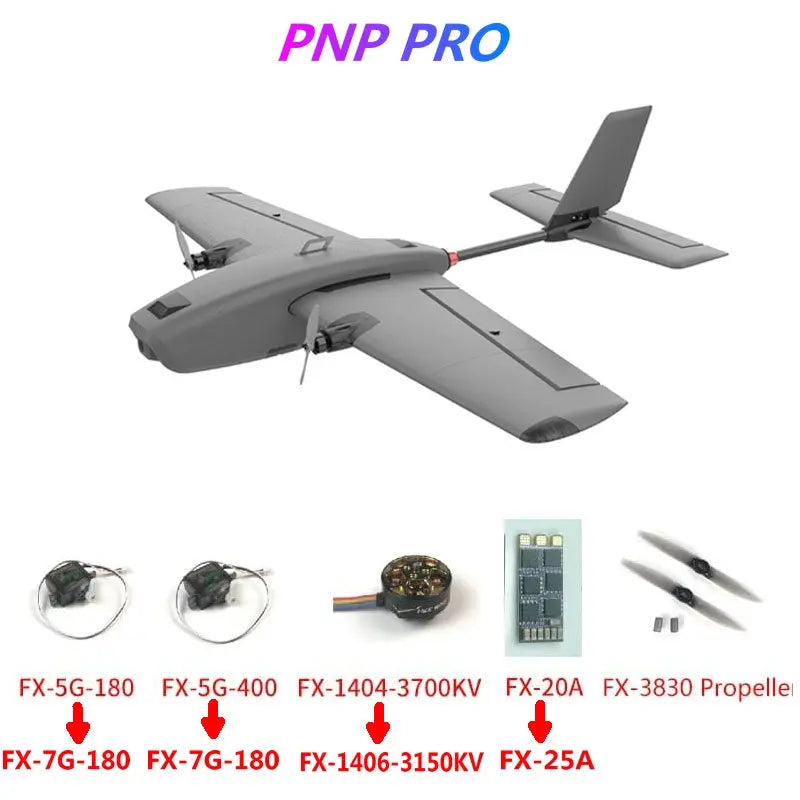

Power System (only included in
PNP Version):

Motor: FX-1404-3700KV brushless

ESC: FX-20A brushless

Propeller: FX-3830

Servo: FX-5g

Recommended Parts (Not included
in any version):

Battery: 2S ~ 3S 1300mah~ 5000mah LiPo

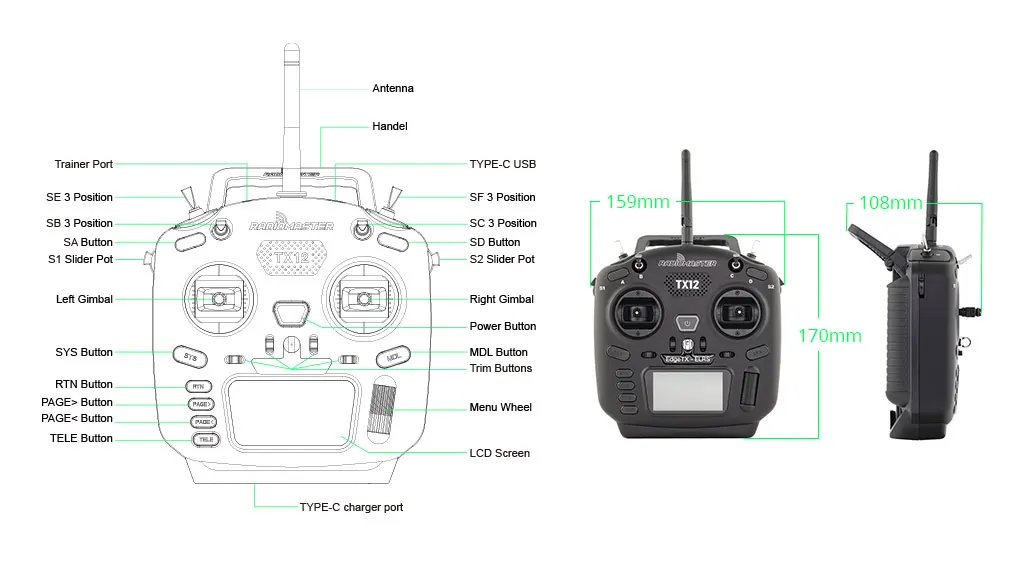

Radio System: 2.4G 6CH

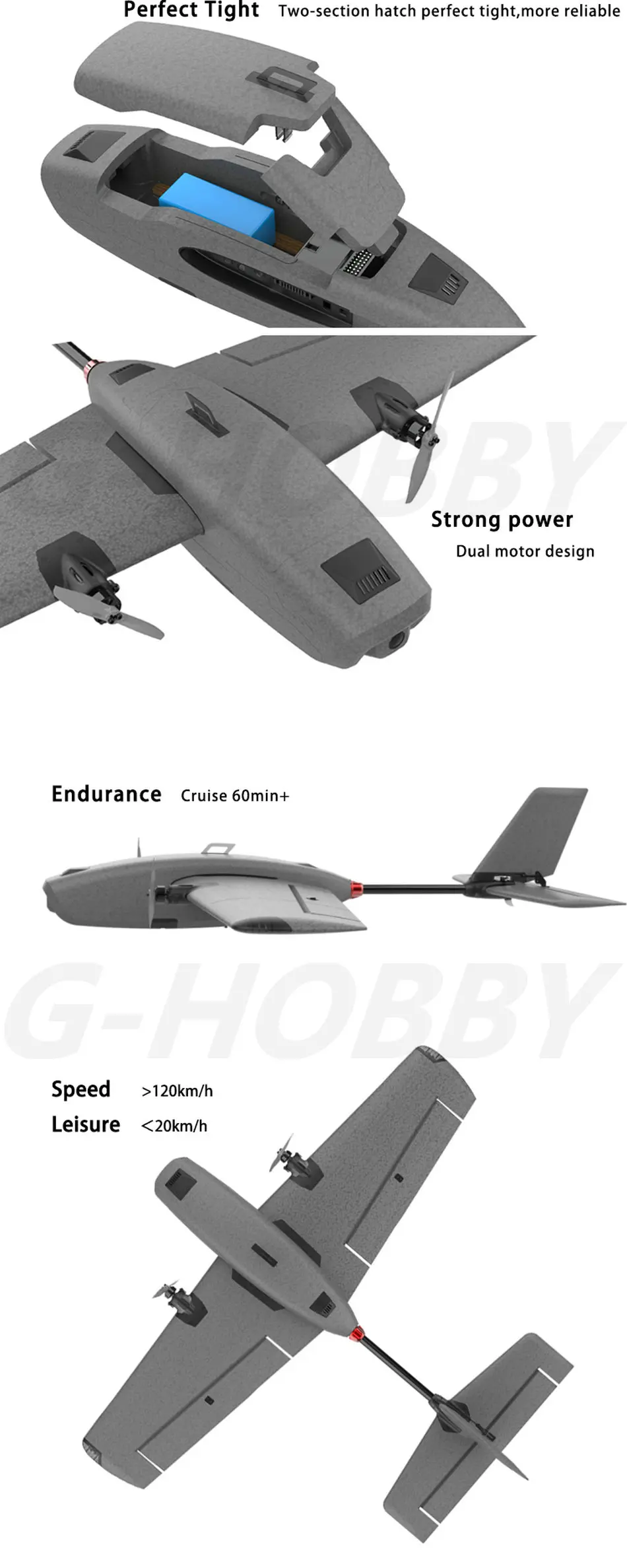

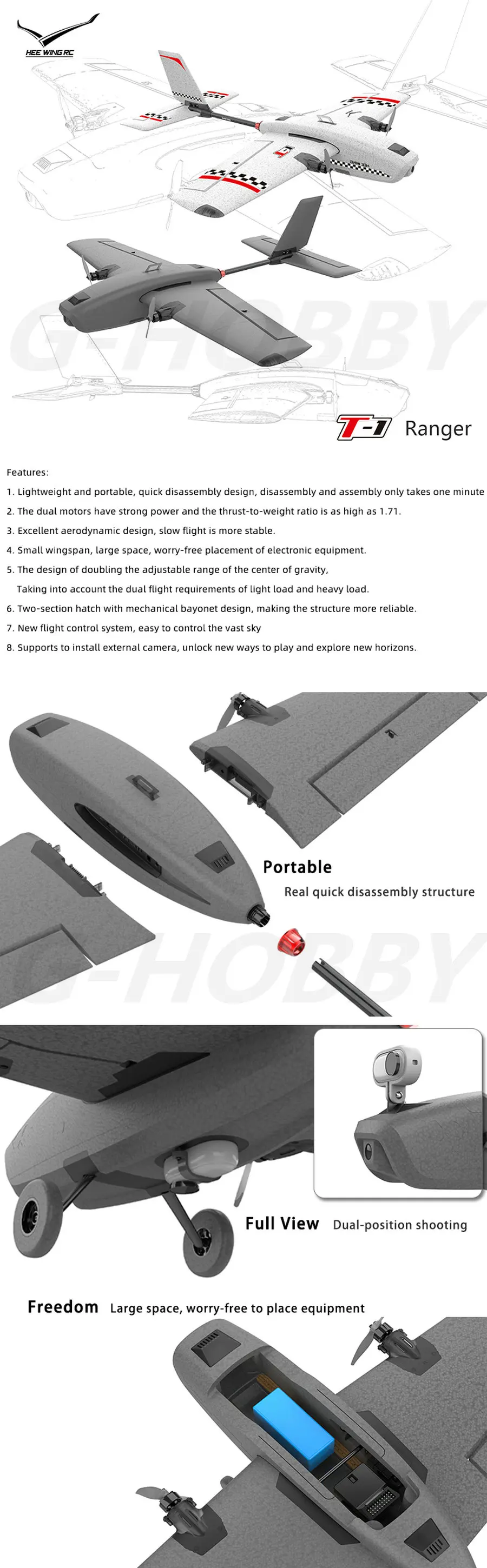

Features:

- Lightweight and portable, quick
disassembly design, disassembly and assembly only takes one minute.

- The dual motors have strong power
and the thrust-to-weight ratio is as high as 1.71.

- Excellent aerodynamic design,
slower flight is more stable.

- Small wingspan, large space, easy
layout of electronic equipment.

- The design of doubling the
adjustable range of the center of gravity, taking into account the dual flight
requirements of light load and heavy load.

- The hatch cover adopts bayonet
design, the structure is more reliable.

- The new flight control system makes
it easy to control the vast sky.

- Support for external cameras, which
can take multiple cameras at the same time.

Note:

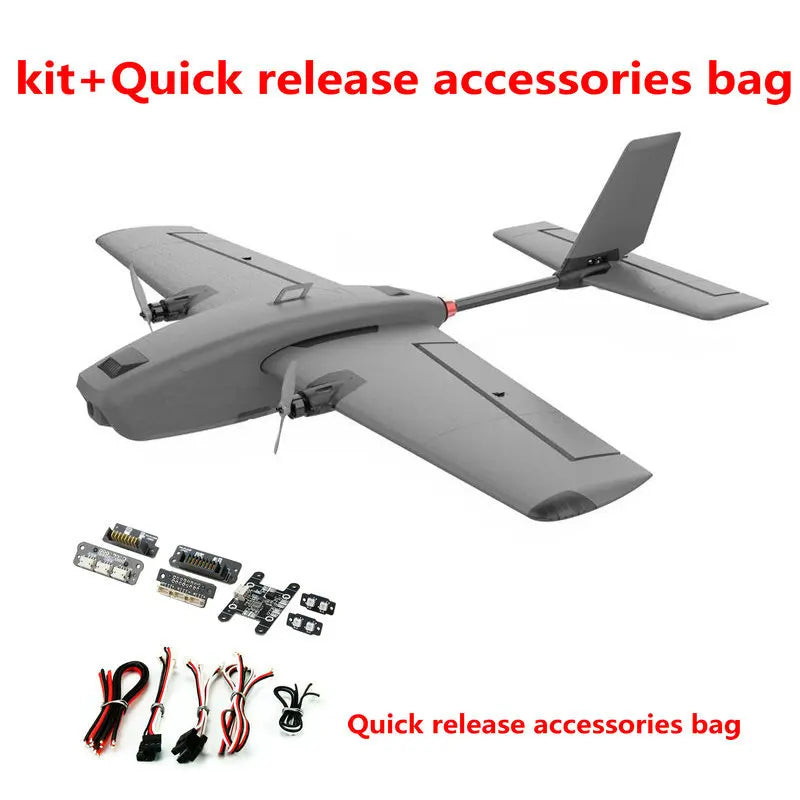

KIT Version doesn't include
motor,esc,servo,propeller,battery,charger,transmitter,receiver,quick release
plug.

PNP Version doesn't include
battery,charger,transmitter,receiver.

Glue is not included.

KIT
Version Included:

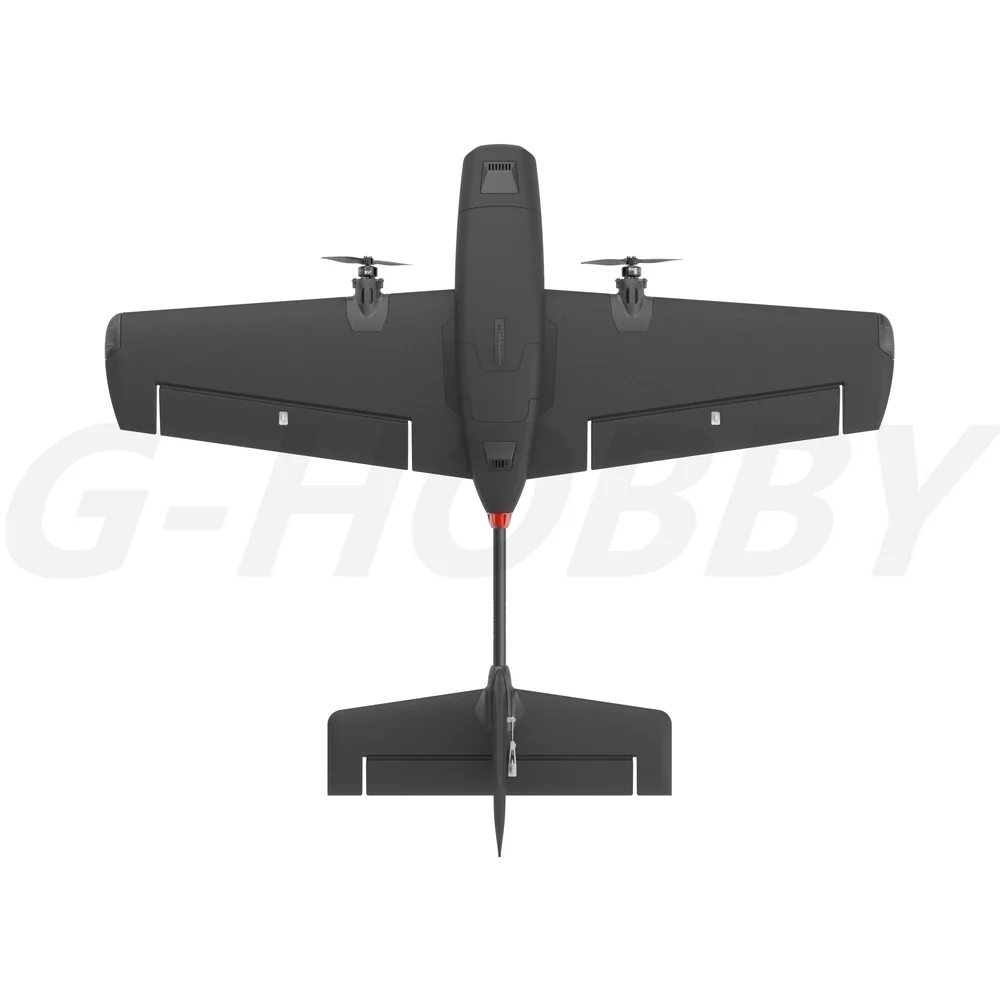

1x HEE WING T-1 Ranger 730mm
Wingspan Dual Motor EPP FPV RC Airplane KIT

1x Decals

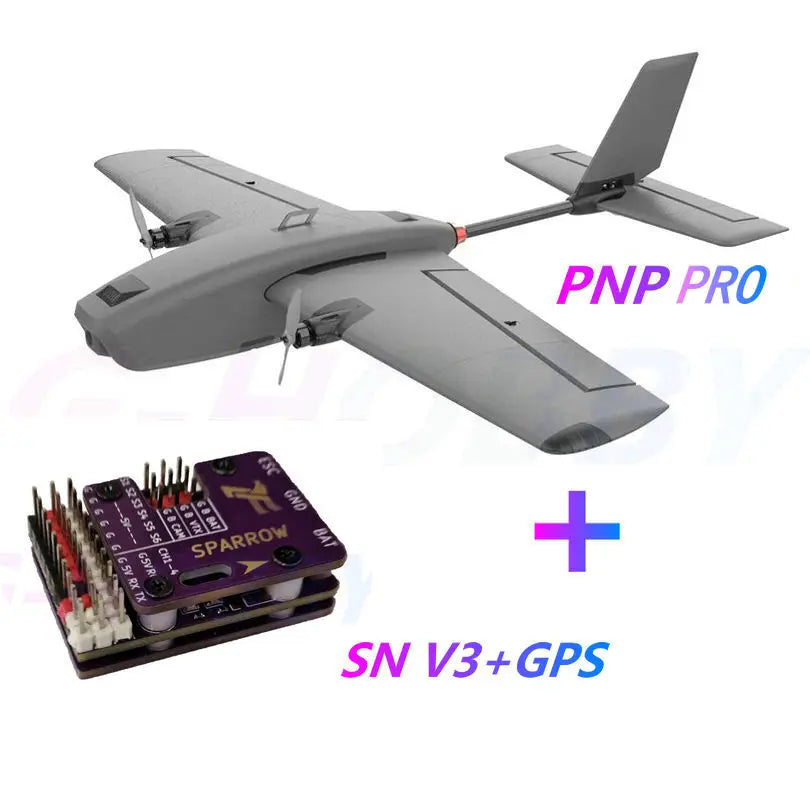

PNP
Version Included:

1x HEE WING T-1 Ranger 730mm
Wingspan Dual Motor EPP FPV RC Airplane KIT

2x 1404-3700KV Motor

2x 20A ESC

2x 3830 Propeller
