SPECIFICATIONS
APP: Tracksolidpro
Battery: 270mAh/3.7V industrial-grade Li-Polymer battery
Battery Life: 1 To 4 Hours
Box Weight: 155g
Brand Name: jimi
Built-in: GNSS antenna
Certification: CE,FCC
Communication System: LTE Cat 1 2G (GSM)
Display Type: No display
Driving behavior analysis: Harsh acceleration, Harsh braking, Harsh cornering, Collision
GPS Data storage: 3000 Pieces
GPS type: GPS Tracker
Gps Module: Yes
High-concerned chemical: none
Human interface input: Others
IP rating: IP65
Is it wireless: No

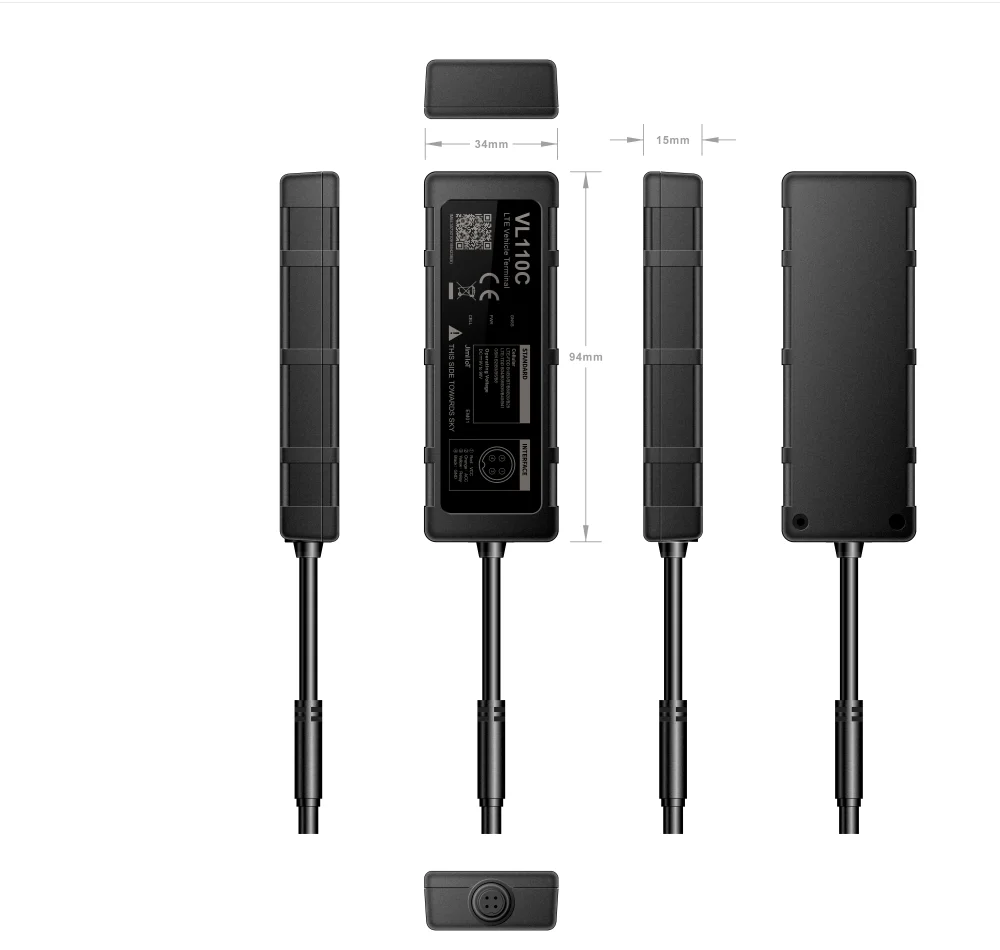

Item Size: 94(L)*34(W)*15(H)mm
Jimi Model: VL110C
Model Name: VL110C
Origin: Mainland China
Out Power: 9-90V
Positioning accuracy: less than 10 meters
Positioning system: GPS+GLONASS+BDS+LBS
Product weight: 44g
SIM: Nano-SIM
Screen Size: No screen
Shape: Rectangular
Special Features: Remote Control
USB: Type-C (for firmware upgrade)
Warranty: 2 years
Wireless Function: No

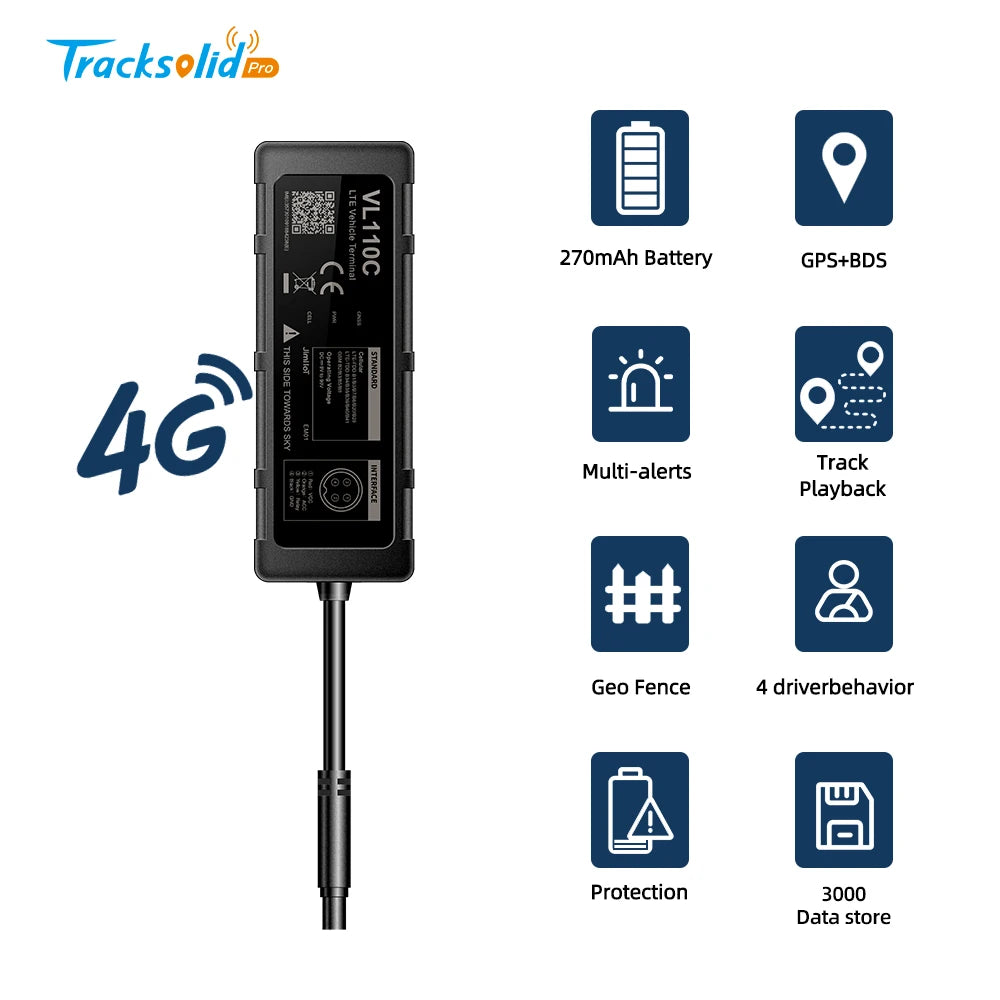

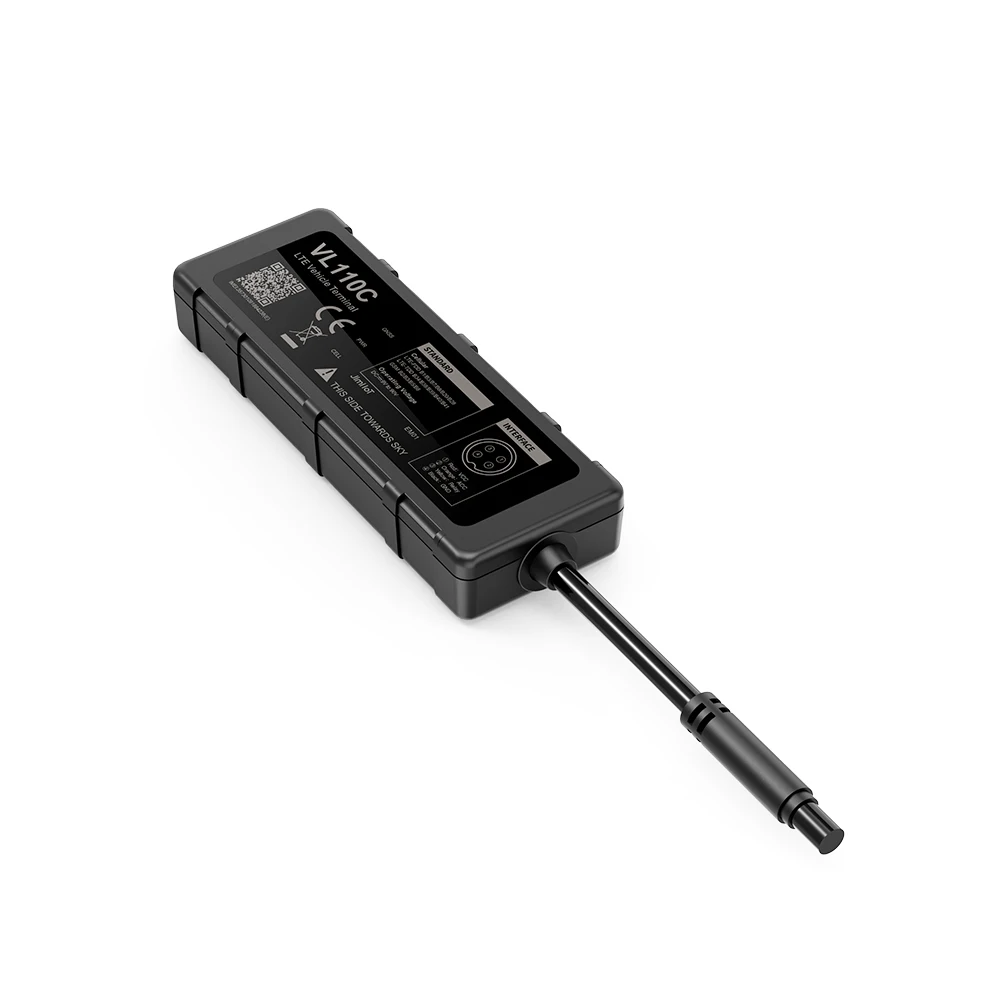

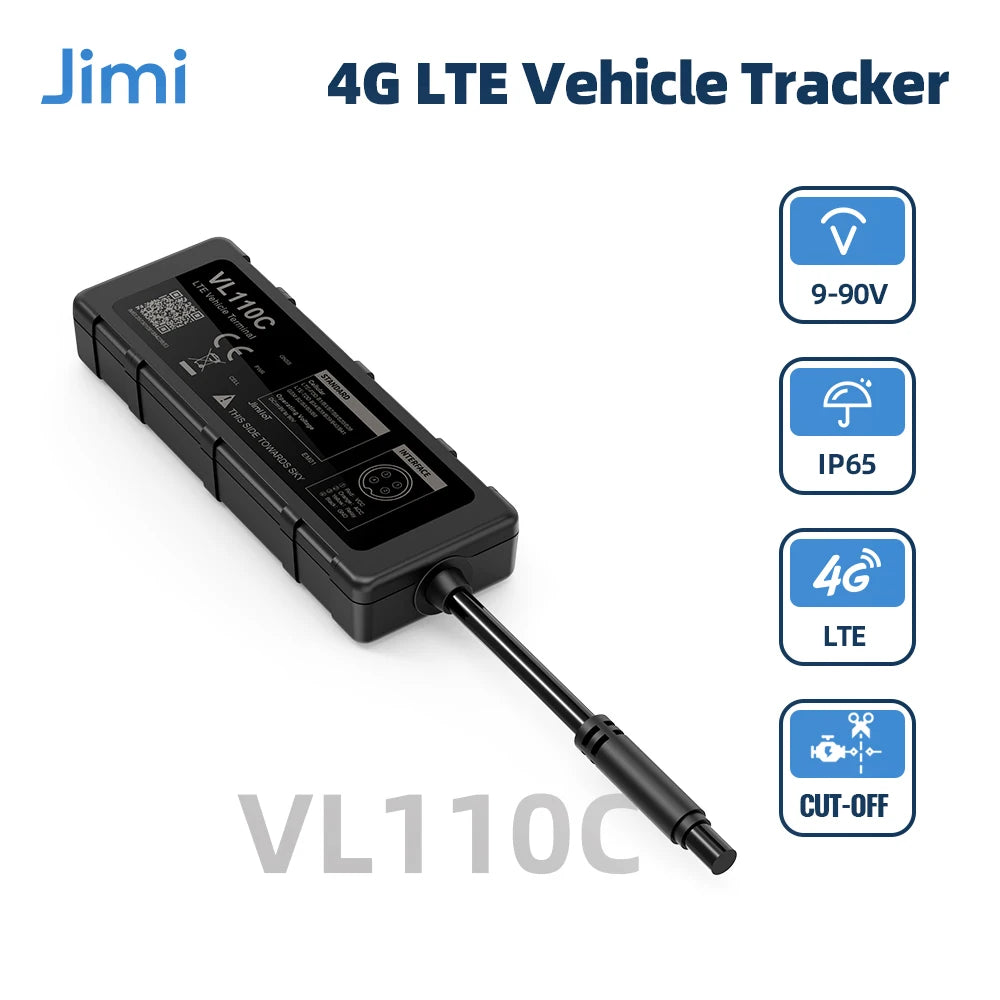

JM-VL110C LTE Vehicle Terminal
The VL110C is a compact 4G LTE Vehicle GNSS Terminal designed for the management of vehicles of all types. The wide 9-90V input voltage range is compatible with almost all vehicles. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. It is a perfect tracker for a wide range of use cases -stolen vehicle recovery and the management of motorcycles, passenger cars, and light commercial vehicles.
Our Jimi team will send the right version according to your
country, so no worry about whether it can work in your country or not, VL110C will
not be problem.
2. JM-VL110C is with 9-90V wide voltage
It works with all types of vehicles and motorclye
Platform: search “Tracksolidpro”
on google play and app store to download it.

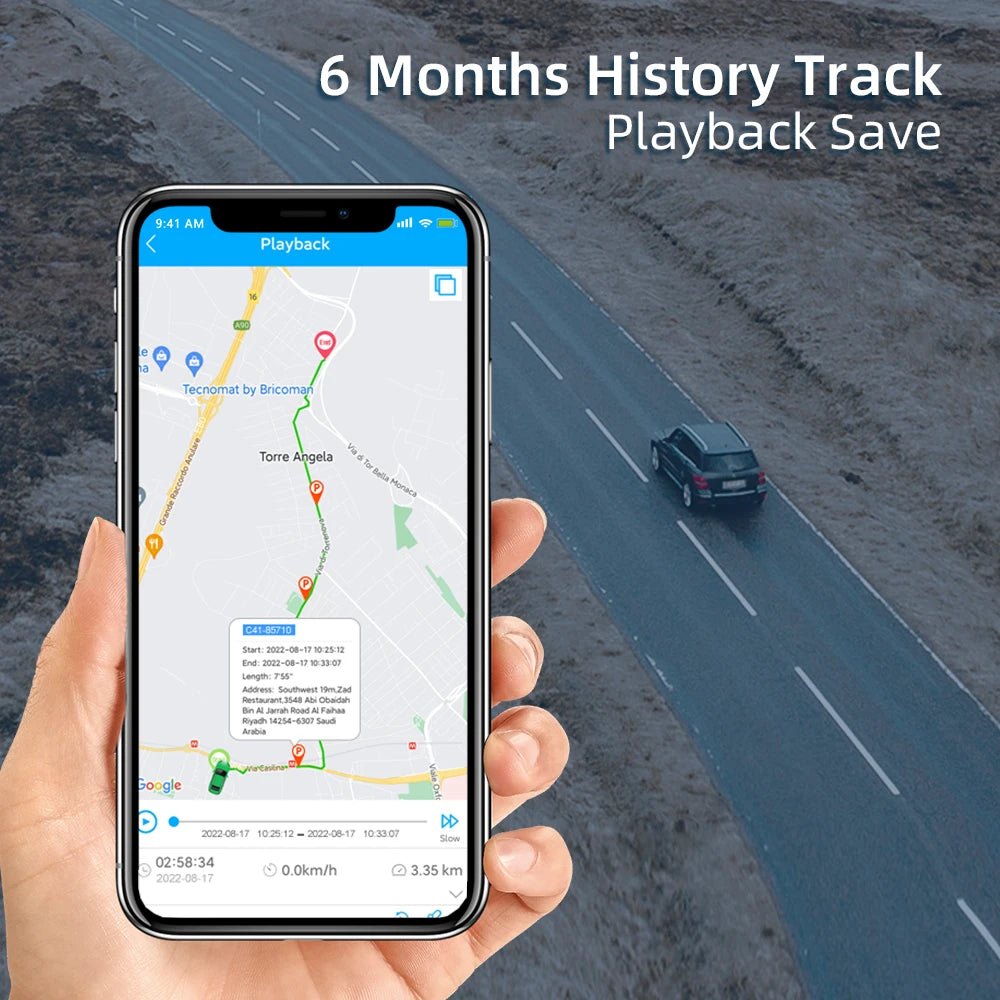

TracksolidPro is a SaaS platform for GPS tracking and video monitoring. It offers a complete set of services designed for monitoring any driver and person, detect reckless driving behavior, track fleet vehicles and cargoes in real-time, collect
vehicle data, and more to help businesses achieve greater productivity and efficiency. As part of an off-the-shelf turnkey solution, Tracksolid Pro is secure, open, and scalable, and plays an essential role to enable visibility and controllability, simplify management, and optimize resources utilization.
VL110C(E)
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B34/B38/B39/B40/B41
GSM: B2/B3/B5/B8
VL110C (L)
LTE-FDD:：B1/B2/B3/B4/B5/B7/B8/B28
GSM: B2/B3/B5/B8
The device can receive and transmit data in the coverage of 4G and 2G network

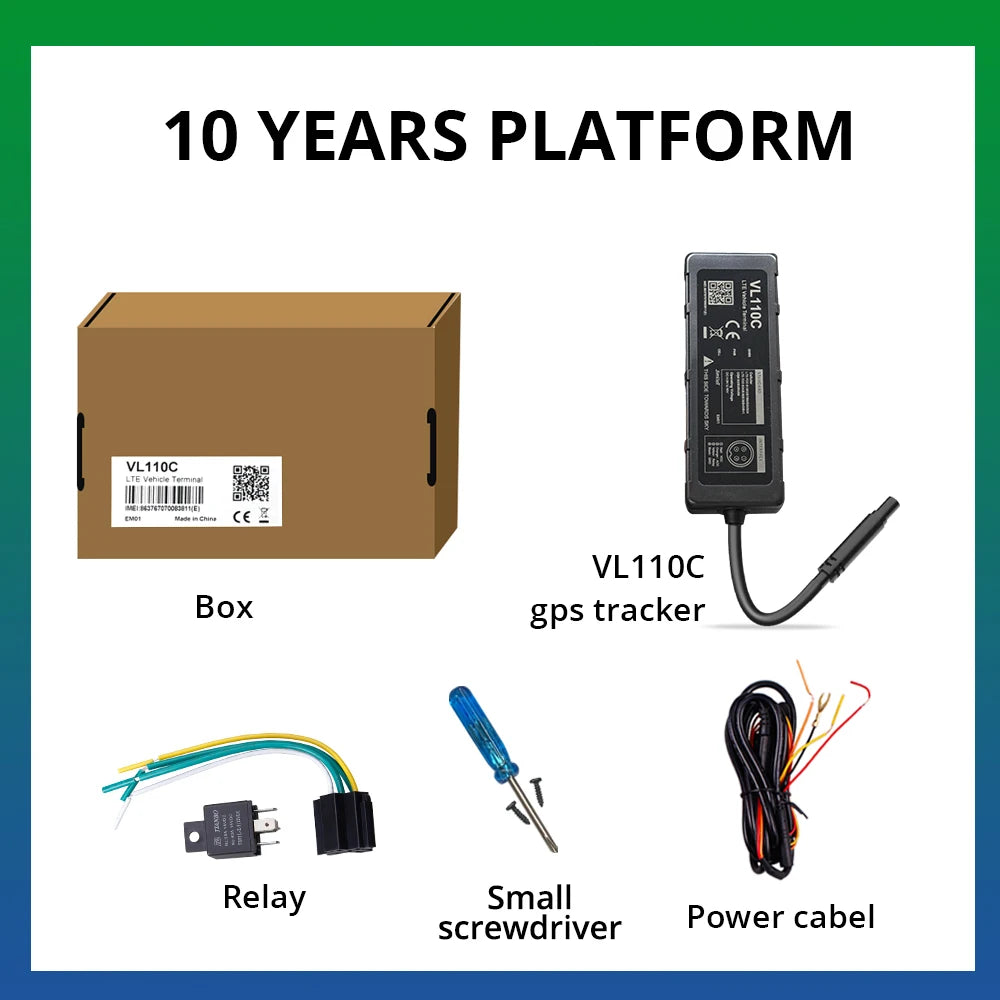

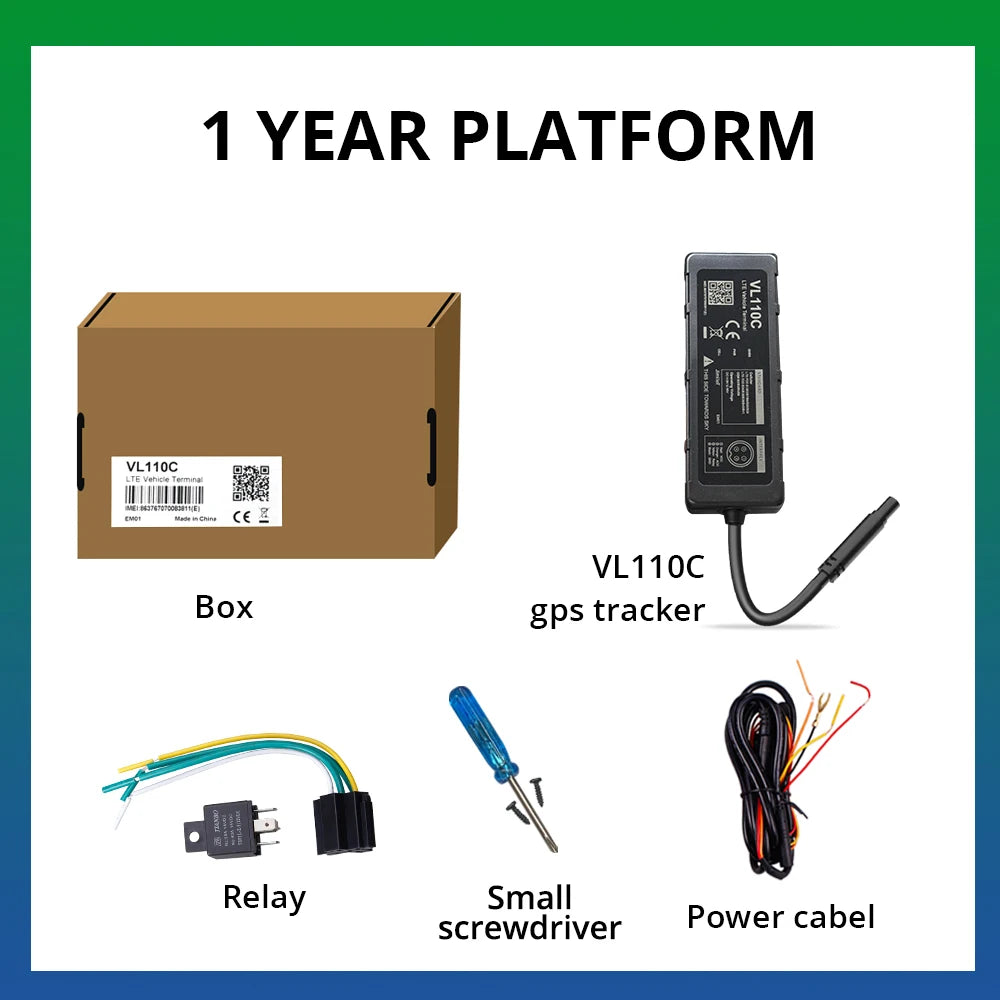

Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
4.Vehicle Battery Protection
Disconnect from the vehicle's power supply and operate on its internal battery when the device detects the vehicle battery drops to a critical level.
Wide operating voltage range is suitable for a huge variety of vehicles, including industrial equipment, scooters, golf carts, and more.
6.IP65 Water & Dust Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
You can know more about the VL110C from the pictures.
