SPECIFICATIONS
120mm Fan Options: 9
140mm Fan Options: 2
Application: Desktop
Brand Name: Jonsbo
Case Size: 455 (D) *238.2mm (W) *368.4mm (H)
Case Weight: 6.7
Chassis Type: Desktops
Choice: yes
Dust Filters: Rear
Form Factor: MicroATX,Mini-ITX
Front Ports: USB3.2 Gen2 Type-C*1/USB3.0*2/AUDIO*1+MIC*1(2in1)
High-concerned chemical: none
Internal 2.5" Drive Bays: 2
Internal 3.5" Drive Bays: 2
Material: others
Max CPU Cooler Height: 172
Max GPU Length: 435
Max PSU Length: 160
Model Number: D33
Origin: Mainland China
Power Model: SFX
Power Supply Mounted: Bottom
RGB Support: NO RGB
Radiator Size: 360mm
Series: D33
Type: Horizontal
With Fan: no
With Power Supply: no
With Side Panel Window: Yes
semi_Choice: yes

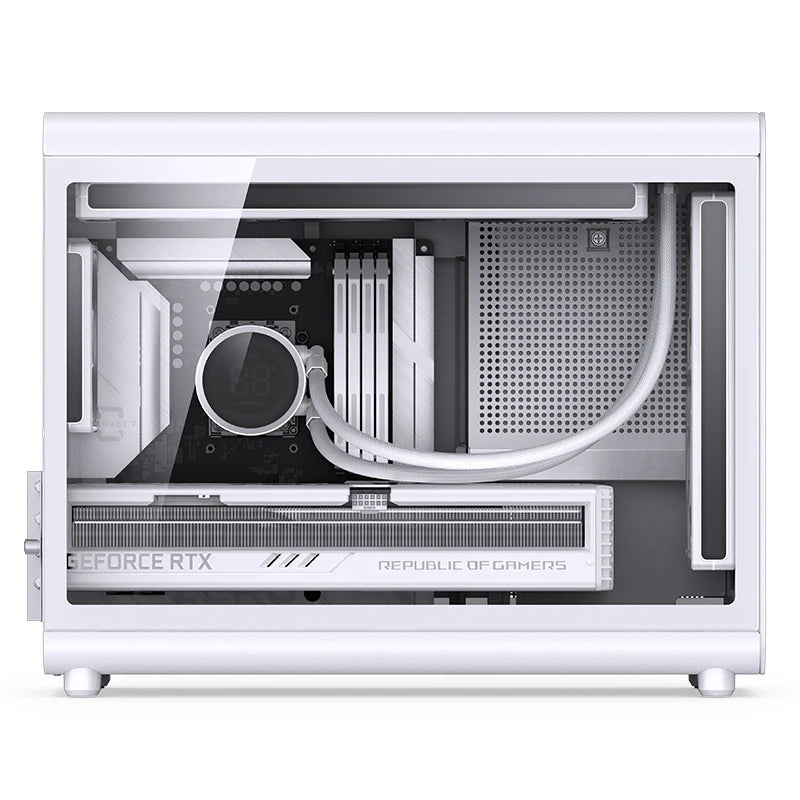

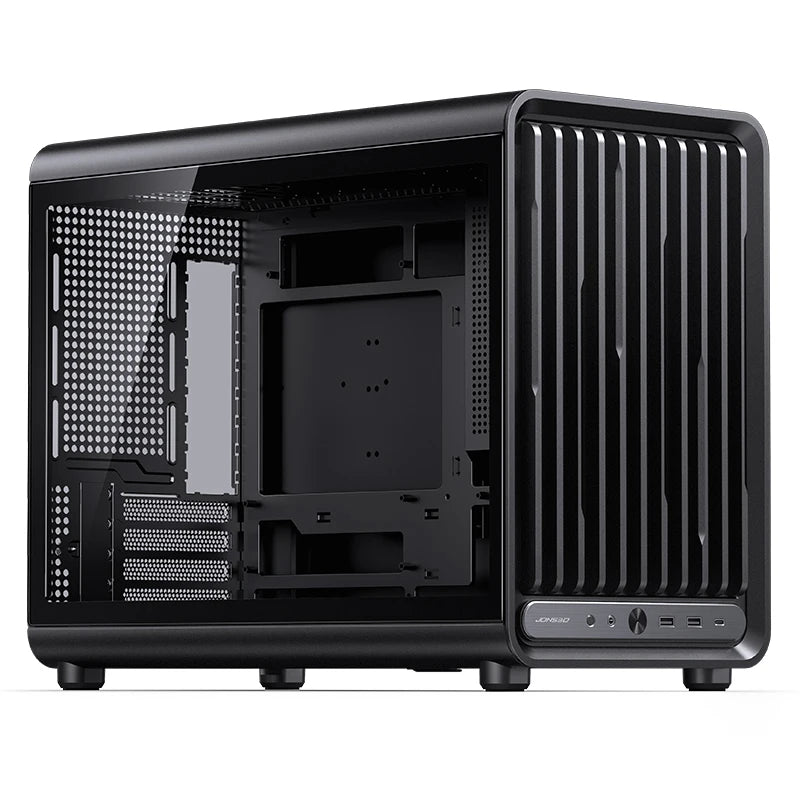

Product Parameters
Product model: D33
Color: Standard Edition Black/White
Product size: 455 (D) * 238.2mm (W) * 368.4mm (H) (including foot pads/excluding additional protrusions)
Motherboard support types: Mini ITX/Micro ATX, compatible with back plug motherboards
Drive bit: 3.5 "HDD * 2/2.5" SSD * 2
Expansion slot: 4
Fan: Top: 120mm * 3 (not standard); Front: 120mm * 2 (when installing ATX power supply)/140mm * 2 (when installing SFX power supply) (not standard); Rear: 120mm * 1 (not standard) Bottom: 120mm * 3 (not standard)
Water cooling system: Top: 240mm/360mm * 1
Power support: ATX PS2/SFX ≤ 160mm
CPU heatsink support height: 172mm
Graphics card support: ≤ 435mm
Front interface: USB 3.2 Gen2 Type-C * 1/USB 3.0 * 2/AUDIO * 1+MIC * 1 (2-in-1)
Net weight: 6.7kg Gross weight: 8.1kg

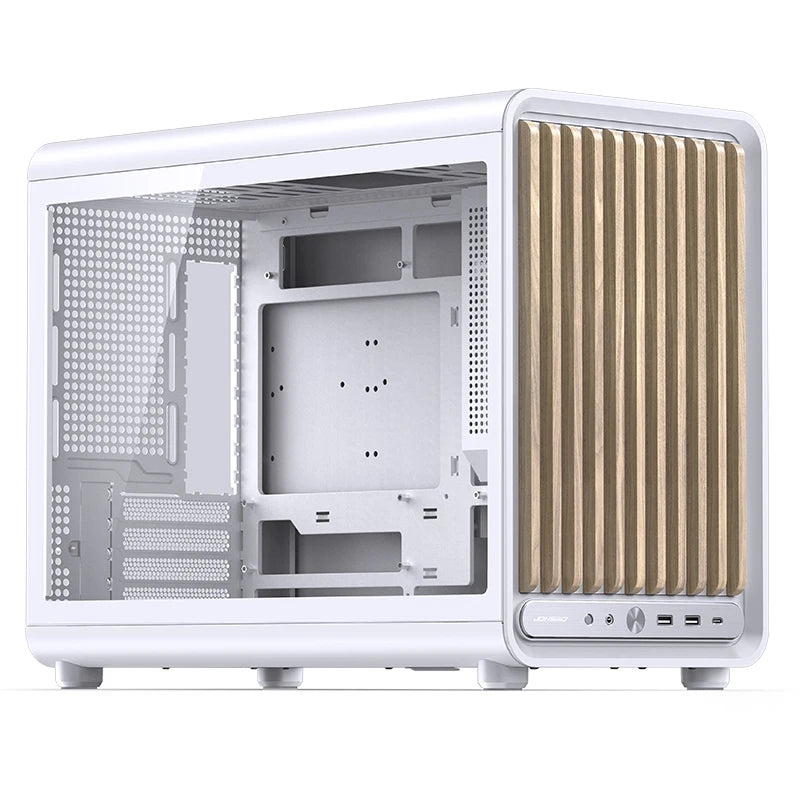

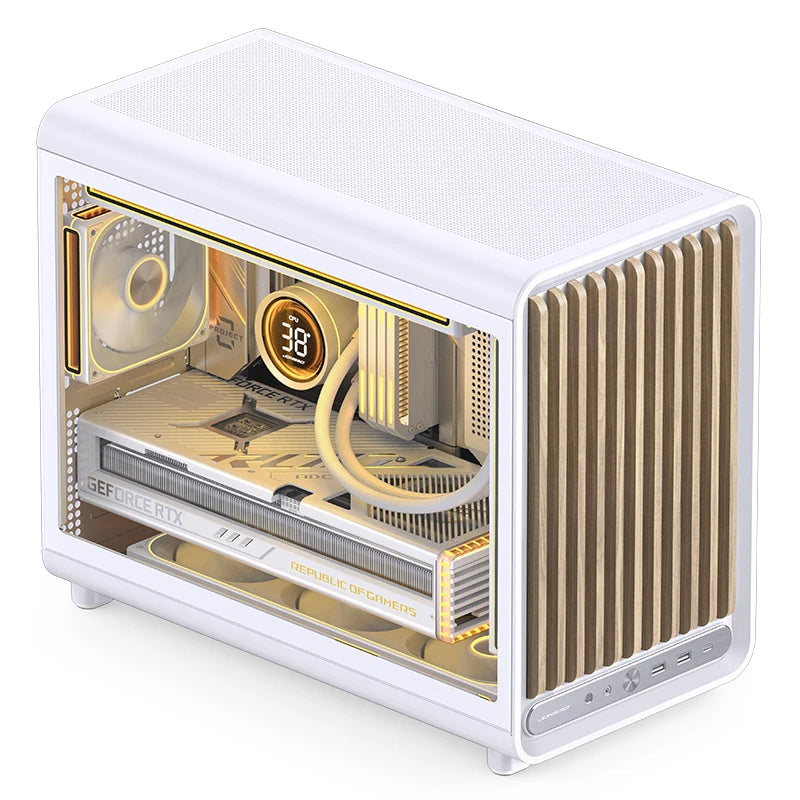

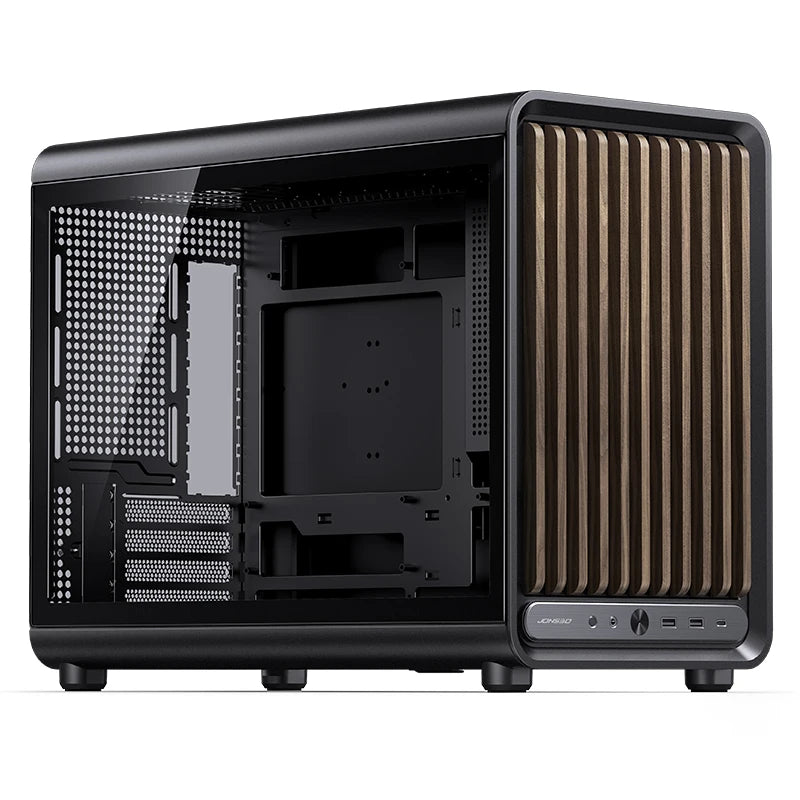

D33 WOOD version
Product model: D33
Color: WOOD version white/black
Product size: 455 (D) * 238.2mm (W) * 368.4mm (H) (including foot pads/excluding additional protrusions)
Motherboard support types: Mini ITX/Micro ATX, compatible with back plug motherboards
Drive bit: 3.5 "HDD * 2/2.5" SSD * 2
Expansion slot: 4
Fan: Top: 120mm * 3 (not standard); Front: 120mm * 2 (when installing ATX power supply)/140mm * 2 (when installing SFX power supply) (not standard); Rear: 120mm * 1 (not standard) Bottom: 120mm * 3 (not standard)
Water cooling system: Top: 240mm/360mm * 1
Power support: ATX PS2/SFX ≤ 160mm
CPU heatsink support height: 172mm
Graphics card support: ≤ 435mm
Front interface: USB 3.2 Gen2 Type-C * 1/USB 3.0 * 2/AUDIO * 1+MIC * 1 (2-in-1)
Net weight: 6.7kg Gross weight: 8.1kg
