SPECIFICATIONS

120mm Fan Options: 2

Application: Desktop

Brand Name: Jonsbo

Case Size: 299mm (W) *310mm (D) *345mm (H)

Case Weight: 7

Chassis Type: Desktops

Dust Filters: Bottom

Expansion Slots: 4

Form Factor: MicroATX,ITX

Front Ports: USB3.2 Gen2 Type-C*1/USB3.0*1/AUDIO*1+MIC*1(2in1)

Internal 2.5" Drive Bays: 1

Internal 3.5" Drive Bays: 2

Material: Aluminum alloy,STEEL,Tempered glass

Max CPU Cooler Height: 165

Max GPU Length: 280

Max PSU Length: 220

Model Number: TK-1

Origin: Mainland China

Power Model: ATX

Power Supply Mounted: Bottom

RGB Support: NO RGB

Radiator Size: 240mm

Series: TK-1

Type: Horizontal

With Fan: no

With Power Supply: no

With Side Panel Window: Yes

TK-1 Version 2.0

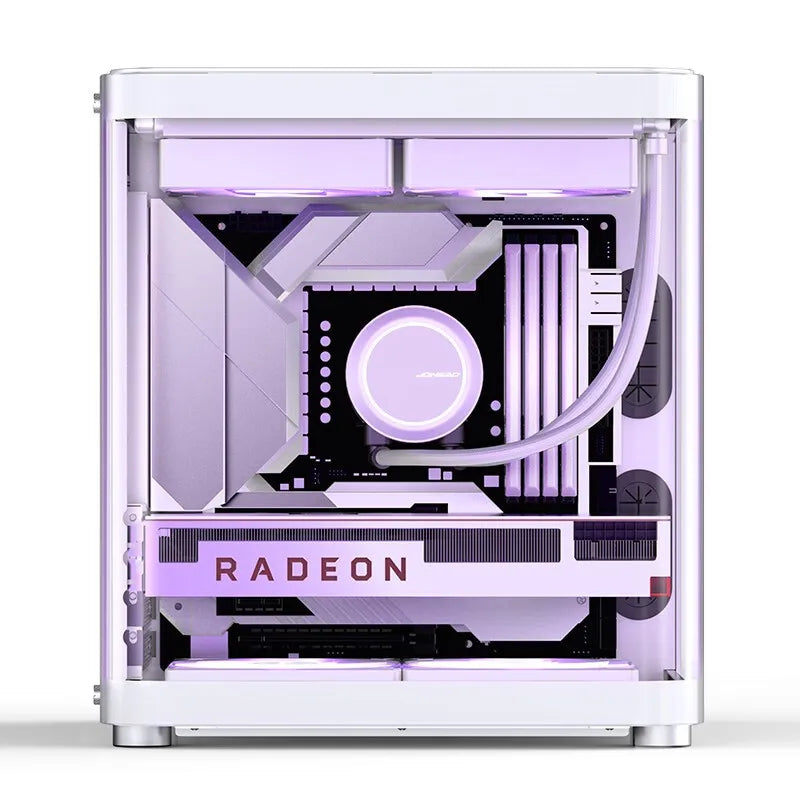

Adopting a double bent circular glass 2.5 face panoramic design. Both hardware and handheld devices can be fully displayed from multiple perspectives. The multi angle side view design can support more reasonable planning of desktop space through multi angle placement. Good ventilation from the bottom up takes away heat faster. The 2.0 version can support back insertion of motherboards, making the wiring inside the chassis cleaner.

TK-1 Product parameters

Colors : White/Black
Product size : 299mm(W)×310mm(D)×345mm(H) (including foot pads)
Material : 2.5mm aluminum alloy/1mm steel plate
Compatible motherboard : ITX/M-ATX

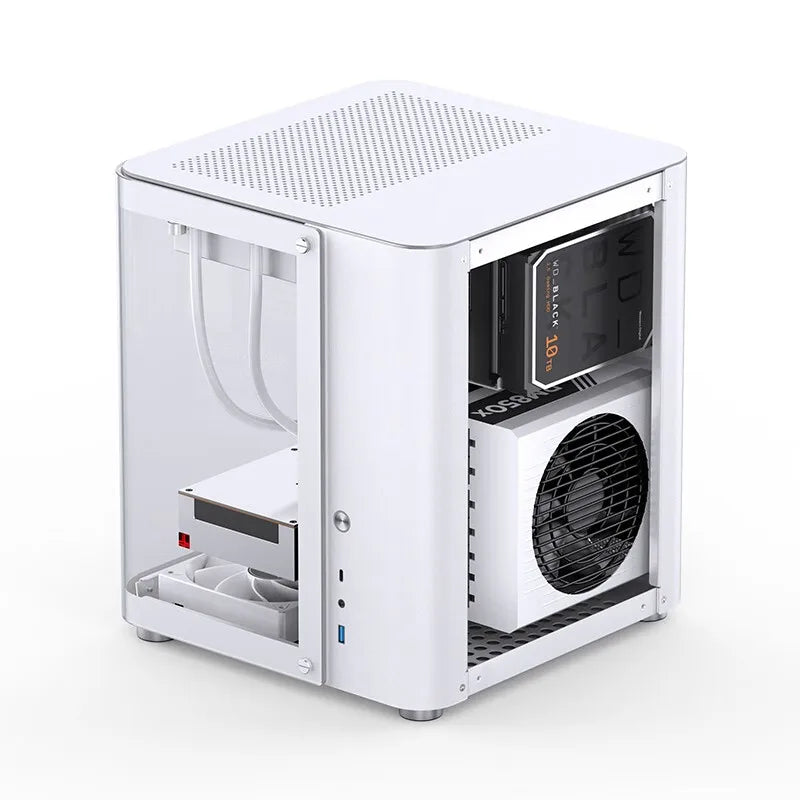

Drive position : 3.5"HDD*2 or 2.5"SSD*1/3.5"HDD*1
Front interface : USB3.2 Gen2 Type-C*1/USB3.0*1/AUDIO*1+MIC*1 (2 in 1)
Power supply : ATX≤220mm
CPU cooler : ≤65mm
Graphics card : ≤280mm
Water drainage : top plate 240mm*1 (optional) Fan: top plate 120mm*2 (optional) bottom plate 120mm*2 (optional)
Net weight of the chassis : 5.9KG
