SPECIFICATIONS

120mm Fan Options: 2

140mm Fan Options: 0

Application: Desktop

Brand Name: Jonsbo

Case Size: 280mm(W) * 301mm(D) * 275.5mm(H)

Case Weight: 5.52

Chassis Type: Desktops

Choice: yes

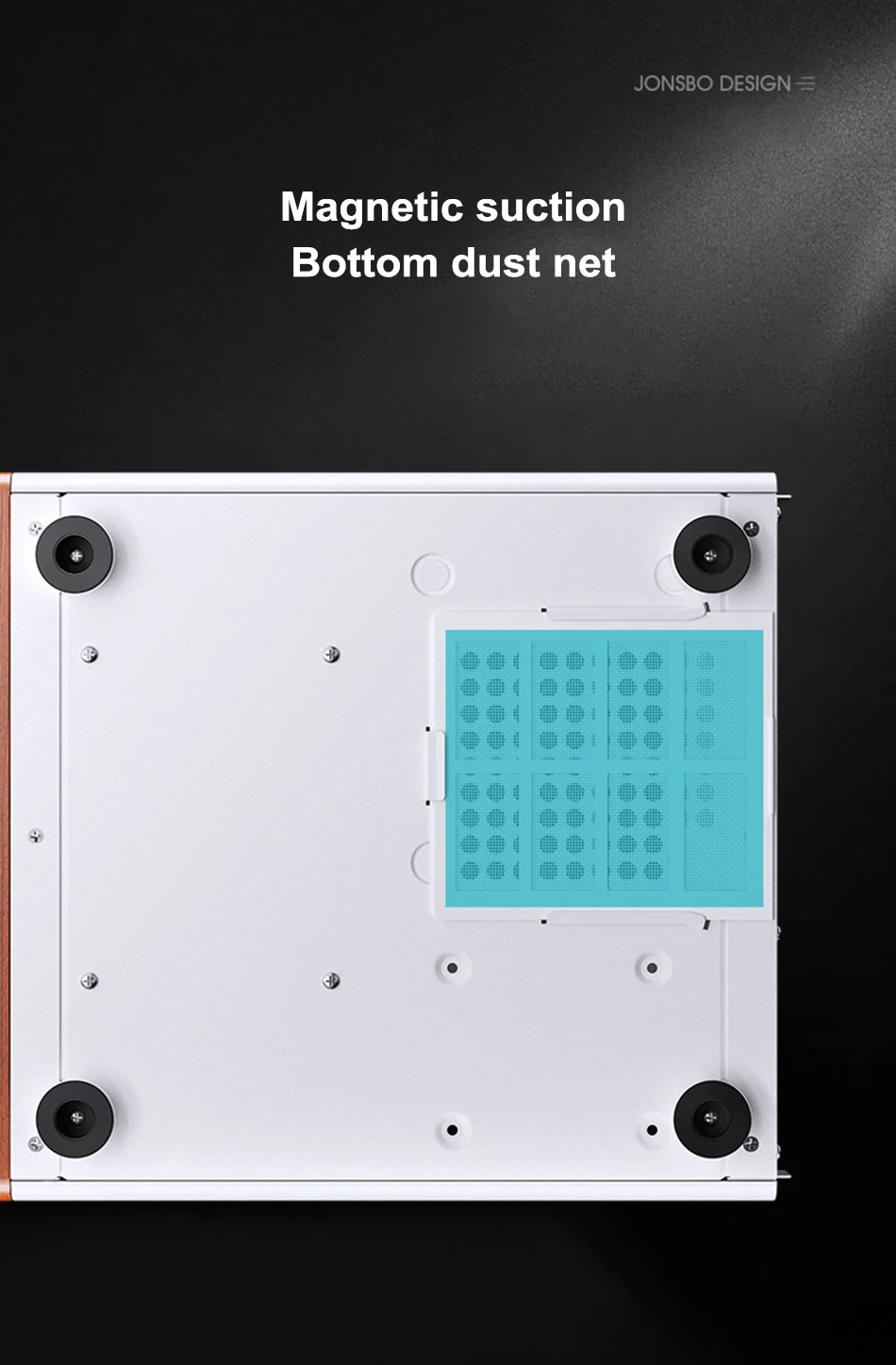

Dust Filters: Bottom

Form Factor: MicroATX,ITX

Front Ports: USB3.2 Gen2 Type-C*1 / USB3.0*1 / AUDIO*1+MIC*1(2IN1)

High-concerned chemical: none

Internal 2.5" Drive Bays: 1

Internal 3.5" Drive Bays: 2

Material: STEEL

Max CPU Cooler Height: 145

Max GPU Length: 260

Max PSU Length: 220

Model Number: V12

Origin: Mainland China

Power Model: ATX

Power Supply Mounted: Bottom

RGB Support: NO RGB

Series: V12

Style: CASE+Fan

Type: Horizontal

With Fan: no

With Power Supply: no

With Side Panel Window: Yes

semi_Choice: yes

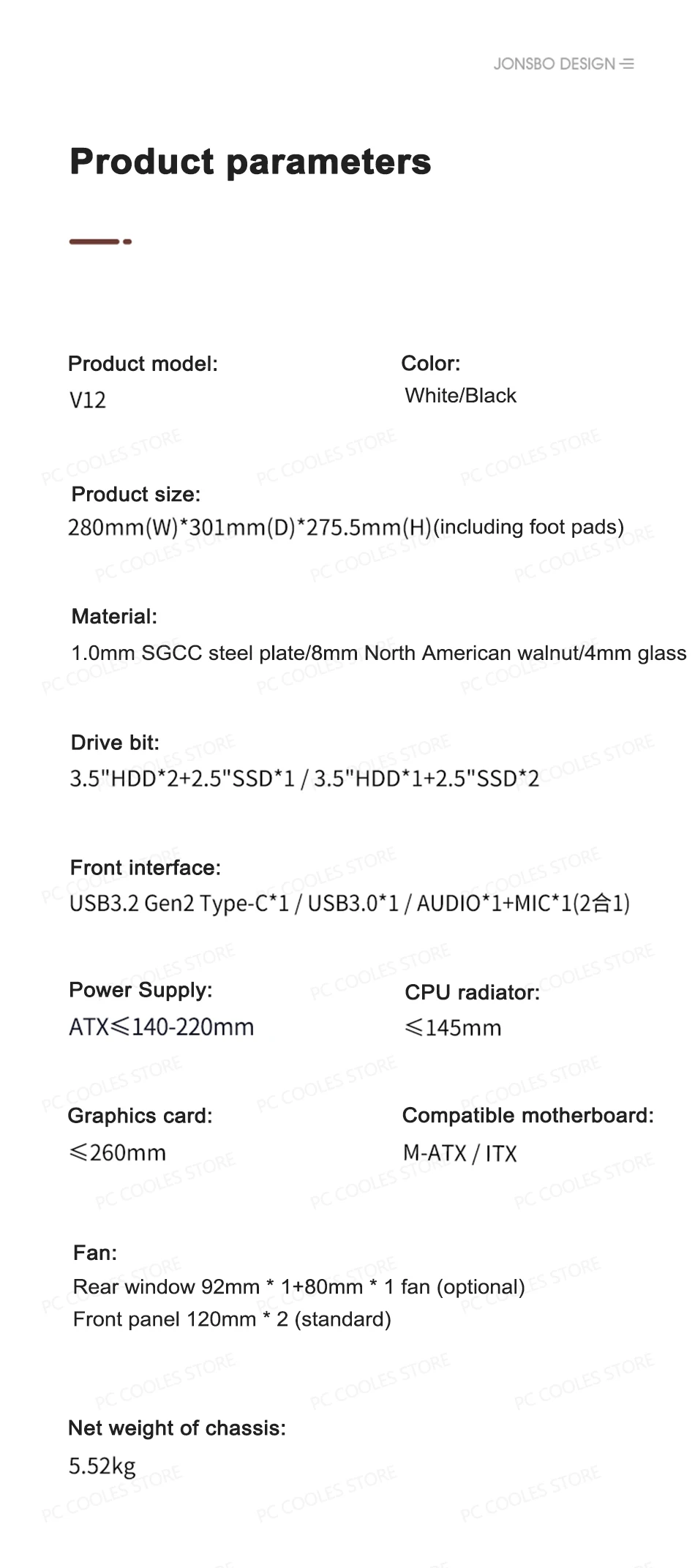

Product parameters

Product Model: V12 Black/White

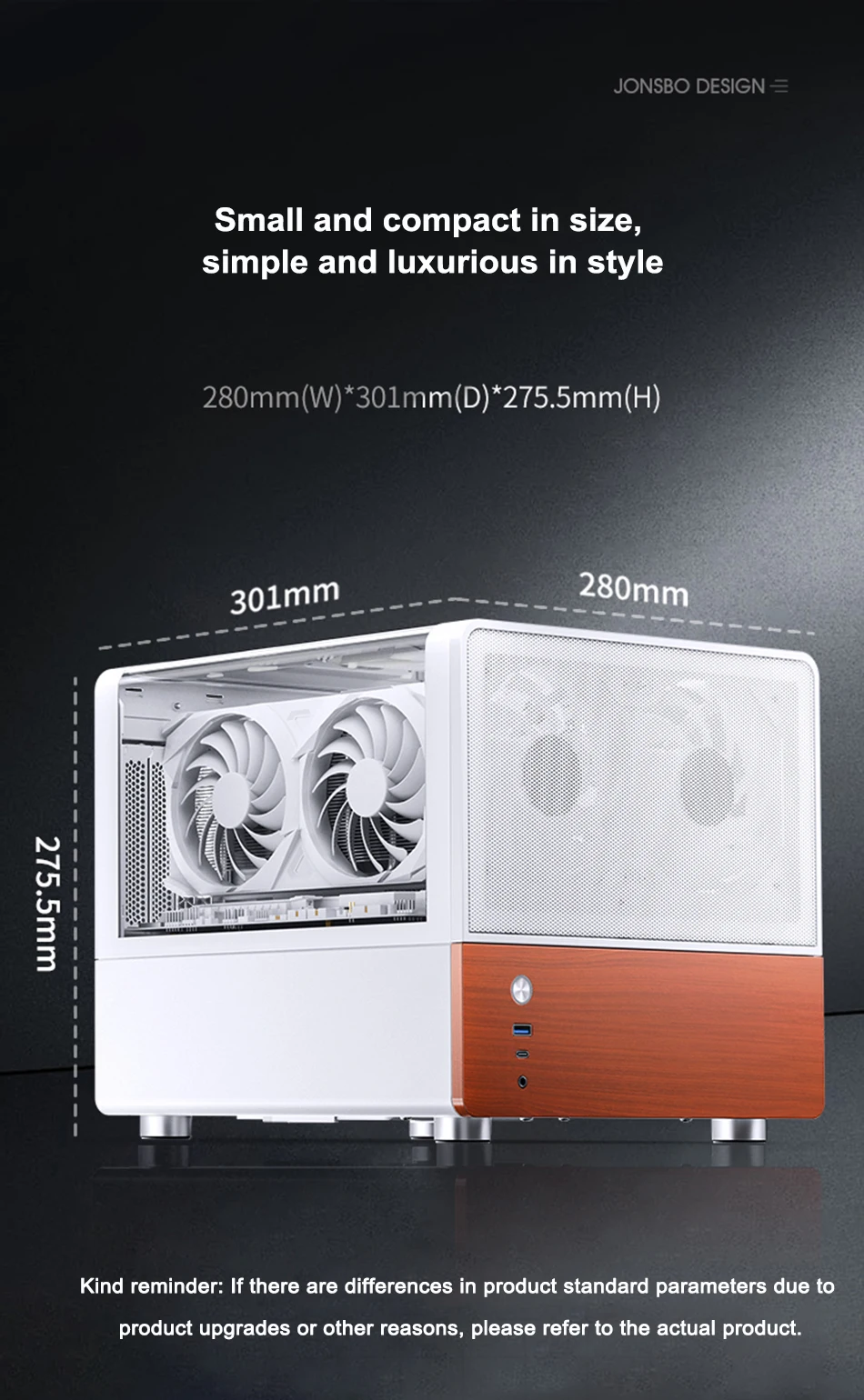

Product size: 280mm (W) * 301mm (D) * 275.5mm (H) (including foot pads)

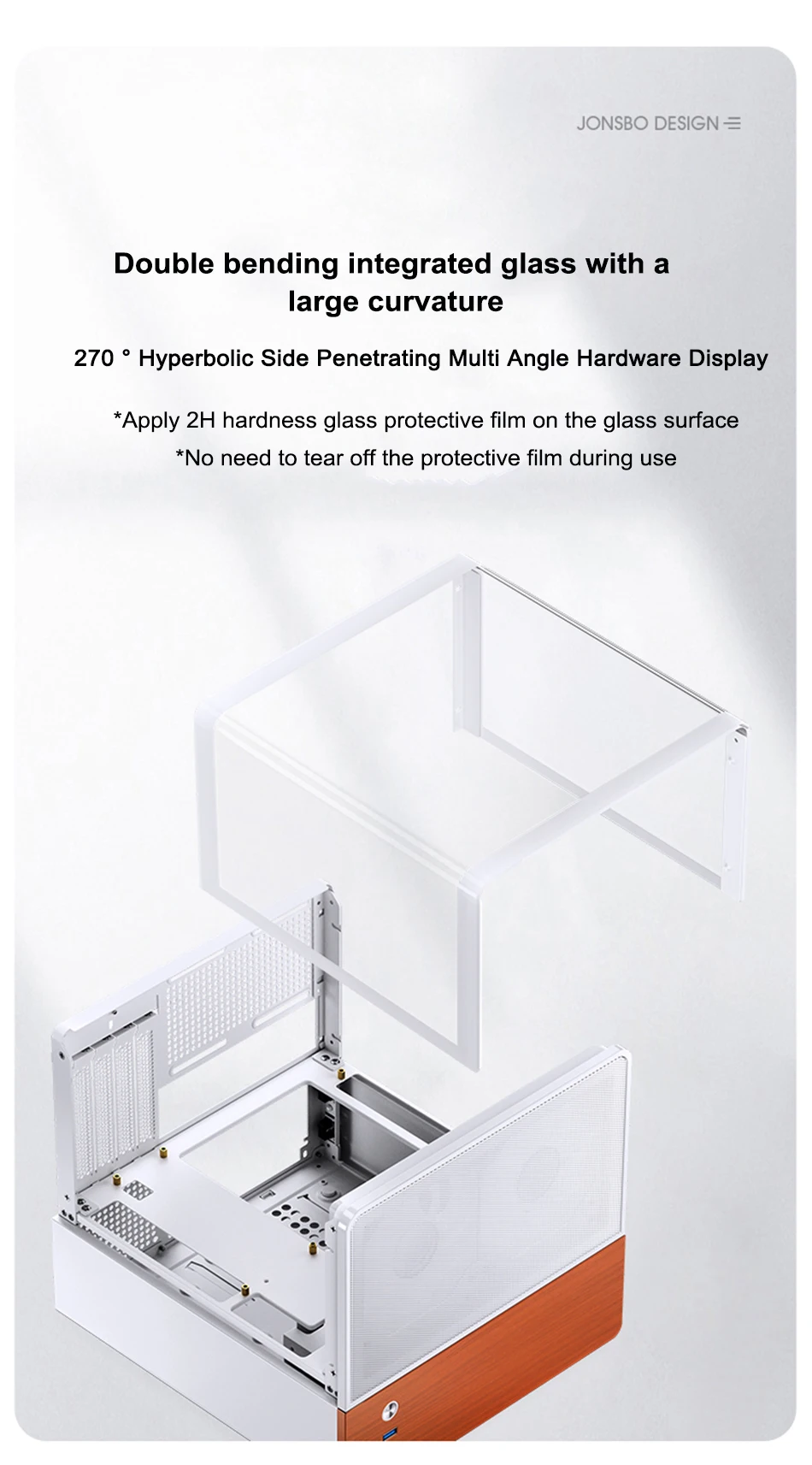

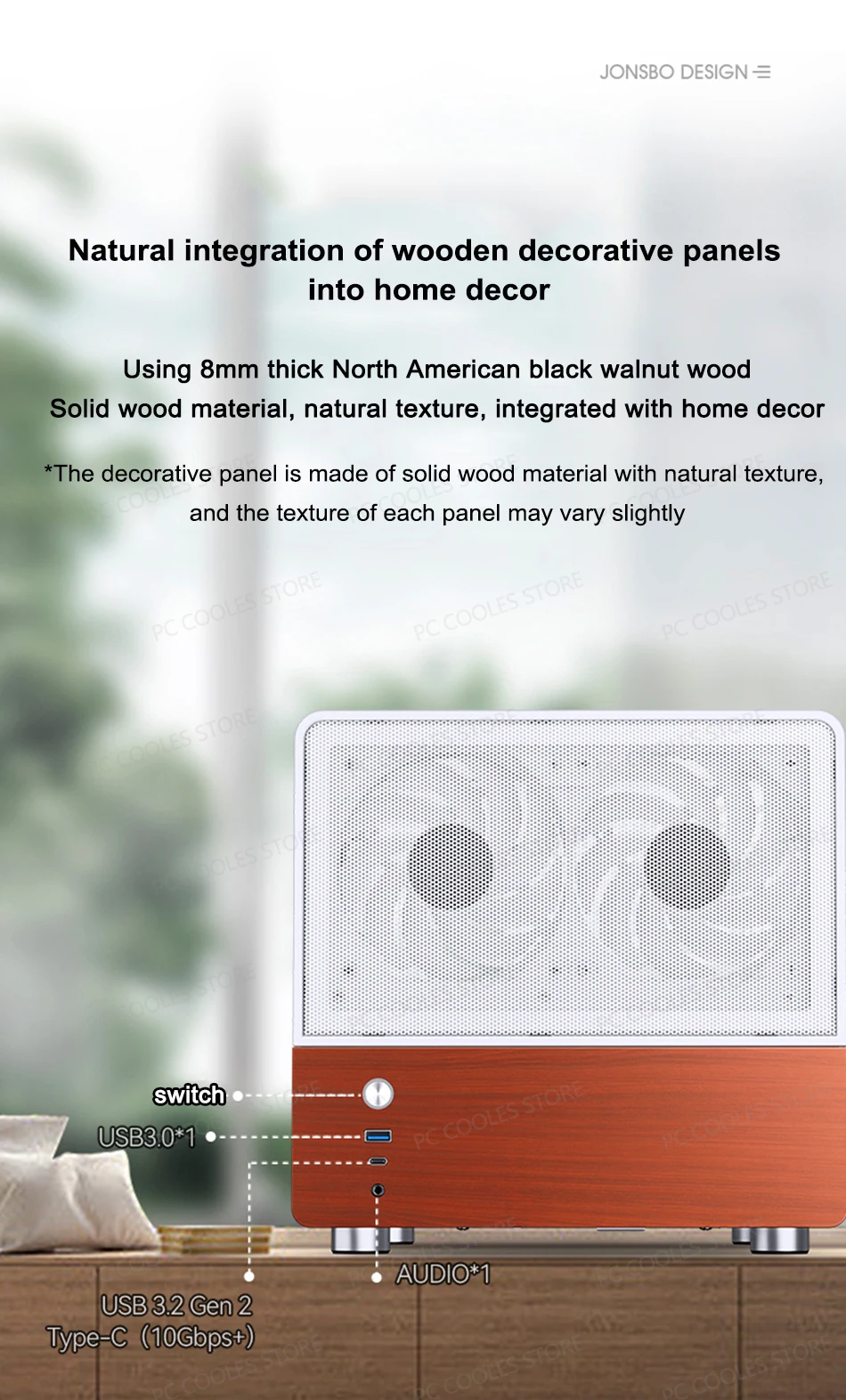

Material: 1.0mm SGCC steel plate/8mm North American walnut wood/4mm glass

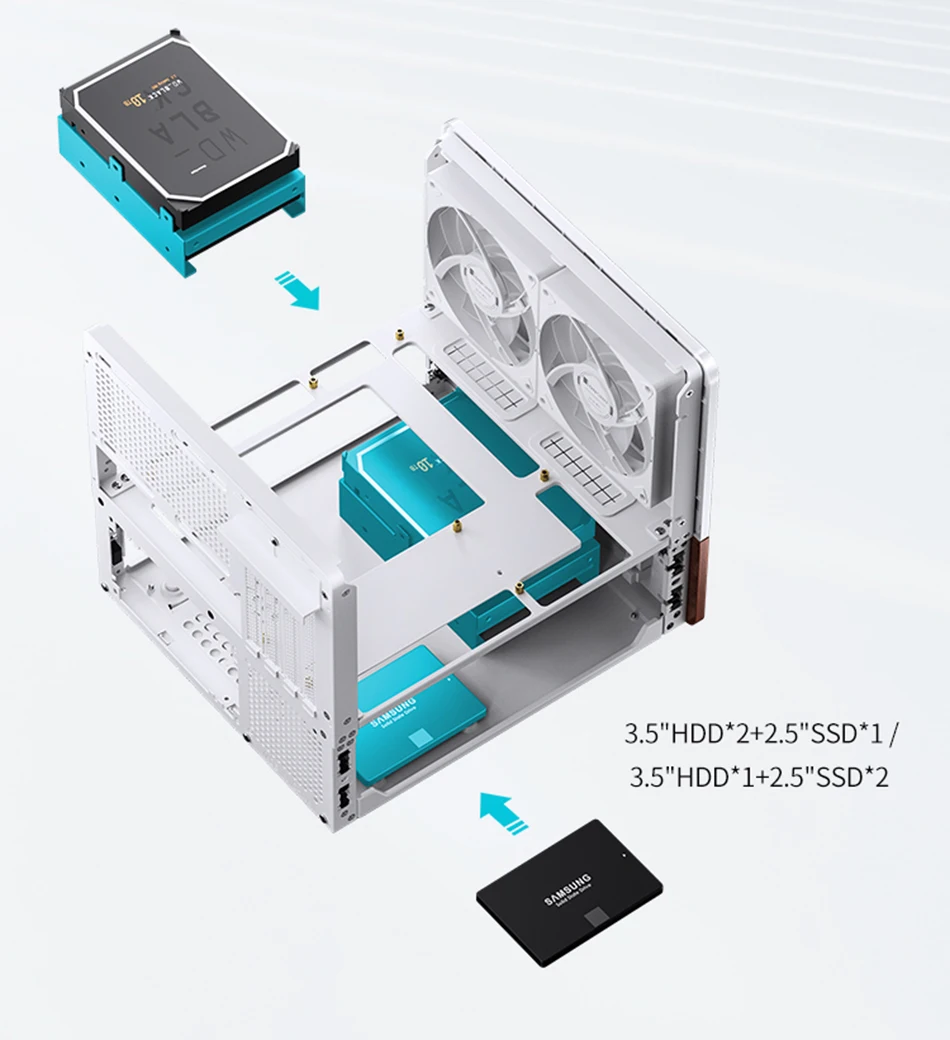

Hard drive slots: 3.5HDD * 2+2.5SSD * 1/3.5HDD * 1+2.5SSD * 2

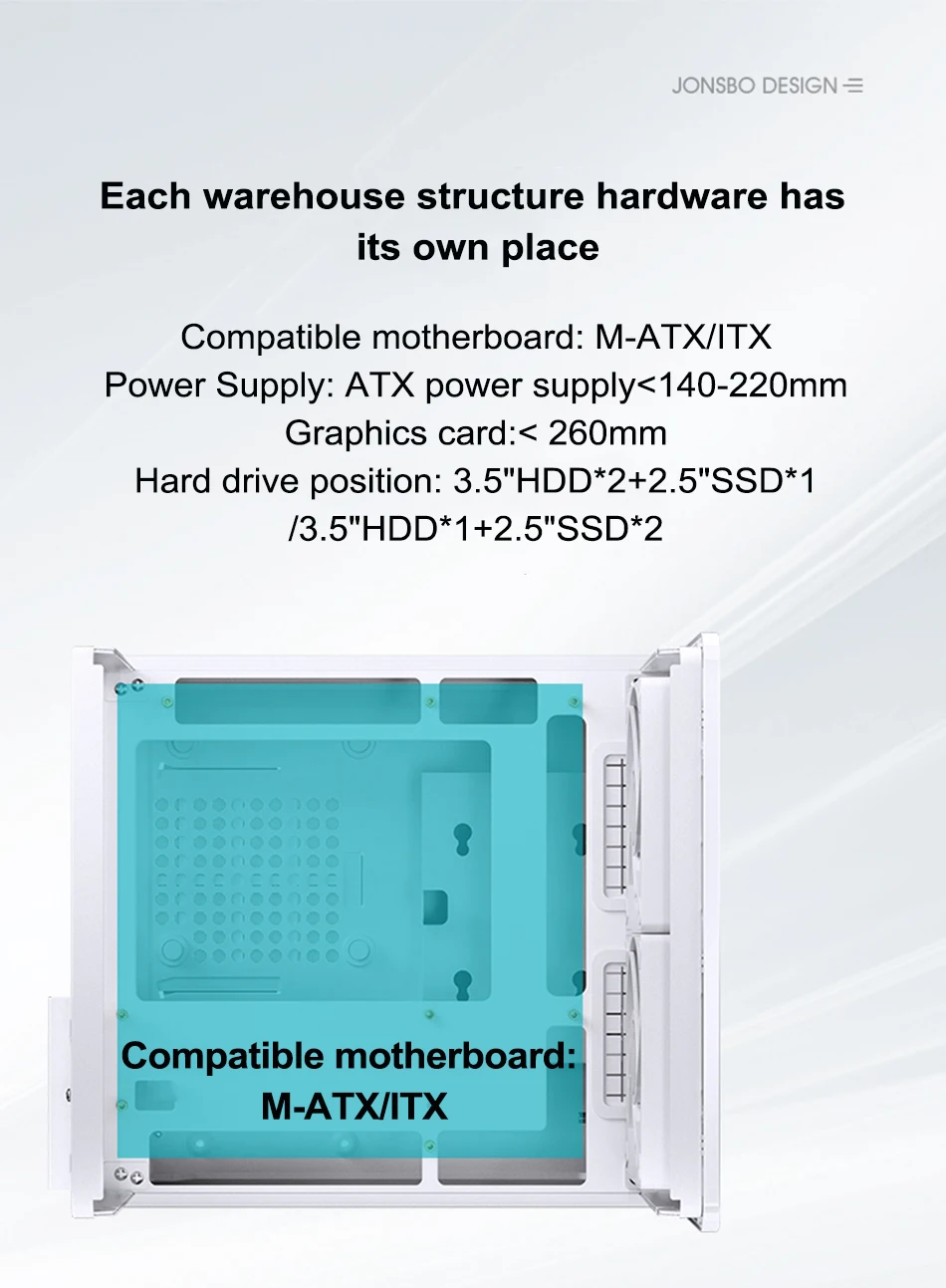

Compatible motherboard: M-ATX / ITX
Front I/O ports: USB 3.2 Gen2 Type-C * 1/USB 3.0 * 1/AUDIO * 1+MIC * 1 (2-in-1)

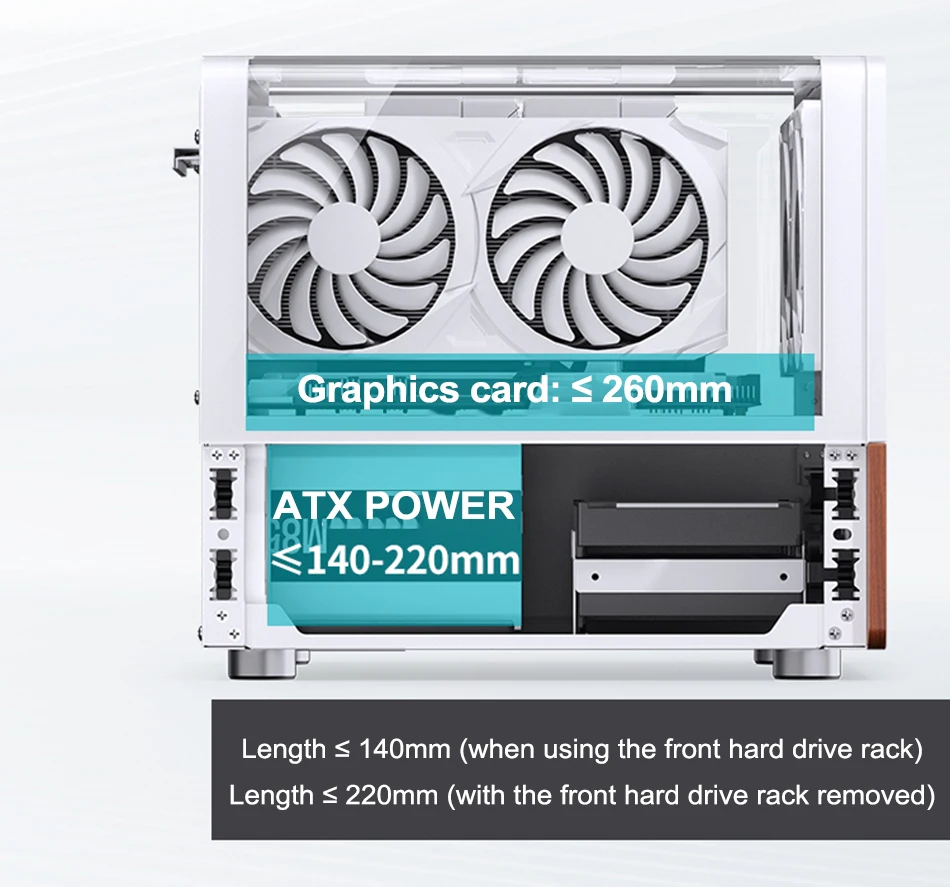

Power Supply: ATX≤140-220mm
Heat sink: ≤ 145mm
Graphics card: ≤ 260mm

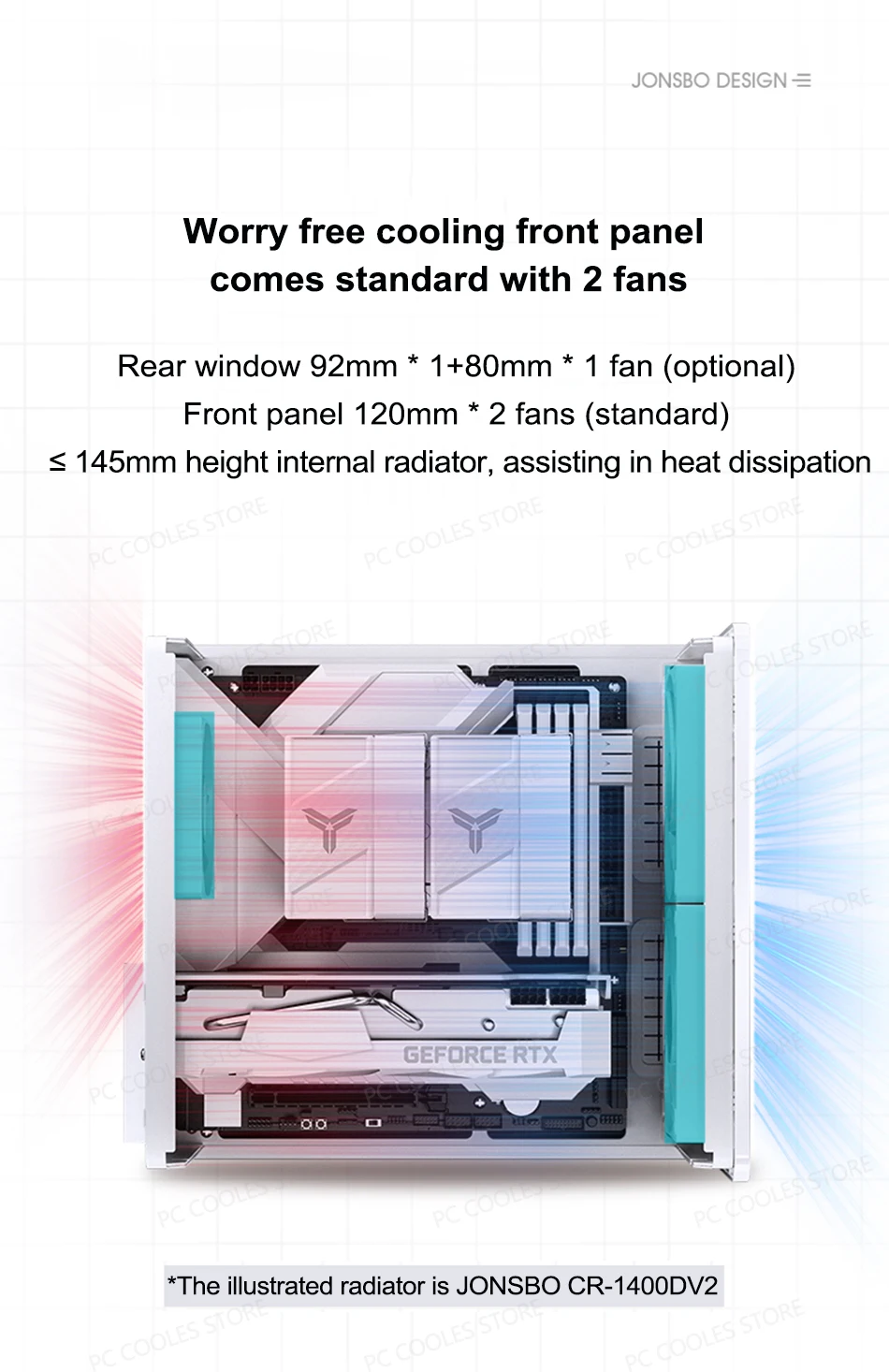

Fan: Rear window 92mm * 1+80mm * 1 fan (optional) Front panel 120mm * 2 (standard)
Weight: Net weight 5.52kg
