SPECIFICATIONS
Brand Name: EOEXBY
Certification: CE,RoHS
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Is Smart Device: no
Model Number: TL
Origin: Mainland China
Output Current: 120V/2.33A;230v/1.21A
Output Frequency: 50/60HZ Auto
Size: 305mmx140mmx73mm
Weight: 1.200KG
is_customized: Yes
Description:

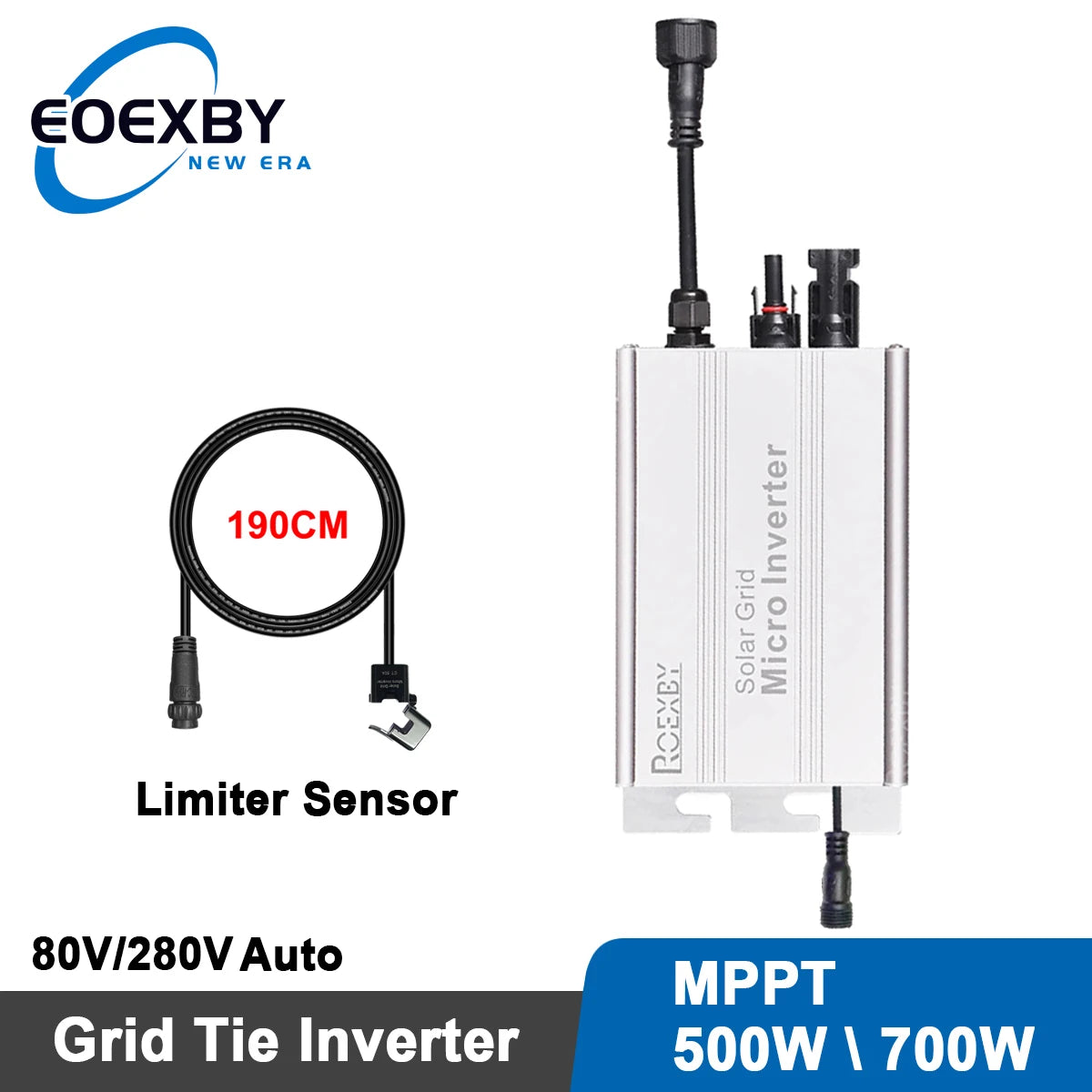

Micro solar grid tie inverter mppt solar Smart microinverter DC 18-50V AC 120V 240V Limiter Sensor home appliance Inverter

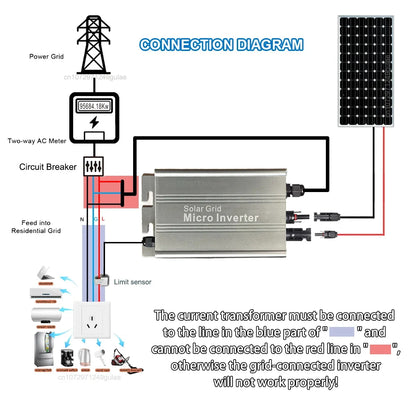

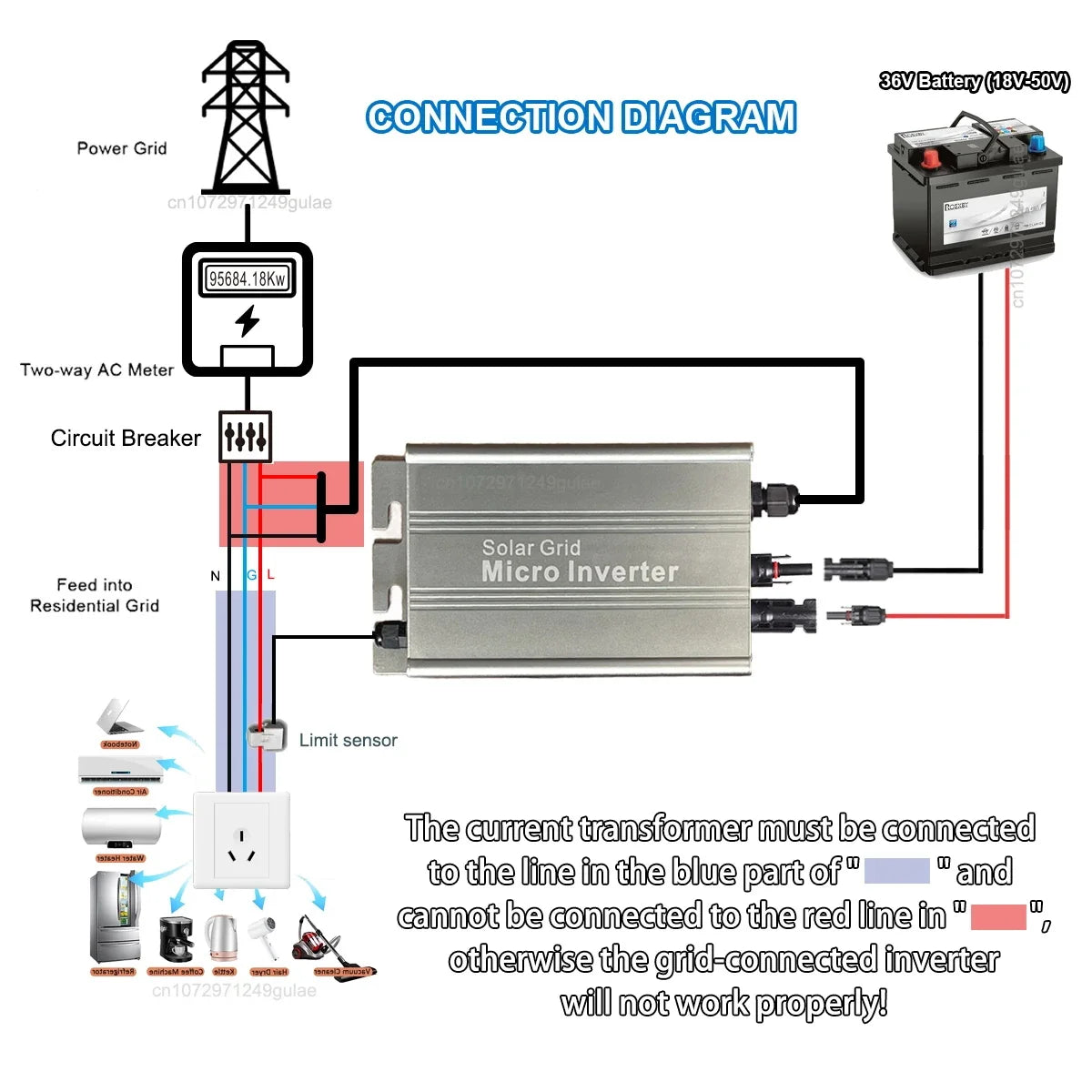

1.The current transformer (CT) is employed to monitor the current values in an alternating current circuit and feed the data back to the grid-tied inverter. By dynamically adjusting the output in real-time, it provides approximately matched electric power to the home grid, enabling autonomous power supply and preventing excess electricity from being fed back to the grid.
2.When the real-time power consumption of household appliances surpasses the maximum output power of the grid-tied inverter, the inverter maximizes its power output, with any surplus electricity automatically supplemented by the mains power.

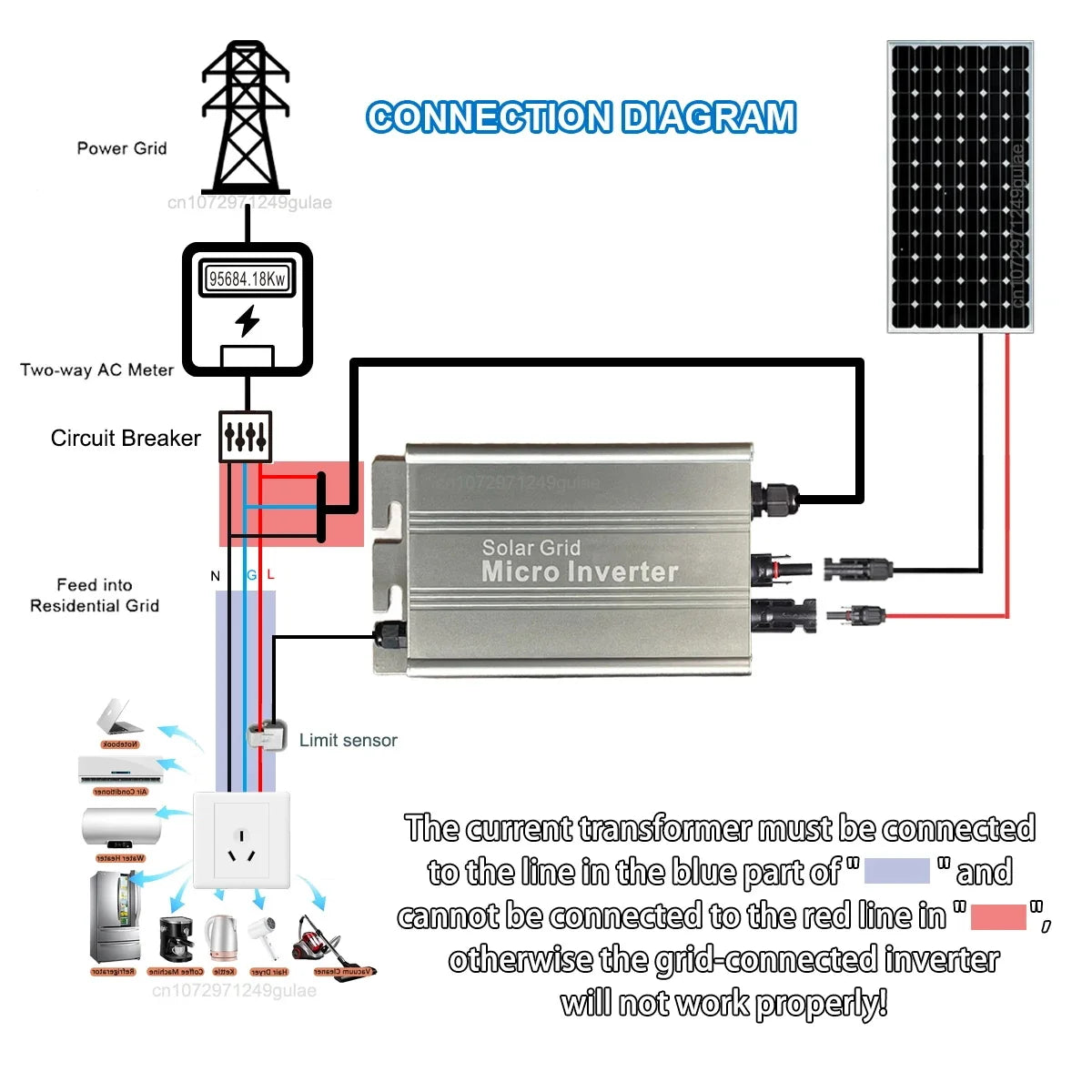

3.The grid-tied inverter and the current transformer are connected by dedicated cables, with the current transformer requiring installation on one of the main lines of the electrical appliance. Installation is straightforward, and it can be securely attached to either the live or neutral wire.

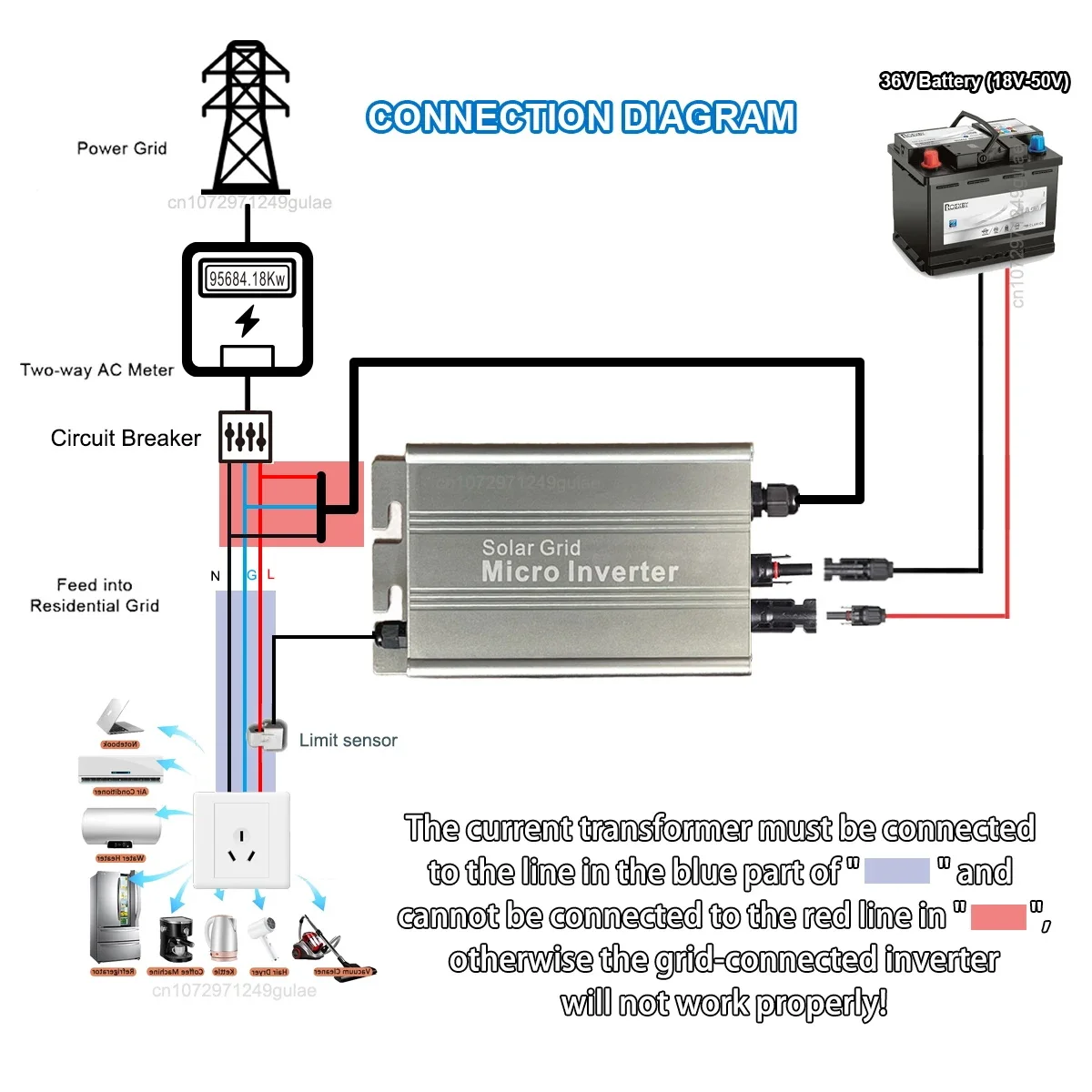

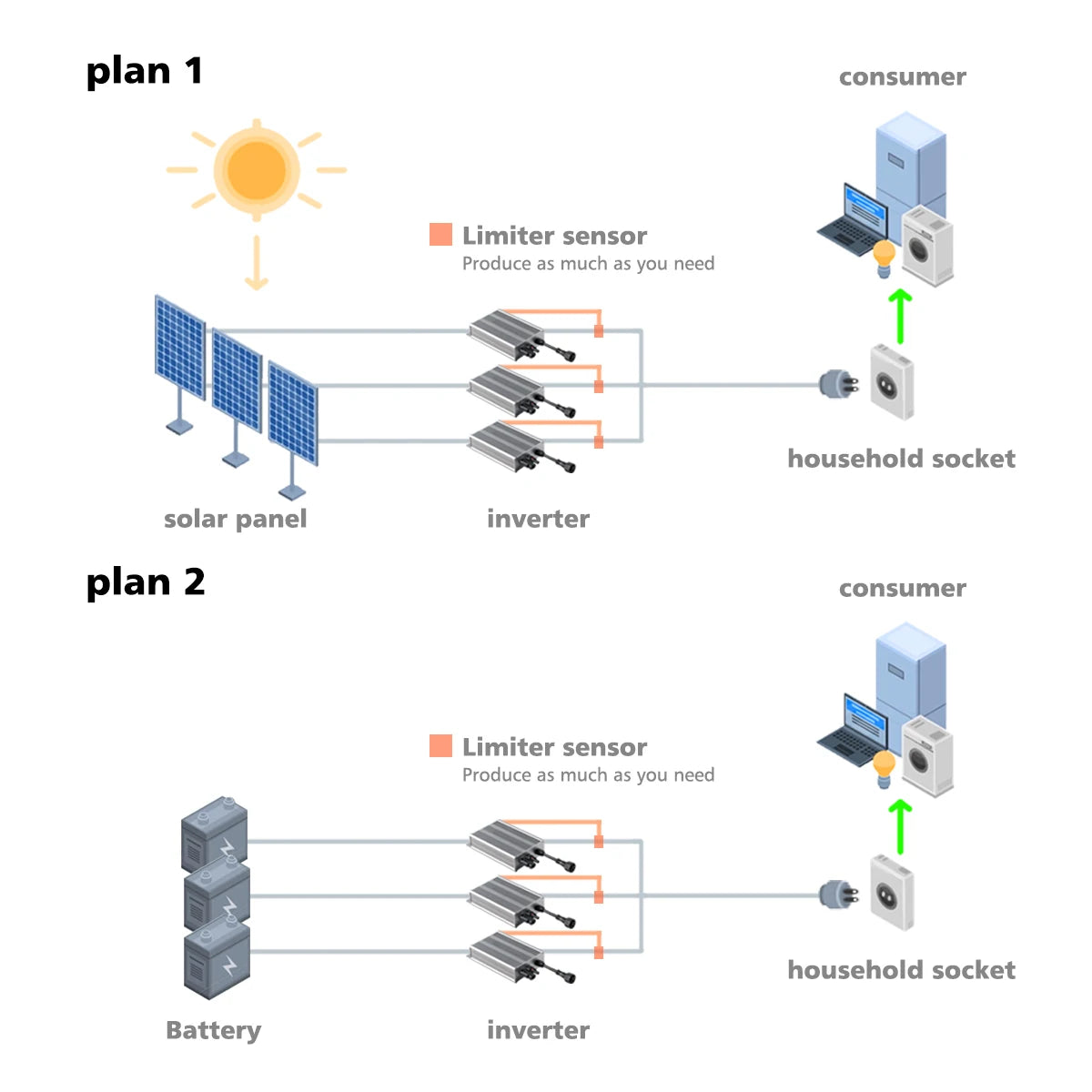

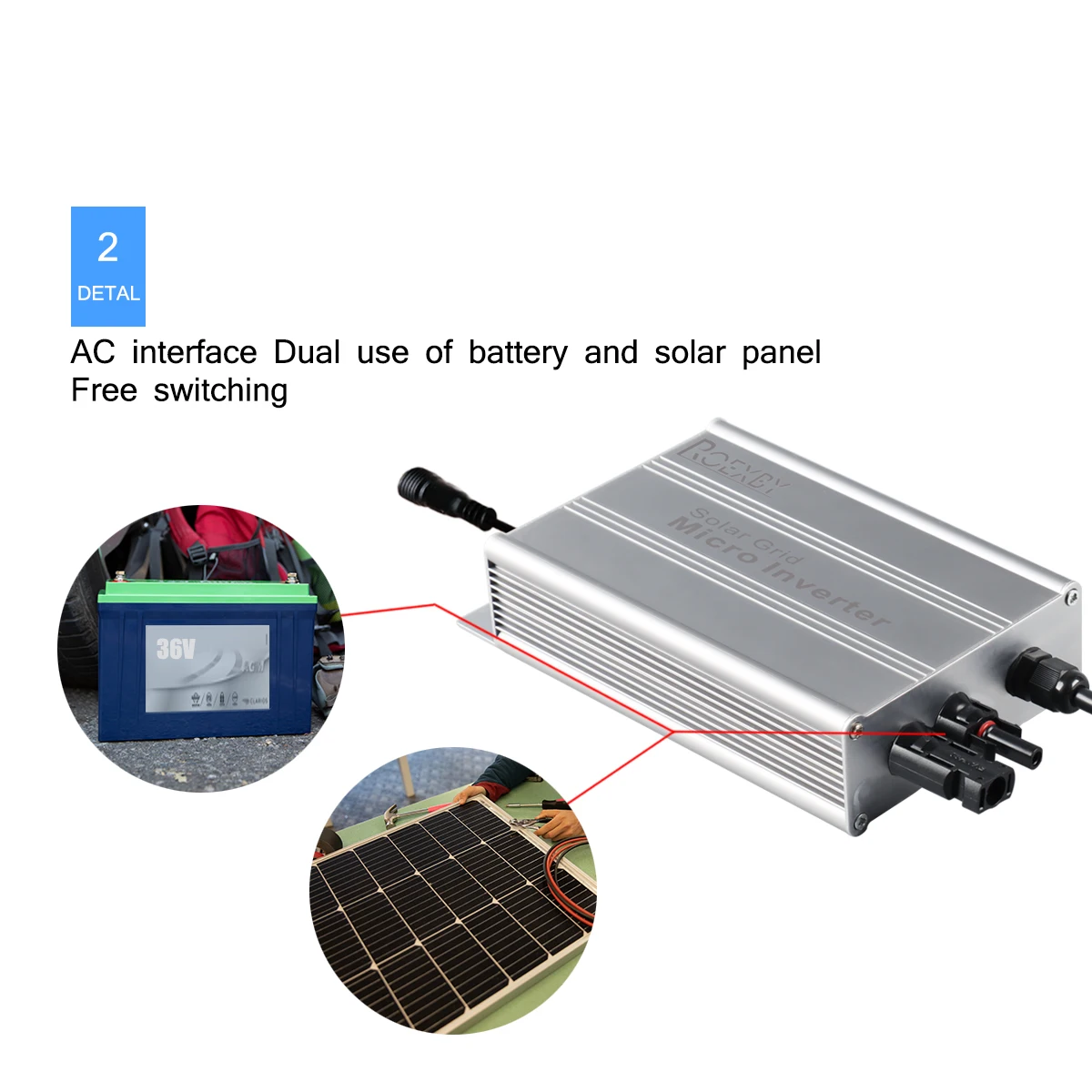

4.The grid-tied inverter can also collaborate with solar controllers and battery packs. During the day, solar panels charge the batteries while simultaneously supplying power to the grid-tied inverter. At night, the system relies entirely on battery power, ensuring on-demand grid-tied electricity generation throughout the day.

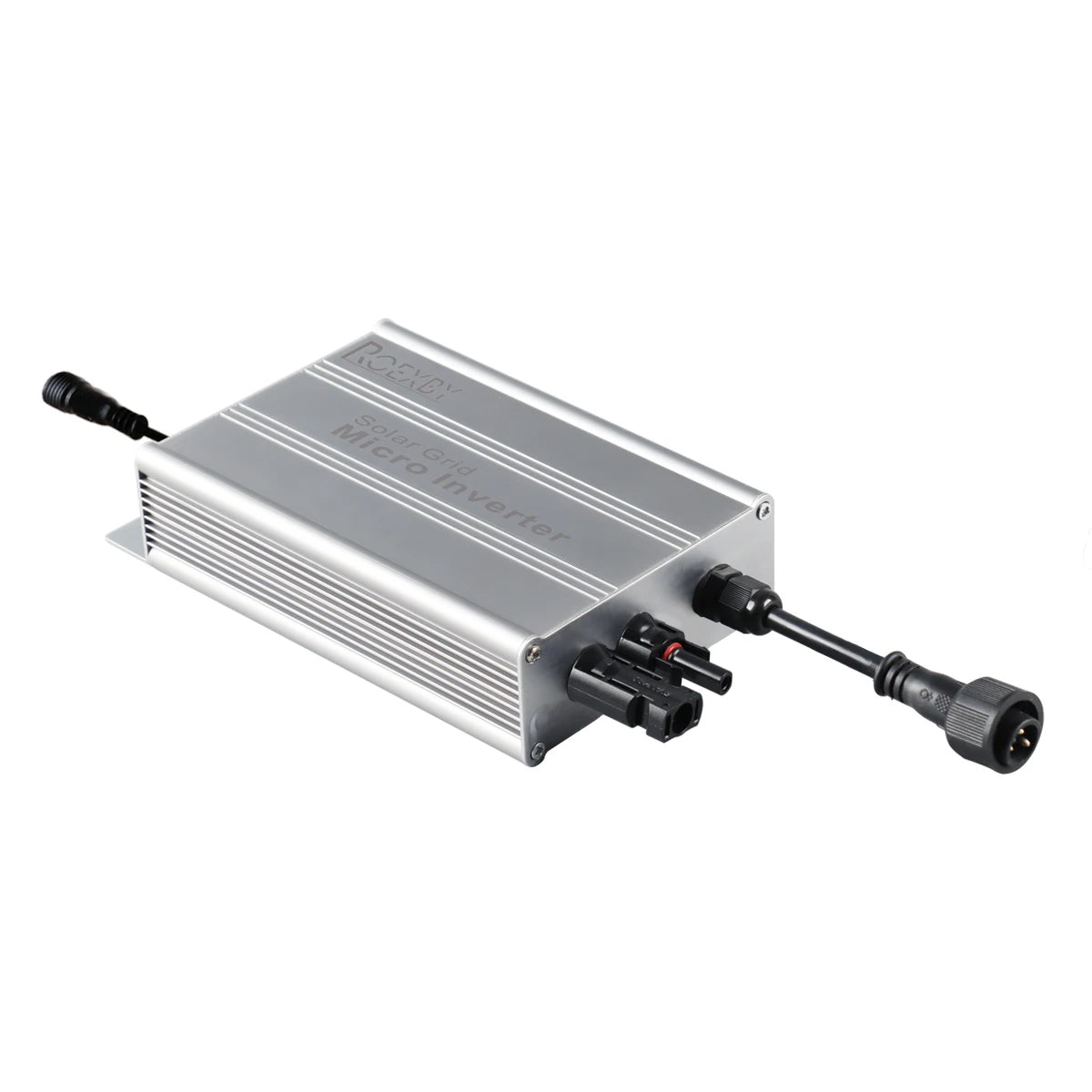

Product Information：
Category: Solar Microinverter
Brand: EOEXBY
Model: RT series
Material: aluminum alloy
Product size: 22*10*4.5cm 9*4.5*1.12in
Packaging size: 30.05*14*7cm 12*5.05*2.13in
Net weight: 1.2KG 1200g
Gross weight: 1.08KG 1080g

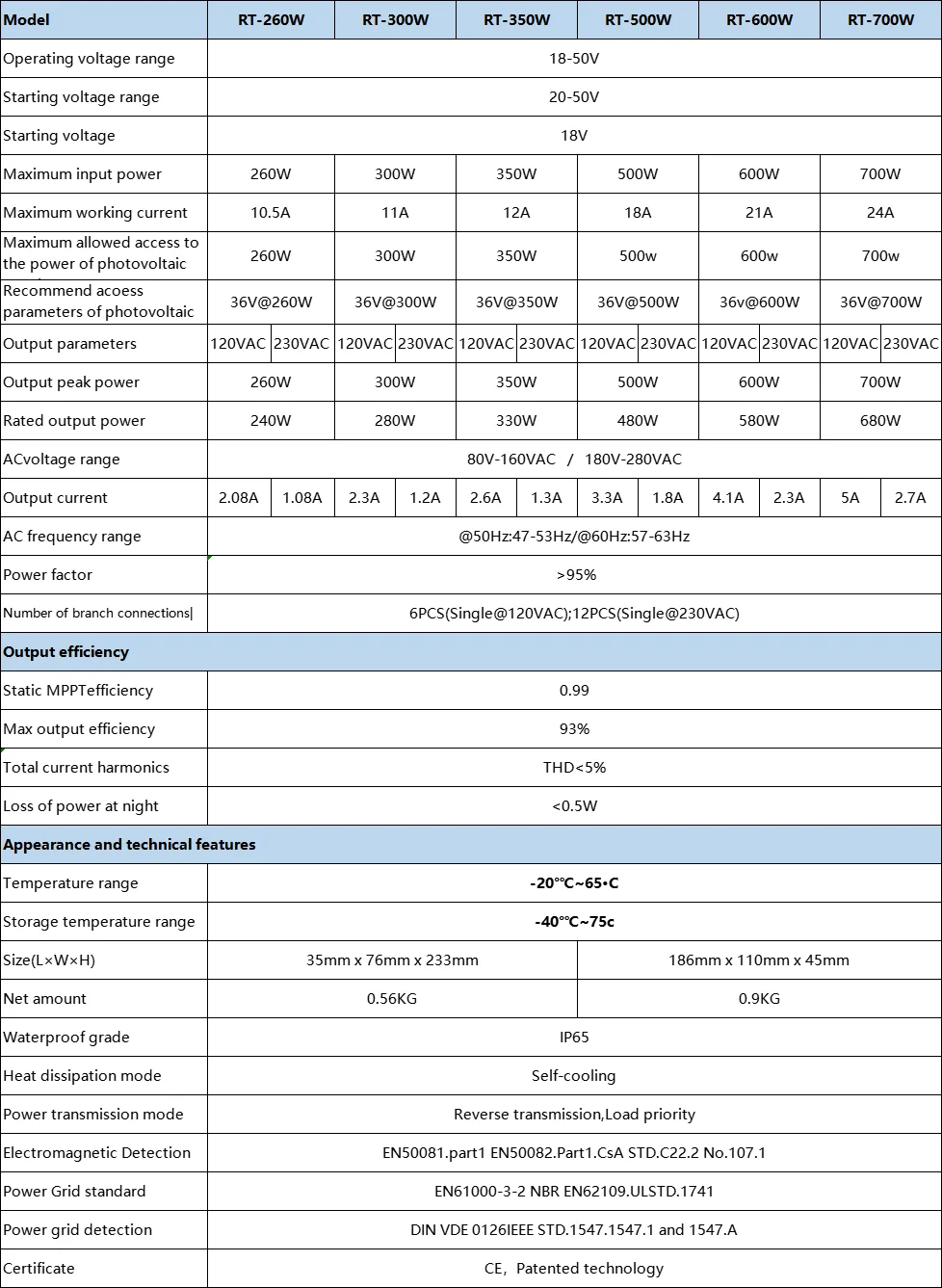

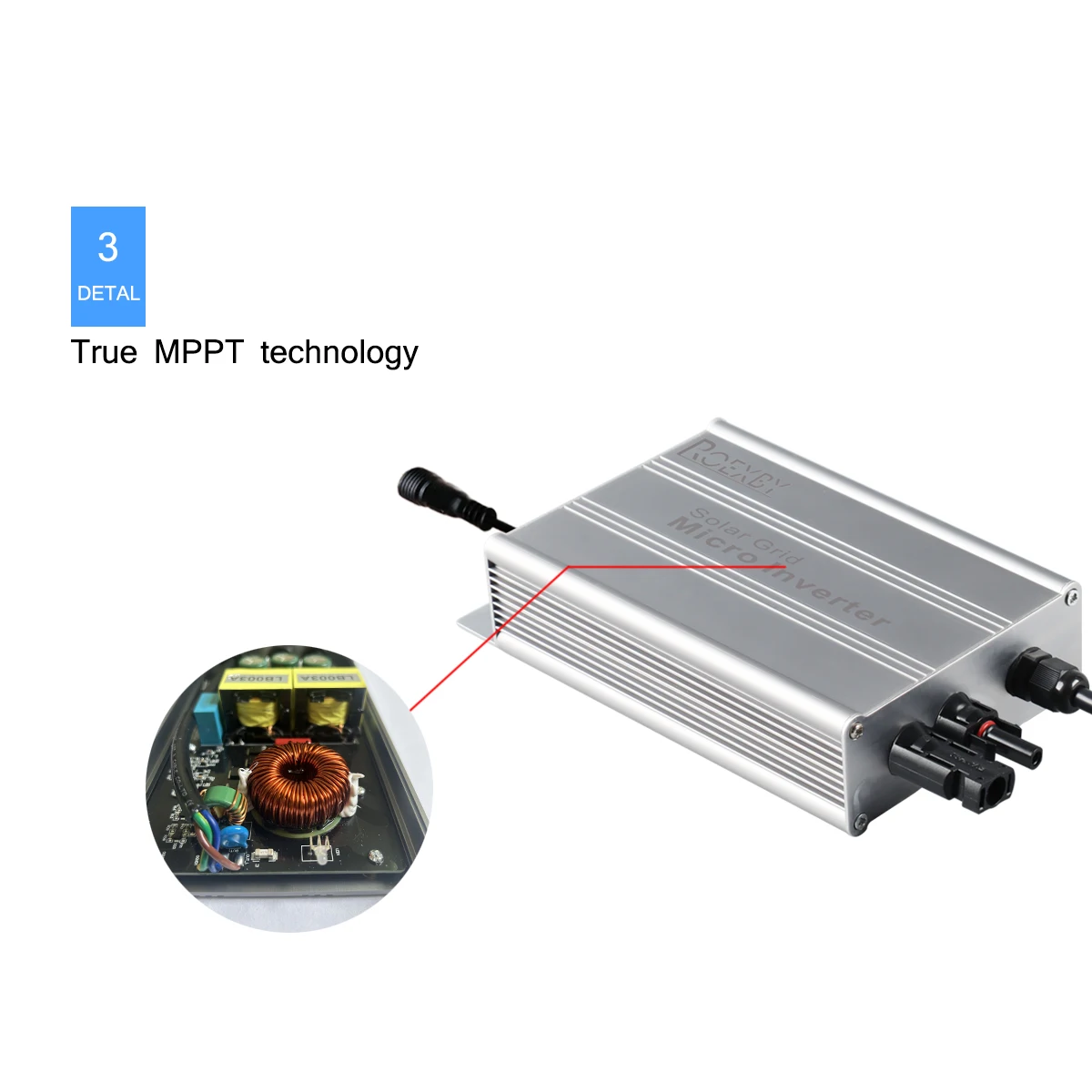

Technical Features:
Applicable Working Voltage Range: 18-50V
Startup Voltage Range: 20-50V
Low Startup Voltage: 18V
Solar Panel Voltage Range: Vmp: 18V-50V; Open Circuit Voltage: 36V-50V
Maximum Solar Panel Power: 300W/350W/500W/600W/700W
Maximum Input Power: 300W/350W/500W/600W/700W
Input Current Range: 11A(300W) / 12A(350W) / 18A(500W) / 21A(600W) / 24A(700W)
Output Voltage: 120VAC(80-160VAC) / 230VAC(180-280VAC)
Output Peak Power: 300W/350W/500W/600W/700W
Rated Output Power: 280W/320W/450W/550W/650W
AC Frequency Range: 50Hz(47-53Hz) / 60Hz(57-63Hz)
Power Supply System Types: Single-phase / Two-phase / Three-phase, suitable for commercial, residential, small commercial spaces, large commercial, and industrial facilities
Waterproof Performance: IP65
Cooling Method: Self-cooling (fanless)
Temperature Range: -20 to 65°C
Limit Sensor Current：50A
MPPT Efficiency up to 0.99
Electromagnetic Compatibility: Complies with EN50081.part1, EN50082.Part1, CSA STD.C22.2 No.107.1 standards
Grid Standards: Complies with EN61000-3-2, NBR, EN62109, UL STD.1741 standards
Grid Detection: Complies with DIN VDE 0126, IEEE STD.1547, 1547.1, and 1547.A standards
Safety Certifications: CE certification, patented technology
Multiple Protection Functions: Including over-voltage protection, under-voltage protection, over-current protection, over-temperature protection, and islanding protection.

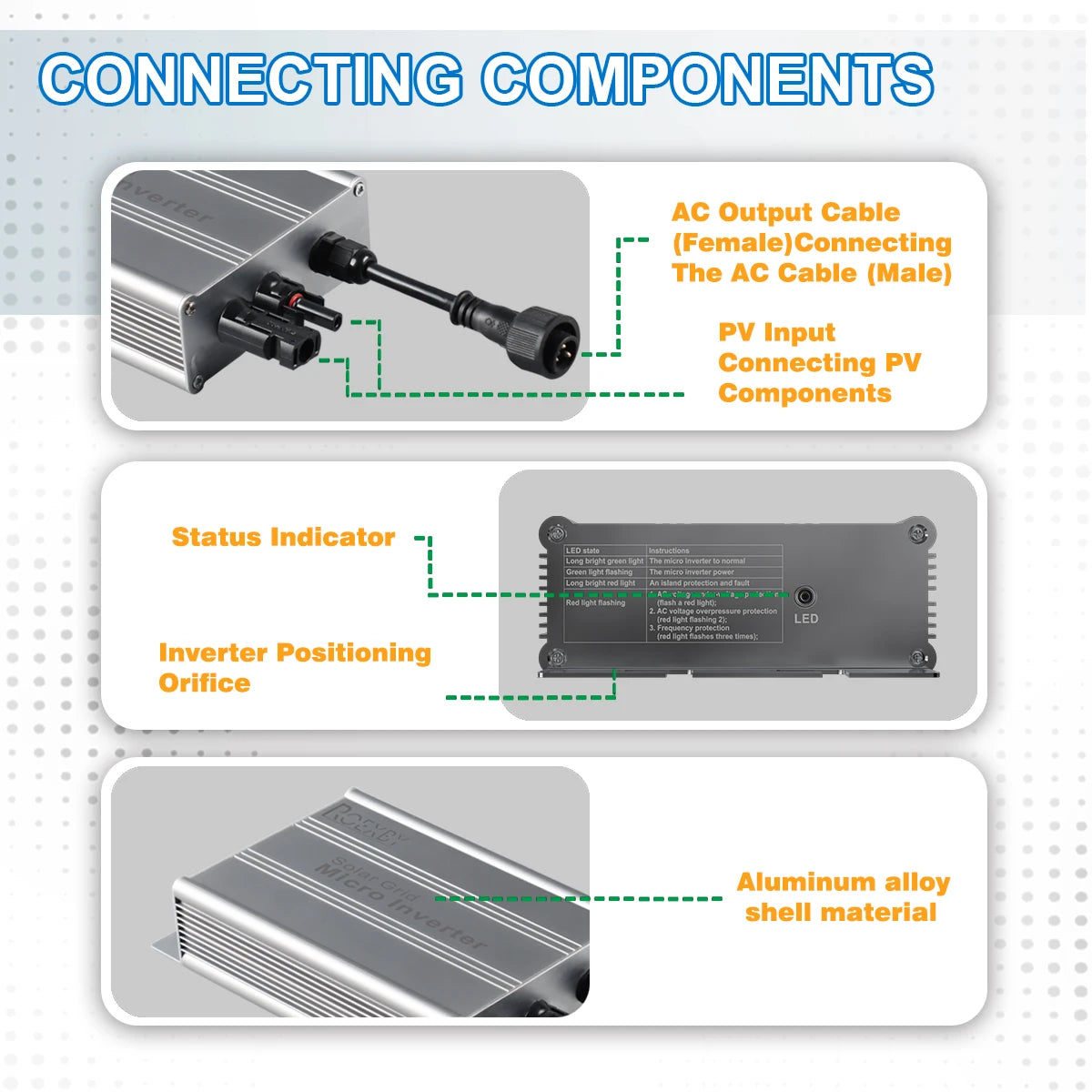

LED Indicate:
1. Long bright green light--- Micro inverter to normal;
2. Green light flashing---Micro inverter power;
3. Long bright red light---An island protection and fault;
4.Red light flashing:
①. AC voltage under-voltage protection (flash a red light);
②. AC voltage overpressure protection (red light flashing 2);
③. Frequency protection (red light flashes three times).
Environmental Sustainability and Energy Efficiency:
The RT series inverters actively contribute to environmental conservation with zero carbon emissions and low-noise operation. Their high-efficiency design not only reduces your energy consumption and electricity costs but also promotes the utilization of sustainable energy sources.
Installation and Maintenance:
RT series inverters offer a simplified installation process, accompanied by detailed installation guides to ensure easy device setup. With low maintenance requirements and recommended long maintenance cycles, product reliability and stability are assured.
Safety:
These inverters feature multi-layered safety protection, including over-voltage, under-voltage, over-current, over-temperature, and islanding protection, ensuring your solar energy system operates safely and reliably under various conditions.
Applications:
The RT series inverters are suitable for a wide range of applications, including residential solar power systems, commercial buildings, rural electricity supply, providing you with dependable power conversion solutions for your diverse needs.
Warranty and After-Sales Service:
You can enjoy peace of mind with a two-year warranty for this product, allowing you to confidently benefit from our after-sales service and support. This warranty helps you make a wise purchasing decision.
Cost-Effectiveness:
In terms of cost-effectiveness, you'll find that the RT series solar microgrid inverters not only provide competitive pricing but also assist you in achieving long-term energy cost savings and a solid return on your investment. This ensures outstanding value for you.
Certifications and Approvals:
Regarding certifications and approvals, rest assured that this product has earned CE certification and includes patented technology. It complies with essential solar and electrical industry standards, guaranteeing you top-notch and dependable products.
Package Include:
Micro Inverter Array*1
Screw Kit *1
User manual*1
AC Cable*1
Limit Sensor 190cm*1
User notice:
This equipment is an ON-GRID Microinverter and must be correctly connected to the power grid to work properly. When the power grid stops working, it will also stop generating.
Do not exceed PV panel(s) voltage over the inverter max input voltage (Voc＜50V).
Do not exceed PV panel(s) power over the inverter max input power.
The positive and negative poles of the solar panel cannot be reversed. Be careful when extending the solar panel cable.
Install the inverter away from direct sunlight and direct rain exposure in a ventilated, dry, and cool place.
Voltage Tips:
Our 18-50V grid tie micro inverter requires a starting voltage of 24V and operates in the range of 18V-39V (Vmp). Please note that the Voc of your solar panel should not exceed 50V.
Using a 12V solar panel with a Vmp of 18-20V and Voc of 20-24V is not recommended, as weak sunlight may cause the working voltage to drop below 18V, leading to unstable inverter operation and damage. Instead, we suggest using solar panels with a Vmp of 30-39V and Voc of 38-46V for optimal performance.
INSTALLATION PROCEDURES
Step 1- Attaching the Microinverters to the Racking.
a. Mark the location of the Microinverter on the rack, with respect to the PV module junction box or any other obstructions.
b. Mount one Microinverter at each of these locations using hardware ecommended by your module racking vendor.
Step 2 - Connecting the Microinverter AC cable and connectiong to AC bus cable(L-BROWN,N-BLUE,GGREEN&YELLOW) one by one, Please do NOT exceed the Maximum current of AC bus cable .
Step 3 - Connecting Microinverters to the PV Module,Please do NOT exceed PV panel(s) VOC over inverter max input voltage.
Step 4 - Install the AC Branch Circuit Junction Box,Wire the conductors of the AC bus cable. Connect the AC branch circuit junction box to the point of utility-grid Interconnection.
Step 5 - Double check all Microinverters, connectors and cables are correctly and well connected.
Step 6 - Turn ON the AC circuit breaker on each AC branch circuit of Microinverter .
Step 7 - Turn ON the main AC circuit breaker of utility-grid. Your system will start producing powerafter a 3sec safety delay period.
