SPECIFICATIONS
Application: Amplifier
Brand Name: monosaudio
Bundle: Bundle 1
Certification: CE,RoHS
Conductor: OFC
Connector: gold plated connector
Connector A: male
Connector B: male
Feature: None
Finish Type: Others
Gender: Male
High-concerned chemical: none
Material: Ofc（oxygen-free copper）
Model Number: S802R6R
Origin: Mainland China
Outer Diameter: 10mm,12mm
Package: No,Polybag,1 pair

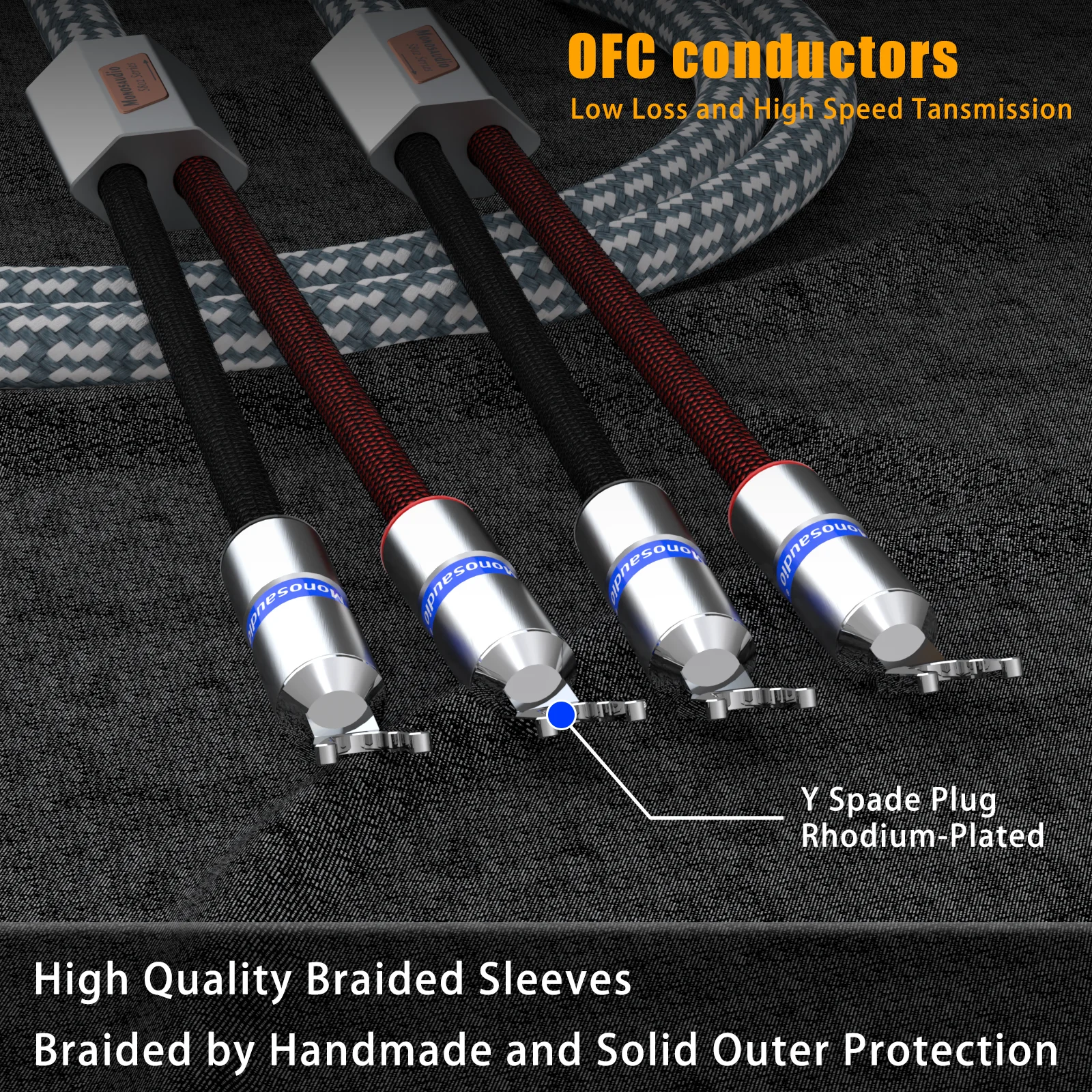

Plug Type: Y plug
Shielding: Combination
Type: Audio Extension Cord

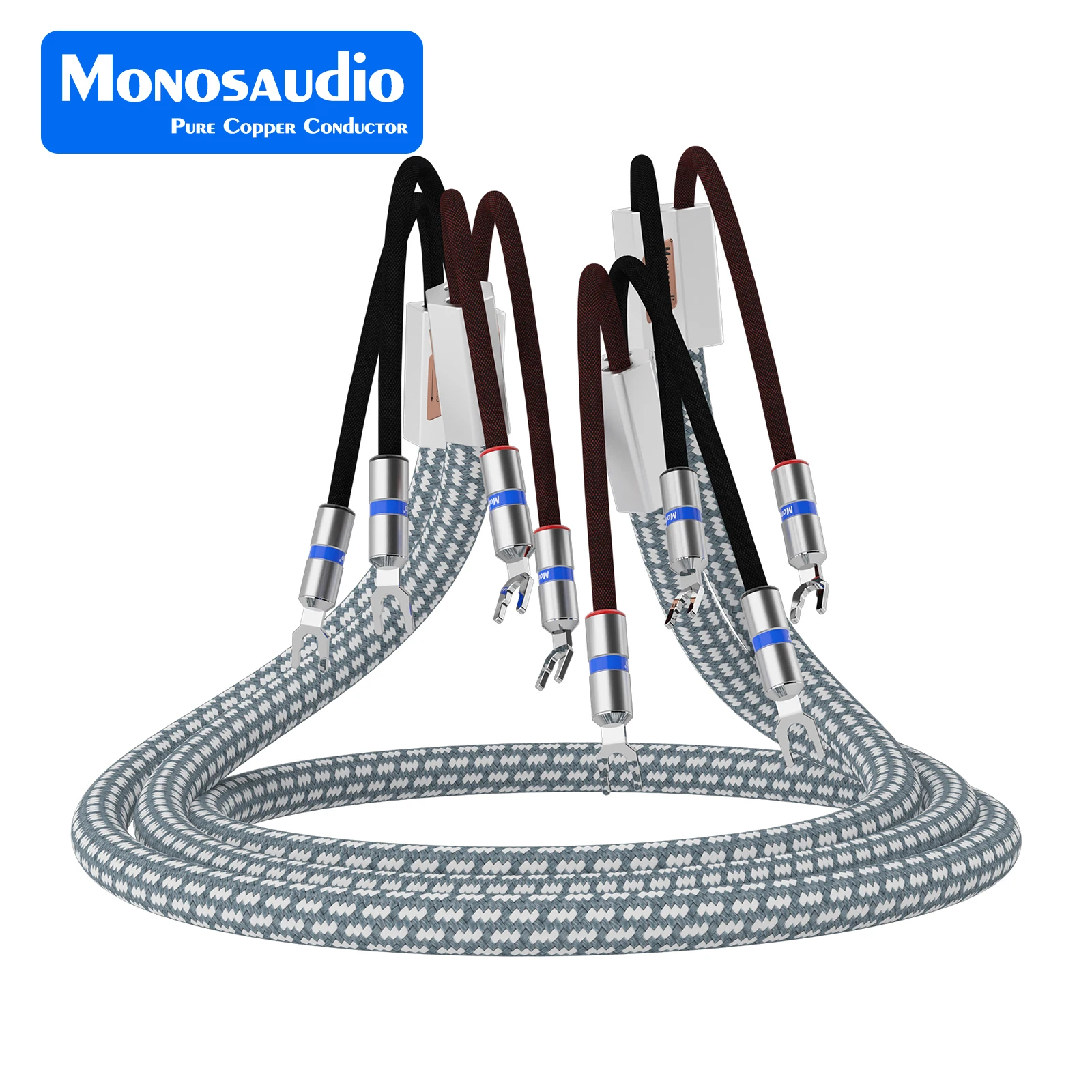

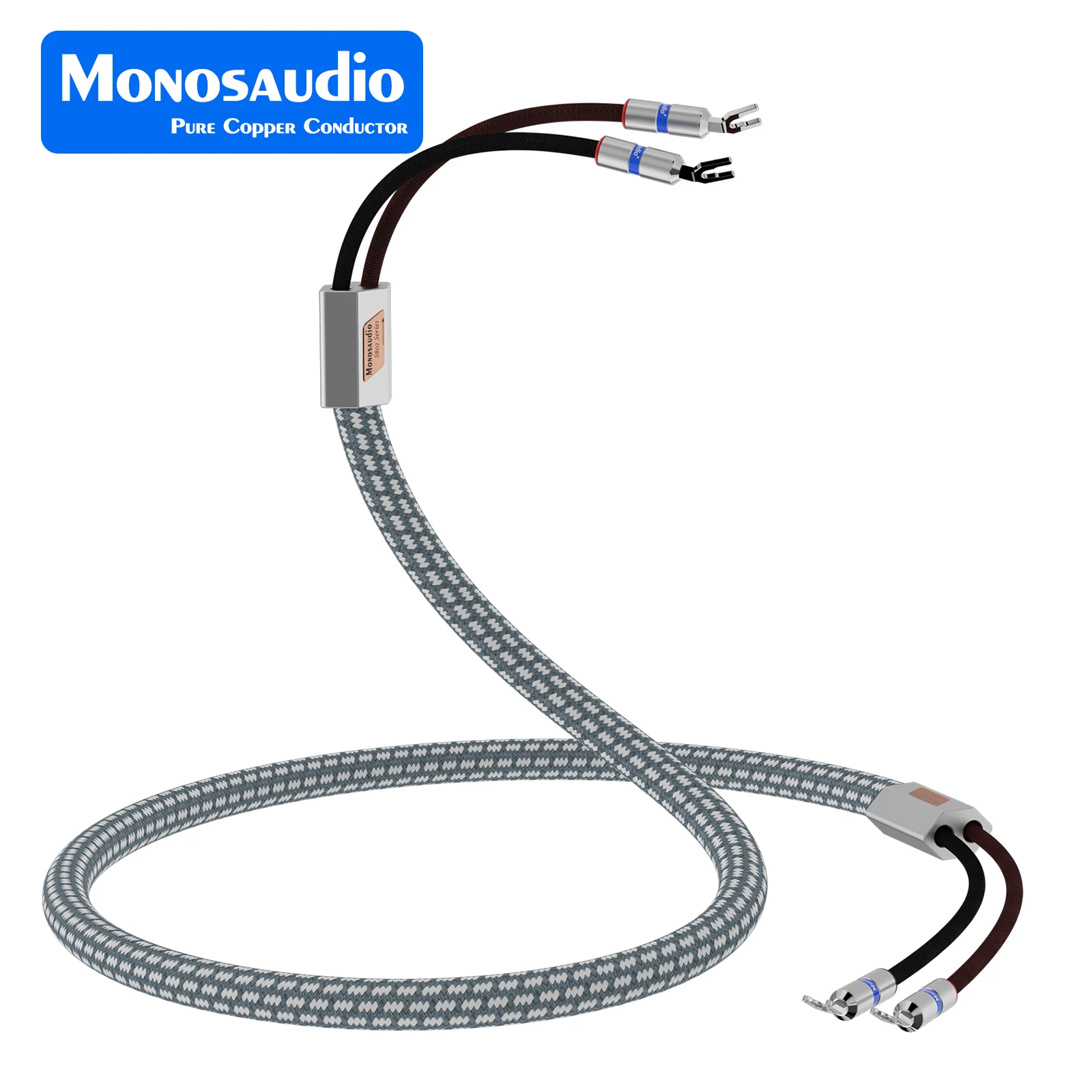

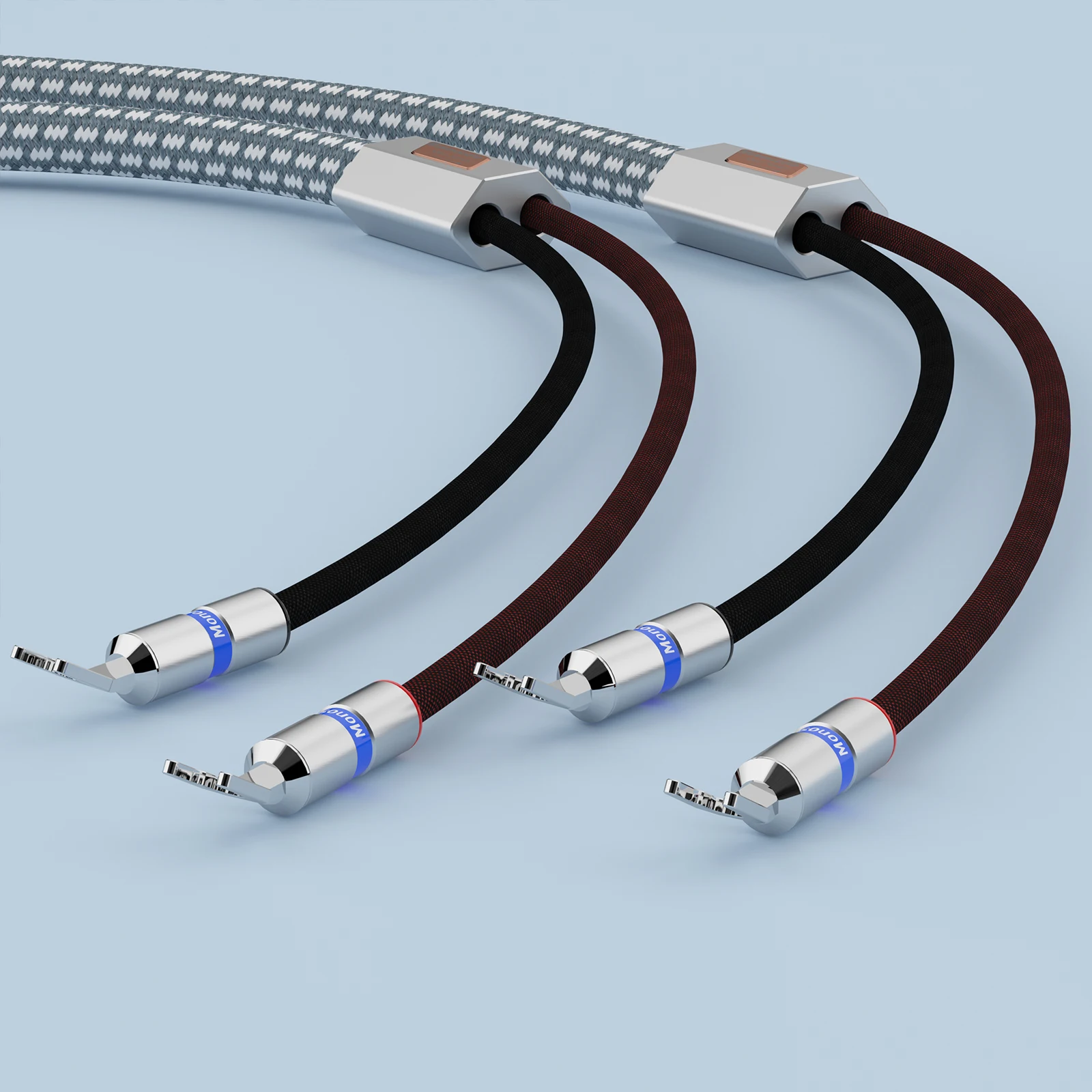

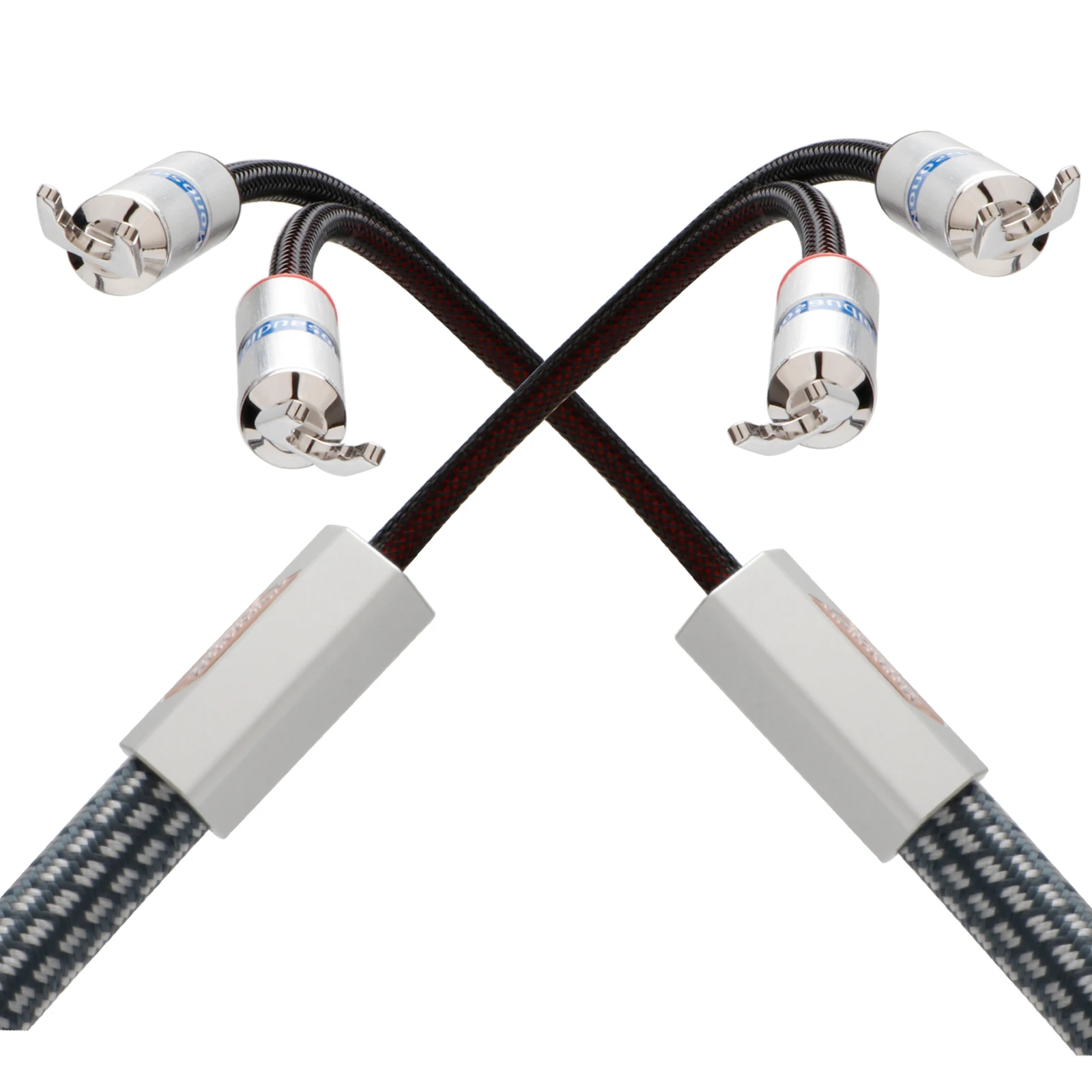

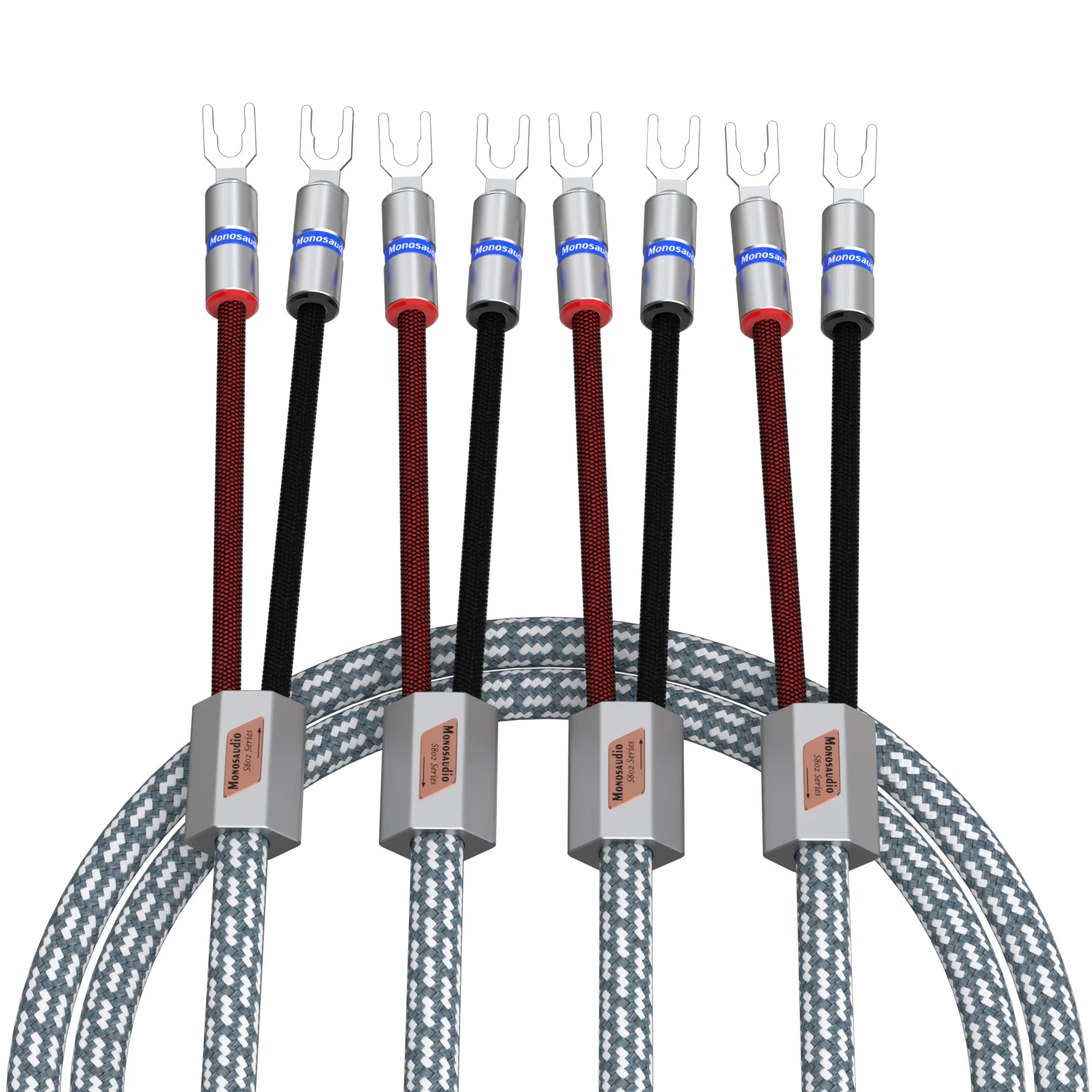

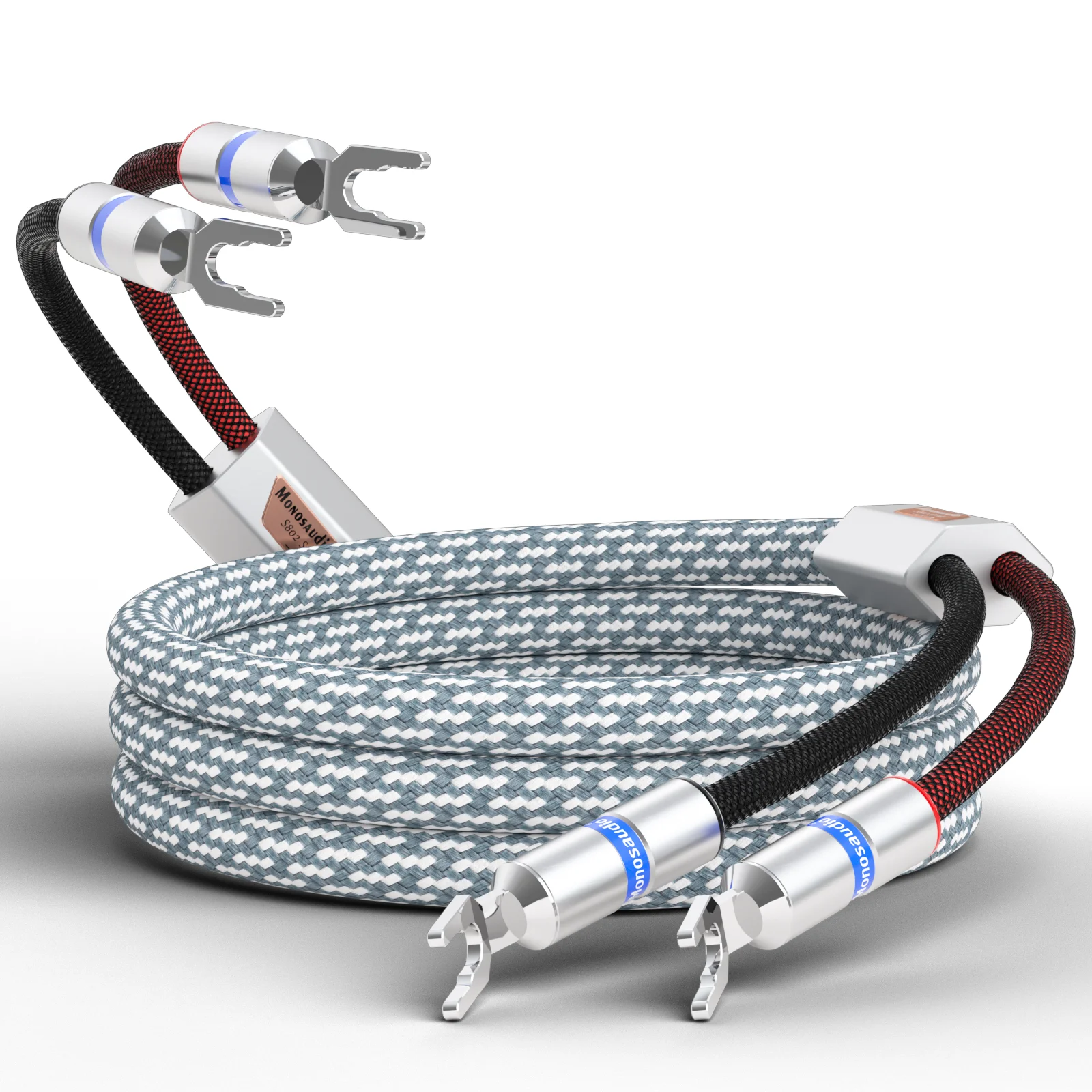

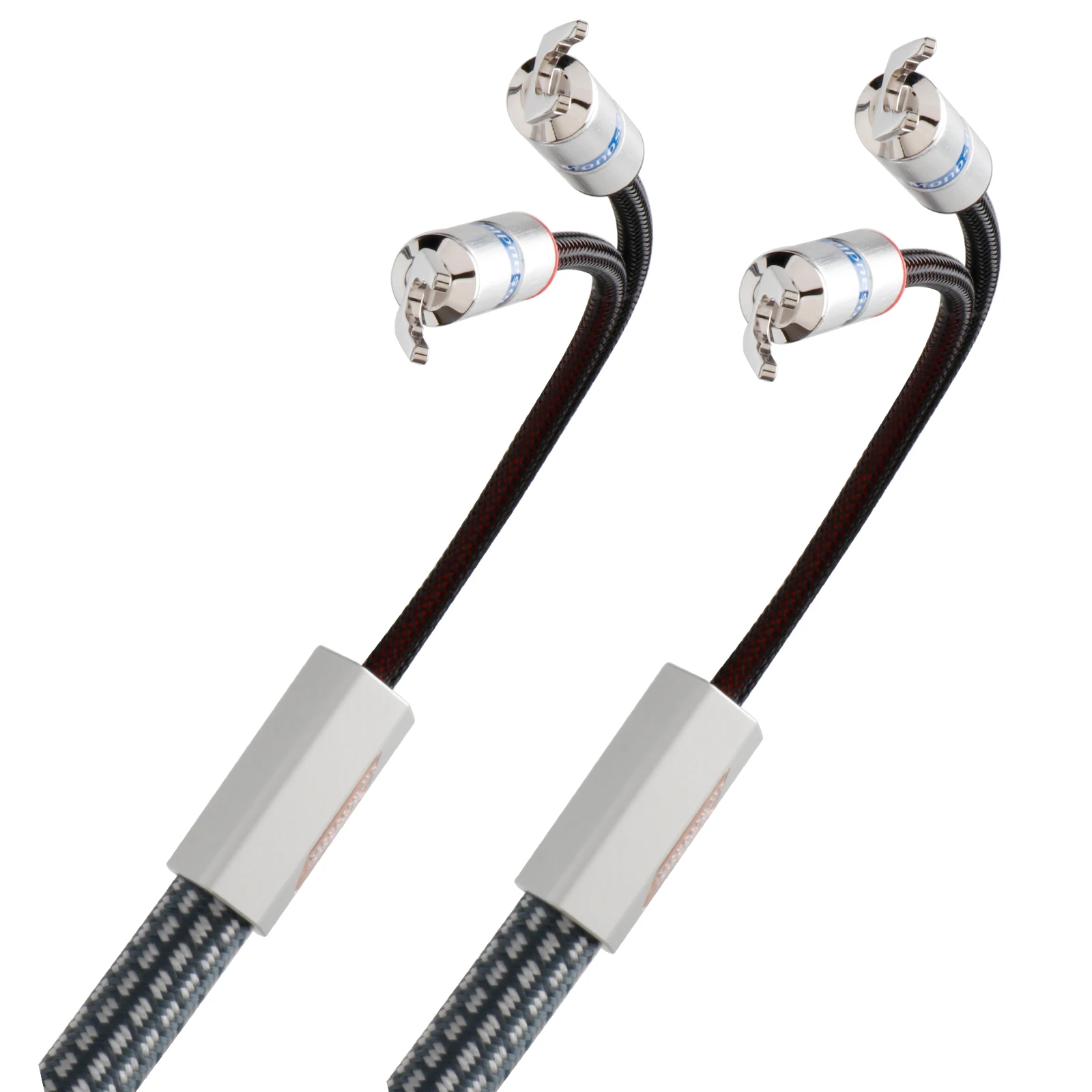

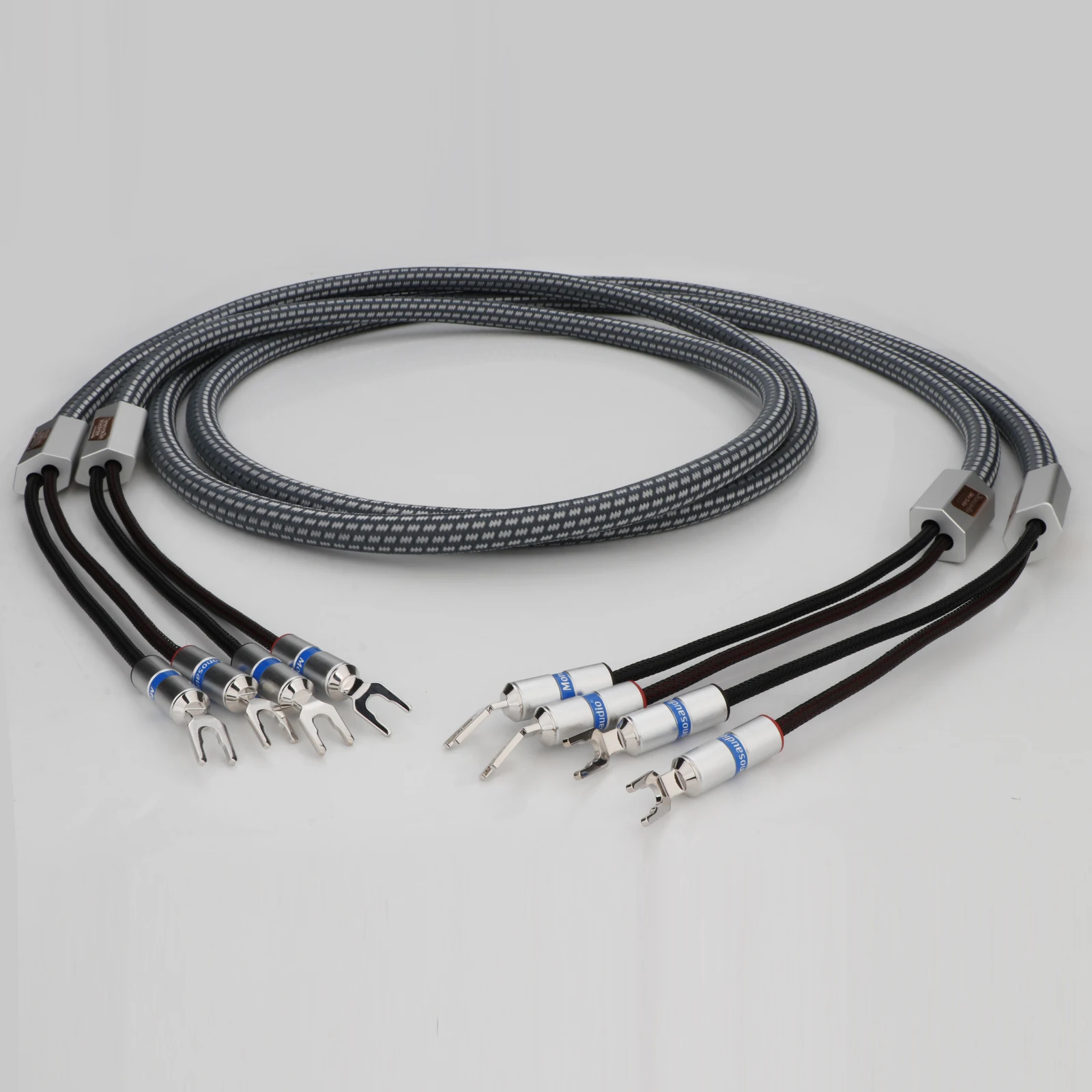

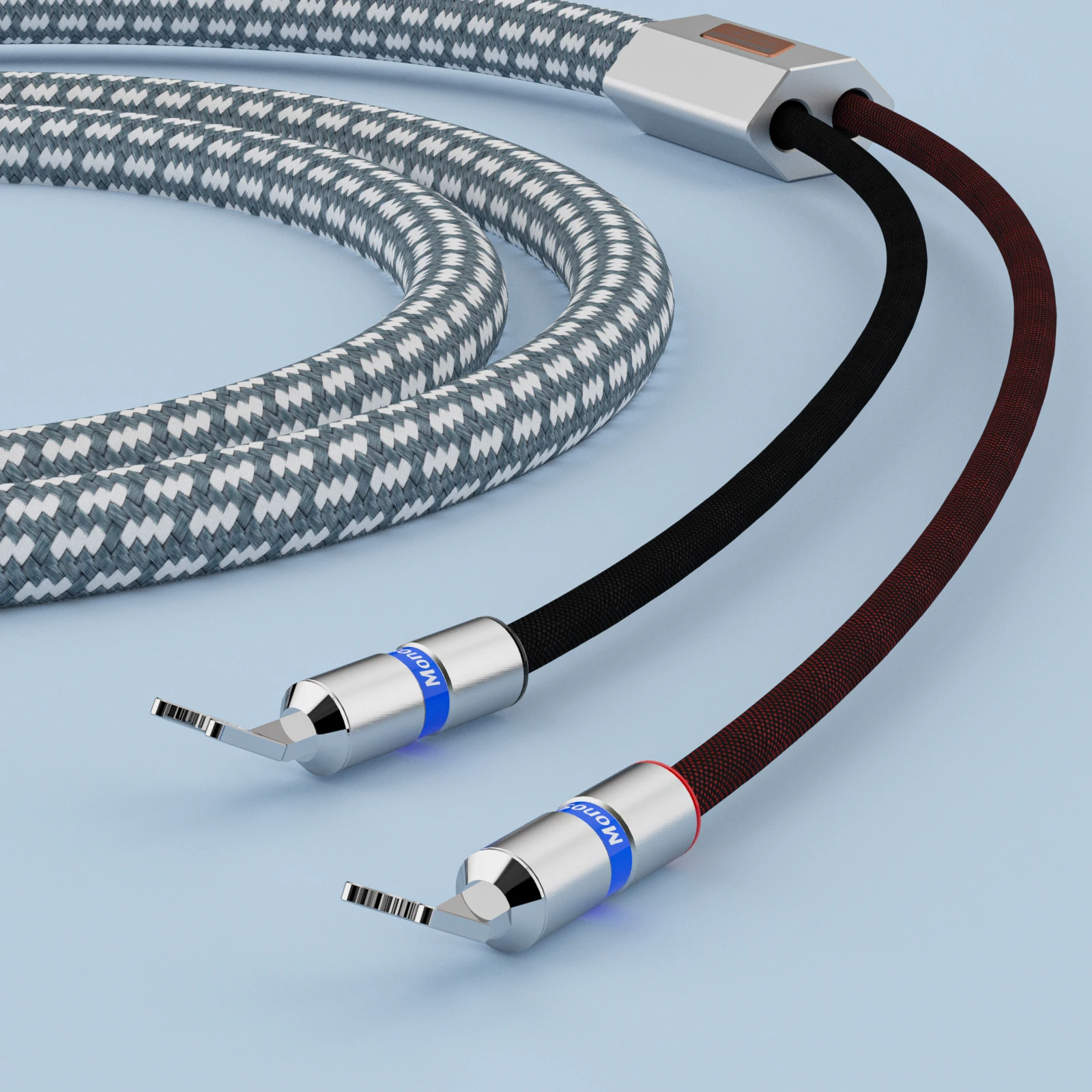

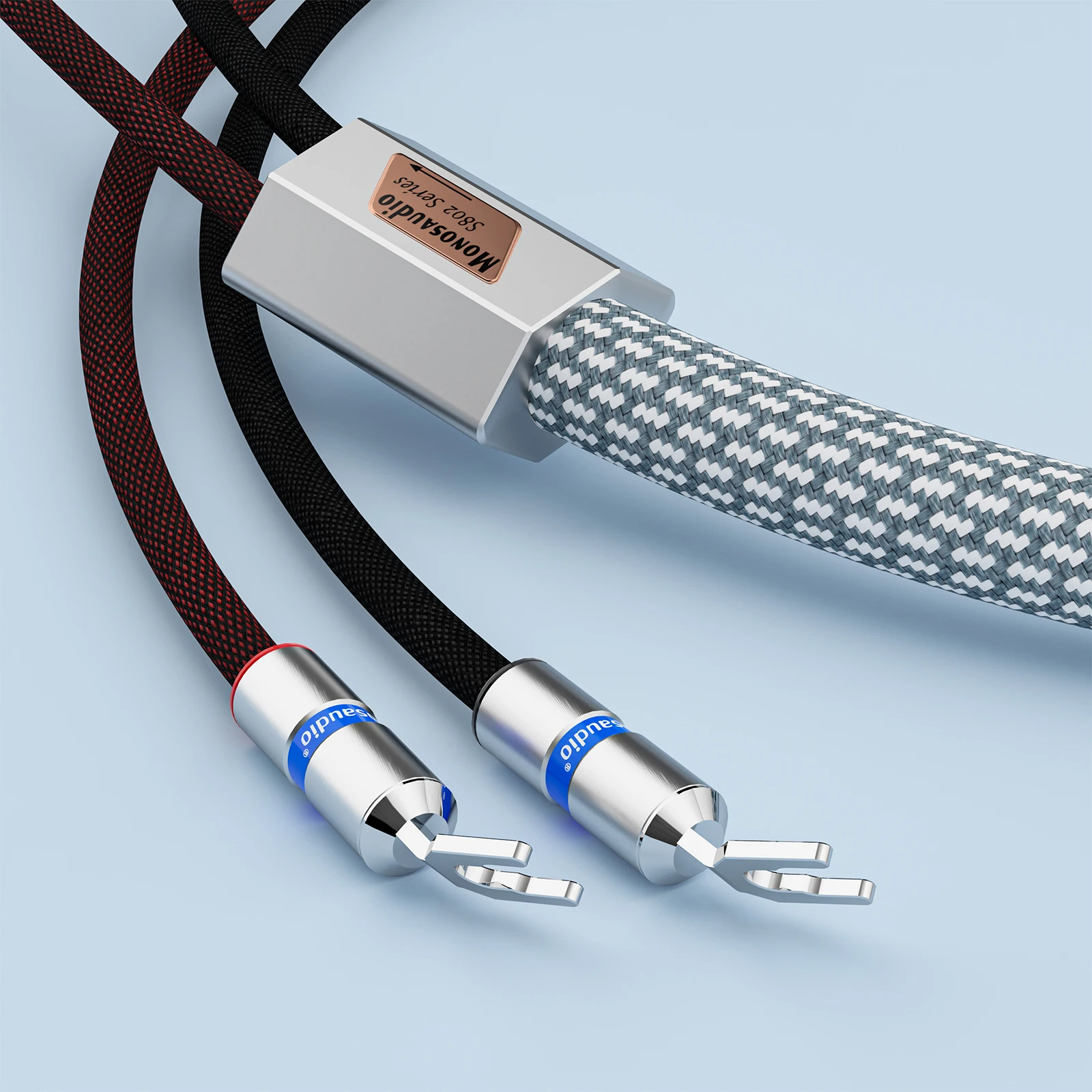

Pair Monosaudio S802 11AWG Speaker Cable Rhodium Plated Y spade Loudspaker Cable use for Home Cinema High-end Amplifier Line

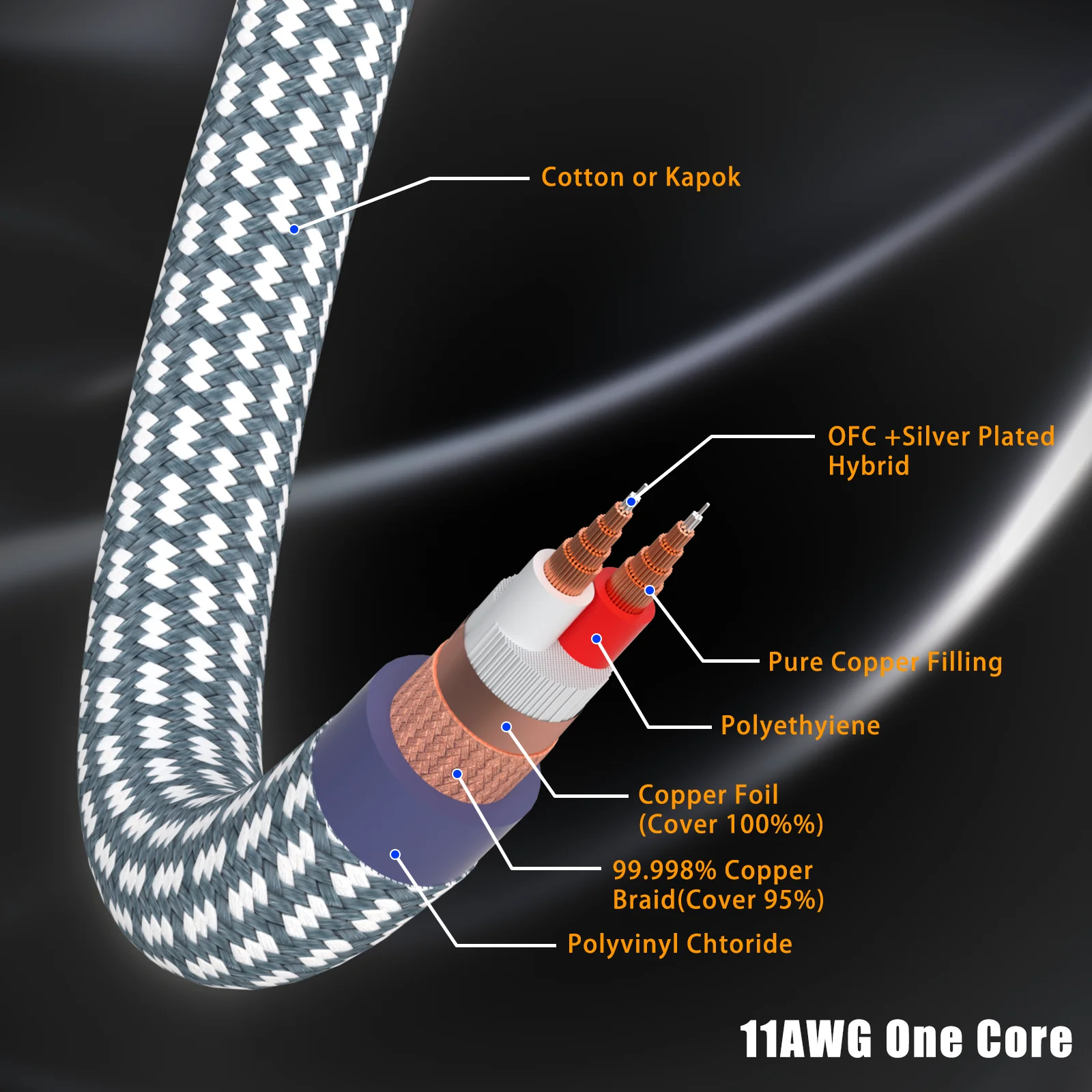

Cable Parameter:
Conductor:5N OFC

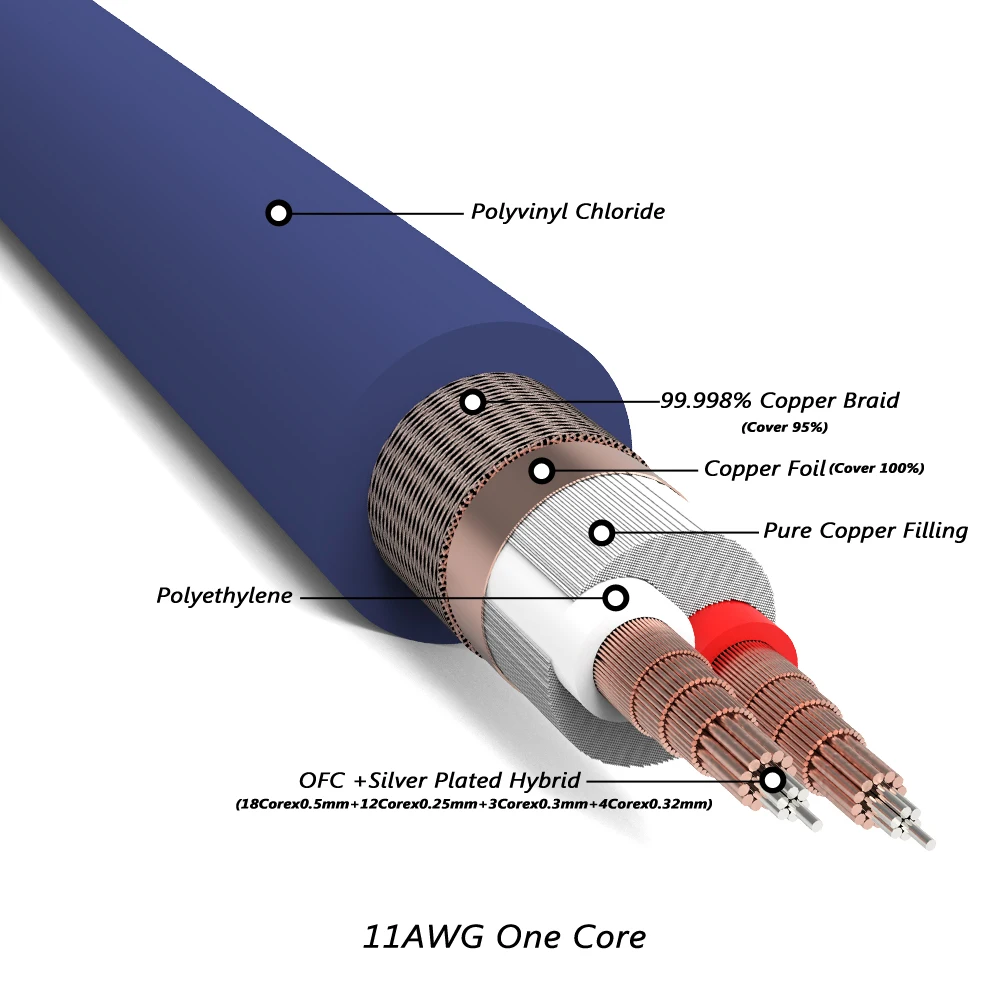

Structure:18 Corex0.5mm+ 12 Corex0.25mm+3Corex0.3mm+4CoreX0.32mm
Shielding 1:95% Copper Braid
Shielding 2:100% Copper Foil
Fillers: Moisture-proof transparent film, Shock-absorbing fibers

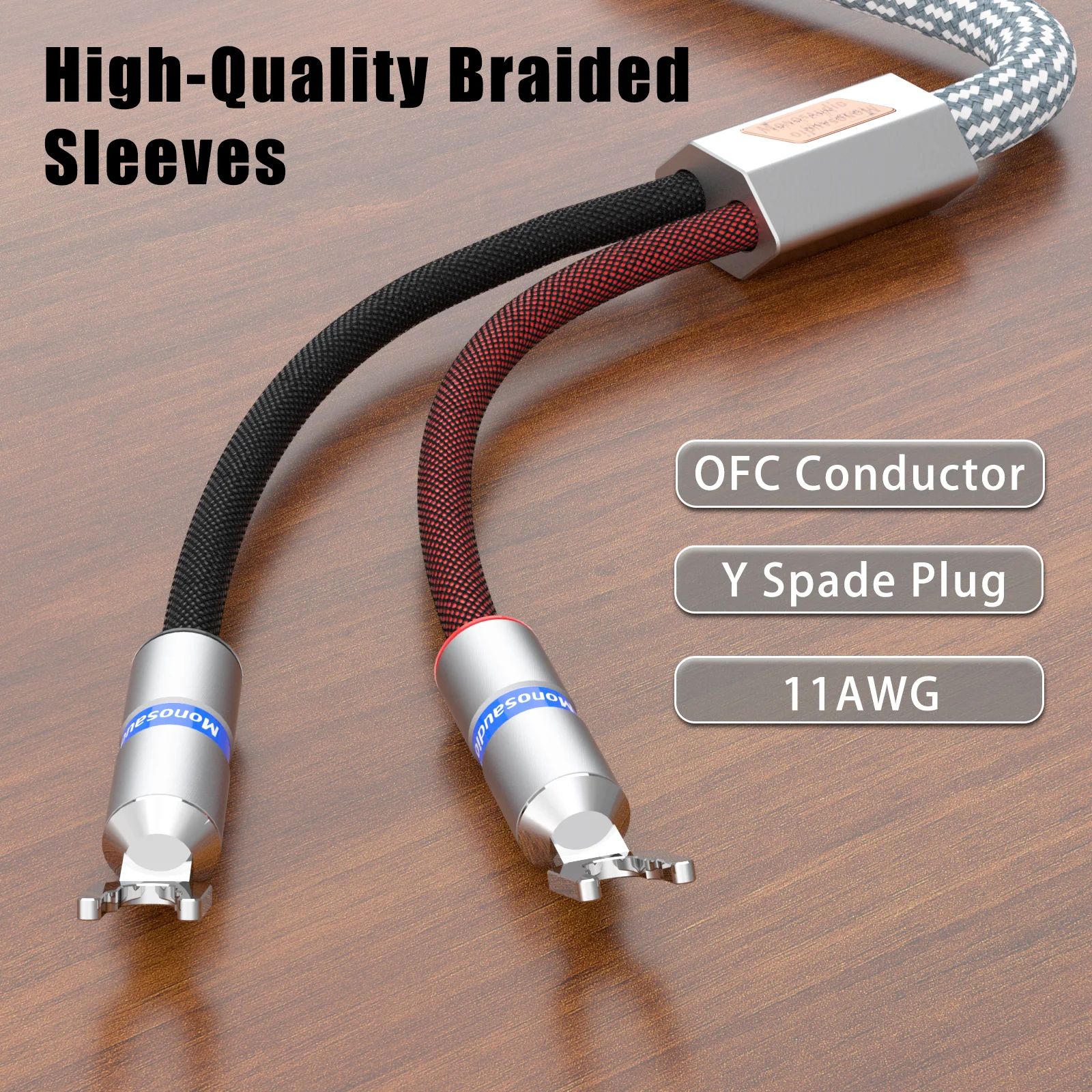

Shell Material: Polyester Braided Sleeving
Diameter:16.5±0.15mm
Length :2M/2.5M/3M

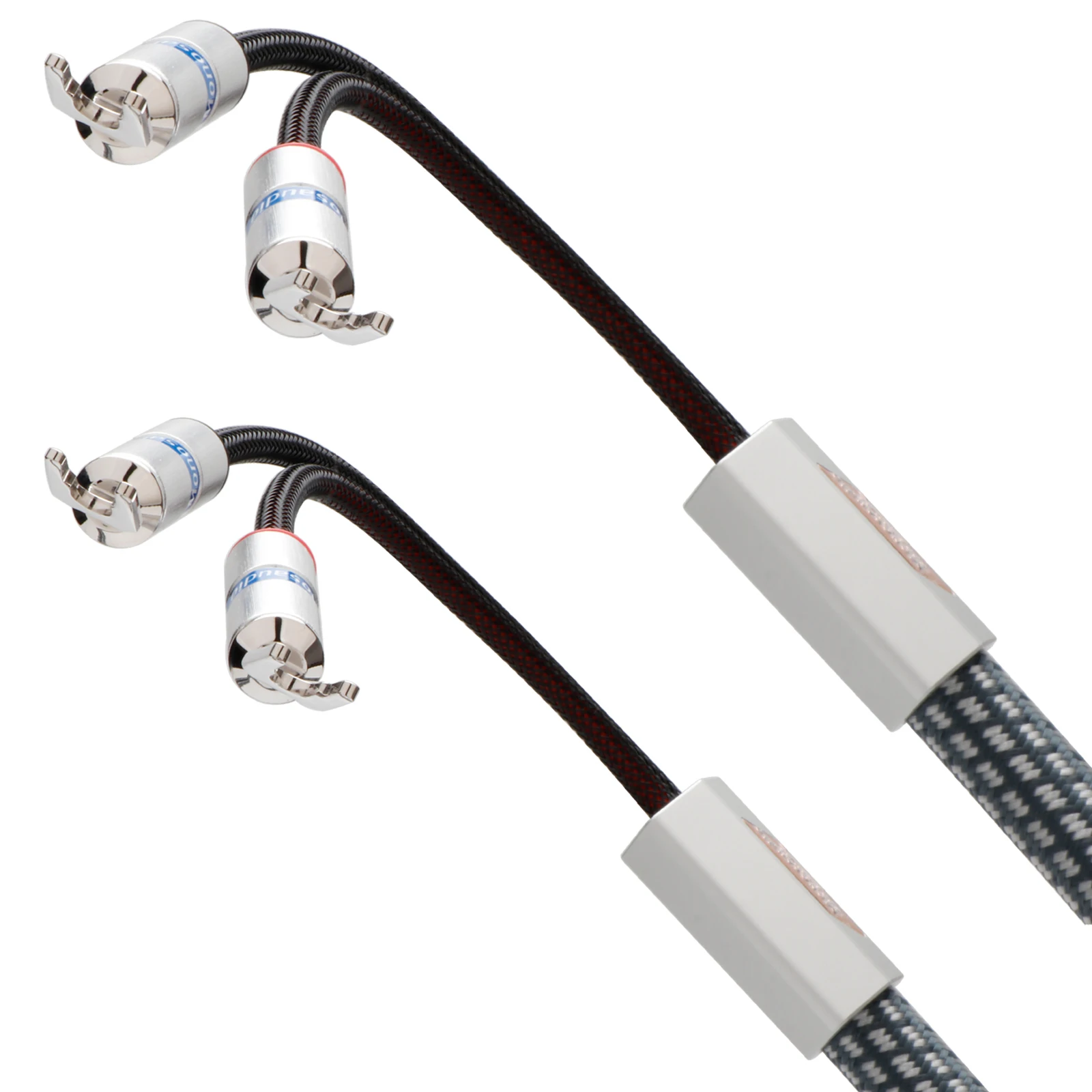

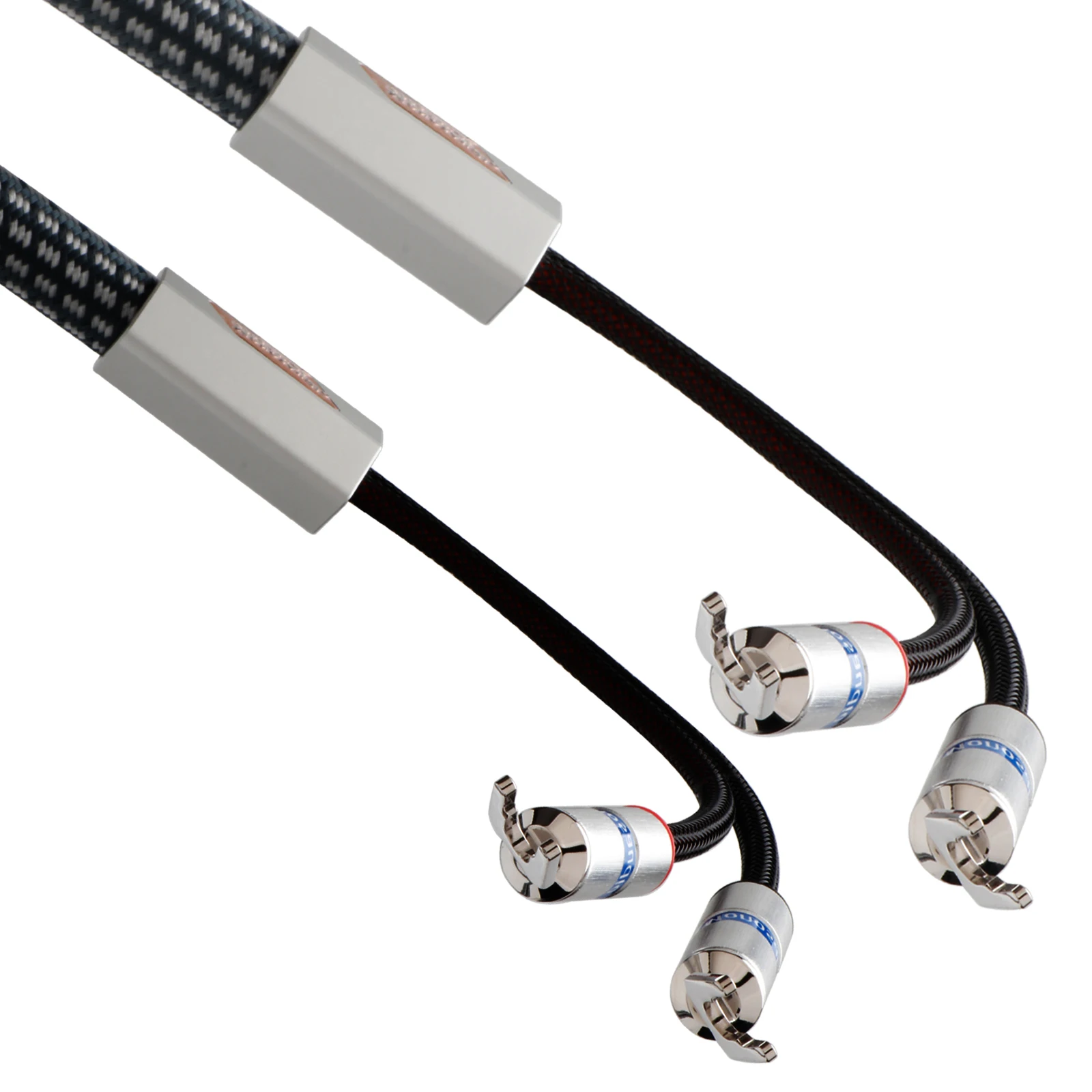

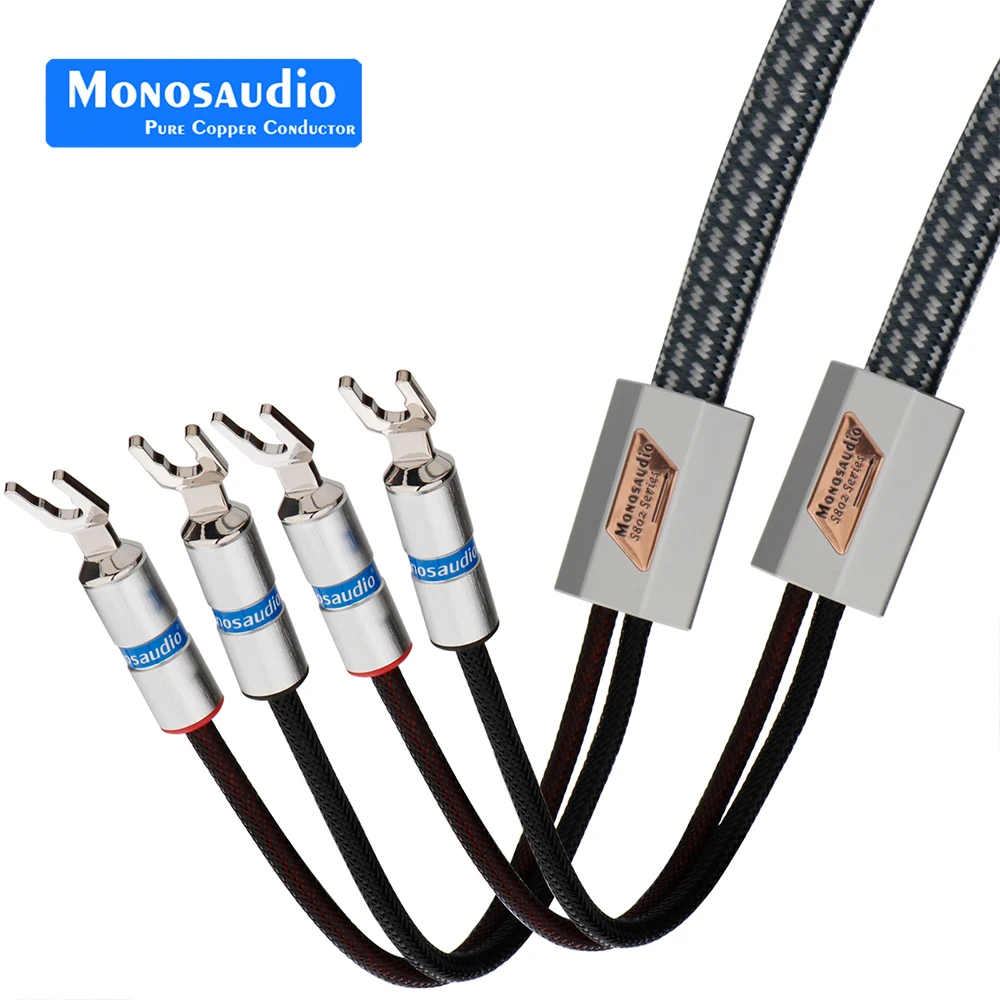

Connector Plug Parameter:
Model:S906R
Conductor: 99.998% Red Pure Copper
Outer Shell Maeterial: Aluminum Alloy Brushed Anodized
Connection: Soldering and Double Screw
Install O.D.: 7.5mm(9AWG)
Housing: 14mmxOverall Length: 61.7mm approx.
U Size: 8.5mm & 6.5mm
4 -Layer Plating :
1. Oxygen Free Copper Plated
2. Silver Plated
3. Palladium Plated
4. Rhodium Plated
