SPECIFICATIONS

Battery Included: Yes

Brand Name: Revopoint

CPU: 8 core ARM A76,2.4 GHz,Mali G52 GPU

Color scanning: Yes

Depth Camera Resolution: Up to 2 Megapixels

Fused Point Distance: Up to 0.05mm

High-concerned chemical: none

Internal Storage: 256 GB

IsWi-Fi/BluetoothSupport: Yes

Maximum scan volume: 4x4x4 m

Memory(RAM): 32GB

Minimum scan volume: 10x10x10 mm

Model Number: MIRACO Plus

Non-Contact Active: Structured Lighting

Non-Contact Passive: Other

Origin: Mainland China

Outdoor scanning: Yes

Output format: PLY, OBJ, STL,ACS,3MF,GLTF,FBX

Product name: MIRACO Plus

RGB Camera Resolution: 48 Megapixels

Revopoint Model: miraco

Scan speed: Up to 20 fps

Single Capture Area at Furthest Distance: 975 x 775 mm at 1000 mm

Single Capture Area at Nearest Distance: 28 x 53 mm at 100 mm

Single-frame Accuracy: Up to 0.04mm

Single-frame Precision: Up to 0.02mm

Technology: Quad-camera Infrared Structured Light with Optical zoom, and Ultra-resolution photogrammetric metrology

Tracking Methods: Feature,Marker,Global Marker

Wi-Fi & Bluetooth: 6.0/4.1

Working Distance: 100-1000mm

Precision Measurement, Efficient Modeling:

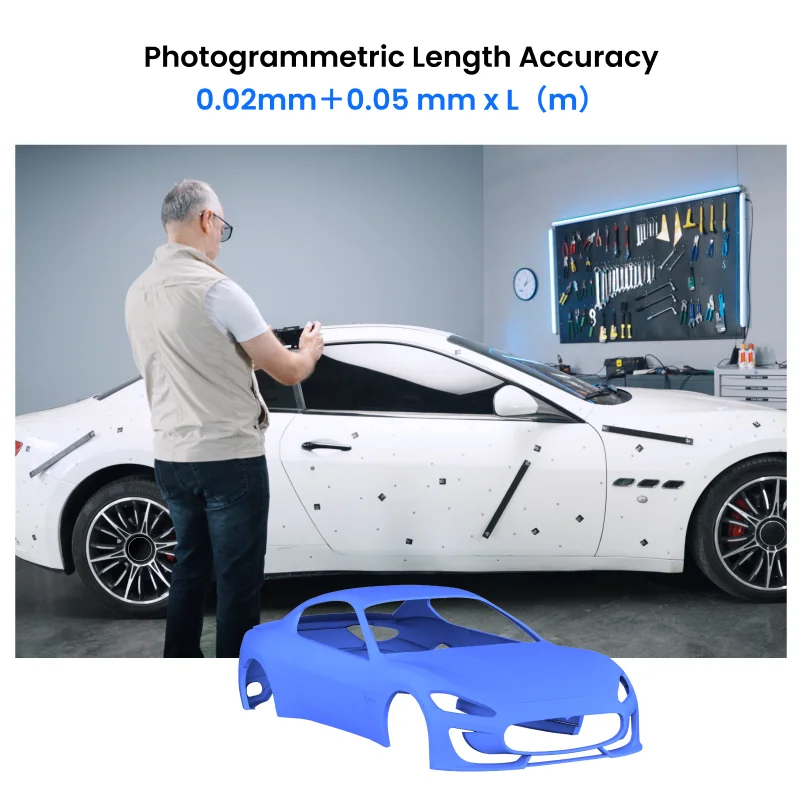

- Metrology-grade 3D Measurement
:MIRACO Plus's photogrammetric function it can create metrology-grade 3D models of large objects such as automobiles, ship or plane parts, and machinery. Achieve an impressive length measurement accuracy of up to 0.02 mm + 0.05 mm x L (m).

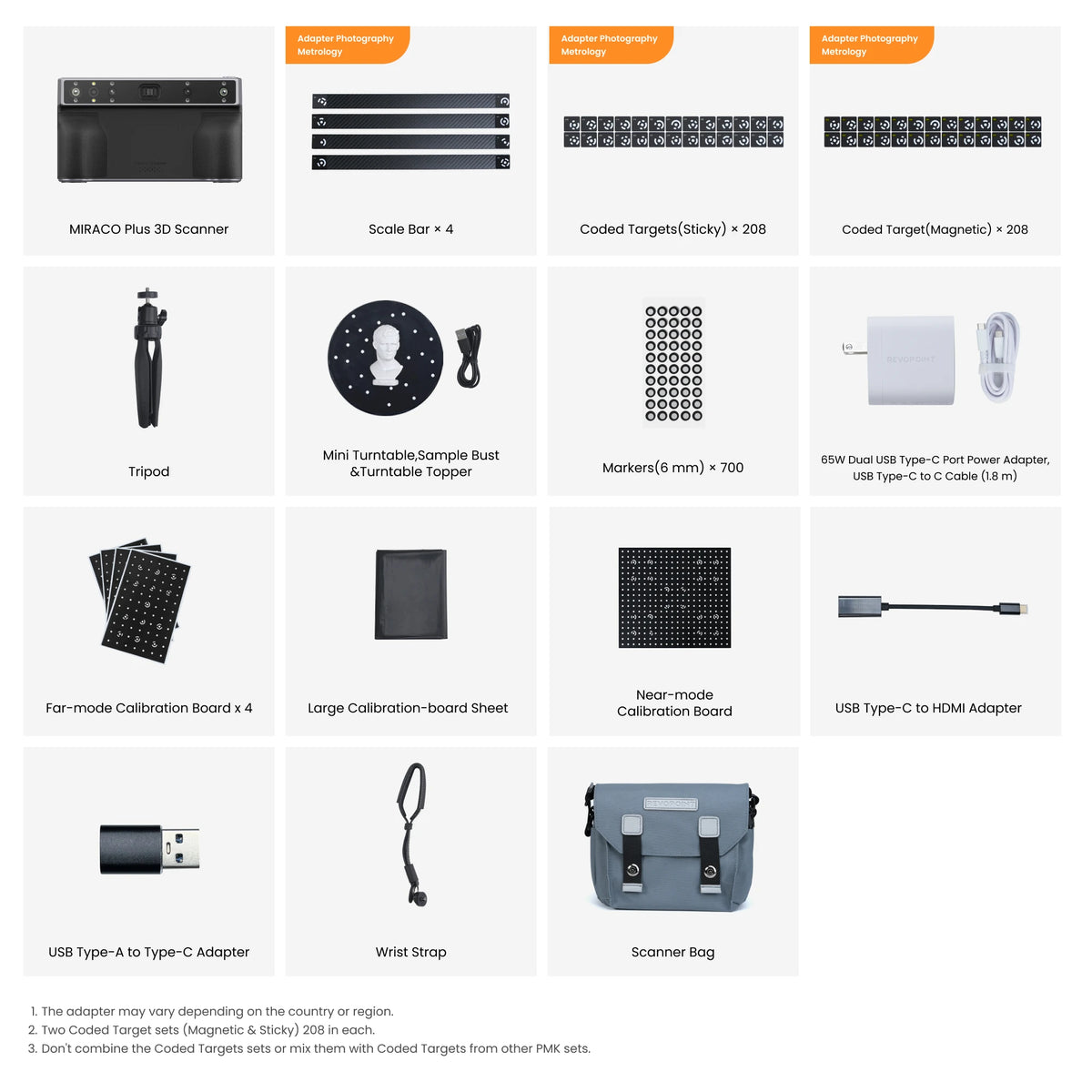

-Photogrammetric Metrology Kit:
*Aluminum Alley Carry Case x1

*Scale Bar(Magnetic) x 4

*Coded Targets(Sticky) x 208

*Coded Target(Magnetic) x 208

*Markers(6 mm) x 500

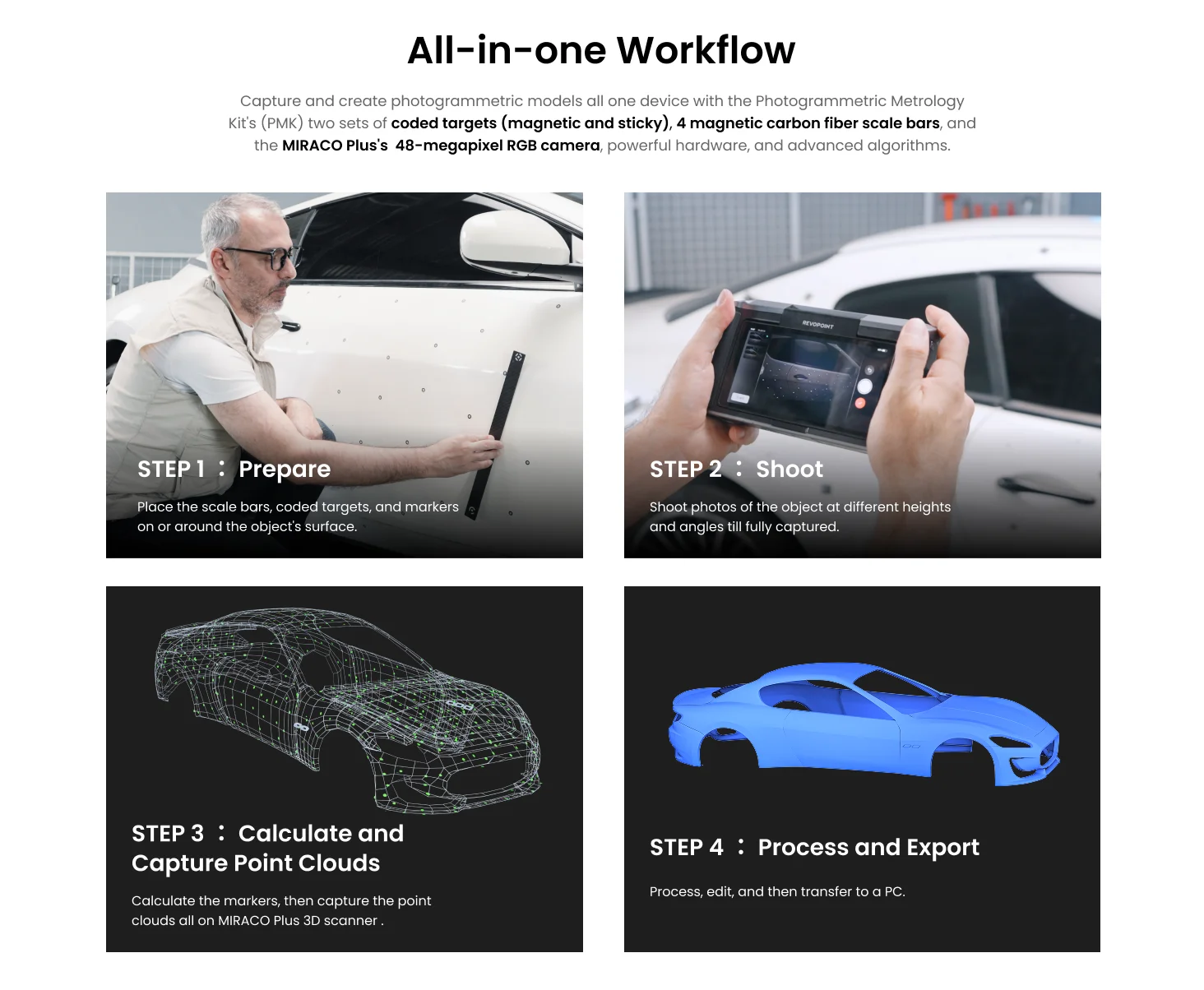

All-in-one Workflow:

*Capture and create photogrammetric models all one device with the Photogrammetric Metrology
Kits (PMK) two sets of coded targets (magnetic and sticky), 4 magnetic carbon fiber scale bars, and
the MIRACO Plus's 48-megapixel RGB camera, powerful hardware, and advanced algorithms.

- STEP1 Prepare:

Place the scale bars, coded targets, and markers
on or around the object's surface.

- STEP2 Shoot:

Shoot photos of the object at different heights
and angles till fully captured.

- STEP3 Calculate and Capture Point Clouds:

Calculate the markers, then capture the point
clouds all on MIRACO Plus 3D scanner .

- STEP4 Process and Export:

Process, edit, and then transfer to a PC.

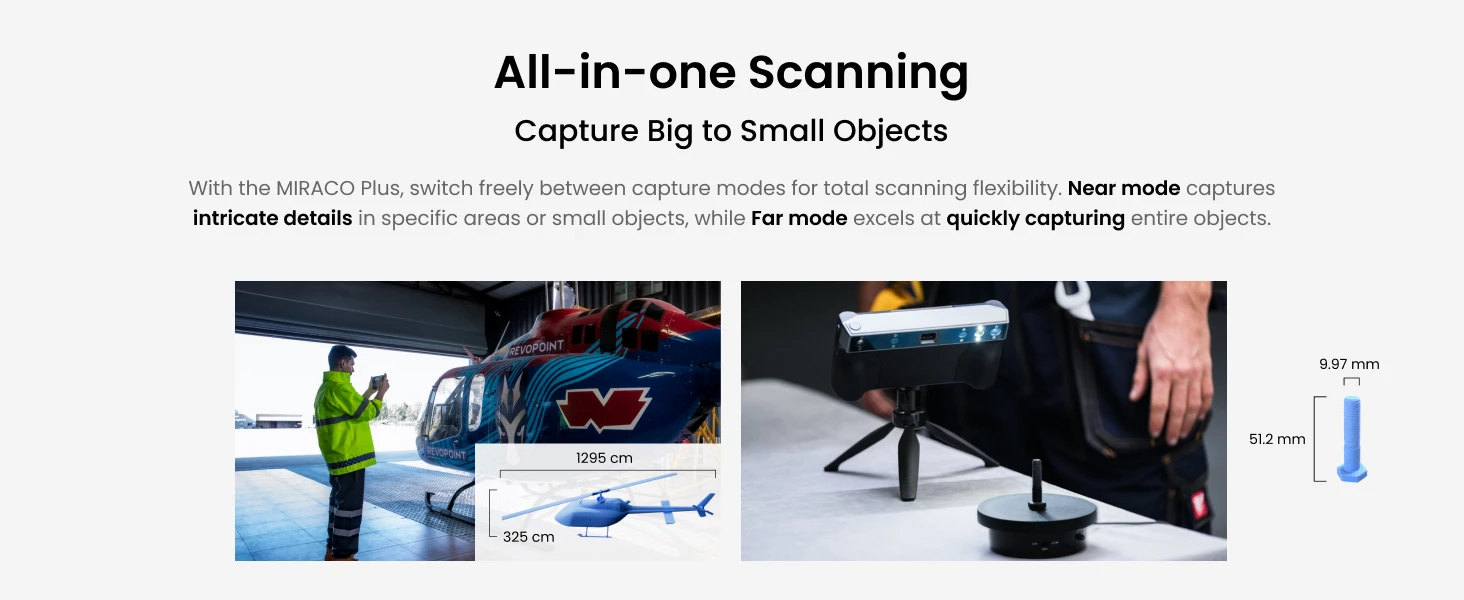

All-in-one Scanning:Capture Big to Small Objects

- With the MiRACO Plus, switch freely between capture modes for total scanning flexibility.Near mode captures intricate details in specific areas or small objects, while Far mode excels at quickly capturing entire objects.

Two Capture Modes:

- Single-shot Mode:Single-shot mode's single-frame capture makes it easier to scan inhard-to-maneuver environmentsand reduces point cloud overlapfor increased accuracy.

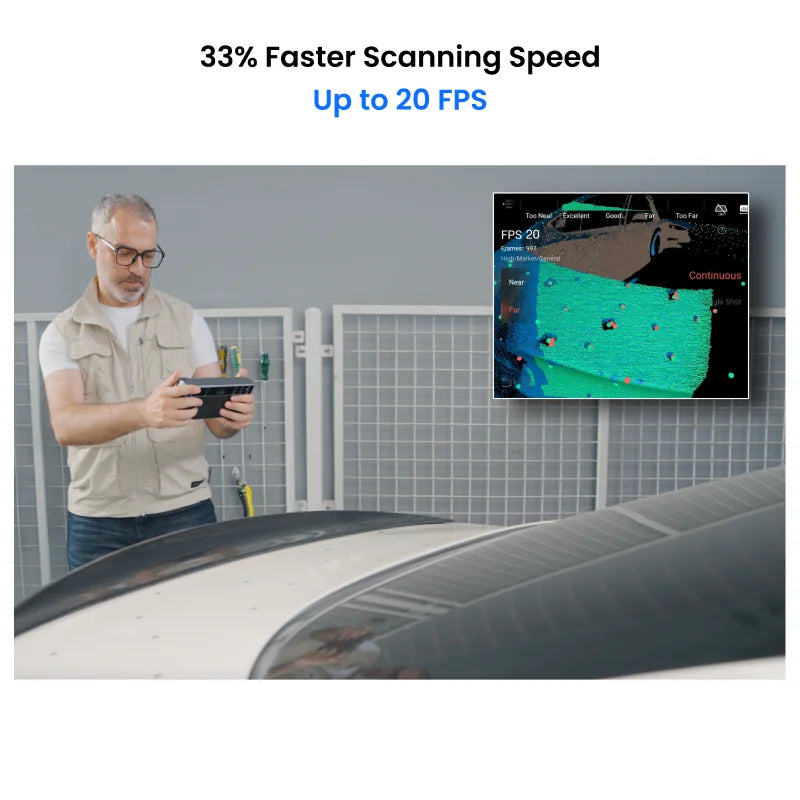

- Continuous Mode:Efficiently capture objects at fast up to 20 fps scanning speeds.

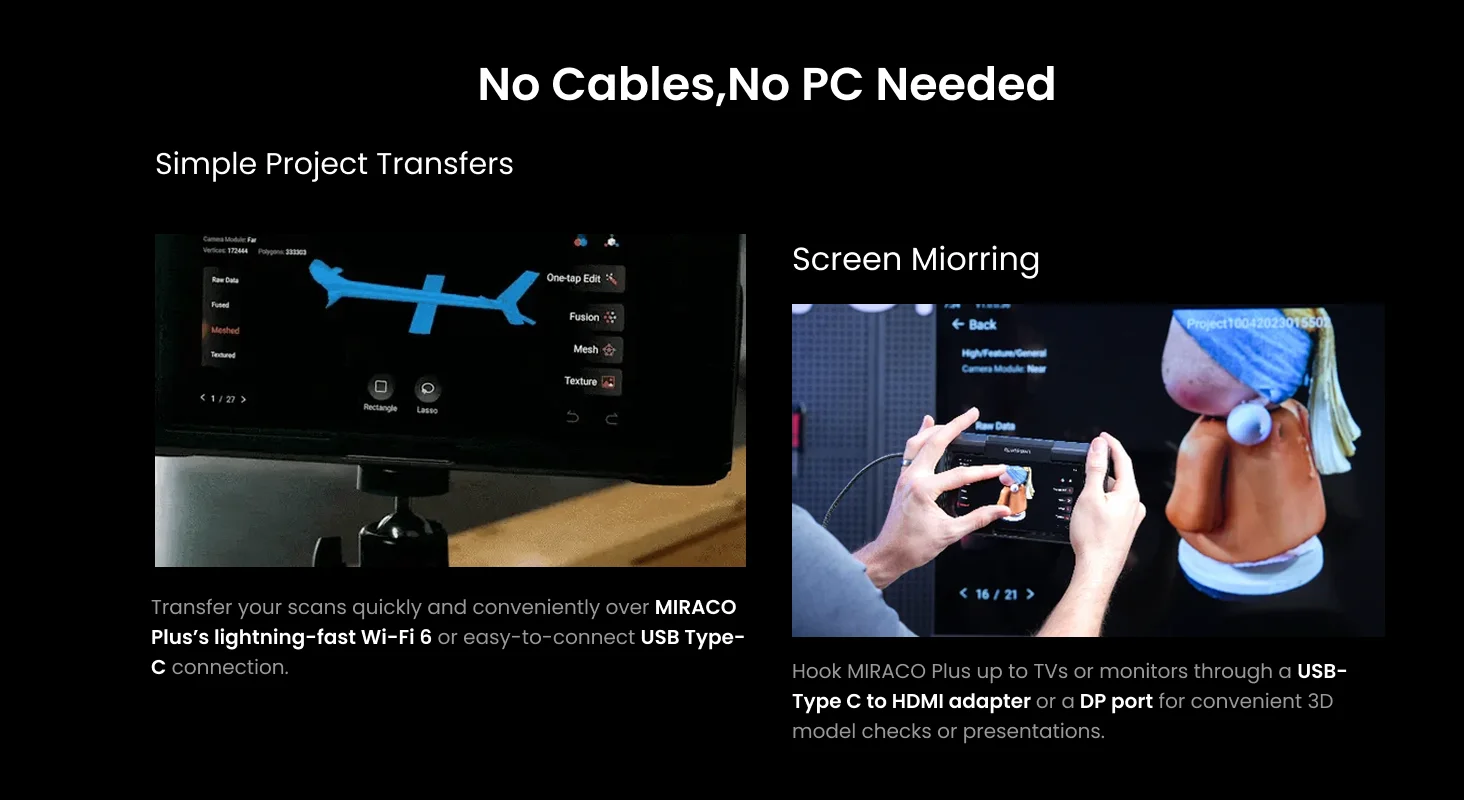

No Cables, No PC Needed:

- Simple Project Transfers:Transfer your scans quickly and conveniently over MIRACO Plus’s lightning-fast Wi-Fi 6 or easy-to-connect USB Type-C connection.

- Screen Mirroring:Hook MiRACO Plus up to TVs or monitors through a USB-Type C to HDMI adapter or a DP port for convenient 3D model checks or presentations.

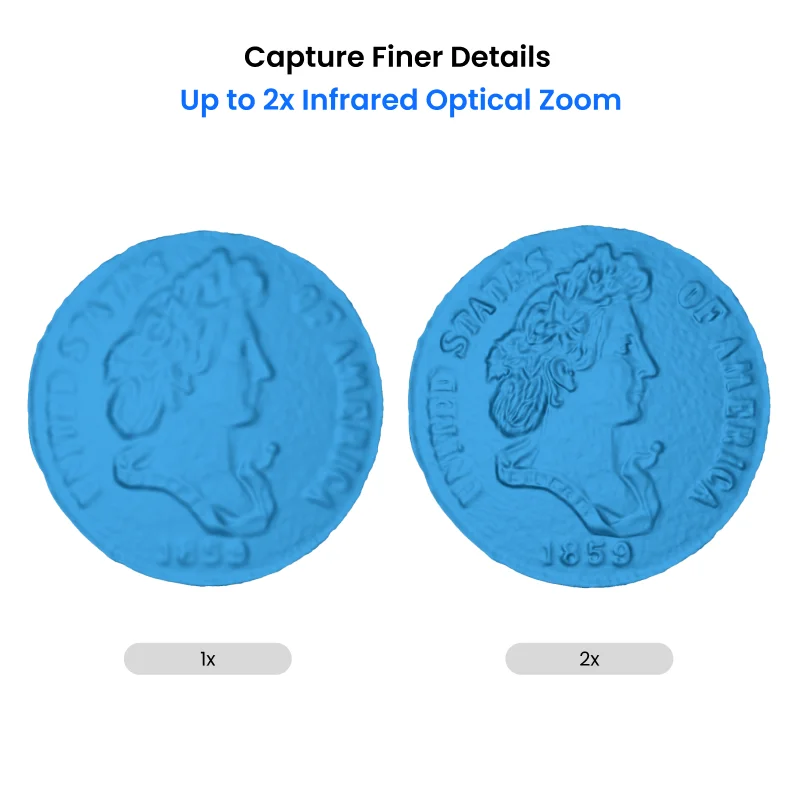

Optical Zoom, Safe & Precise:

- Quad-camera Infrared Structured Light, Eye-Safe 3D Scanner.
48-megapixel ice Camera, True-Color Repeal

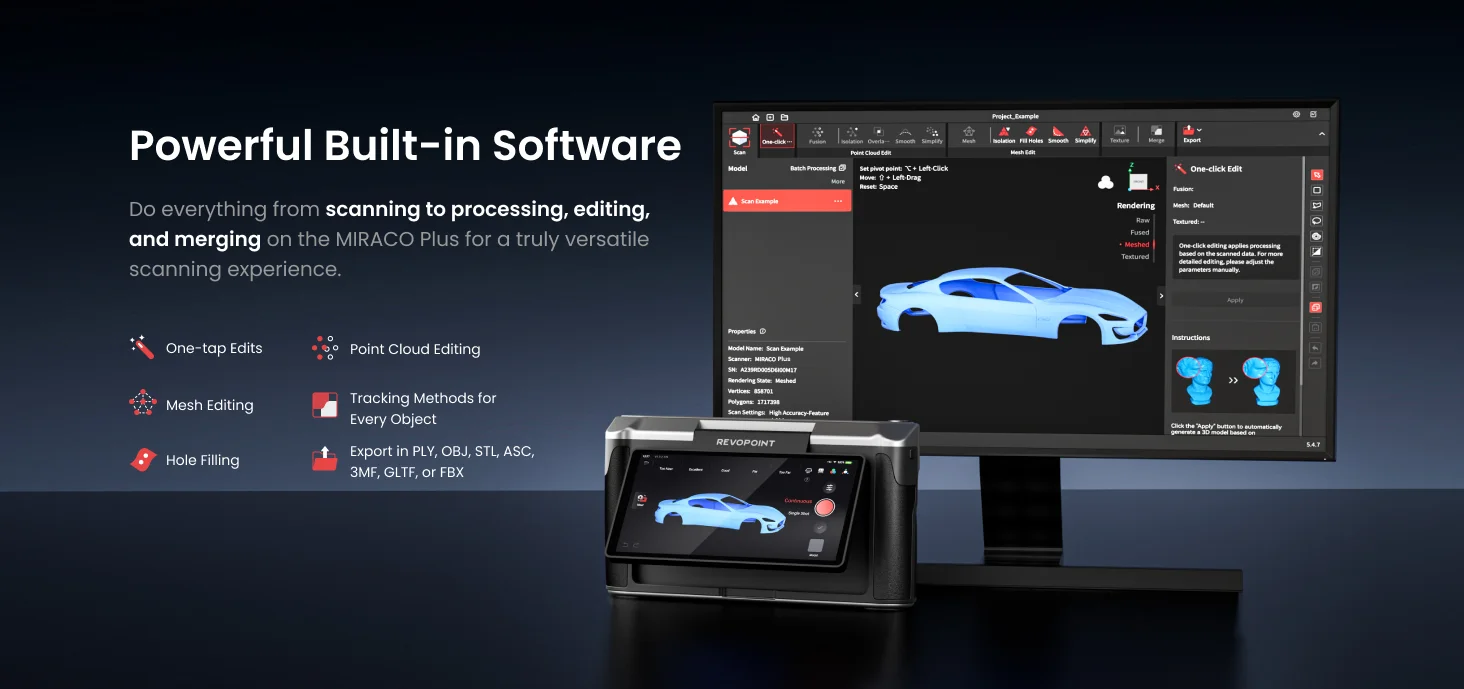

Powerful Built-in Software:

- Do everything from scanning to processing, editing, and merging on the MIRACO Plus for a truly versatile scanning experience.

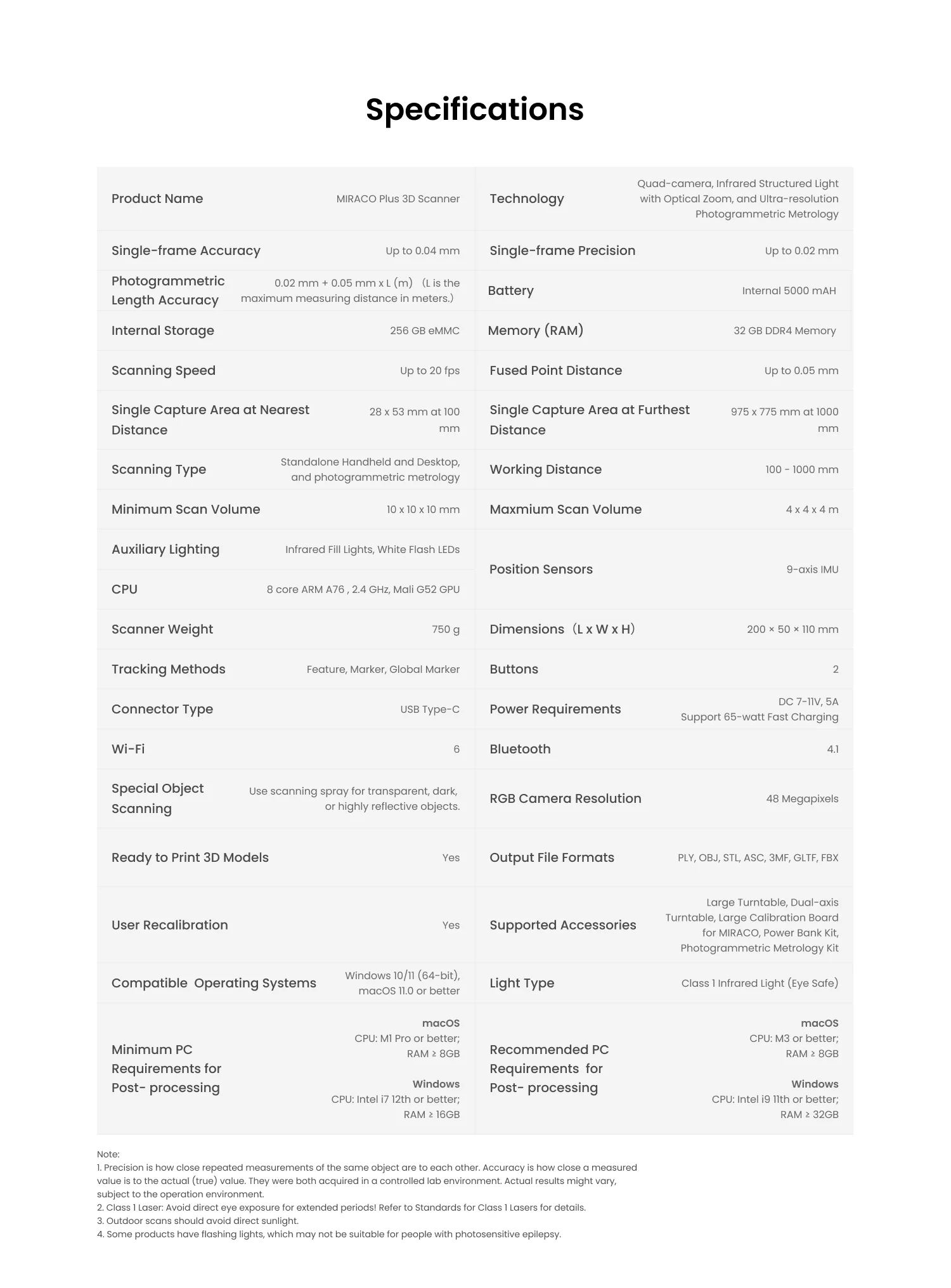

Product Parameters

- Technology：Quad-camera Infrared Structured Light with Optical zoom, and Ultra-resolution photogrammetric metrology

- Product Name：MIRACO PLUS

- Single-frame Accuracy：Up to 0.04mm

- Single-frame Precision：Up to 0.02mm

- Fused Point Distance：Up to 0.05mm

- Working Distance：100-1000mm

- Single Capture Area at Nearest Distance：28 x 53 mm at 100 mm

- Single Capture Area at Furthest Distance：975 x 775 mm at 1000 mm

- Angular Field of View(HXW)：Near 40 x 30°,Far 56 x 42°

- Minimum scan volume：10x10x10 mm

- Maximum scan volume：4x4x4 m

- Scan speed：Up to 20 fps

- Depth Camera Resolution：Up to 2 Megapixels

- RGB Camera Resolution：48 Megapixels

- Color scanning：Yes

- Tracking Methods：Feature,Marker,Global Marker

- CPU：8 core ARM A76,2.4 GHz,Mali G52 GPU

- Internal Storage：256 GB

- Memory(RAM)：32GB

- Wi-Fi & Bluetooth：6.0/4.1

- Output format：PLY, OBJ, STL,ACS,3MF,GLTF,FBX

Usage Scenario

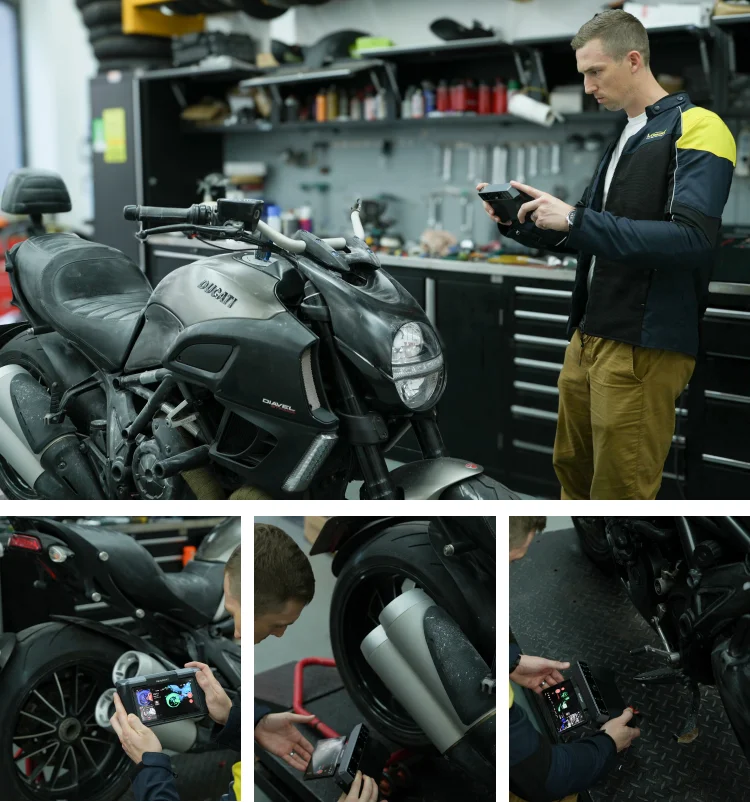

- Accurate measurement,quality and compliance:Traditional automotive and motorcycle industry measurements rely on manual tools such as calipers and coordinate measuring machines (CMMs), which are inefficient and prone to human error when measuring complex surfaces. The MIRACO Plus, with a photogrammetric metrology kit, enables precise measurements of key components like car bodies, bumpers, wheels, engines, chassis, doors, and frames, providing accurate and reliable 3D data for reverse engineering. Its wireless, portable, all-in-one design significantly enhances work efficiency, ensuring products meet design requirements and industry standards.

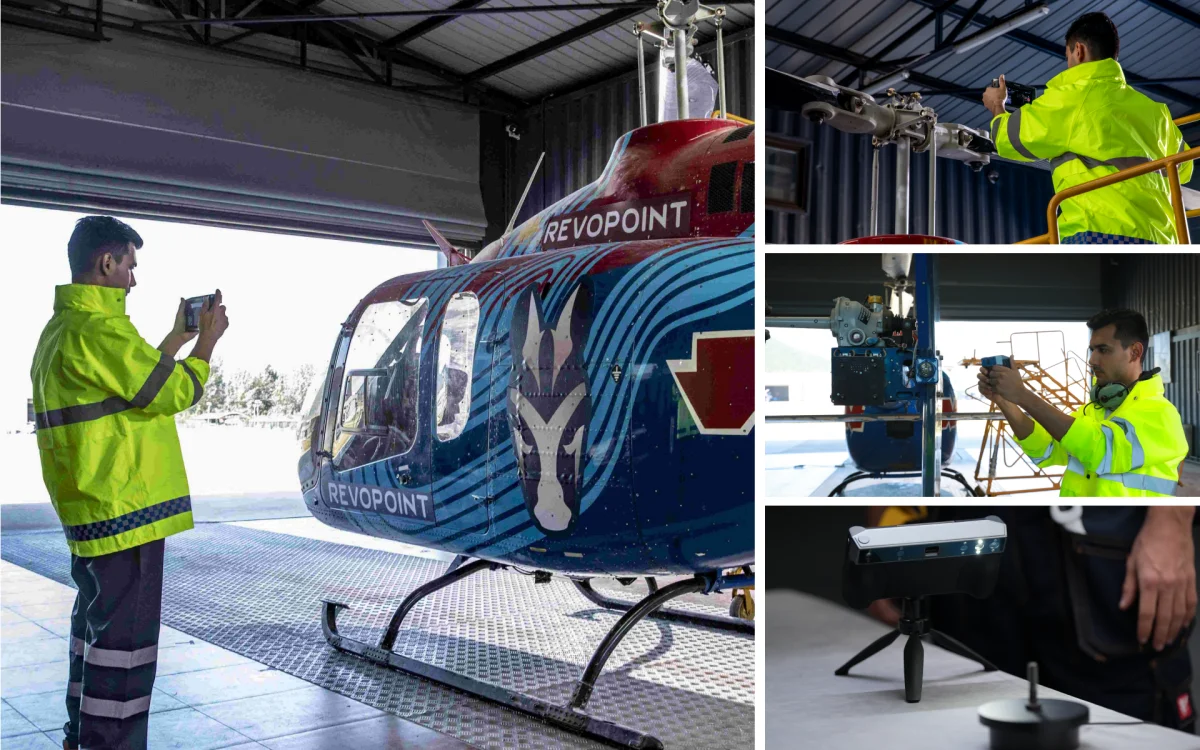

- Low dimensional error, safety guarantee:In the aviation sector, aircraft components are often large and structurally complex, making traditional measurement methods like tooling boards and templates time-consuming and inaccurate. The MIRACO Plus offers high measurement precision(up to 0.04mm), fast scanning speed (up to 20 fps), large size measurement capacity, minimal dimensional error (0.02 mm + 0.05 mm × L), and strong portability. Its photogrammetric capabilities efficiently handle large, complex geometries such as wings, engine compartments, and propellers, providing precise 3D data for structural analysis and component optimization.

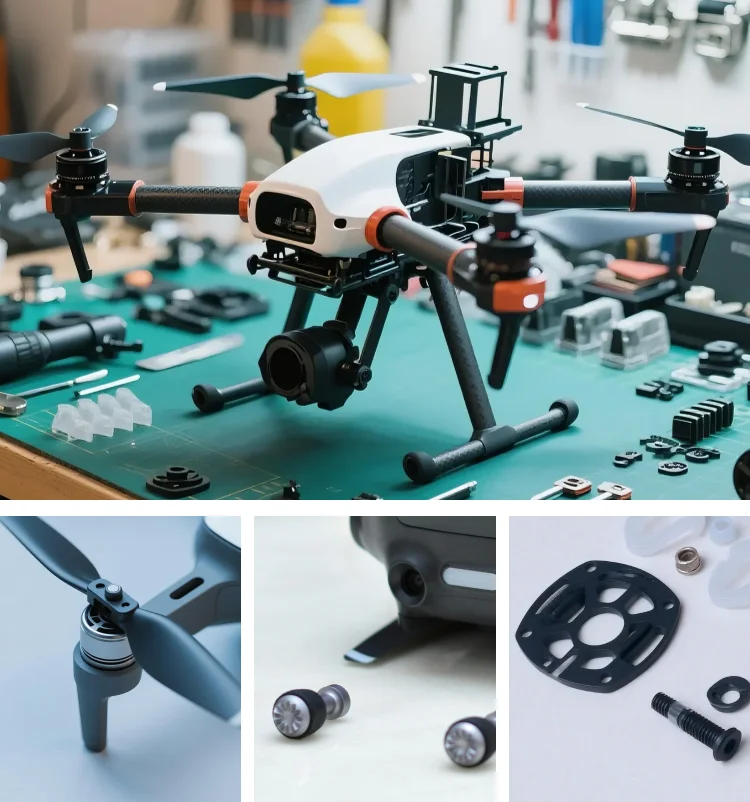

- Empowers design&customization:The MIRACO Plus 3D scanner is designed to provide high-precision 3D data support for drone design and modification. Eliminating the need for time-consuming manual drafting, MIRACO Plus easily captures 3D models of drone dimensions, shapes, relative positions of components, and structural designs, facilitating customized 3D design requirements such as extended flight time, high-definition imaging, enhanced structural strength, and stable data transmission. It offers efficient and accurate structural 3D data for reverse engineering.

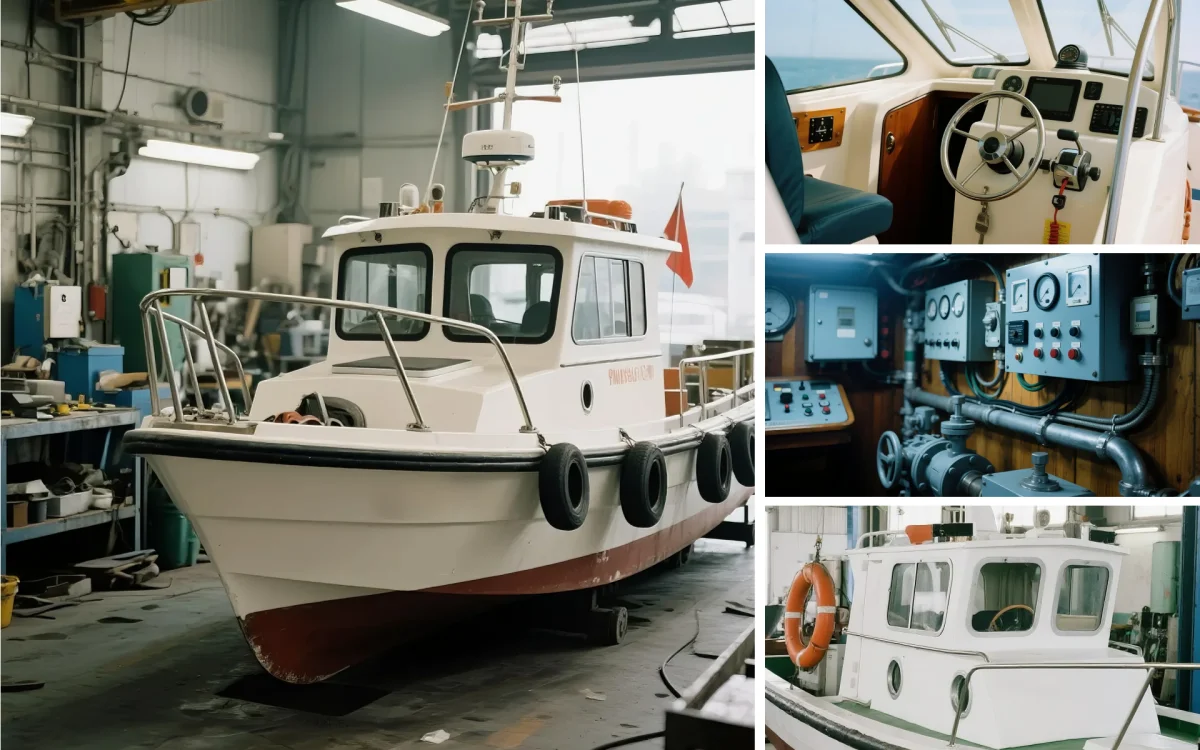

- Efficient maintenance through complex structure scanning:In the shipbuilding industry, traditional measurement methods struggle to meet the demands of measuring large curved surfaces and complex structures, leading to inefficiencies and limited accuracy. The MIRACO Plus 3D scanner, equipped with a photogrammetric metrology kit, can quickly, efficiently, and accurately capture 3D models of hulls, interior equipment, decks, and other areas. Its high precision and rapid scanning capabilities enable the swift acquisition of high-accuracy structural 3D data during ship design, measurement, maintenance, and modification processes, enhancing work efficiency and design quality.
