SPECIFICATIONS

Brand Name: NONE

Compatible Audio & Video Equipment Style: Display Equipment

High-concerned chemical: none

Origin: Mainland China

Special Feature: none

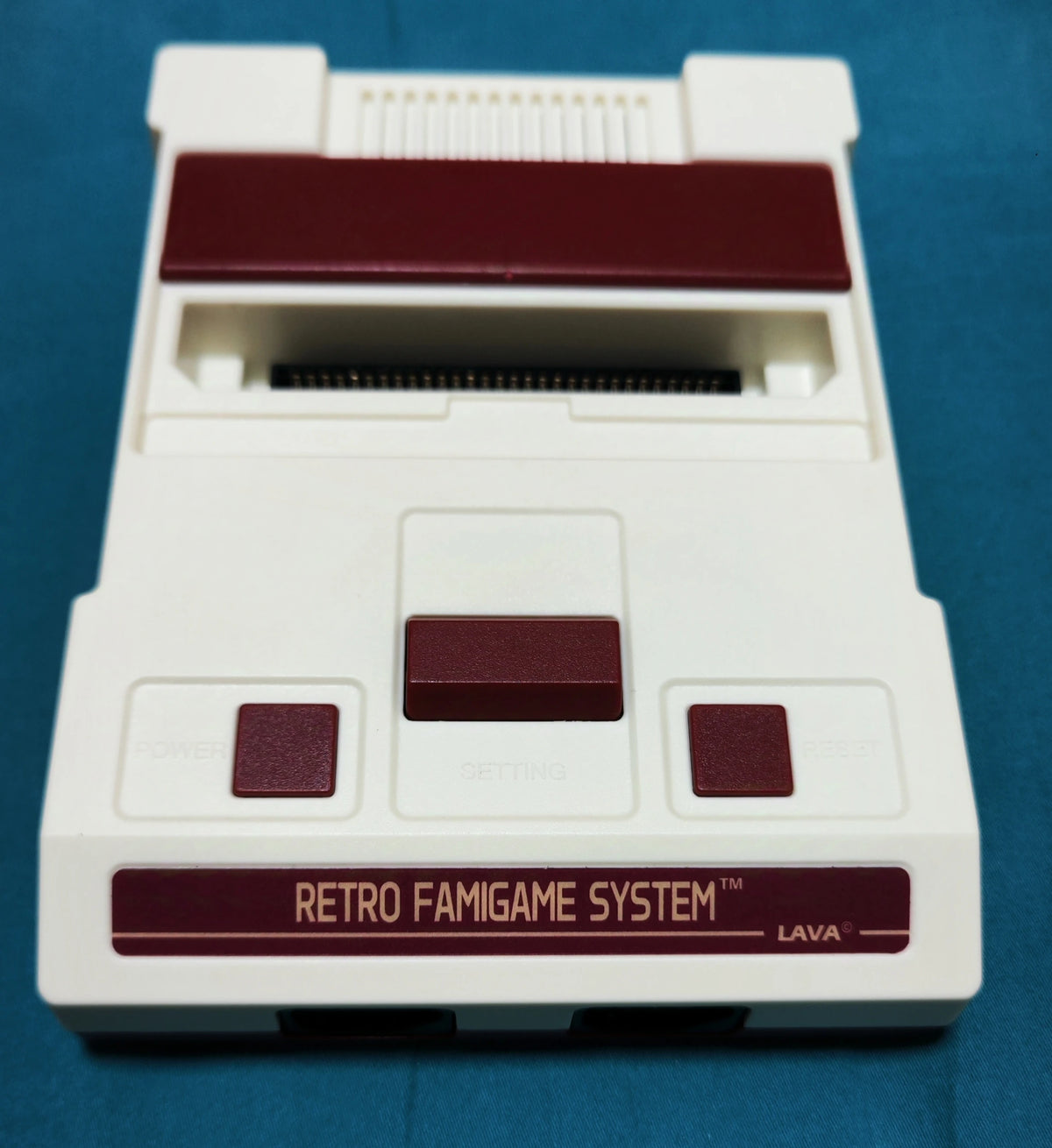

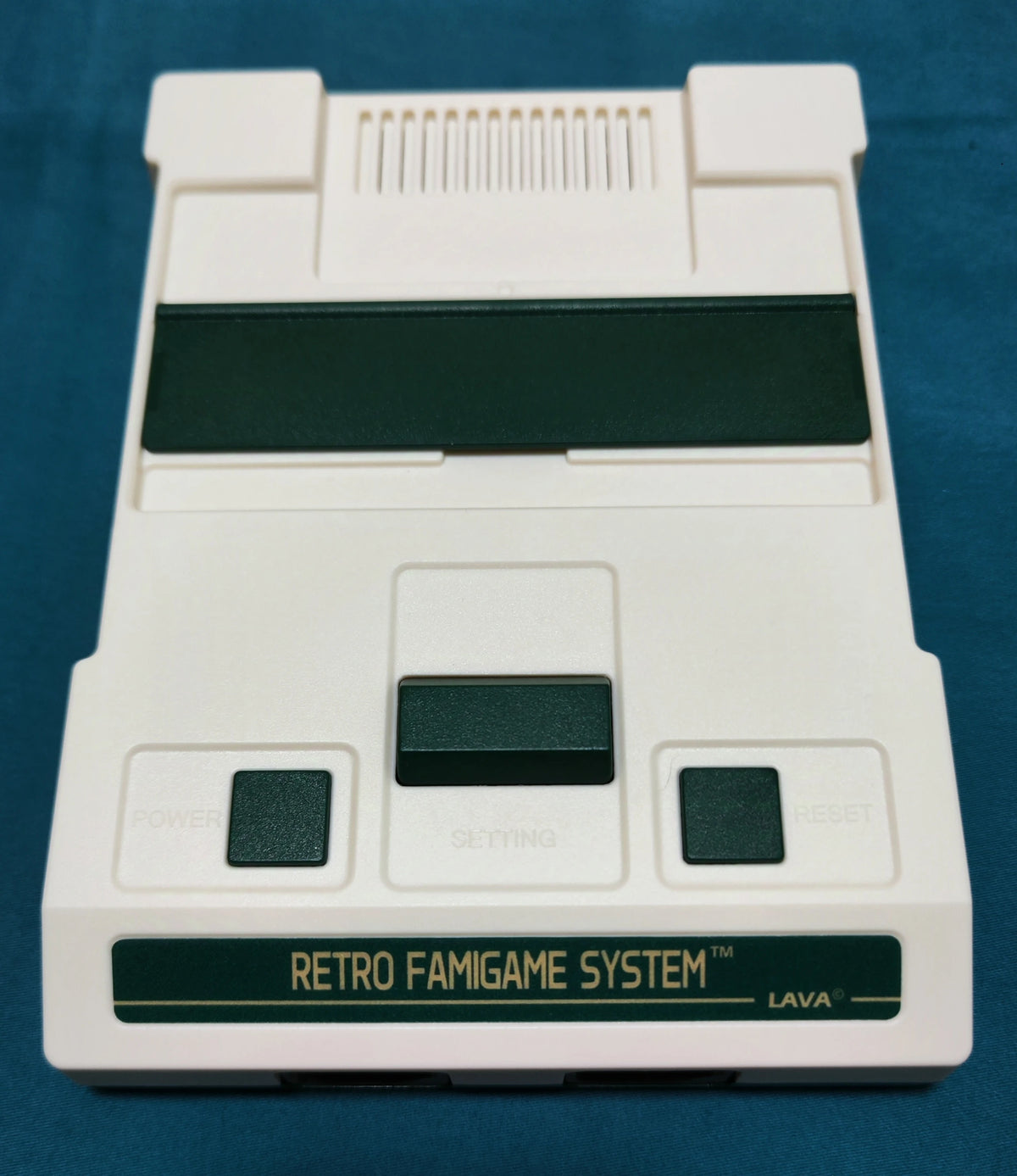

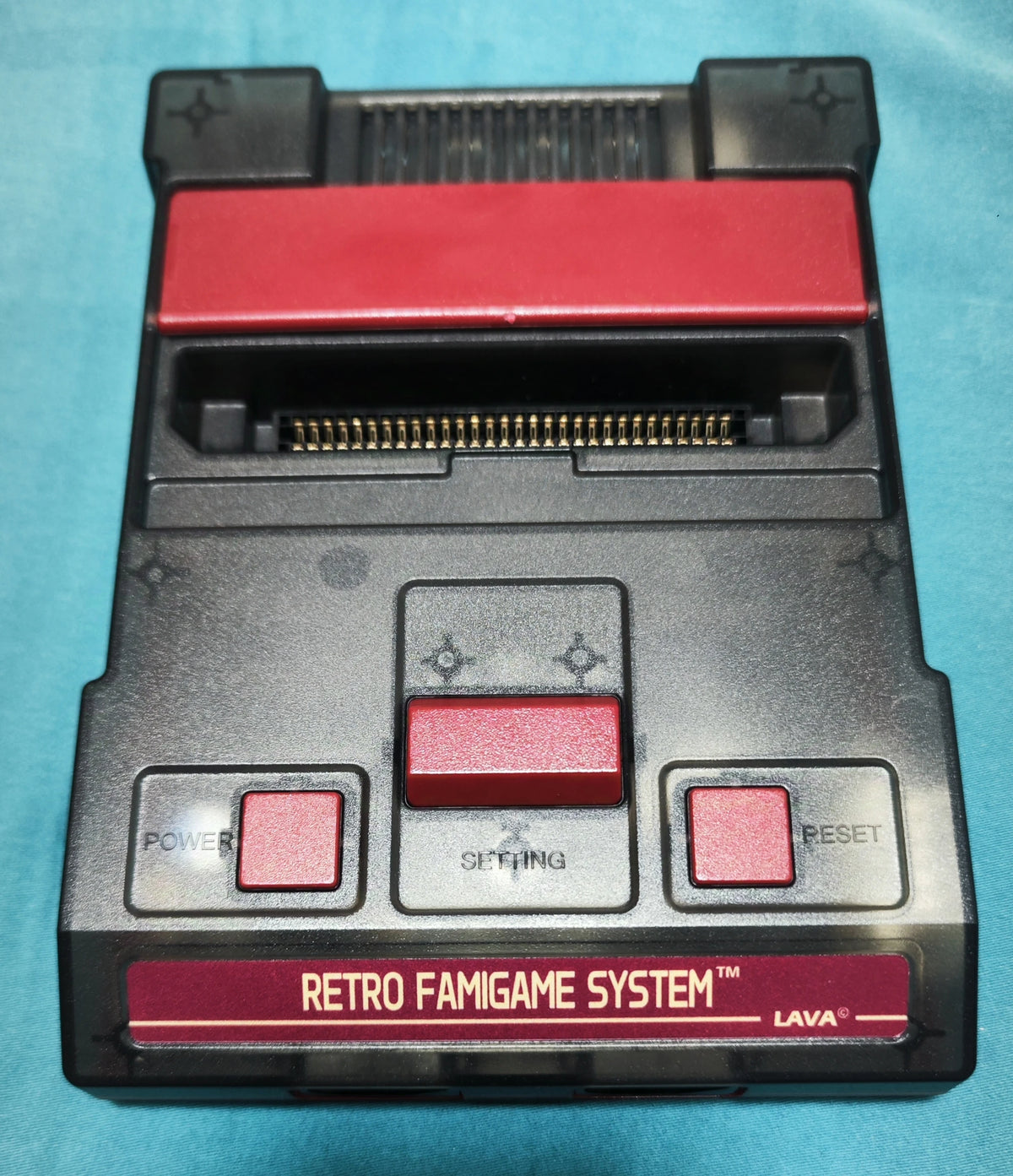

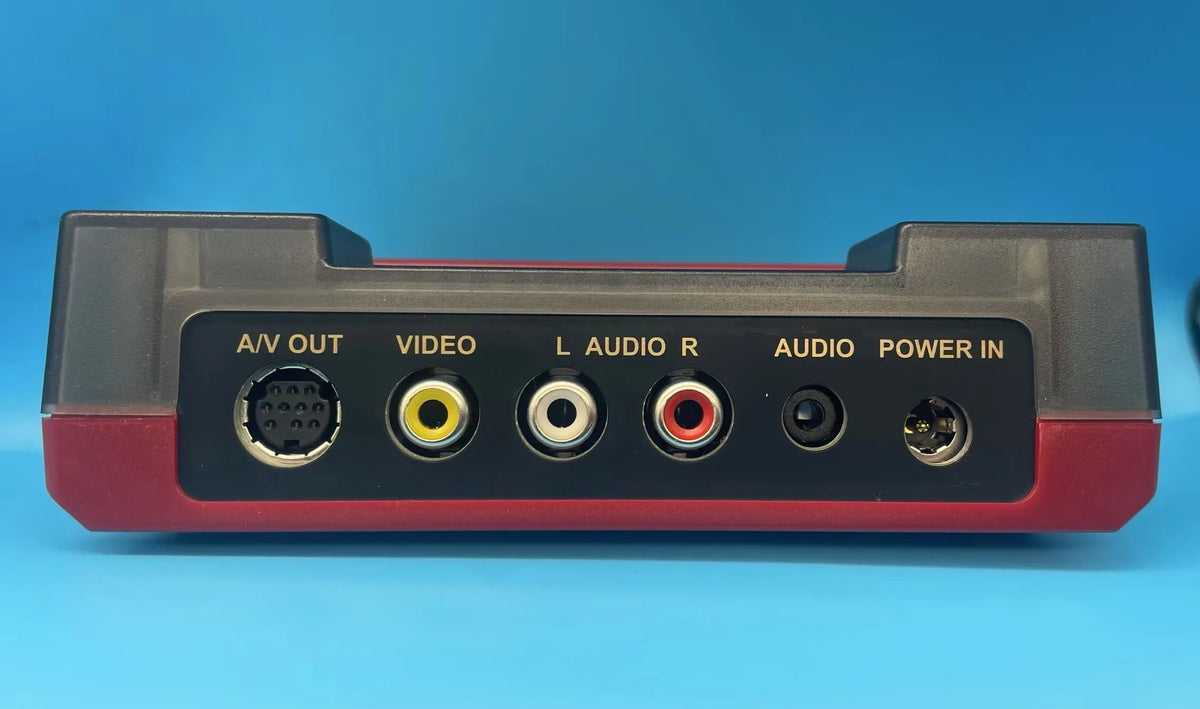

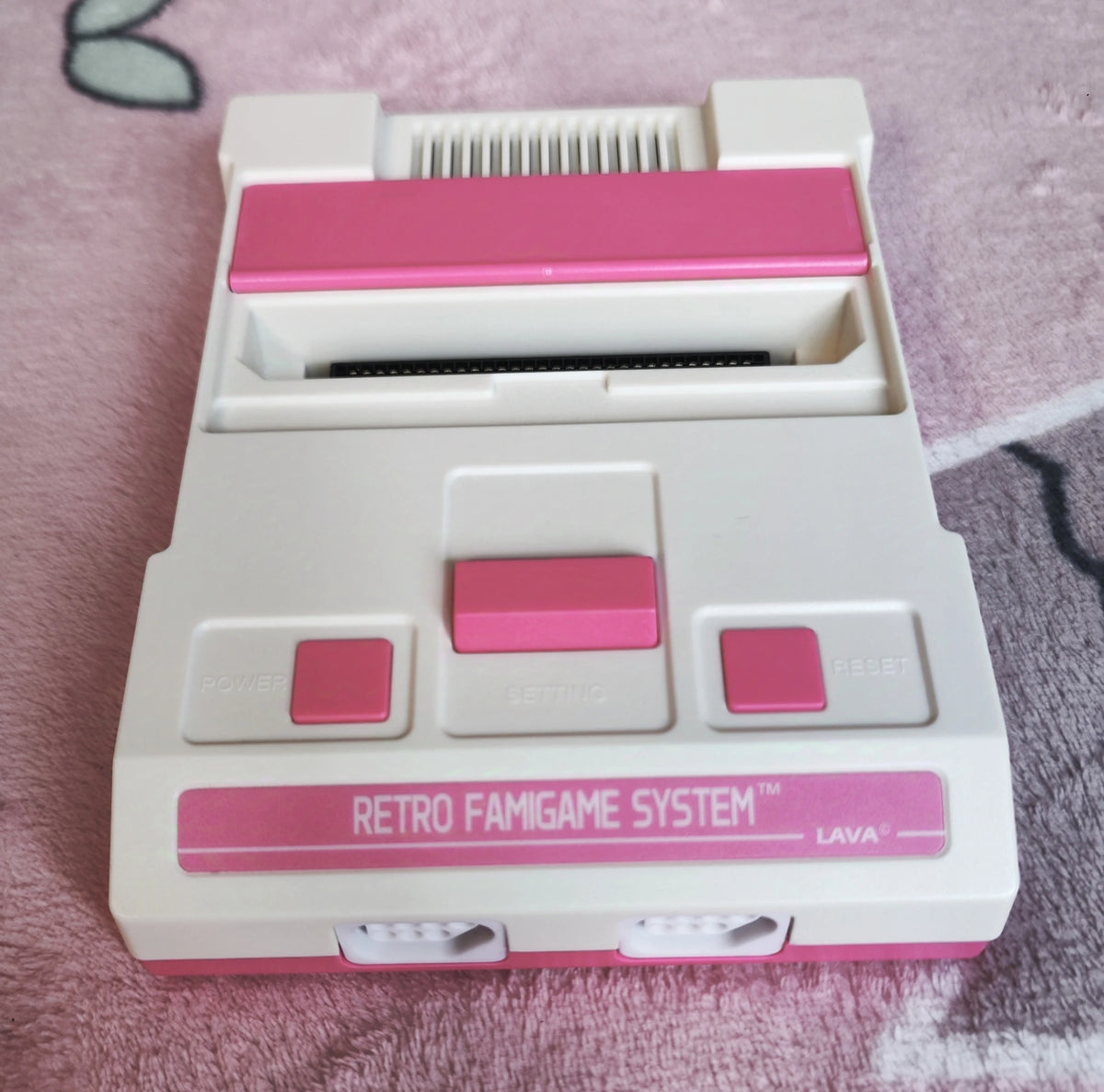

RGB FC Lava RSC developed in China with a shell FC red and white machine compatible with RGB FC, supporting RGB, S, and AV video output simultaneously

The latest firmware can be downloaded at www.lava-fc.top

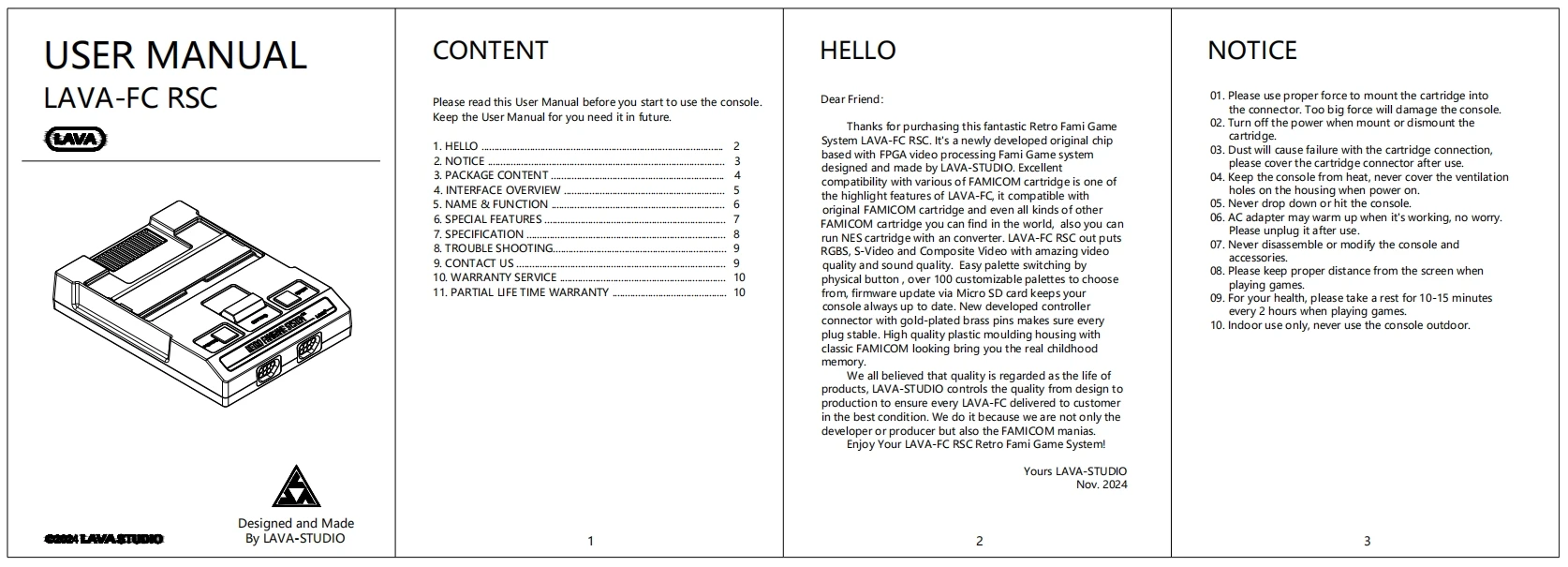

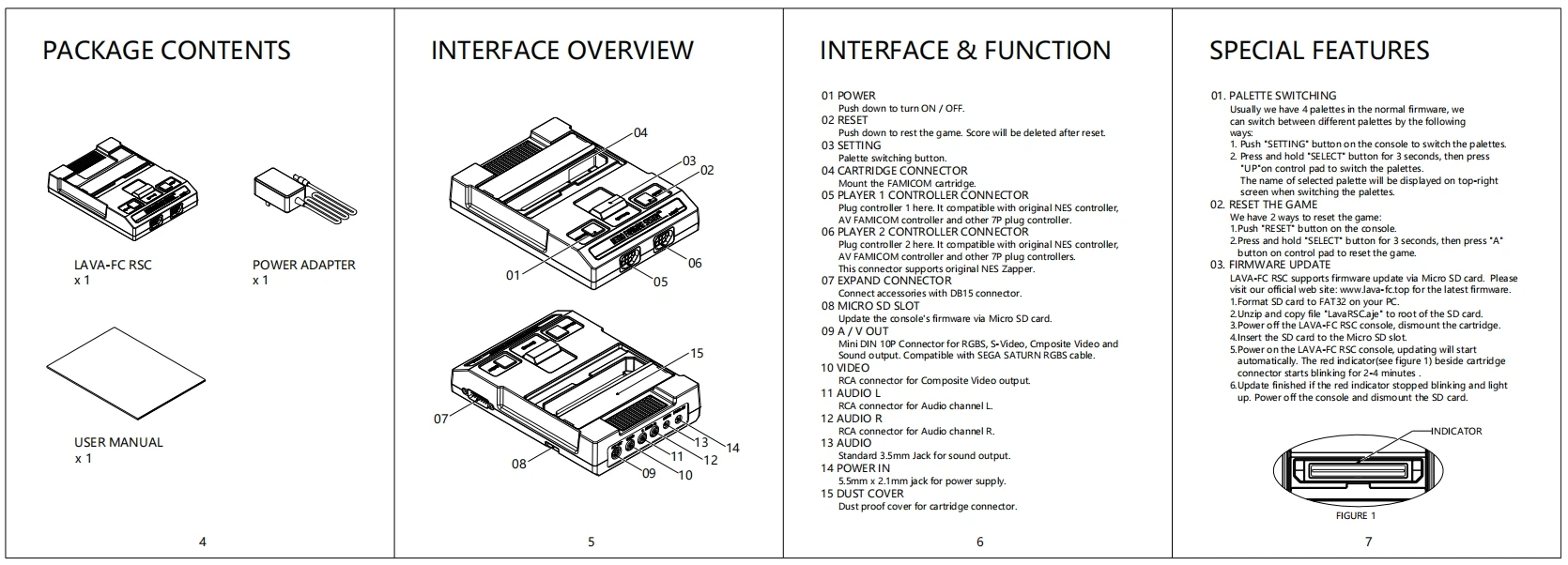

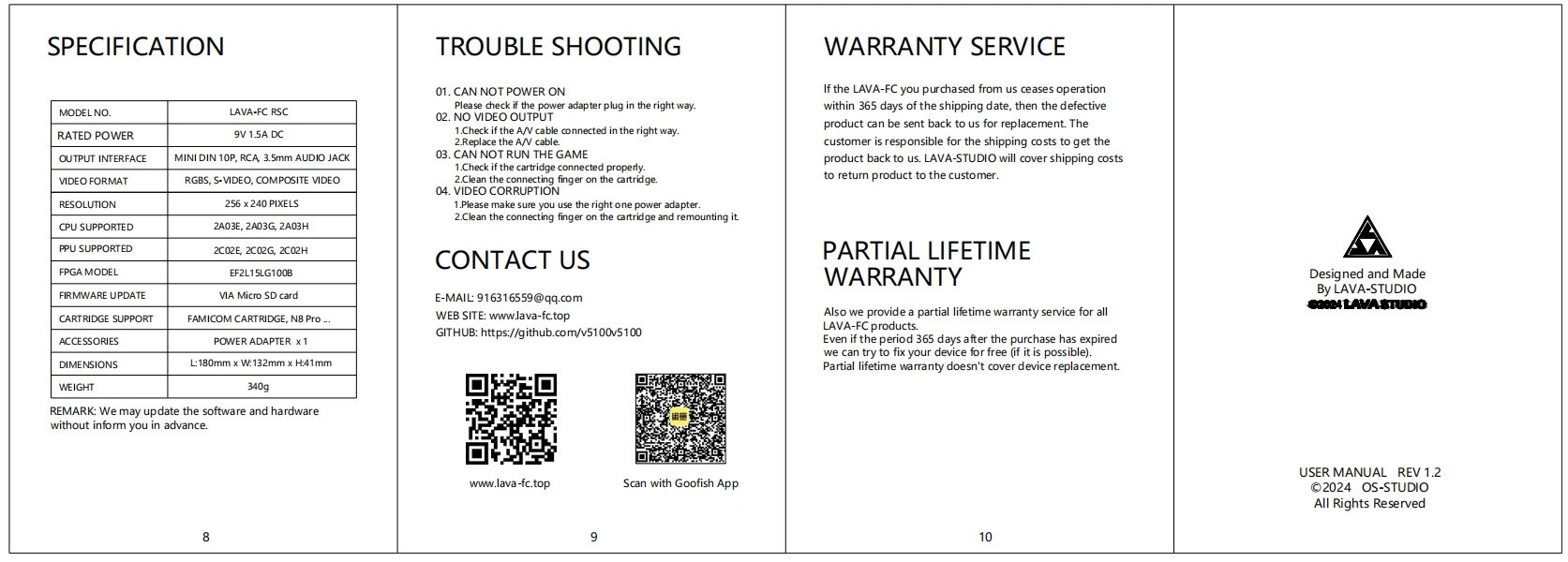

instructions: www.lava-fc.top

LAVA-RSC is a high-quality FC reproducer that can simultaneously output low resolution video signals such as RGBS, S-Video, CV, etc. This machine adopts a scheme of intercepting color palettes and re encoding videos, which is not a simulated PPU scheme and can maintain the same compatibility as the original machine. Highly optimized video output circuit with excellent display performance. Different from NESRGB KIT, non NESRGB KIT copying scheme.

Functional features:

1.24-bit RGB888 video output;

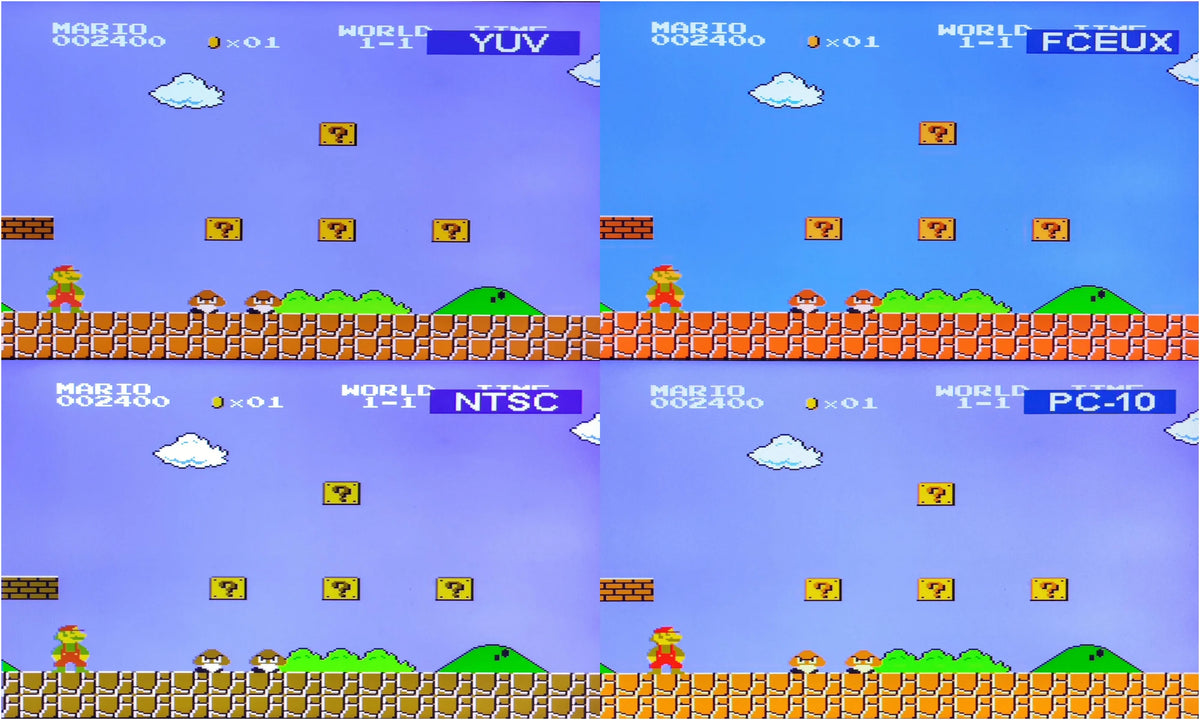

2. Supports up to hundreds of color palettes and customizable color palettes;

3. Support firmware upgrade through Micro SD card;

4. The cartridge has good compatibility and can achieve the same compatibility as the original NES.

5.Controller combination key switches color palette (select+up), resets (select+A).There is an OSD prompt in the upper right corner of the color wheel when switching colors

LAVA-RSC Material:

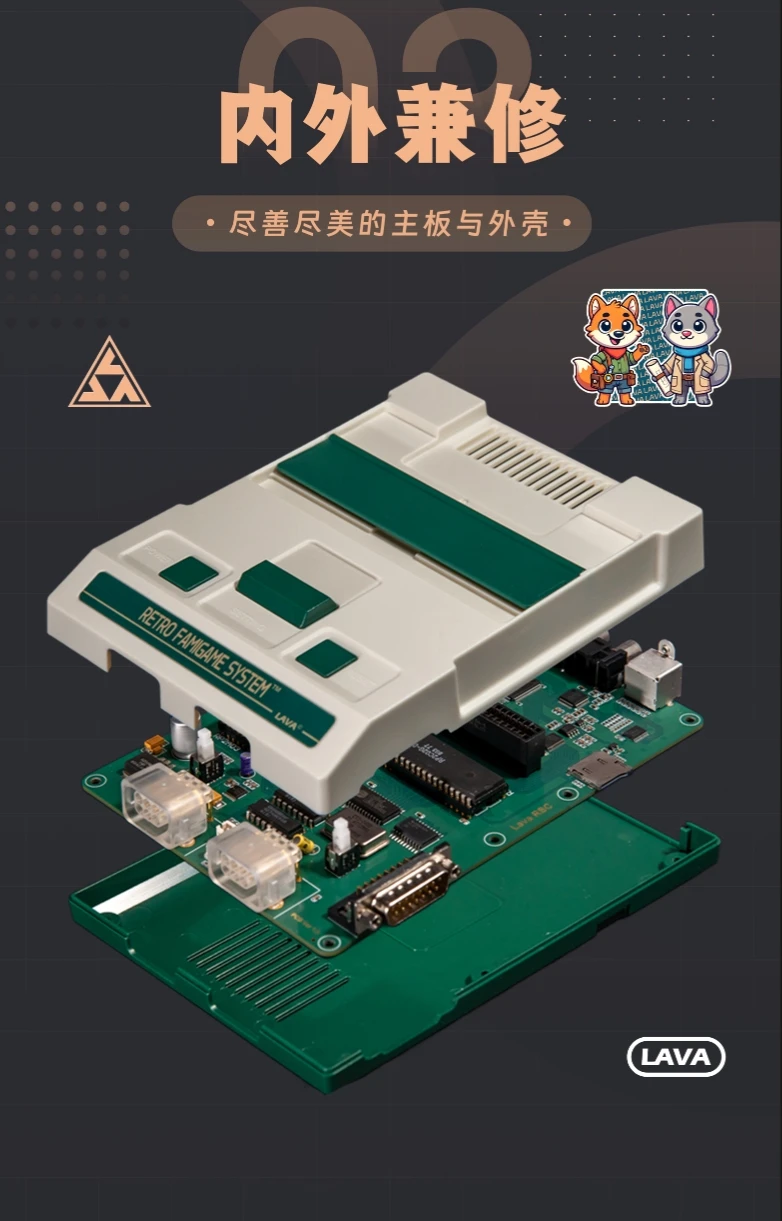

1. Customized exclusive high-quality shell, made of imported first-line brand raw materials, processed through high-precision molds;

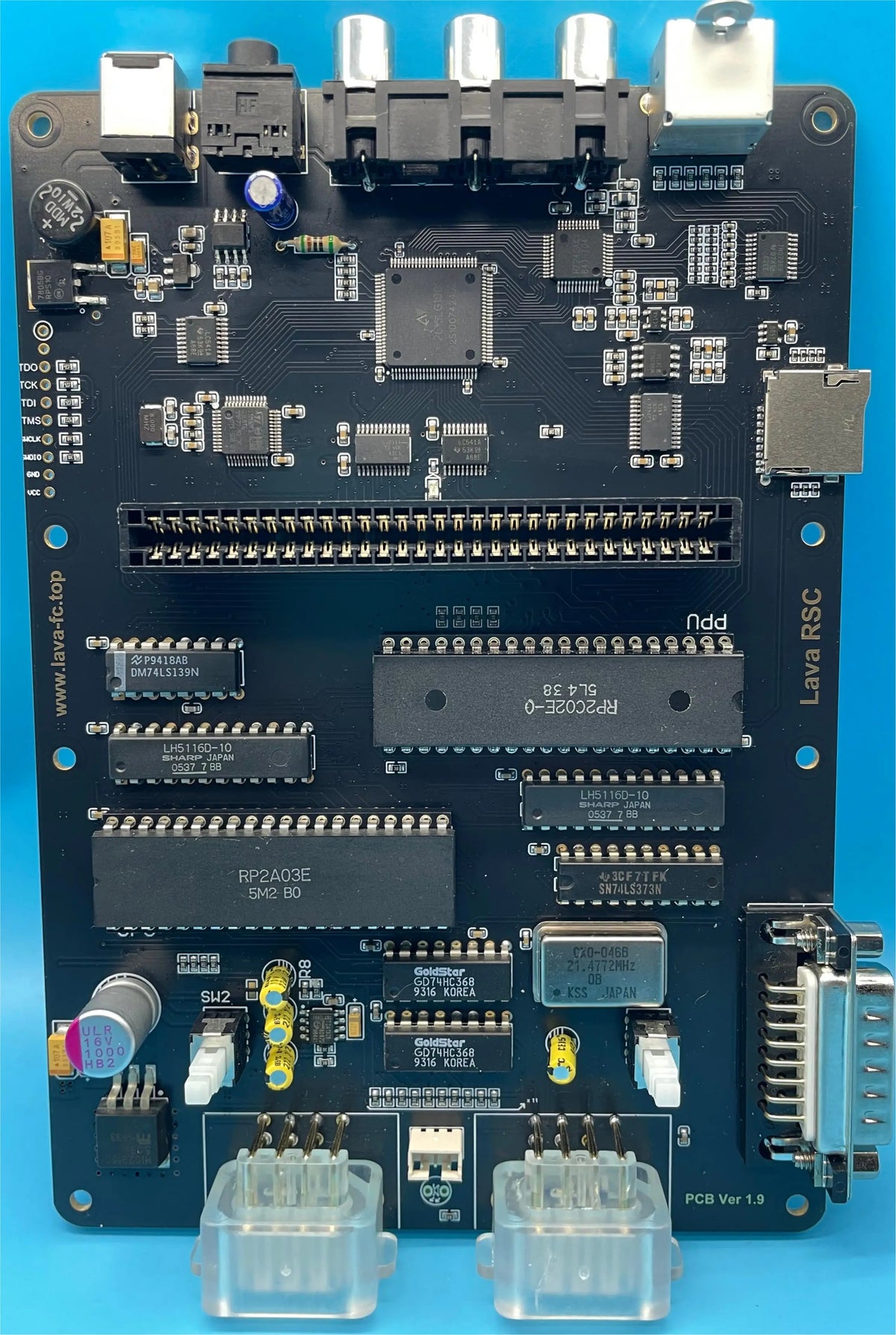

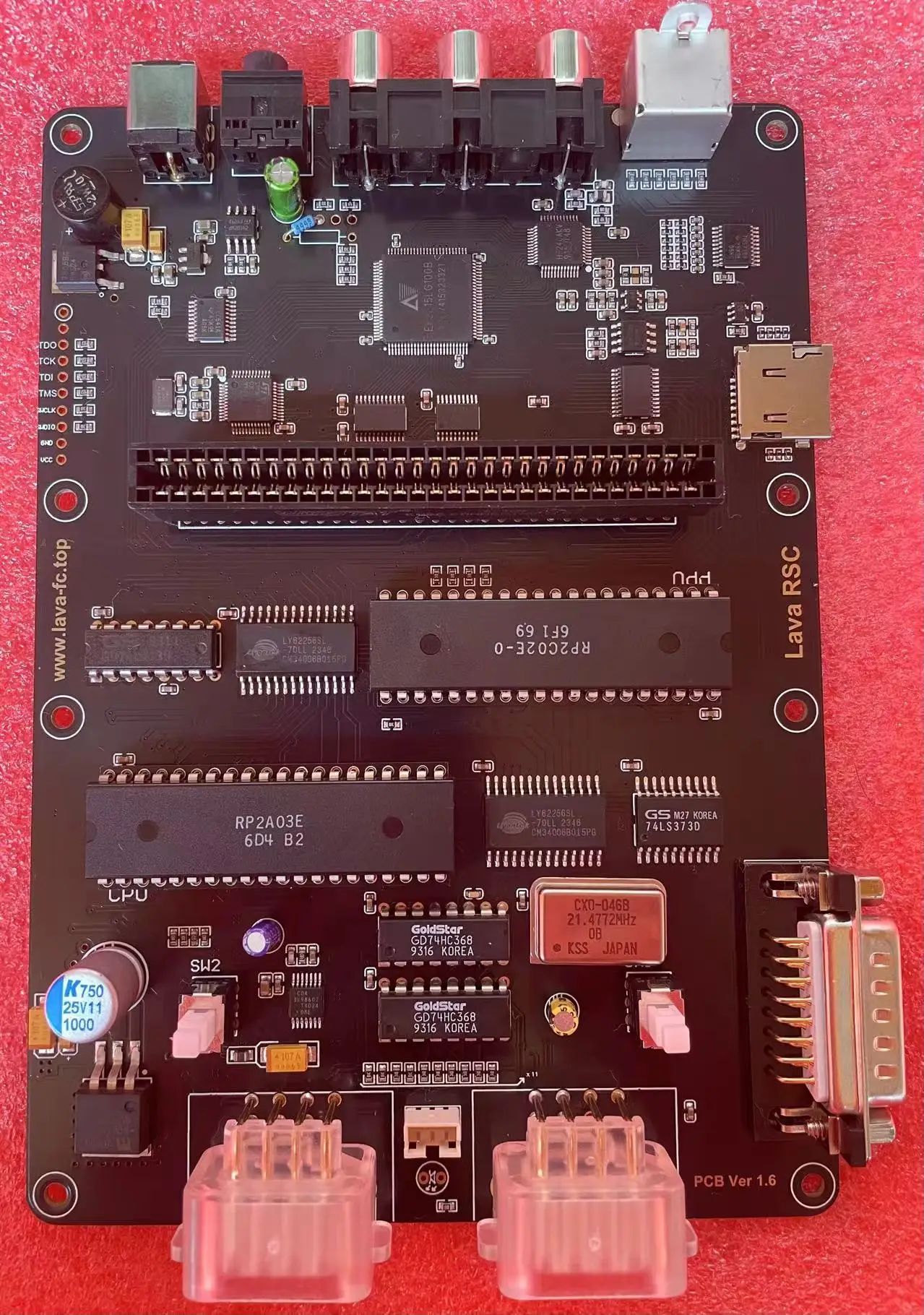

2.4 layer gold-plated PCB board;

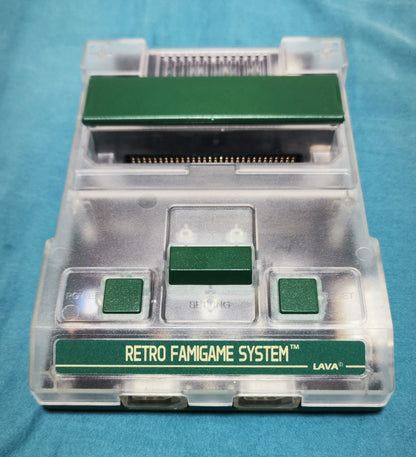

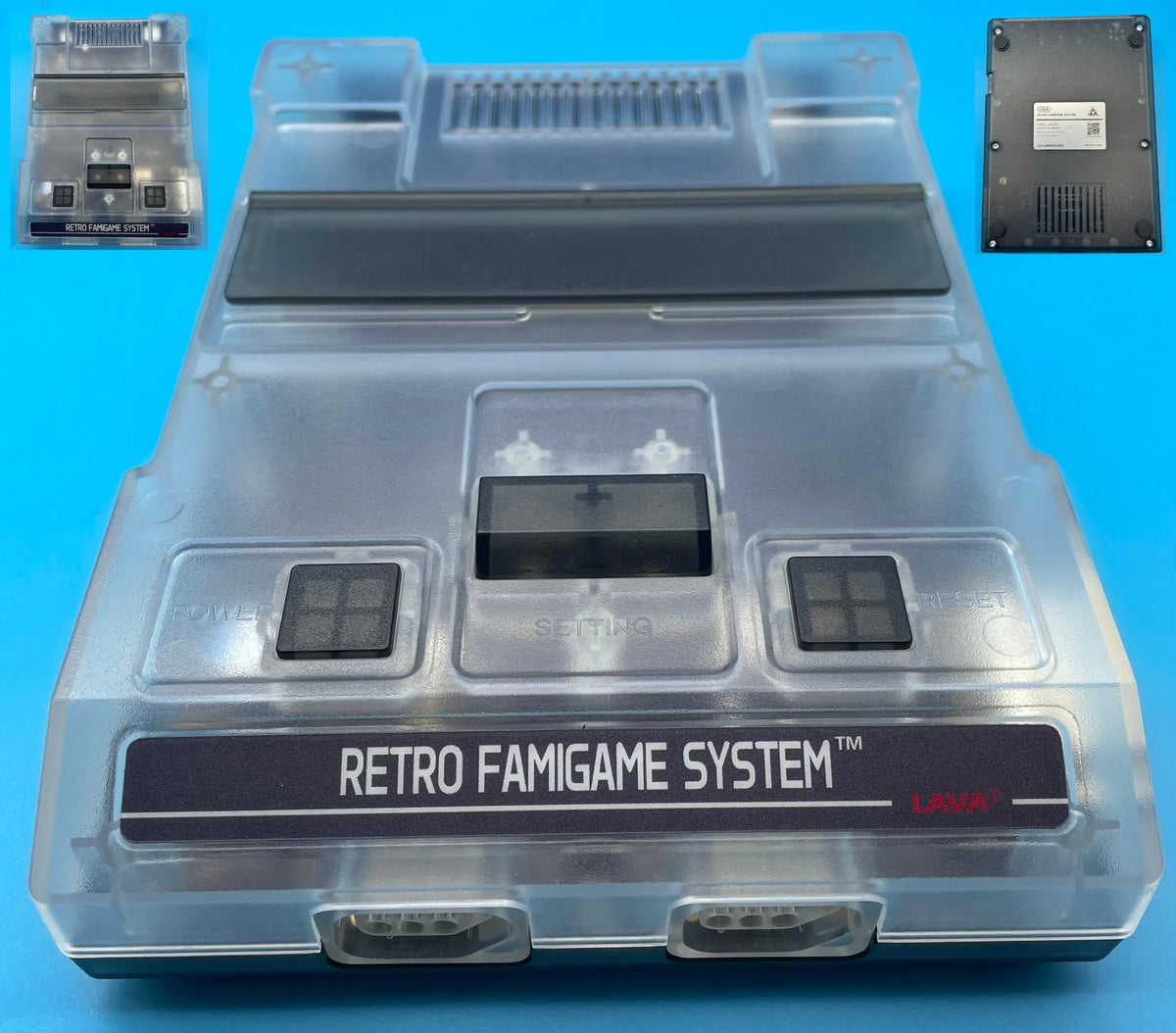

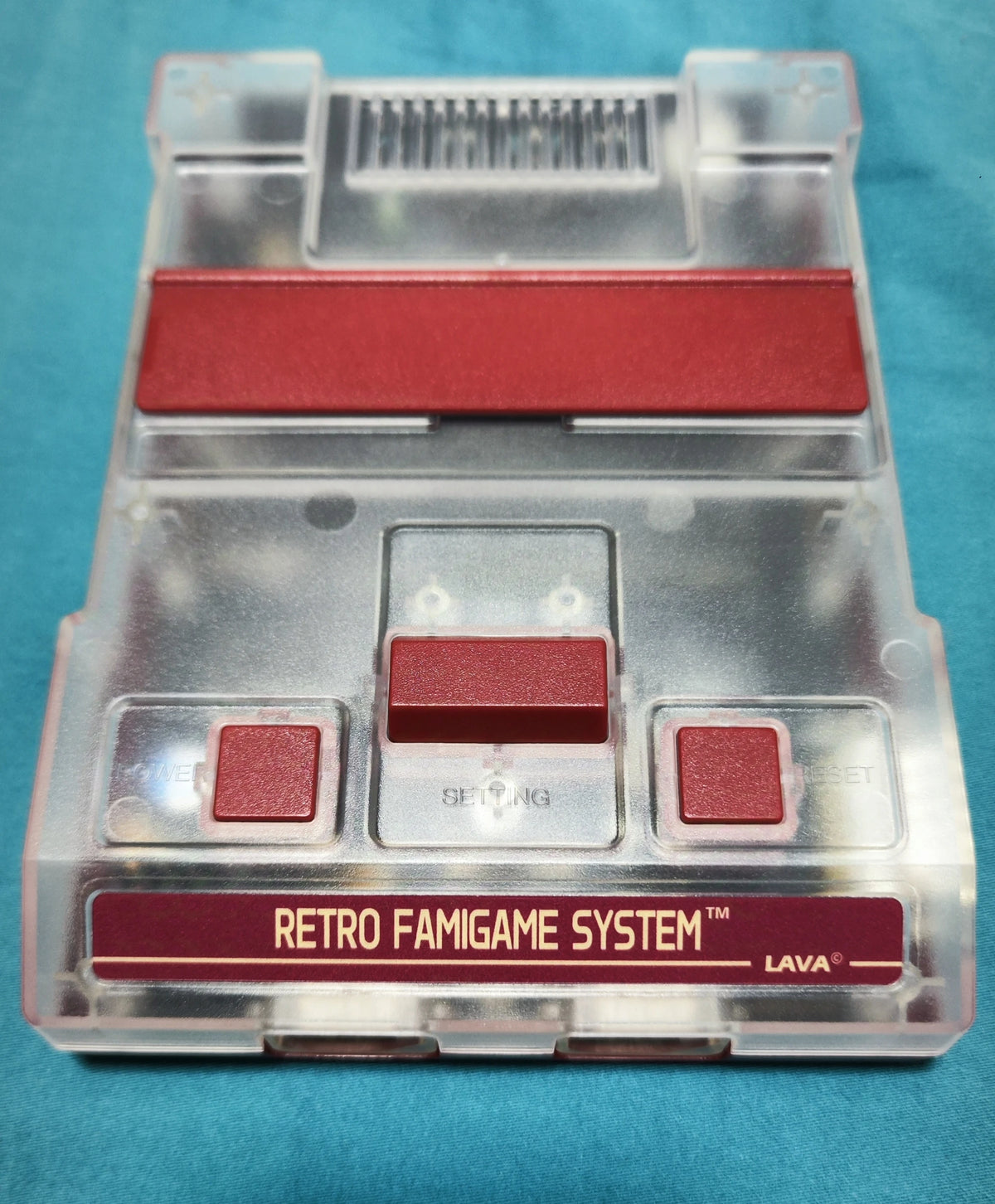

3. Exclusive mold customized gold-plated needle handle holder ensures good electrical performance, and the transparent shell makes your host shine brightly;

4. Imported Alps automotive grade power supply and reset switch from Japan;

5. American Microchip MIC29150 power chip;

6. Kyocera active crystal oscillator from Japan;

7.BH7240 dedicated video encoding chip;

8. THS7368 flagship video operational amplifier;

9. High precision branded resistors with an error of 1% are uniformly used for resistors, and high-precision branded capacitors with an error of 5% are uniformly used for ceramic capacitors

....

Except for the inability to purchase brand new components due to the discontinuation of CPU and PPU, all other components are made of brand new materials and disassembly is refused;

Which players are LAVA-RSC suitable for:

1. Players who have high requirements for cartridge compatibility;

2. Players who have high requirements for color and brightness and feel that the NESRGB Kit's color palette cannot meet their needs;

3. Players who have extreme requirements for various parameters;

4. Players who want to reminisce about FC without taking any detours and achieve success in one step.

Shipping List:

1. LAVA-RSC complete machine (including original CPU and PPU);

2. Brand power supply x 1;

3. High quality shell x1.

Warranty Policy:

Non human factors damage warranty for one year.
