Product Parameters:

Size (including base): 280mm * 280mm * 110mm

Weight: 6.4kg

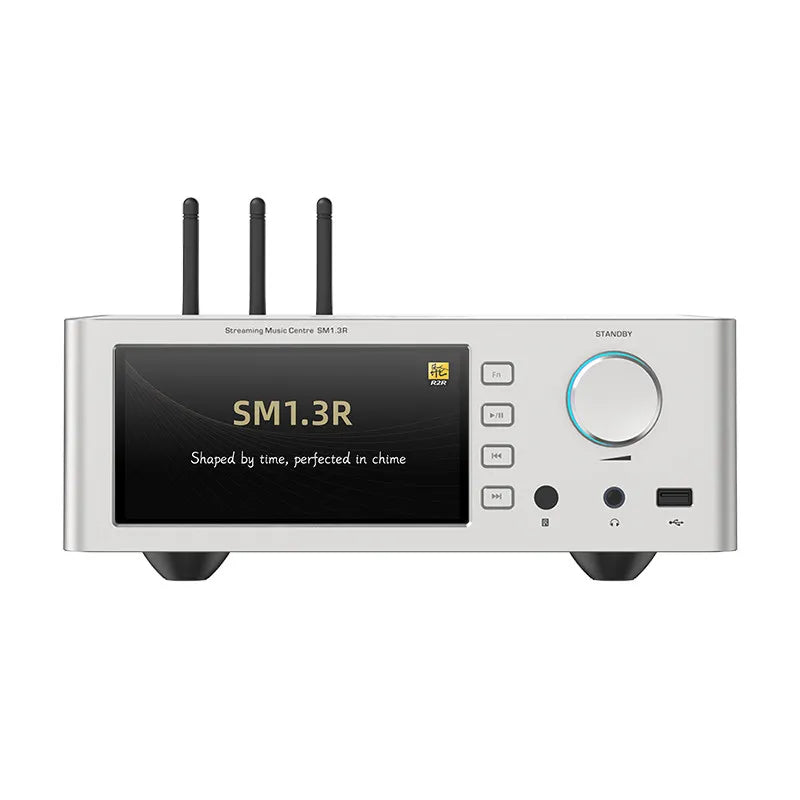

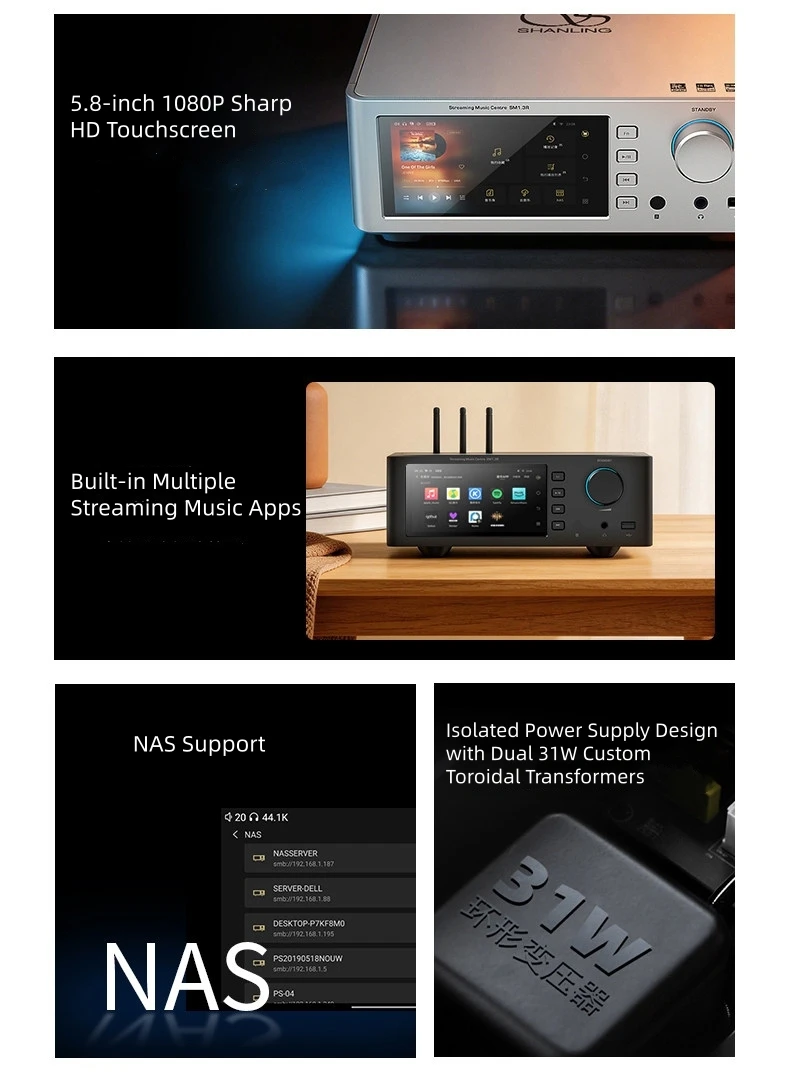

Screen: 5.8-inch 1080P Sharp HD touch screen

Main control chip: Rockchip digital broadcast processor

Audio format: DSD、DXD、APE、FLAC、WAV、AIFF/AIF、DTS、MP3、 WMA、 AAC、 OGG、 ALAC、 MP2、 M4A、 AC3、 OPUS、TAK Wait, support CUE.

Supported specifications: 768kHz/32-bit DSD512

Gain compensation: high, medium, low

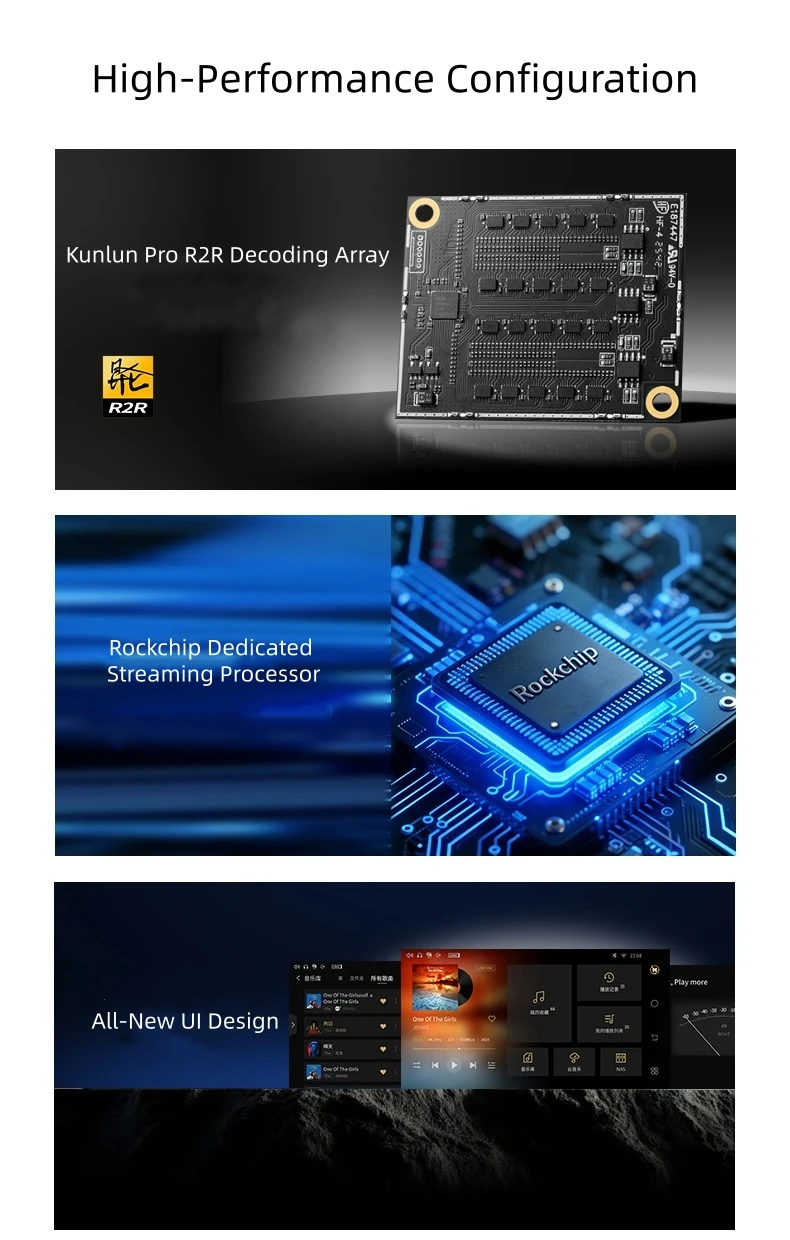

Decoding chip: 24 bit fully discrete R2R module, 212 high-precision resistors of one ten thousandth each

Support external storage capacity: 2T

Digital filters: 6 different filtering methods

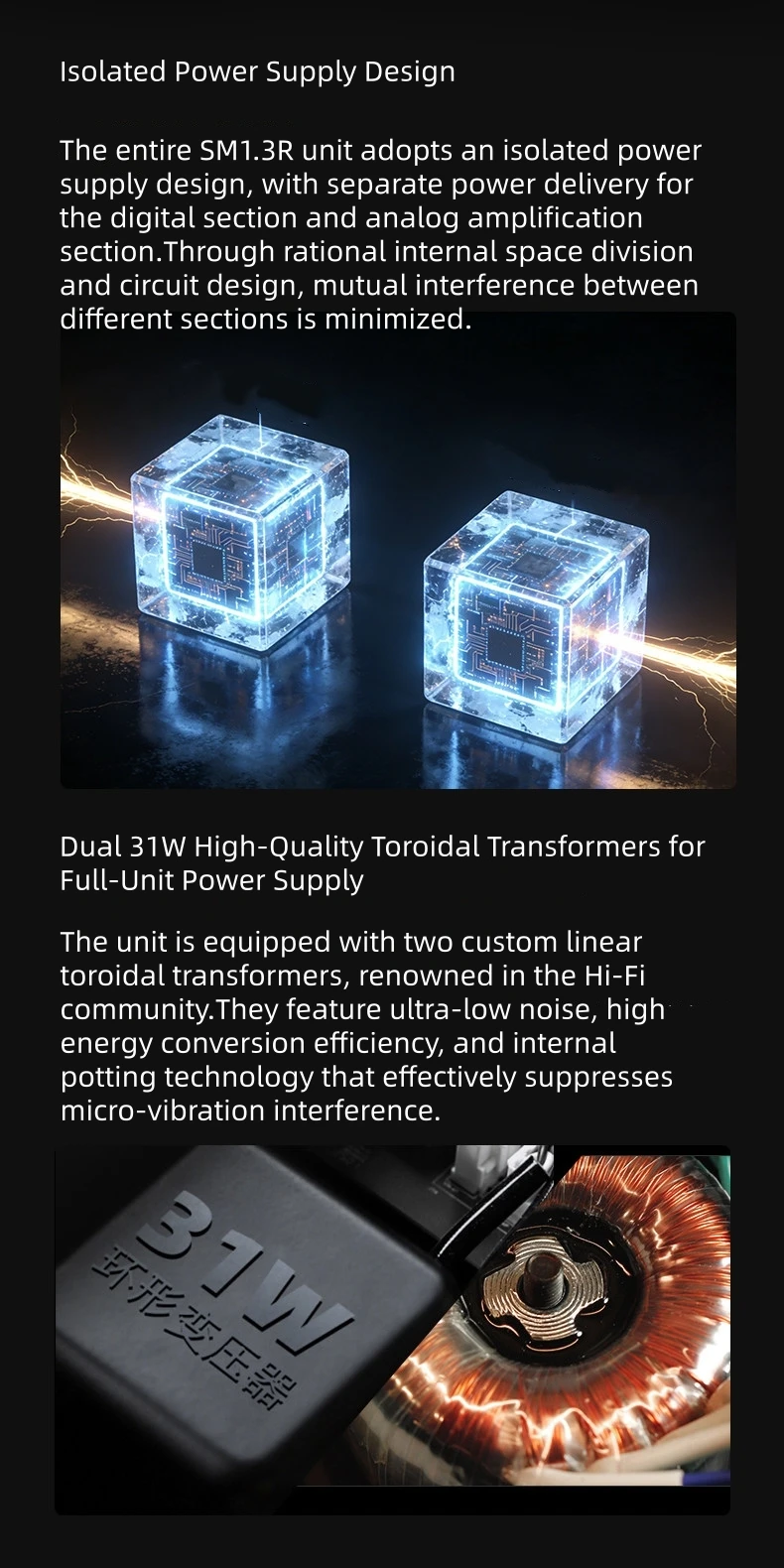

Power supply mode: 220V AC input

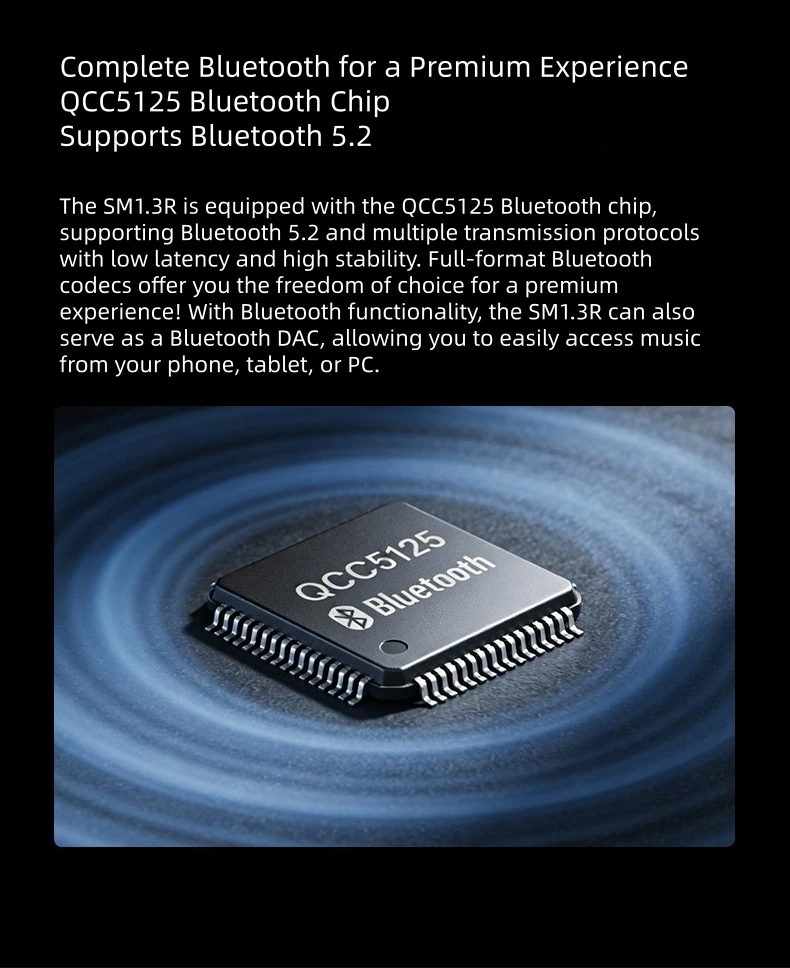

Bluetooth version: 5.2

Bluetooth encoding method

Bluetooth emission support: LDAC, aptXHD, aptXAdaptive, aptXLL, aptX, AAC, SBC

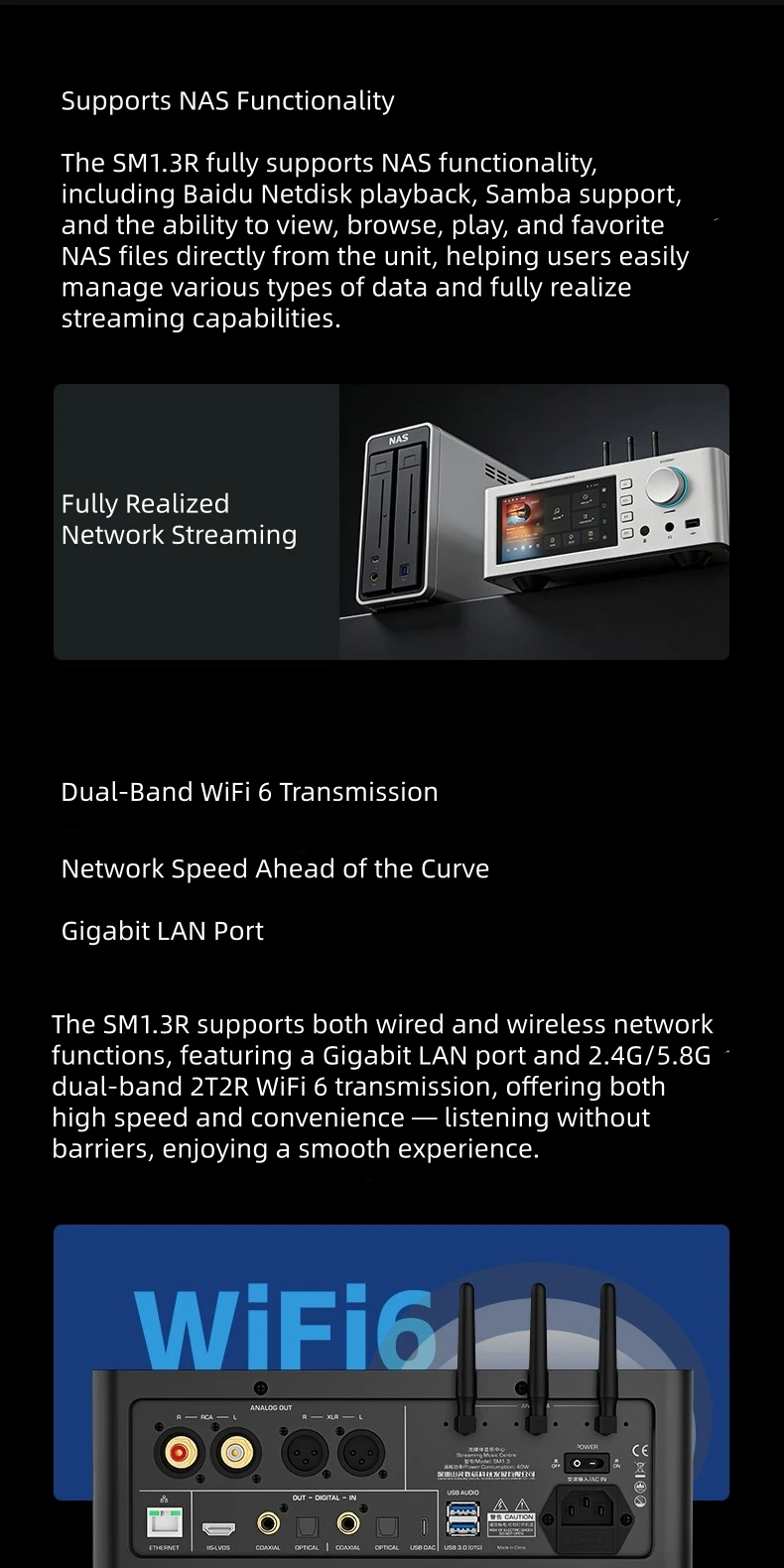

Dual band WiFi 6:2.4G/5.8G

Technical Specifications

RCA output:

Output level: 2.2V

Frequency response: 20Hz-40kHz (-0.5dB)

THD+N: 0.003%

Dynamic range: 118dB

Channel separation: 116dB

Signal to noise ratio: 118dB

XLR output:

Output level: 4.4V

Frequency response: 20Hz-40kHz (-0.5dB)

THD+N: 0.003%

Dynamic range: 120dB

Channel separation: 117dB

Signal to noise ratio: 120dB

Earphone output:

Output power:

Low gain: 0.739mW@320 ( 17mW@322 )

Medium gain: 2.26V@320 ( 159mW@322 )

High gain: 5.32V@320 ( 900mW@322 )

Frequency response: 20Hz-40kHz (-0.5dB)

THD+N: 0.003% @ 320 (A weighted, 2.26V medium gain)

Dynamic range: 116dB@320 (Gain in A weighting)

Channel separation degree: 70dB@320

Signal to Noise Ratio: 116dB@320 (A weighted high gain)

Noise: 111dB (low gain)

Output impedance: 4.70

Digital port supports specifications

Coaxial input: PCM192kHz/24bit

Fiber input: PCM192kHz/24bit

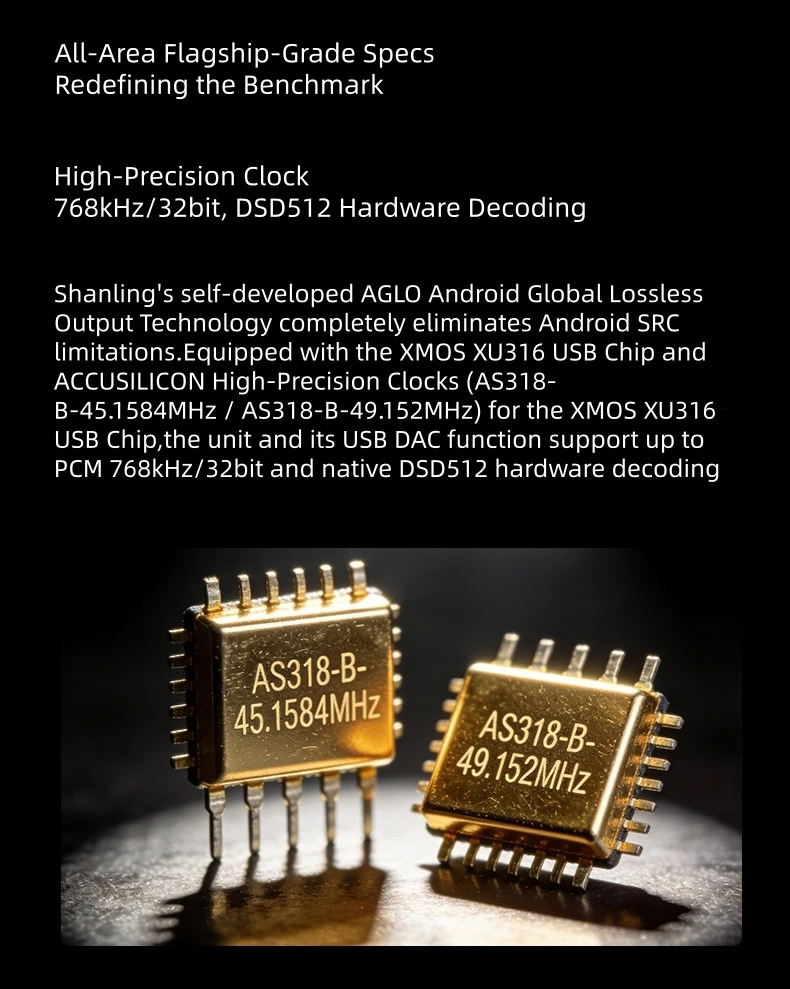

USB input: PCM768kHz/32-bit, DSD512

Coaxial output: PCM192kHz/24bit

Fiber output: PCM192kHz/24bit

USB output: PCM768kHz/32-bit, DSD5122S

Output: PCM768kHz, DSD512
