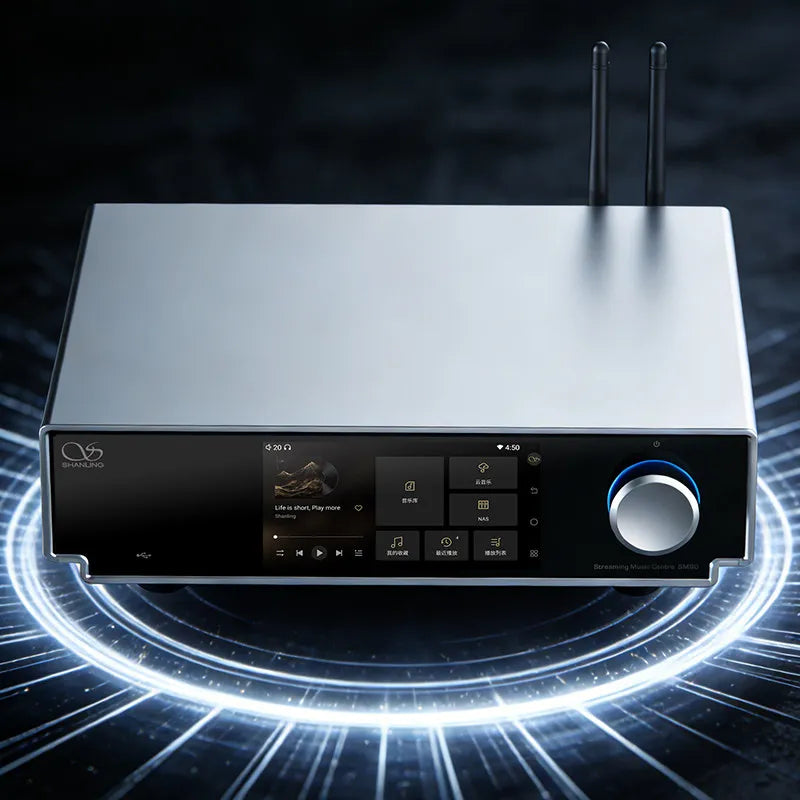

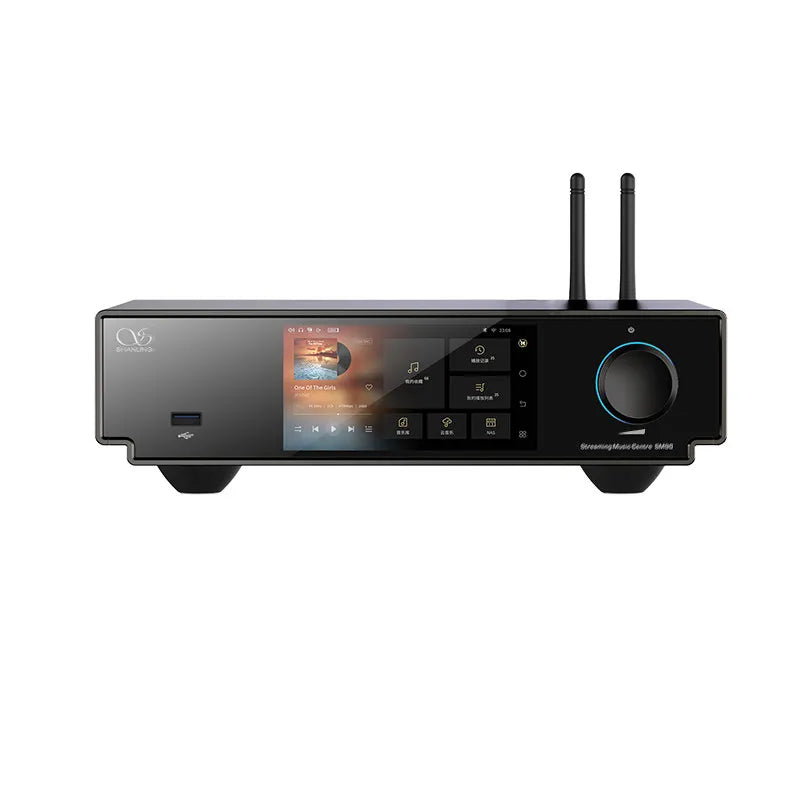

Shanling SM90 Streamer DAC Dual AKM AK4493S DAC Chips with Wi-Fi 6 & LAN Connectivity

Key Features

Advanced Android Streaming Platform

Dual AKM AK4493S DAC Chips

PCM 32bit/768kHz & DSD512 Support

TIDAL Connect & Qobuz Connect

HDMI ARC Input

Internal M.2 SSD Slot

Wi-Fi 6 & LAN Connectivity

Linear Power Supply Design

4.96-inch Touchscreen Display

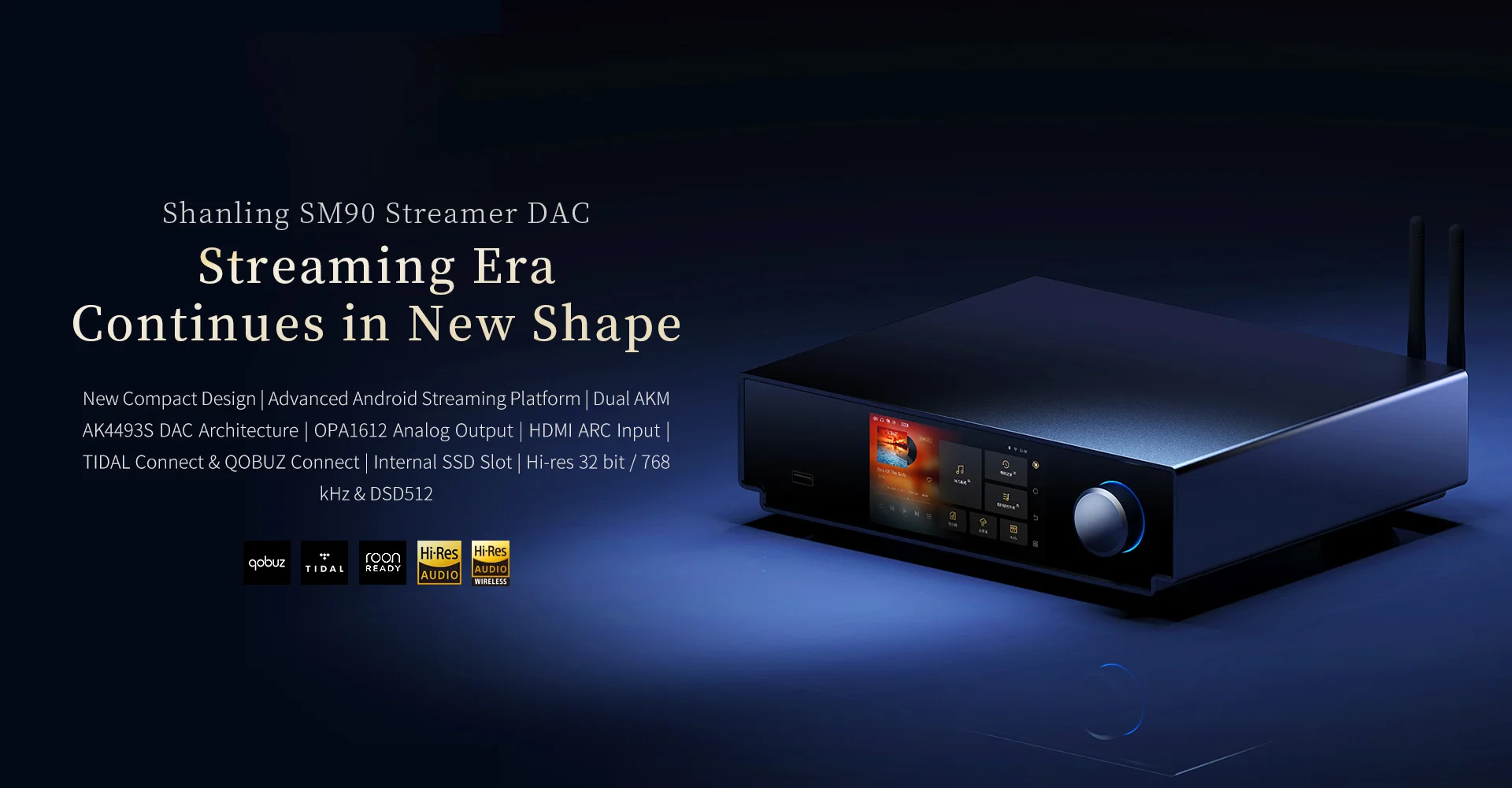

All-in-One Hi-Fi Streaming Center with Dual AK4493S DAC

The Shanling SM90 is a next-generation streamer DAC designed as a complete Hi-Fi audio center for modern audiophiles. Featuring a compact design, advanced Android-based streaming platform, and dual AKM AK4493S DAC architecture, the SM90 delivers high-resolution audio performance with seamless access to streaming services, local libraries, and external devices.

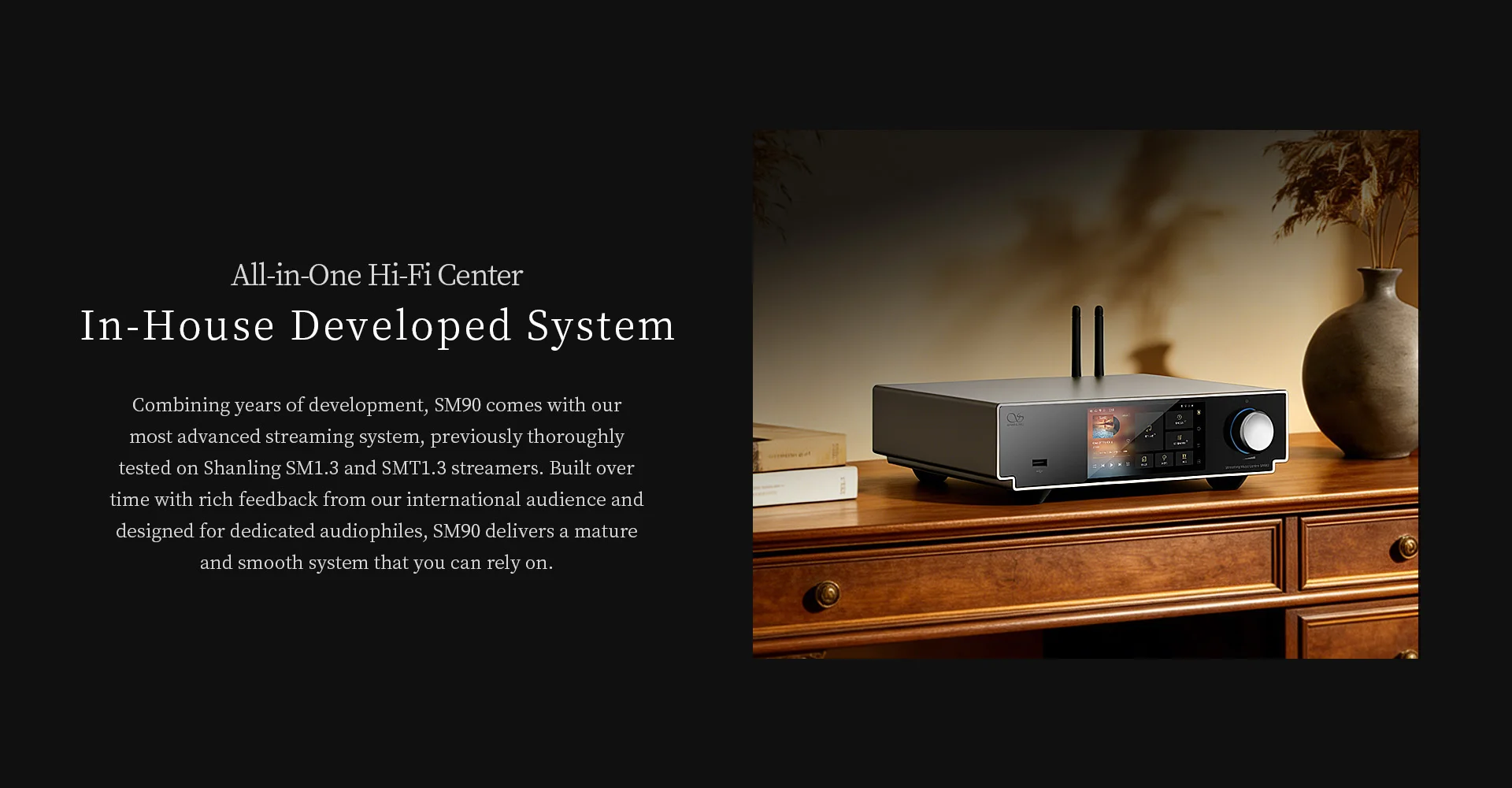

Advanced Android Streaming Platform

Built on Shanling’s in-house developed system, the SM90 integrates years of refinement and user feedback into a stable and smooth Android-based platform. Powered by a 64-bit ARM Cortex CPU with 4GB RAM and 64GB internal storage, it ensures responsive performance and reliable streaming.

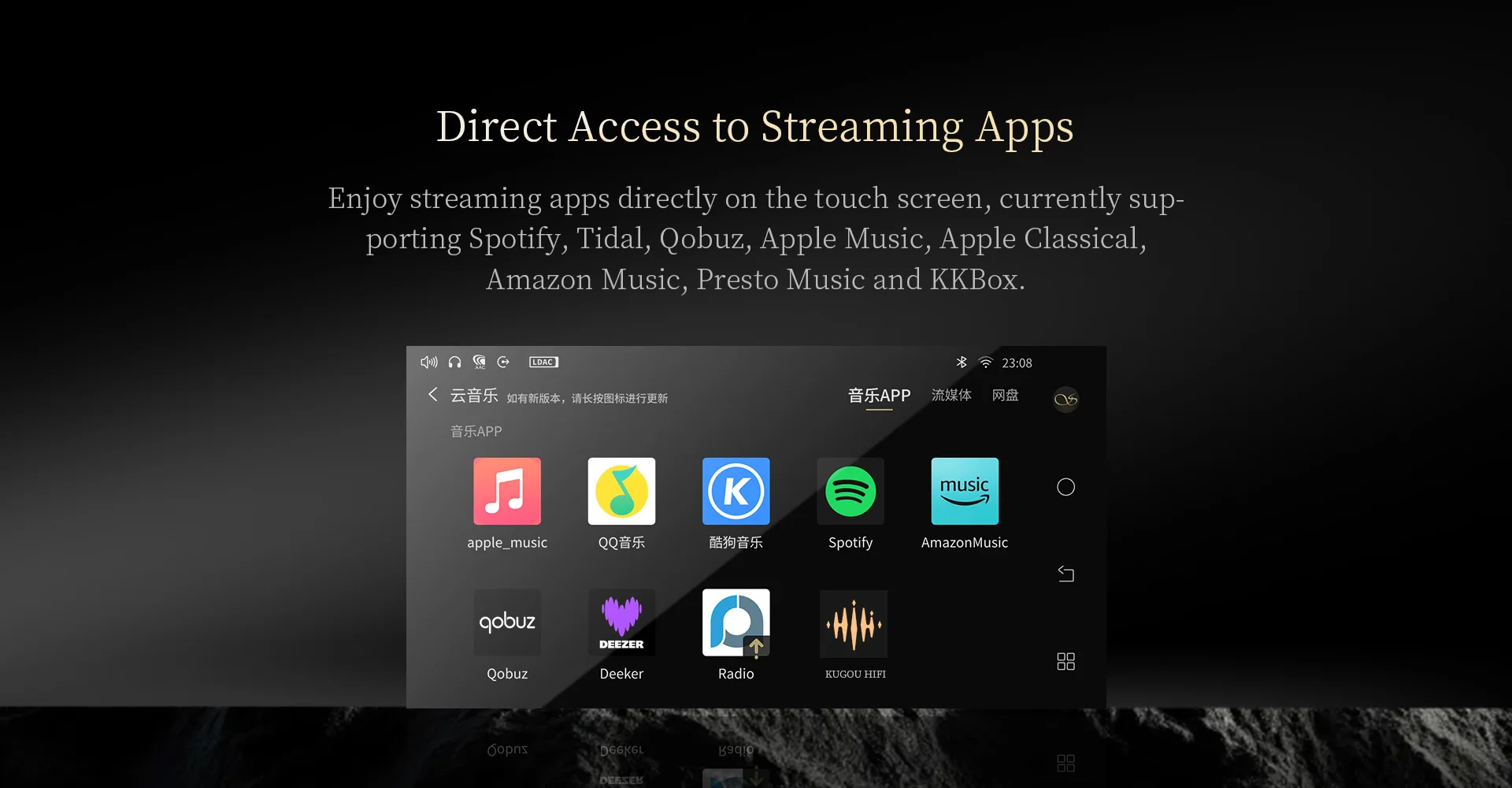

Direct Access to Streaming Services

Enjoy direct playback from popular streaming platforms including Spotify, TIDAL, Qobuz, Apple Music, Amazon Music, and more. With native app support on the touchscreen interface, the SM90 offers a convenient and independent streaming experience.

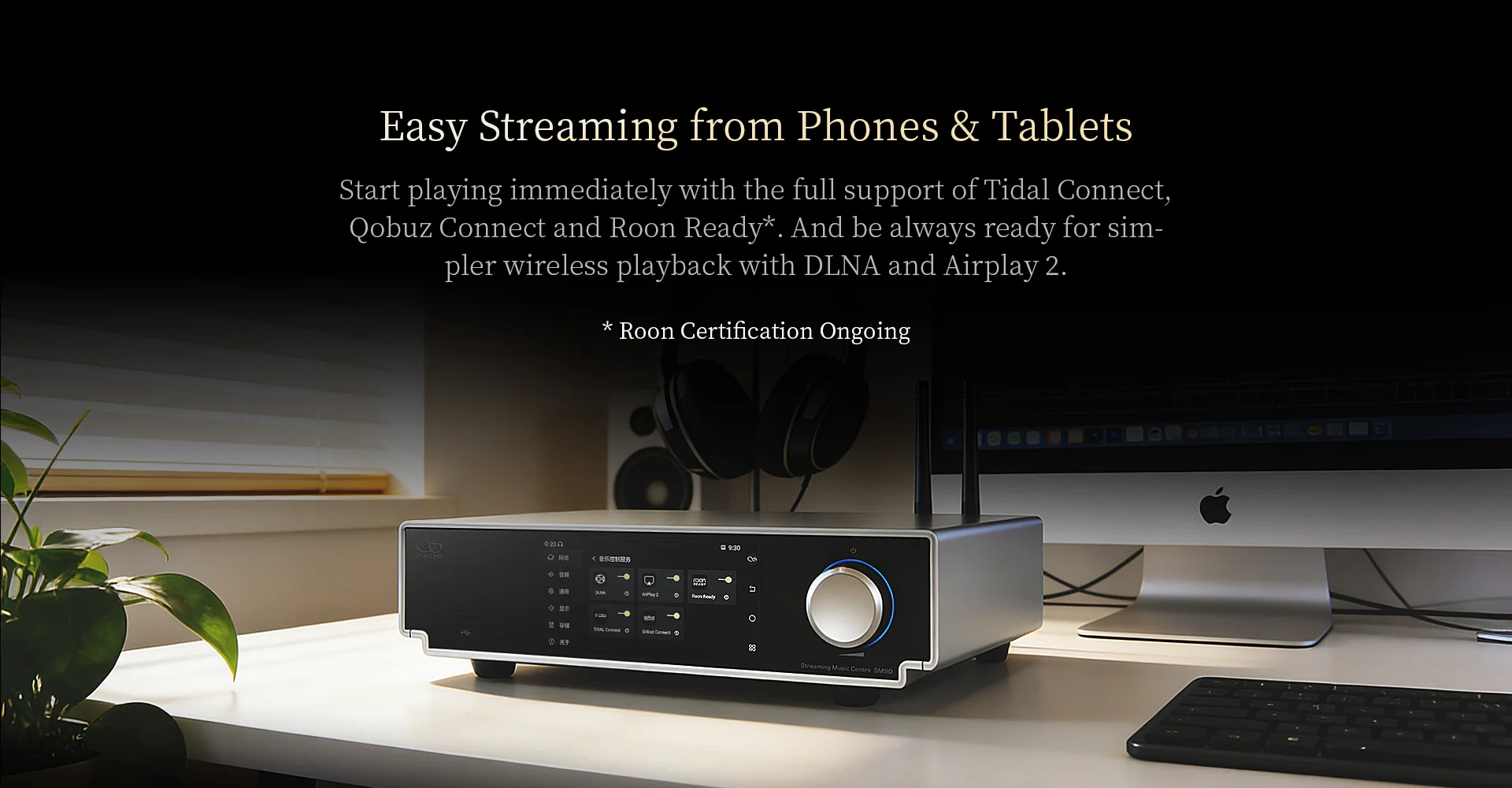

Seamless Wireless Streaming

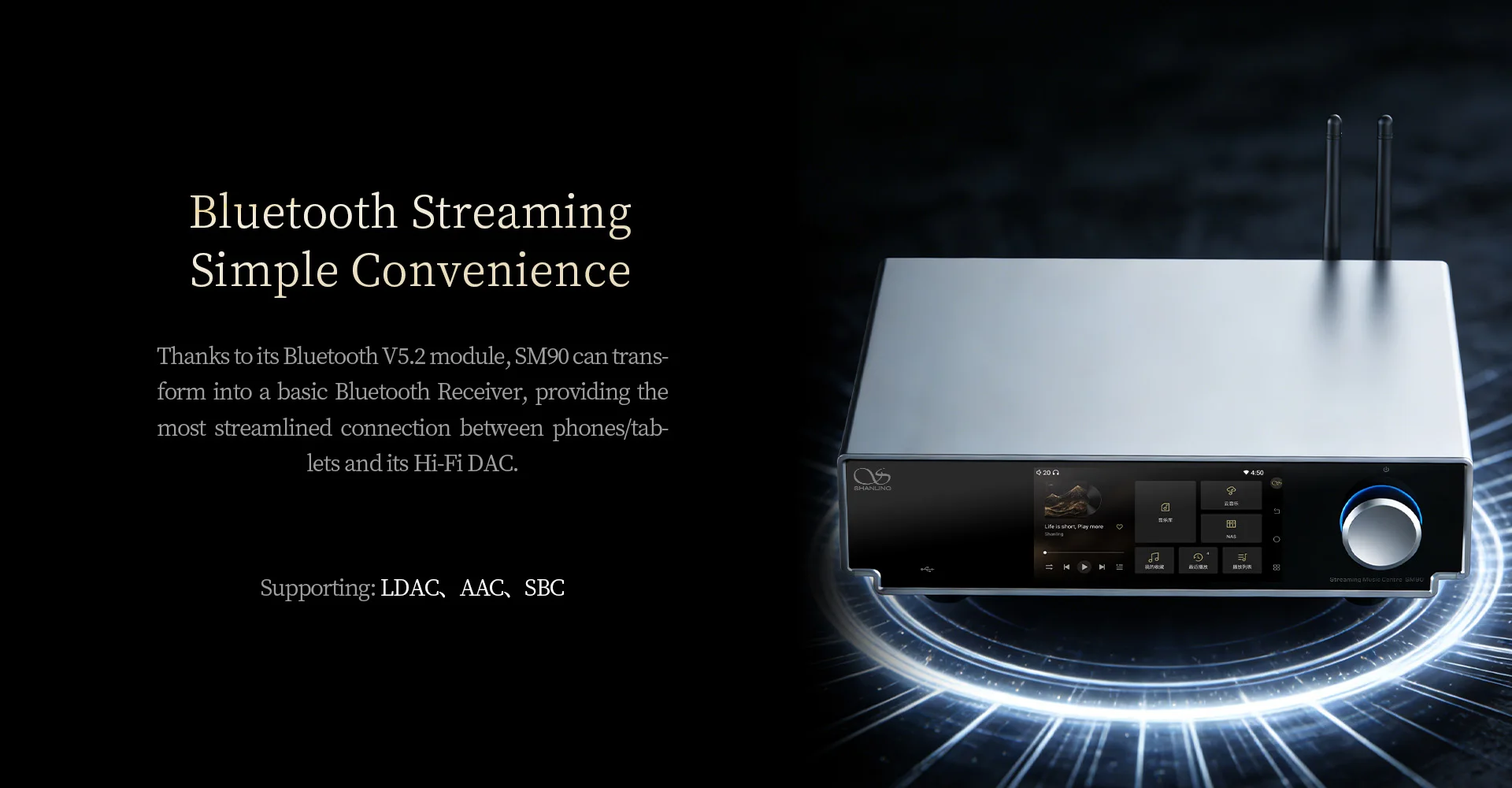

The SM90 supports TIDAL Connect, Qobuz Connect, AirPlay 2, DLNA, and Bluetooth 5.2, enabling effortless streaming from smartphones, tablets, and computers. It also supports Roon Ready (certification ongoing) for advanced network playback integration.

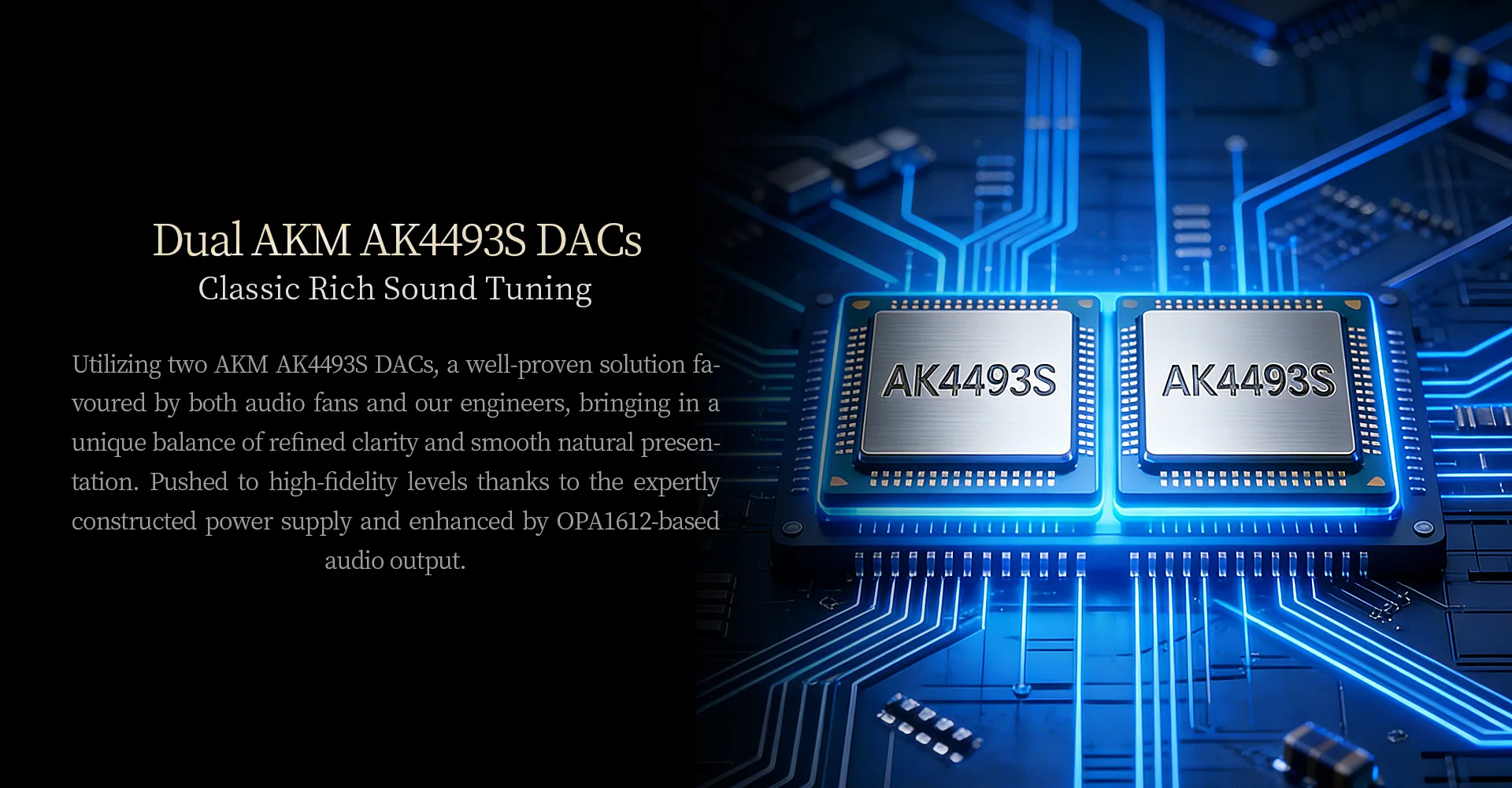

Dual AKM AK4493S DAC Architecture

Equipped with dual AK4493S DAC chips, the SM90 delivers a refined, natural, and detailed sound signature. Combined with OPA1612-based analog output, it ensures high dynamic range, low distortion, and a smooth, musical presentation.

Hi-Res Audio Performance

With support for PCM up to 32-bit/768kHz and DSD512, the SM90 achieves true high-resolution playback. Shanling’s proprietary AGLO (Android Global Lossless Output) system ensures bit-perfect audio output without resampling.

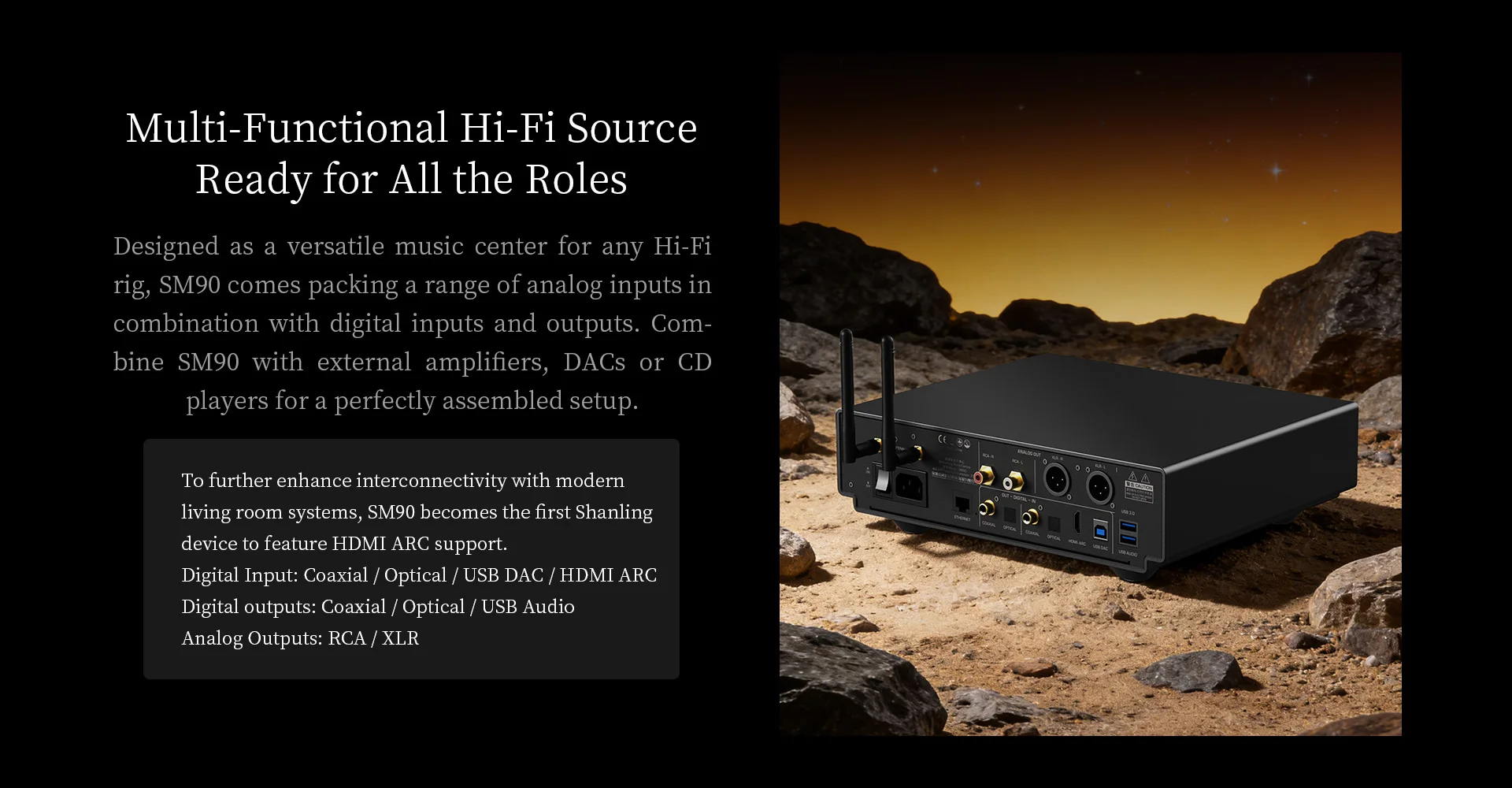

Versatile Connectivity for Any Setup

Designed as a multi-functional Hi-Fi source, the SM90 includes a wide range of inputs and outputs, including digital inputs such as USB DAC, coaxial, optical, and HDMI ARC, digital outputs such as USB audio, coaxial, and optical, as well as analog outputs via RCA and XLR, allowing seamless integration with amplifiers, DACs, CD players, and home audio systems.

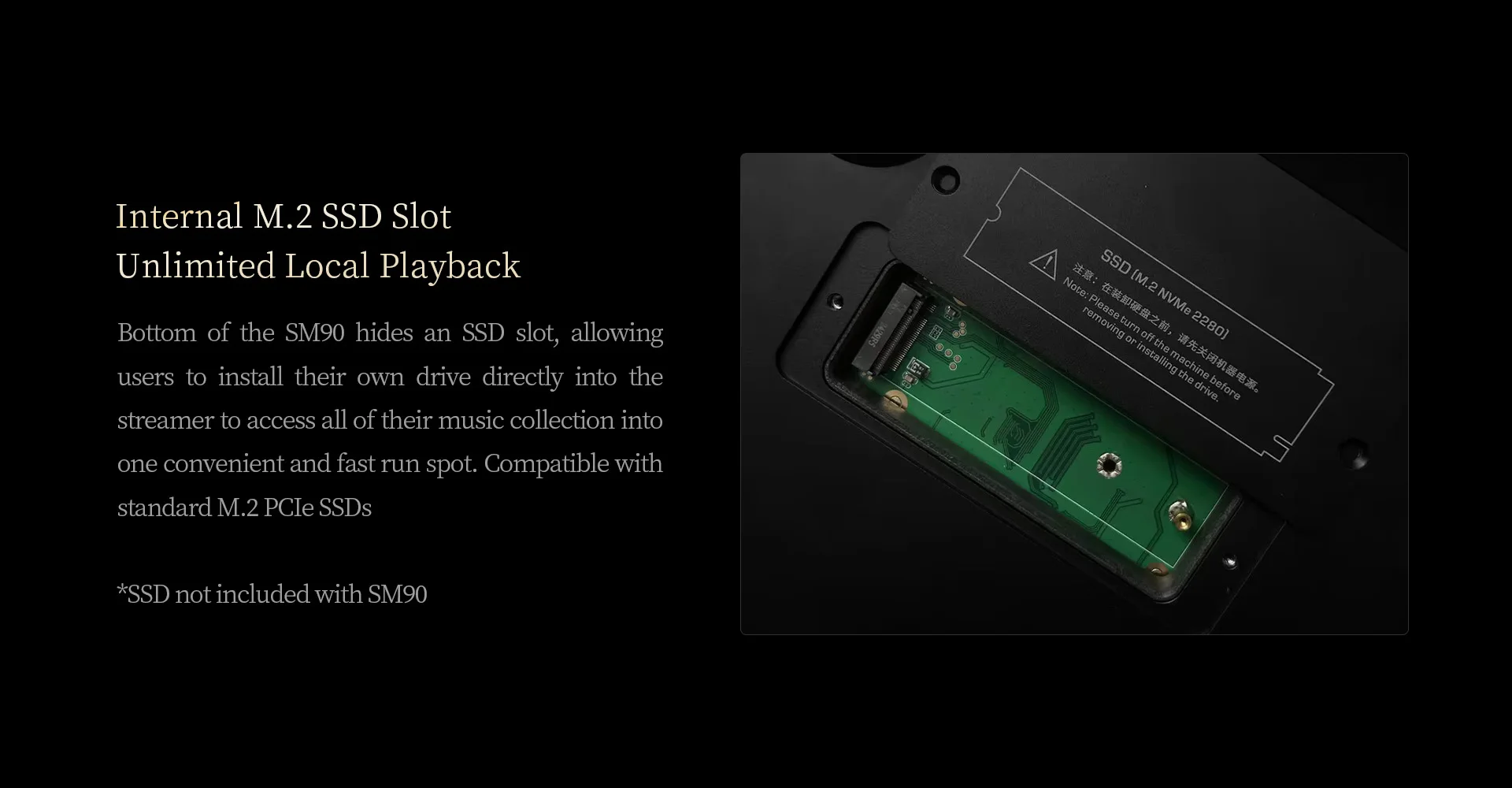

Internal SSD Slot for Local Music Library

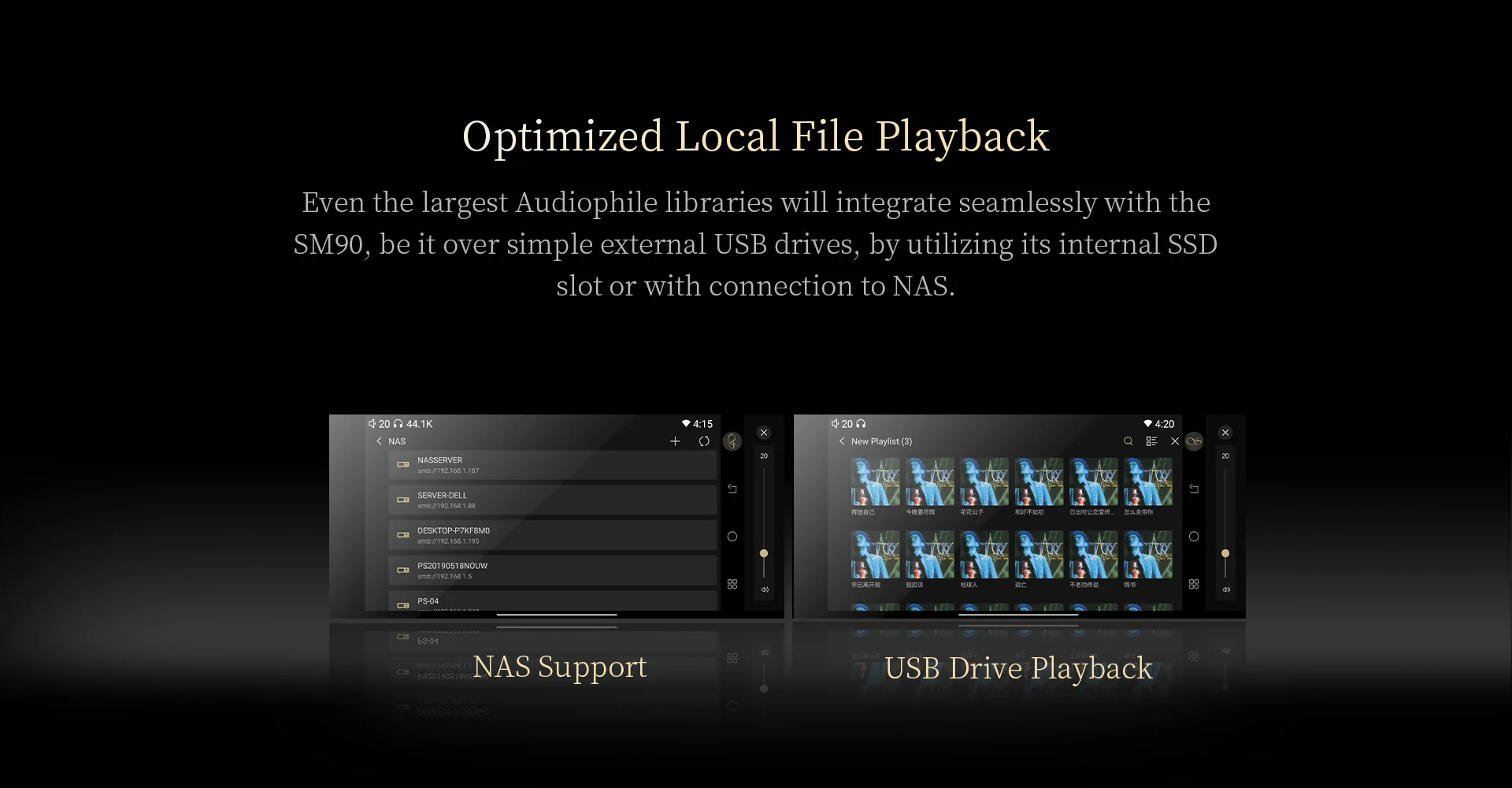

The SM90 features a built-in M.2 SSD slot, allowing users to install their own storage for large music libraries. It also supports external USB drives and NAS connections, ensuring flexible and fast local playback.

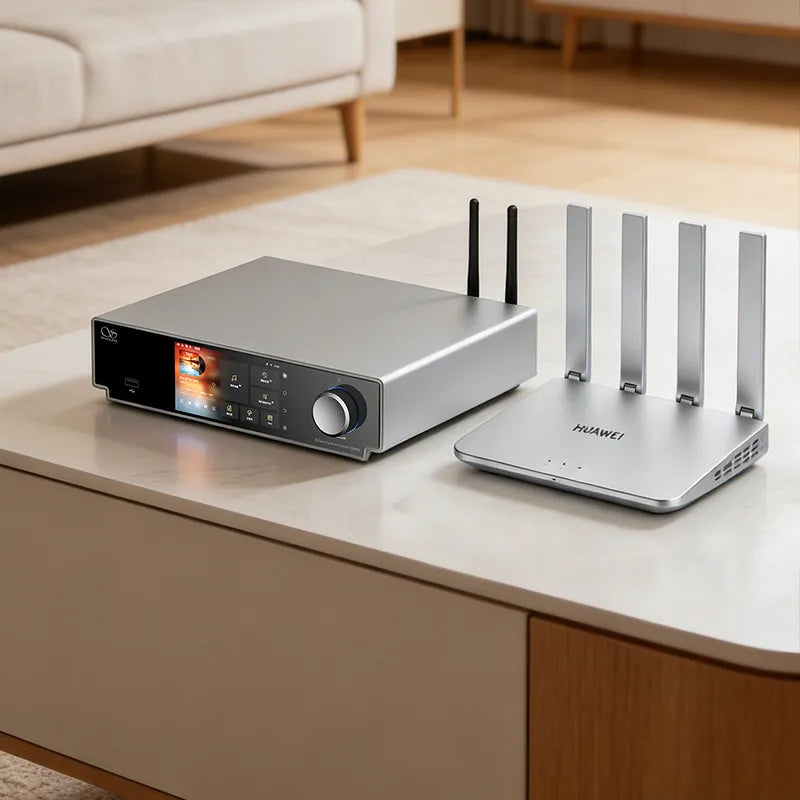

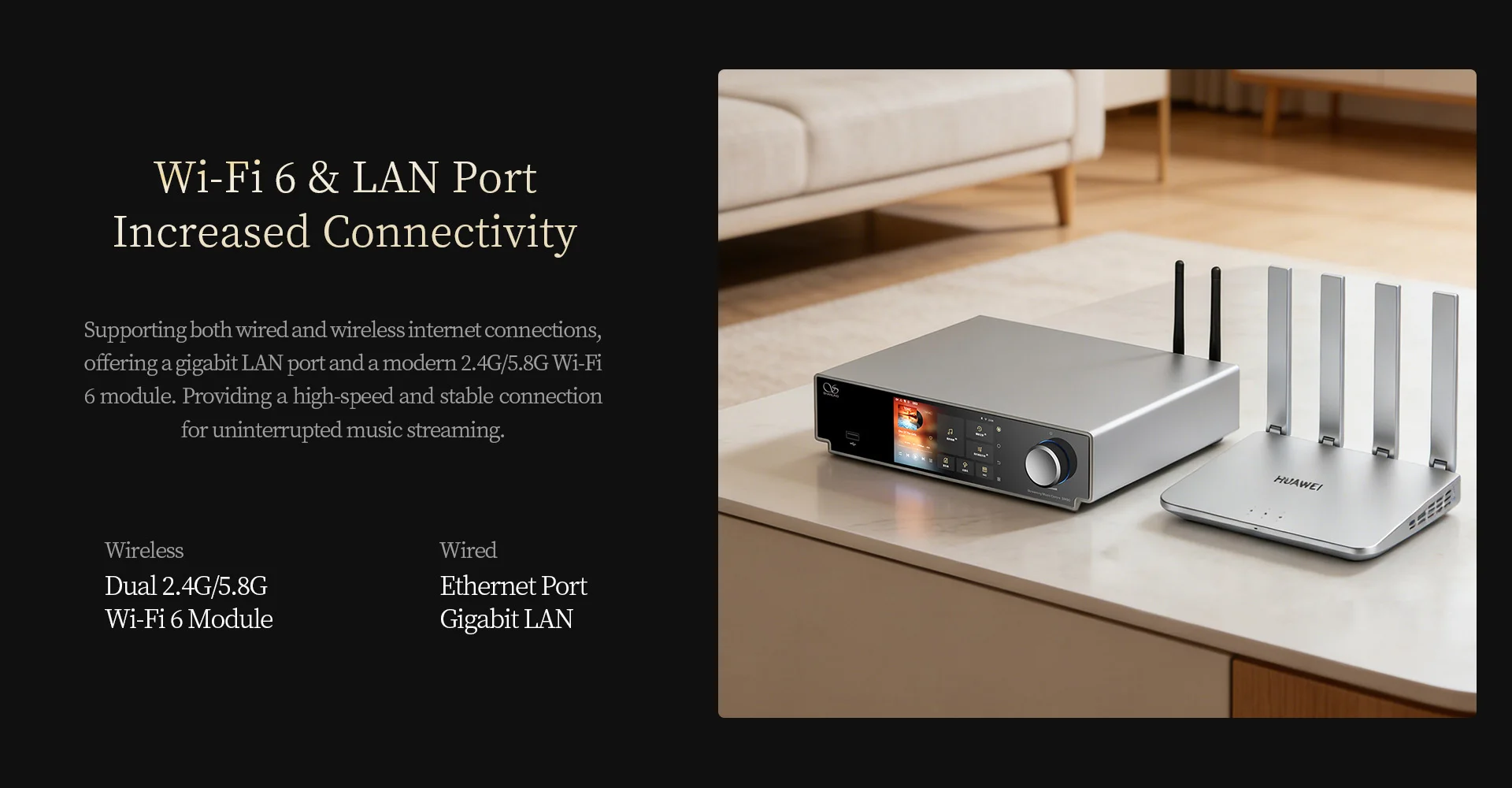

Wi-Fi 6 and LAN Connectivity

With dual-band Wi-Fi 6 (2.4GHz / 5.8GHz) and a gigabit LAN port, the SM90 ensures stable and high-speed network performance for uninterrupted music streaming.

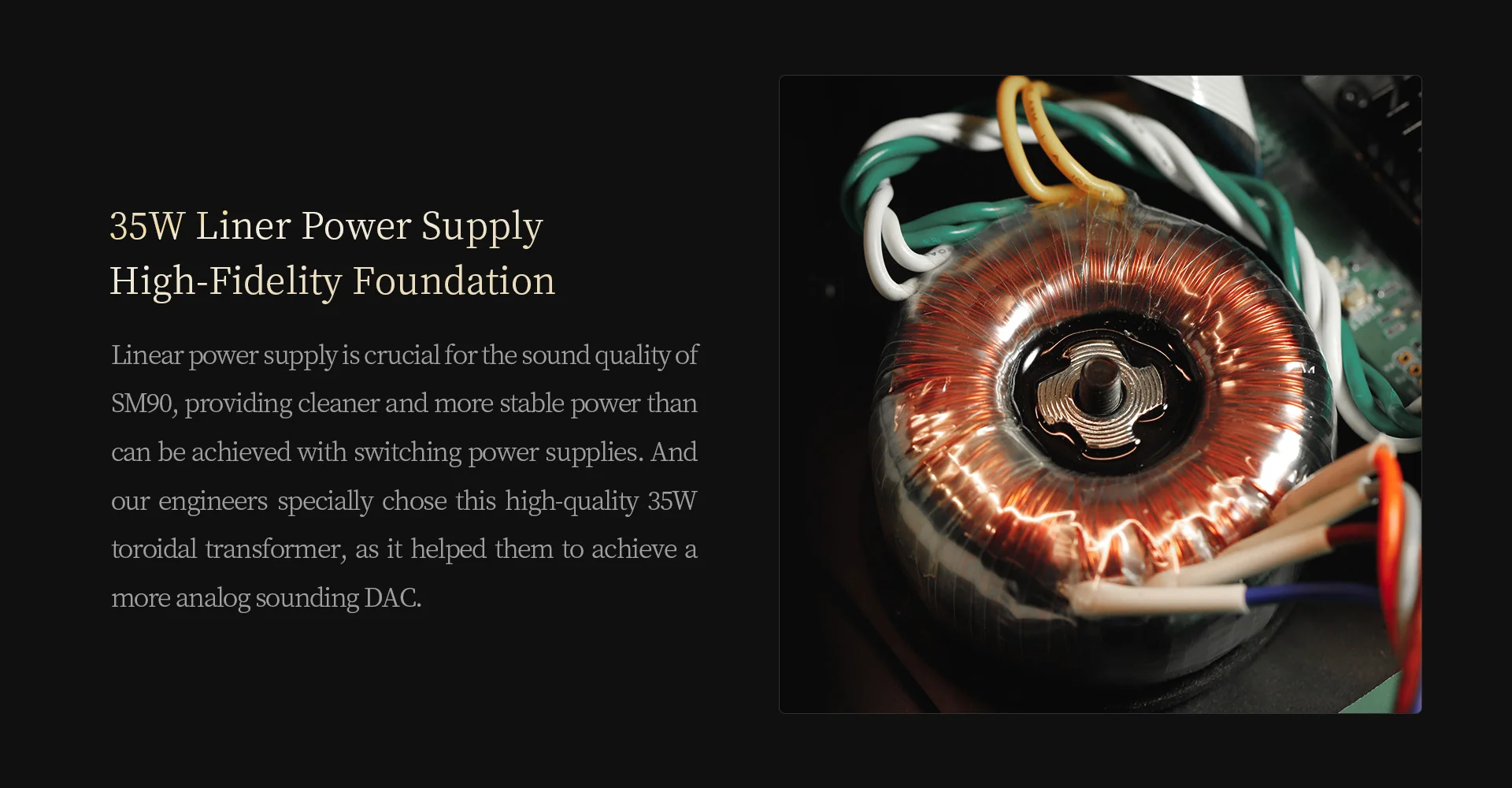

Linear Power Supply for Pure Sound

A high-quality 35W linear power supply with toroidal transformer provides clean and stable power, contributing to improved sound quality with a more natural and analog-like presentation.

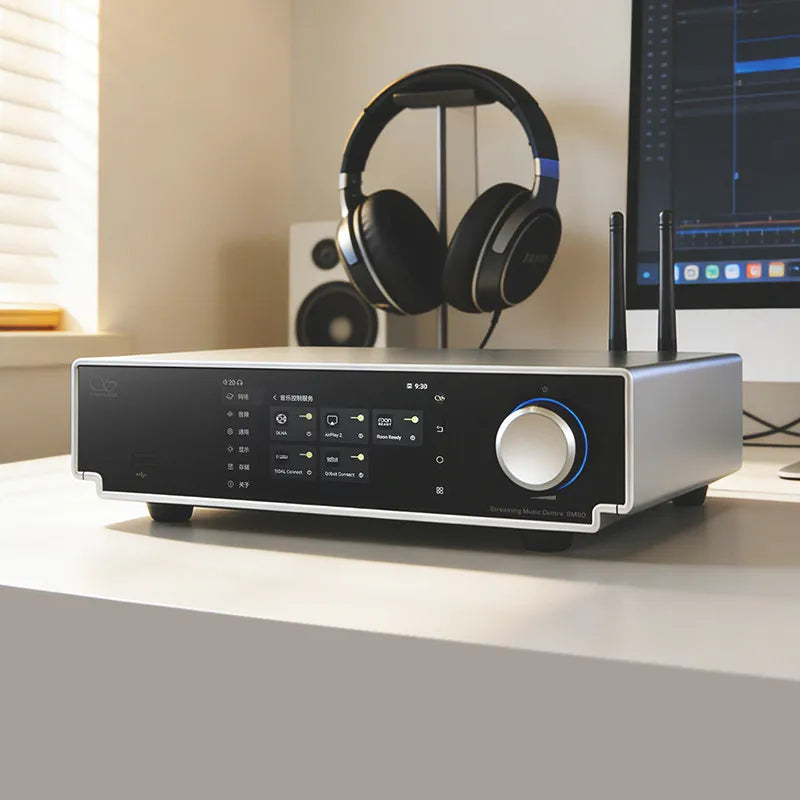

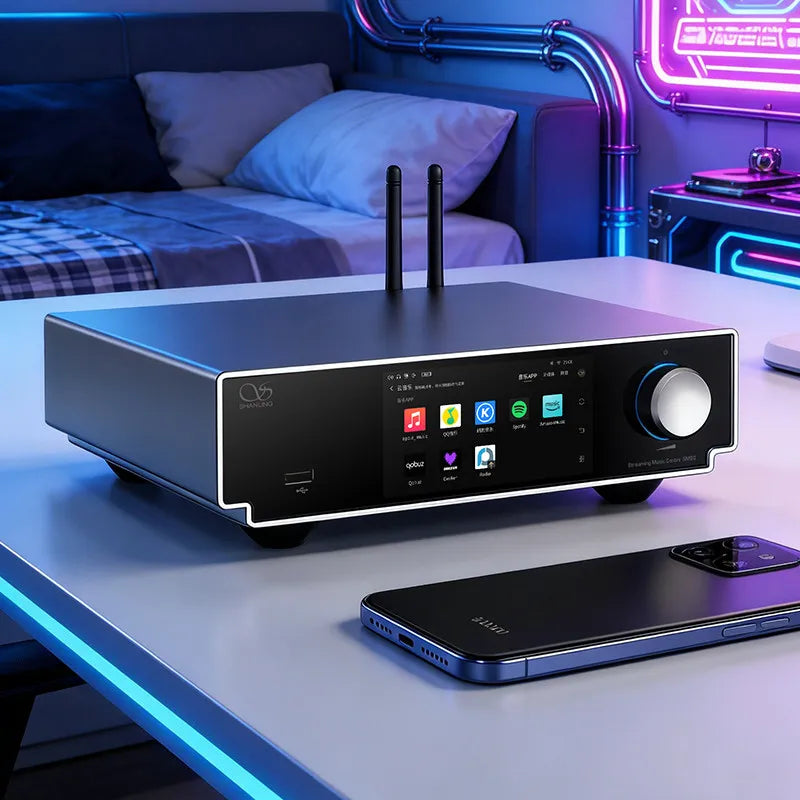

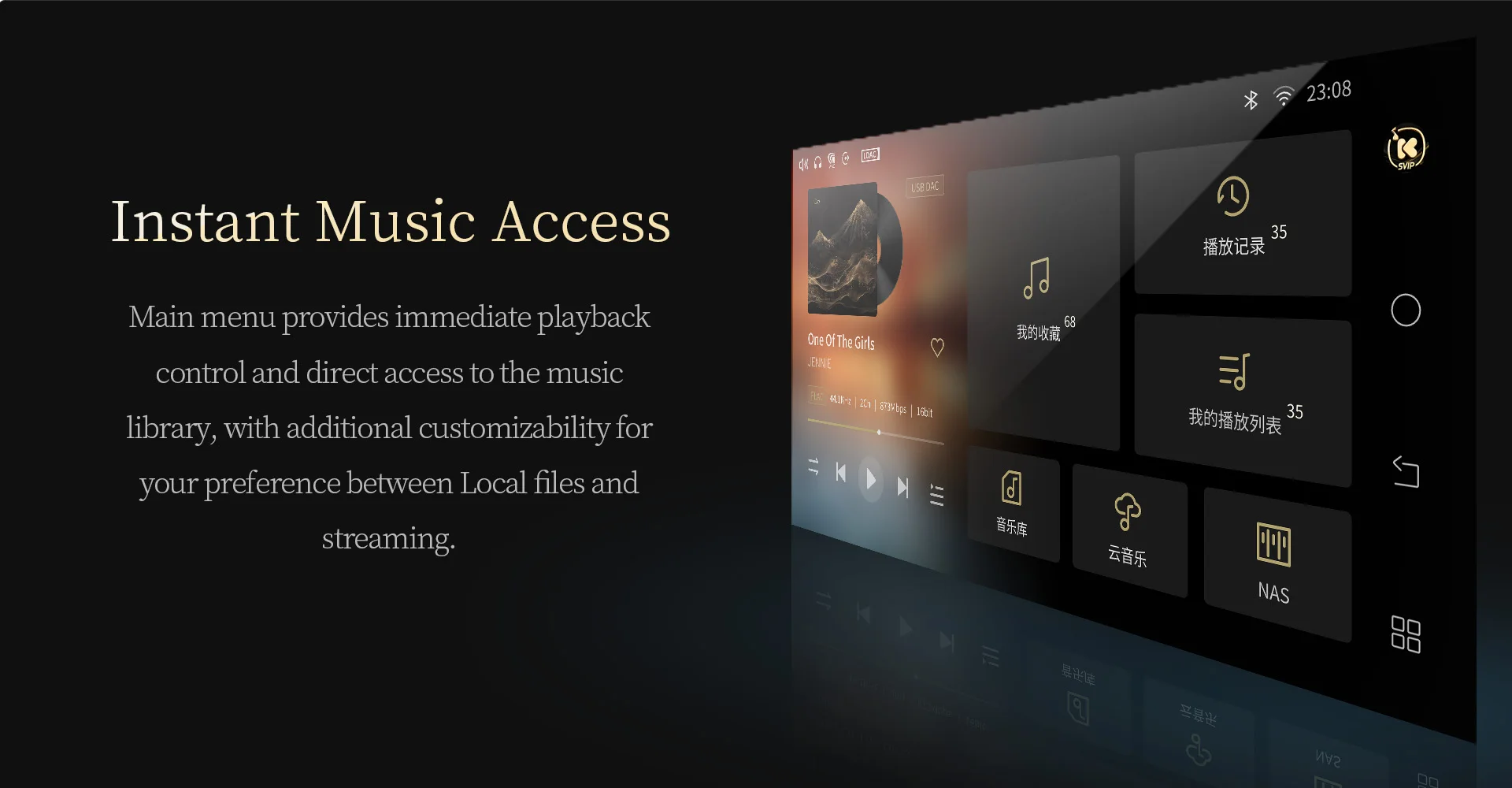

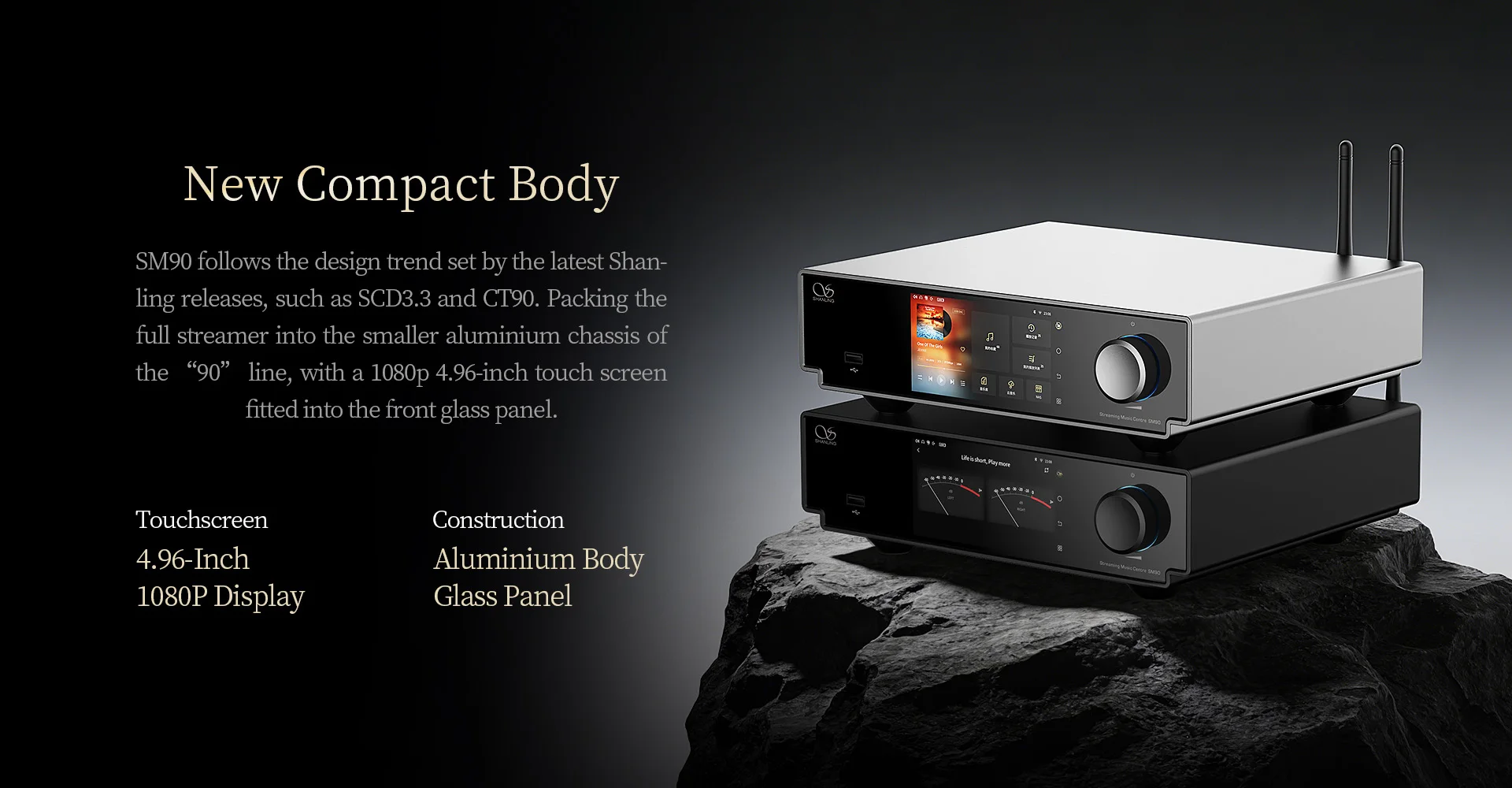

Compact Design with Touchscreen Display

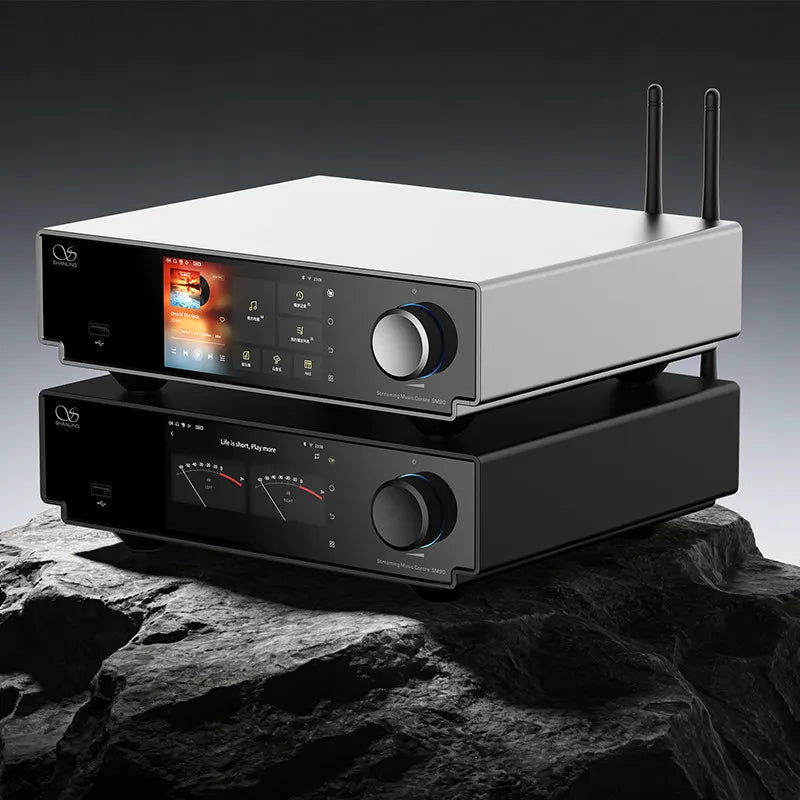

The SM90 features a compact aluminum chassis with a 4.96-inch 1080P touchscreen, offering intuitive control, clear visuals, and a modern aesthetic that fits seamlessly into any Hi-Fi setup.

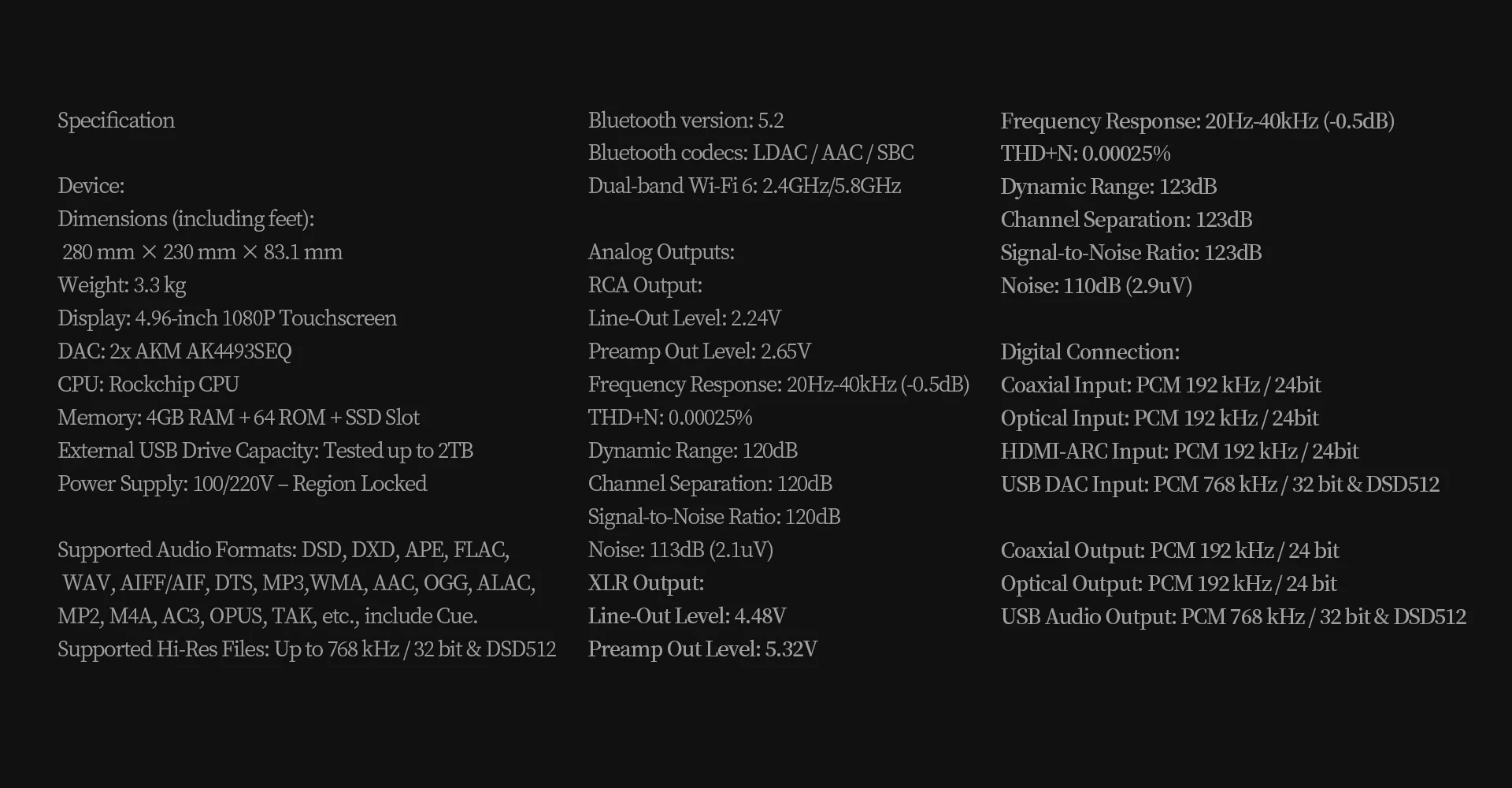

Specifications

DAC: Dual AKM AK4493S

CPU: 64-bit ARM Cortex (Rockchip)

Memory: 4GB RAM + 64GB ROM + SSD Slot

External Storage: USB Drive (tested up to 2TB)

Display: 4.96-inch 1080P Touchscreen

Bluetooth Version: 5.2

Bluetooth Codecs: LDAC / AAC / SBC

Wi-Fi: Dual-band Wi-Fi 6 (2.4GHz / 5.8GHz)

Dimensions: 280 × 230 × 83.1 mm

Weight: 3.3 kg
