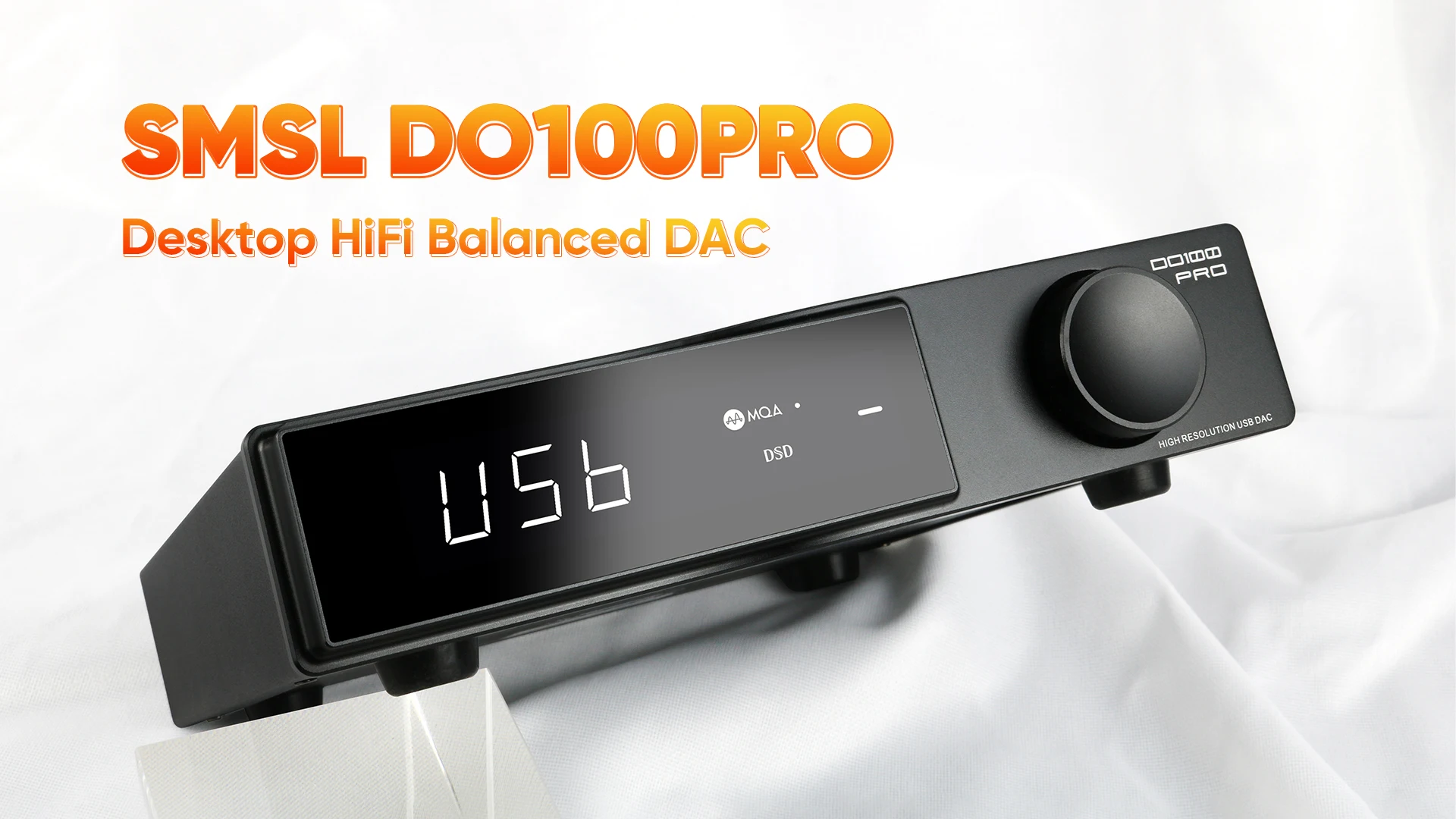

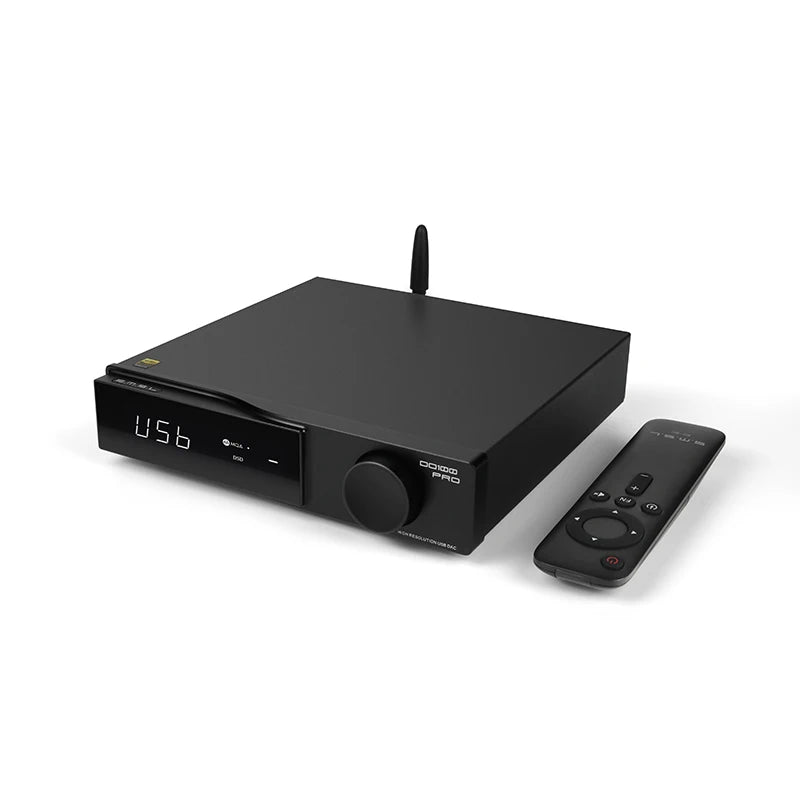

SMSL DO100 Pro Hi-Res MQA DAC Dual ES9039Q2M Decoder Bluetooth5.1 DSD512 OPA1612 HDMI-ARC High End Digital DAC For PS5 DO100pro

Features

1. Supports MQA decoding and MQA-CD;

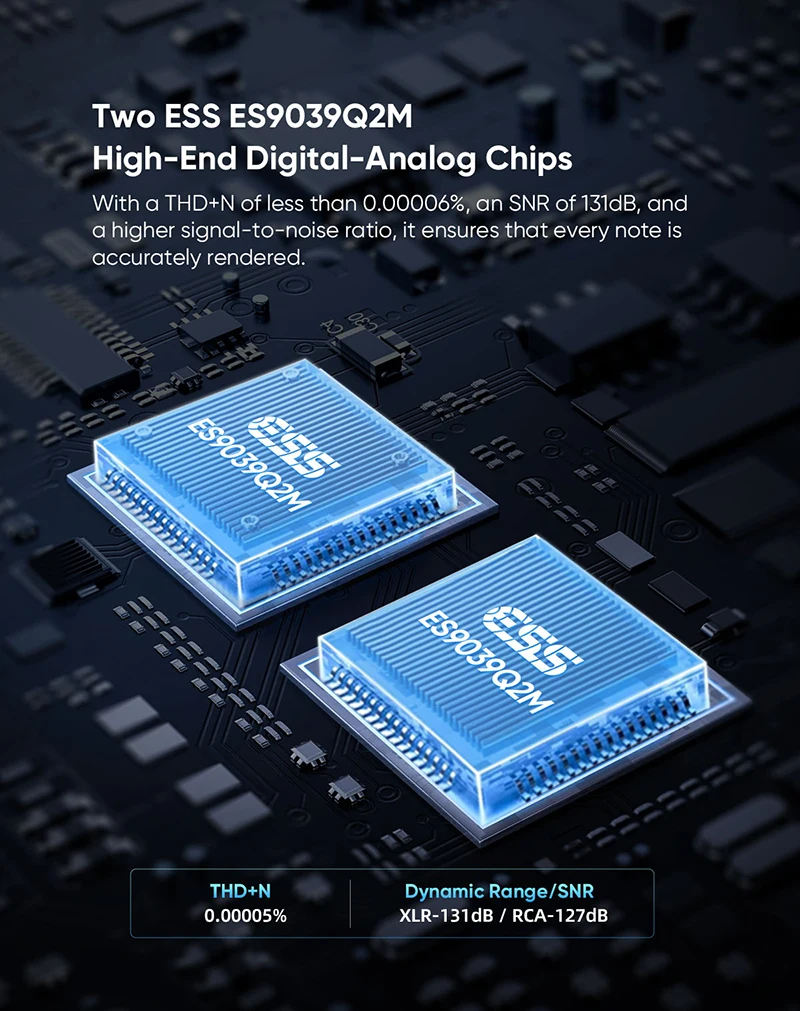

2. 2 pieces of ESS new generation high-end DAC chipES9039Q2M ;

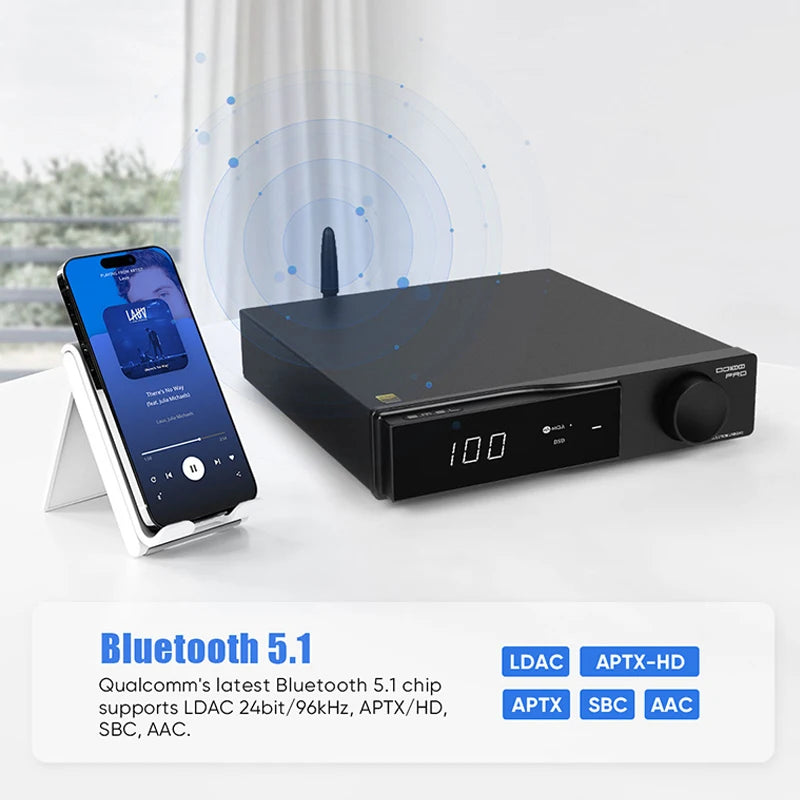

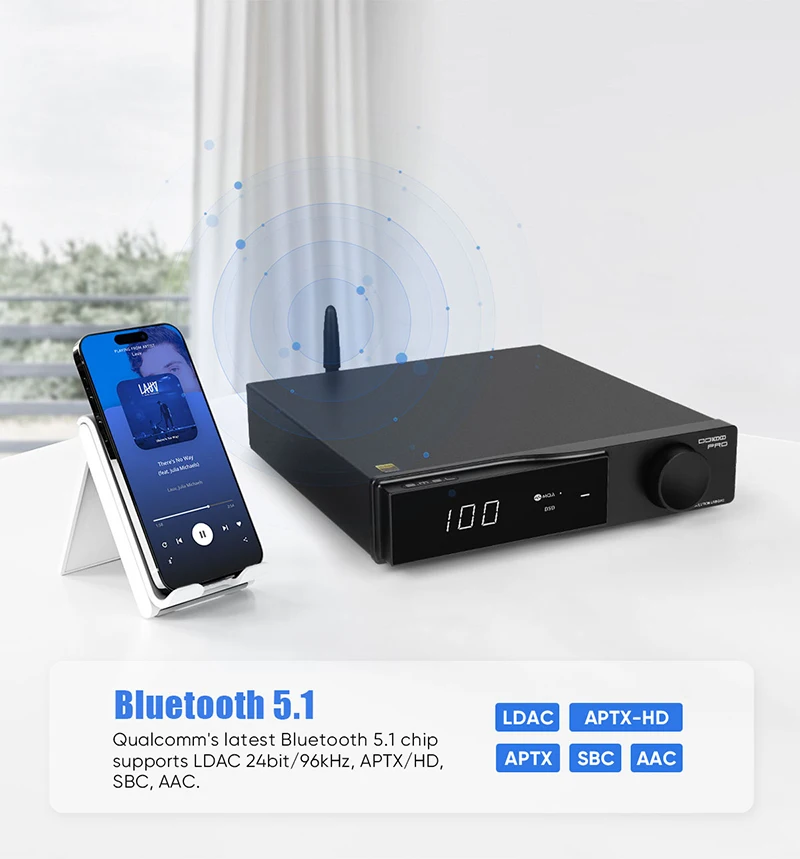

3. Adapts the latest Bluetooth chip of Qualcomm, supports LDAC 24bit/96kHz, APTX/HD, SBC and AAC;
4. Utilizes 6 high-end dual op-amps OPA1612 and numerous audio-grade components;
5. The brand-new third-generation XMOS XU-316, supports up to PCM 32bit/768kHz and DSD512;

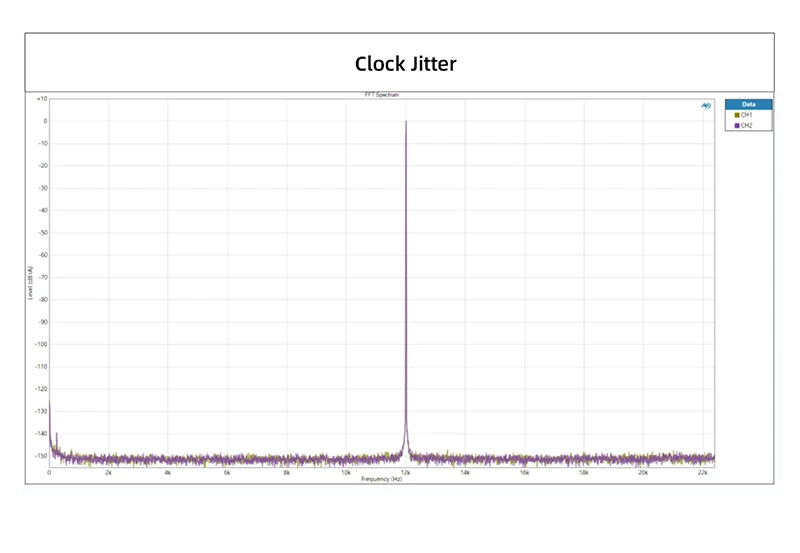

6. The audio clock processing circuit helps reduce clock jitter greatly;

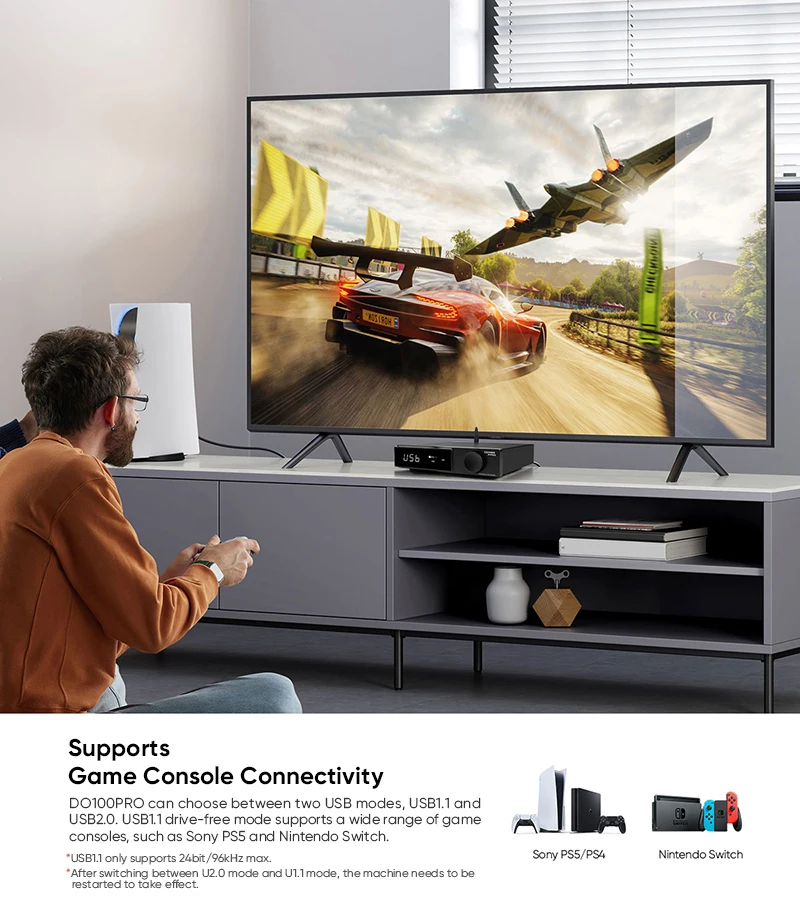

7. There are two modes to choose from: USB 1.1 and USB 2.0;

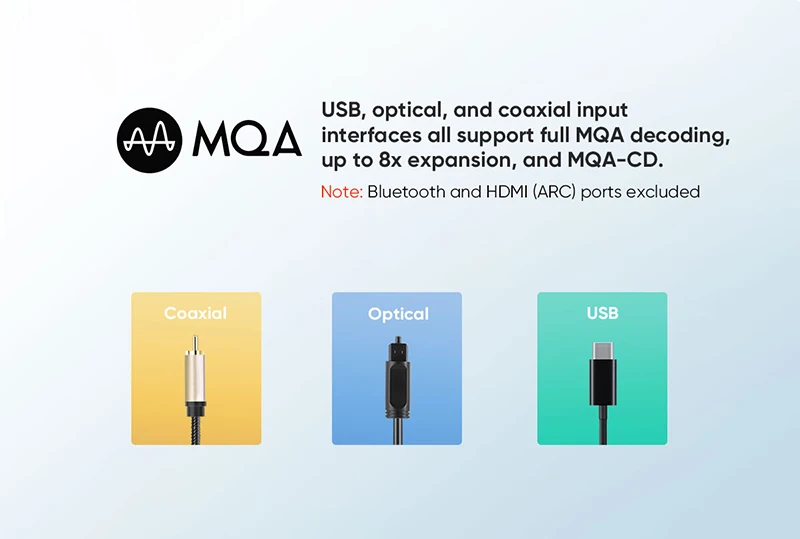

8. Input ports (except Bluetooth) support MQA and DSD, coaxial and optical support DoP64;

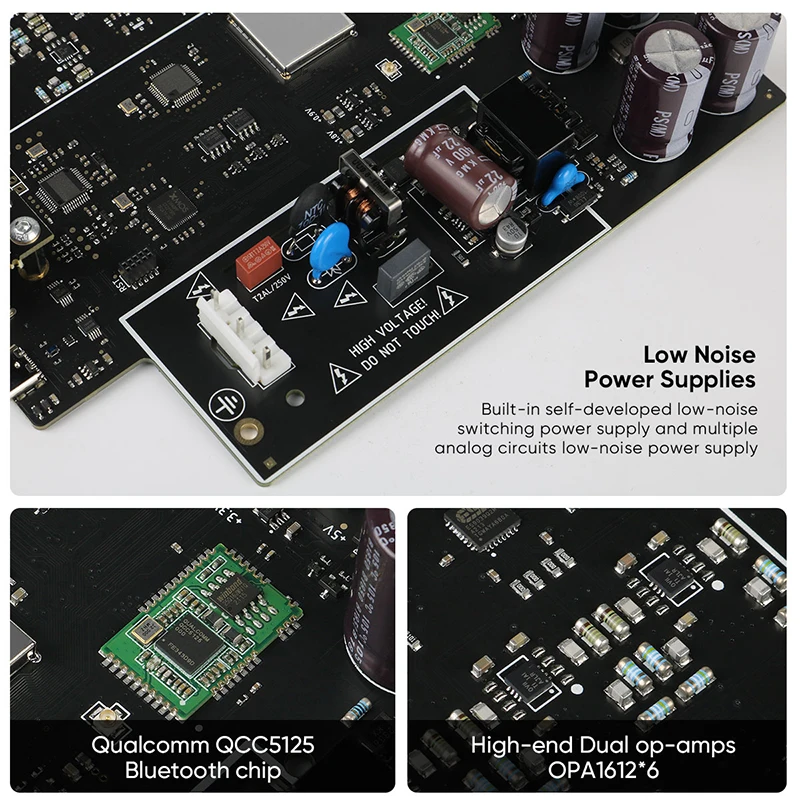

9. Built-in self-developed low-noise switching power supply and multiple analog circuits low-noise power supply;

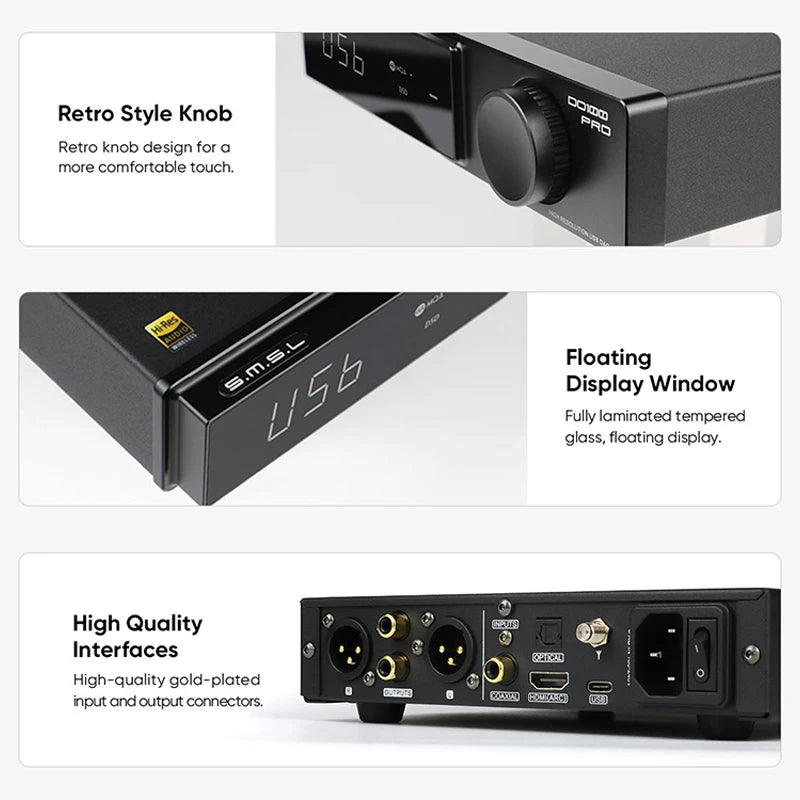

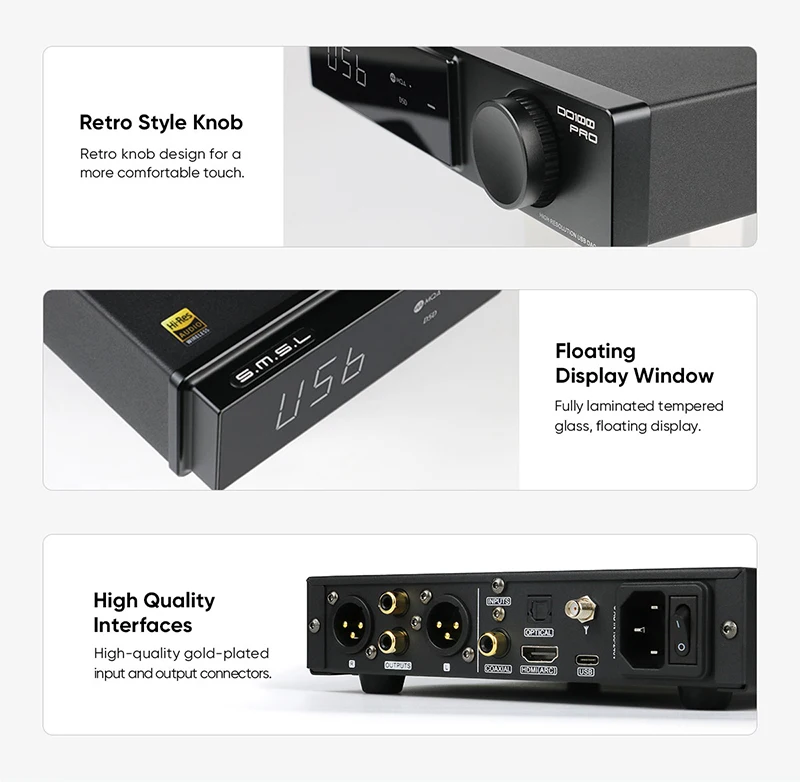

10. High-quality gold-plated input and output connectors;
11. Japan Audio Association (JAS)Hi-Res certification;

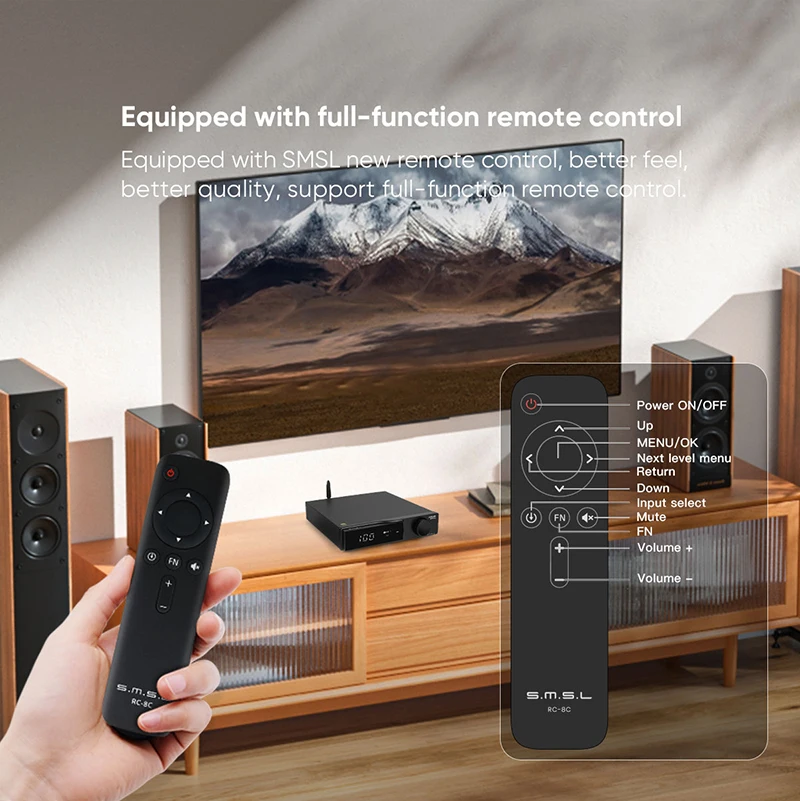

12. Equipped with a full-featured remote control.

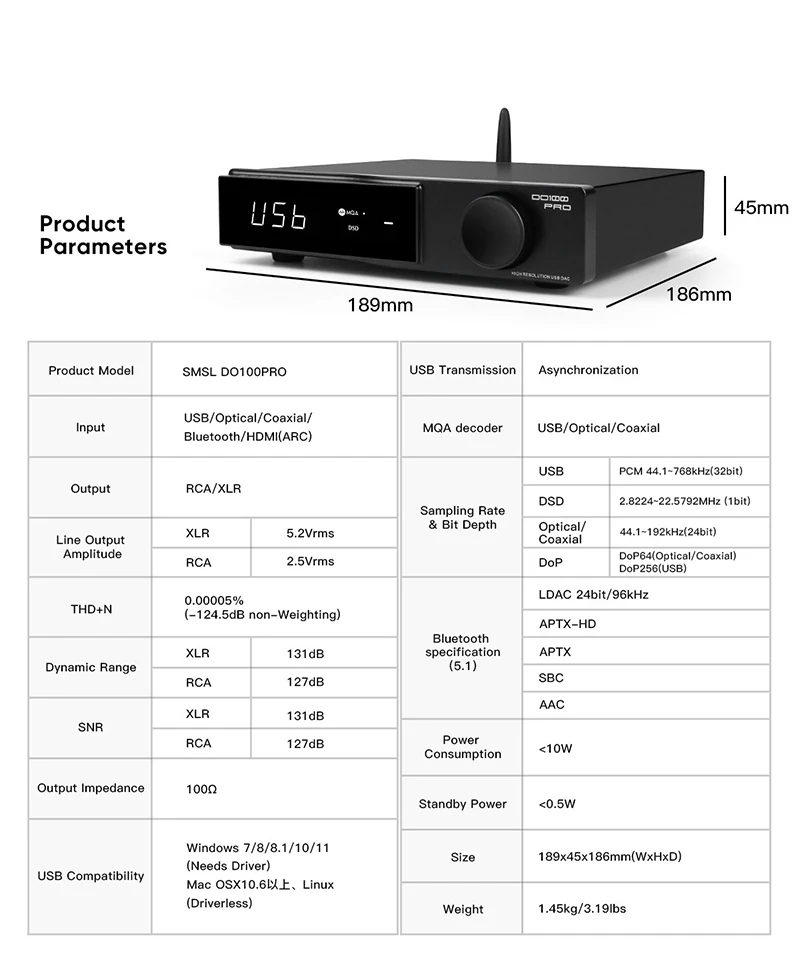

Specifications

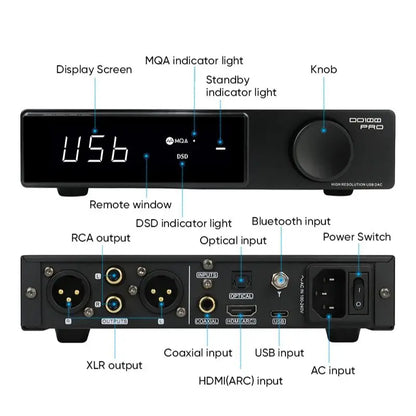

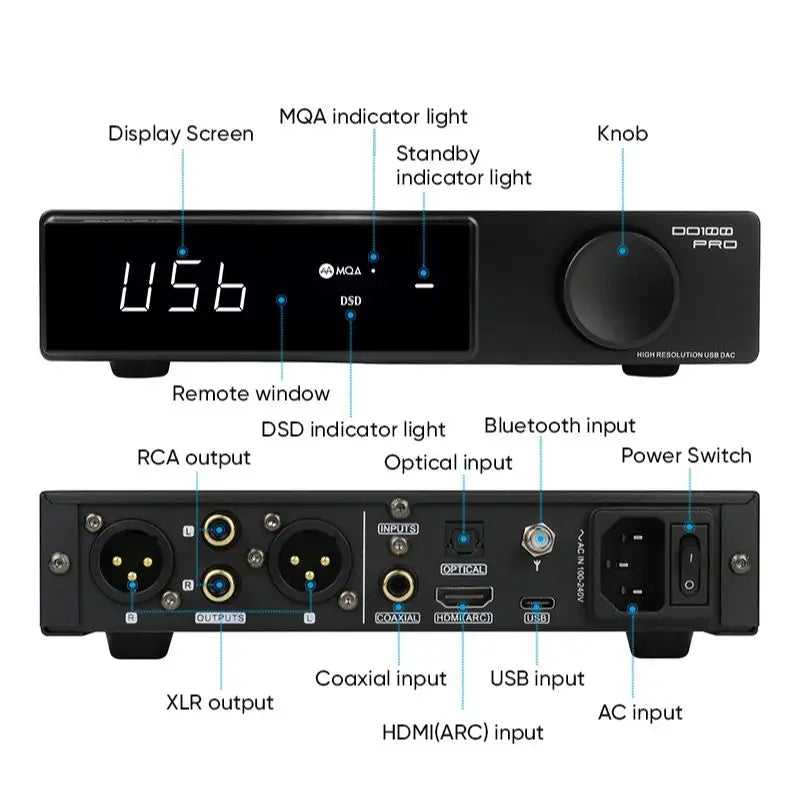

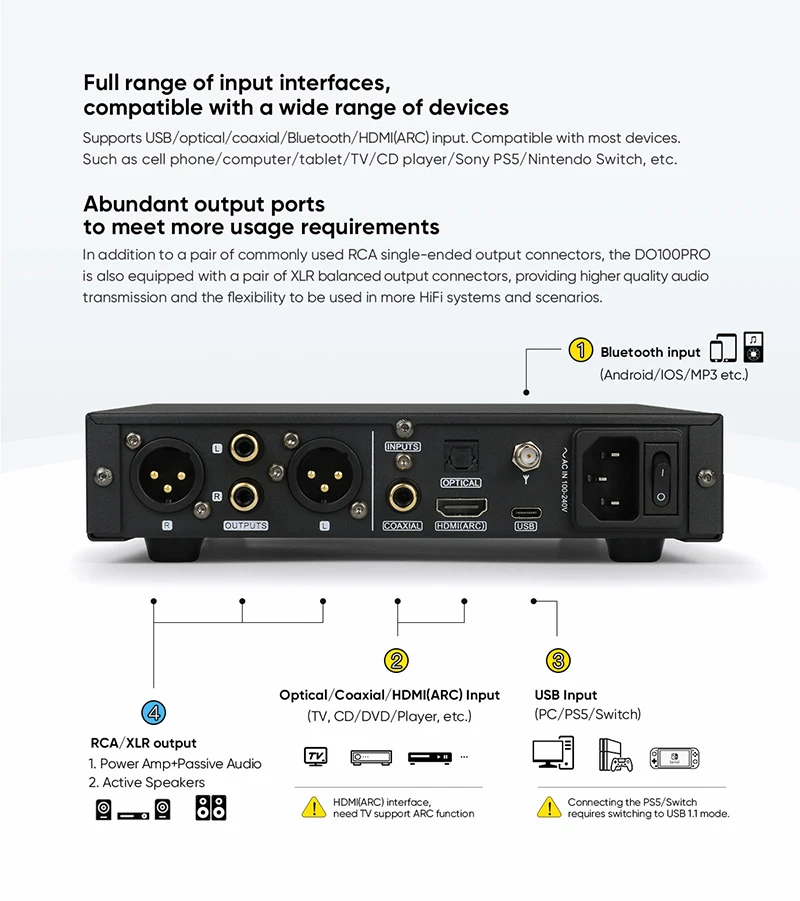

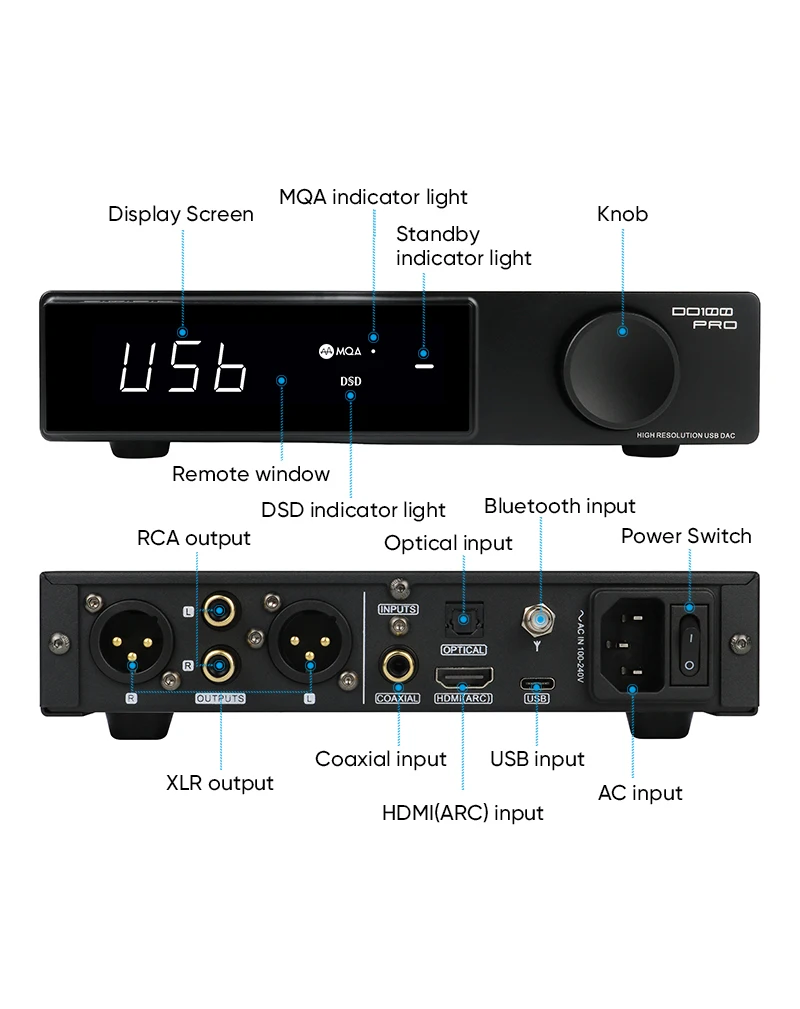

1. Input : USB/Optical/Coaxial/Bluetooth/HDMI(ARC)
2. Output : RCA/XLR

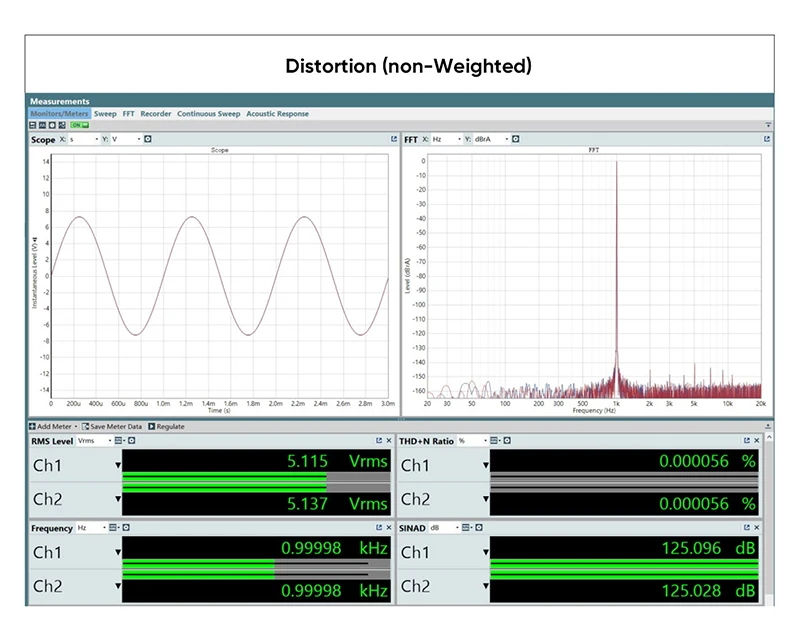

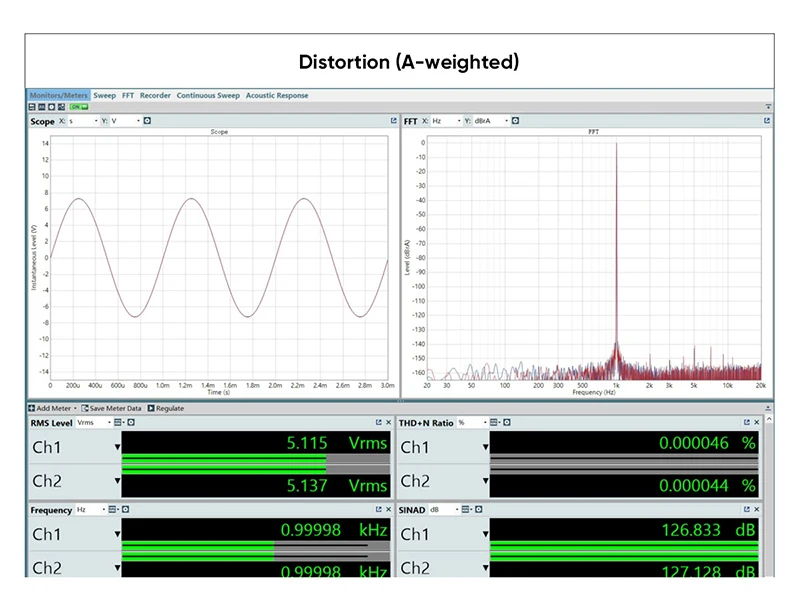

THD+N : 0.00005%(-124.5dB non-Weighting)
3. Line output amplitude
XLR 5.2Vrms , RCA 2.5Vrms
4. Output Impedance : 100Ω

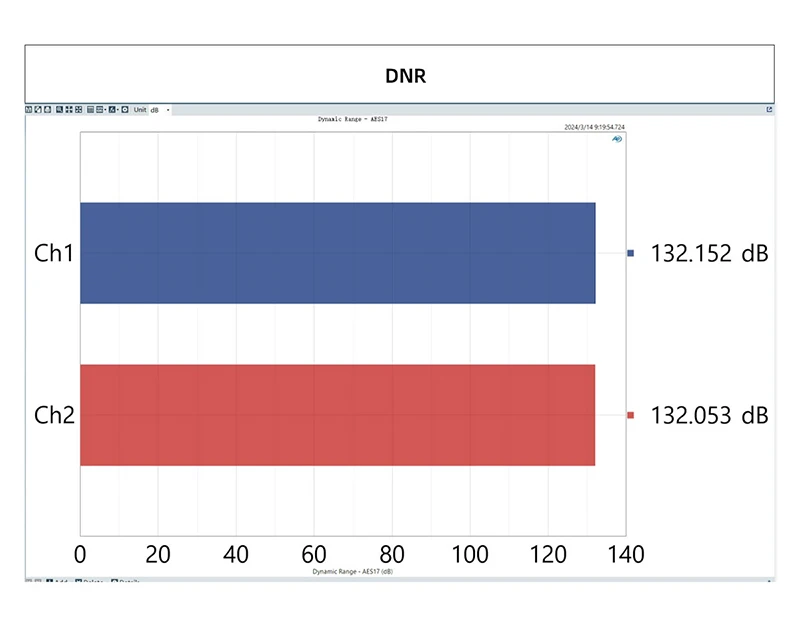

5. Dynamic range : XLR 131dB , RCA 127dB
6. SNR : XLR 131dB , RCA 127dB
7. USB transmission : Asynchronization
8. USB compatibility : Windows 7 / 8 / 8.1 / 10 / 11(Needs Driver)
9. Mac OSX10.6 or Later、Linux(Driverless)
10. MQA Decoder : USB/Optical/Coaxial
11. Sampling rate & Bit Depth:
USB PCM 44.1~768kHz(32bit)
DSD 2.8224~22.5792MHz(1bit)
DoP DoP256
Optical / Coaxial 44.1~192kHz(24bit)
DoP DoP64
12. Bluetooth specification : 5.1(Support SBC,AAC,aptX,aptX HD,LDAC)
13. Power 13. Consumption : <10W
14. Standby power : .<0.5W
15. Size : 189x45x186mm(WxHxD)
16. Weight : 1.45kg/3.19lbs

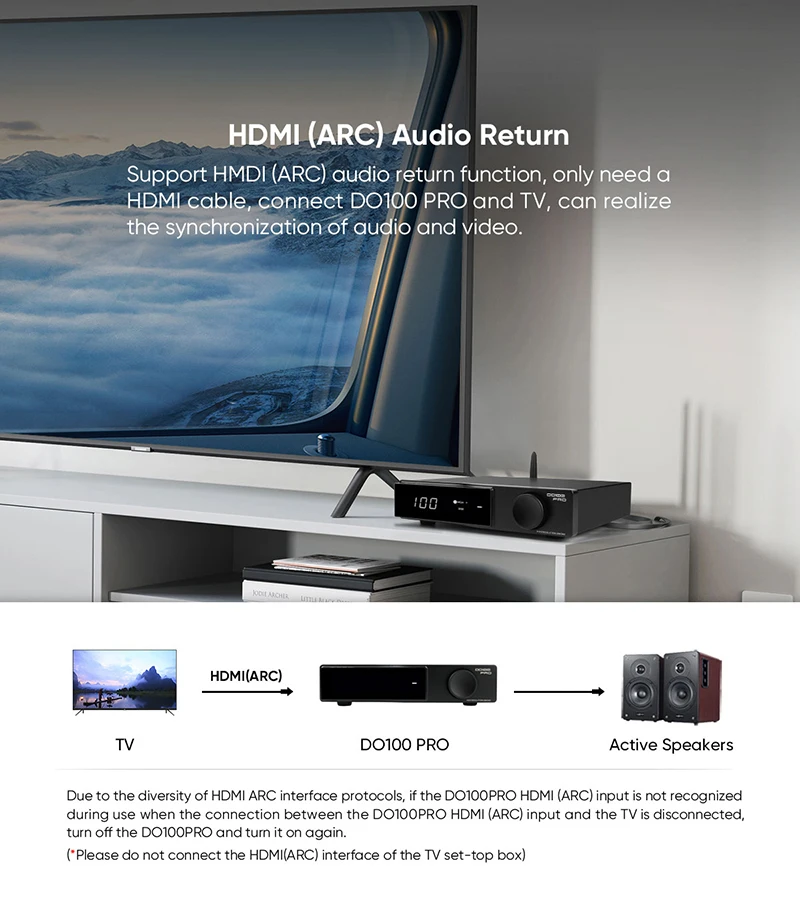

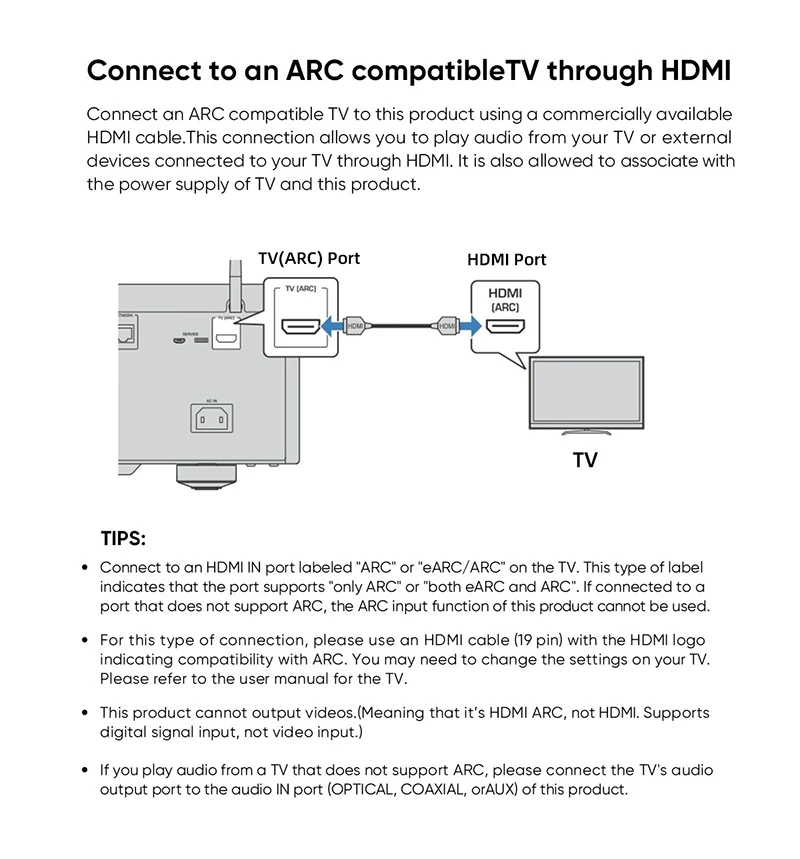

Connect to an ARC compatible TV through HDMI

Connect an ARC compatible TV to this product using a commercially available HDMI cable.
This connection allows you to play audio from your TV or external devices connected to your
TV through HDMI. It is also allowed to associate with the power supply of TV and this product.

TIPS：

1. Connect to an HDMI IN port labeled "ARC" or "eARC/ARC" on the TV. This type of label
indicates that the port supports "only ARC" or "both eARC and ARC". If connected to a port
that does not support ARC, the ARC input function of this product cannot be used.
2. For this type of connection, please use an HDMI cable (19 pin) with the HDMI logo
indicating compatibility with ARC. You may need to change the settings on your TV. Please
refer to the user manual for the TV.
3. This product cannot output videos.(Meaning that it’s HDMI ARC, not HDMI. Supports
digital signal input, not video input.)
4. If you play audio from a TV that does not support ARC, please connect the TV's audio
output port to the audio IN port (OPTICAL, COAXIAL, orAUX) of this product.
