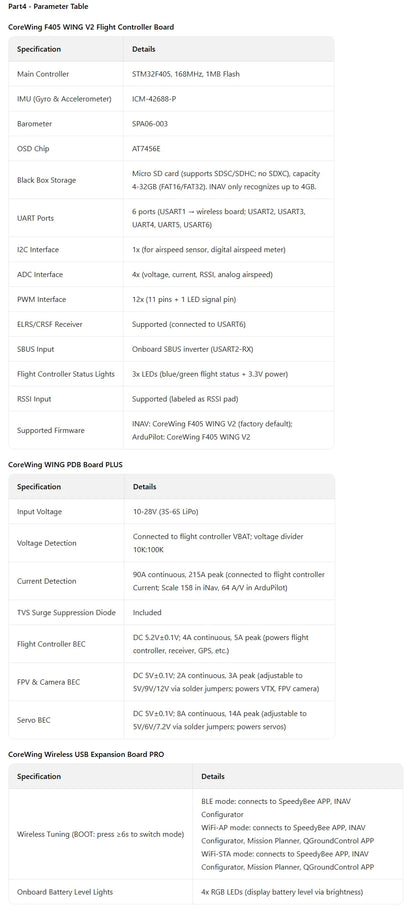

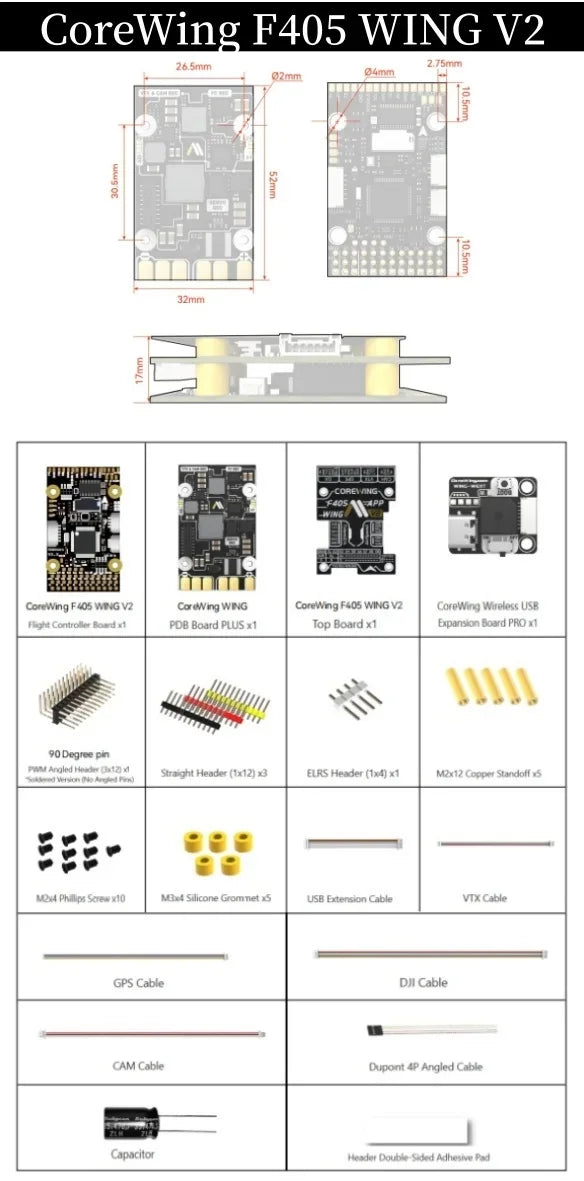

CoreWing F405 WING V2 Combo - Key Specs Card

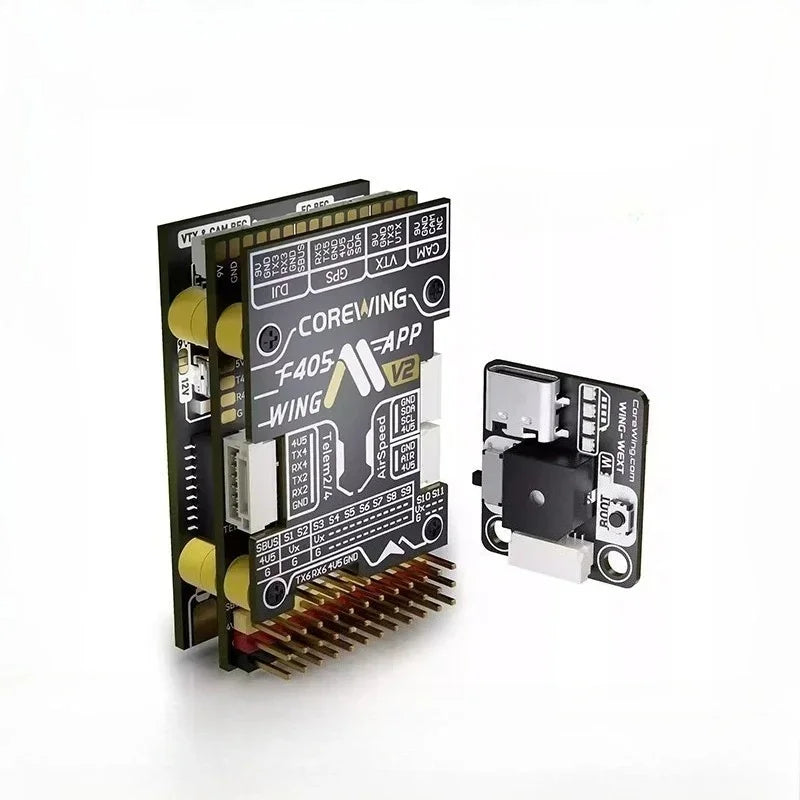

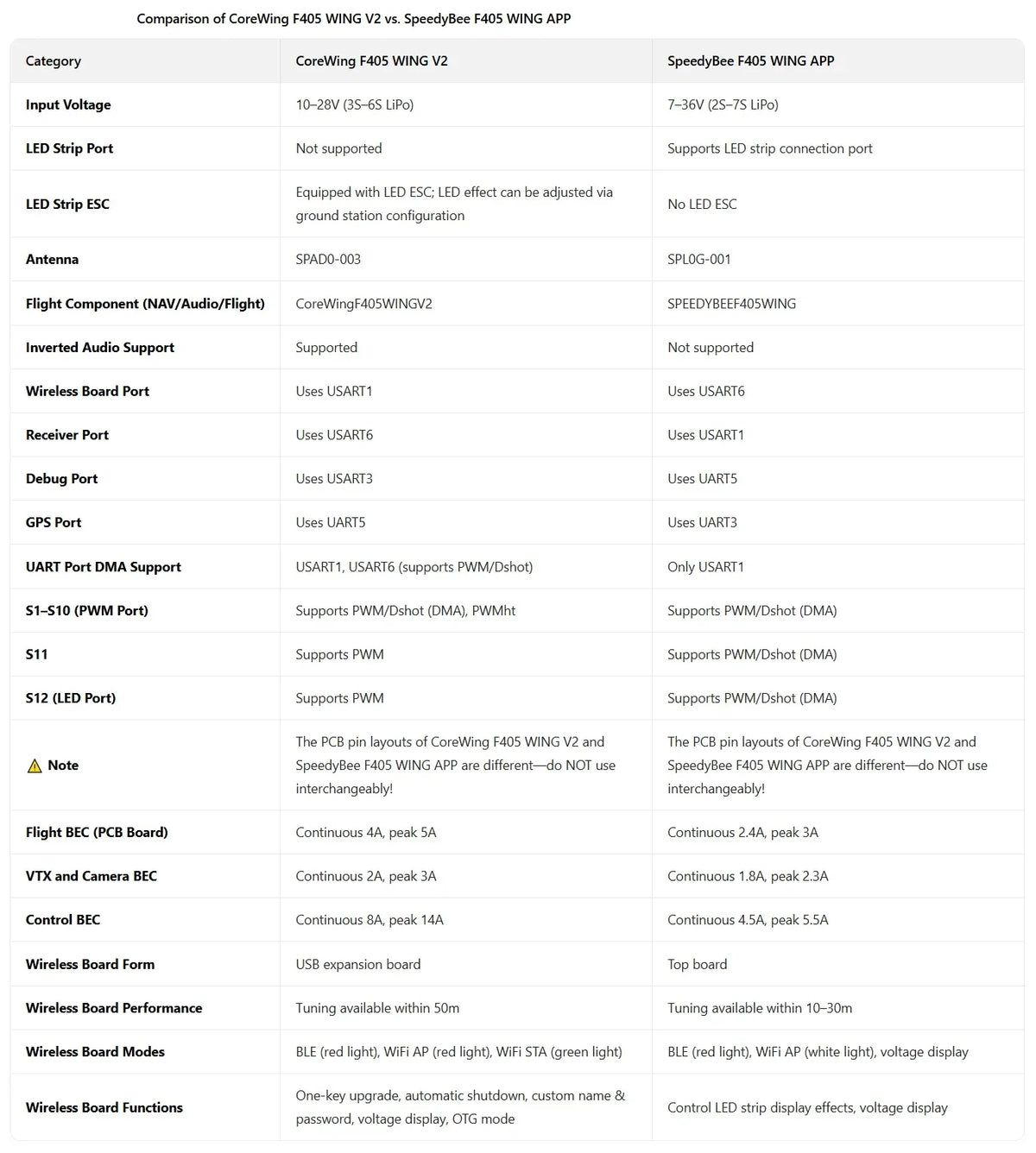

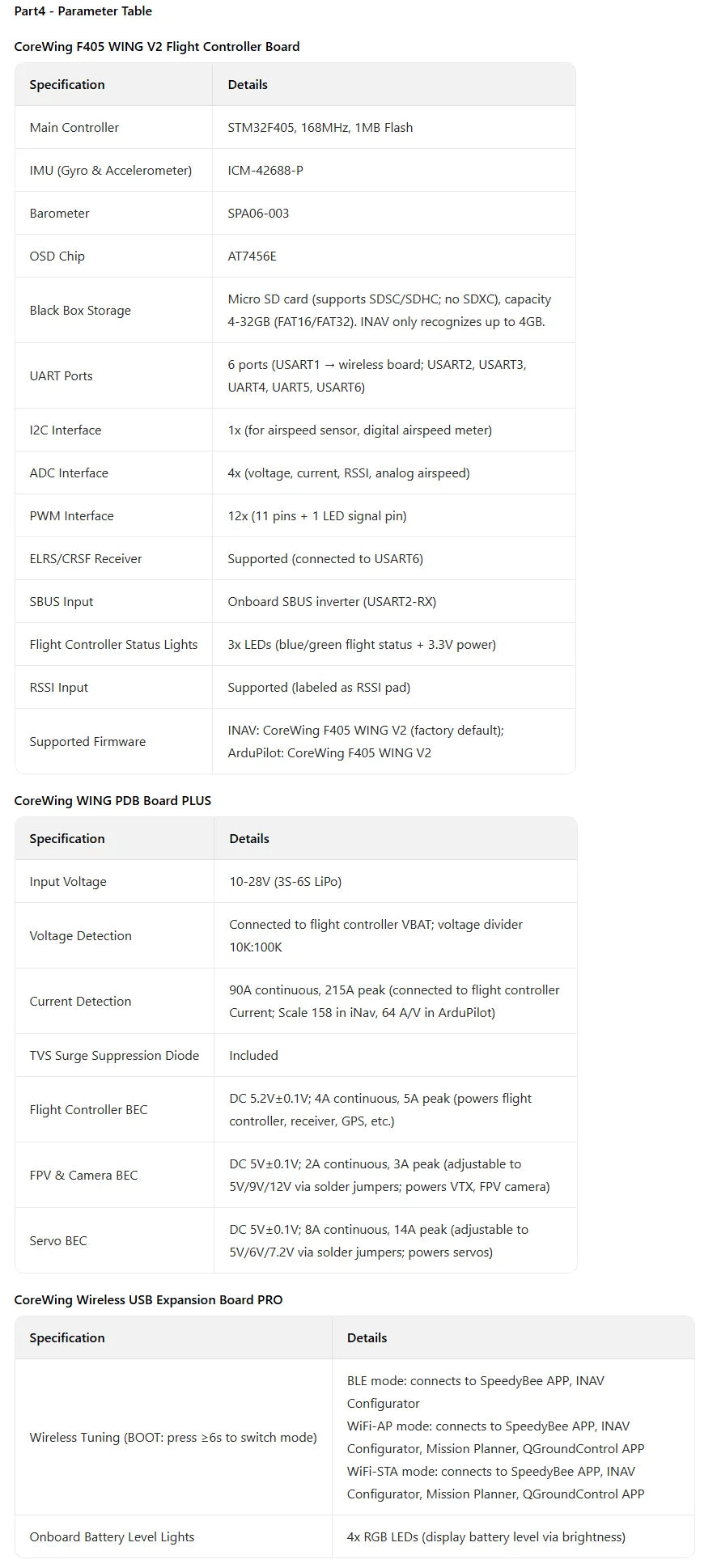

① F405 WING V2 Flight Controller Board
Core Configuration |
Specification |
Main Control |
STM32F405, 168MHz, 1MB Flash |
IMU / Barometer |
CM-42688-P / SPA06-003 |
OSD / Blackbox |
AT7456E / 4-32G Micro SD (FAT16/32, 4G only for INAV) |
Interfaces |
UART×6 / I2C×1 / ADC×4 / PWM×12 |
Receiver / Signal |
ELRS/CRSF/SBUS supported (on-board reverse circuit); RSSI Input |
Firmware / Indicator |
Factory NAV + ArduPilot; 3LED (FC/Power Indication) |
② WING PDB Board PLUS
Power Supply / Detection |
Specification |
Input Voltage |
10~28V (3~6S LiPo) |
Voltage / Current Detection |
10K:100K voltage division; 90A continuous / 215A peak |
Protection / Power Supply |

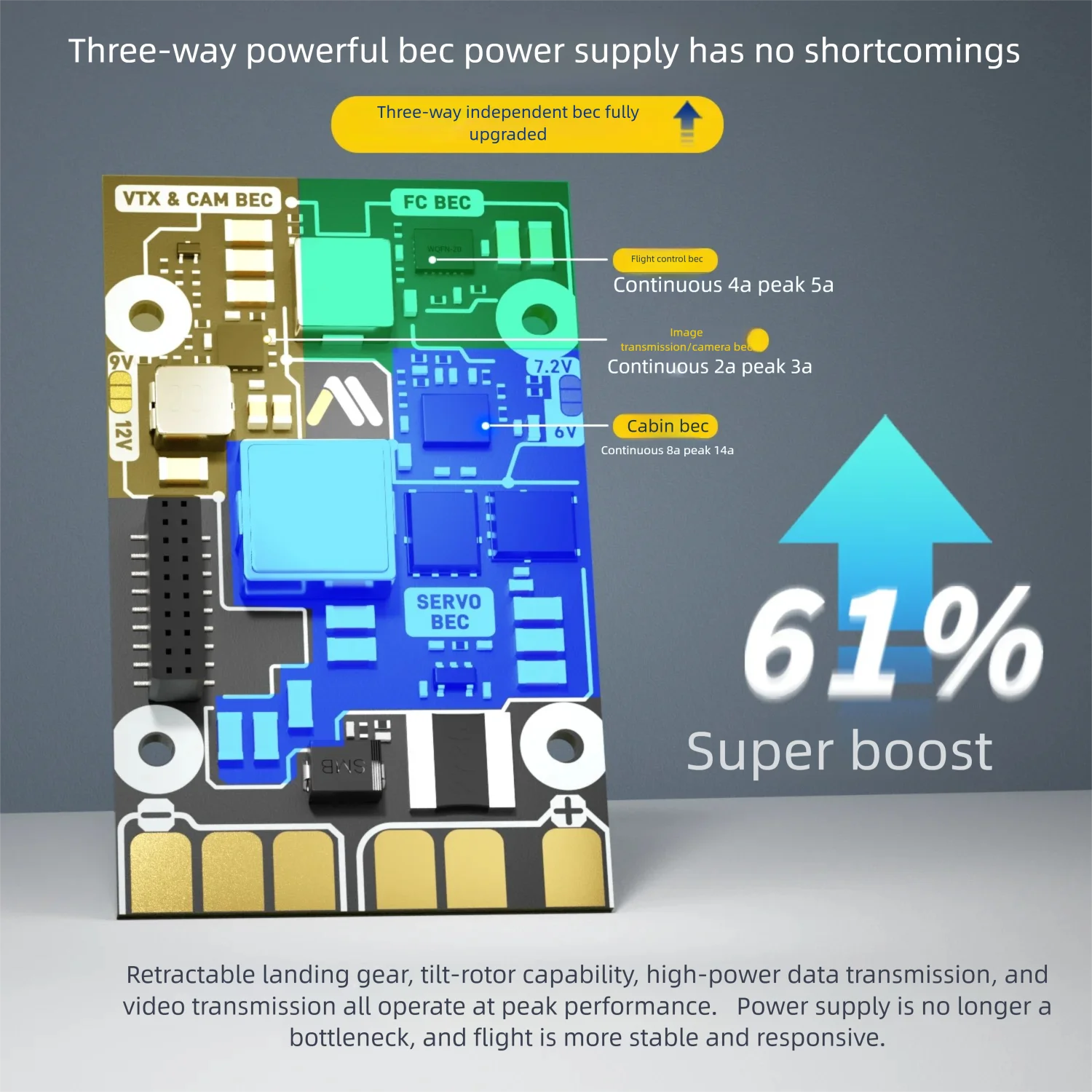

TVS surge suppression diode equipped; 3 independent BEC power supply |
FC BEC |
5.2V±0.1V, 4A continuous / 5A peak |
VTX & Camera BEC |
9V±0.1V (adjustable to 5/9/12V), 2A continuous / 3A peak |
Servo BEC |
5V±0.1V (adjustable to 5/6/7.2V), 8A continuous / 14A peak |

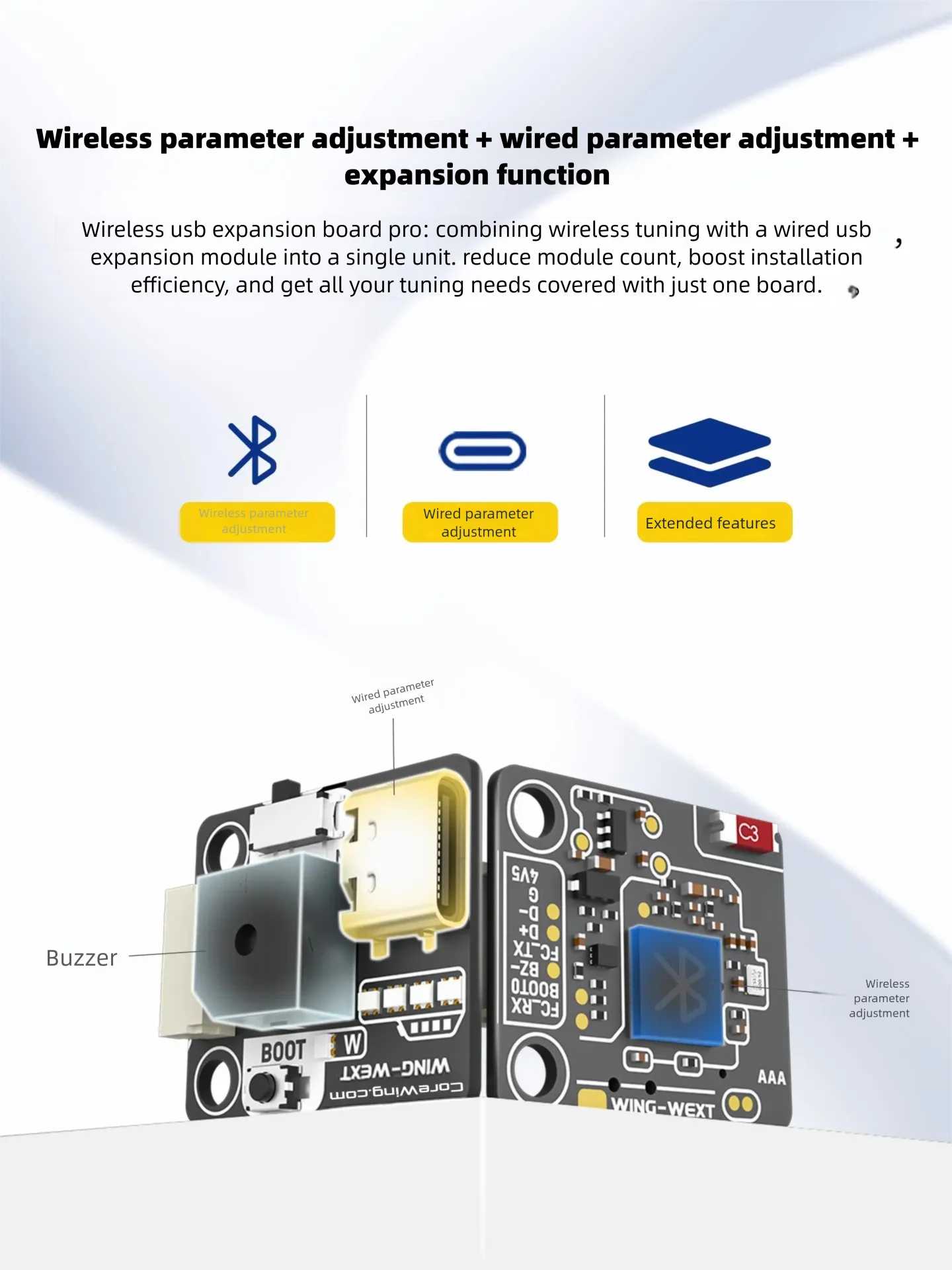

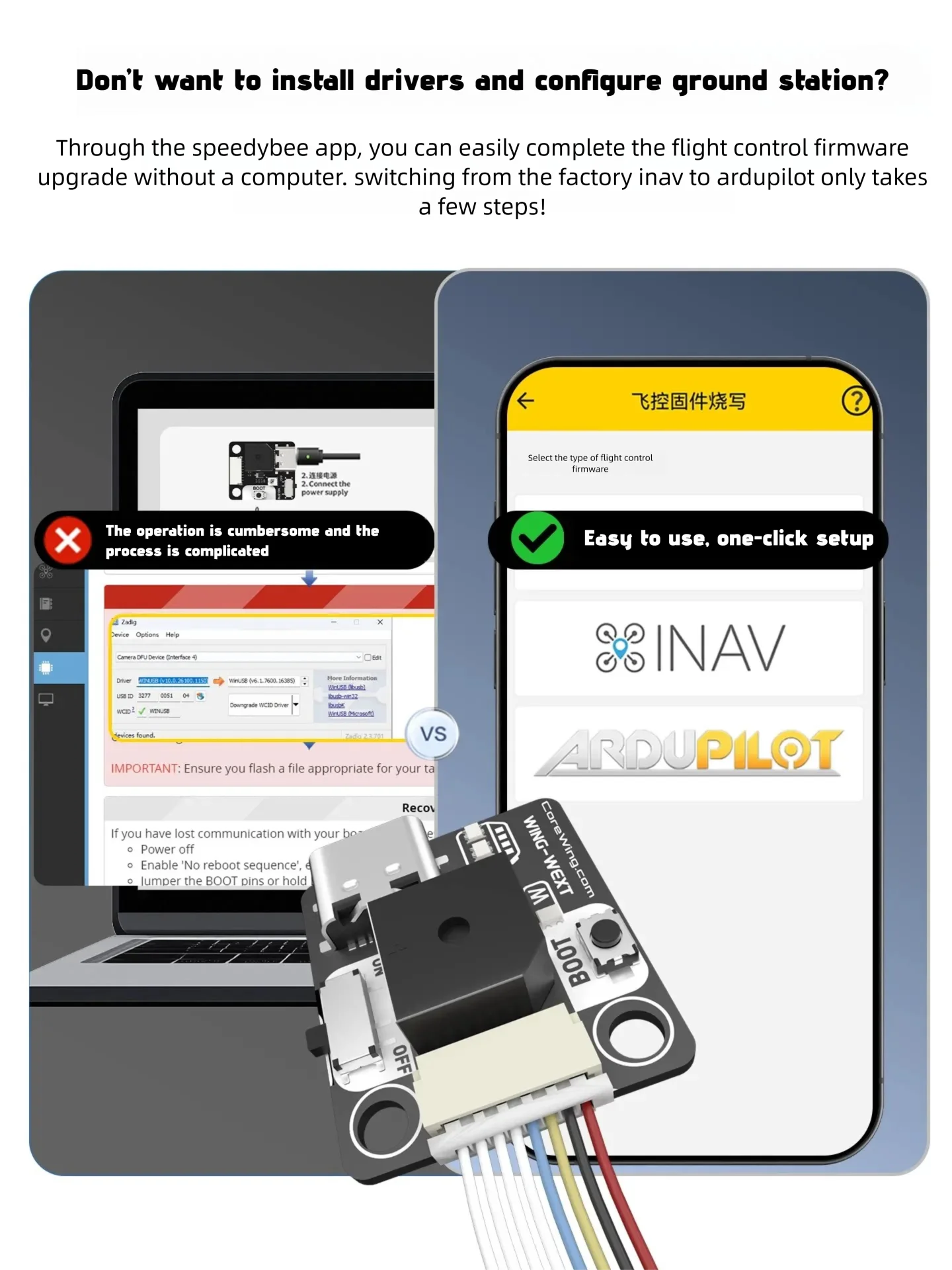

③ Wireless USB Expansion Board PRO
Wireless Function |
Specification |
Connection Modes |
BLE/WiFi-AP/WiFi-STA (long press BOOT for 6s to switch) |
Compatible Software |
CoreWing/SpeedyBee APP; INAV Configurator, MissionPlanner, etc. |
Battery Indication |
On-board level light + 4×1RGB colorful lights (display battery percentage) |
Core Function |
Wireless parameter adjustment for FC, wire-free operation |

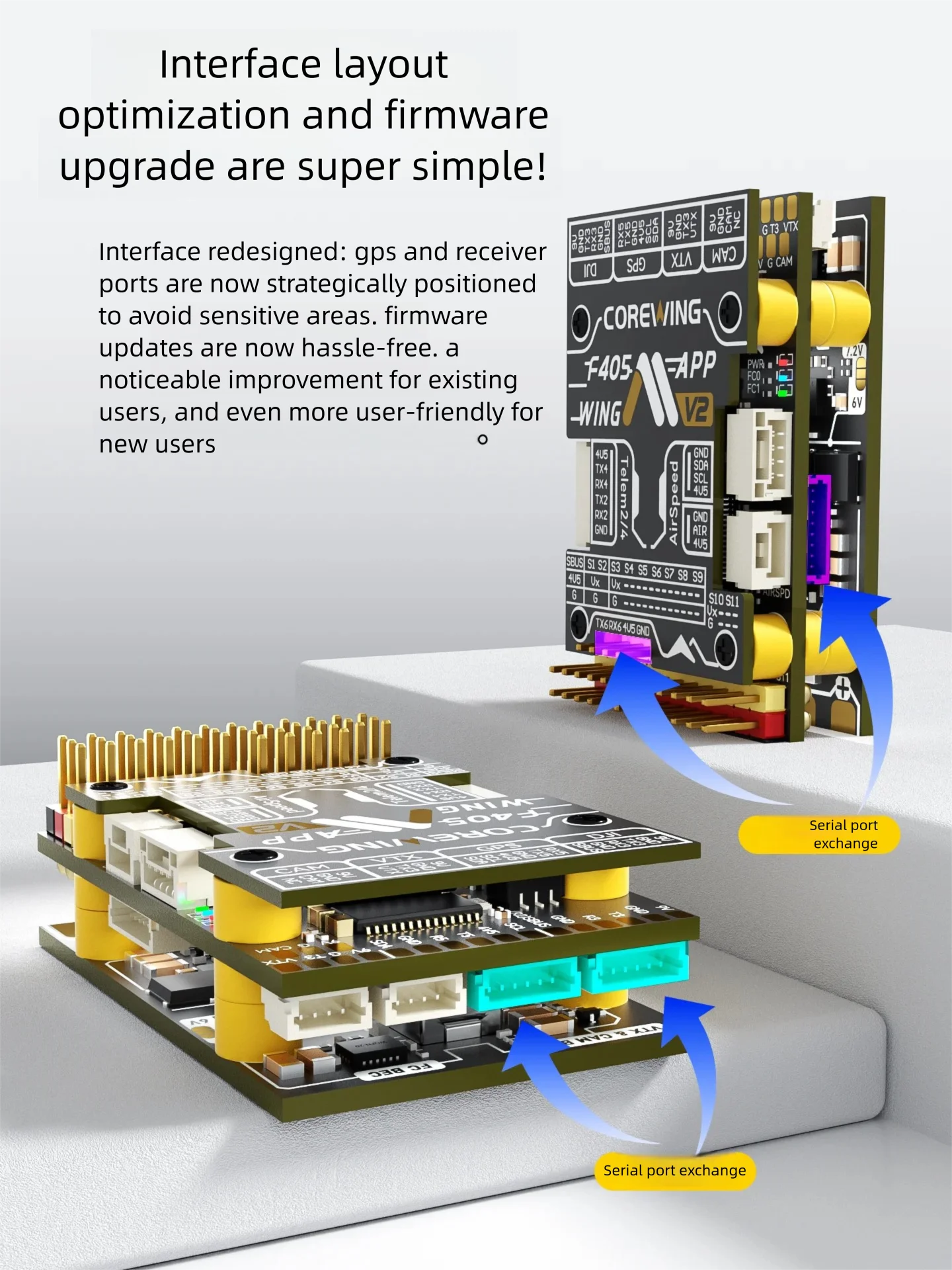

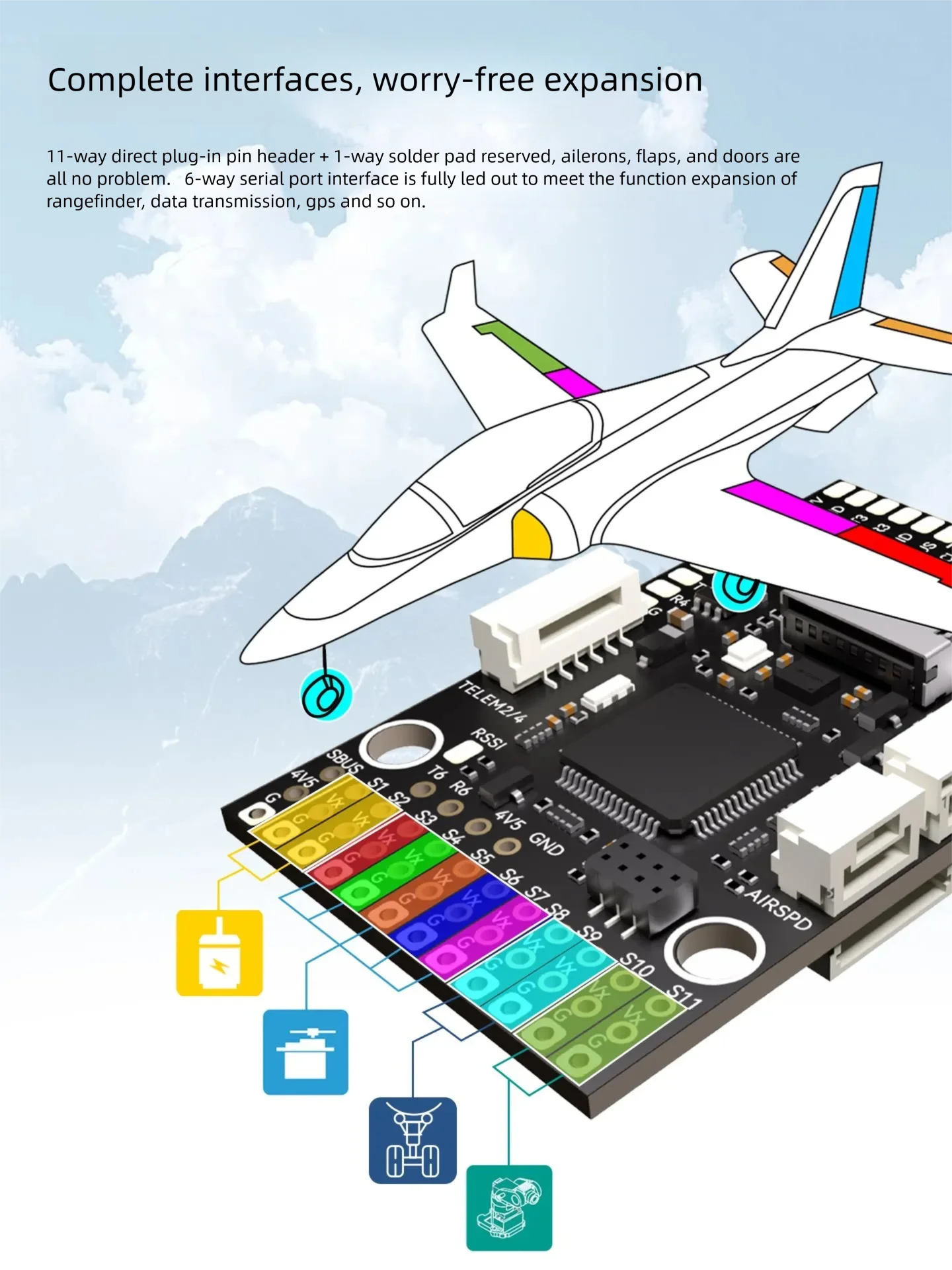

Optimized and upgraded interface layout, ultra-easy firmware update! The interfaces are redesigned—GPS and receiver ports are placed away from sensitive areas, making firmware upgrading no longer a trouble. A great experience for veteran users, and more user-friendly for new ones.

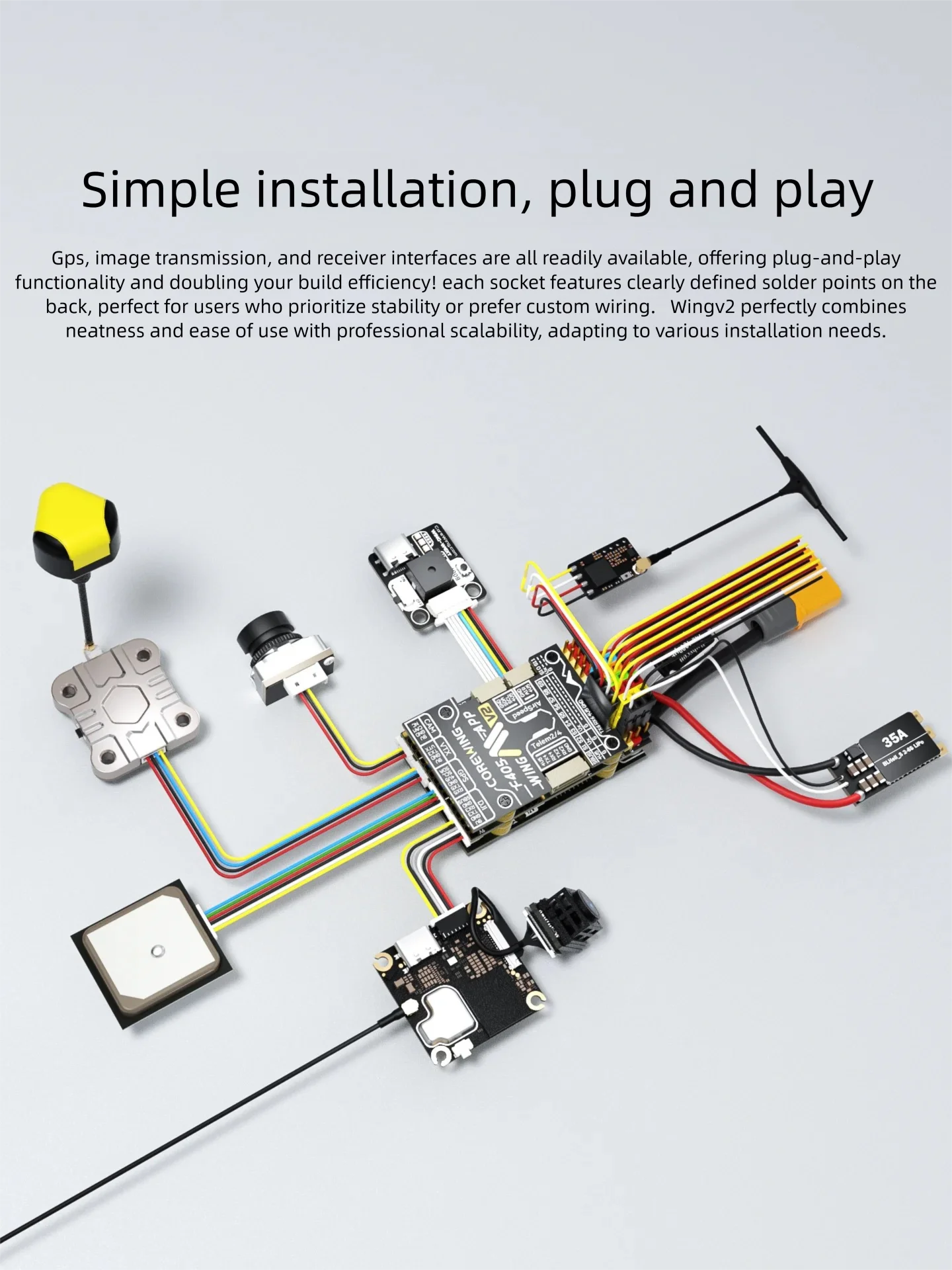

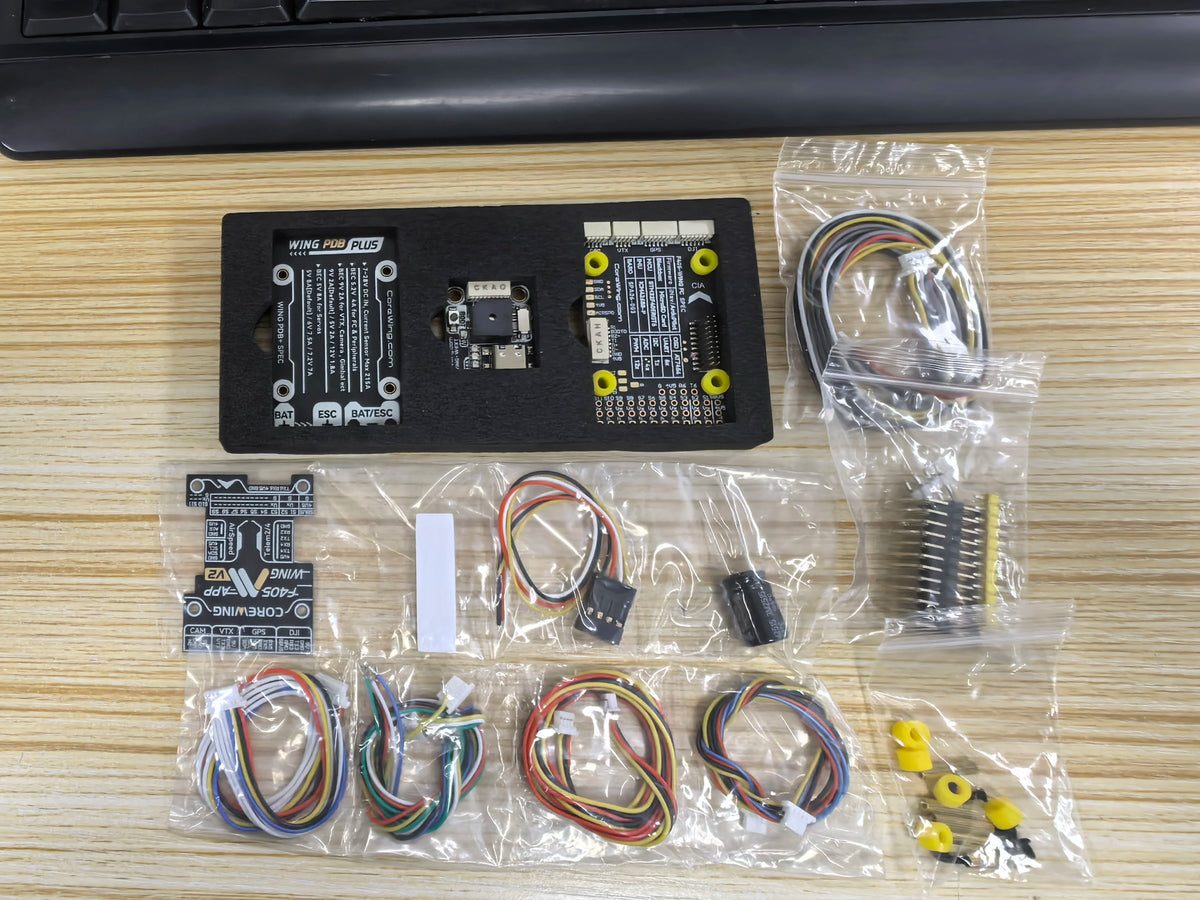

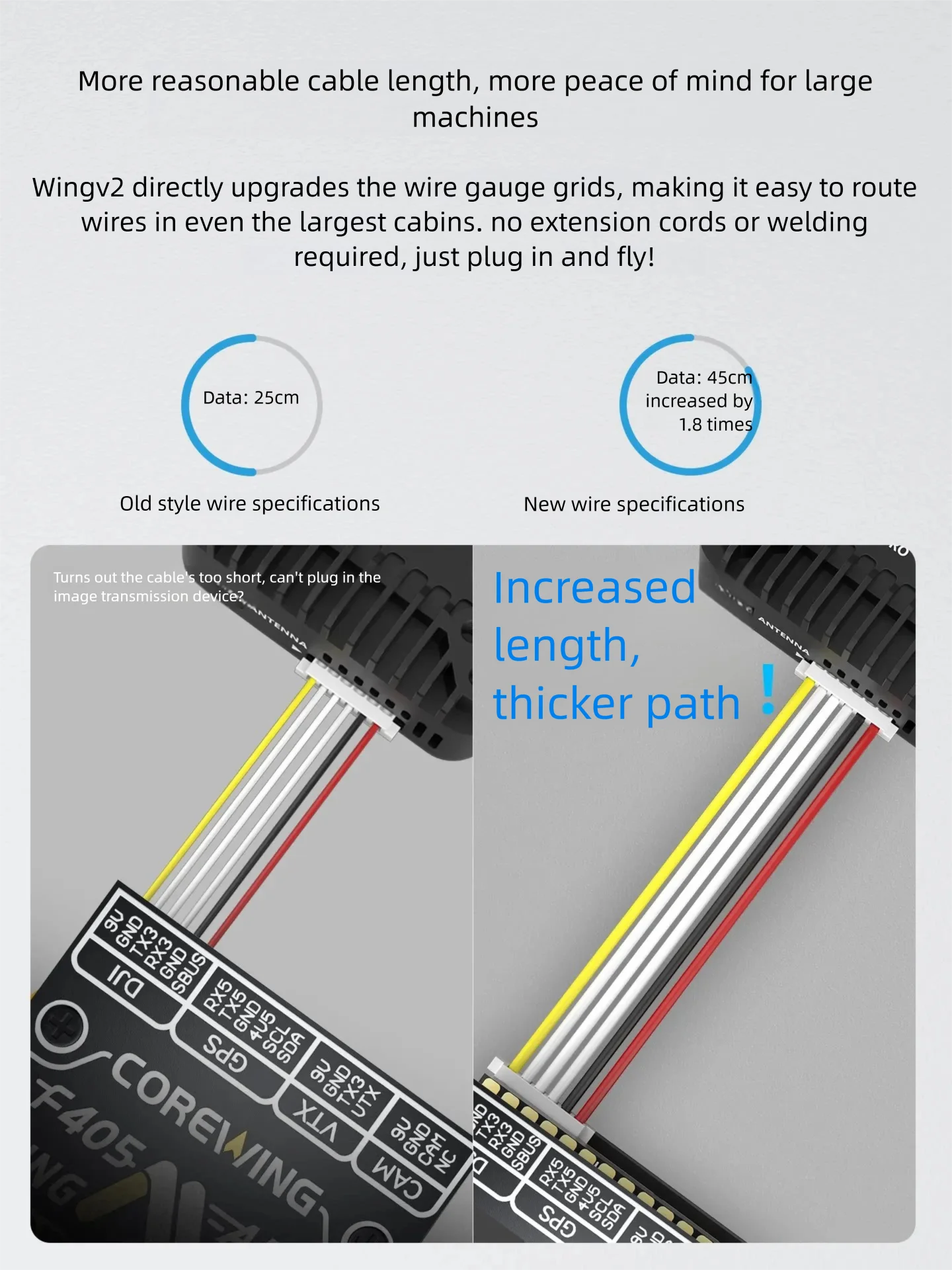

Simple Assembly, Plug-and-Play
Equipped with full set of GPS, VTX and receiver ports for direct plug-and-play, doubling your assembly efficiency!
Clear solder pads are pre-reserved on the back of each port, ideal for hobbyists pursuing stable connections or custom wiring.
WING V2 perfectly combines a neat, user-friendly design with professional expandability, and adapts to all kinds of assembly needs.

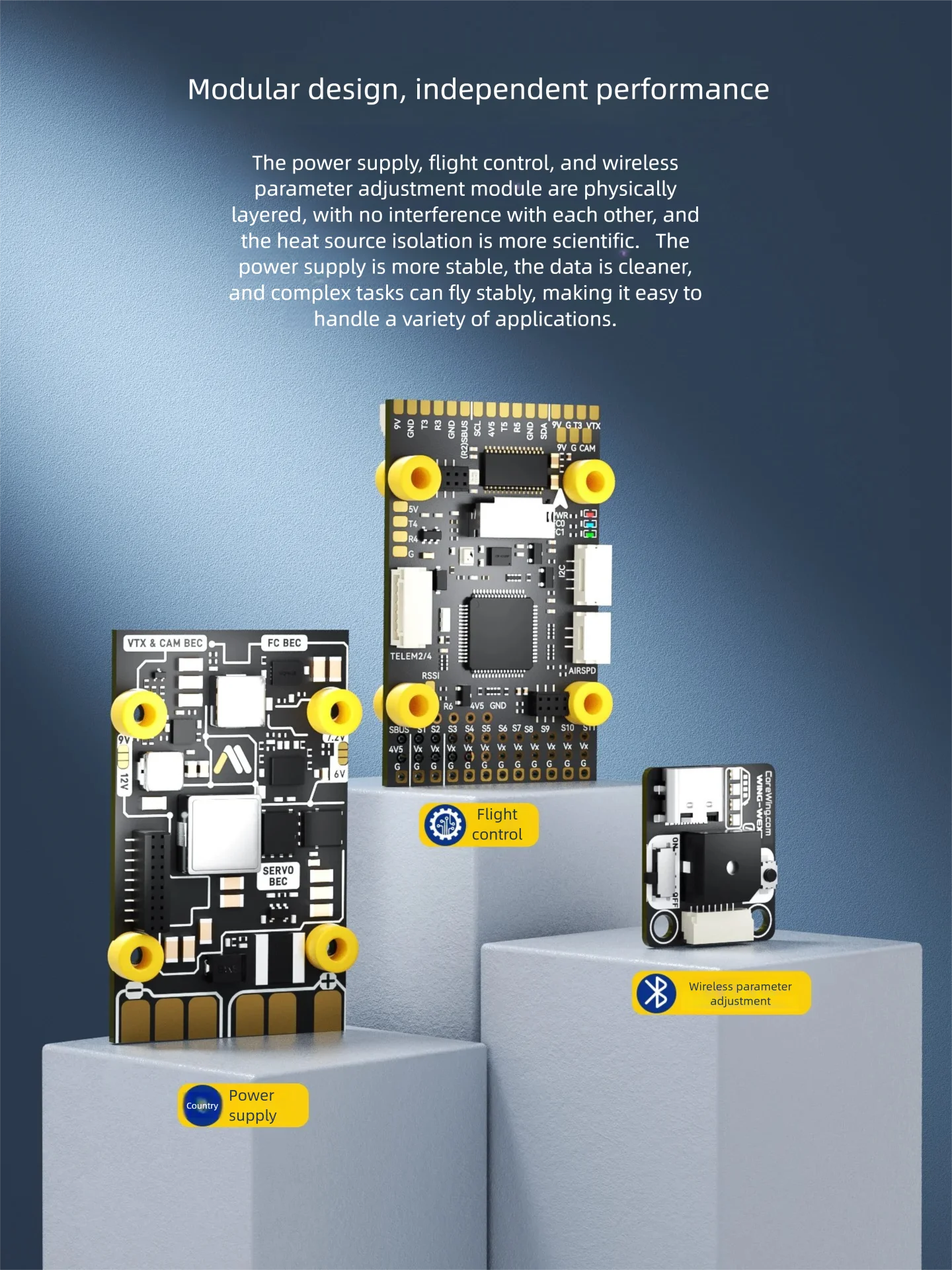

Modular Design, No Cross Interference
Physical layered design for power supply, flight controller and wireless parameter adjustment modules ensures zero mutual interference and more scientific heat source isolation. Enjoy stable power supply and clean data transmission – it delivers steady flight even for complex missions and easily meets diverse application needs.
