SPECIFICATIONS

AC Input: AC 100V to 240V, 50/60Hz

Brand Name: TOOCAA

Certification: CE,ce

Cutting Materials: Basswood, Paulownia, Pine, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated, Cardboard, Plastic, Dark Acrylic (Except Blue), etc.

Engraving Area: Other

Engraving Materials: Basswood, Paulownia, Pine, Plywood, Stone, Beech, Walnut, Bamboo, MDF, Lacquered Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated, Cardboard, Plastic, Dark Acrylic (Except Blue), etc.

Engraving Speed: 36000mm/min

Fit for 1: Home use laser engraving machine

Fit for 2: Workshop laser cutting machine

Fit for 3: Personal bussiness laser cutter

High-concerned chemical: none

Interchangeable Laser: 10W/20W Diode laser, 2W IR laser

Is Smart Device: Yes

Laser Power: 20w

Laser Safety Class: Class 1

Laser Spot Size: 0.15mm*0.15mm

Laser Type: Diode Laser

Laser Wavelength: 455±5 nm

Machine Size: 513mm*402mm*180mm

Material: aluminum,Metal

Model Number: TOOCAA NOVA

Origin: Mainland China

Perfect for: DIY beginners

Positioning Accuracy: 0.01mm

Power Input: 24V7.5A (180W)

Power Output: 20W

Product weight: 10kg

Repeat Positioning Accuracy: 0.01mm

Selling Point 1: Dual-channel exhaust system

Selling Point 2: One-click camera calibration

Selling Point 3: 90° X-Axis rotation engraving

Selling Point 4: One-key auto focus

Supported Connectivity: USB,Wi-Fi

Supported Operation System: Windows, MacOS

Supported Software: TOOCAA Studio, LightBurn, LaserGRB

Work Area: 210mm*297mm

Smart Laser Engraver for Home Use

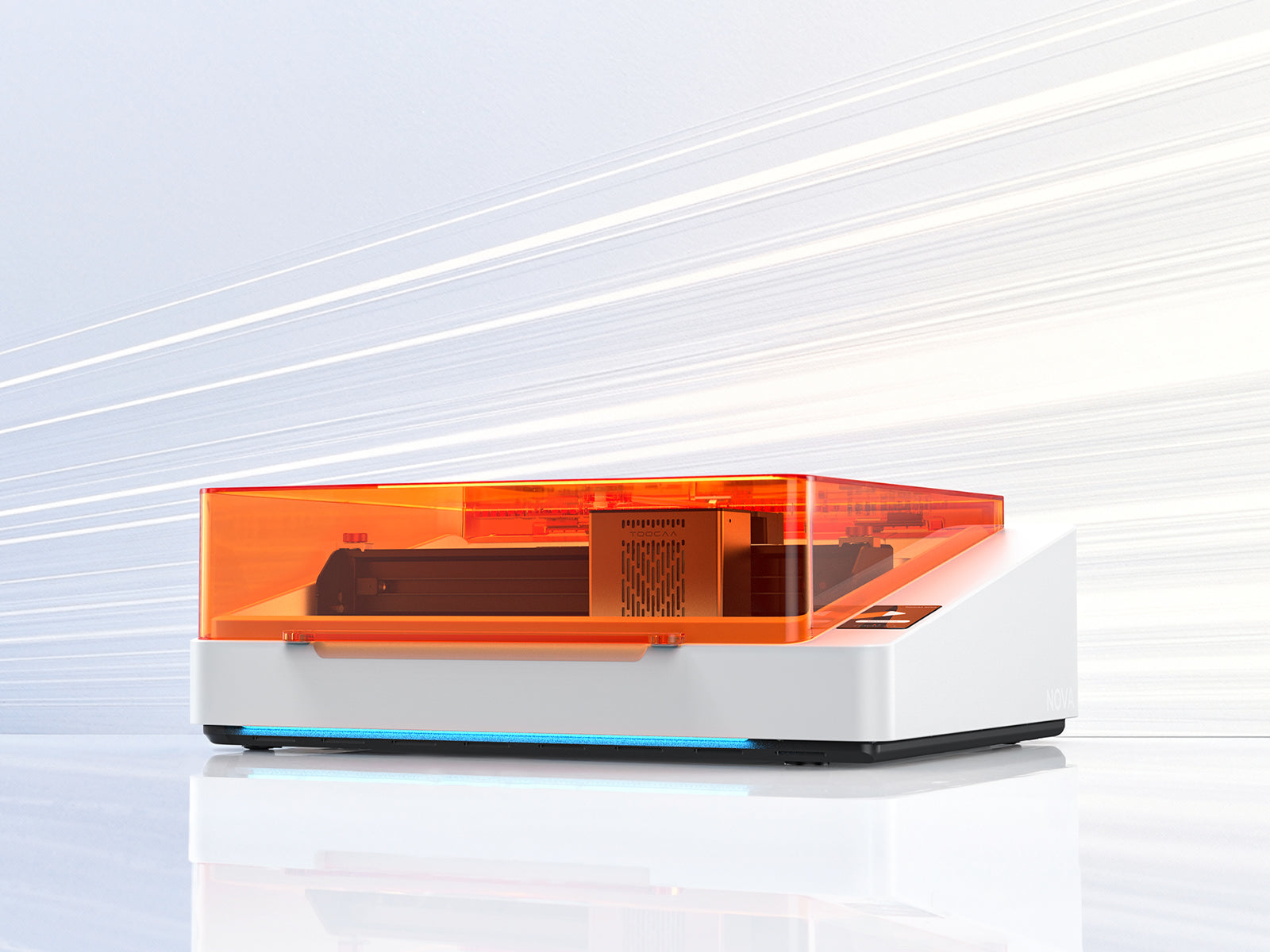

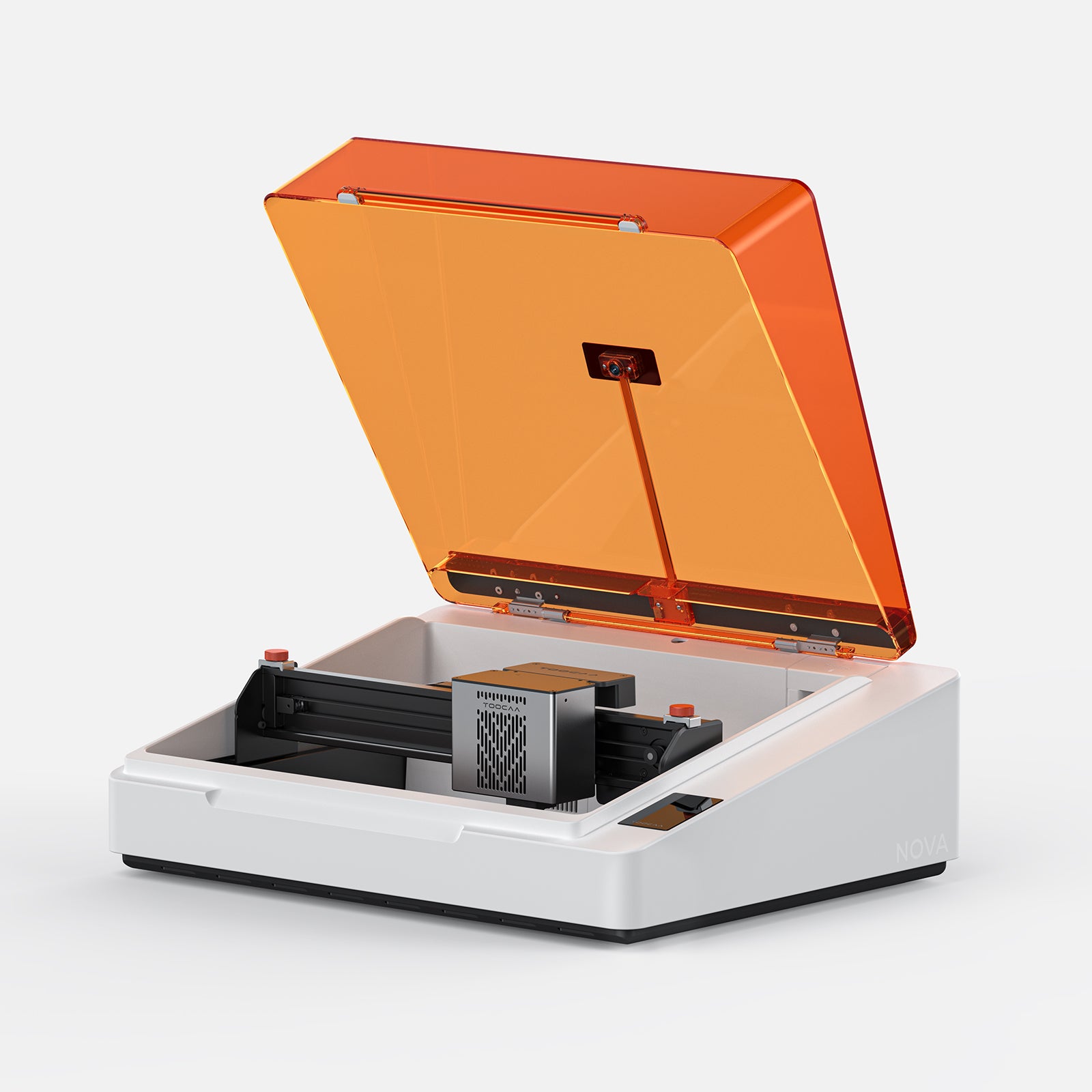

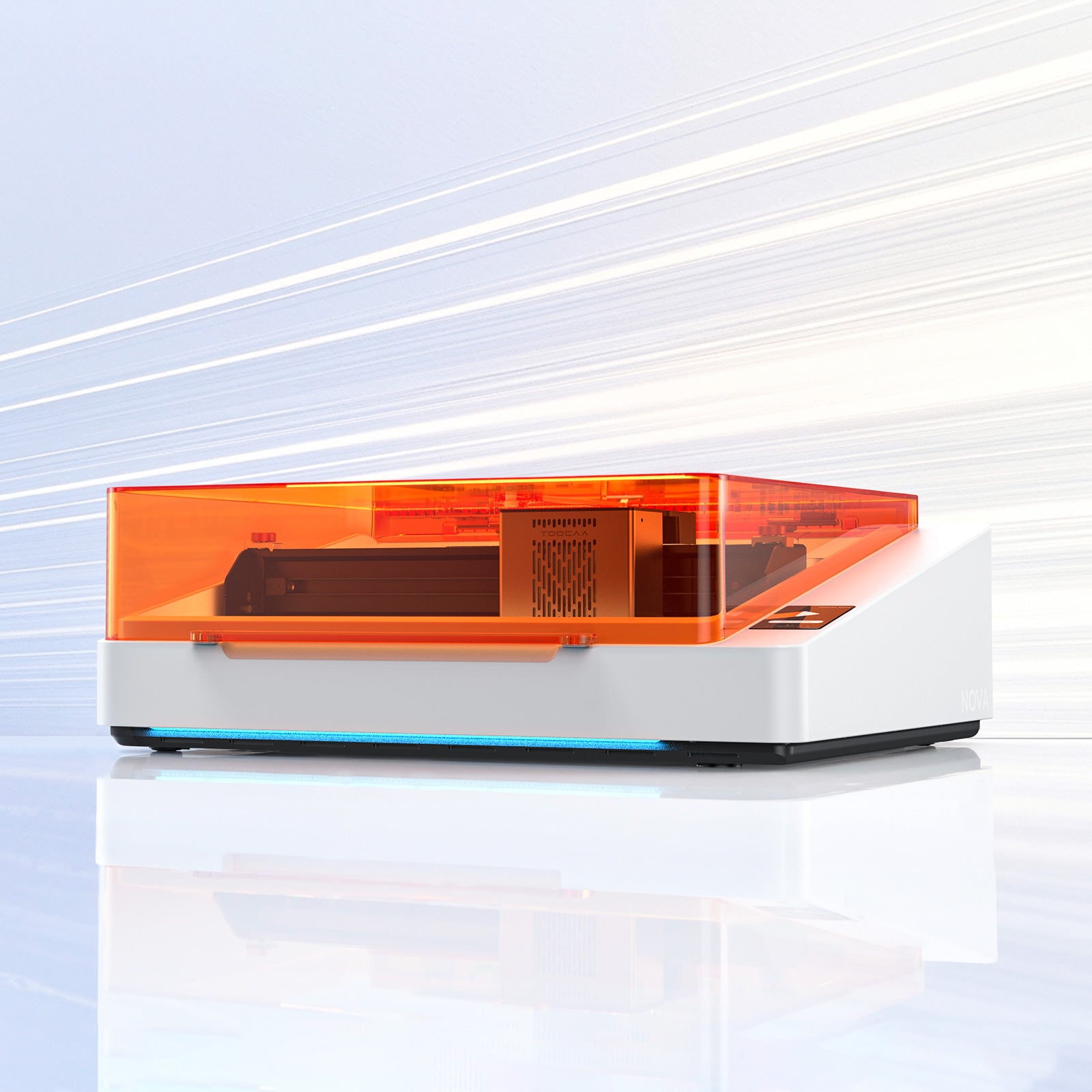

TOOCAA NOVA

Intelligent Workflow: From Spark to Masterpiece

We have eliminated the 5 most frustrating manual steps: focusing, positioning, parameter setting, airflow adjusting, and designing. Pre-engraving prep time is slashed by 80%, so you can start creating the moment inspiration strikes.

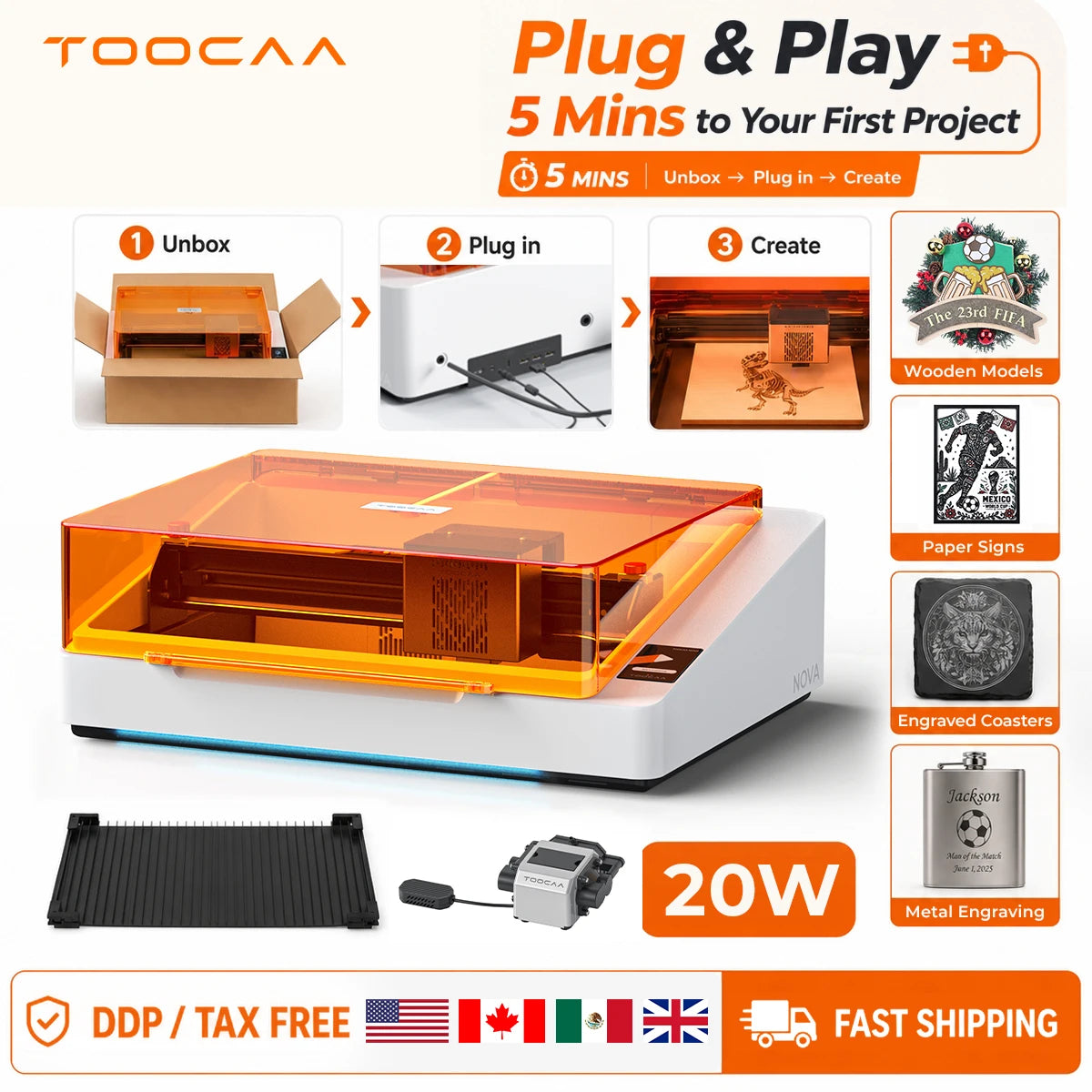

Out-of-the-Box Ready, No Frustrating Assembly TOOCAA NOVA is designed for immediate joy. Skip the frustrating assembly and fine-tuning; you can go from unboxing to your first creation in just 10 minutes.

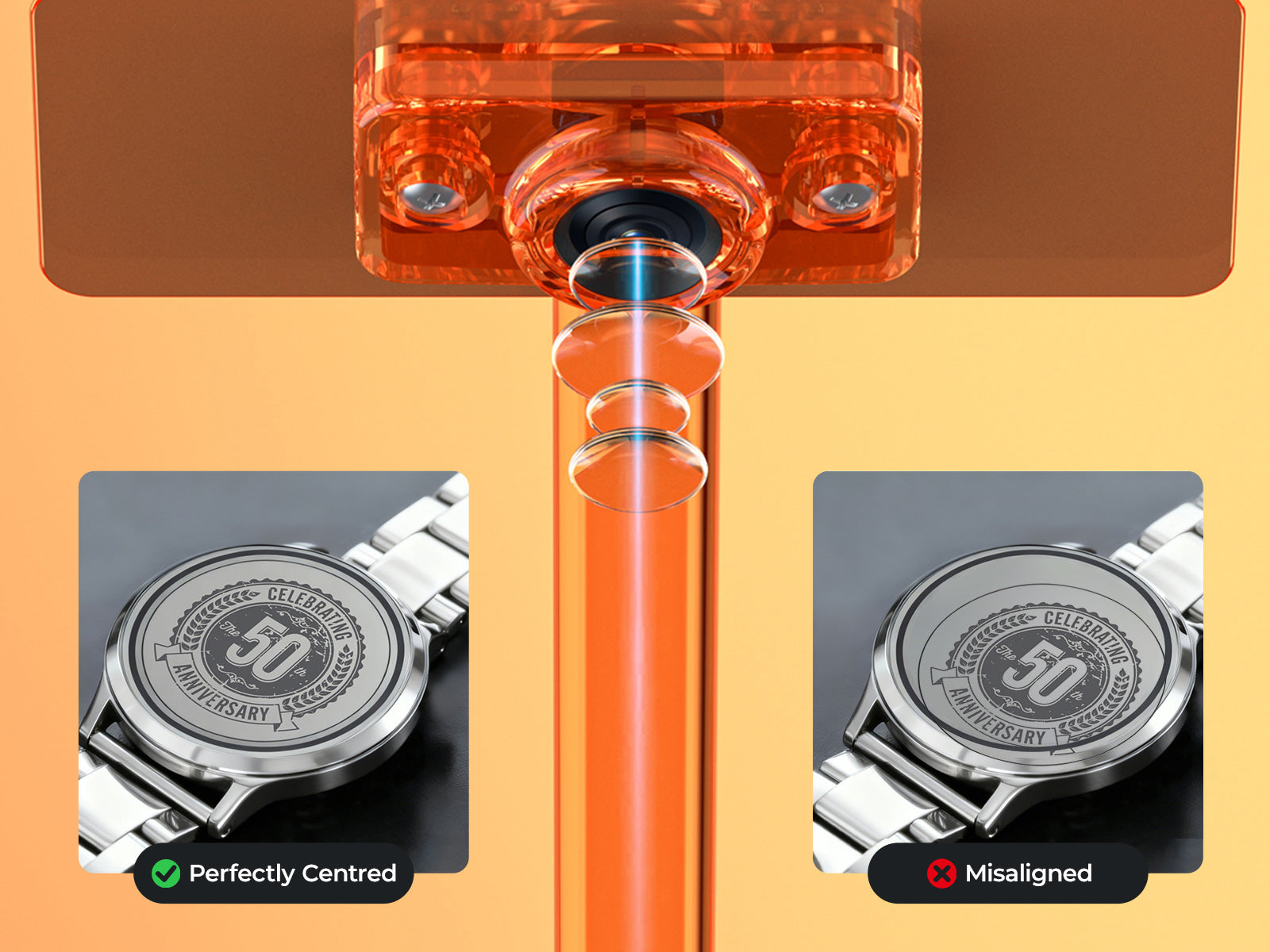

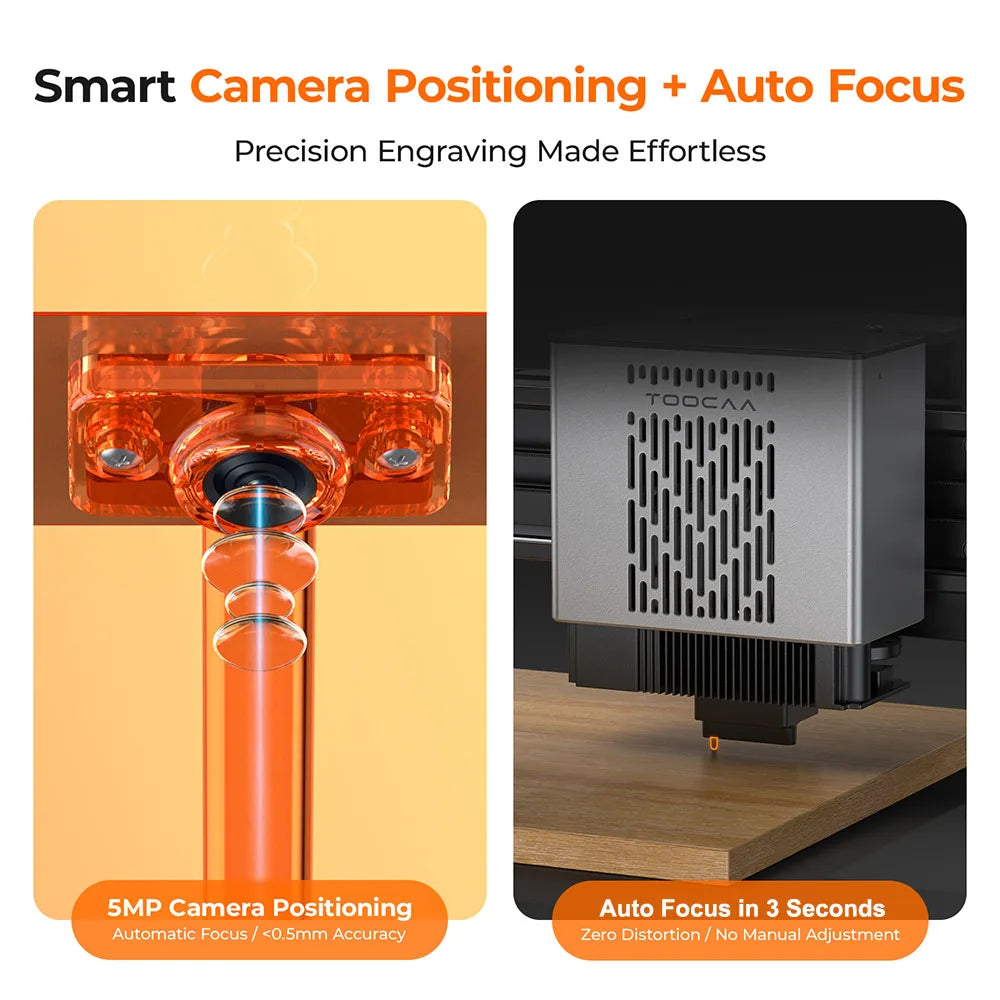

5MP Camera Positioning, What You See Is What You Get Equipped with a high-definition 5MP camera for real-time positioning and automatic calibration. Simply drag and drop your design with a center accuracy of <0.5mm and zero vision distortion. The camera also features one-click automatic calibration, eliminating the need for cumbersome operations.

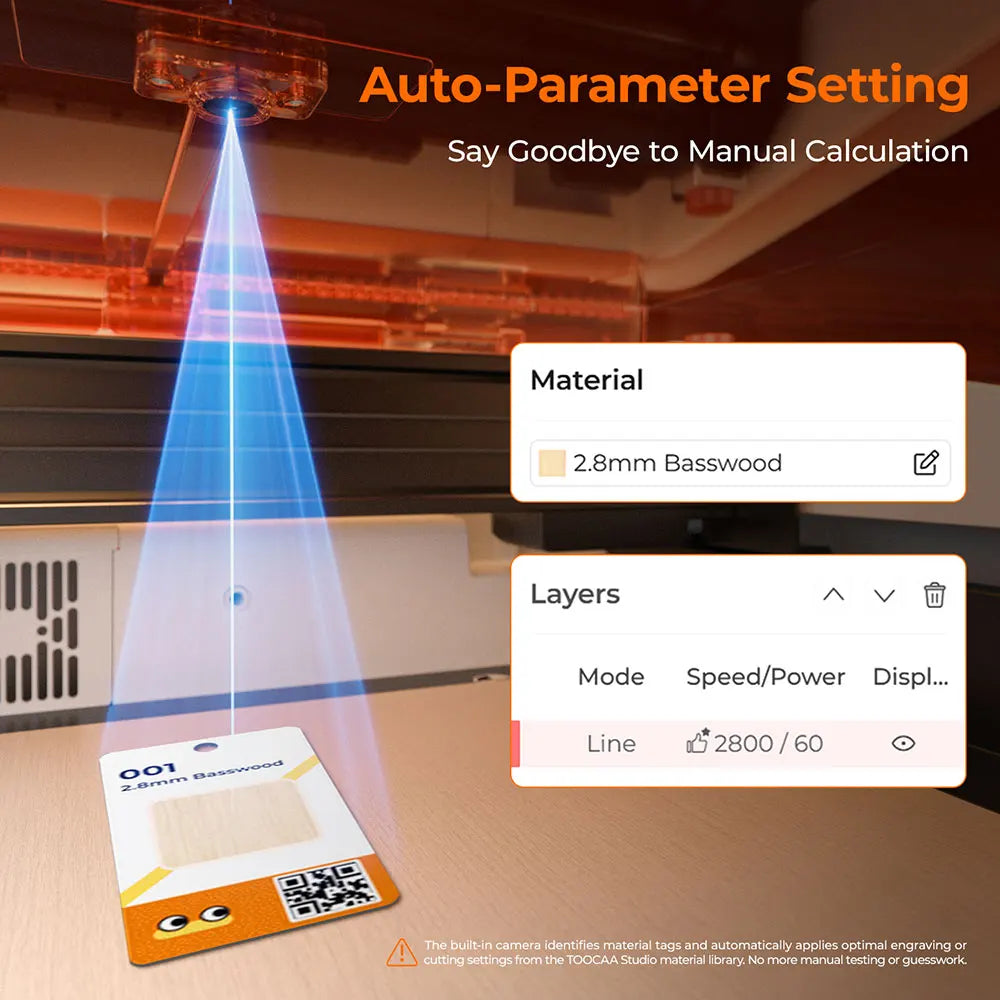

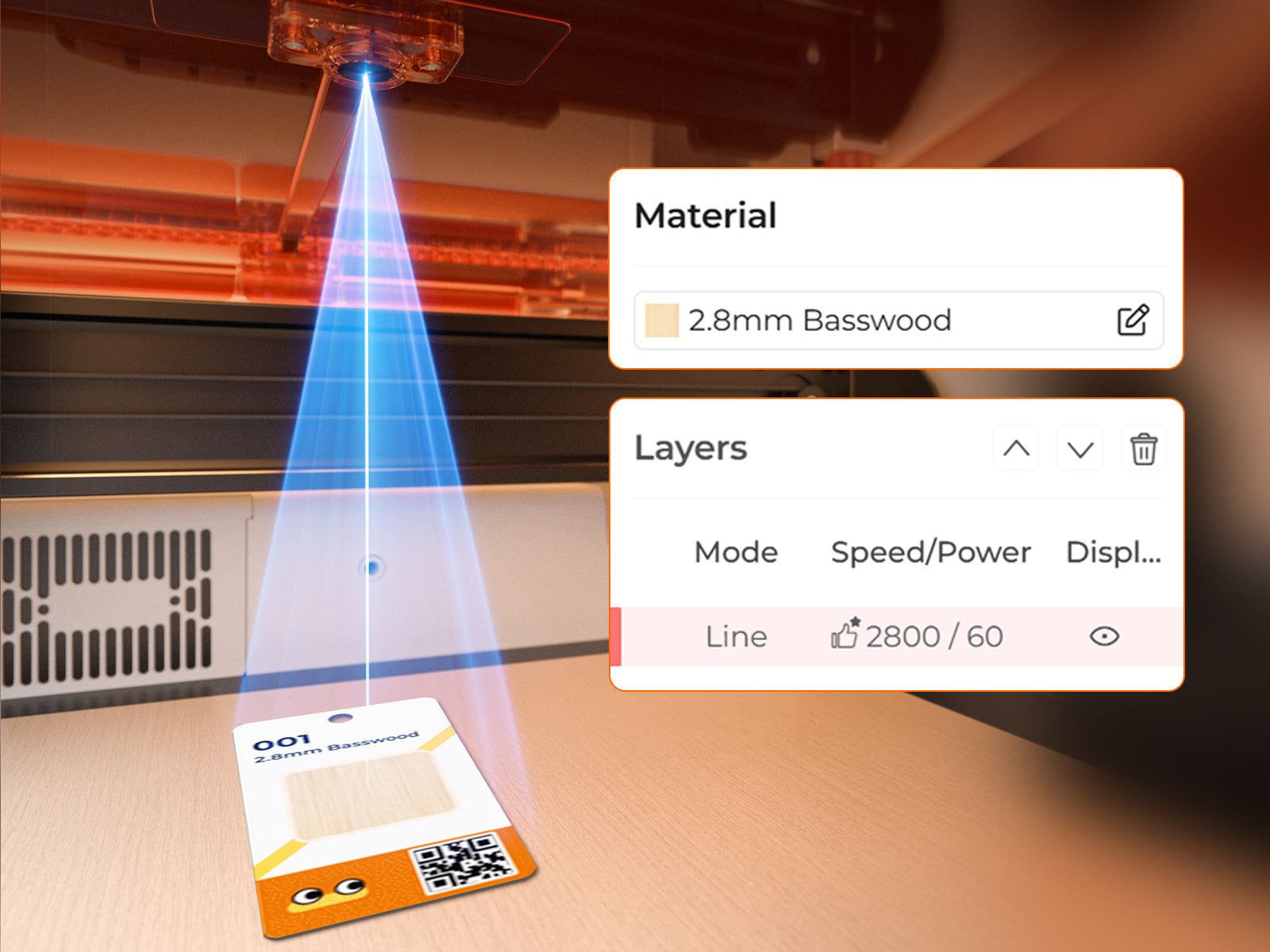

AI Material Recognition & Auto-Parameters Setting The built-in camera identifies material tags and automatically applies optimal engraving or cutting settings from the TOOCAA Studio material library. No more manual testing or guesswork.

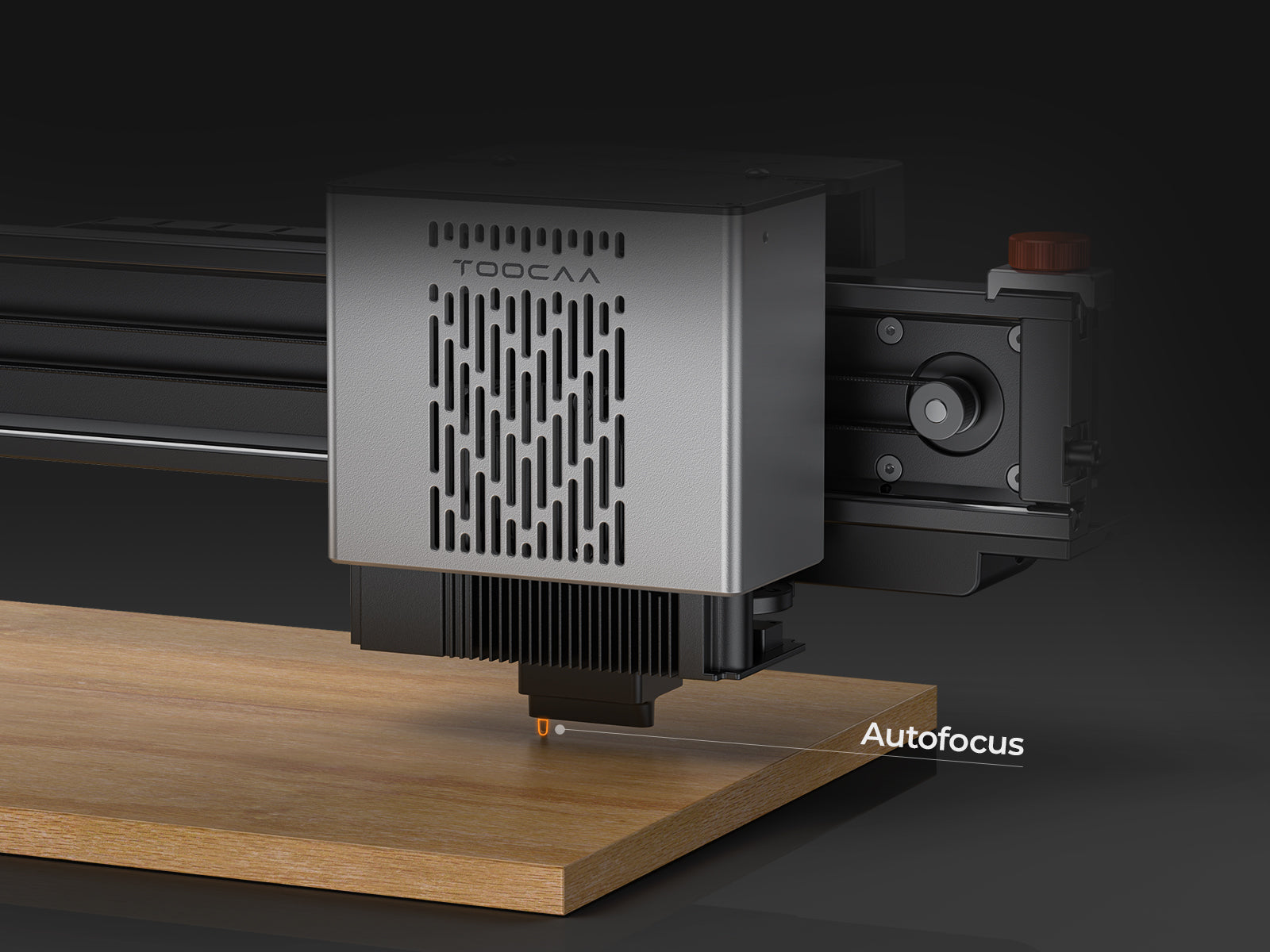

Automatic Focus The silent Z-axis motor completes focusing in just 3 seconds, handling materials of varying thicknesses without manual adjustment.

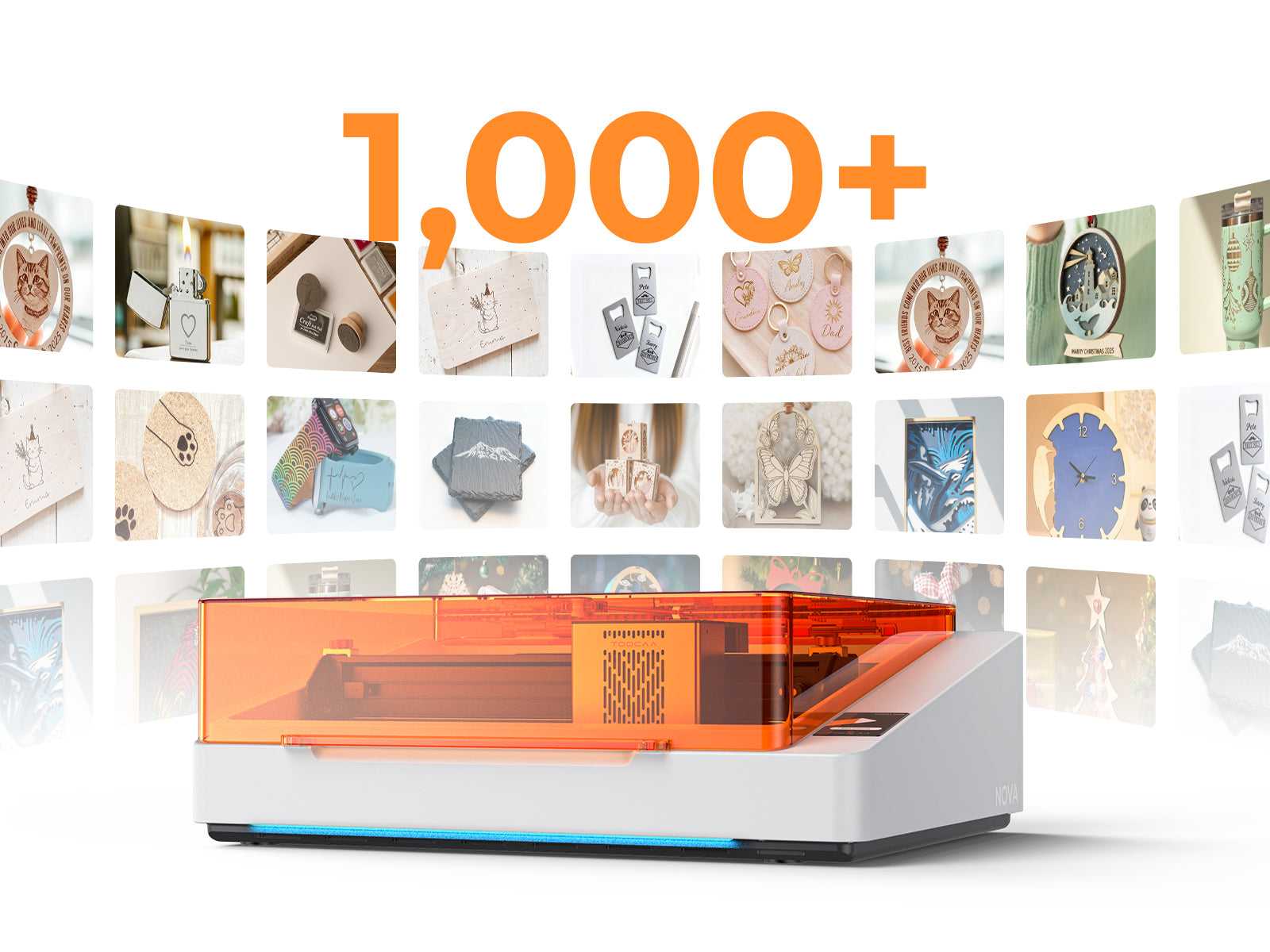

Massive Template Library No design skills? No problem. Spark your creativity and craft professional works in just 3 minutes! With TOOCAA Studio's built-in library of 25+ themes and 1,000+ engraving templates, inspiration is always at your fingertips. Never let a creative block stop you.

AI Creation & Assistant Master design with TOOCAA Studio's AI. Effortlessly turn text or sketches into stunning engraving patterns using our Image-to-Image and Text-to-Image tools (AI credit required). The AI assistant guides you through material selection and image optimization, making professional engraving accessible to everyone. Start creating your masterpiece in seconds!

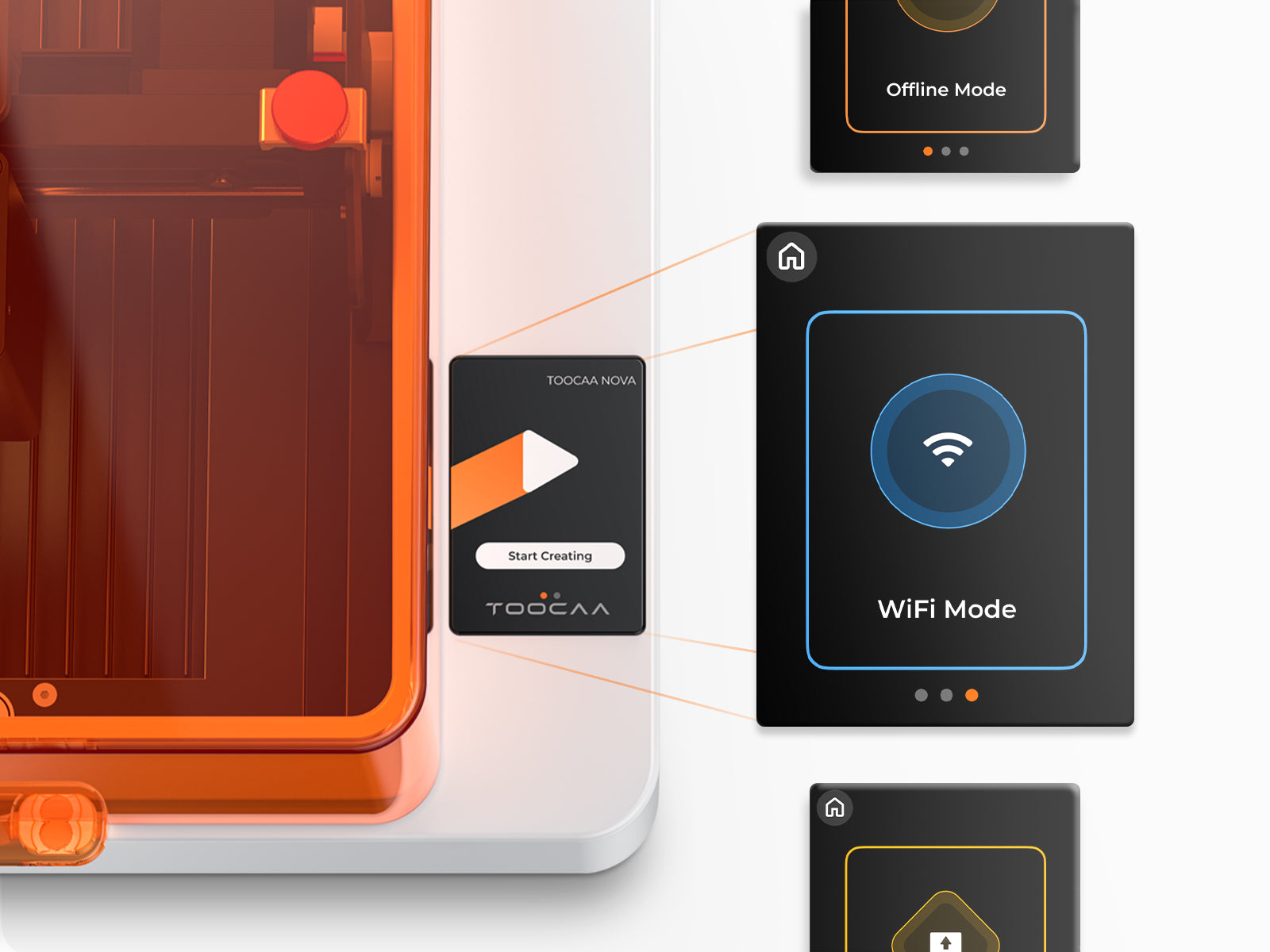

2.4-Inch Ergonomic Touchscreen 12° ergonomic tilt fully fitting capacitive screen provides you with a smoother, more intuitive, and clearer interactive experience; you can view engraving files, device settings, and check progress without turning on the computer. Grasp the machine status at a glance on the screen.

Smart Air Assist Smart air assist can automatically adjust airflow based on specific tasks to prevent over-burning or charring, ensuring clean, professional results every time.

Efficient and Silent Smoke Exhaust System

The Ultimate Home Studio Experience

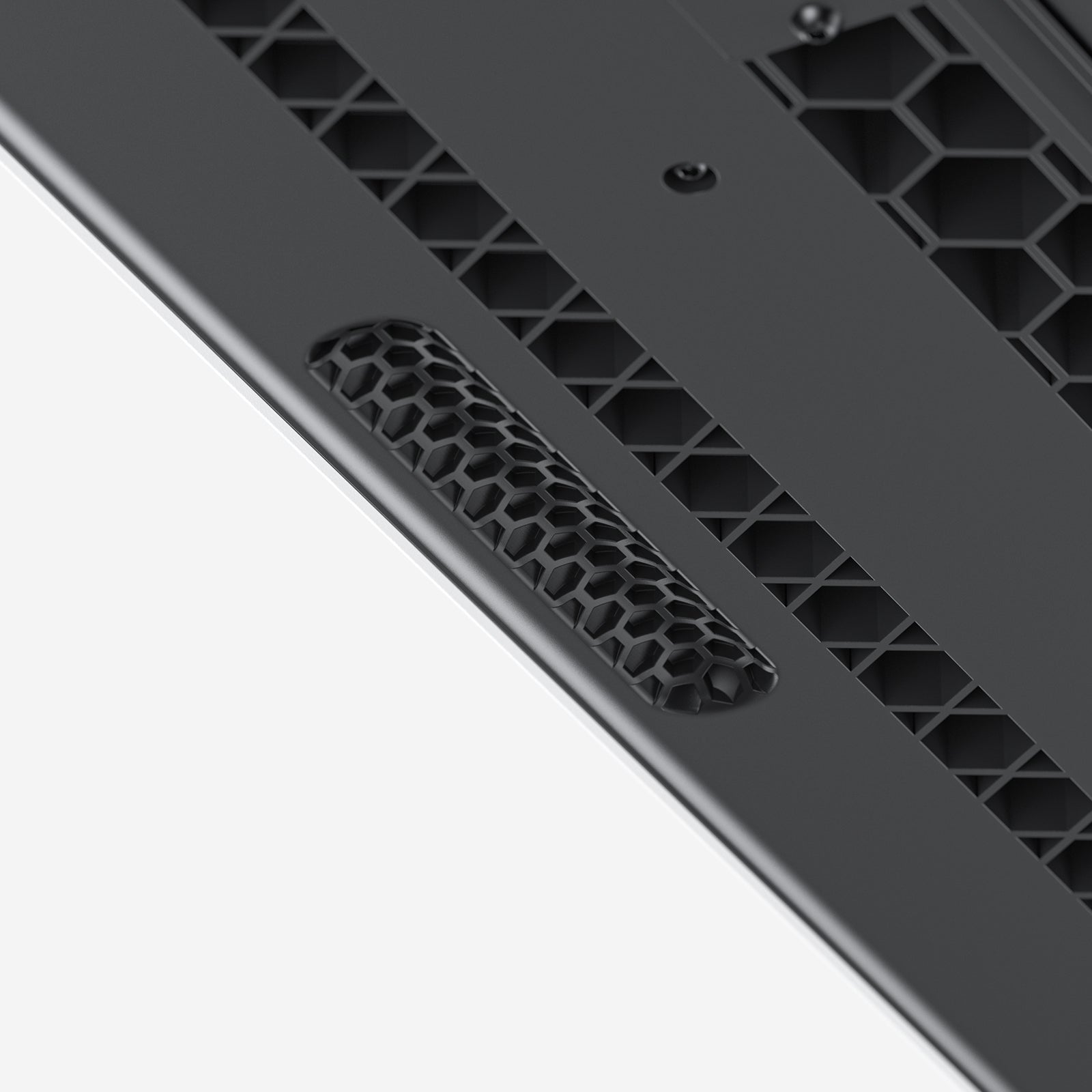

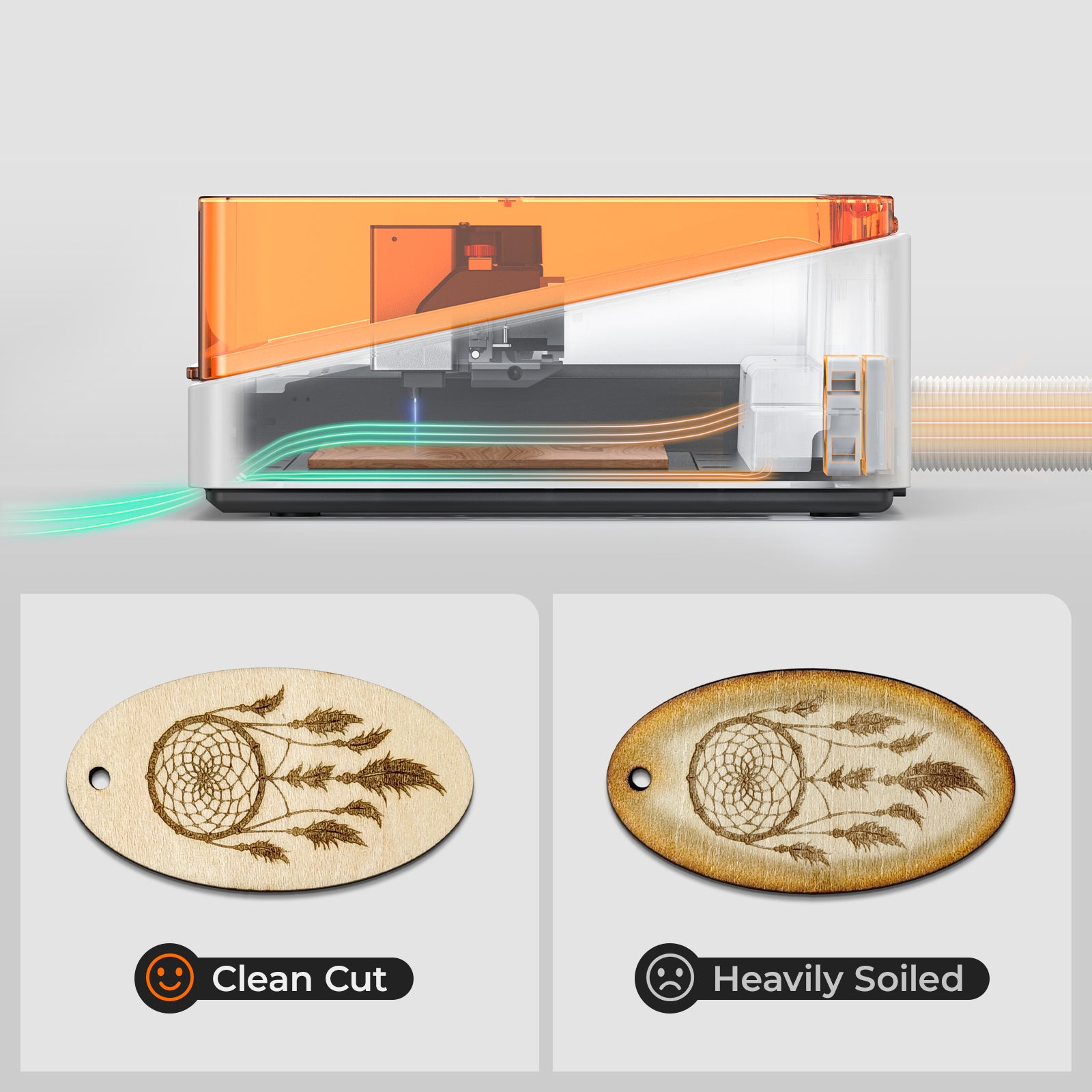

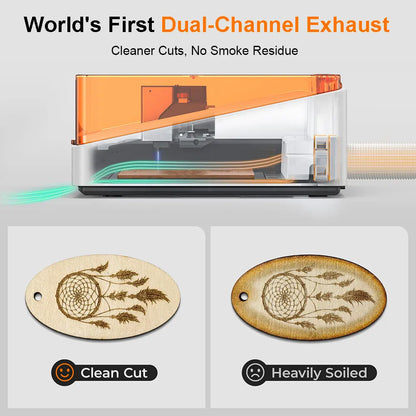

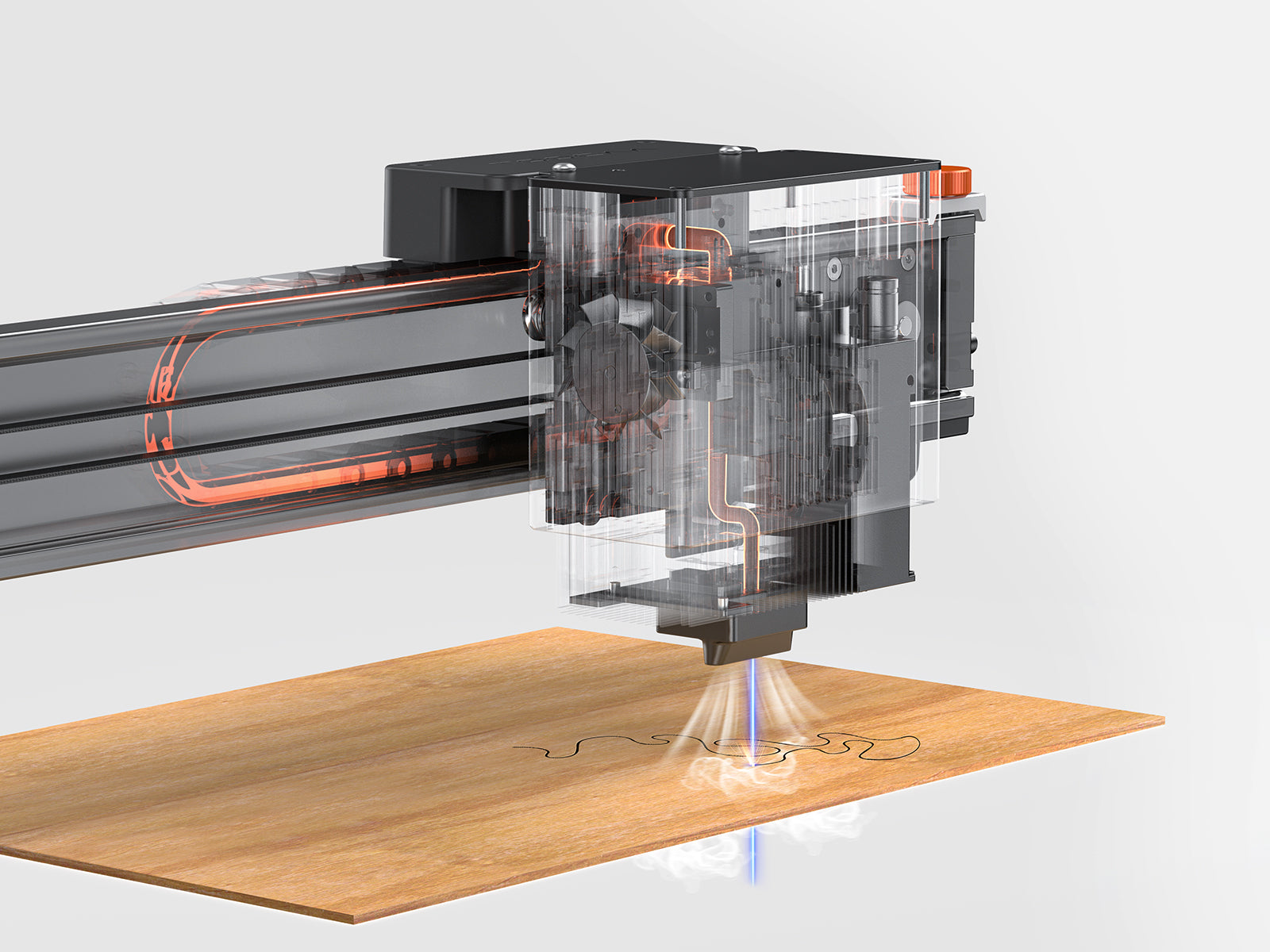

Dual-Channel Exhaust System, Cleaner Cuts Experience the world's first dual-channel exhaust system. Engineered to eliminate smoke buildup from the bottom, it effectively improves the cleanliness of the back of the cutting pieces to get cleaner and more beautiful works.

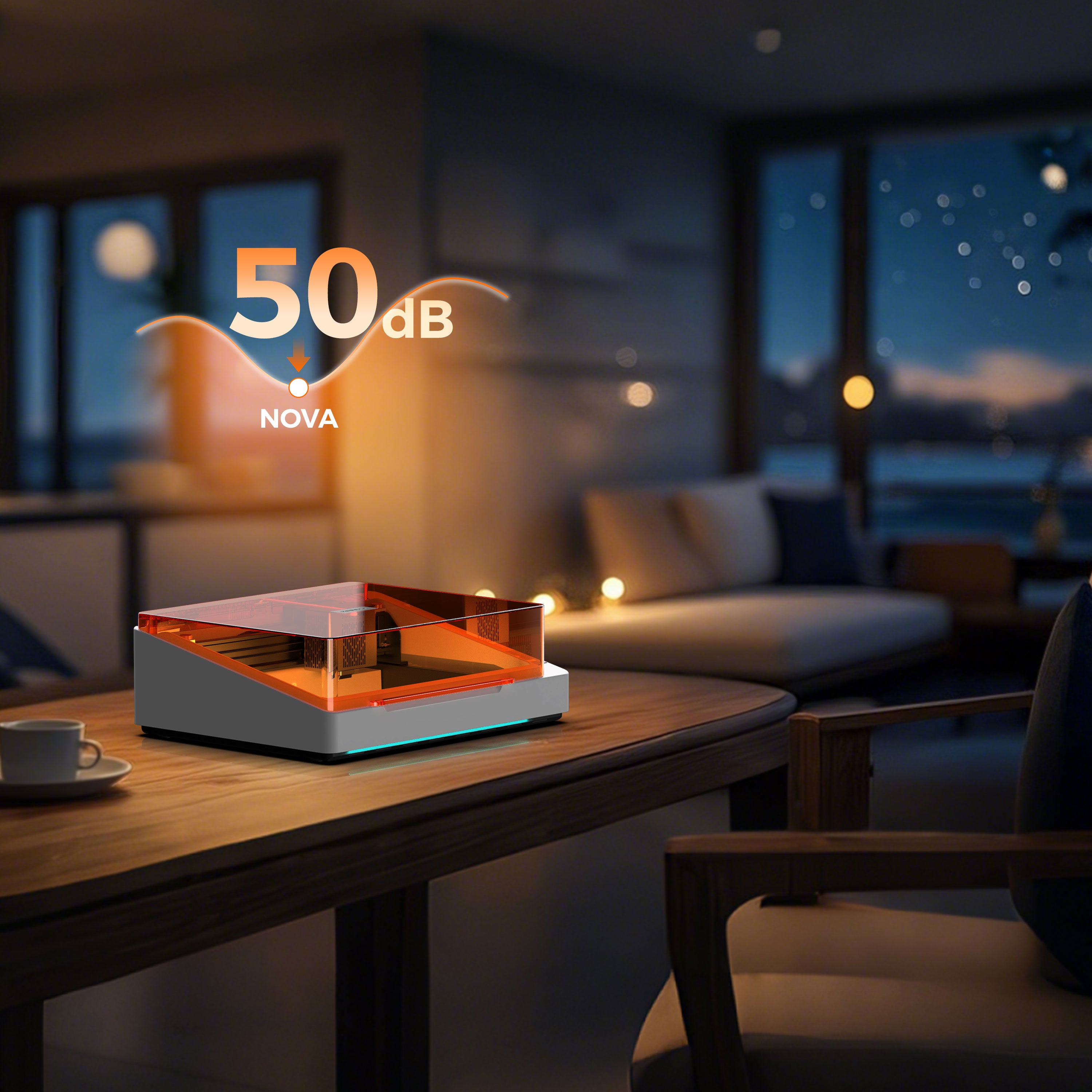

50 dB Low Noise With a noise level comparable to a quiet office or a soft keyboard, you can indulge in late-night creativity without disturbing your family or neighbors.

FIVE-LAYER SAFETY GUARD

Creating Household-Level Safety Standards

Fully Enclosed

Lid-Open Stop

Tilt Detection

Intelligent Flame Detection

Child Password Safety Lock

Compact in Size, Infinite in Possibilities

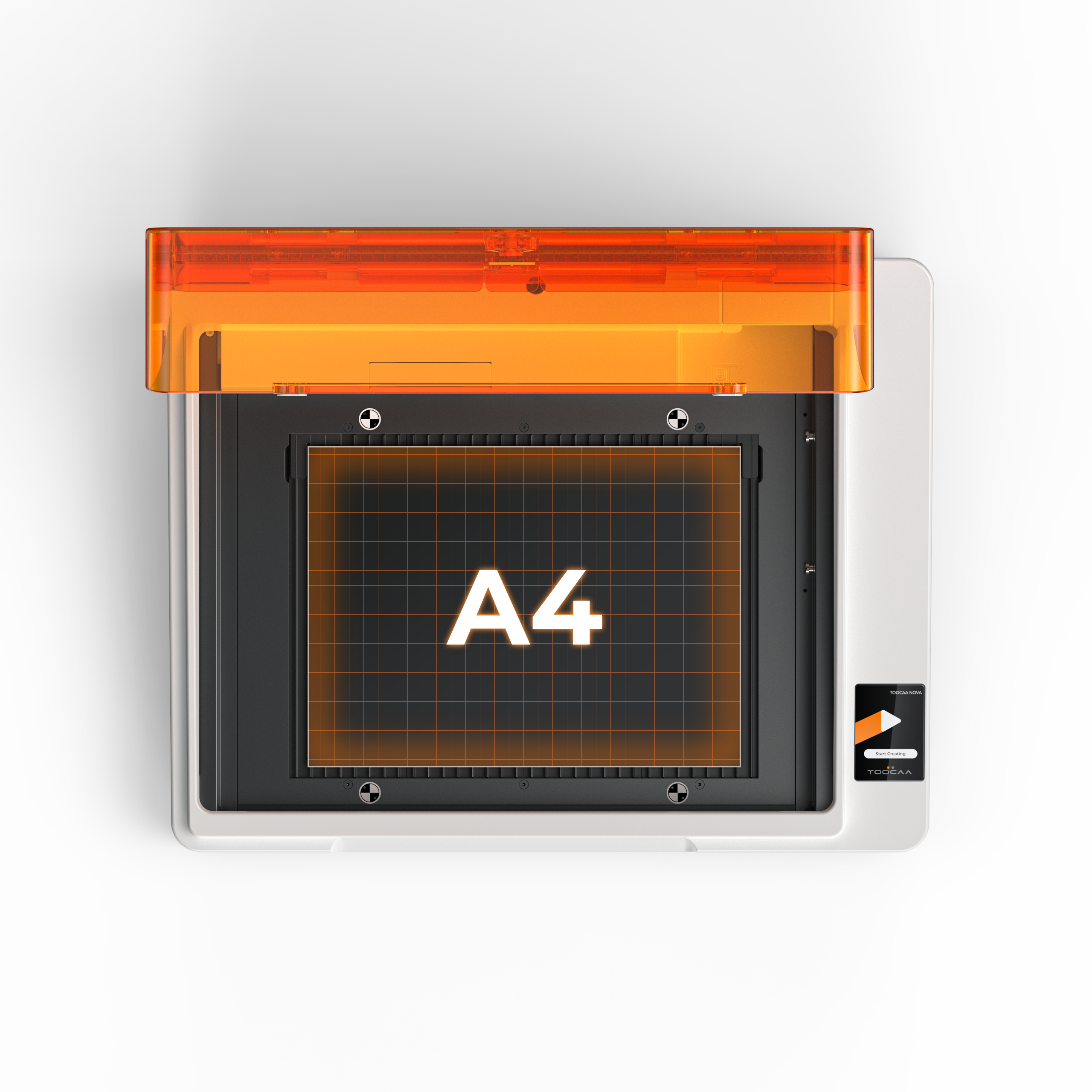

The Elegance of the A4 Standard

The Elegance of the A4 Standard Designed with the elegance of a smart appliance, TOOCAA NOVA features a familiar golden A4 workspace, 210 x 297 mm, and smart alignment markers transform engraving into a familiar "printer-like" experience. By perfectly matching the software canvas to physical dimensions, your creative process becomes seamless. Just drop, click, and create — it's as simple as handling a sheet of A4 paper!

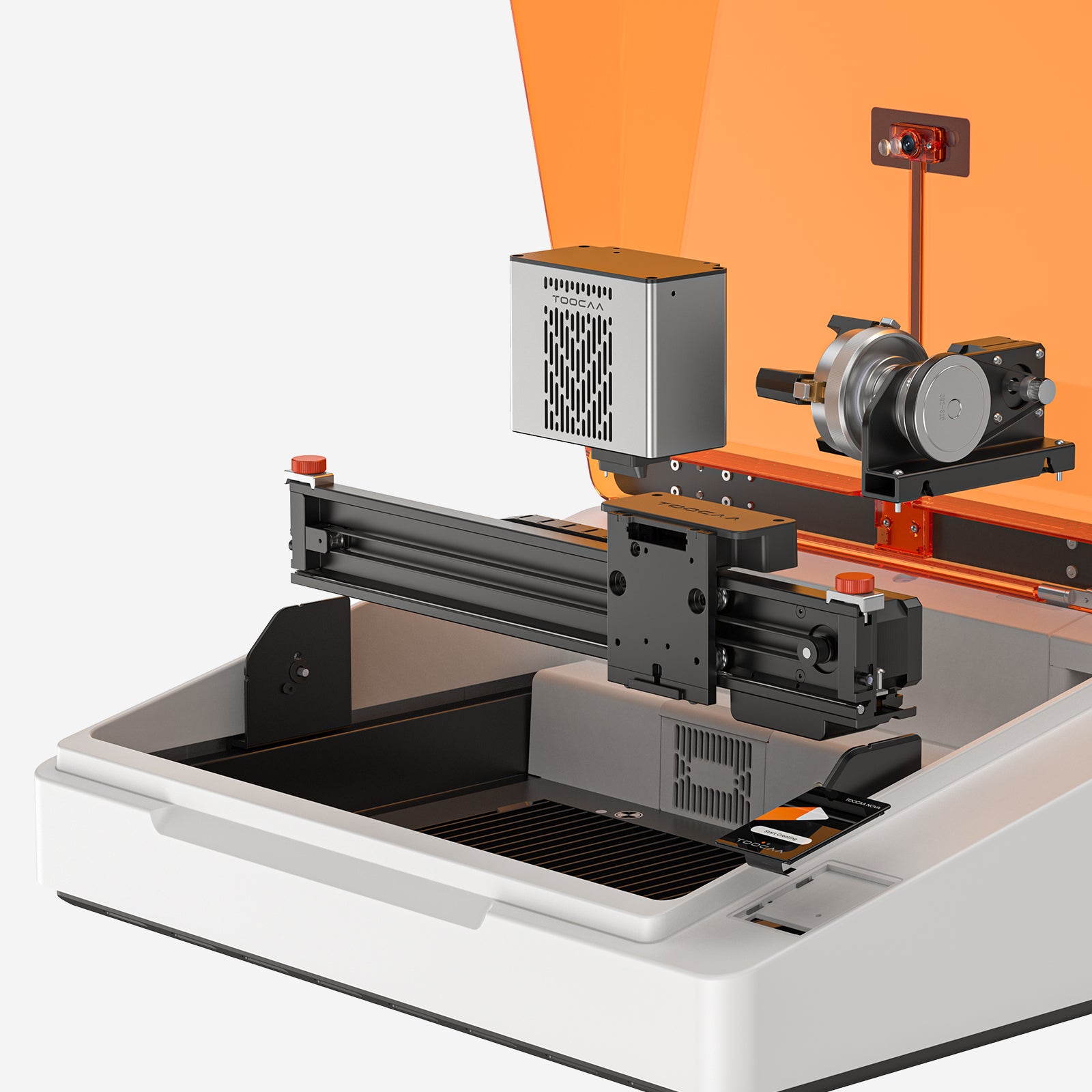

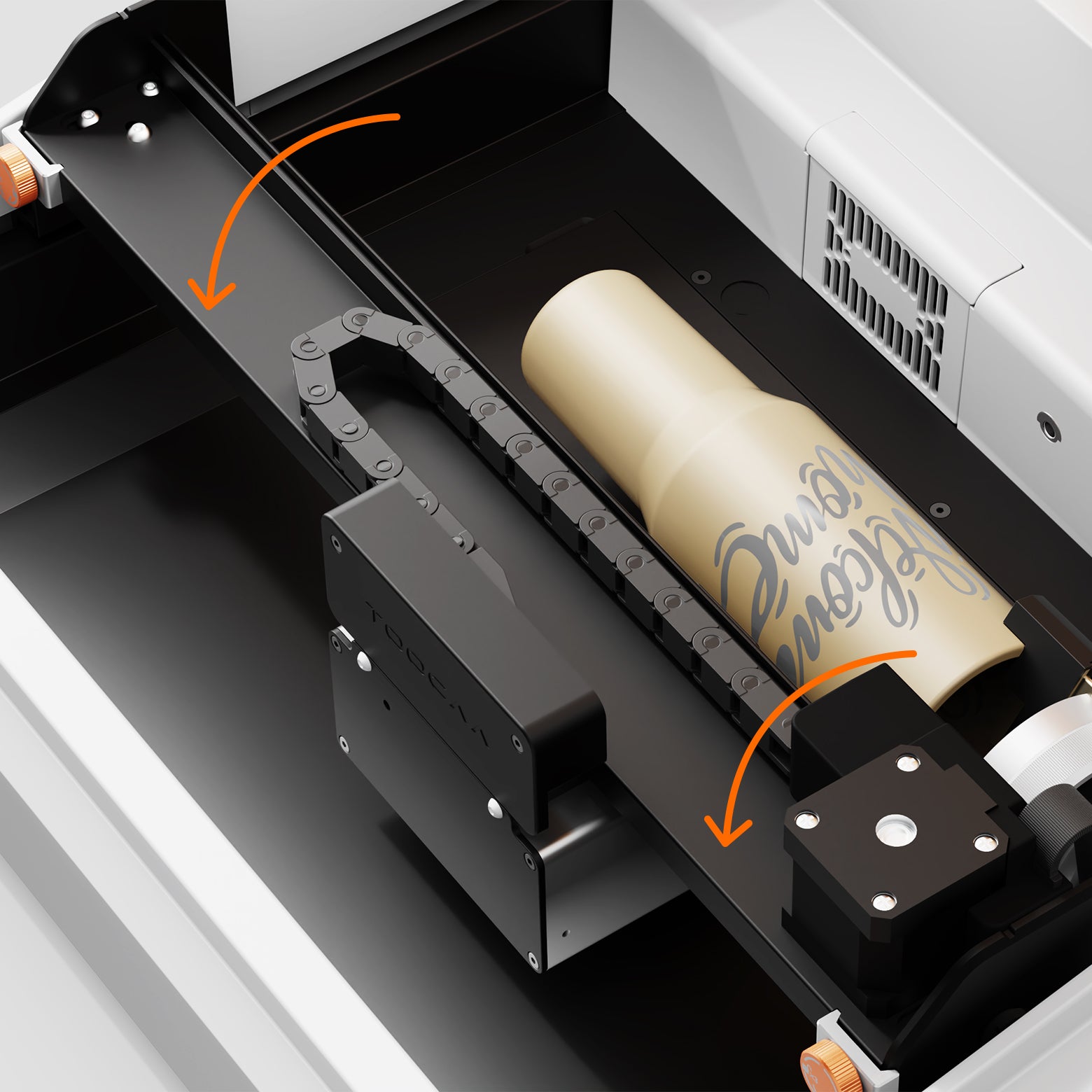

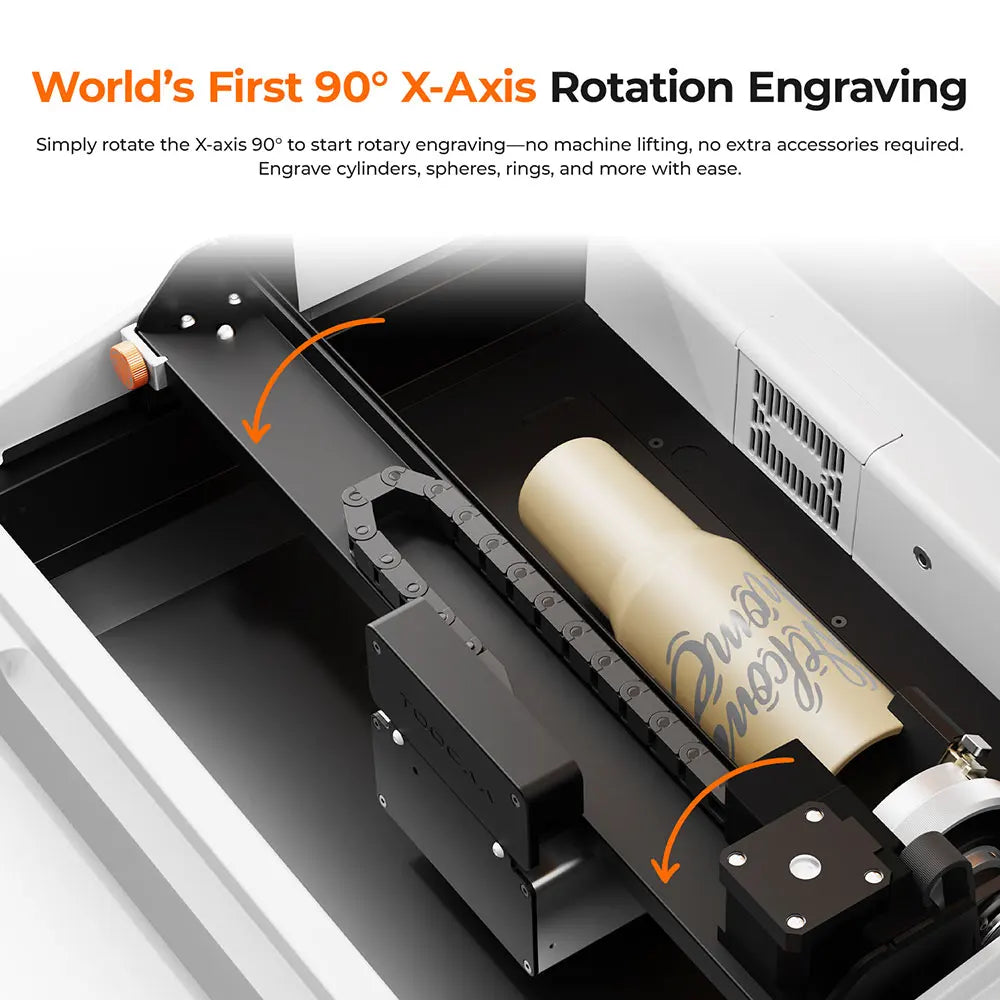

The World's First 90° X-Axis Rotation Engraving

The World's First 90° X-Axis Rotation Engraving The world's first 90° X-axis rotation design, which allows for quick completion of the rotation module setup. There is no need to manually raise the machine or purchase additional accessories to lift the machine. It saves more time, effort, and money for those who frequently engrave cylindrical objects, spheres, rings, and other items. The world's first quick-release gripper, switchable in 3 seconds.

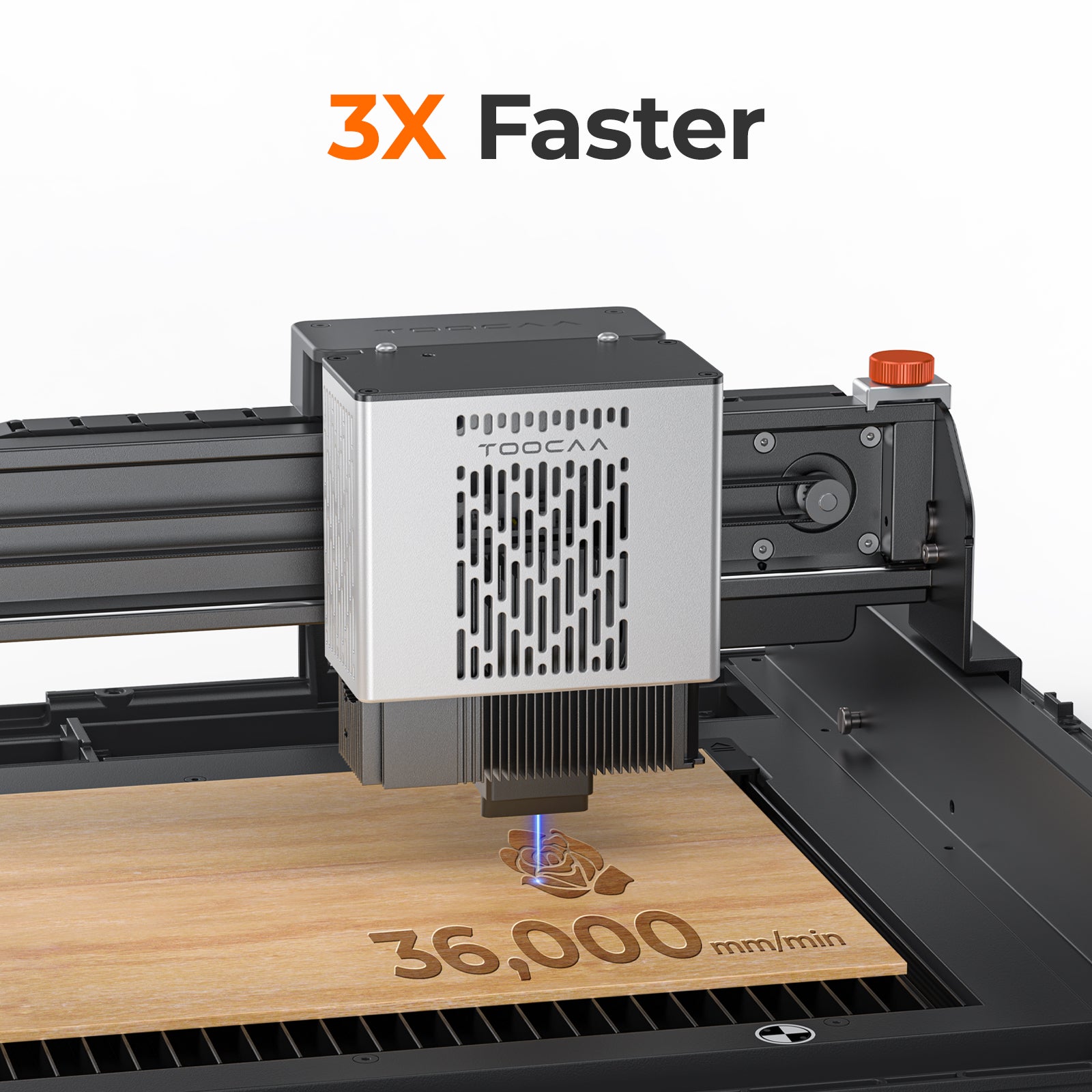

36,000 mm/min Engraving Speed Achieve your creative goals faster with industry-leading performance that significantly reduces production time.

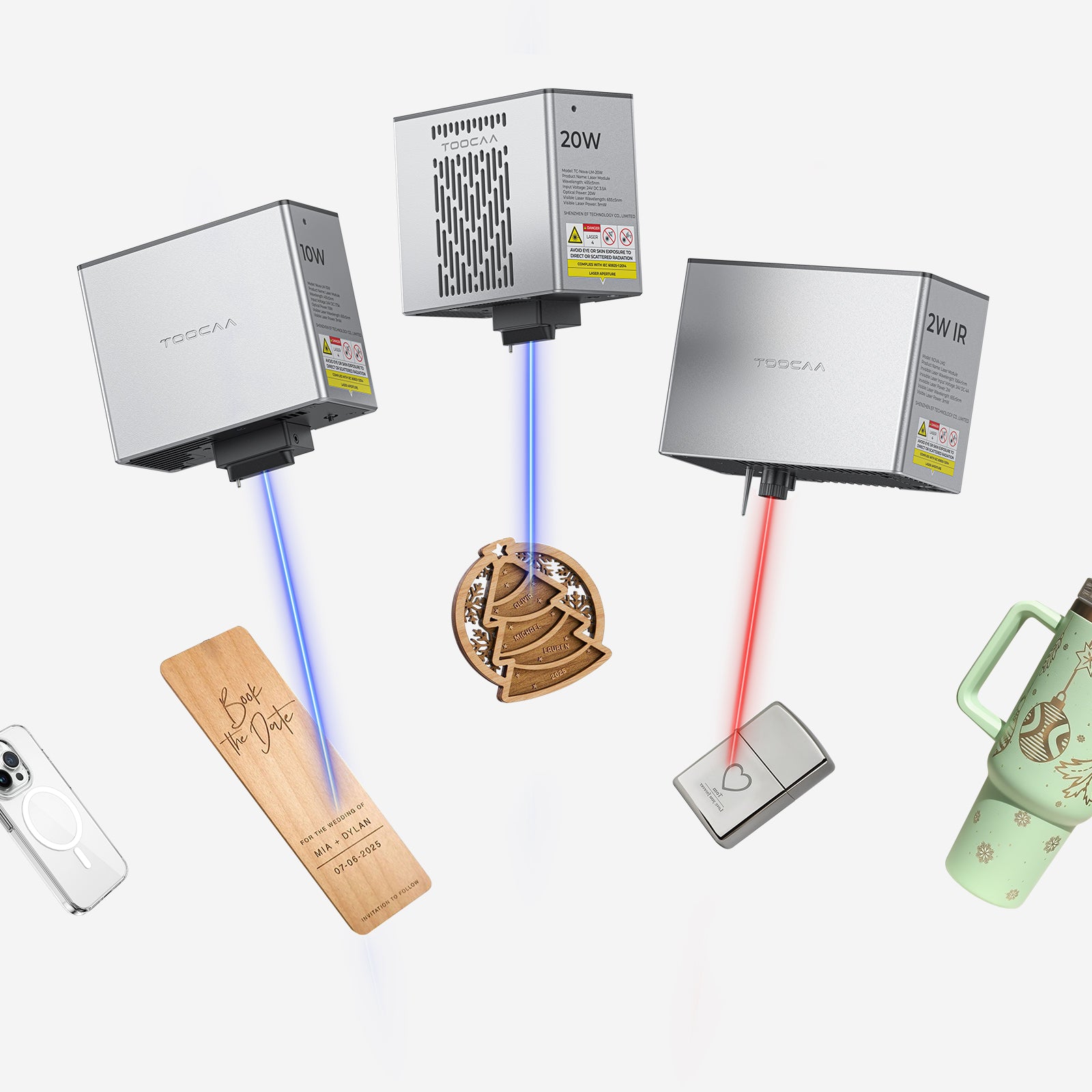

Interchangeable Laser Module Easily switch between 2W infrared, 10W diode, or 20W diode laser modules through a cable-free slot system.

Highly Integrated Design Combines a camera, auto-focus, optional rotary accessories, and a touch screen — no additional purchases required.

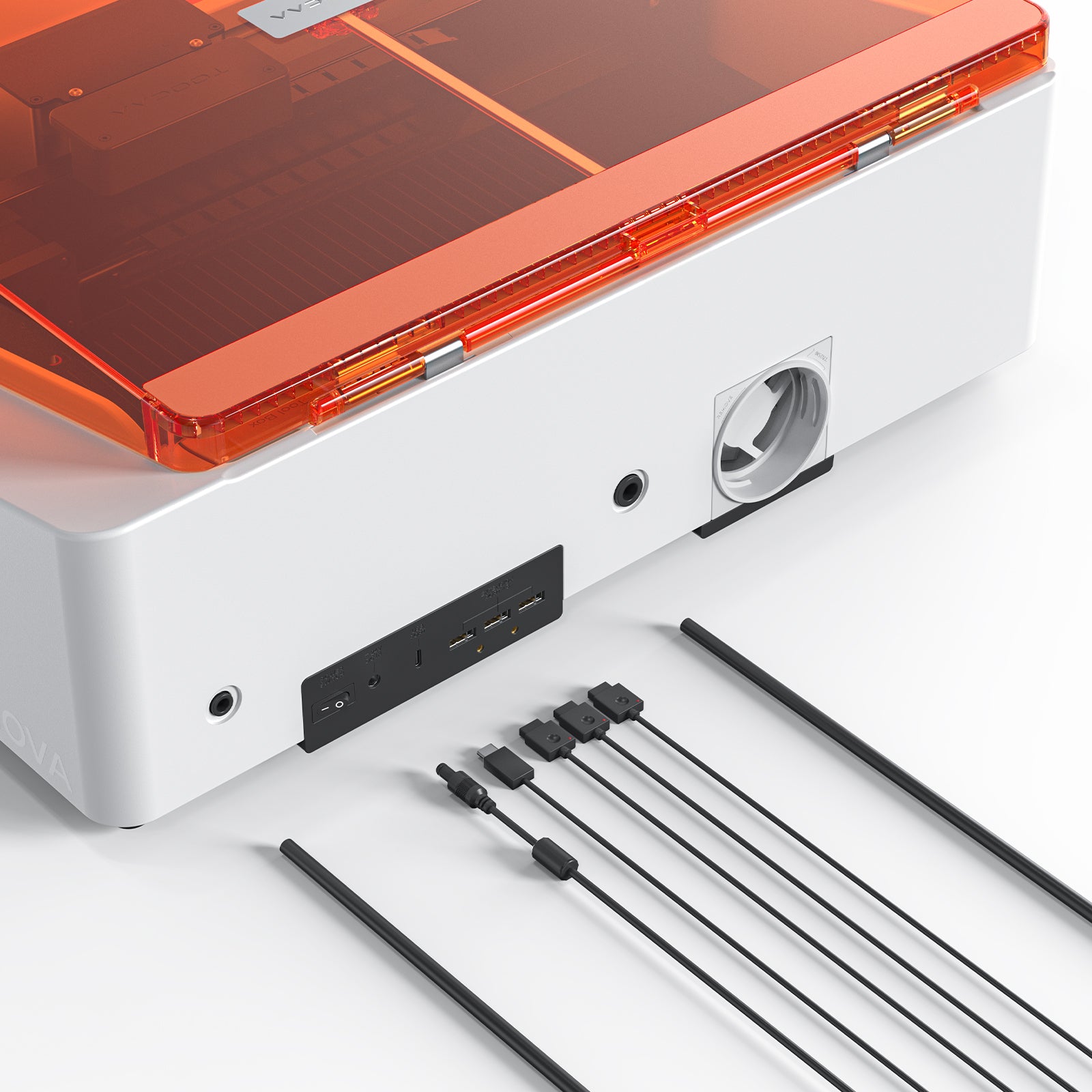

Smart Expansion Interface Intelligent device and accessory linkage with modular interfaces to support future upgrades and on-demand expansion.

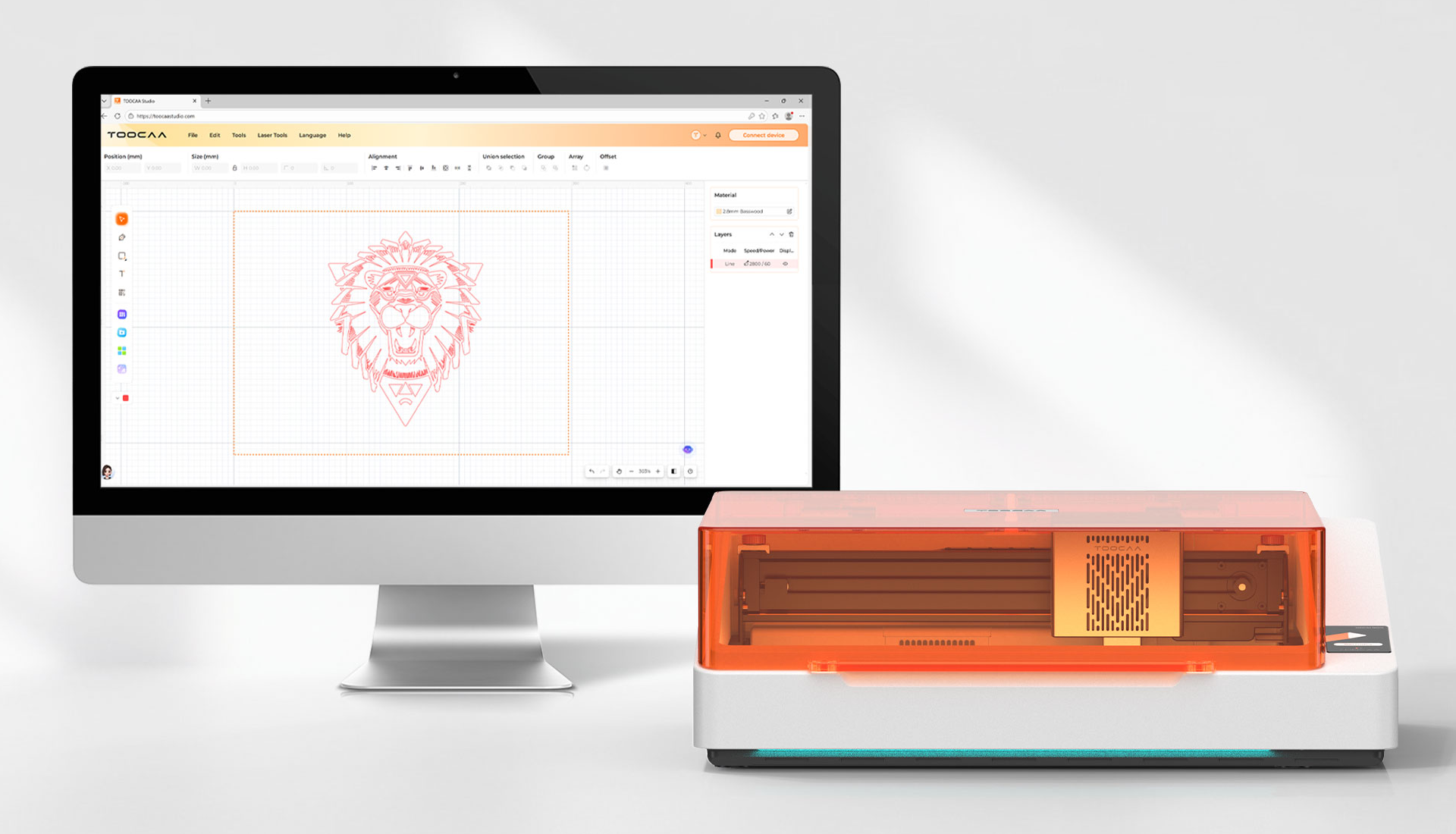

TOOCAA Studio Intelligent Creation

Batch Filling Engraving Preview Image Edit Graphic Editing QR Code Generation Parameter Matrix Test Beginner Guidance

Aesthetic Craftsmanship: Romance in Every Detail

Hover with Ease The combination of a hovering friction hinge and silicone shock absorbers ensures a premium opening and closing experience. The lid stays when you leave it — no snapping, no crashing. It's a silent, smooth motion designed to protect both your machine and your peace of mind.

The Art of Minimalism A sleek, refined exterior that hides complexity and highlights beauty, just like a high-end home appliance.

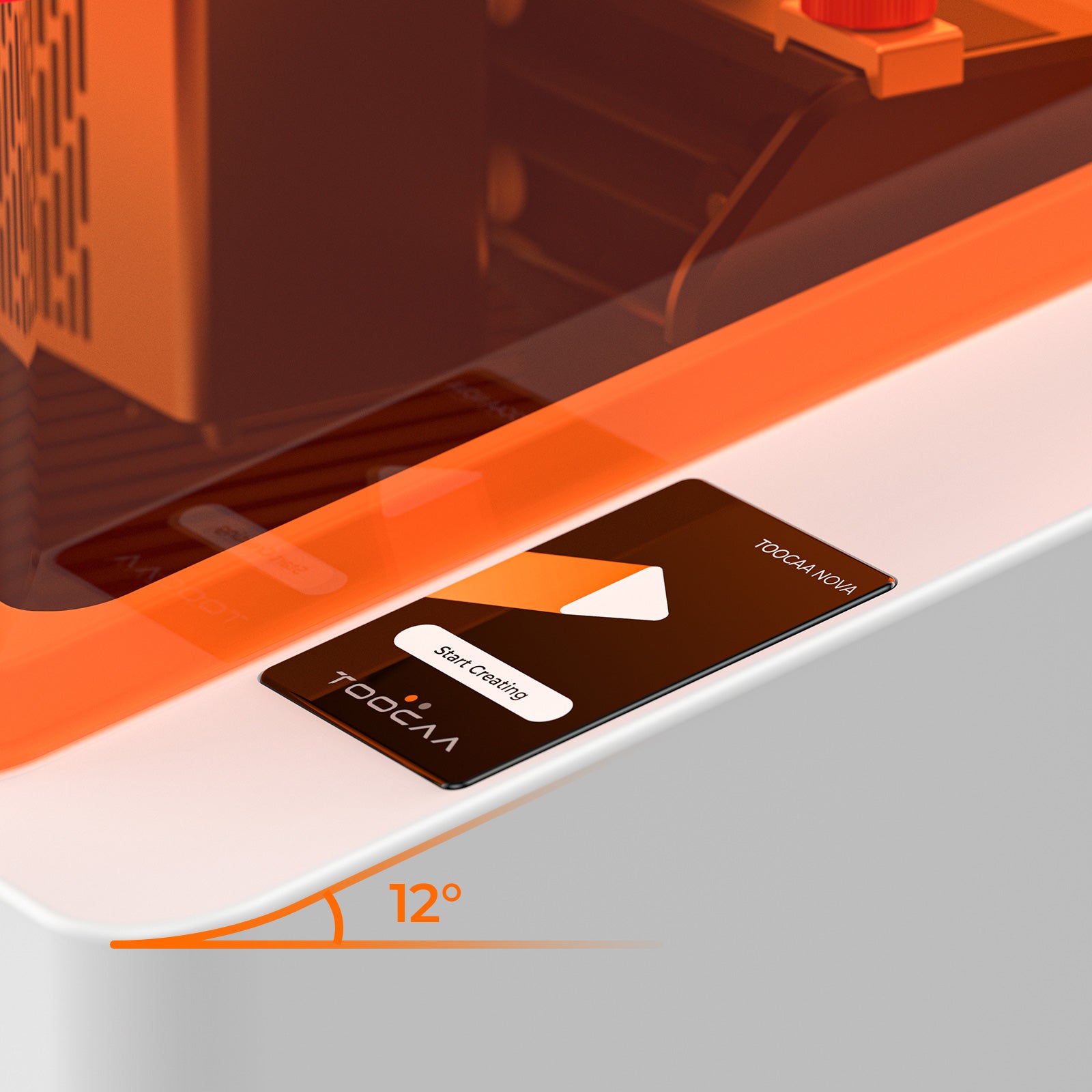

12° Ergonomic Comfort Screen The perfect operating angle has already been dialed in for you. Featuring an optimal 12° ergonomic tilt, the screen aligns perfectly with your most natural posture. It's a thoughtful detail that delivers a small spark of joy every time you power it on — the quiet satisfaction of a machine that truly "understands" you.

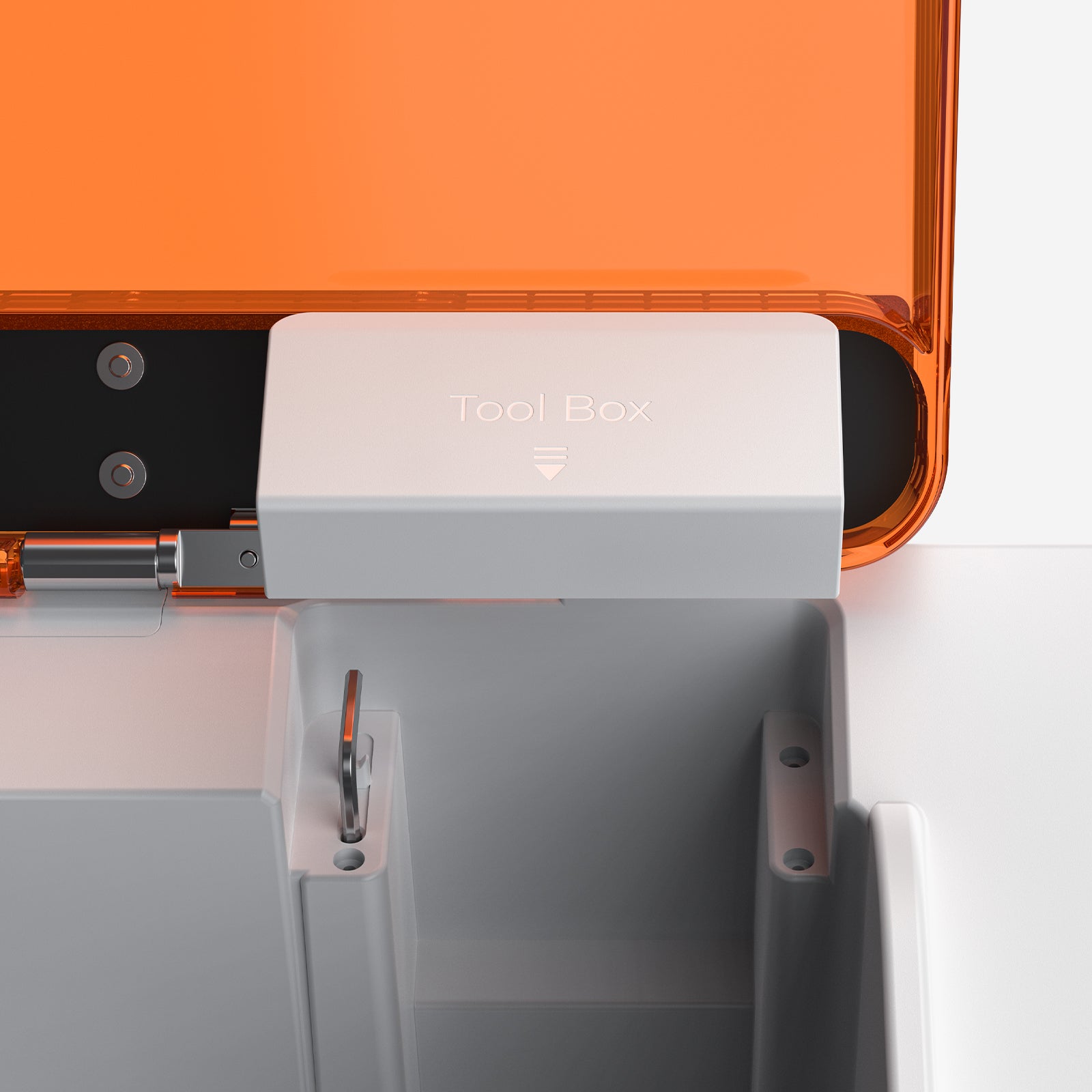

Integrated Hidden Toolbox A seamless, built-in storage compartment that keeps your essential tools tucked away but always within reach, maintaining a clutter-free creative space.

Emotive Breathing Lights The machine "speaks" through a four-color gradient light system — signaling Standby, Running, Completion, or Error status. This intuitive feedback brings a sense of professional ceremony to every project.

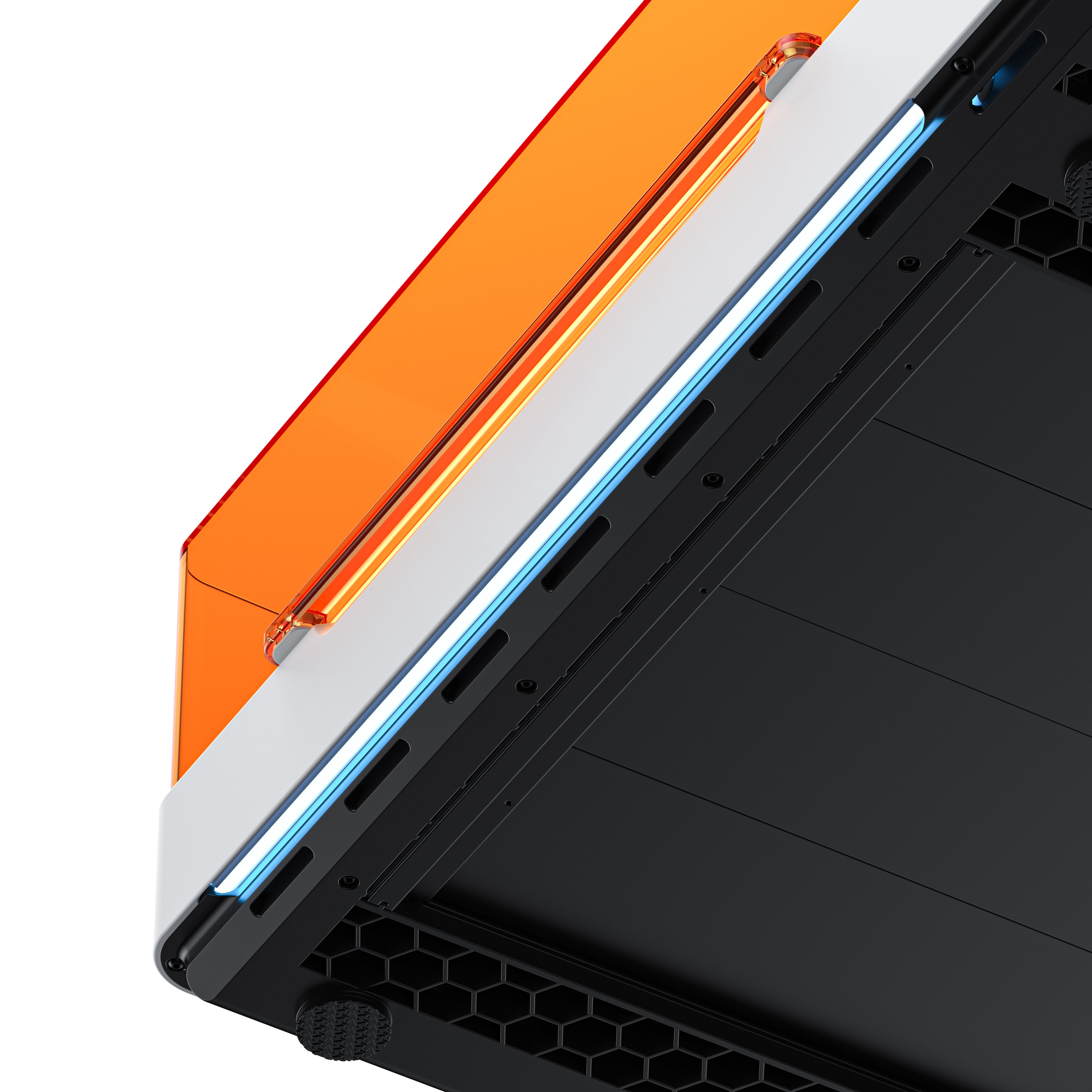

Ergonomic Recessed Handles Thoughtfully designed handles at the base allow for effortless lifting and portability, blending physical comfort with sleek aesthetics.

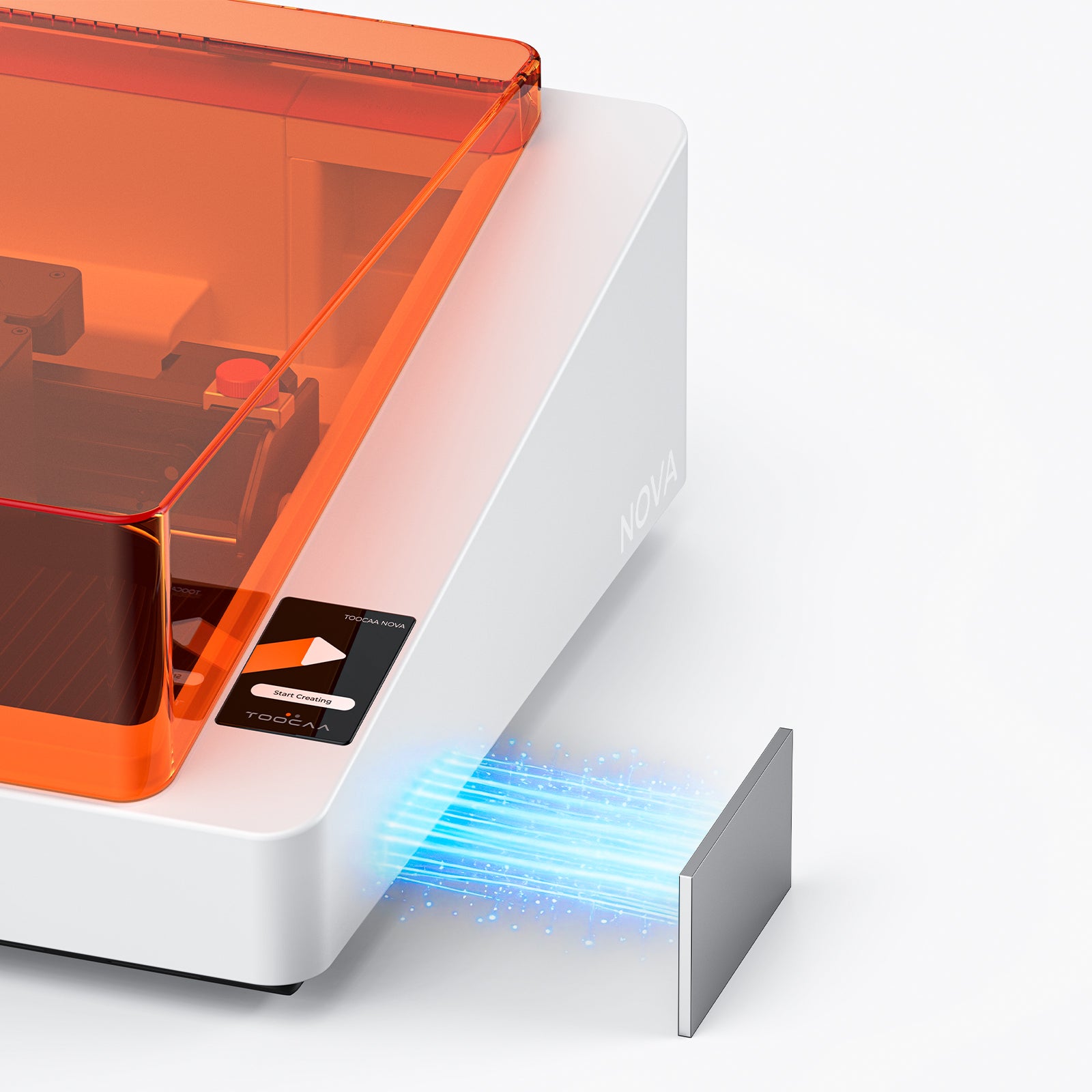

Magnetic Zone This hidden design can meet your needs for storing frequently used metal gadgets.

Boundless Creativity On 300+ Materials

Wood

Metal

Leather

Glass

Stone

Plastic

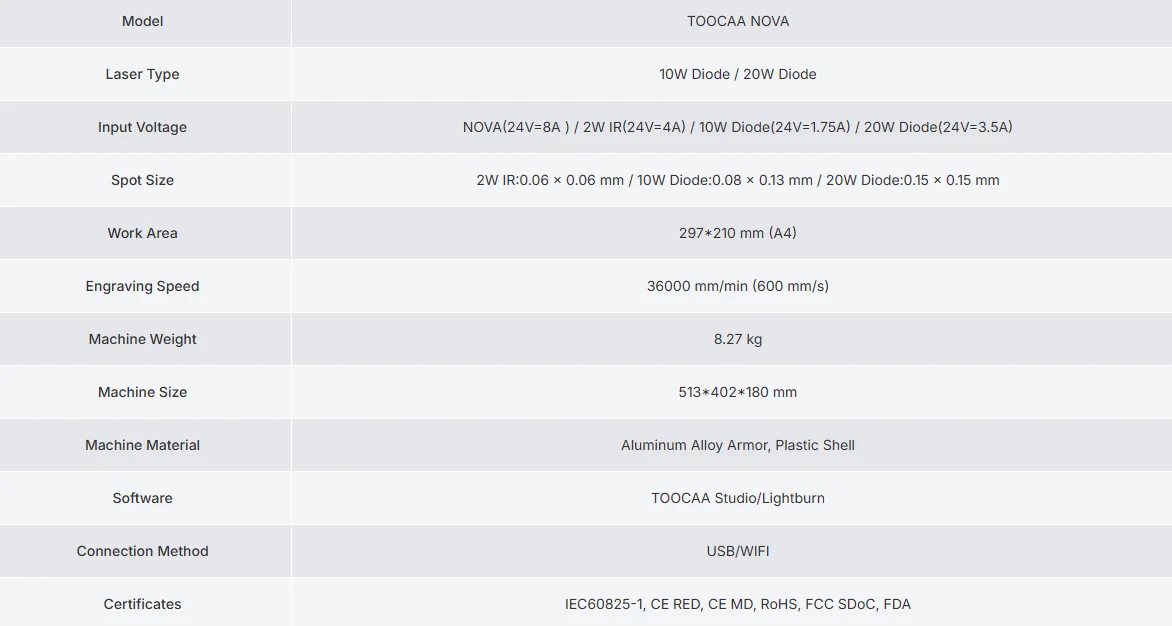

Specification

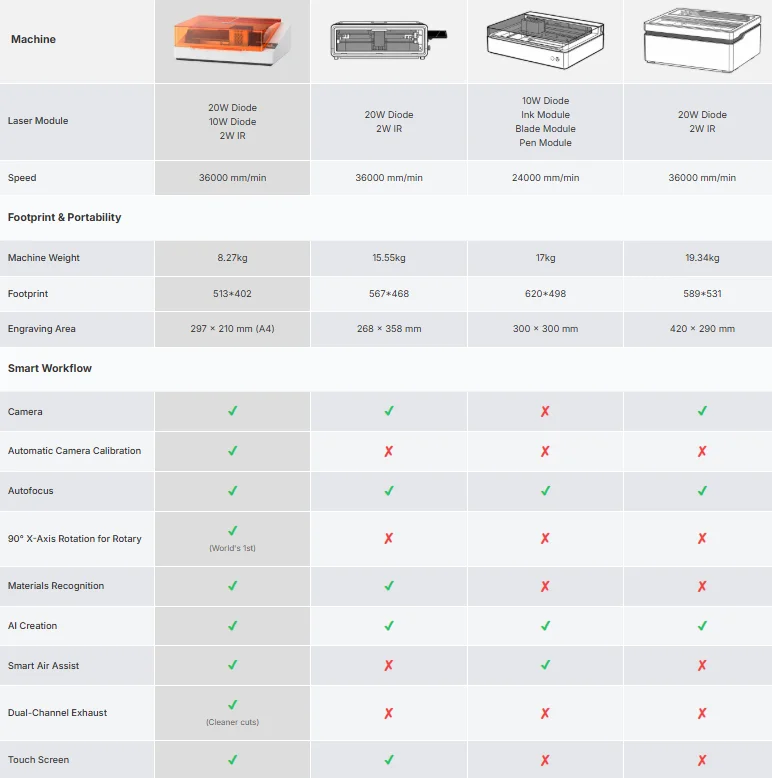

TOOCAA NOVA Does It Better

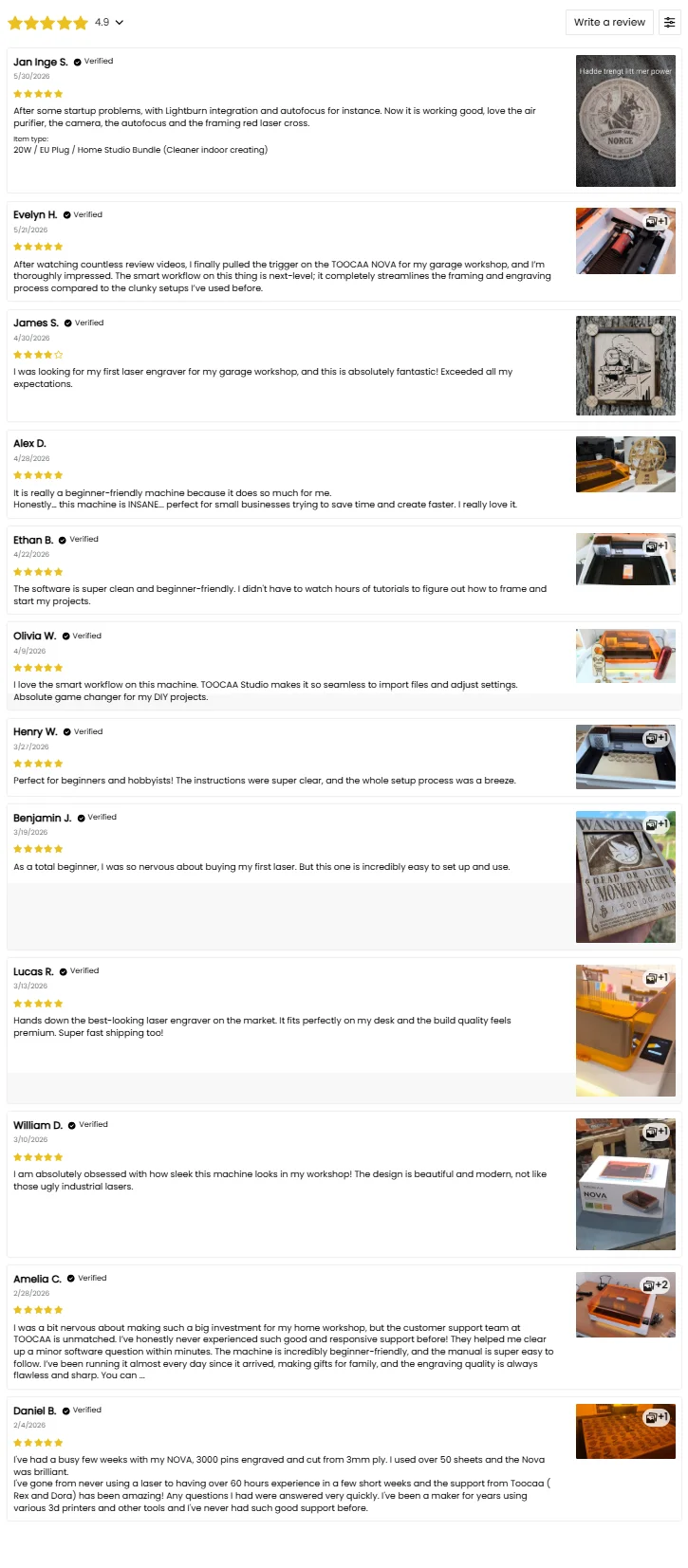

What NOVA Users Say

Real feedback from our community of passionate makers and hobbyists.
