SPECIFICATIONS
Brand Name: TOPPING
D/A Converter: ES9039Q2M
DSD Sampling Frequencies: 2.8224 MHz (DSD64),5.6448 MHz (DSD128),11.2896 MHz (DSD256),22.5792 MHz (DSD512)
Electrified: No
High-concerned chemical: none

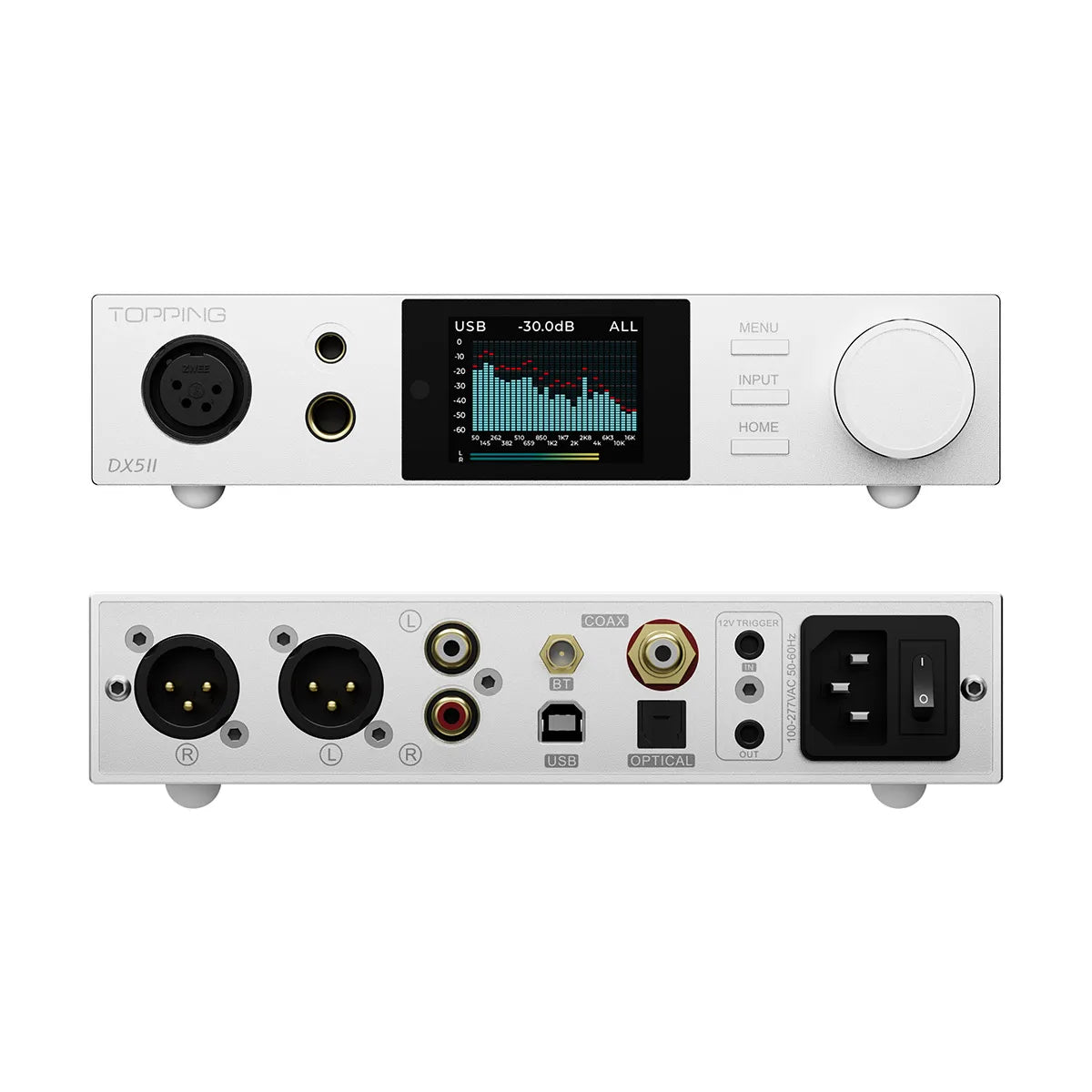

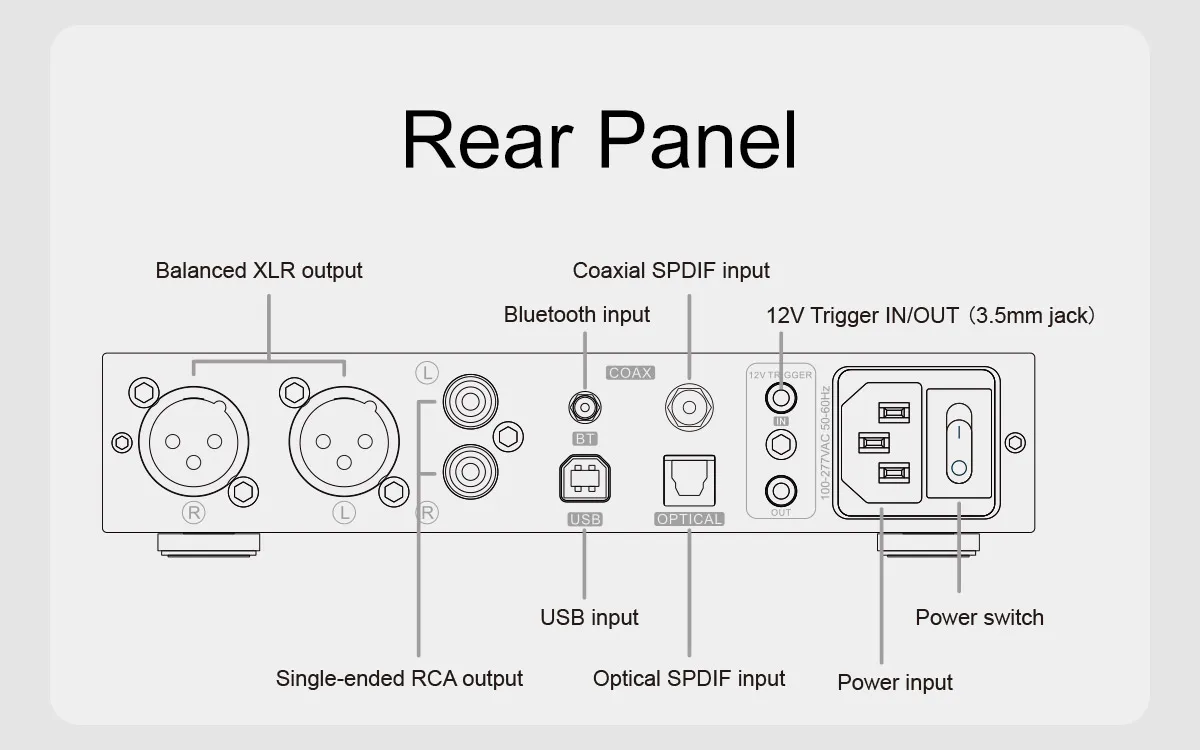

Inputs: USB Type-B,Optical (SPDIF),Coaxial
Material: Metal
Origin: Mainland China
Outputs: RCA,6.5 mm,XLR
PCM Sampling Frequencies: 44.1 kHz,48 kHz,88.2 kHz,96 kHz,176.4 kHz,192 kHz,352.8 kHz,384 kHz,705.6 kHz,768 kHz
PCM Word Length: 16-bit,24-bit,32-bit
Type: Desktop
WIFI: No

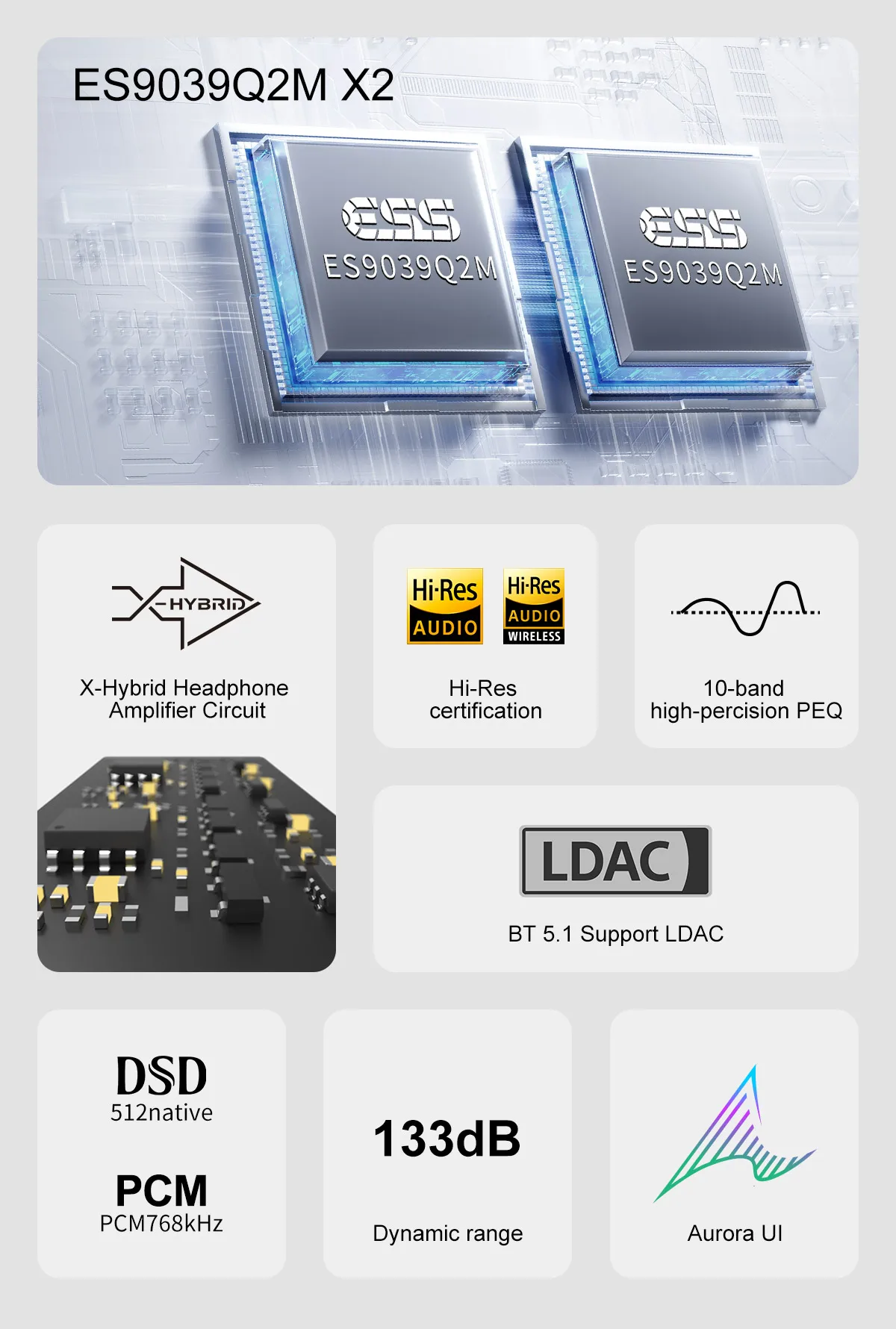

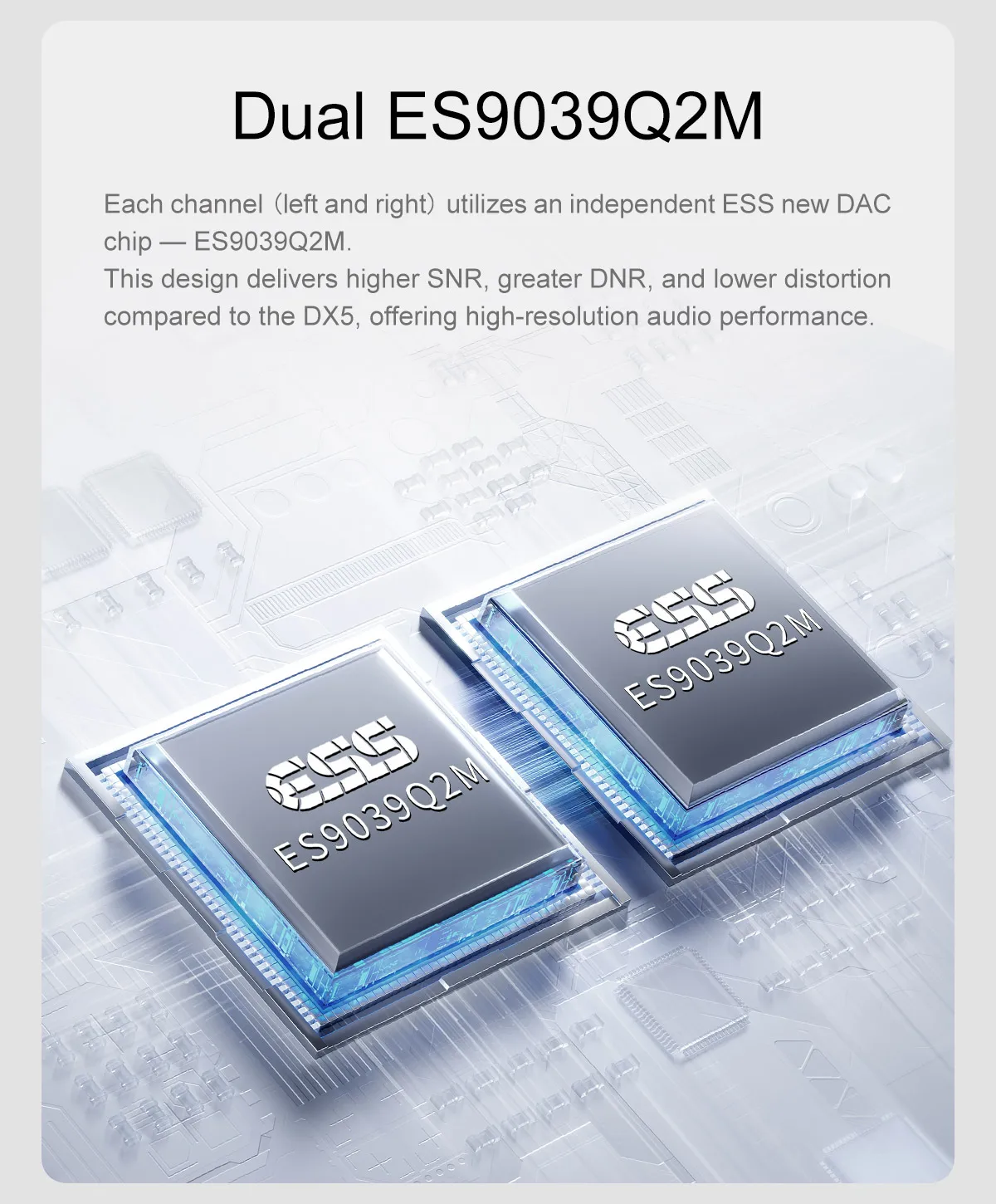

【Dual ES9039Q2M】Each channel (left and right) utilizes an independent ESS new DAC chip-ES9039Q2M.This design delivers higher SNR, greater DNR, and lower distortion compared to the DX5, offering high-resolution audio performance.

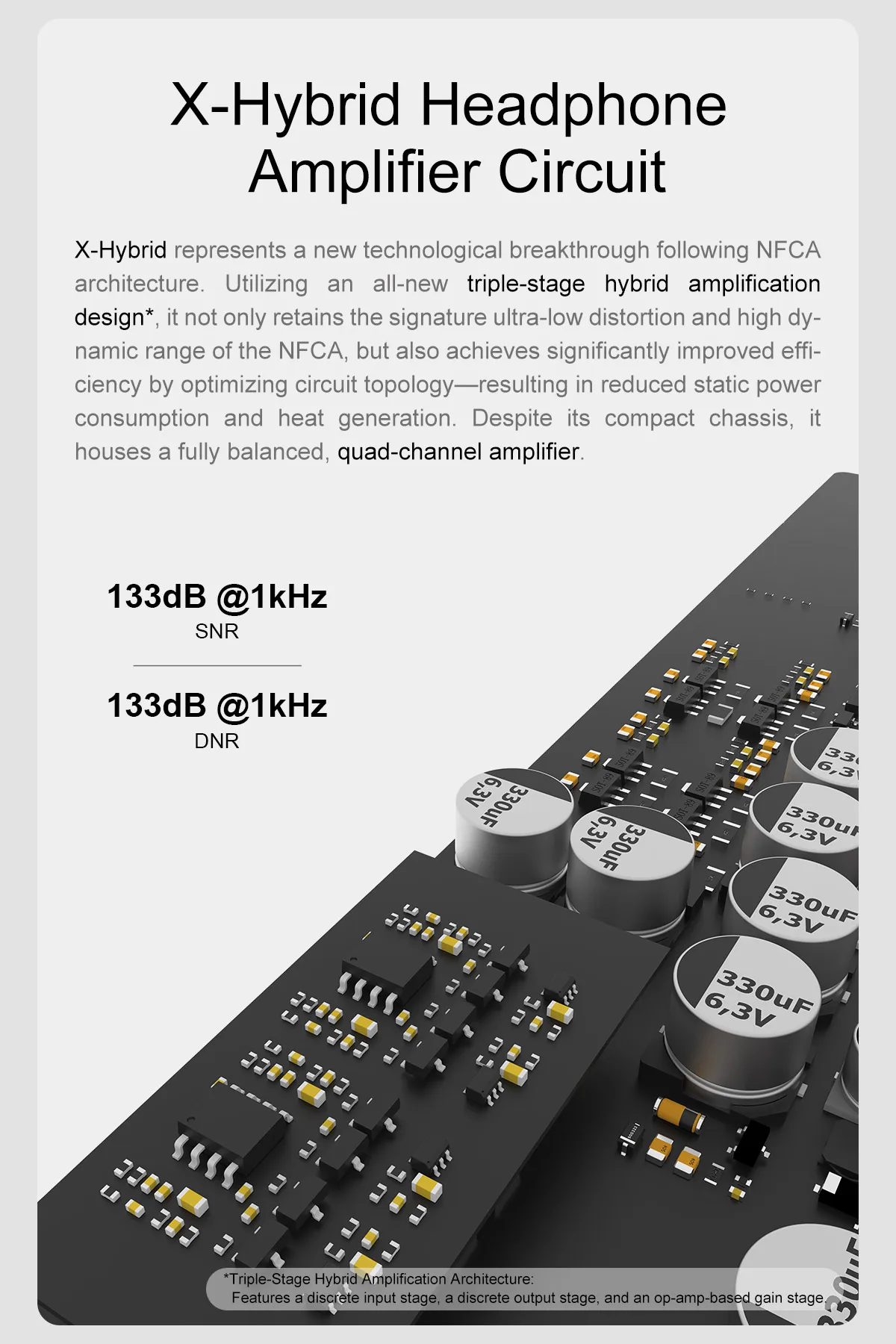

【X-Hybrid Headphone Amplifier Circuit】X-Hybrid represents a new technological breakthrough following NFCA architecture.Utilizing an all-new triple-stage hybrid amplification design*, it not only retains the signature ultra-low distortion and high dynamic range of the NFCA, but also achieves significantly improved efficiency by optimizing circuit topology-resulting in reduced static power consumption and heat generation.
【Wide range of adaptation to headphones】DX5 II is equipped with 6.35mm single-ended, 4.4mm balanced, and 4-pin XLR headphone jack, meeting the needs from low-sensi-tivity headphones to high-sensitive lEMs. With a low noise floor of just 1.8uVrms, even the most sensitive lEMs remain free from any audible background hiss.

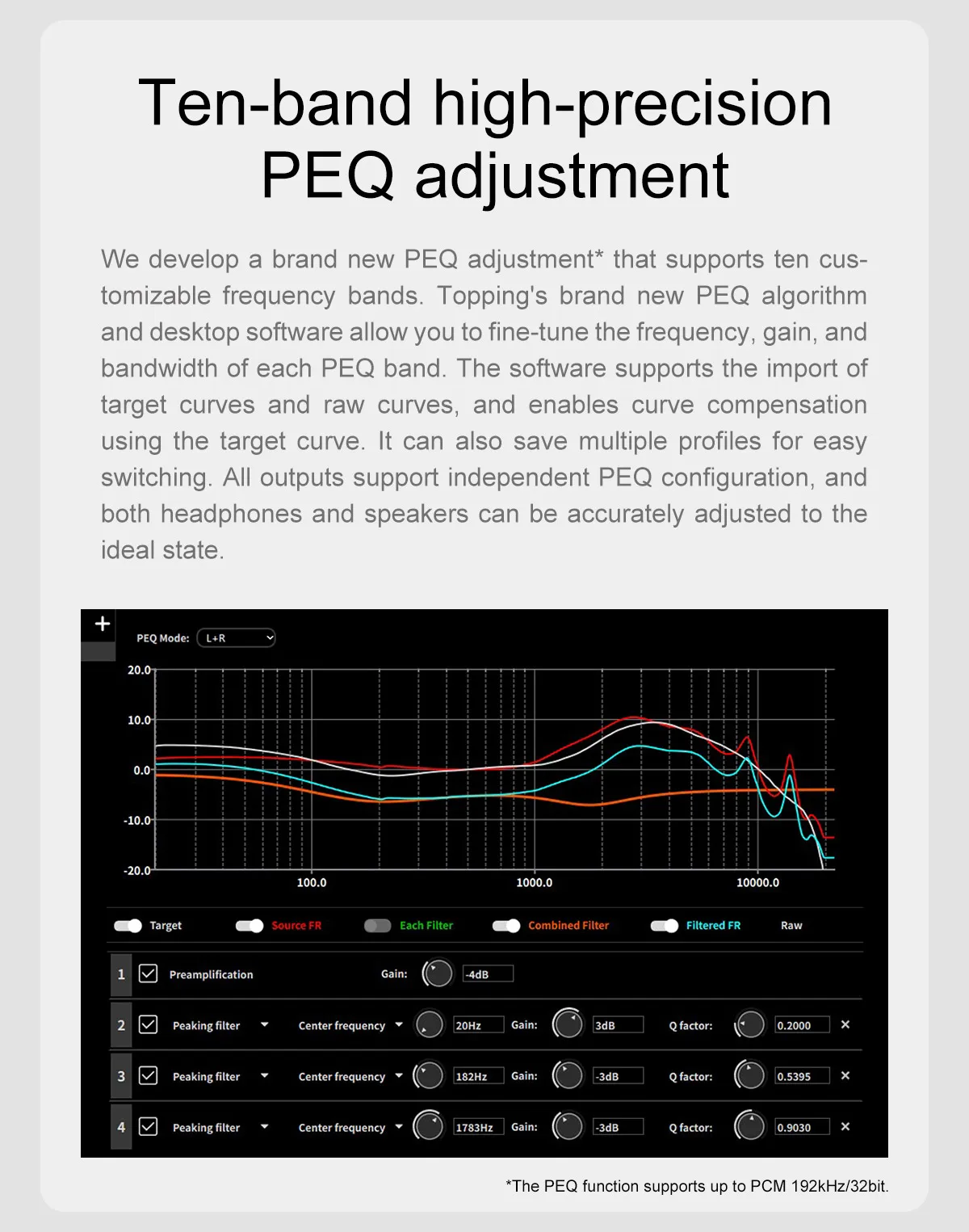

【Ten-band high-precisionPEQ adjustment】We develop a brand new PEQ adjustment* that supports ten customizable frequency bands. Topping's brand new PEQ algorithm and desktop software allow you to fine-tune the frequency, gain, and bandwidth of each PEQ band.

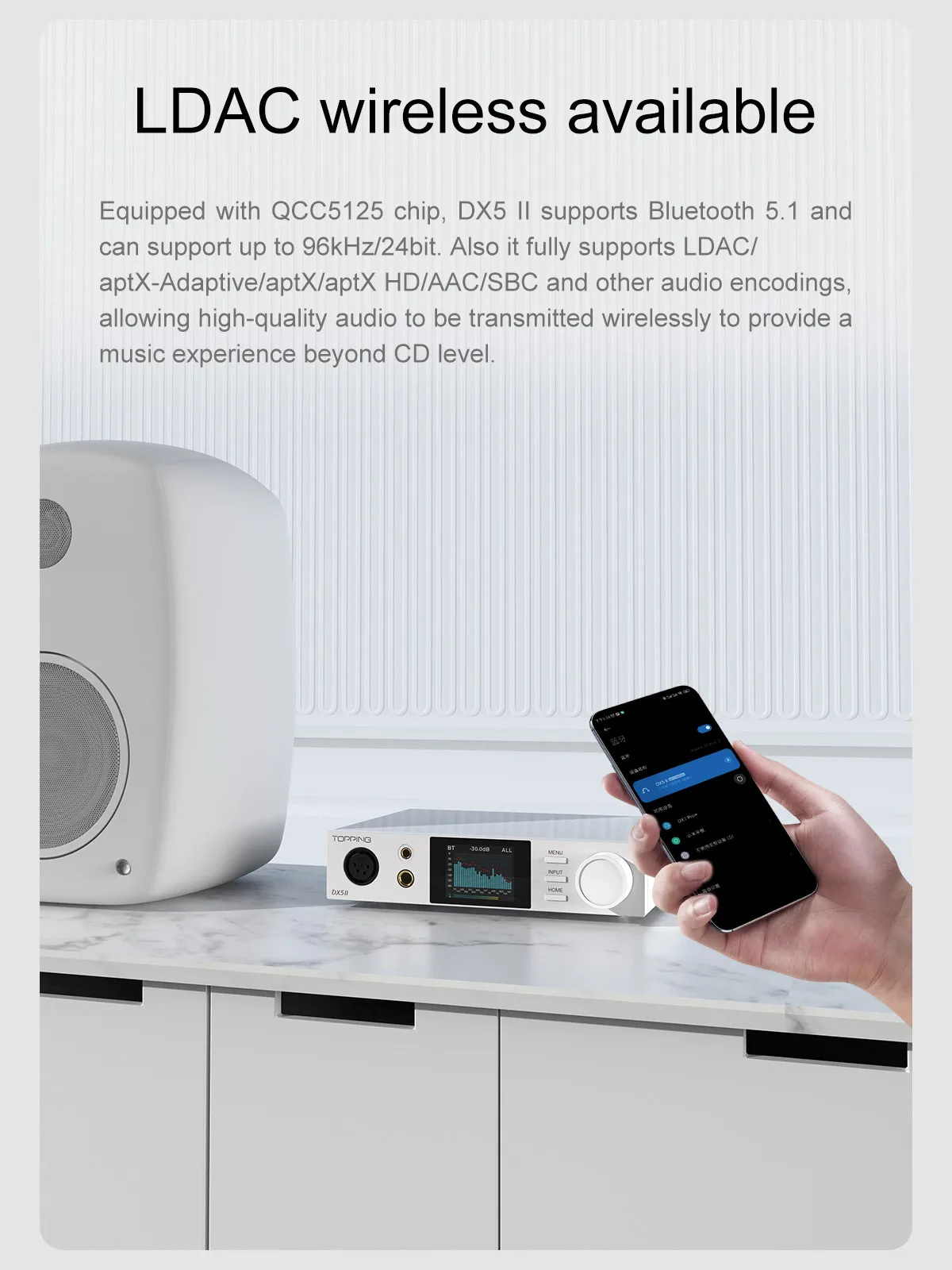

【LDAC wireless available】Equipped with QCC5125 chip, DX5 II supports Bluetooth 5.1 and can support up to 96kHz/24bit. Also it fully supports LDAC/aptX-Adaptive/aptX/aptX HD/AAC/SBC and other audio encodings,allowing high-quality audio to be transmitted wirelessly to provide a music experience beyond CD level.
