SPECIFICATIONS
Battery Included: no
Brand Name: UNI-T
Certification: CE,FCC
Continuity test: RCD test
DIY Supplies: Electrical
Dimensions: 272mm * 85mm * 31mm
Display Type: Digital Only
High-concerned chemical: none
LCD display (Frequency): 40Hz~400Hz
LCD display (voltage): 6V~690V
Low battery indication: Around 2.5V

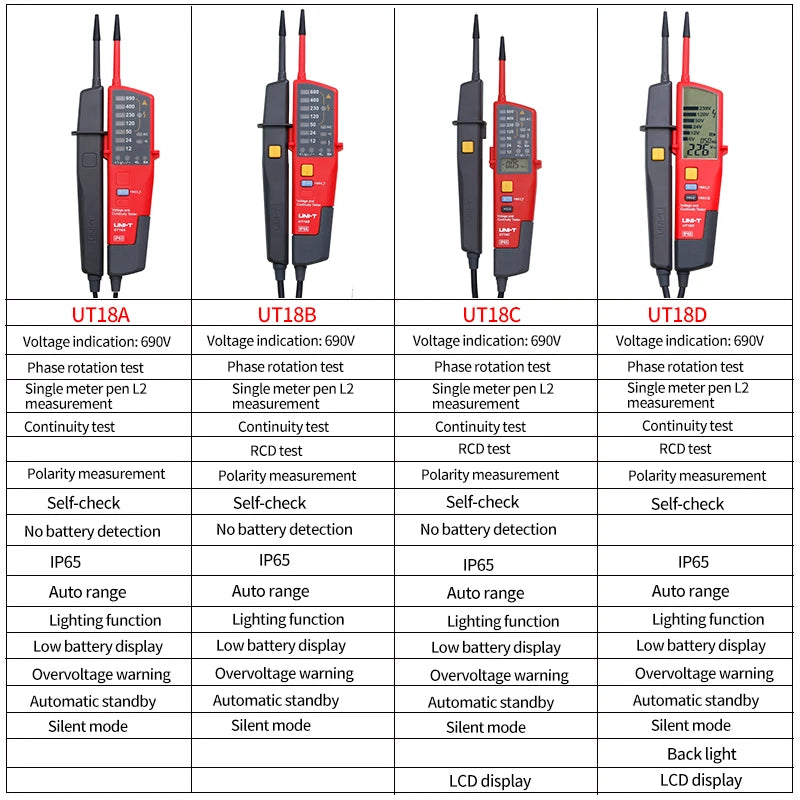

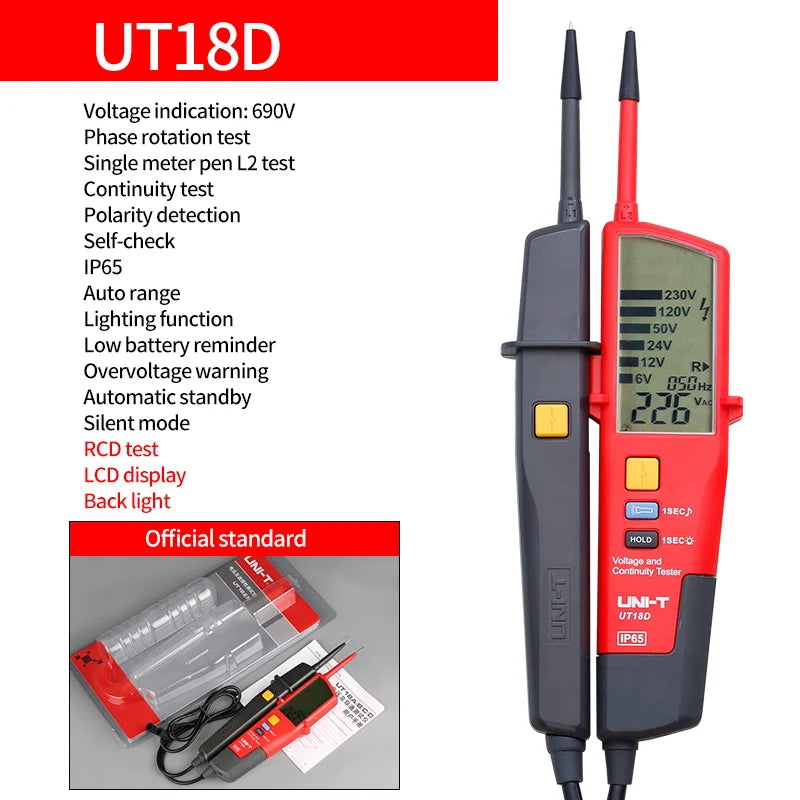

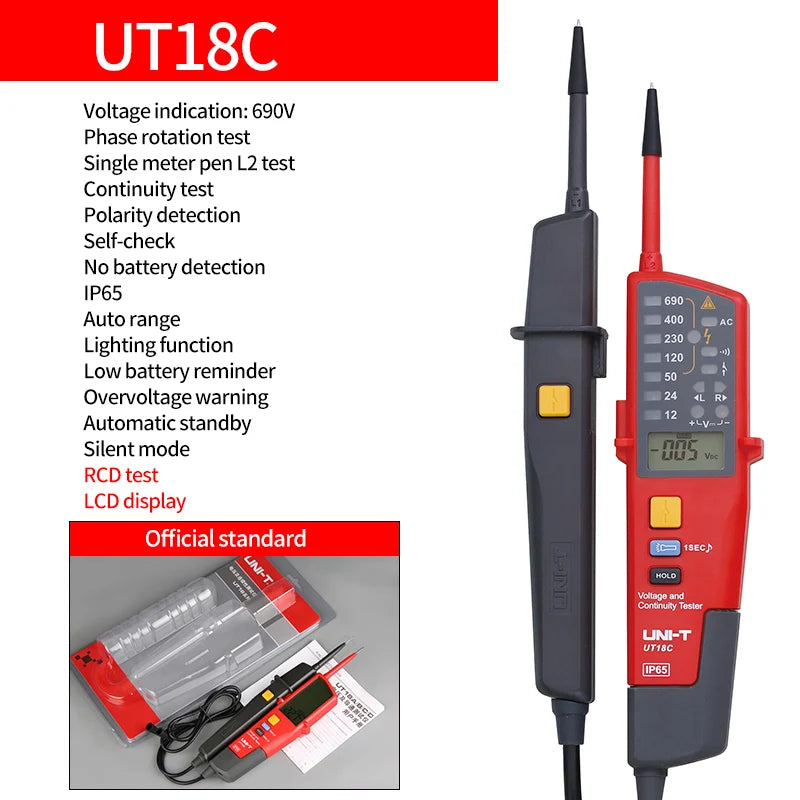

Model Number: UT18A/B/C/D
No power test: Work light
Operating Temperature: 0-40°
Origin: Mainland China
Phase rotation test: 57-400V AC(3 phase)
Polarity detection: Positive Negative
Power Supply: Battery
Semi-finishedproduct: No
Voltage indication: LED
Voltage range: 6-24V DC
Specifications |
Range |
UT15B |
UT15C |
|
LED AC/
Standard carton measurement
440mm × 395mm × 455mm (0.079CBM Per standard carton)
Standard carton gross weight
17kg
DC voltage indication (V)
|
12V |
0~12V |
0~12V |
24V |
17V±2V |
17V±2V |
|
50V |
35V±5V |
35V±5V |
|
120V |
80V±15V |
80V±15V |
|
230V |
165V±20V |
165V±20V |
|
400V |
300V±30V |
300V±30V |
|
690V |
510V±40V |
510V±40V |
|
Phase rotation test |
Operating Voltage: 0V~690V |
√ |
√ |
Frequency: 50Hz~60Hz | |||
Single lead (L2) voltage detection |
Operating Voltage: 0V~690V |
√ |
√ |
Frequency: 50Hz~400Hz | |||
Continuity test |
Resistance: 0~100kΩ |
√ |
√ |
Beeper and LED light Indicator | |||
Polarity detection |
Positive & Negative |
√ |
√ |
Features | |||
Water-proof (IP65) |
√ |
√ |
|
Auto range |
√ |
√ |
|
Work light |
√ |
√ |
|
Low battery indication |
Short circuit two leads, LED and beeper off when the bettery is low |
√ |
√ |
LCD AC/DC voltage display |
24V~690V |
±(3%+5) |
|
General Characteristics | |||
Power |
1.5V battery (R03) × 2 |
||
Display |
UT15C- 23mm × 12mm |
||
Product color |
Red and grey |
||
Product net weight |
210g |
||
Product size (W x H x D) |
275mm × 51mm × 30mm |
||

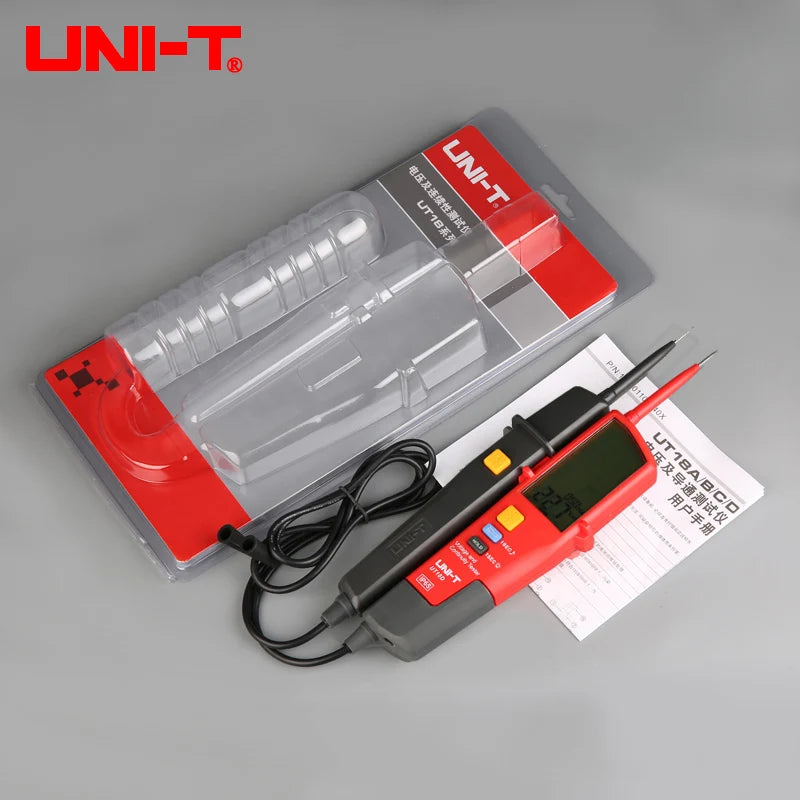

Standard accessories |
Batteries |
||
Standard individual packing |
Blister, English manual |
||
Standard quantity per carton |
30 pcs |
||
