SPECIFICATIONS
Brand Name: UNI-T
High-concerned chemical: none
Origin: Mainland China
Semi-finishedproduct: No

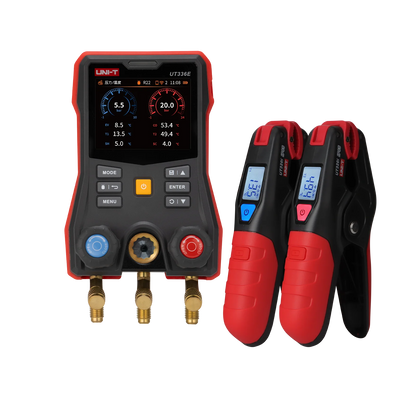

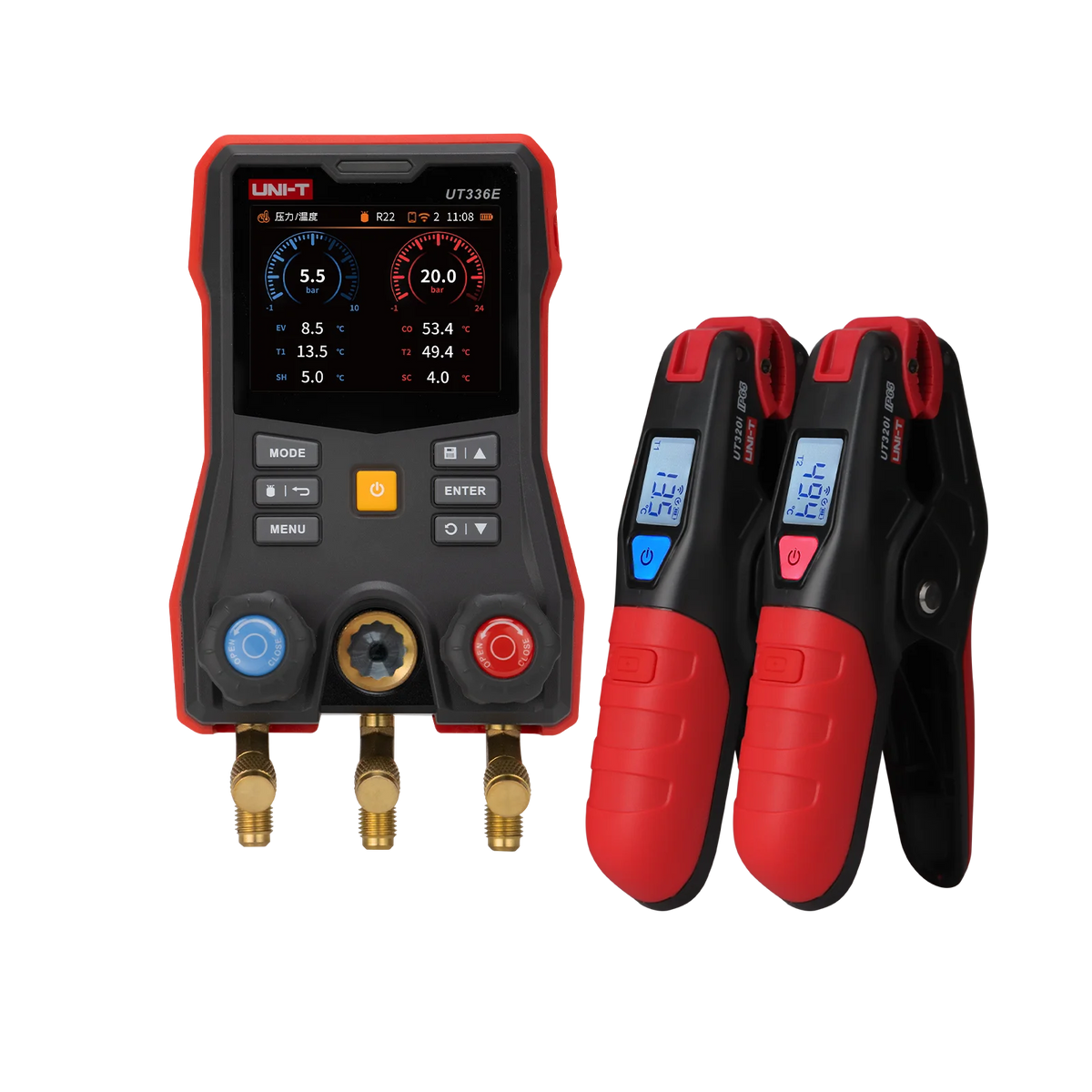

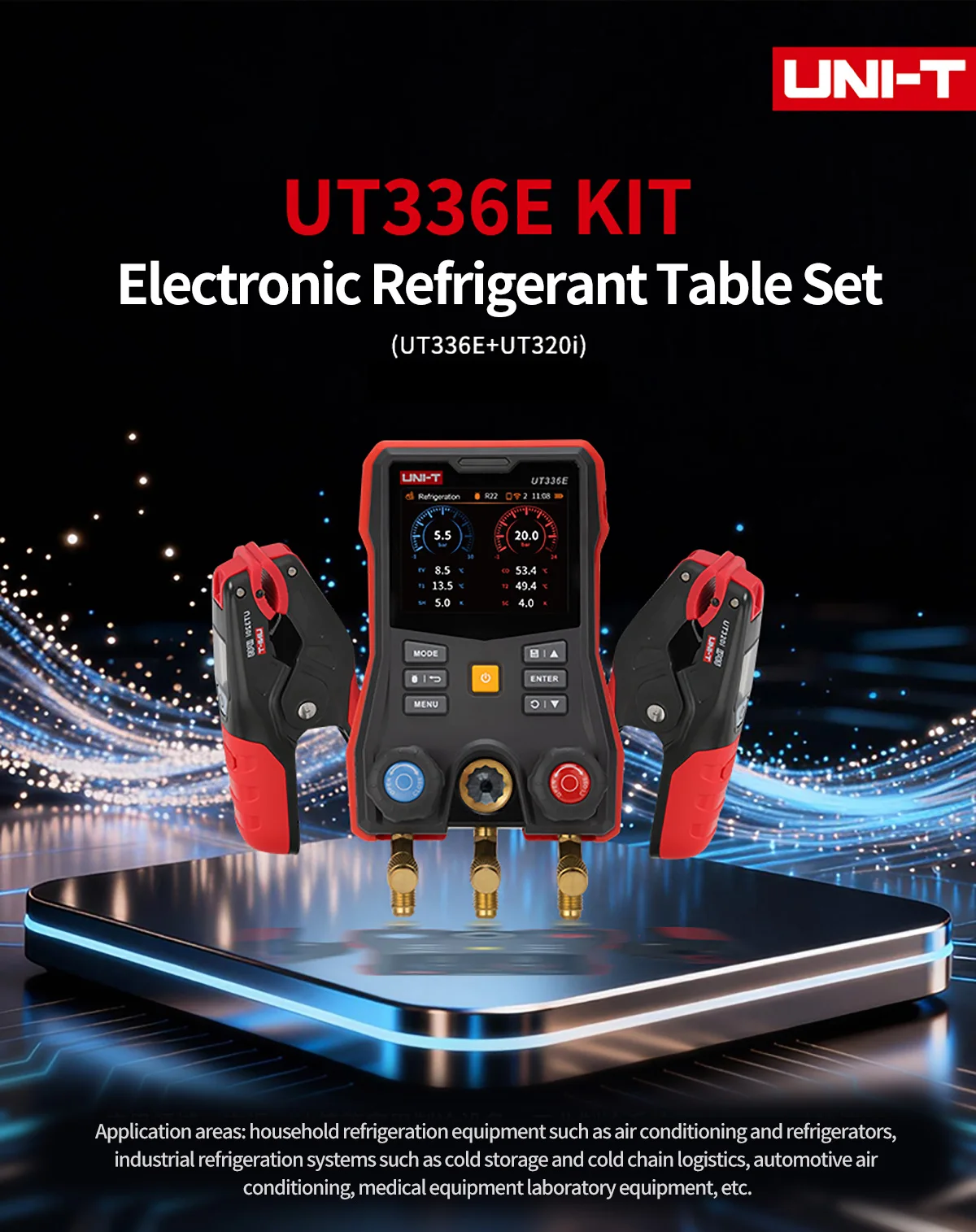

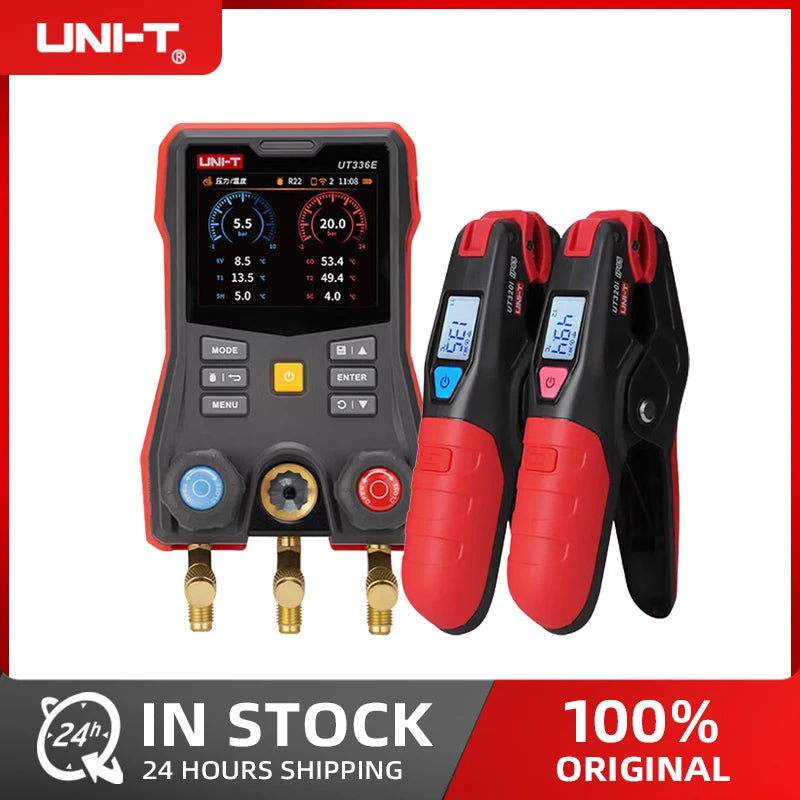

UNI-T UT336E KIT Manifold Gauge With 2PCS UT320I Wireless Temperature Clamps Auto Air Conditioner Refrigerant Pressure

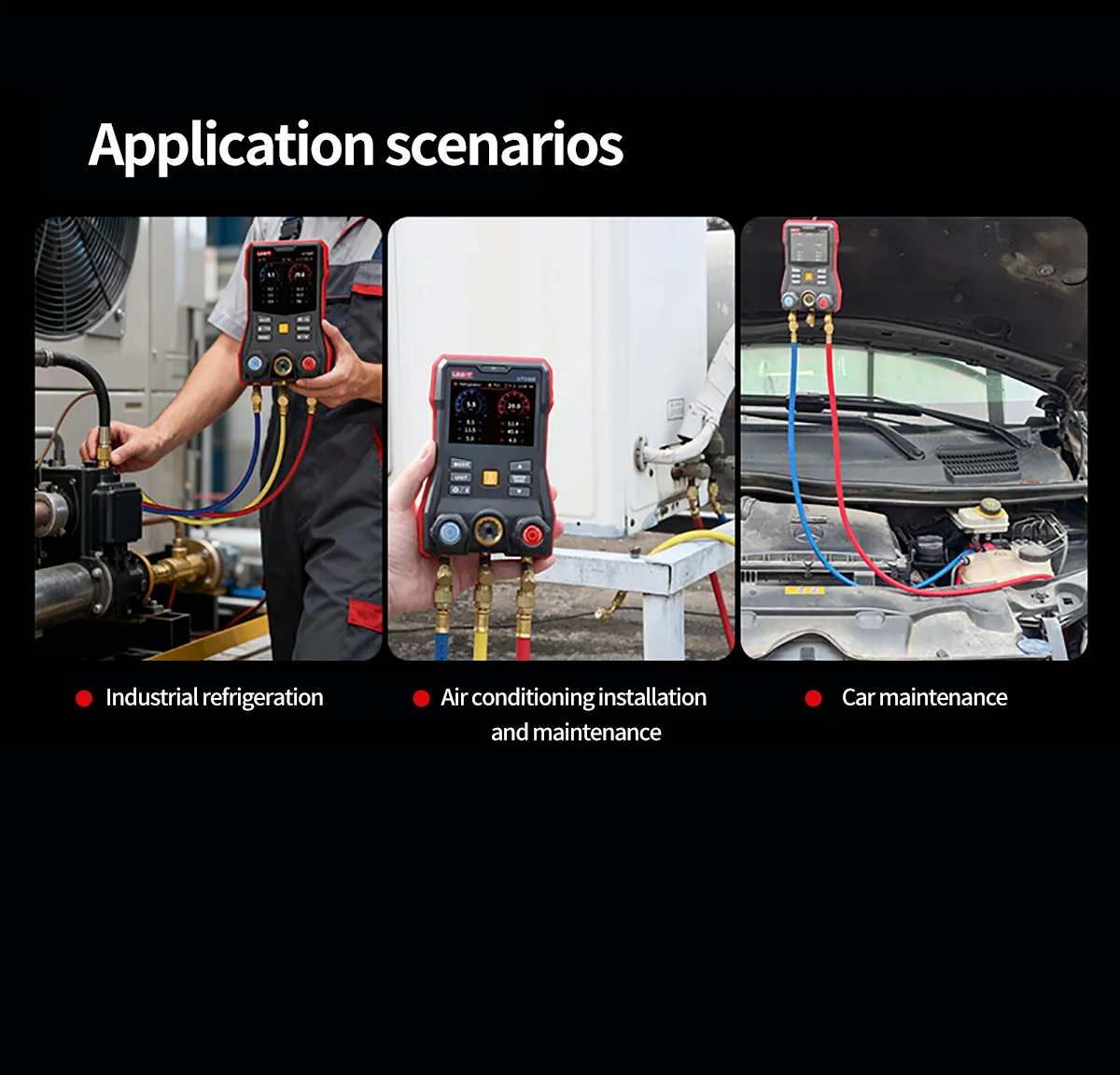

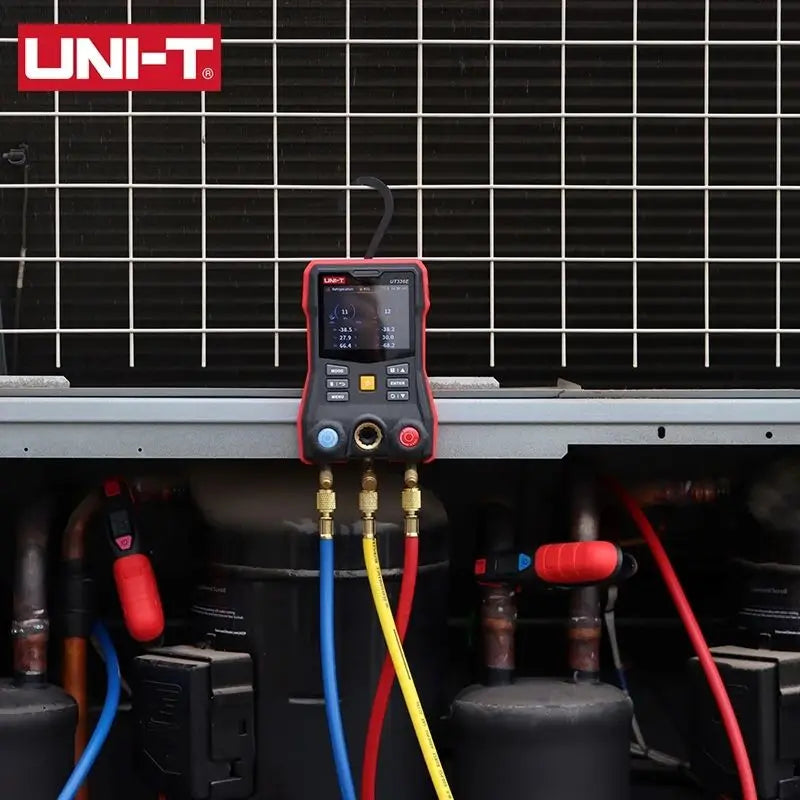

UT336E KIT is designed for the installation, debugging, and maintenance of refrigeration and heat pump systems, providing accurate measurement of high and low-side pressures. When used with wireless temperature clamps, it can measure the high/low-pressure refrigerant pipe temperatures and automatically calculate superheat and subcooling, helping optimize system performance. The device comes with built-in refrigerant parameters and supports wireless app connectivity for remote monitoring and data management. No matter if it’s for new installations, routine commissioning, or maintenance, UT336E KIT offers precise, intelligent support for refrigeration and heat pump systems, ensuring efficient and stable operation.

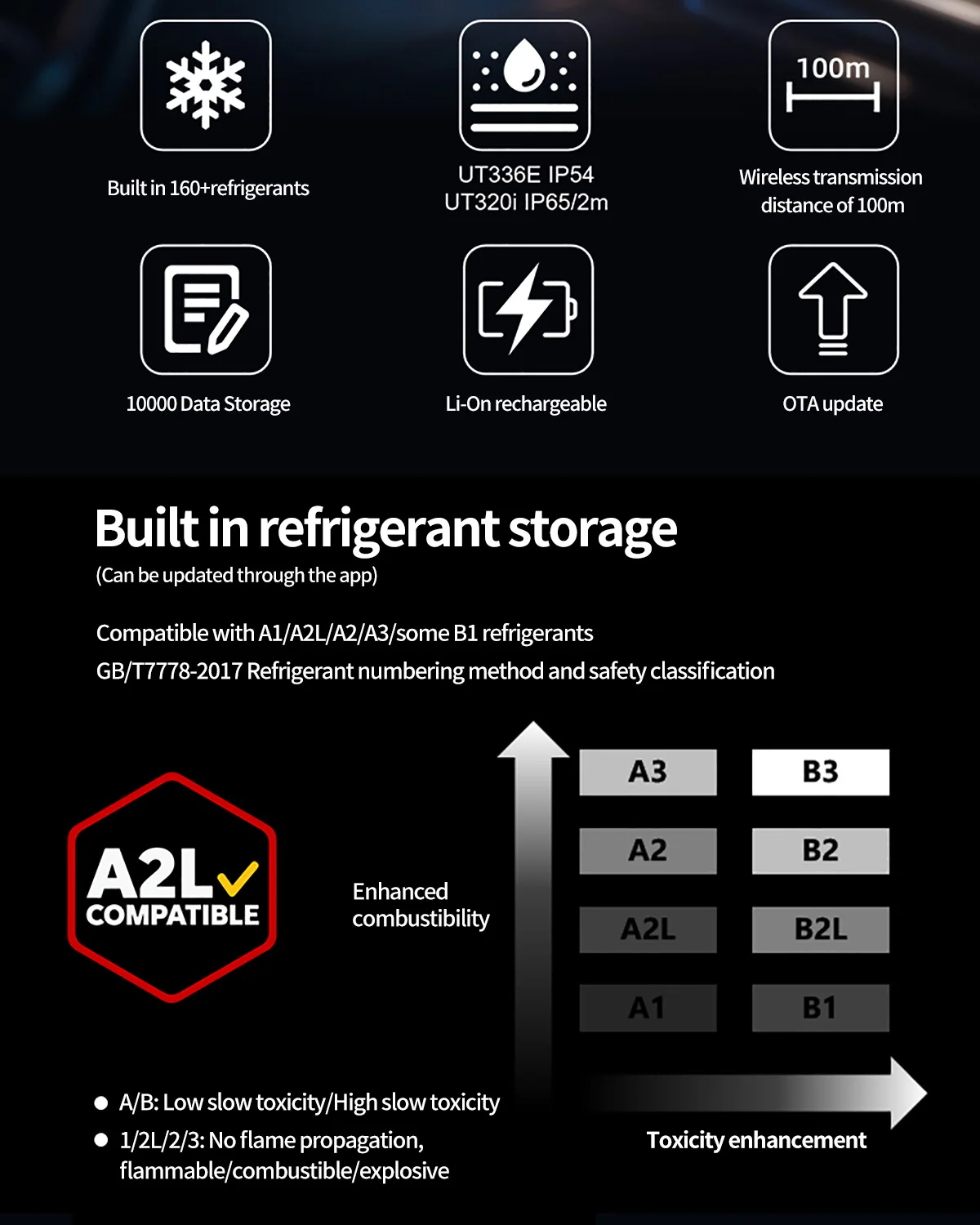

* Compatible with A1 / A2L / A2 / A3 and part of B1 refrigerants.
* The device cannot be used with ammonia refrigerants (NH3 / R717).
Features
3.5"HD Color Screen
10000 Data Storage

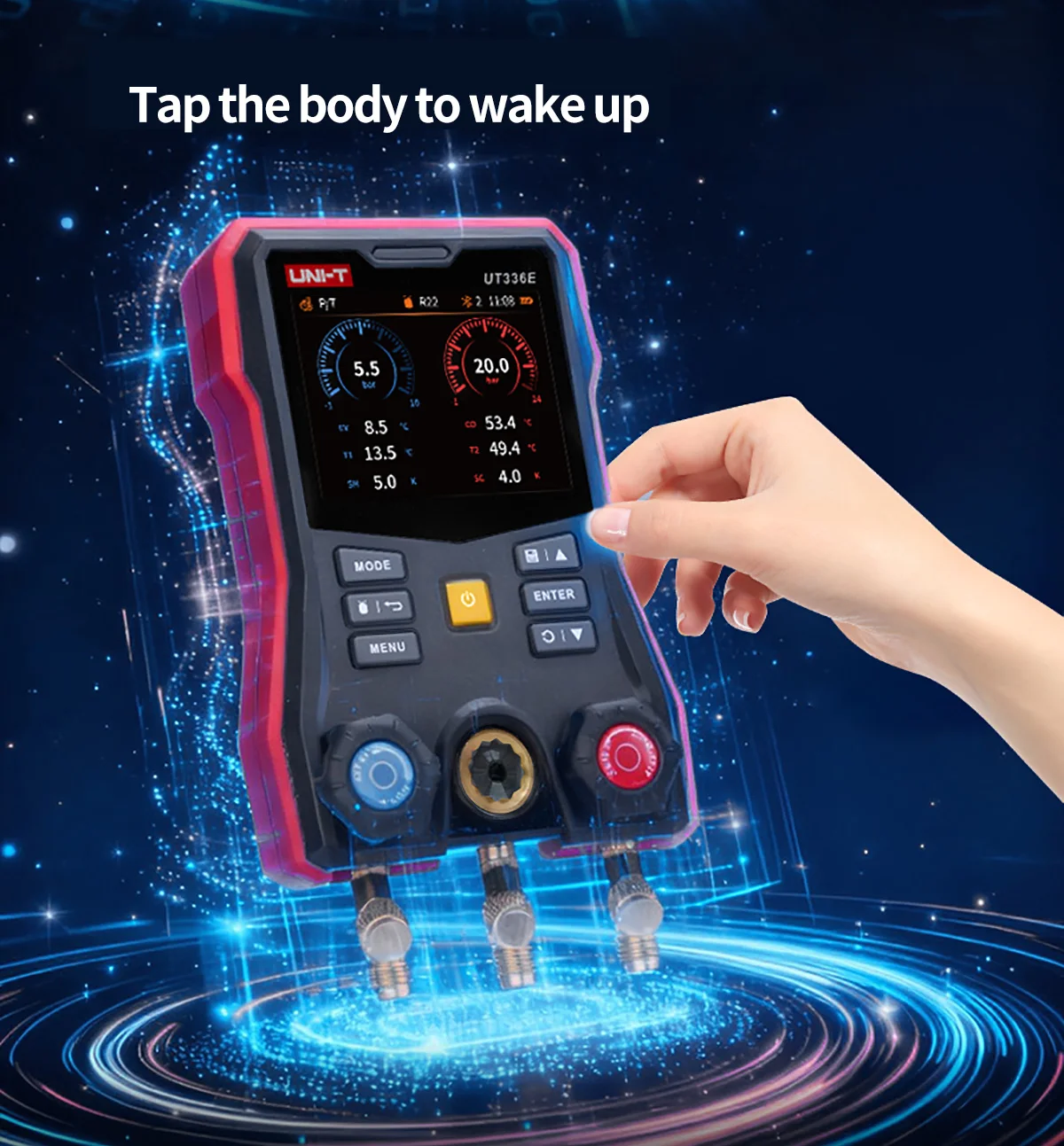

Tap-to-wake Backlight

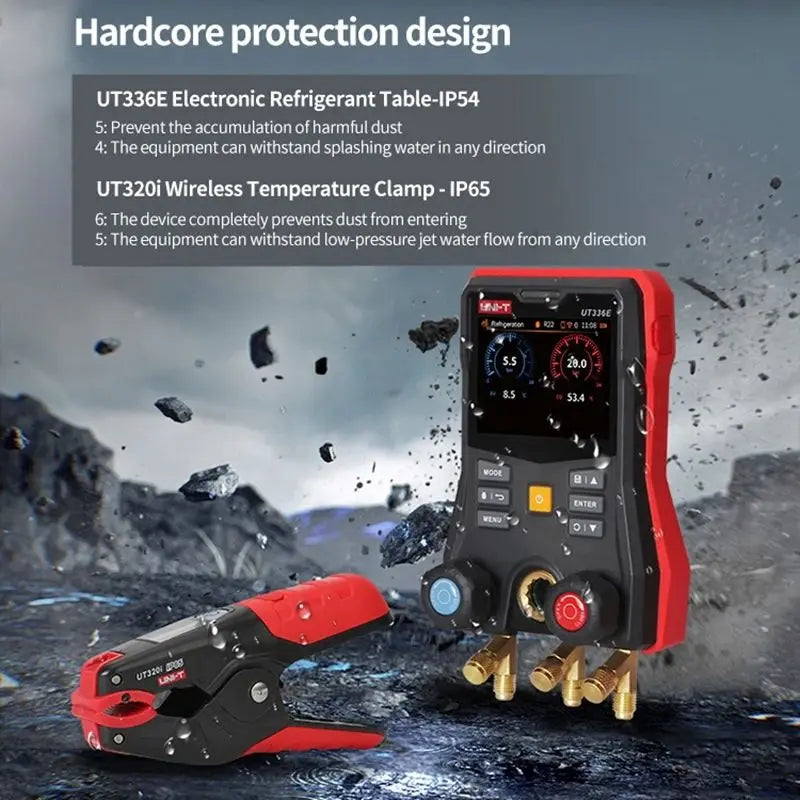

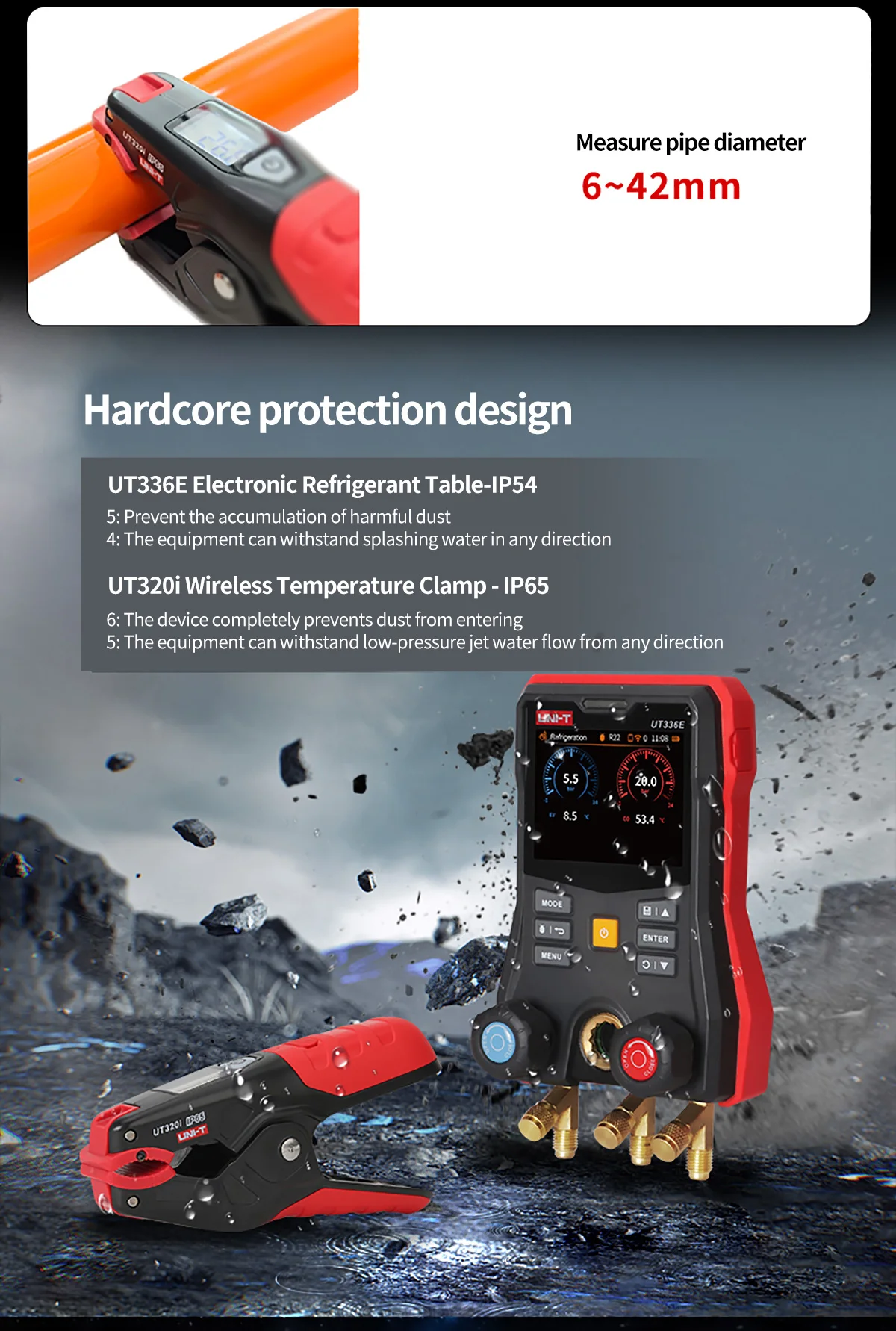

IP54 Rating

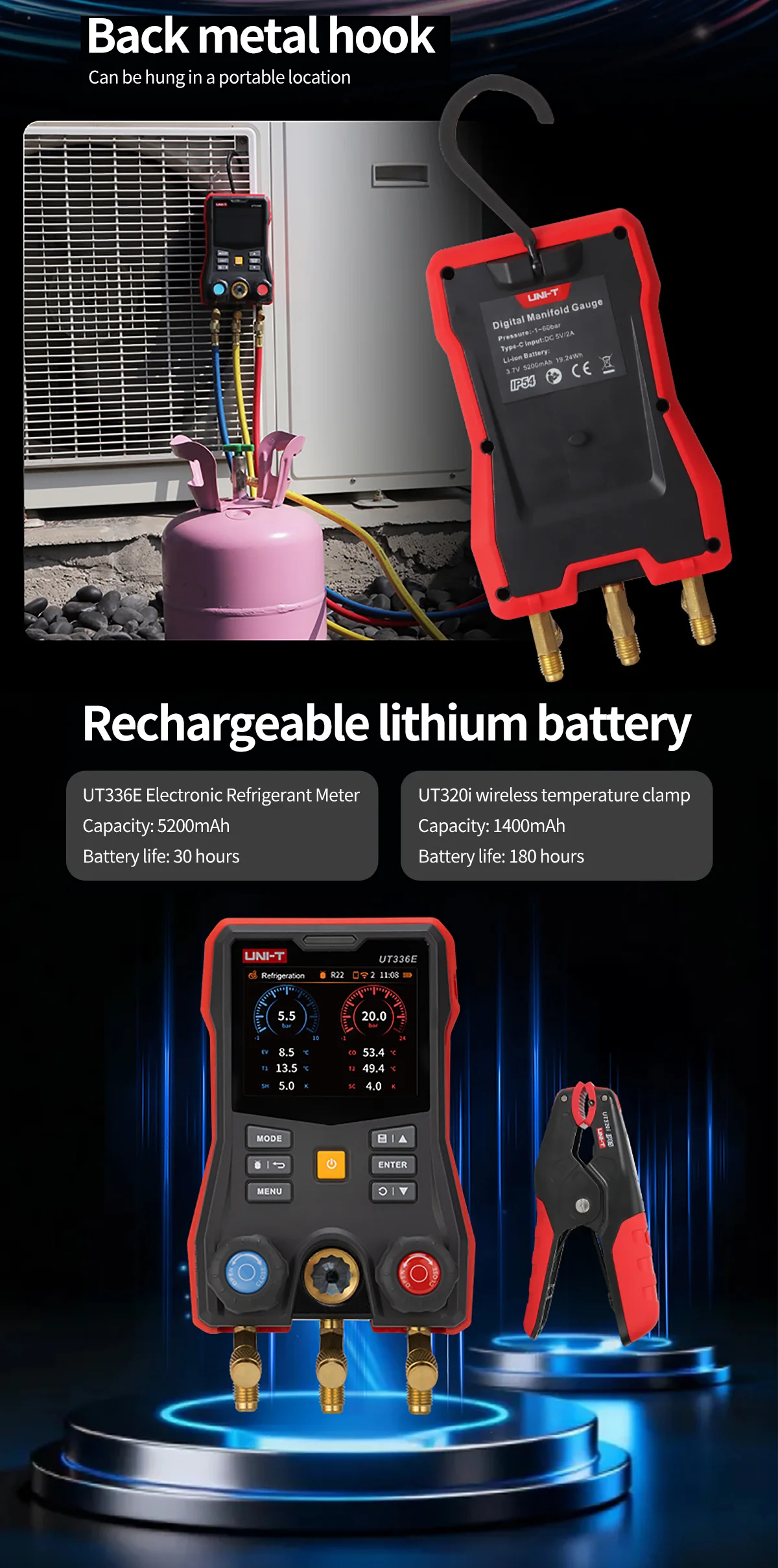

5200mAh Rechargeable Lithium Battery
Built-in 160+ Database
Metal Hook Design

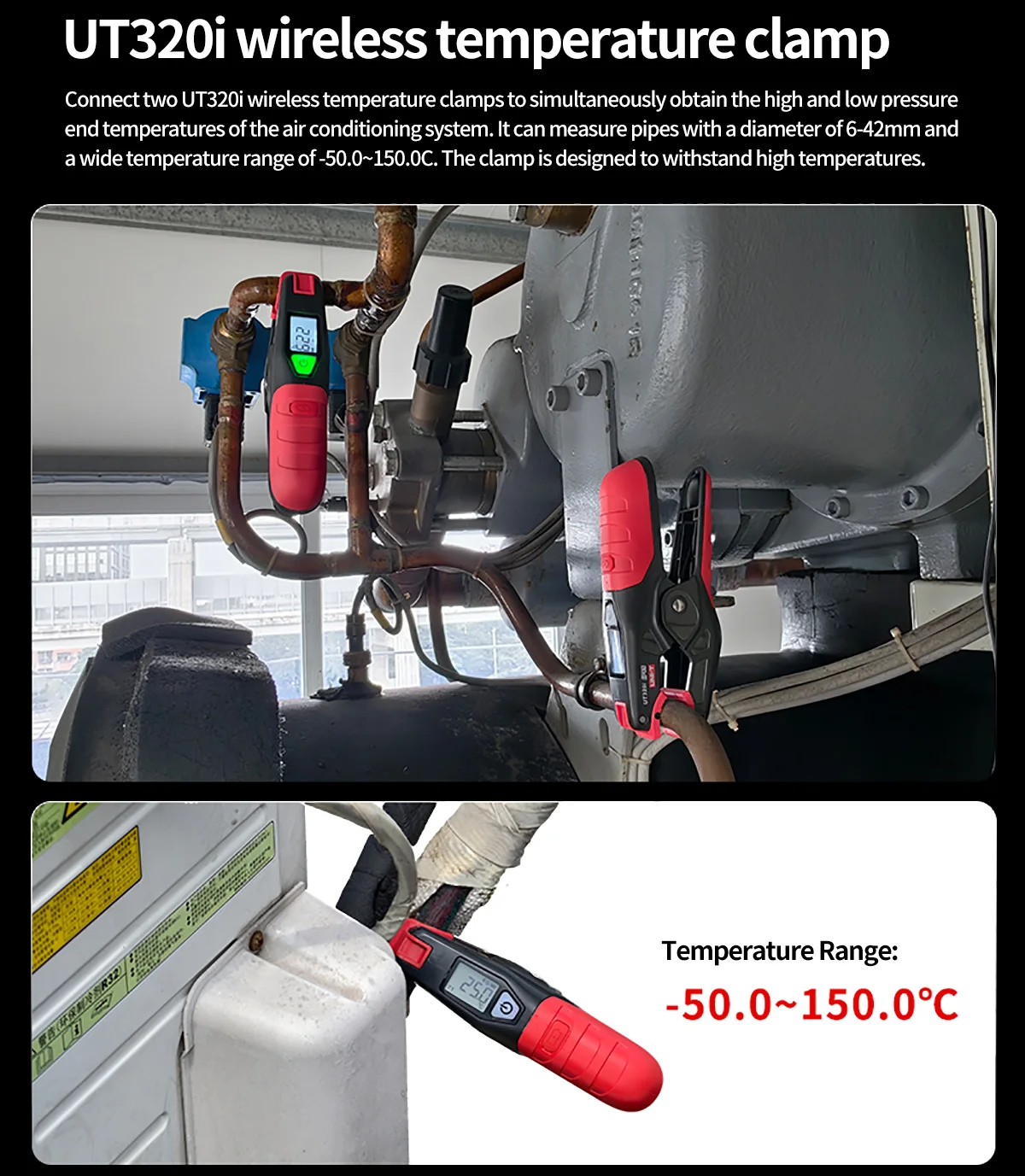

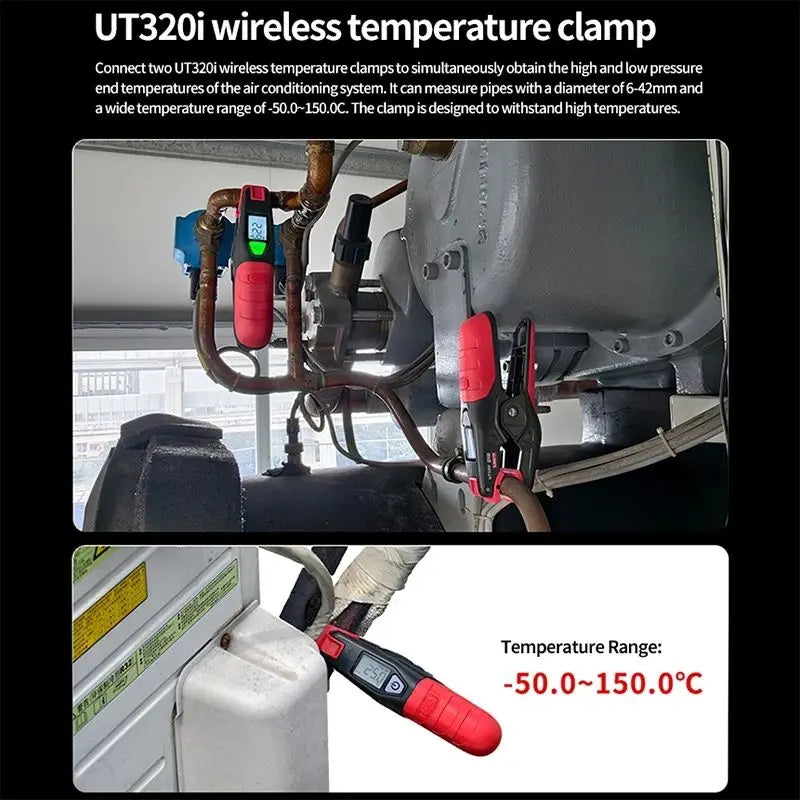

Wireless Temperature Clamps and Vacuum Gauge Connection

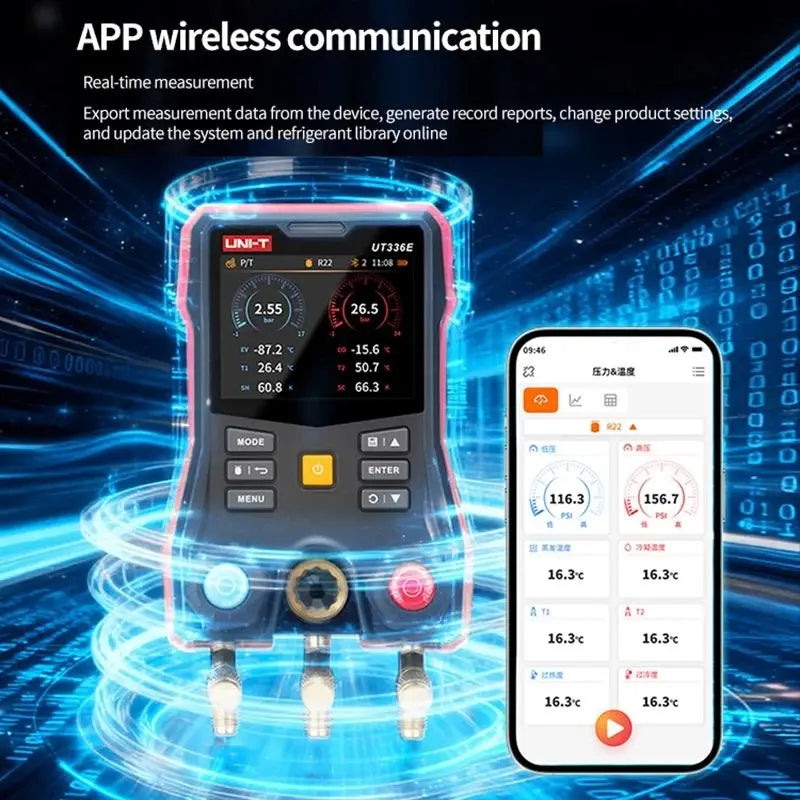

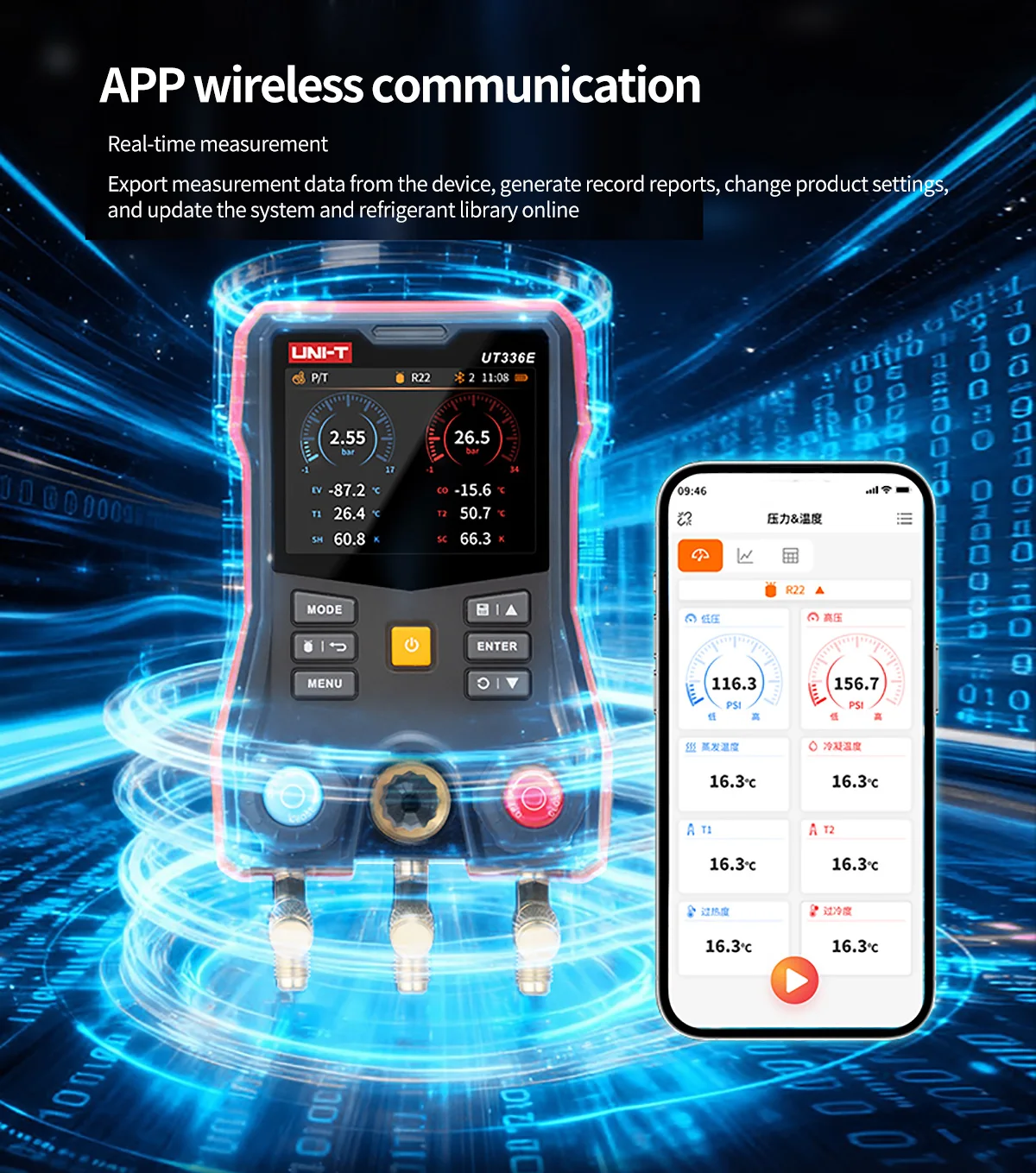

Mobile APP
Automatic Superheat/Subcooling Calculation

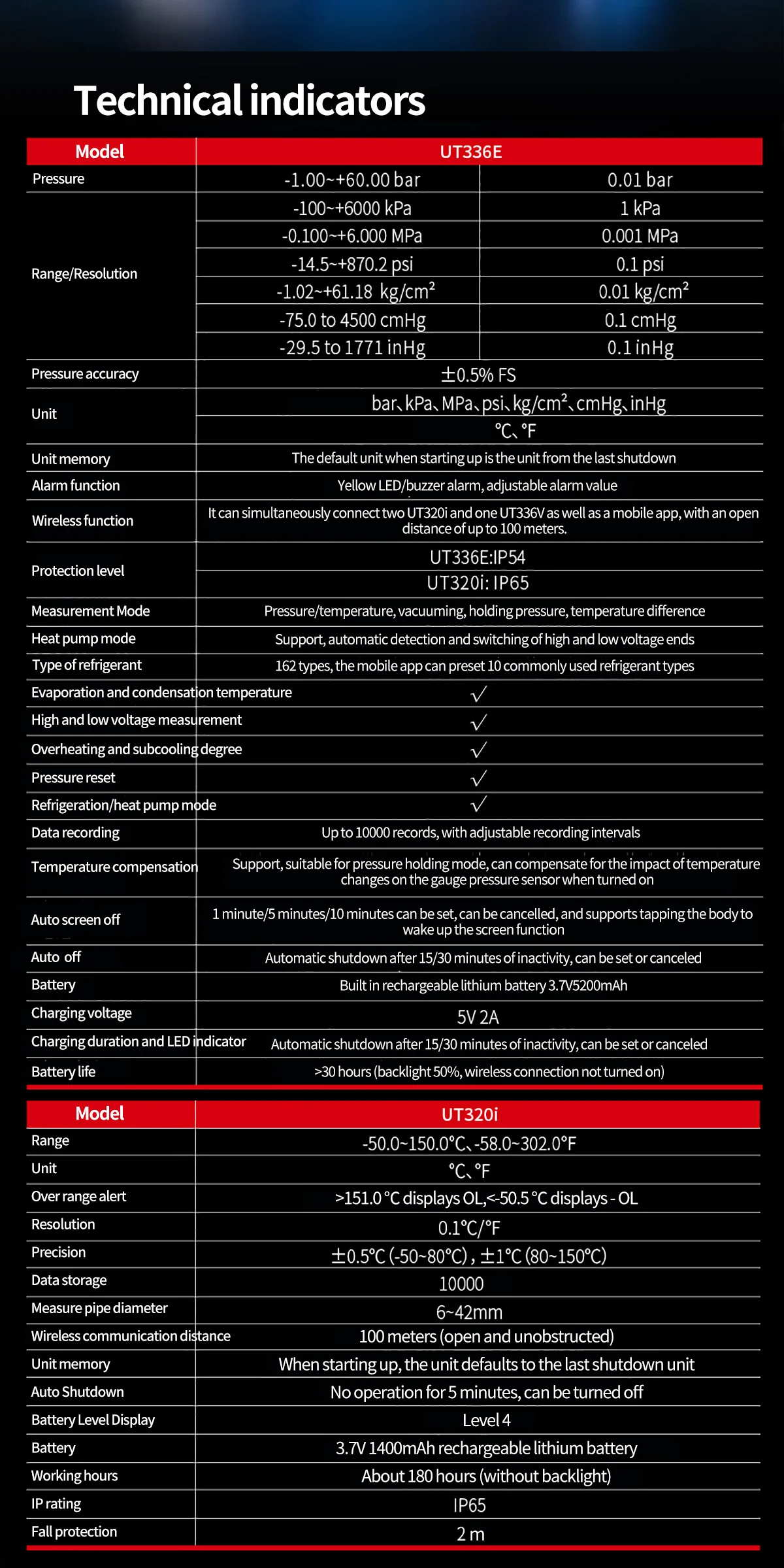

Specification | ||
Pressure Range/Resolution |
-1.00~+60.00 bar |
0.01 bar |
-100~+6000 kPa |
1 kPa |
|
-0.100~+6.000 MPa |
0.001 MPa |
|
-14.5~+870.2 psi |
0.1 psi |
|
-1.02~+61.18kgcm² |
0.01 kgcm² |
|
-75.0 to 4500 cmHg |
0.1 |
|
-29.5 to 1771 inHg |
0.1 |
|
Temperature Range |
-50~150℃ |
0.1℃ |
-58 -302℉ |
0.1℉ |
|
Pressure Accuracy |
±0.5% FS |
|
Temperature Accuracy |
±0.5℃(-50~80℃), ±1℃(other) |
|
Pressure Unit |
bar,kPa, MPa, psi, kgcm2, cmHg, inHg |
|
Temperature Unit |
℃, ℉ |
|
Alarm |
Yellow LED/Buzzer alarm |
|
Wireless Range |
100m |
|
IP Rating |
UT336E:IP54 |
|
UT320i: IP65 | ||
Refrigerant Type |
162+ |
|
|
Evaporation & Condensation Temperature |
√ |
|
High/Low-Pressure Measurement |
√ |
|
Superheat/Subcooling |
√ |
|
Pressure Zeroing |
√ |
|

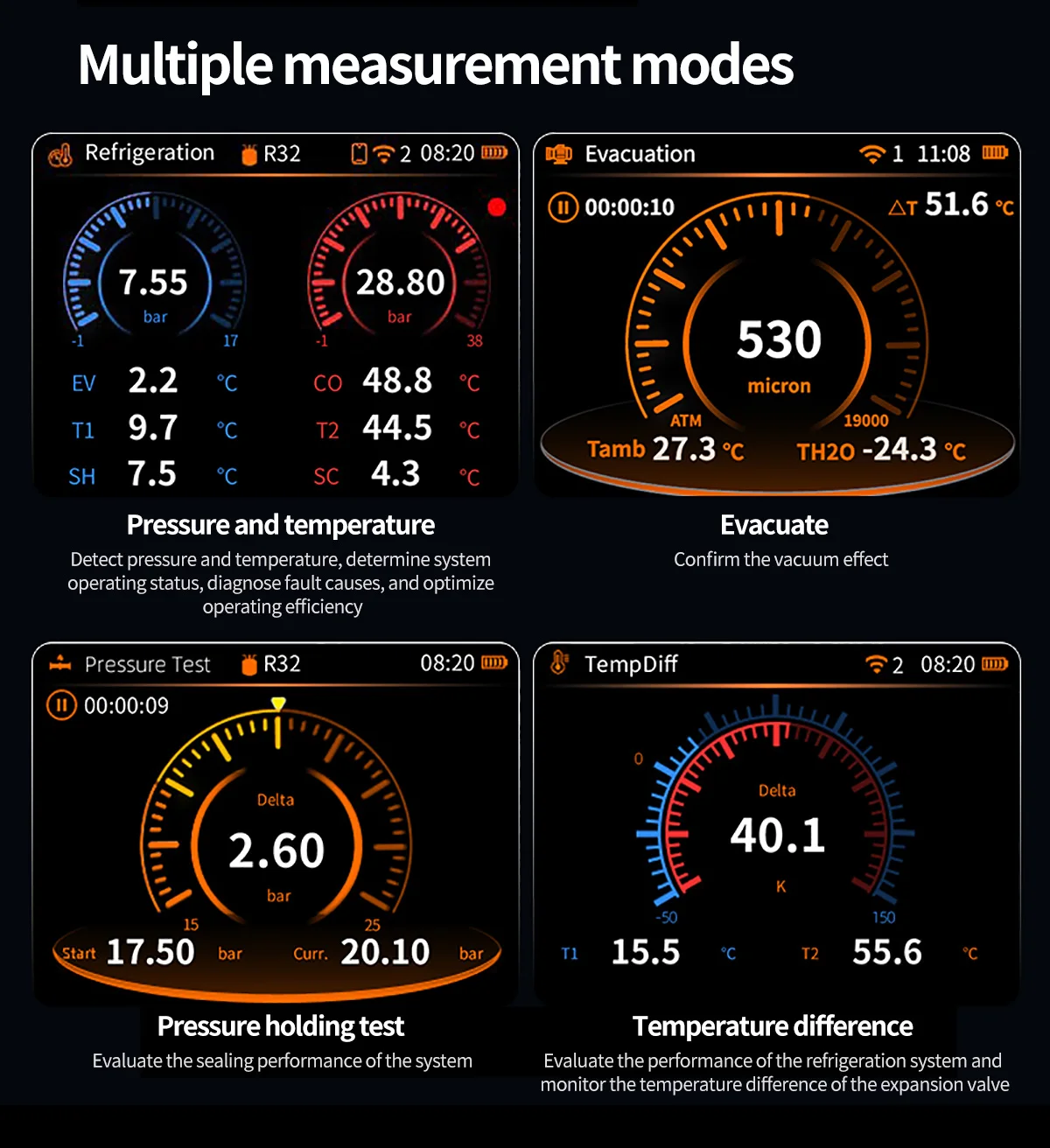

Refrigeration/Heat Pump Mode |
√(Auto detection) |
|
Evacuation Mode |
√ |
|
Pressure Holding Mode |
√ |
|
Data Record |
10000 |
|
Temperature Compensation |
√ |
|
Mobile APP |
√ |
|
OTA Upgrade |
√ |
|
Language Setting |
EN, FR, DE, IT, ES, SV, PL, CZ, CN |
|
Auto Screen Off |
√ |
|
Auto Power Off |
√ |
|
Interface |
3×1/4” SAE |
|
Working Temperature & Humidity |
-20～50℃＜90%RH(non-condensing) |
|
Storage Temperature & Humidity |
20～60℃＜90%RH (non-condensing) |
|
General Characteristics | ||
Battery |
Built-in rechargeable lithium battery: 3.7V 5200mAh |
|
Battery Life |
>30h, (backlight 50%, wireless connection OFF) |
|
Size |
UT336E:203×117×70mm; UT320i:156×79×40mm |
|
Weight |
UT336E:About 836g; UT320i: About 156g |
|
