SPECIFICATIONS
Application: Desktop
Brand Name: KINVEDE
Case Size: 232x205x90mm
Case Weight: 1.5
Chassis Type: Desktops
Form Factor: Mini-ITX
High-concerned chemical: none
Material: SPCC
Model Number: PC-GM-100
Origin: Mainland China
Power Model: SFX
RGB Support: NO RGB
Type: Vertical

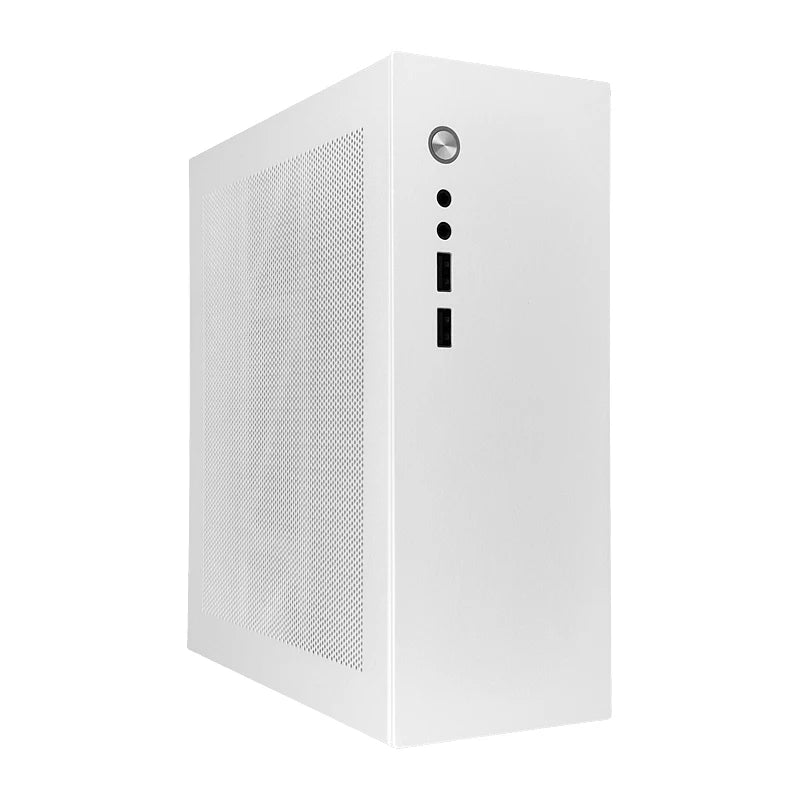

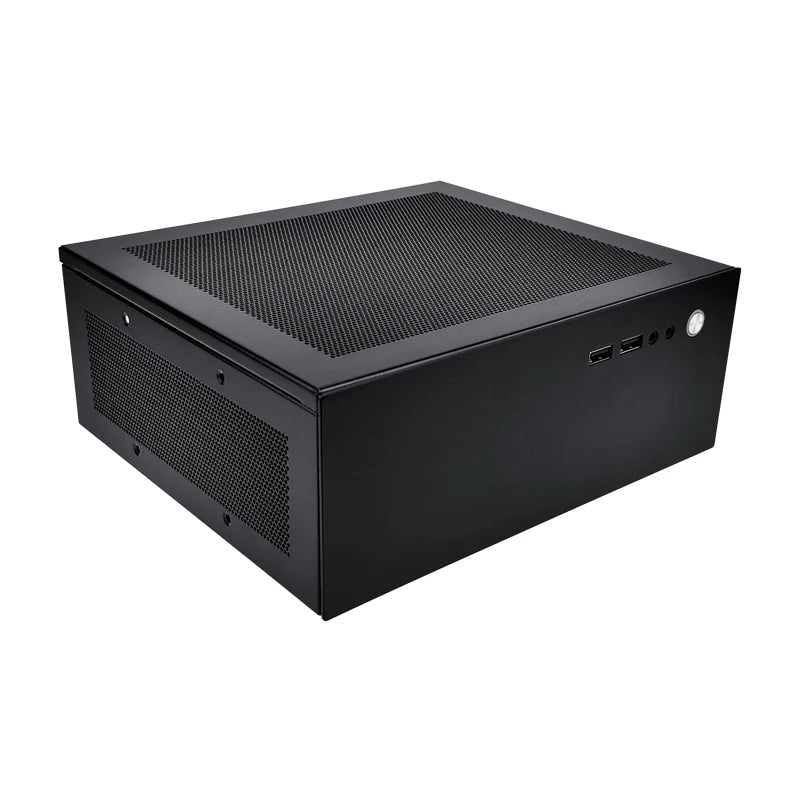

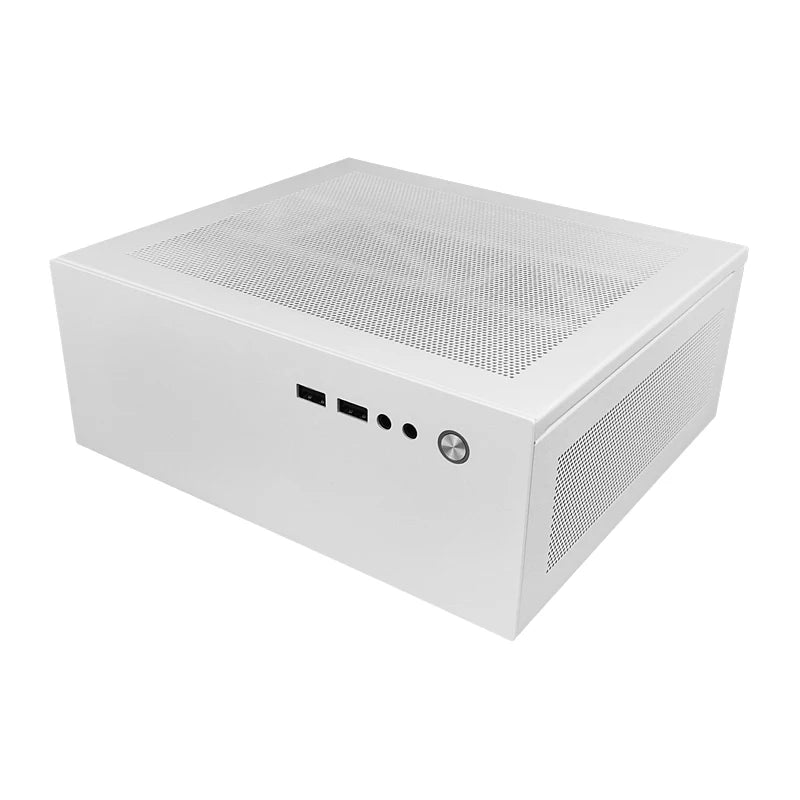

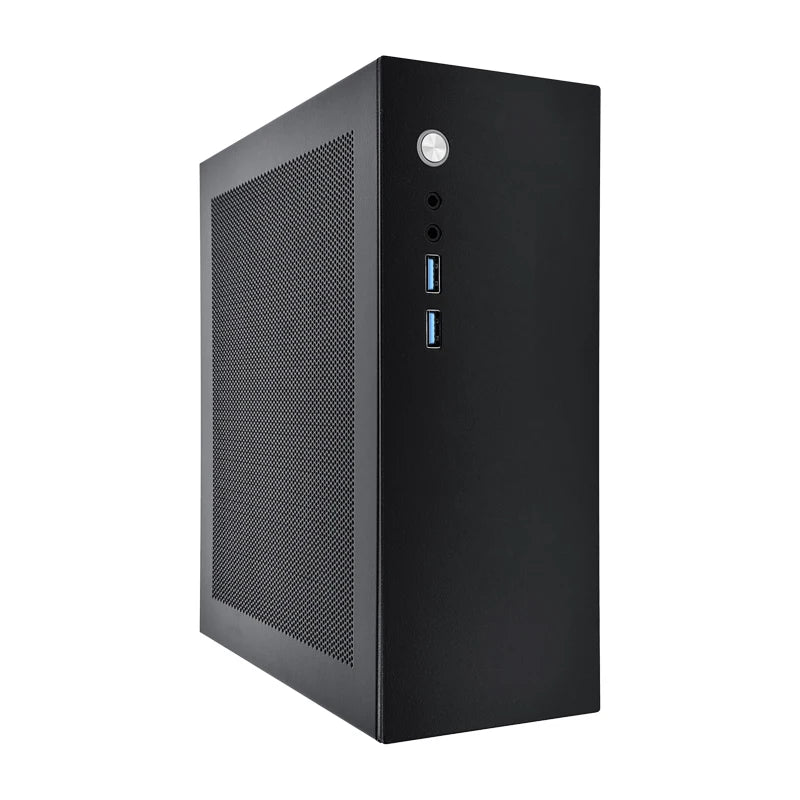

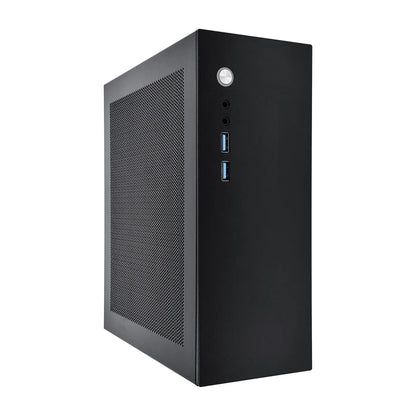

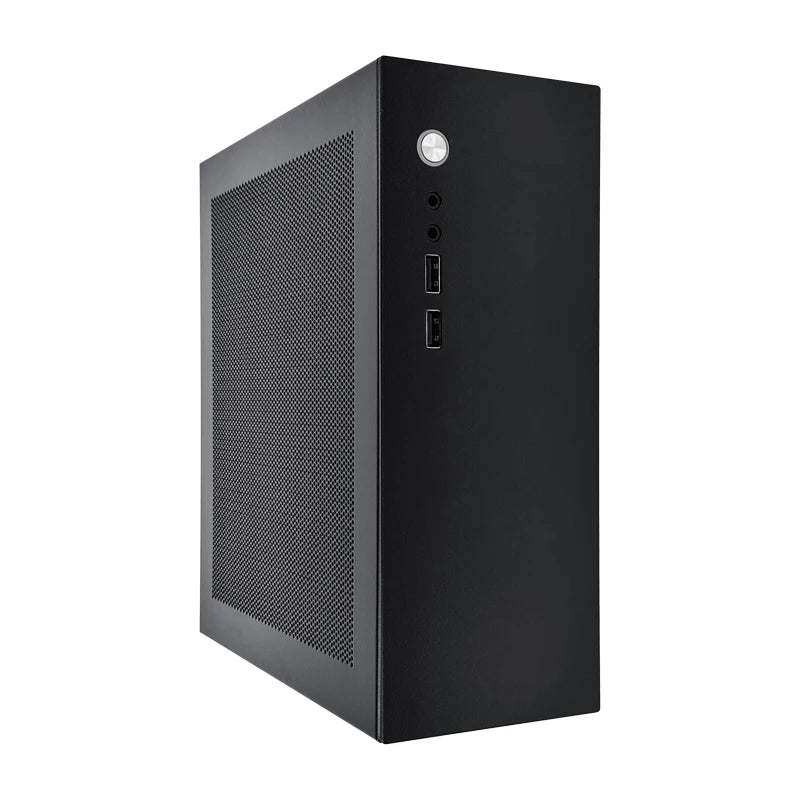

4.3L Mini-ITX PC Case Vertical or Horizontal for Monitoring Server Chassis Industrial Control Computer for Computer Case Chassis
Specifications:
1.Chassis Model: PC-GM-100

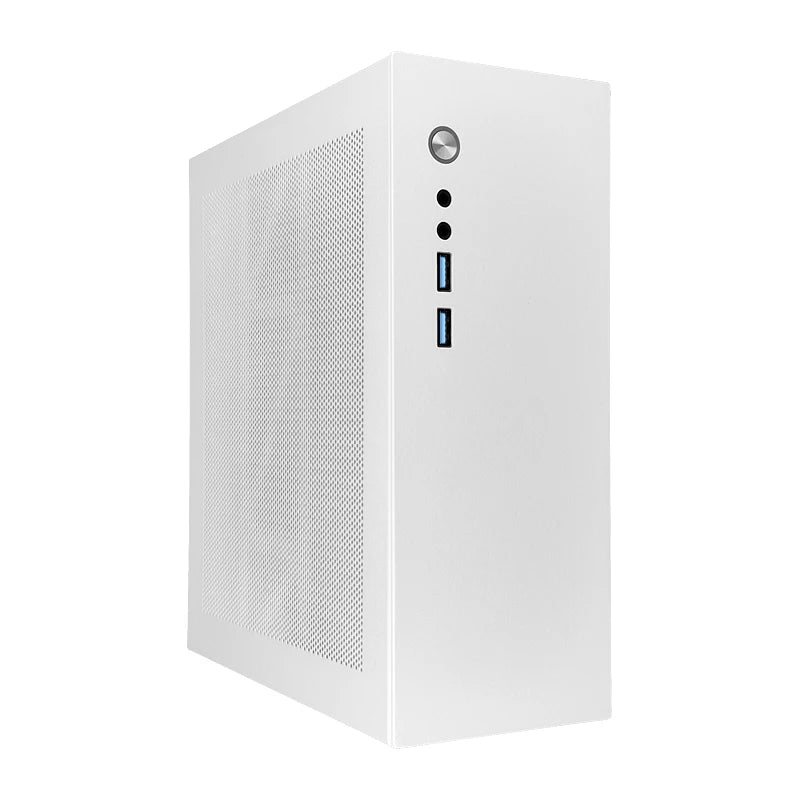

2.Chassis Color: White/Black(optional)

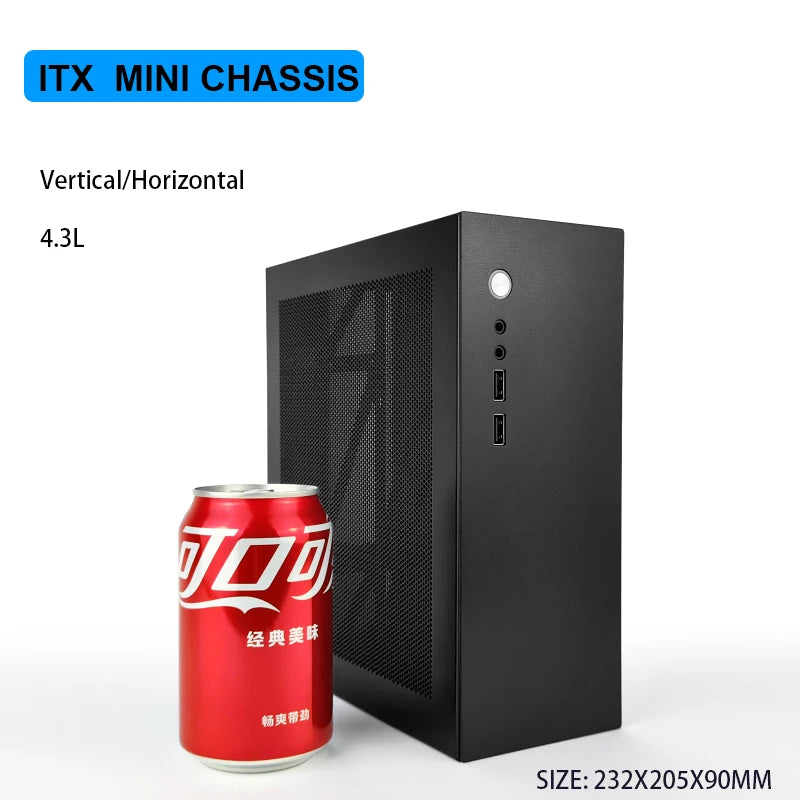

3.Chassis Size: 232x205x90mm
4.Packaging Size: 300x250x135mm
5.Gross Weight: 1.5KG
6.Supports standard ITX panel, reserve 2 WiFi antenna installation holes
7.Comes with USB2.0 (USB3.0 optional) and 1.5mm hard drive bracket
8.Adopts MESH perforated design for excellent heat dissipation
9.Supports single-fan graphics cards, limited length 185mm and thickness 25mm
10.The front panel thickness is 1.5mm(note: thickness refers to the thickness of unpainted steel plates)
CPU Height Limitations:
1.When without hard drive and hard drive bracket, the CPU cooler height limit is 75mm
2.When install single graphics card, the CPU cooler height limit is 46mm,AMD Ryzen R7/R5 45MM
3.When install SSD, the CPU cooler height limit is 67mm
4.When install 20mm thick HDD, the CPU cooler height limit is 50mm;
when install 26mm thick HDD, the CPU cooler height limit is 47mm
Package Included:
Computer Chassis*1pc
Notes:
Actual color may be slightly different from the image due to different monitor and light effect.
Please allow 1-3cm/0.39-1.18inch deviation due to manual measurement.
Pictures:
