SPECIFICATIONS
Brand Name: WALKSNAIL
Certification: CE,FCC,RoHS
Drones Accessories Type: Data Transmission System
Fps: 1080P/60FPS
High-concerned chemical: none
Max. Transmission Distance: Up to 4km
Min. Latency (end-to-end): Average 22ms

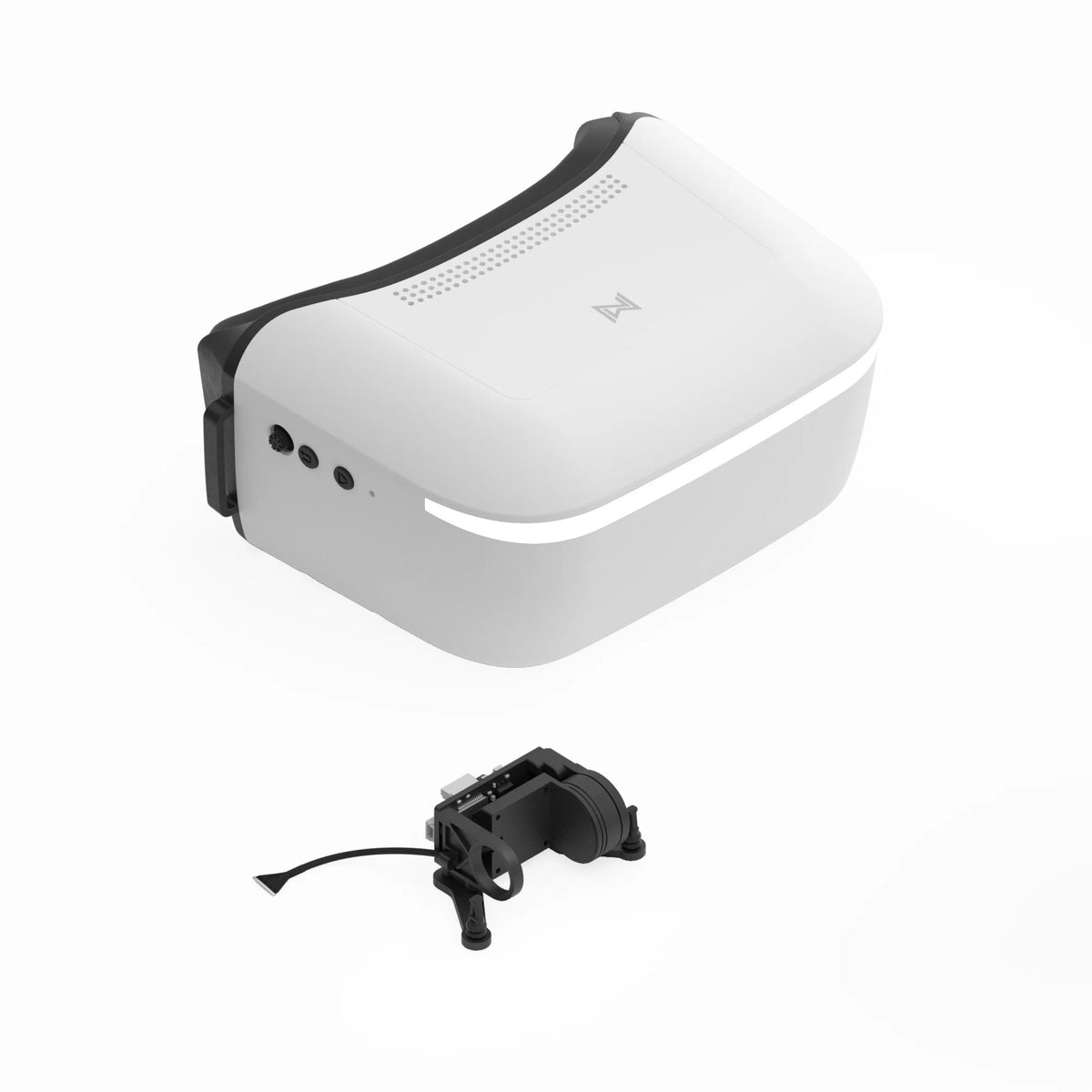

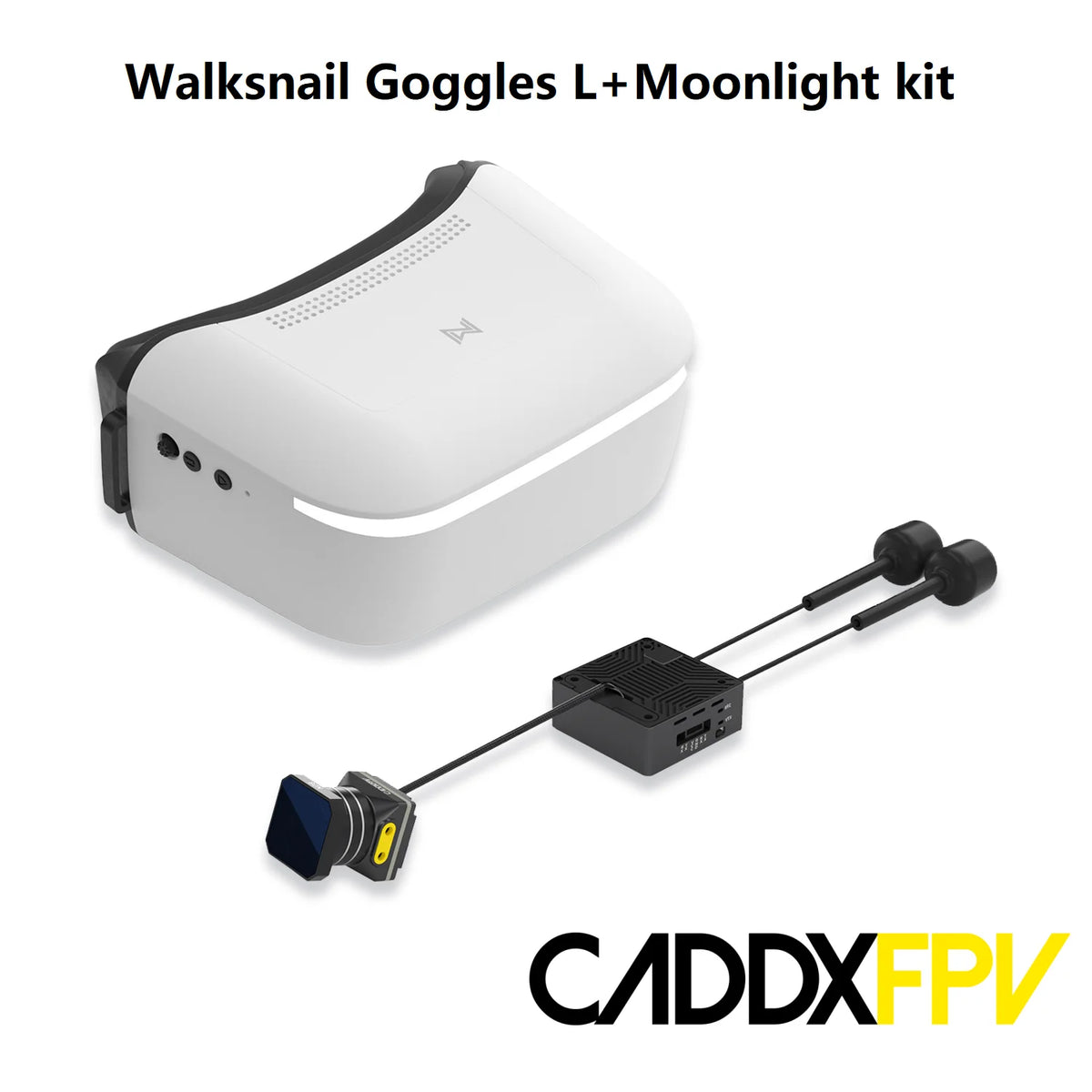

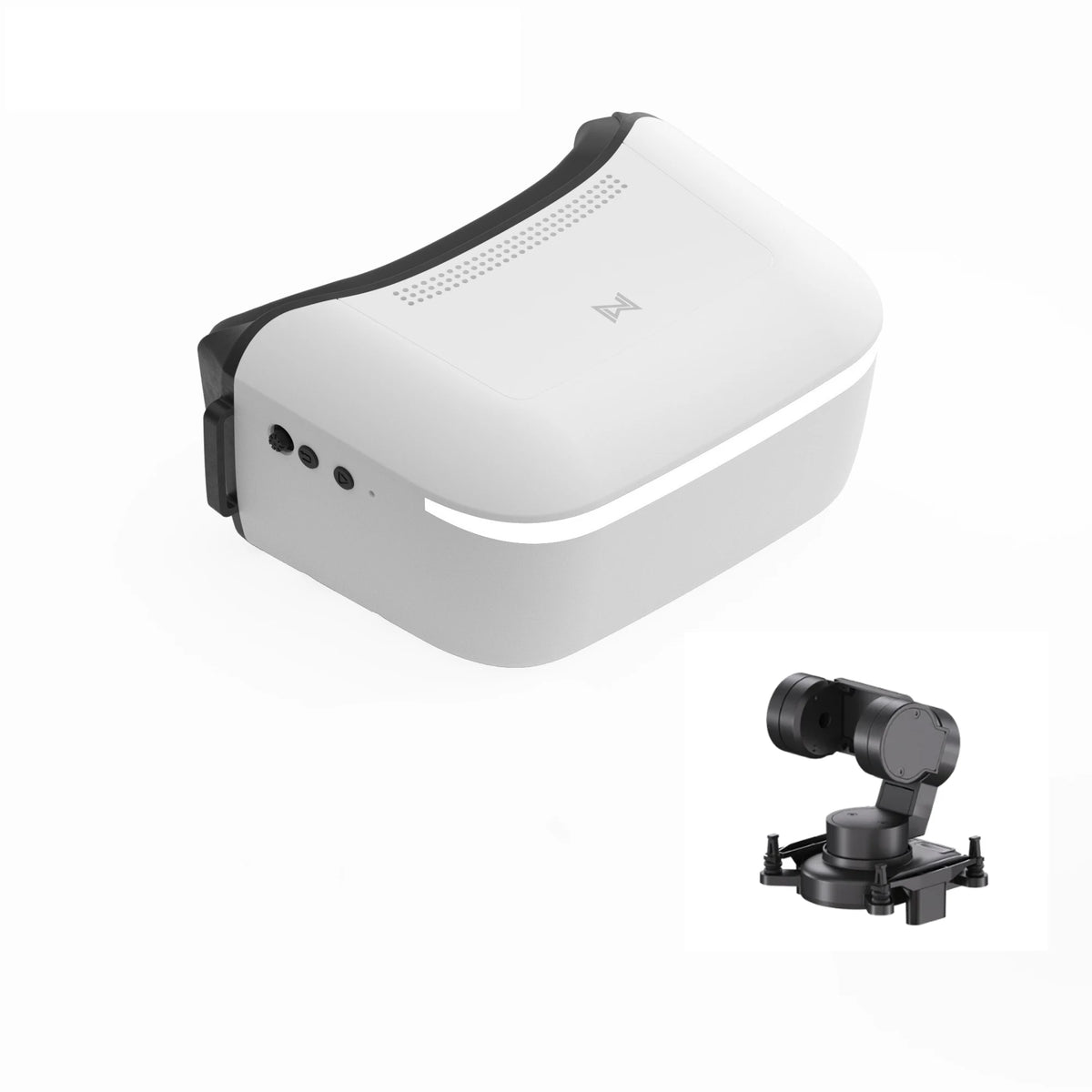

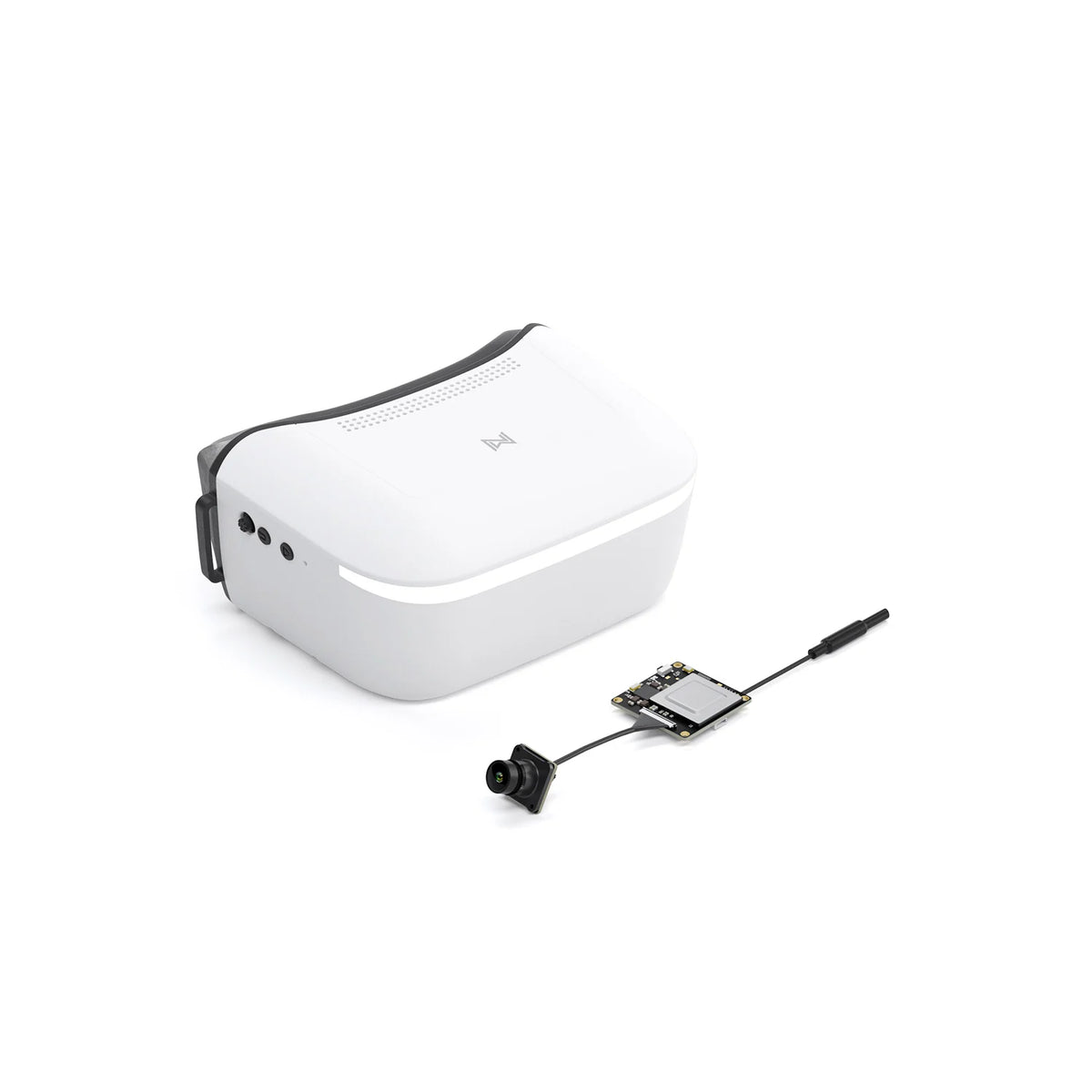

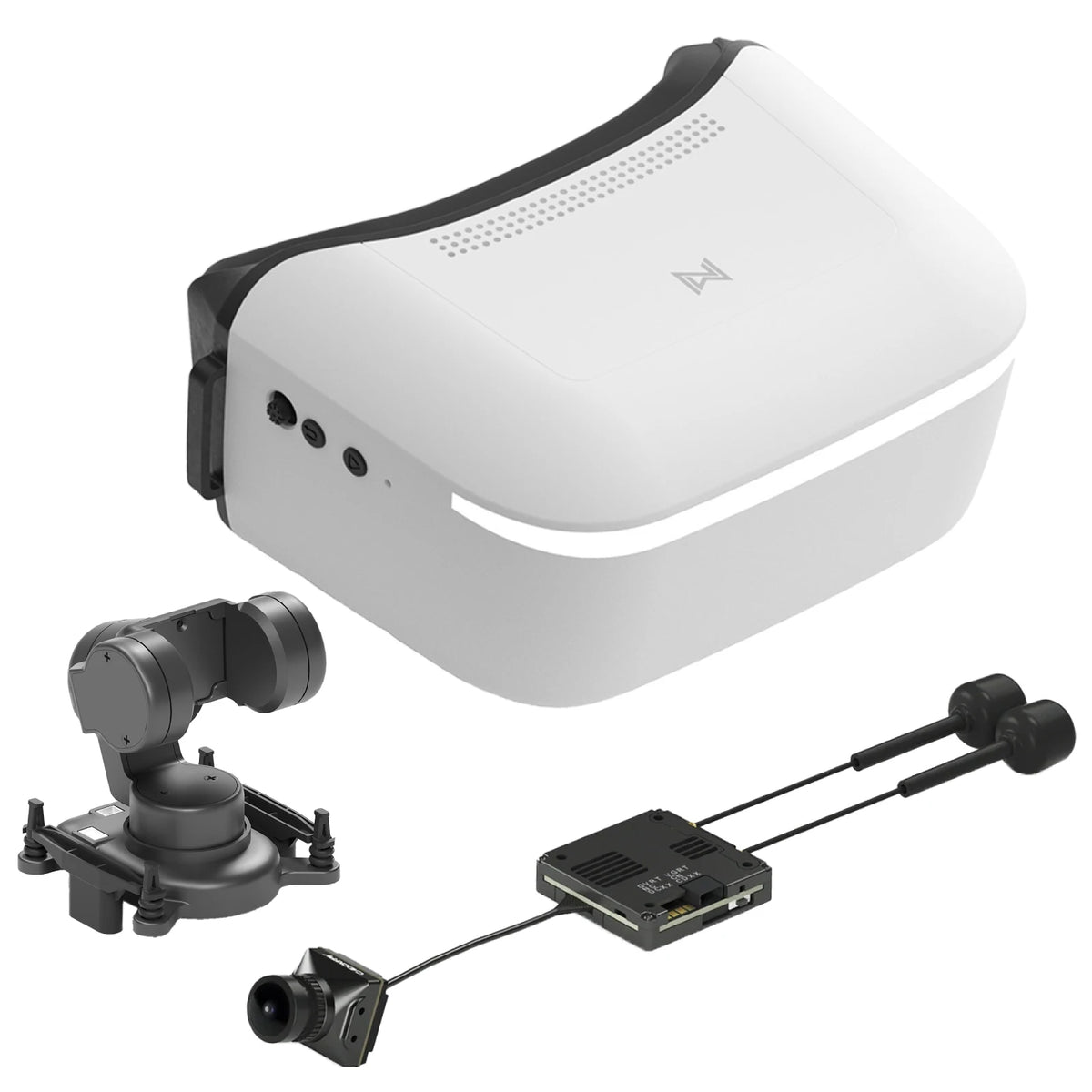

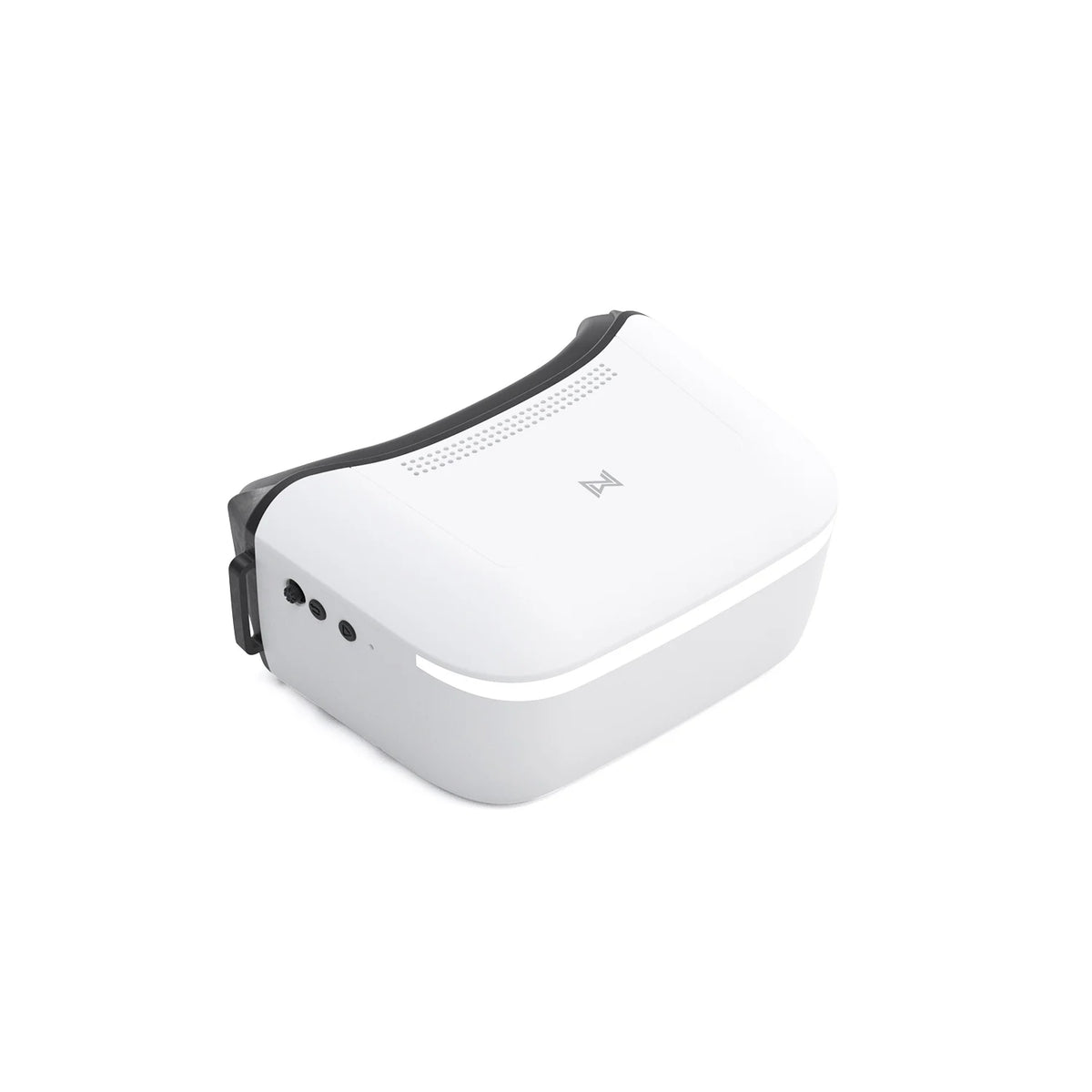

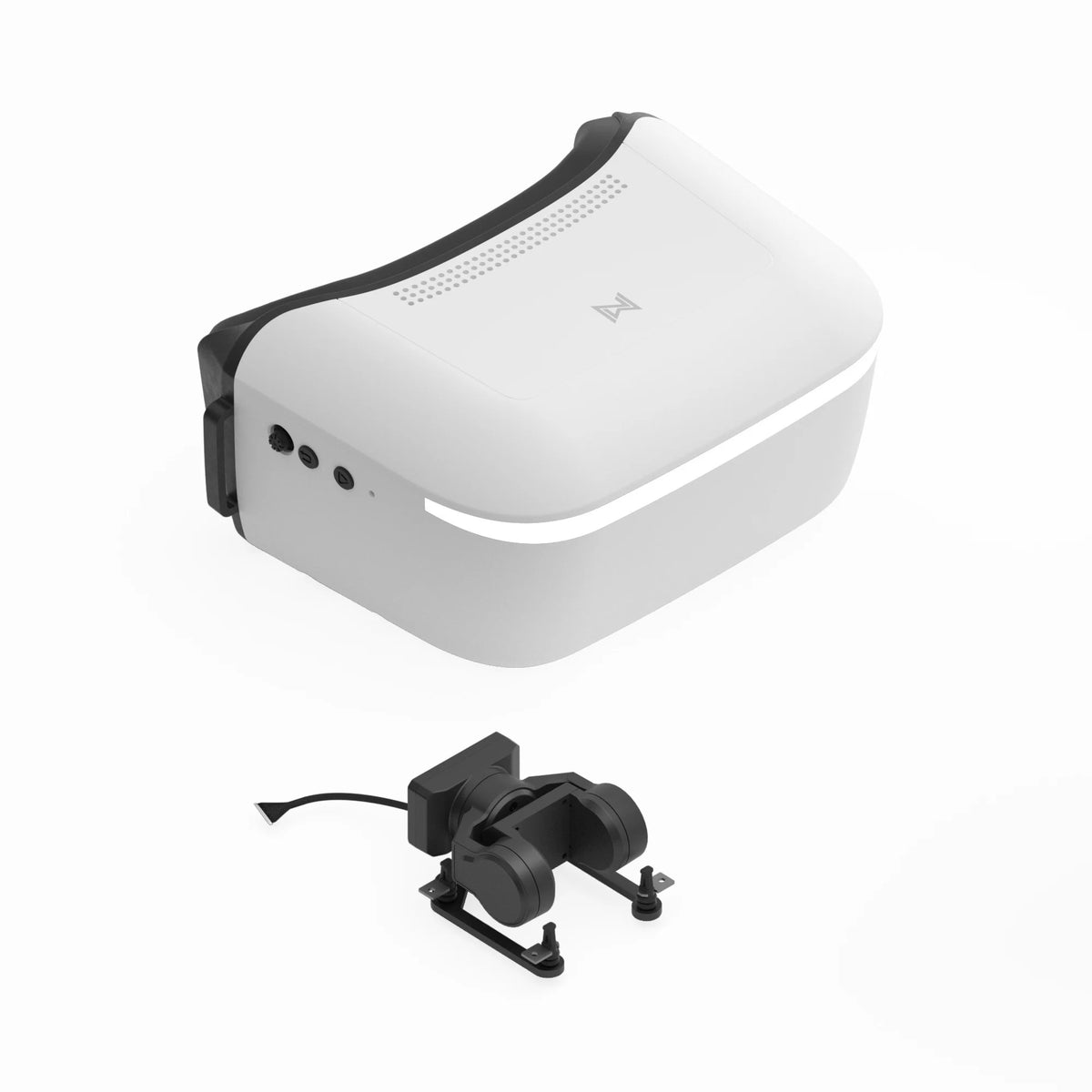

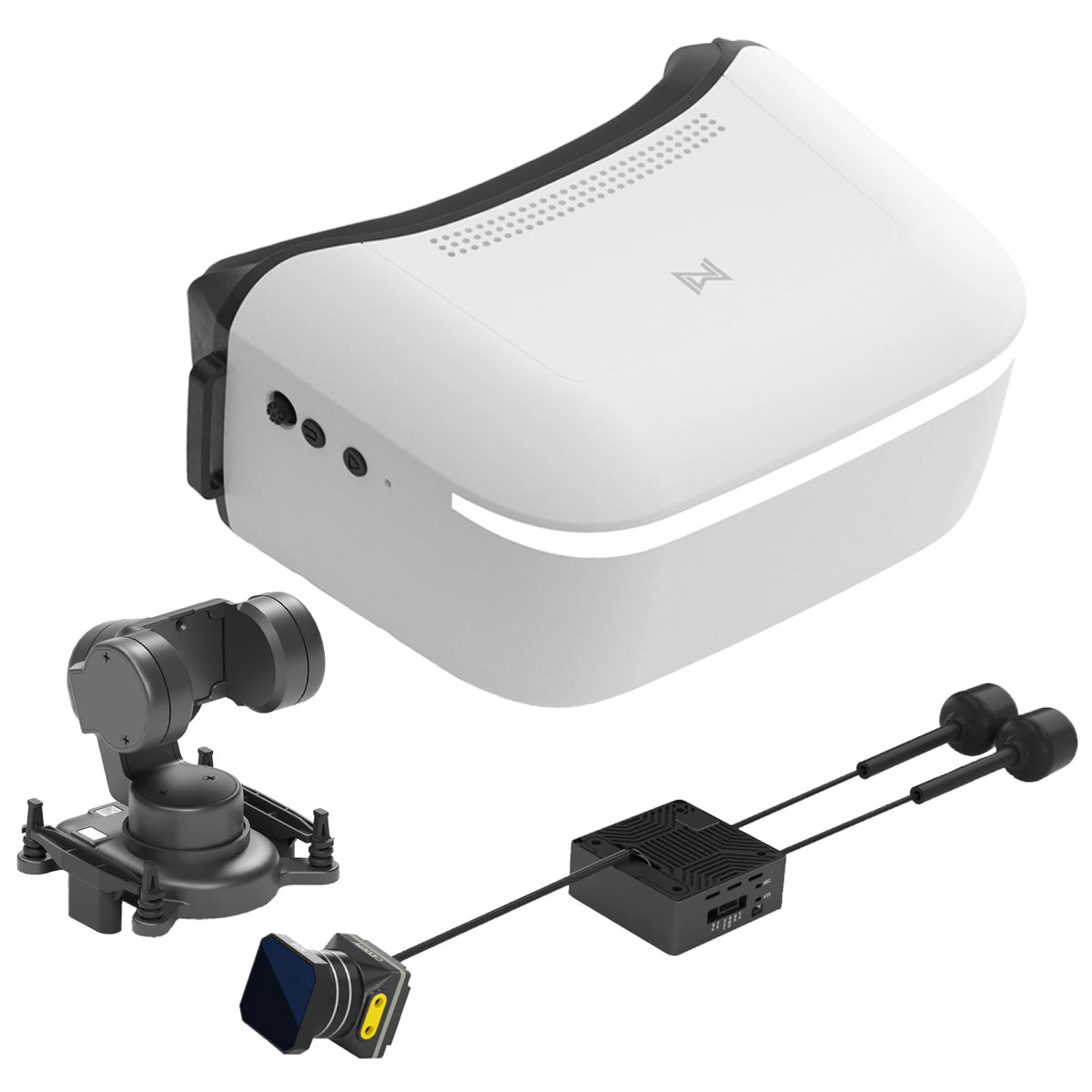

Model Number: Walksnail Avatar HD Goggles L
Origin: Mainland China
Package: Yes
Product Dimensions: 158.8mm*105mm*121mm
Resolution: 1920*1080/60Hz
Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
Model |
Avatar HD Goggles L |
Communication Frequency |
5.725-5.850GHz |
Transmitter Power(EIRP) |
FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
I/O Interface |
4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot |

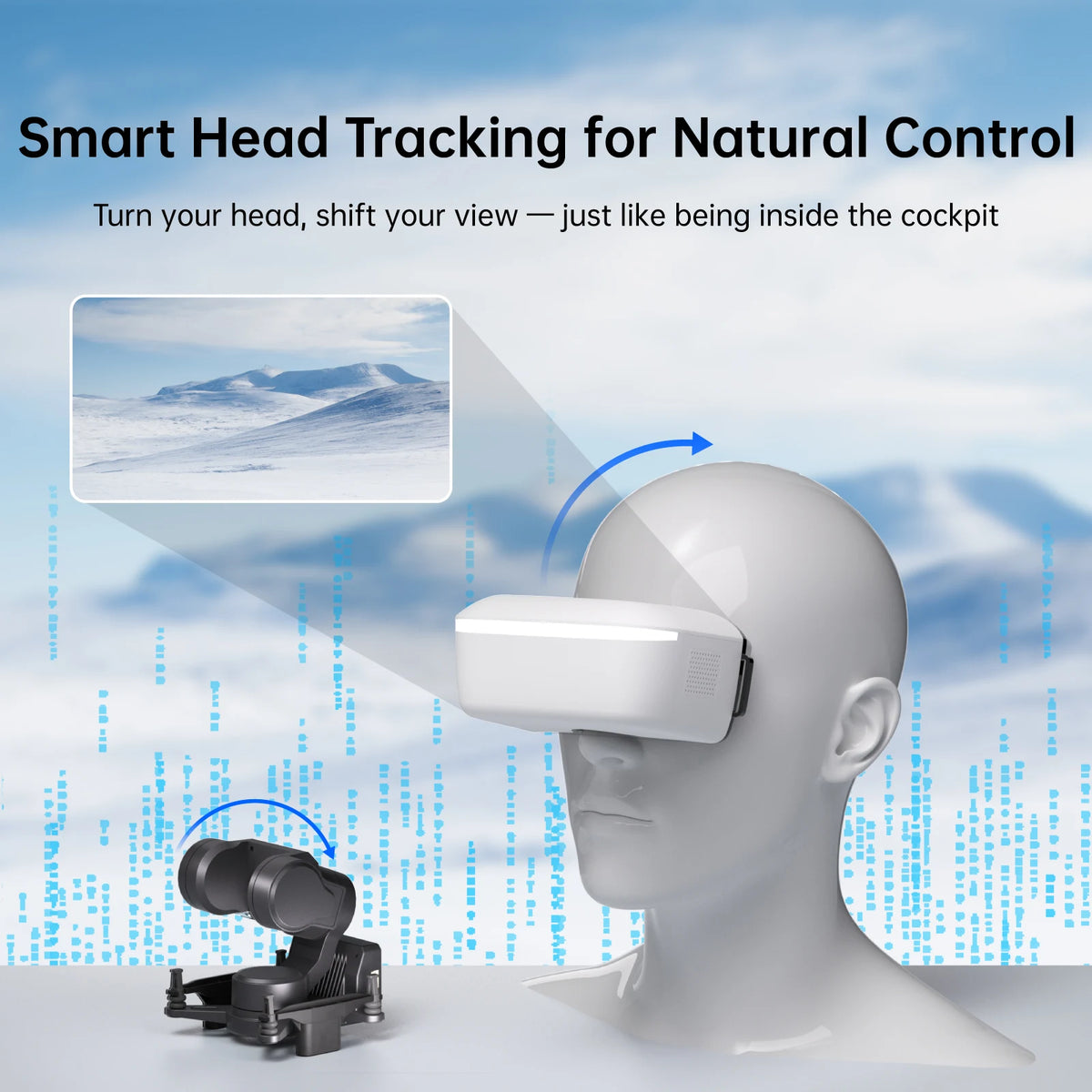

Gyro |
Nine-axis gyroscope |
Transmission Resolution |
1080p60fps, 720p60fps |
Code Rate |
Max 50 Mbps |
Min. Latency |
Average 32ms |
Average Gain |
4.9dBi |
Polarization |
LHCP |
Transmission Distance |
＞4km |
Channel |
8 |
Screen Resolution |
1920*1080/60Hz |
Screen Material |
LCD |
FOV |
75° |
Screen Size |
4.5 Inch |
Power Input |
6V-25.2V(2S-6S) |

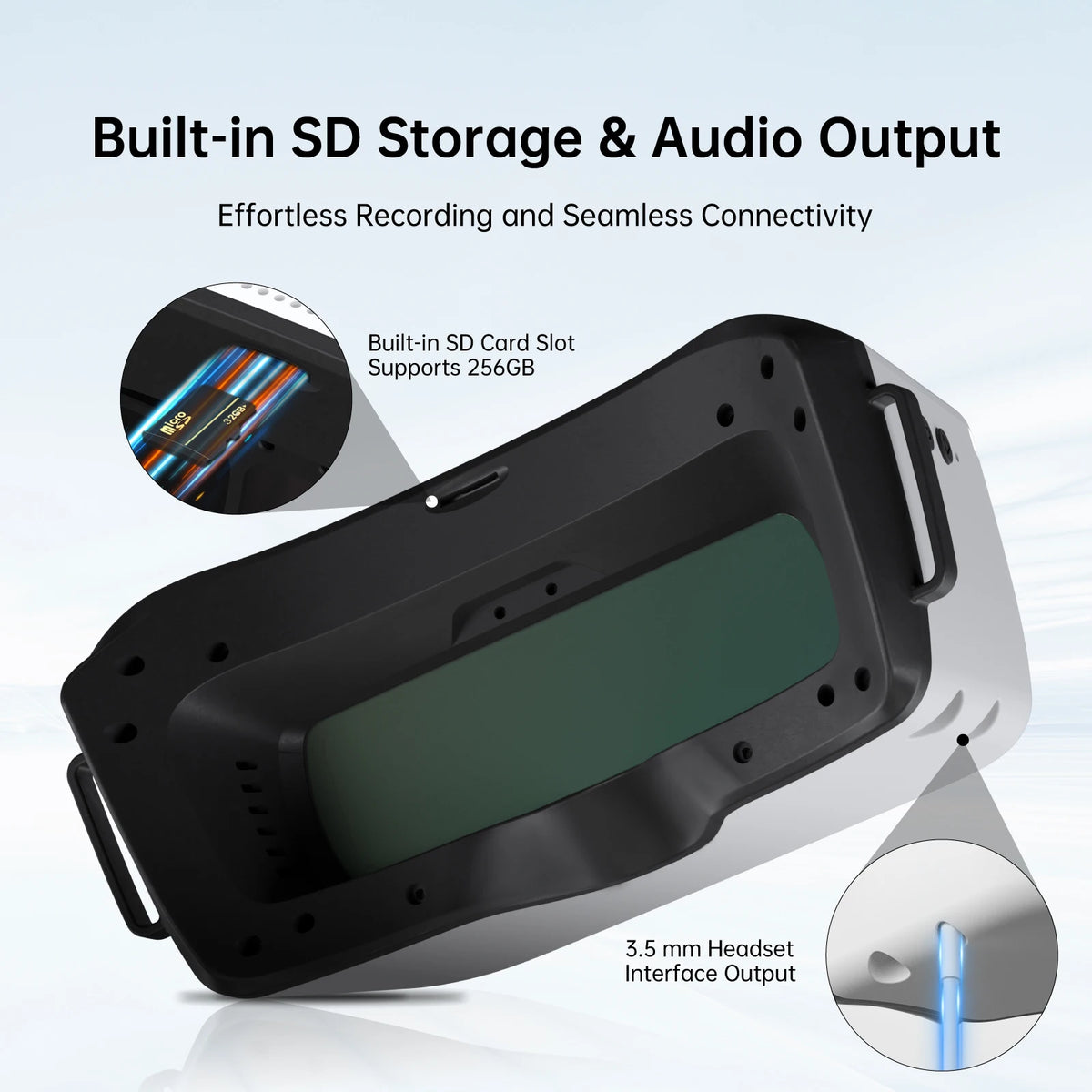

SD Card |
Support 256G |
Net weight |
350±10g |

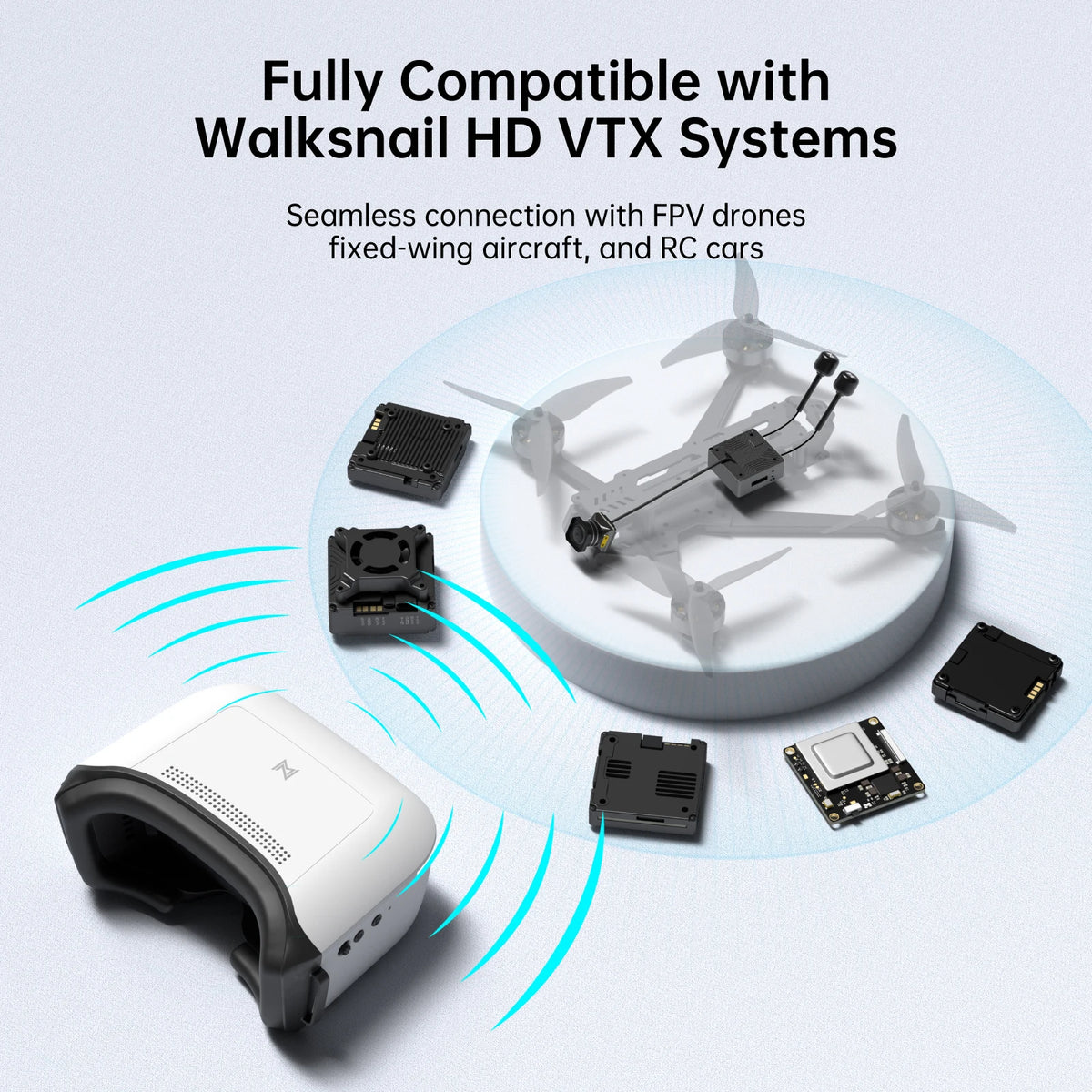

System |
Avatar HD System |
Packing List |
Quantity |
Straight DC5.5-XT60 Power Cord |
1 |
Storage Bag |
1 |
Lens Cleaning Cloth |
1 |
