SPECIFICATIONS
Battery Included: Yes
Brand Name: WANGLU
Cable Types: Fit for RJ45 twisted pair, RJ11 telephone cable, BNC video cable and low-voltage metal cable
Cable tracer: Digital signal search the RJ45/BNC cable
Certification: CE,FCC,RoHS
Digital Multimeter (Optional): auto-ranging voltage/ resistance/ continuity measurement
Emitter Battery: 3.7V 4000mAh lithium-ion rechargeable battery
High-concerned chemical: none
Length Measurement: Up to 3000 meters
Level Meter(Optional): Measures the peak level, sync level, and burst level

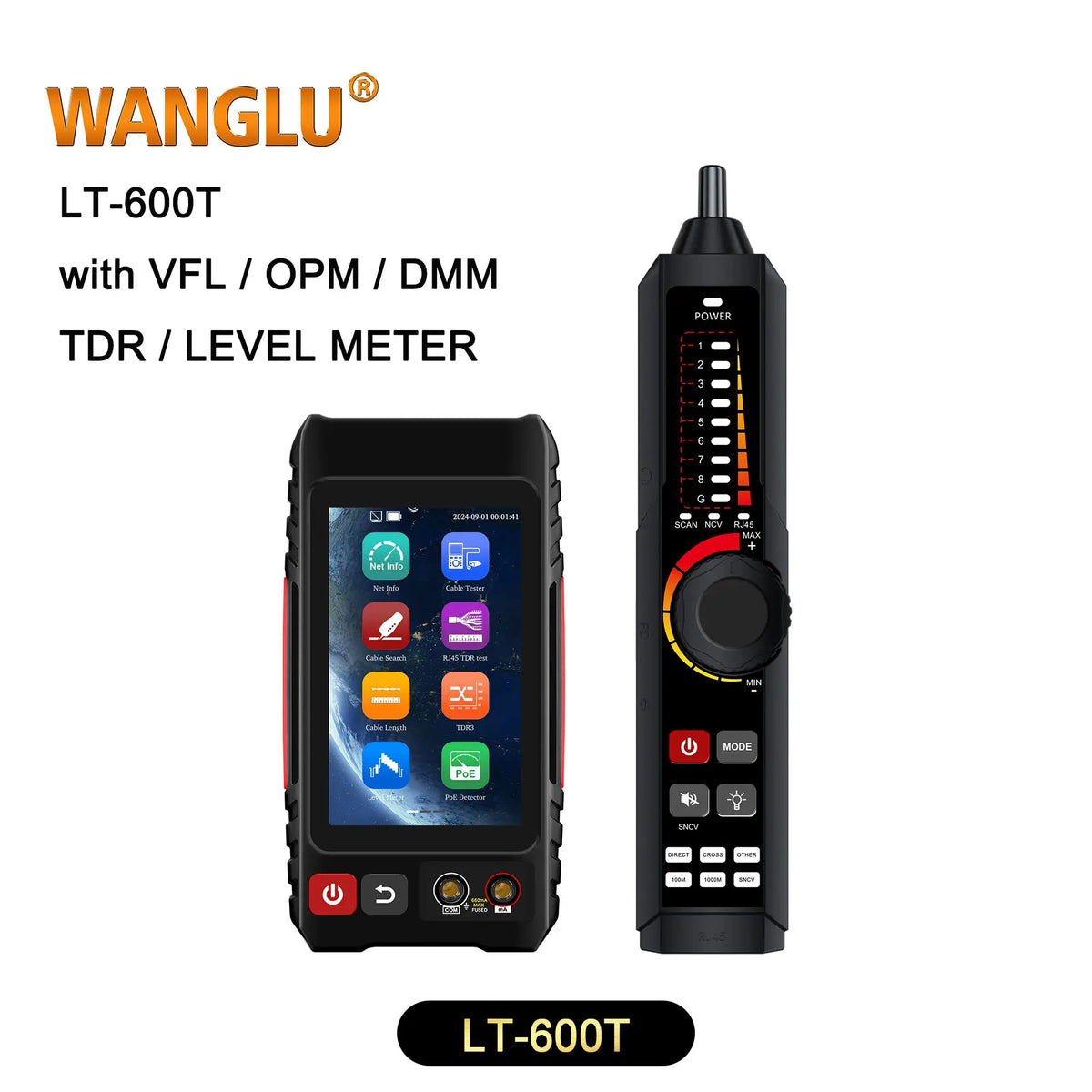

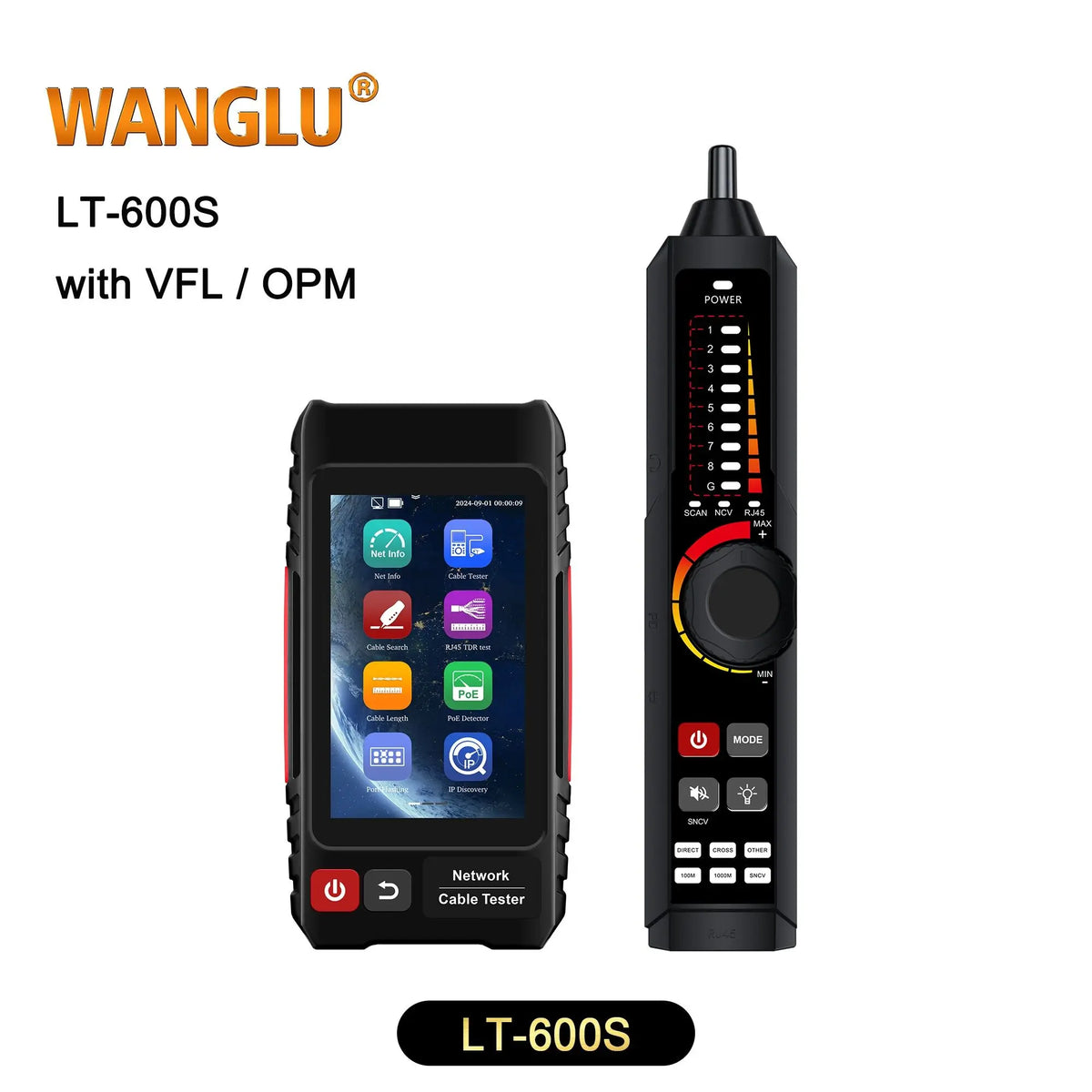

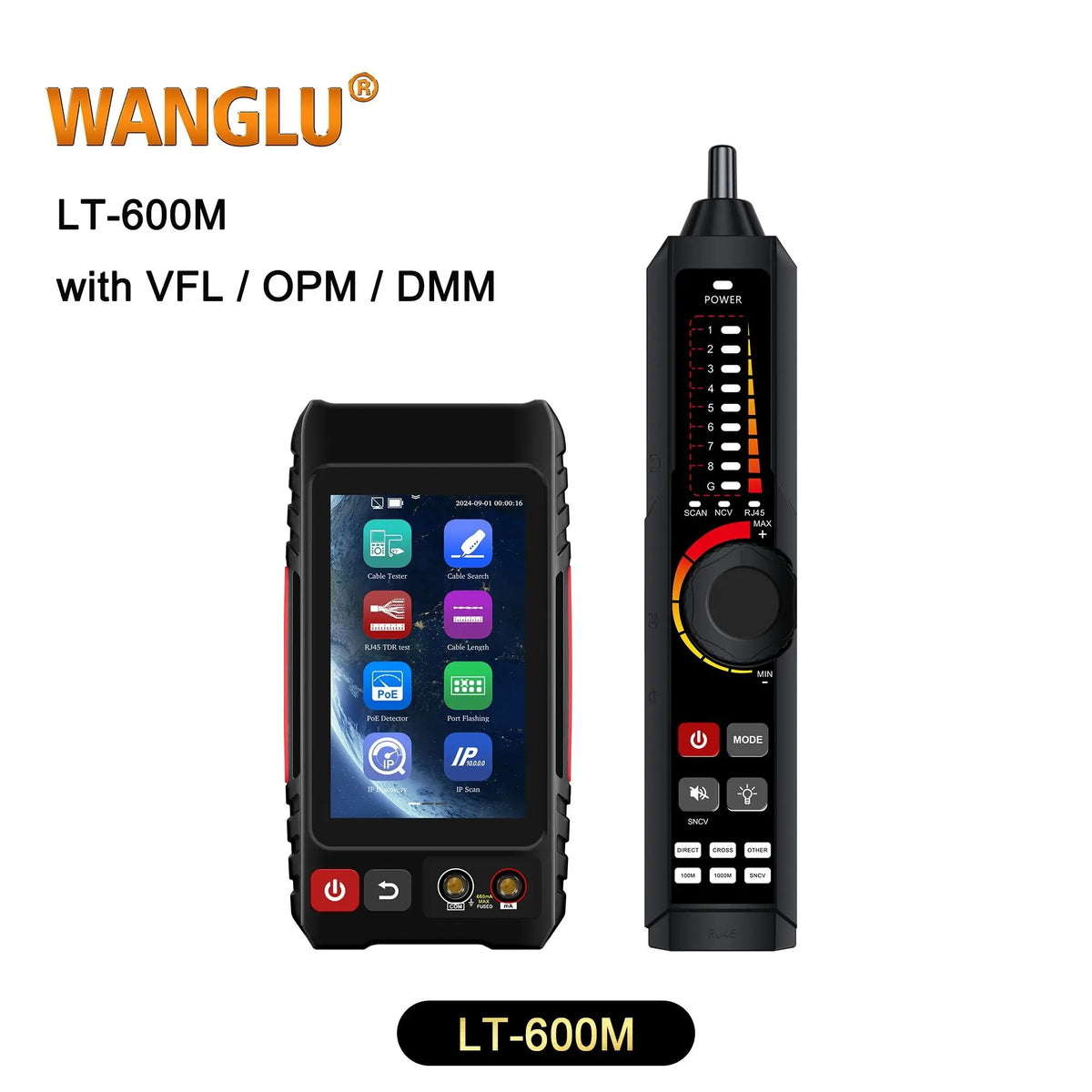

Model Number: LT-600/LT-600S/LT-600M/LT-600T
Network Tool: IP discovery, IP address scan, PING test, switch port LLDP/CDP detection, switch port flashing, PPPOE dial-up, FTP server
Optical Power Meter(Optional): Power range (dBm): -70 to +6 dBm
Origin: Mainland China
Package: Yes
PoE detection: Supports IEEE 802.3BT/AT/AF and non-standard protocol detection
RJ45 Cable TDR Test: Max 180 meters, test cable quality, sequence and attenuation
Receiver Battery: 3.7V 2000mAh lithium-ion rechargeable battery
TDR Cable Test (Optional): Max 1.2KM, test cable breakpoint and short point
Touch Screen: 4 inch 800*480 resolution
Type: Cable Tester
UTP Cable Continuity/Crimper Test: Network Cable
Visual Fault Locator (Optional): Detect fiber optic line breaks, cracks, bends, and other faults
WANGLU 4" Touch Screen Cable Length Tester PoE VFL OPM TDR Level Meter Test PING LLDP CDP Protocol in one Network Cabling Tool

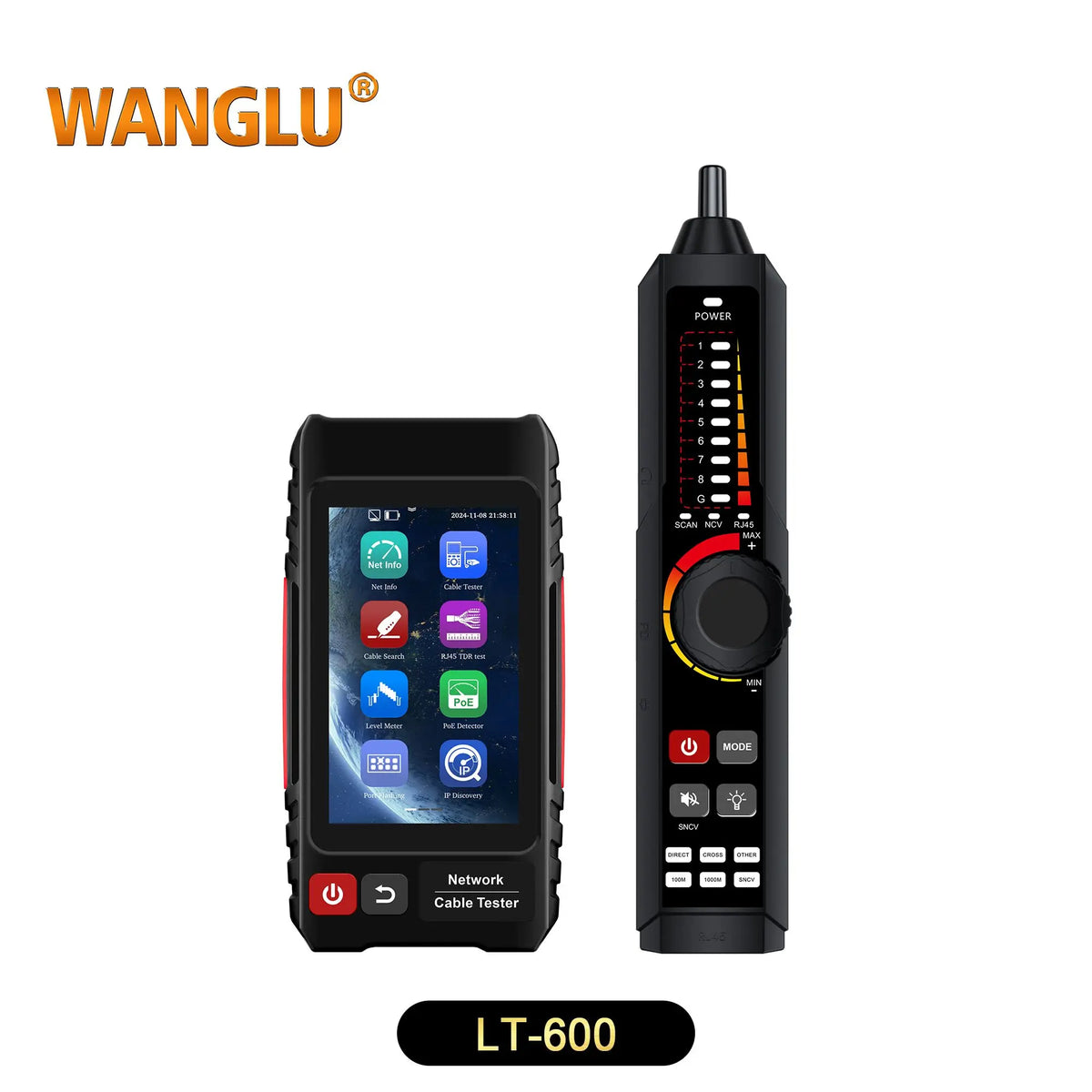

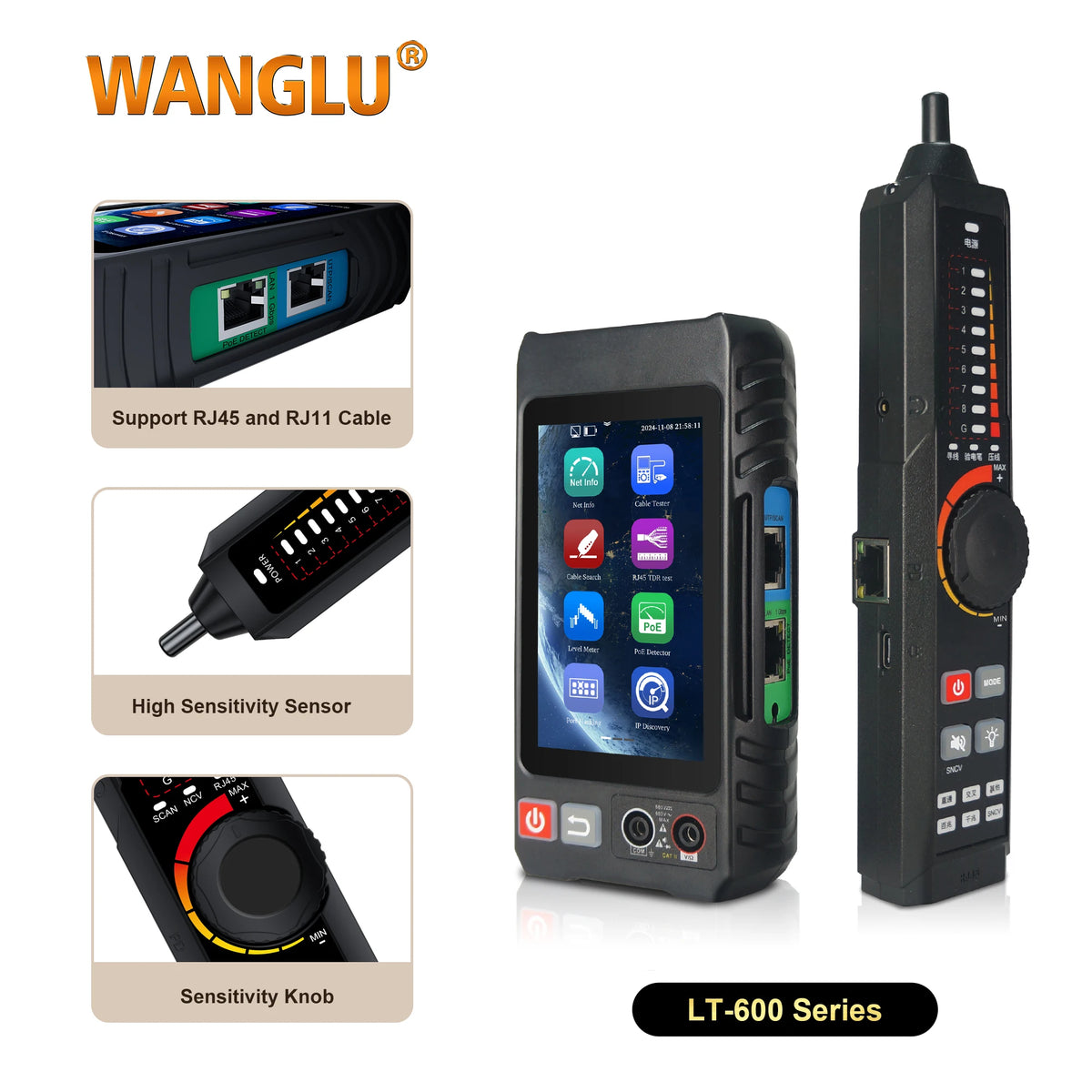

Model: LT-600/LT-600S/LT-600M/LT-600T
Application:
The LT-600 series multi-functional cable tester, it is a practical tool for installation and maintenance of technical personnel in security monitoring, communication wires, integrated wiring and other weak current systems.
Supporting the continuity and sequence of network cables testing, check the crimping of RJ45 connectors,cable tracer .
Additionally, it supports Time Domain Refractometer (TDR) to measure the length and attenuation of network cables. including PING testing, IP address scanning, Port flash, standard and non-standard PoE equipment detection, PoE power online test.
Features:

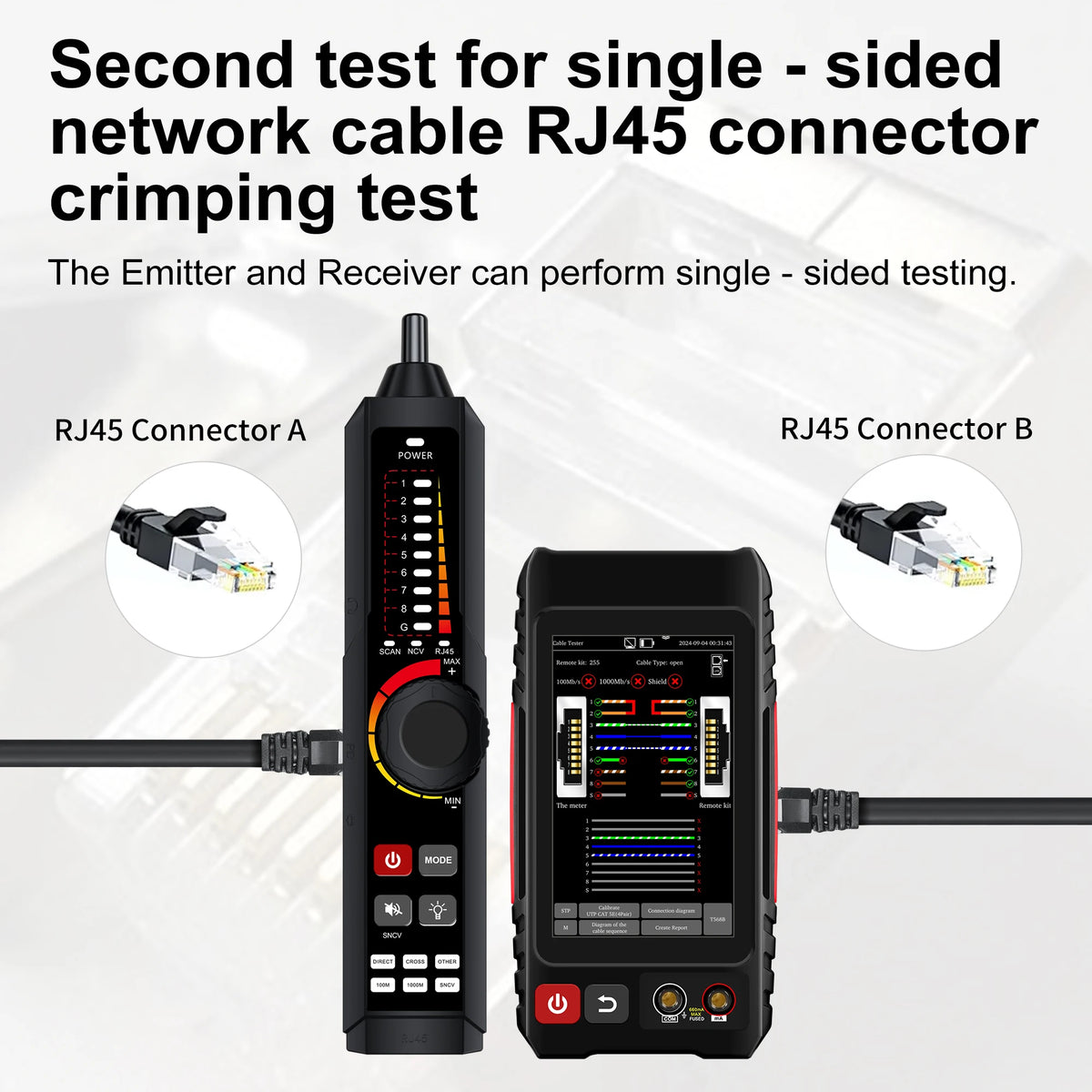

- The network cable continuity, crimping of RJ45 connector and network cable length testing are all integrated into one
- Cable tracer and UTP cable testing simultaneously, accurately locate the cables to avoid misjudgment.
- AC12-1000V, 50/60Hz inductive NCV scan function. sound and light dual alarms, supporting the distinction between live and neutral wires

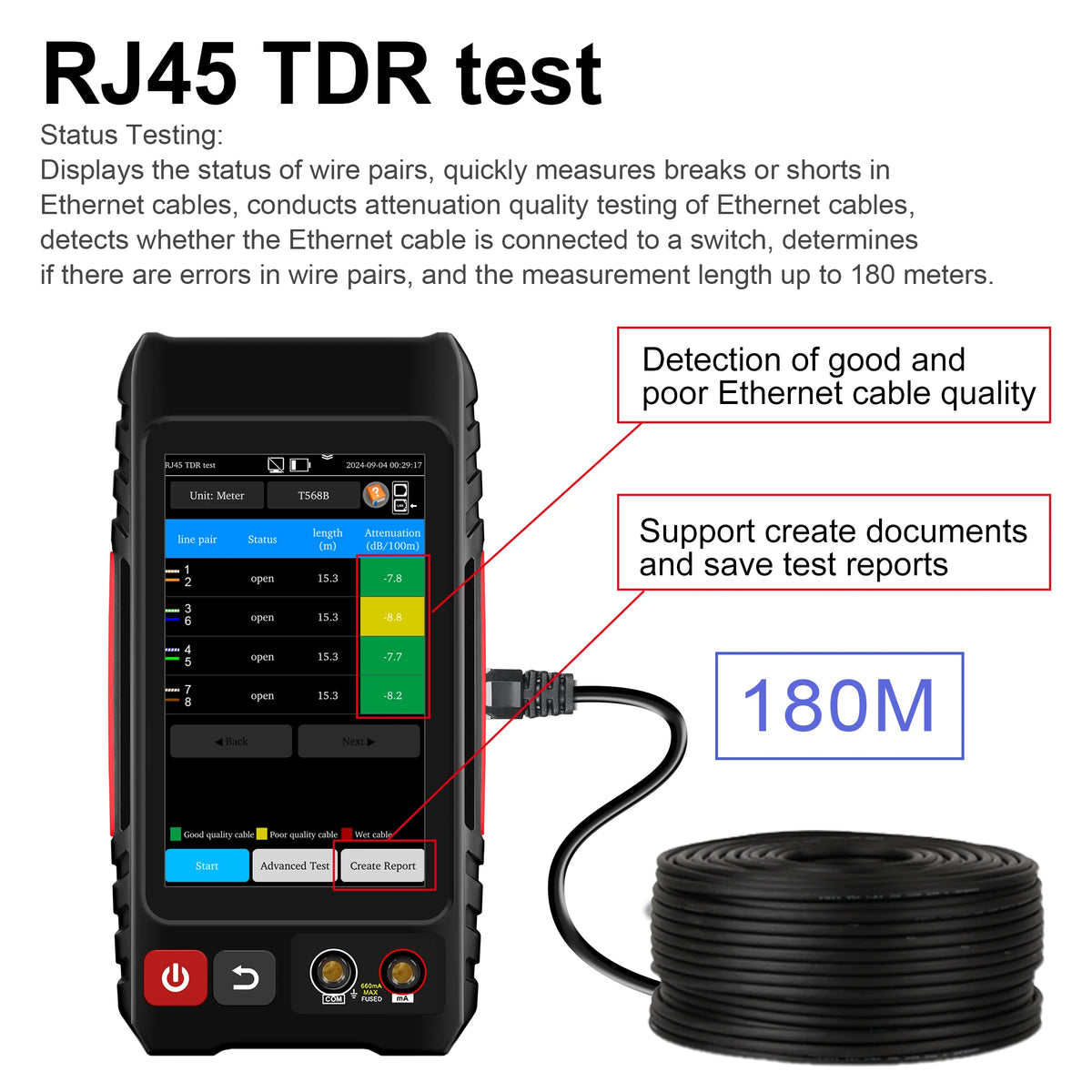

- RJ45 cable TDR test, test network cable’s breakpoints and short circuits, attenuation, reflectance, skew, etc.
- Cable length test, the maximum measurement length up to 3000 meters (only for Cable’s open test)

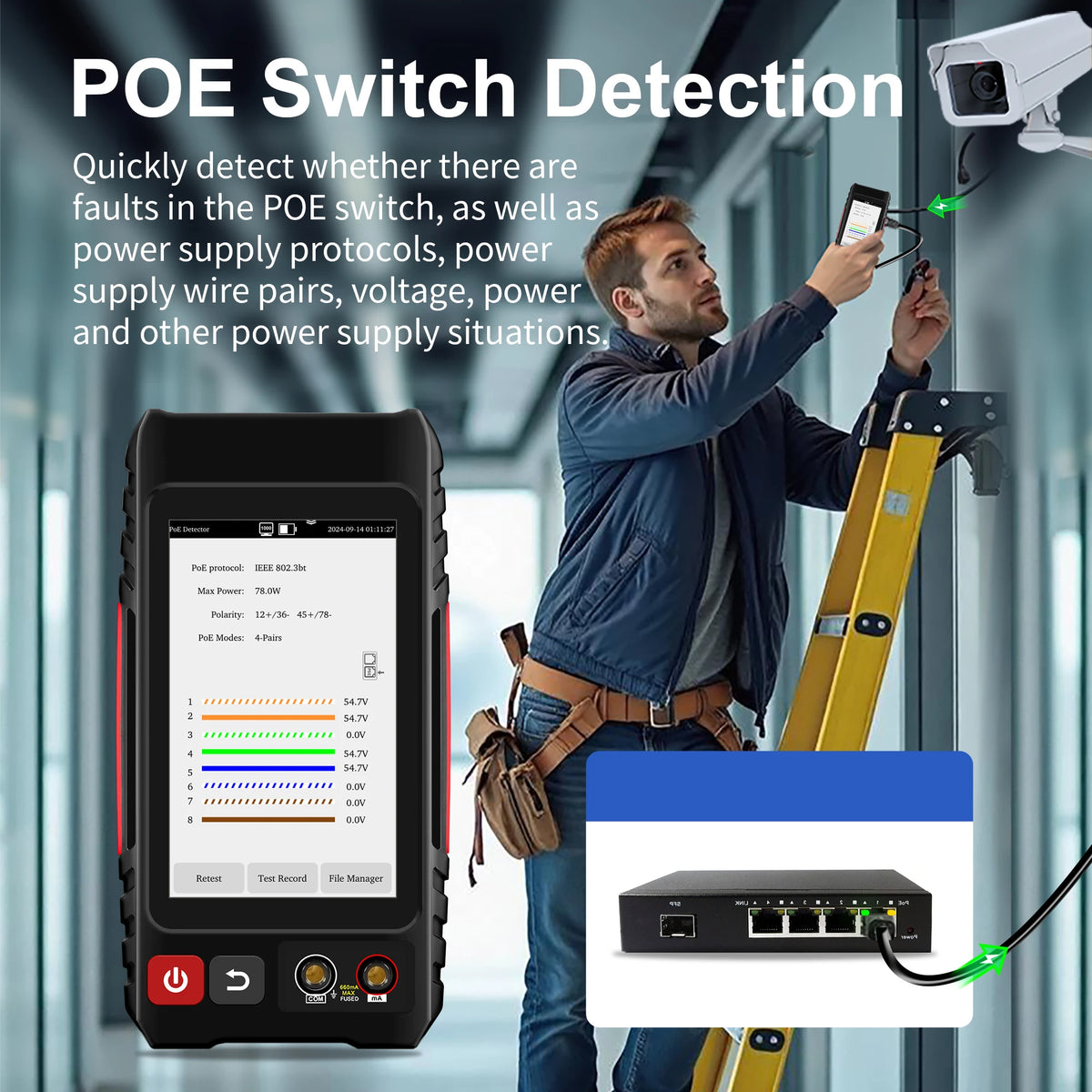

- POE detector, supporting IEEE802.3BT/AT/AF and non-standard protocol detection, power supply mode, power supply line pair detection, etc
- The FTP function enables users to copy test report and data via network FTP
- 1000M network port, it can perform network tests such as Ping, IP address conflict detection, PPPOE dial-up Internet access, route tracking, and LLDP/CDP switch port detection
- Professional TDR cable break-point and short-circuit testing, the maximum measurement length up to 1200 meters *
- Intelligent digital multimeter, auto-ranging voltage/ resistance/ continuity measurement with isolation protection*
- Optical power meter: Wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm. Power range (dBm): -70 to +6 dBm*
- Visual fault locator: Emits visible red laser to detect fiber optic line breaks, cracks, bends, and other faults.*
- TDR cable test: BNC cable, network cable, telephone cable, RVV cable, and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2 km*
- Level meter: Measures the peak level, sync level, and burst level of video signals*

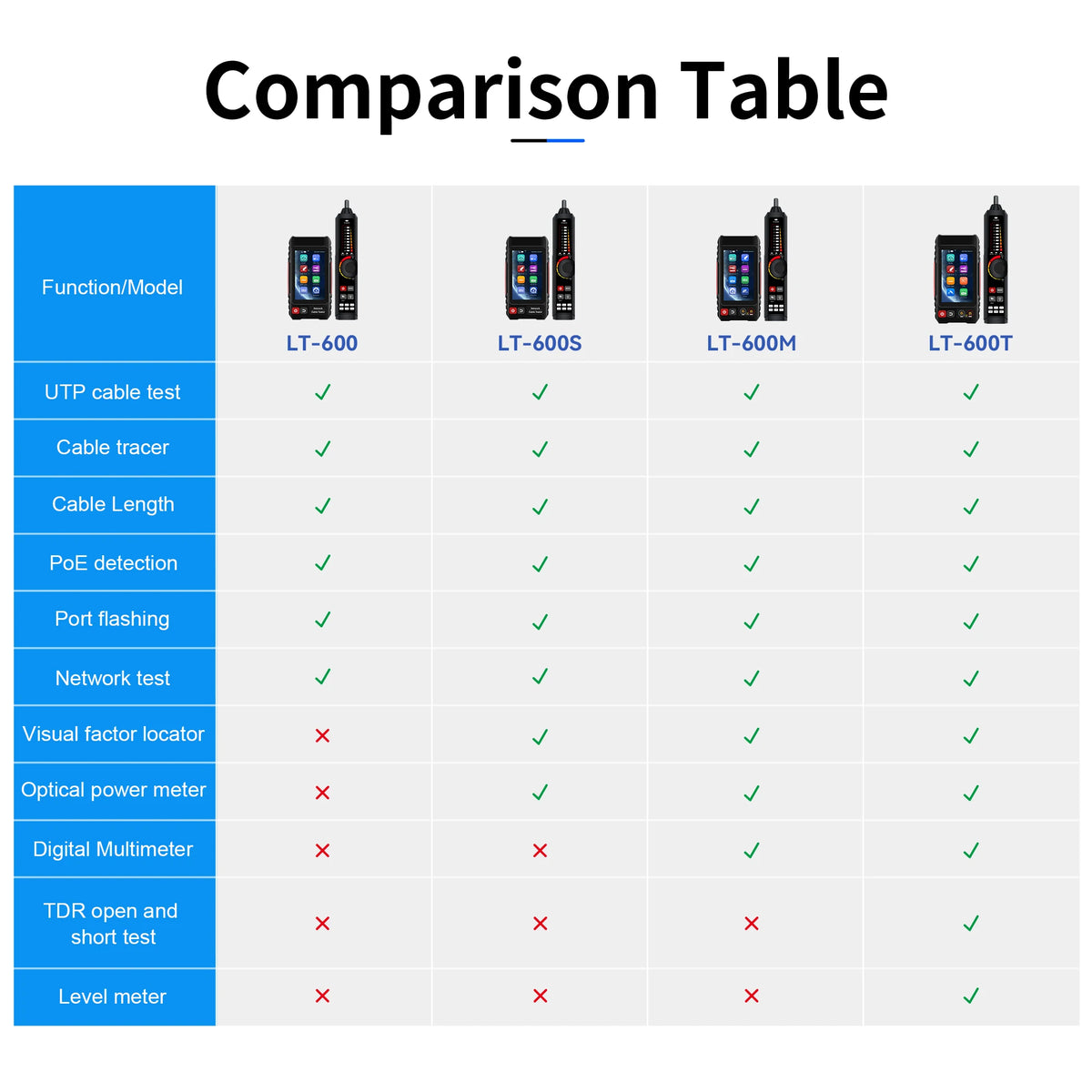

Note: The functions marked with an asterisk (*) represent certain models and are not standard features!
Note: The battery cable inside battery cabin should be disconnected for safety during transportation! Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected
