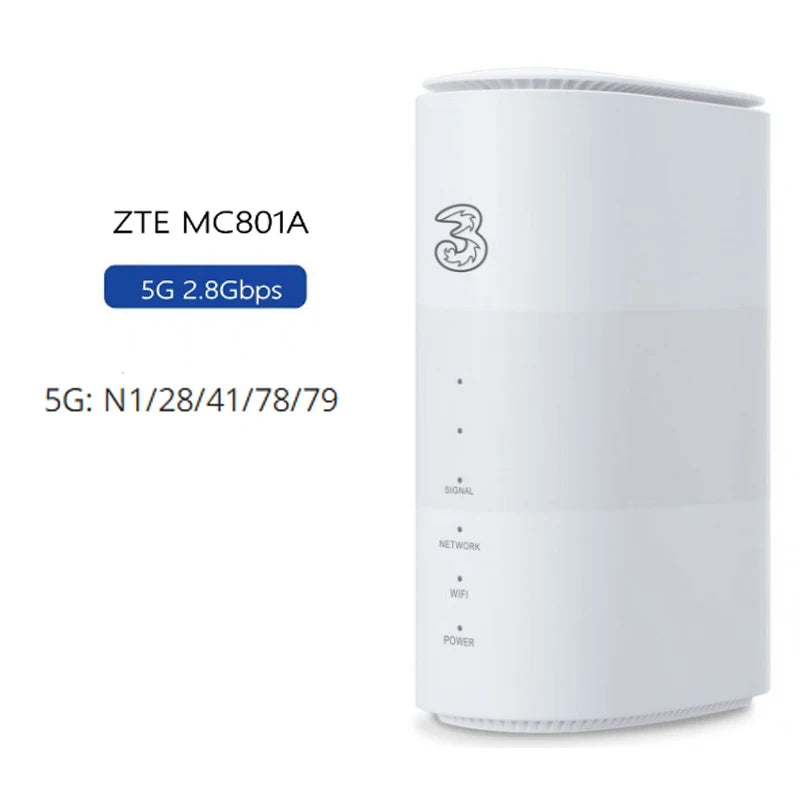

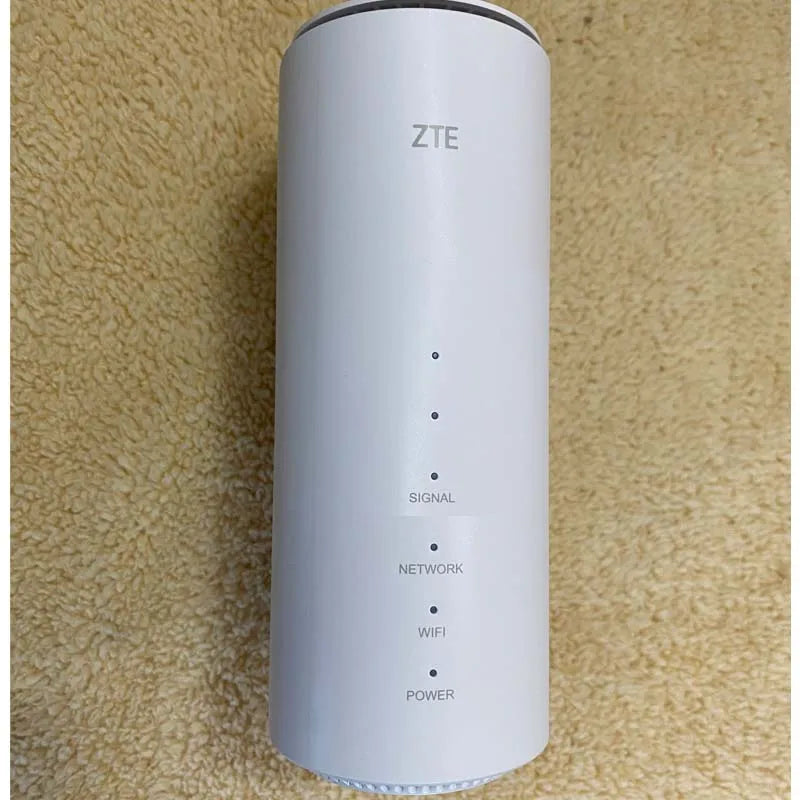

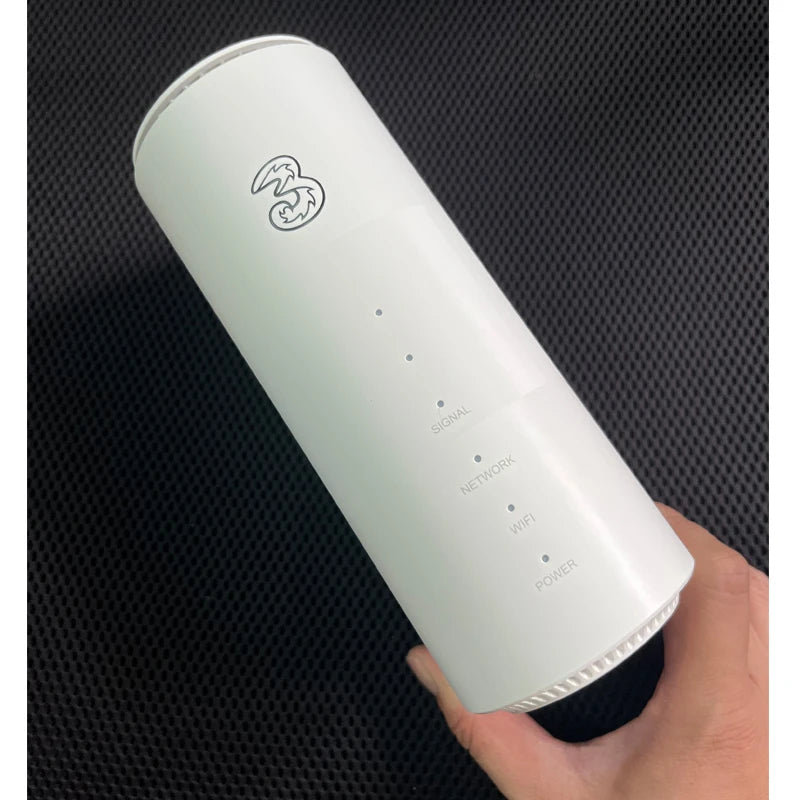

ZTE MC801A 5G Indoor WiFi 5G CPE Wi-Fi 6 AX3600 Wireless Modem SDX55 5G NSA SA 4G LTE CAT19 WiFi Router With Sim Card Slot

ZTE MC801A 5G Indoor WiFi 5G CPE Wi-Fi 6 AX3600 Wireless Modem SDX55 5G NSA SA 4G LTE CAT19 WiFi Router With Sim Card Slot

 (126 Reviews)
$2,674.00
$0.00 $2,674.00
Sold out
Default Title

local_shipping ORDER NOW AND RECEIVE IN 4-8 DAYS

View full details



SPECIFICATIONS

Antenna Type: Fixed

Brand Name: ZTE

Certification: CE

Frequency: 5 GHz

Frequency Band Class: Quad-Band

High-concerned chemical: none

Model Name: MC801A

Origin: Mainland China

Package: Yes

Recommended Uses: Business

Standards And Protocols: Wi-Fi 802.11g

Support Mesh: Not Supported

Telecomcableconnected: Yes

Type: WireLess

Wireless Communication Standard: 802.11.ac

Wireless transmission rate: 3000M

With Modem Function: No

ZTE MC801A 3LOGO or ZTE LOGO  Randomized delivery


ZTE MC801A 5G WiFi CPE Specifications：

* Category: 5G Router

* Communication Standard: 3GPP Release 15

* Chipset: Qualcomm 5G SDX55M

* CPU: Cortex A7 up to 1.4GHz

* Supported networks:

* Supported networks:

- Network technology: 5G NR, 3GPP Rel 15 5G NR SA & NSA option 3X
- Network frequencies: 5G: 41/77/78/79
- Support 4G LTE Band: 1/3/7/20/28/40 and 3G WCDMA Band: 1/8

* Data rate speeds:
- 5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
- LTE Category 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
- WCDMA: DC (up to 42Mbit/s)

* Modulation: DL 256QAM, UL 64QAM

* Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO

* WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s

* WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s

* WLAN encryption standards: WPA, WPA2, WPS

* Support up to 30 WiFi users simultaneously

* Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)

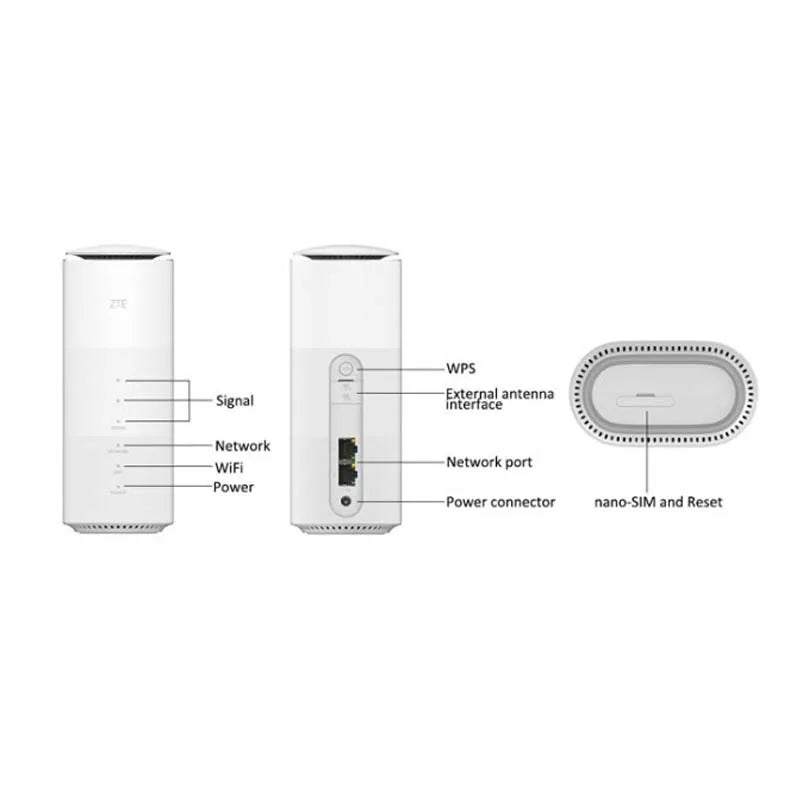

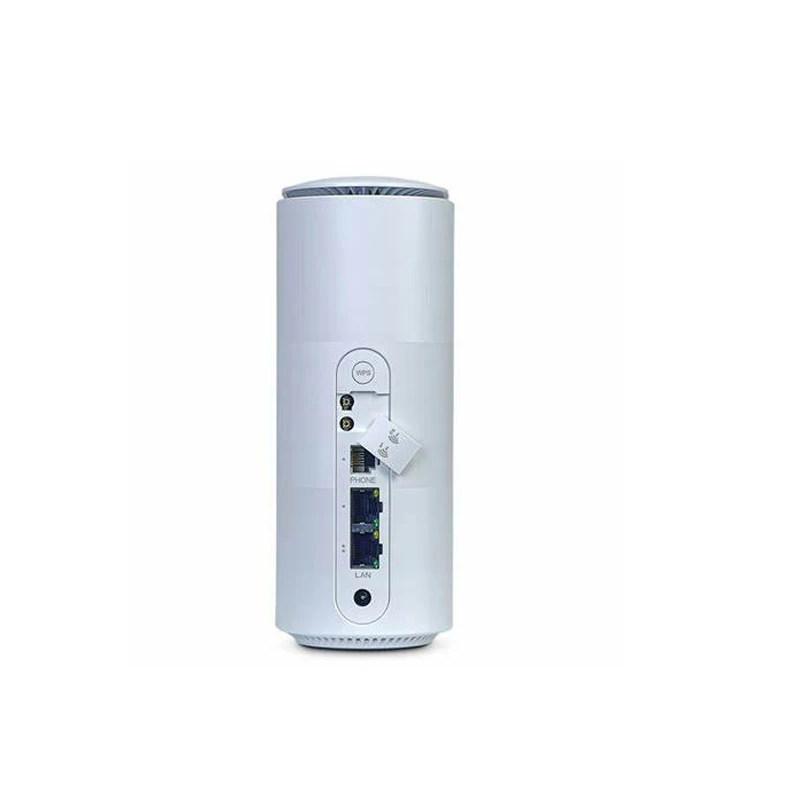

* Interface:
- SIM card slot(NANO SIM) x 1
- Tel port(RJ11) x 1 (CSFB)
- WAN/LAN GE port * 1
- 1GE port(RJ45) * 1
- DC port x 1

* Administration console: Full access from a web browser 192.168.0.1

* Power supply: 12V / 4A

* Button: Power button, reset button

* Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector(Buy ZTE MC801 5G external antenna)

* SIM Card size type: NANO SIM

* Support OS: Linux

* Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc.

* Dimension: 225 x 154.5 x 87 mm

* Interface:
- SIM card slot(NANO SIM) x 1
- Tel port(RJ11) x 1 (CSFB)
- WAN/LAN GE port * 1
- 1GE port(RJ45) * 1
- DC port x 1

* Administration console: Full access from a web browser 192.168.0.1

* Power supply: 12V / 4A

* Button: Power button, reset button

* Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector(Buy ZTE MC801 5G external antenna)

* SIM Card size type: NANO SIM

* Support OS: Linux

* Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc.

* Dimension: 225 x 154.5 x 87 mm

* Package content:

-Neutral packaging
- ZTE 5G Router MC801A x 1
- 12V power adapter x 1
- LAN cable
